TECAN Upgrade Arm FCA 8 Automated Liquid Handler Pipetting 8-Channel System
TECAN
Details
-
CategoryLiquid Handling
-
Dimension48.0in x 38.0in x 11.0in
-
Serialn/a
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
This TECAN Upgrade Arm, model 'Fluent FCA 8 30042146 00', is a high-precision component for automated liquid handling, particularly designed for enhancing the capabilities of existing Fluent systems, suitable for a 2018 design. The optional arm integrates a liquid-filled system, expertly controlled by syringe dilutors, offering 8 channels with independent Z-axis movements allowing for precise liquid level detection. The channels have adaptive spacing from 9 to 38 mm, catering to various labware formats with both fixed and disposable tip use. The system allows for broad liquid volume pipetting ranging from less than 1 µL to over 5 mL, configurable by tip type and syringe size. This item is in new condition and includes all components as shown in provided images.
Technician comment

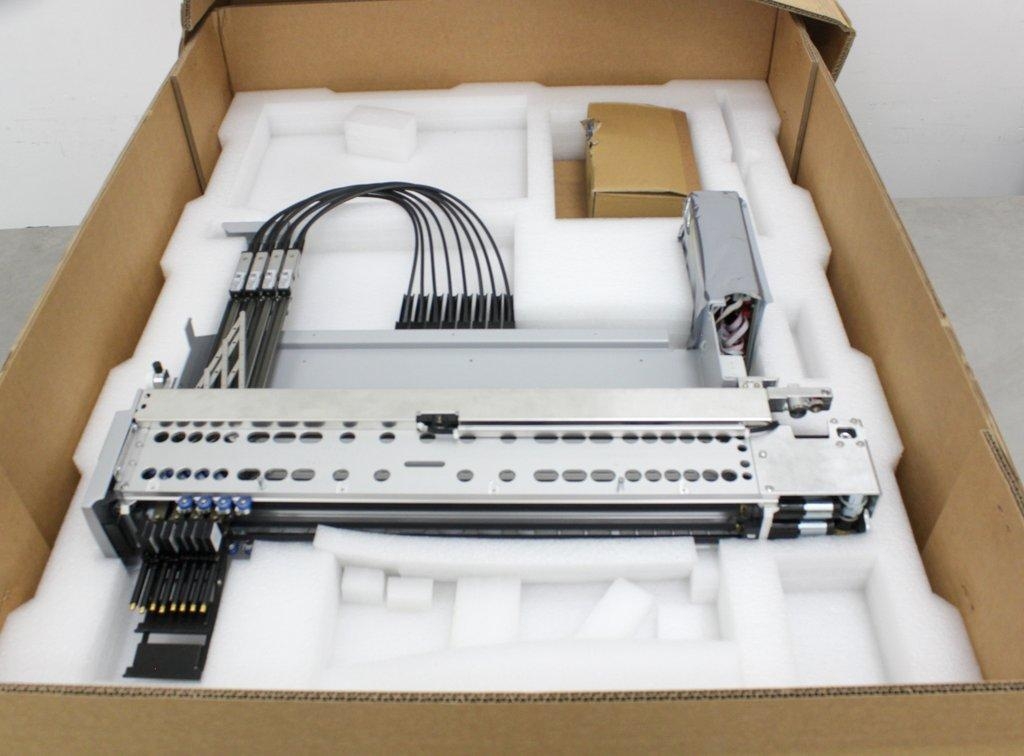

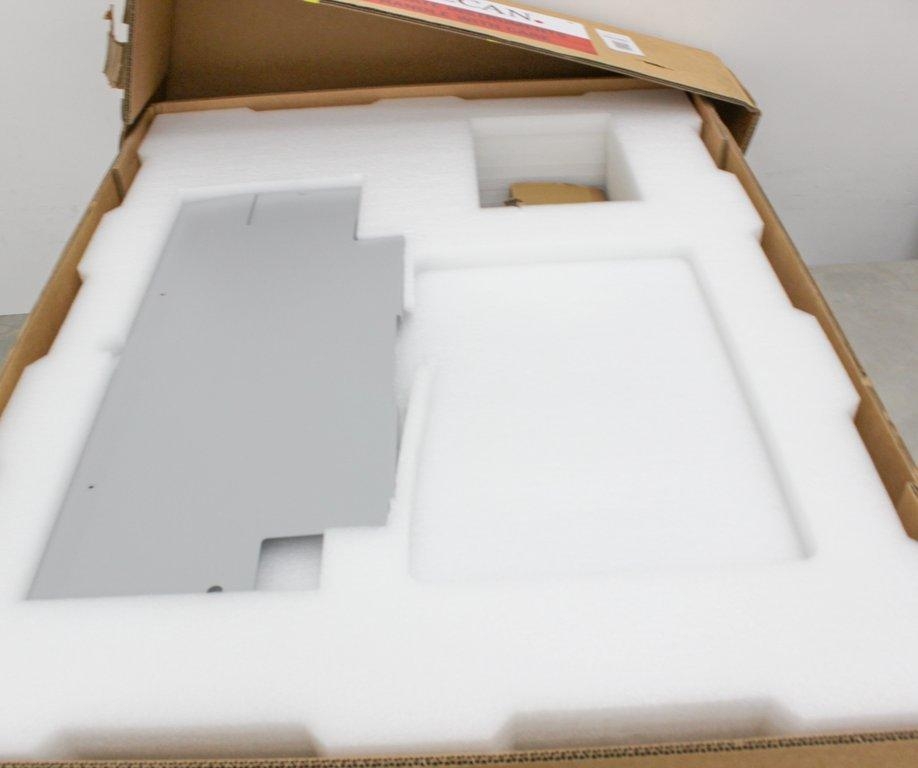

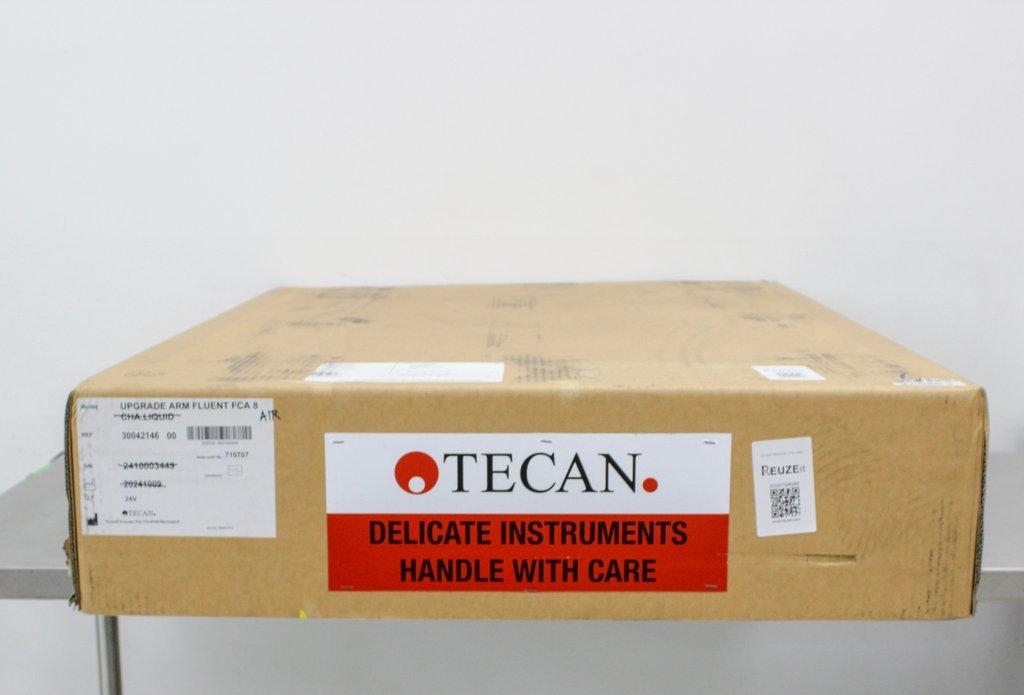

New in case. All in pictures is included. See photos
Key Features
- New condition TECAN Upgrade Arm for Fluent systems
- 8-channel liquid filling controlled via syringe dilutors
- Independent vertical movement for liquid detection
- Automatic spacing: 9-38 mm for multiple labware formats
- Versatile tip usage: fixed or disposable
- Pipetting volume range: <1 µL to >5 mL
Specifications
- Model: Upgrade arm fluent FCA 8 30042146 00
- Channel count: 8
- Z-axis independent movement
- Automatic spacing between channels: 9-38 mm
- Tip options: fixed and disposable
- Volume capacity: below 1 µL to over 5 mL
- Compatibility: 2018 Fluent design
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 57.6 lb x 45.6 lb x 13.2 lb
Metric: 146.3 cm x 115.82 cm x 33.53 cm
Harmonized Code
847989
Harmonized Code Details
The most likely harmonized code is 847989, which includes machinery and mechanical appliances not elsewhere specified or included. This classification encompasses specialized equipment used in laboratory automation such as liquid handling systems.
