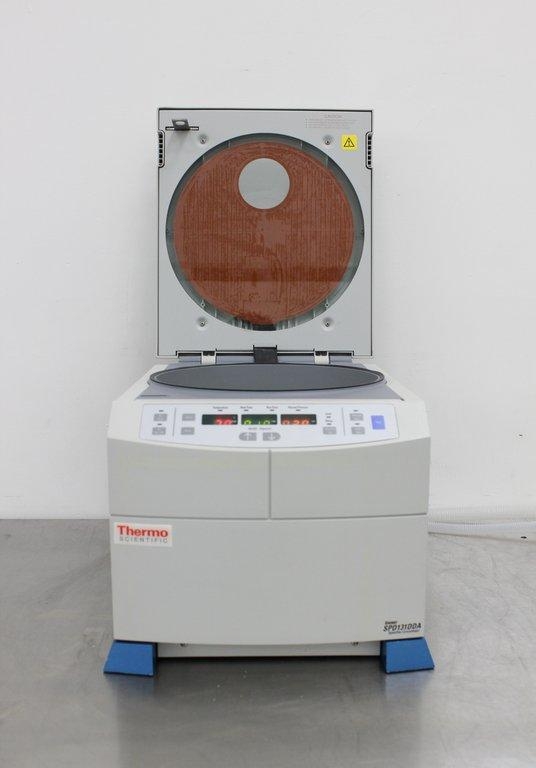

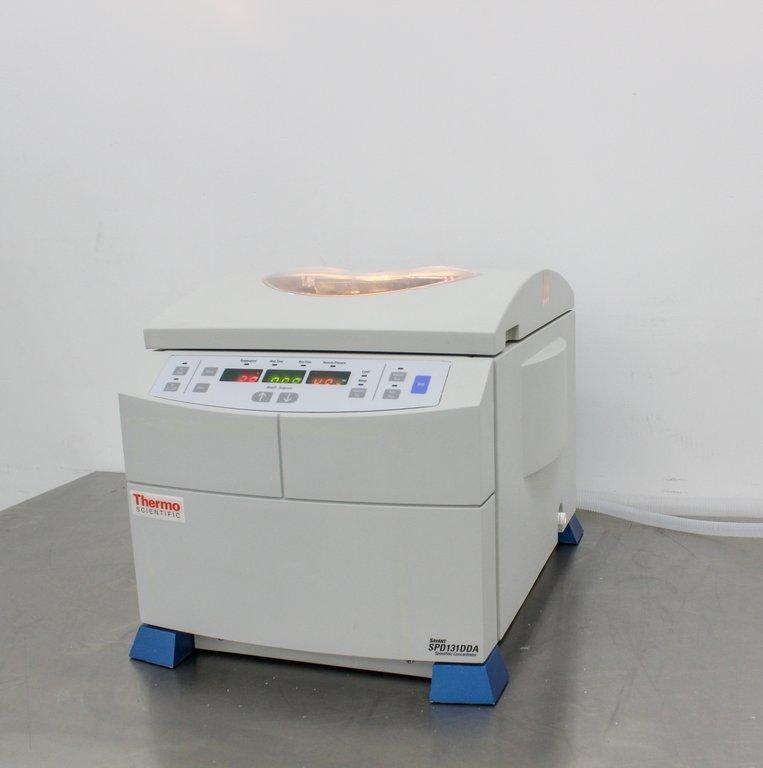

Thermo SPD131DDA Speed Vac Concentrator Chemical Resistant 45C-80C Control
Thermo Scientific/ Savant
Details
-
CategoryEvaporator
-
Dimension19.0in x 16.0in x 14.0in
-

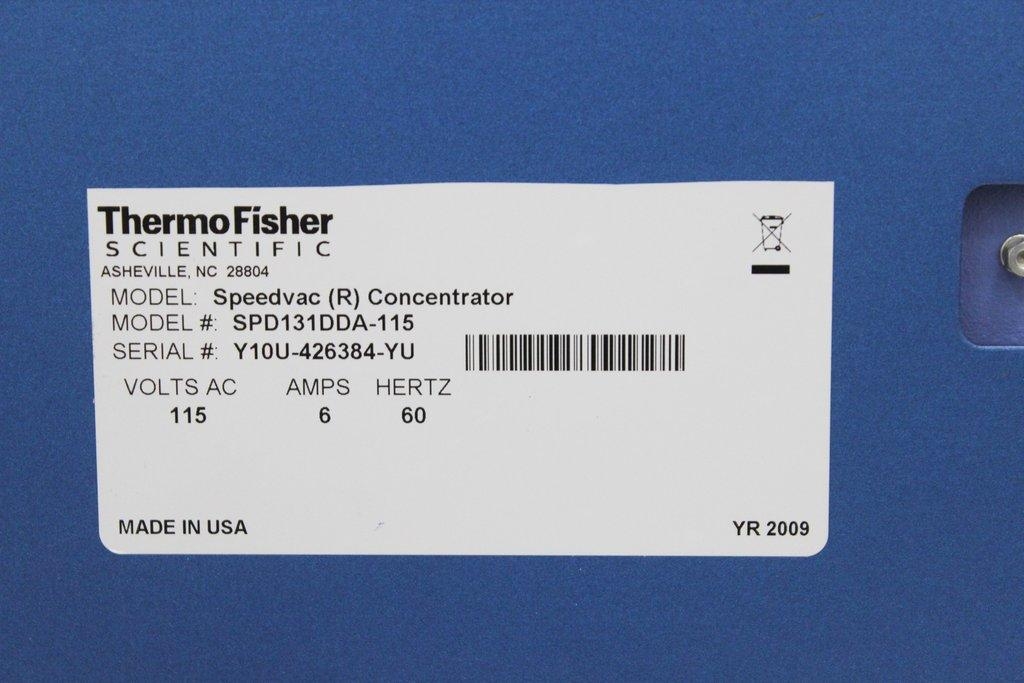

SerialY10U-426384-YU
-
Shipping TypeFedEx Ground
-
Manufacturing2009-01-01
-
Voltage / Hertz115V / 60Hz US
Description
The Thermo SPD131DDA SpeedVac Concentrator is a versatile evaporation system from 2009 designed for efficient removal of strong acids, bases, and aggressive organic solvents. Ideal for combinatorial chemistry, it features a modular design with digital programming, adjustable vacuum level, and dual chemical-resistant bleeder valves to prevent sample freezing. This compact unit is chemical-resistant with a heated glass cover for faster drying and a digital display for accurate parameter selection. Its deep PTFE-coated chamber ensures superior chemical resistance, making it suitable for small SpeedVac rotors and two-place microtiter plate rotors. The unit is verified to function as intended and has undergone function tests.
Technician comment

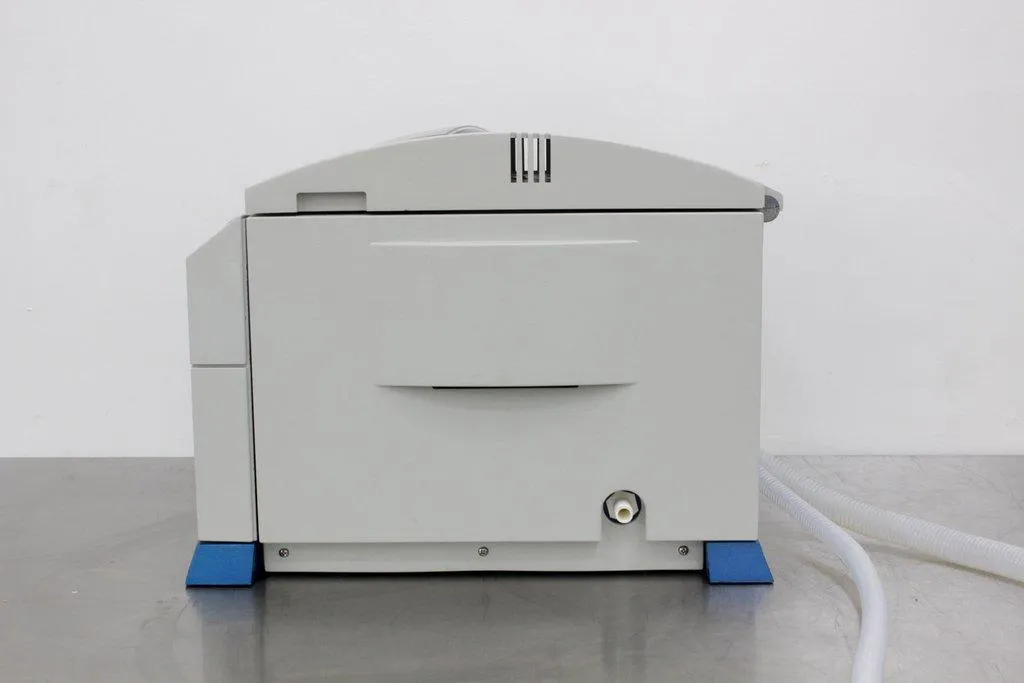

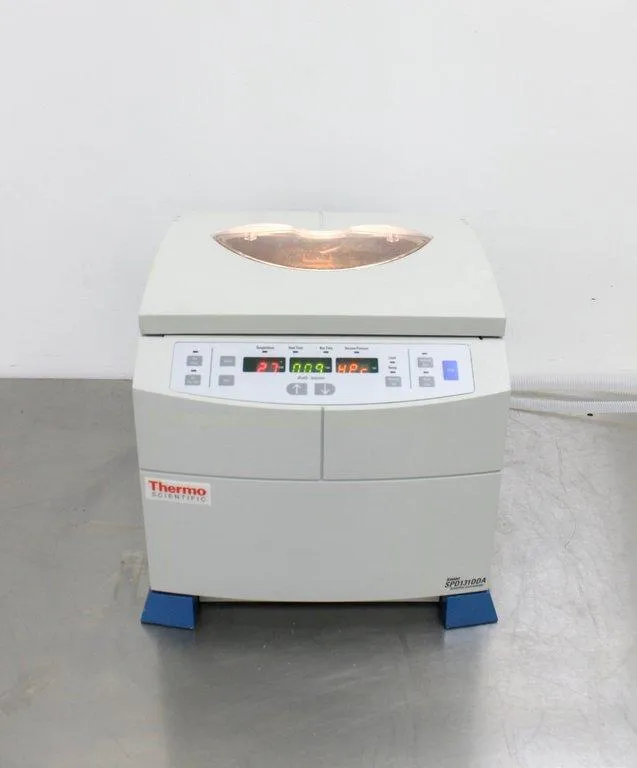

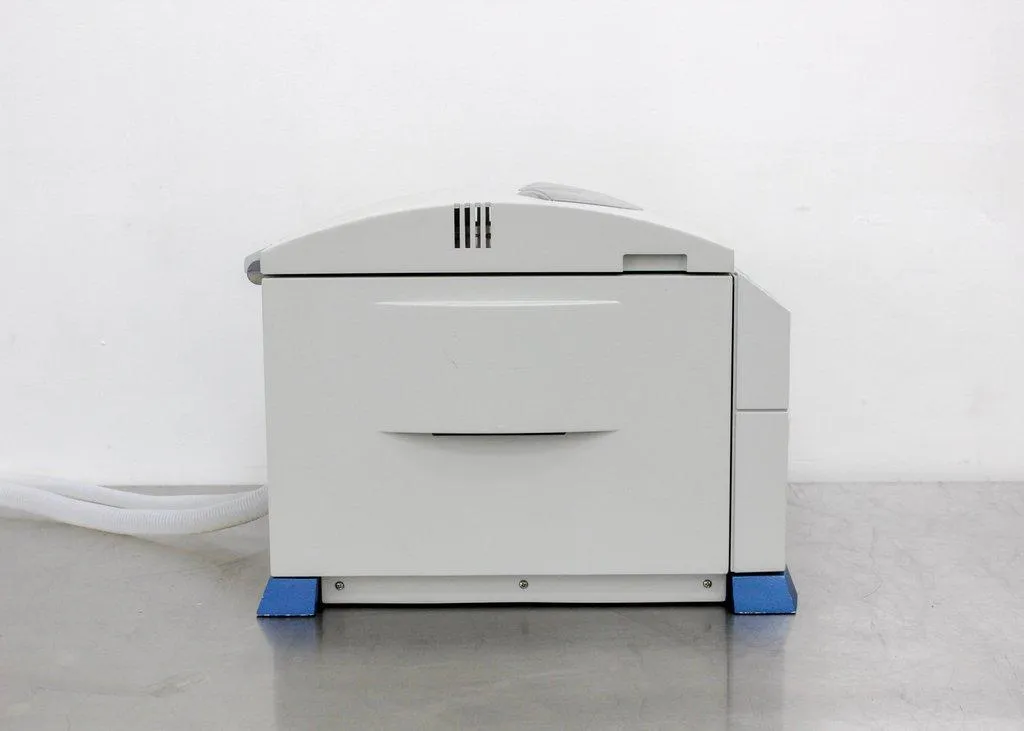

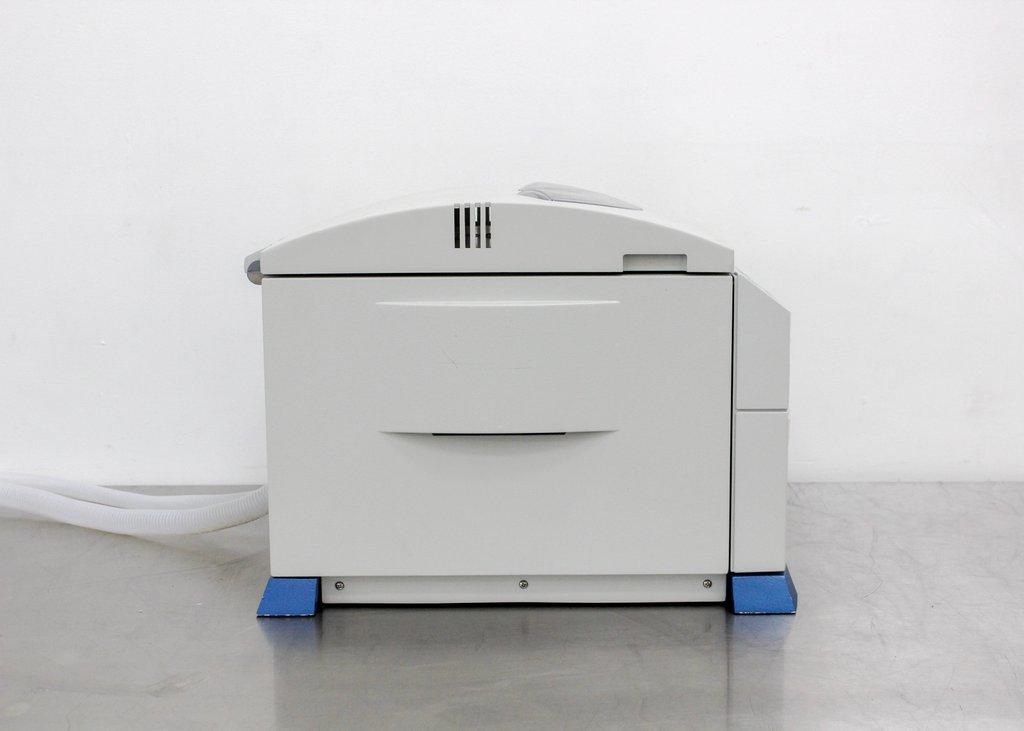

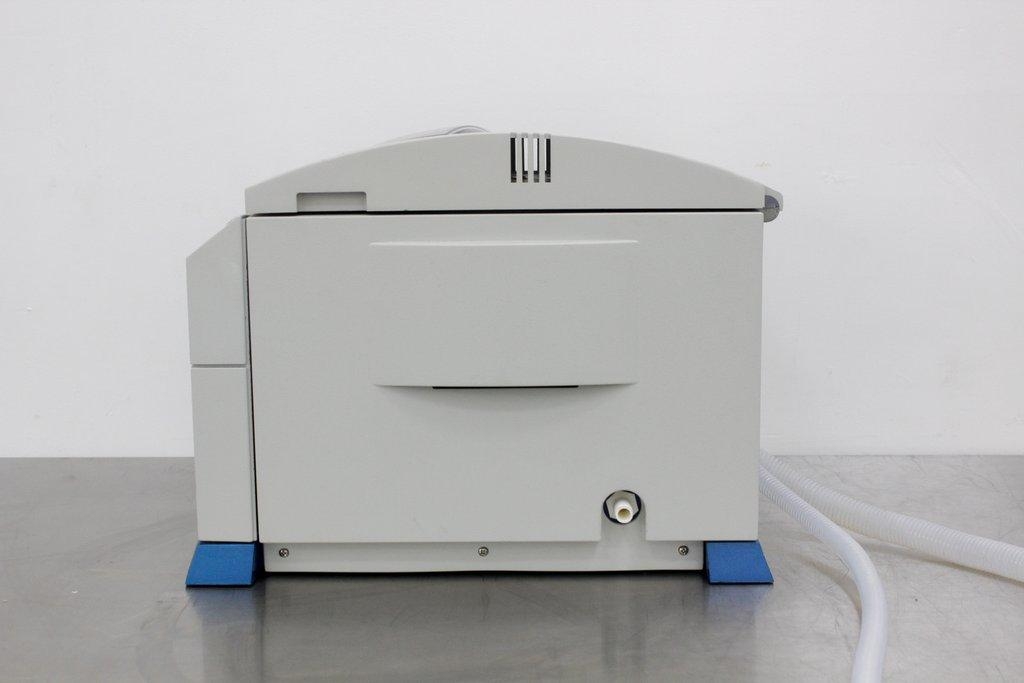

Has been tested to specifications. See photos
Key Features
- Adjustable vacuum for non-freezing operation
- Chemical-resistant dual automatic bleeder valves

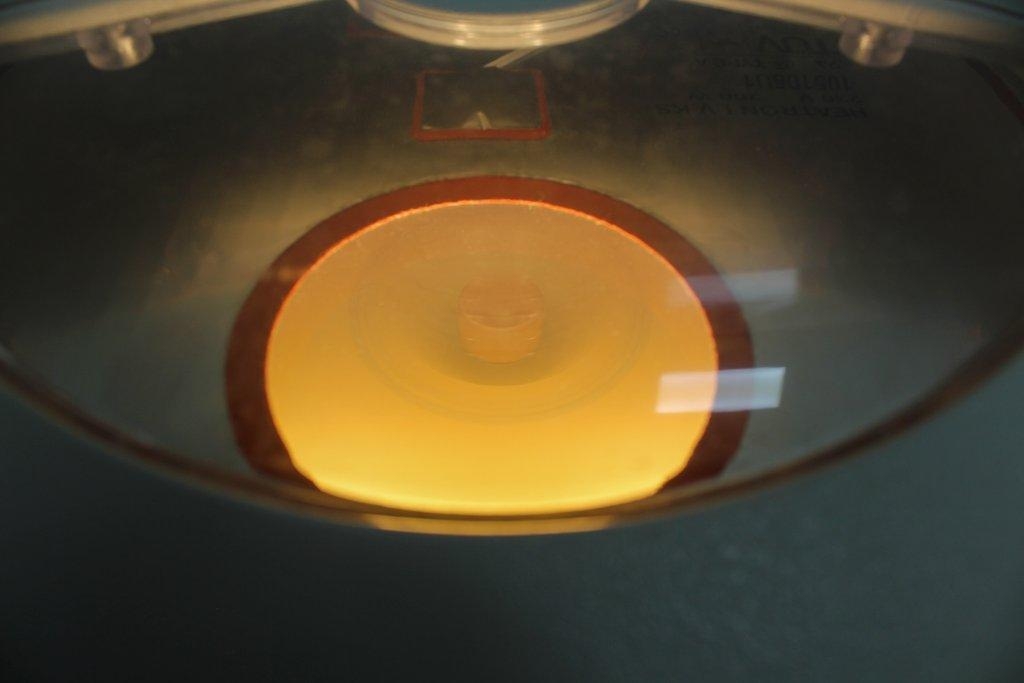

- Radiant heated glass cover for enhanced drying

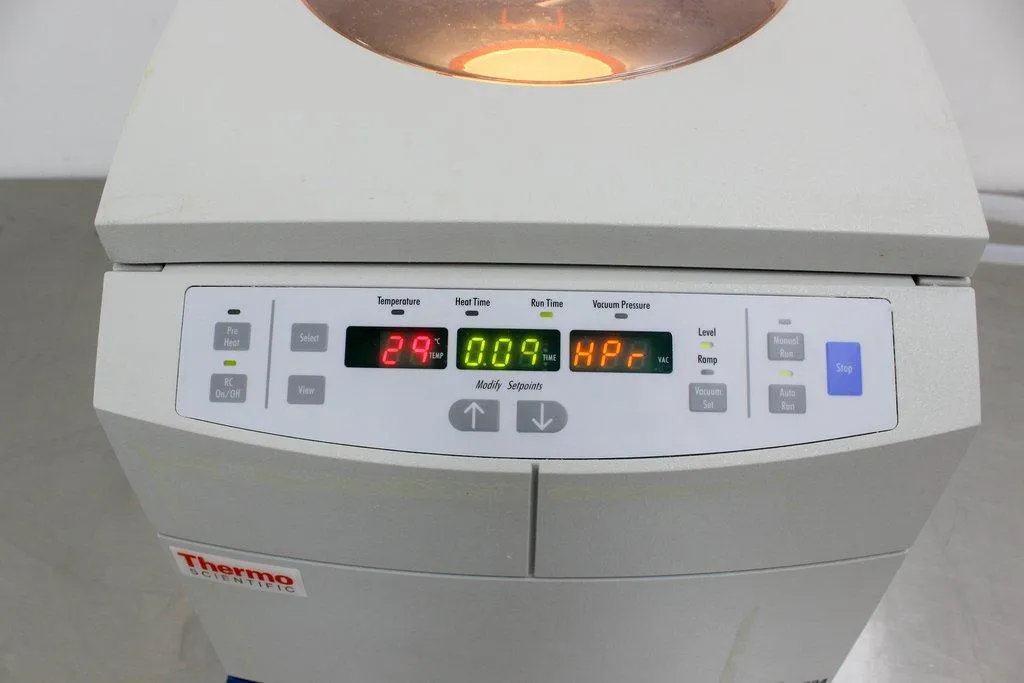

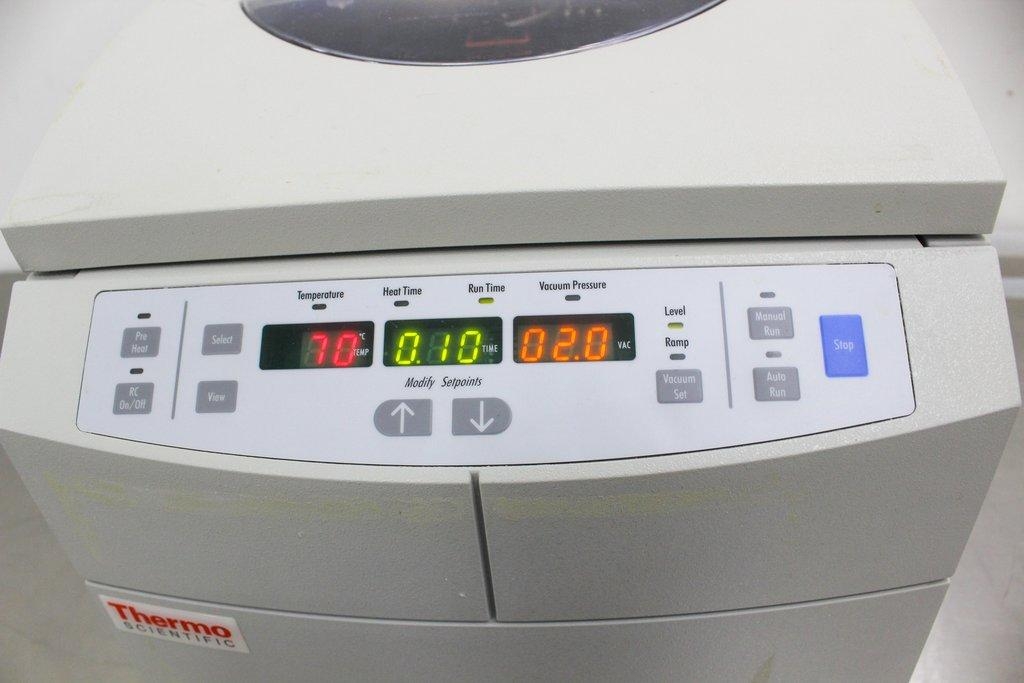

- Digital display with independent heat and run timers

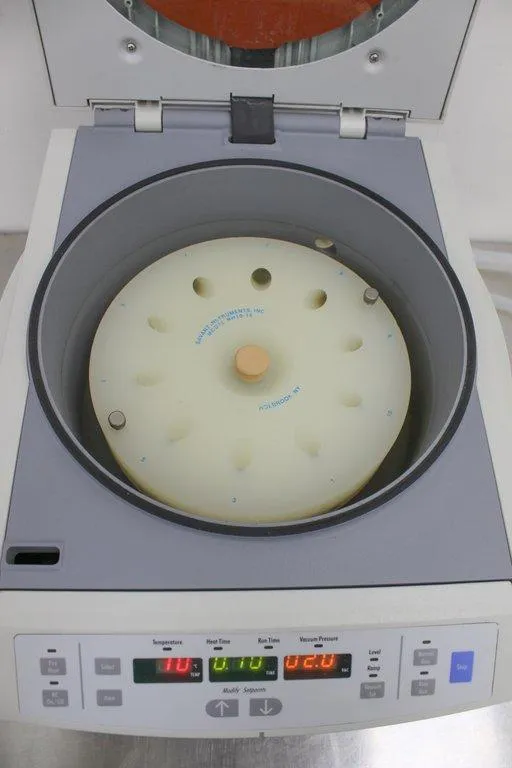

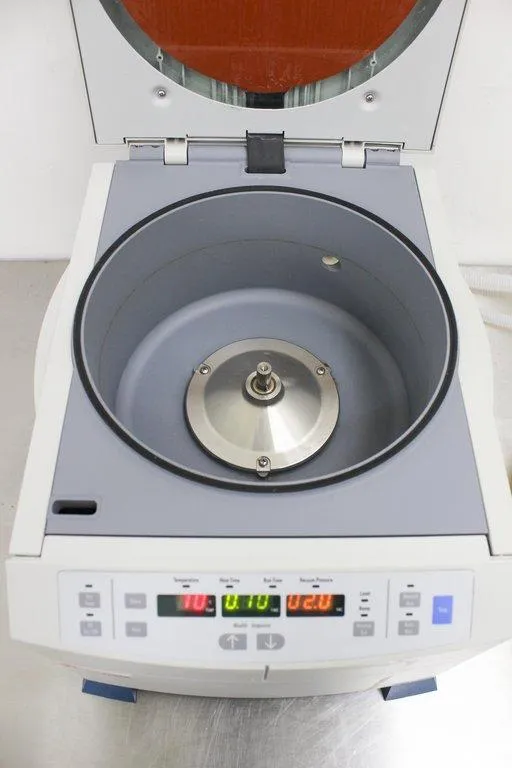

- PTFE-coated deep chamber for chemical resistance
Specifications
- Model: SPD131DDA
- Dual Bleeder Valve

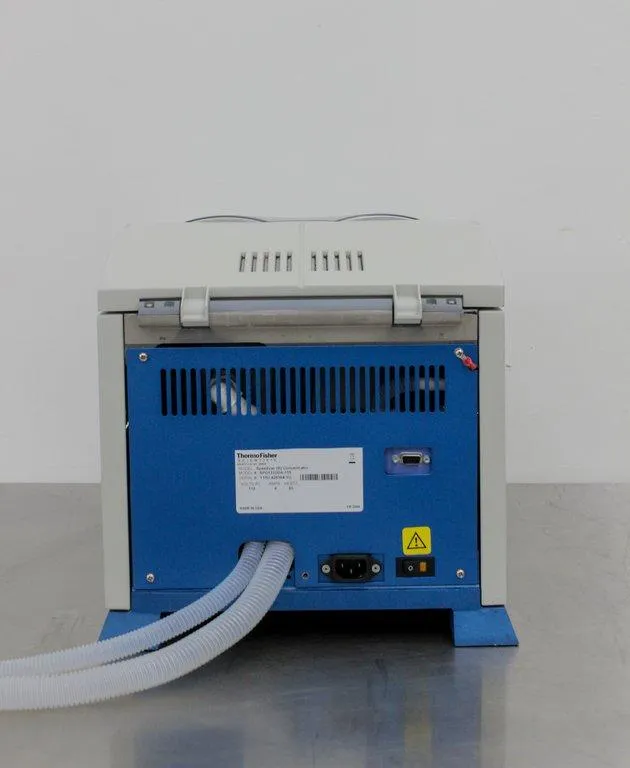

- Oversized Exhaust Port
- Two Infrared Chamber Lamps
- Heated Glass Standard Cover
- Vacuum Control: 0.1 to 20 torr
- PTFE Chamber Material
- Temperature Range: 45°C to 80°C
- Capacity: Holds 2 Deepwell, 6 Shallow Well Microplates
- Timer: 1 min. to 10 hr.
- Dimensions: 18 x 14 x 13 in. (45 x 36 x 33 cm)
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 19.2 lb x 16.8 lb
Metric: 57.91 cm x 48.77 cm x 42.67 cm
Harmonized Code
841939
Harmonized Code Details
841939 - Machinery, plant or laboratory equipment for treating materials by a process involving a change of temperature such as heating, cooking, roasting, distilling, rectifying, sterilizing, pasteurizing, steaming, drying, evaporating, vaporizing, condensing or cooling. This includes evaporators, which aligns with the equipment's function of solvent evaporation.
