GT Cranes Minidrel 20SL Crane Lift 2000kg Mobile Articulated Precision
GT Cranes
Details
-
CategoryFacility
-
Dimension37.0in x 110.0in x 91.0in
-
SerialG106
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

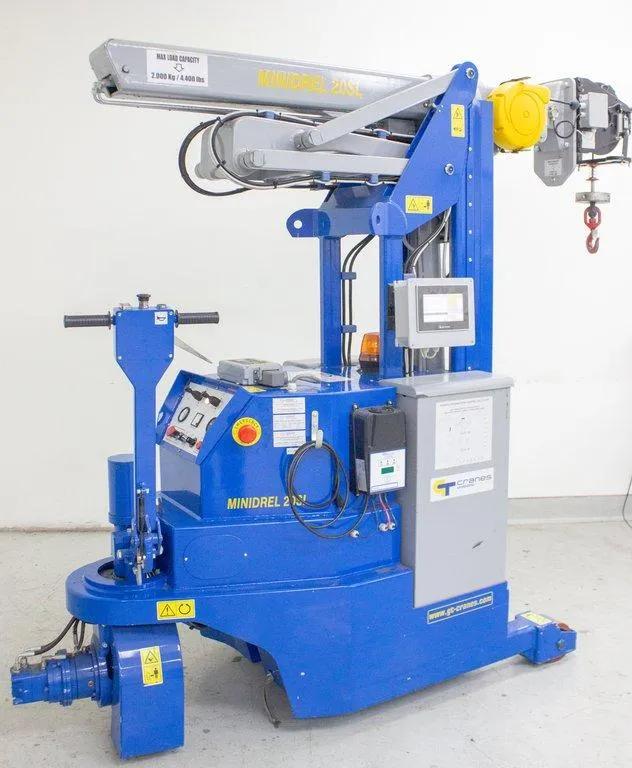

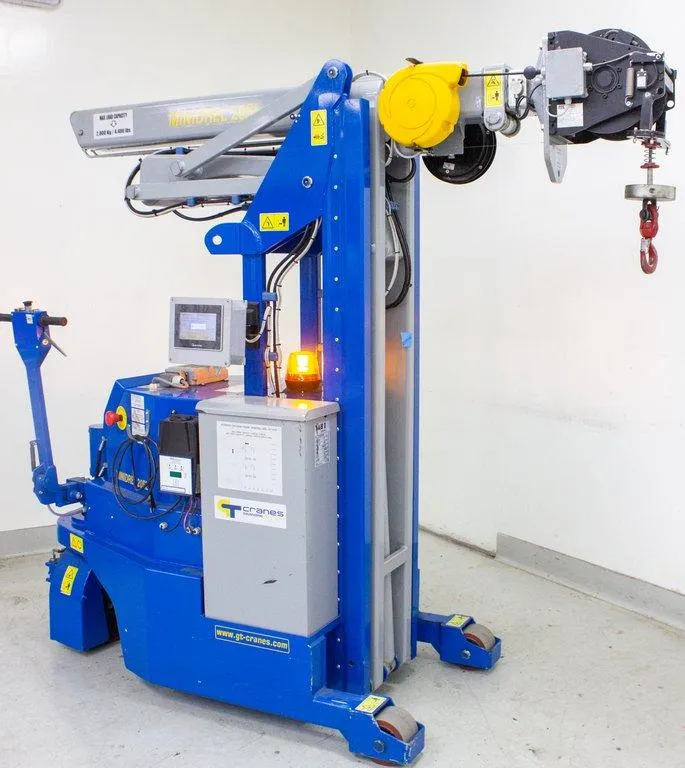

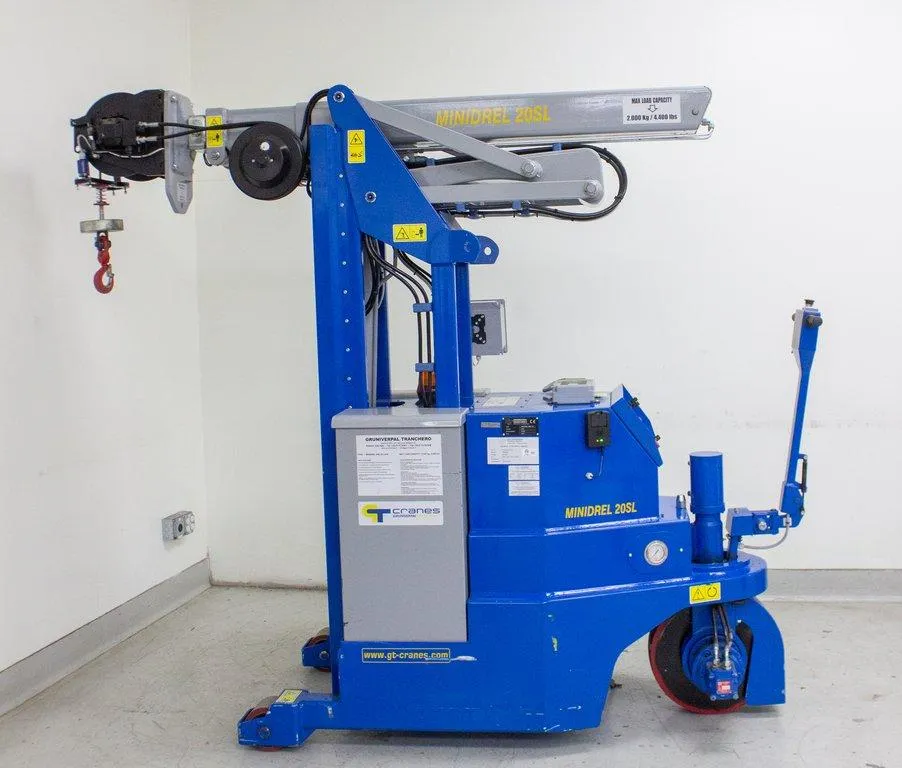

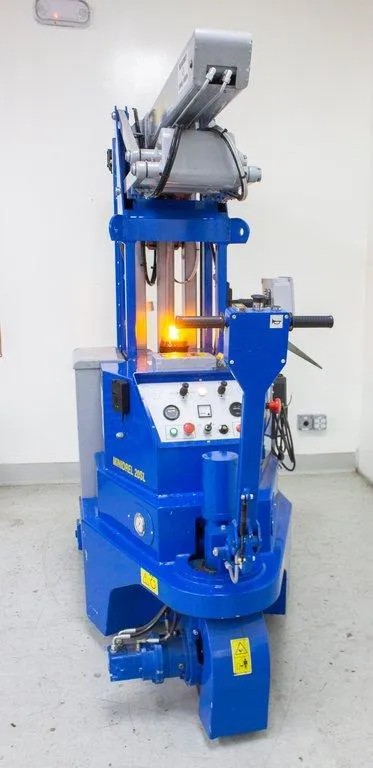

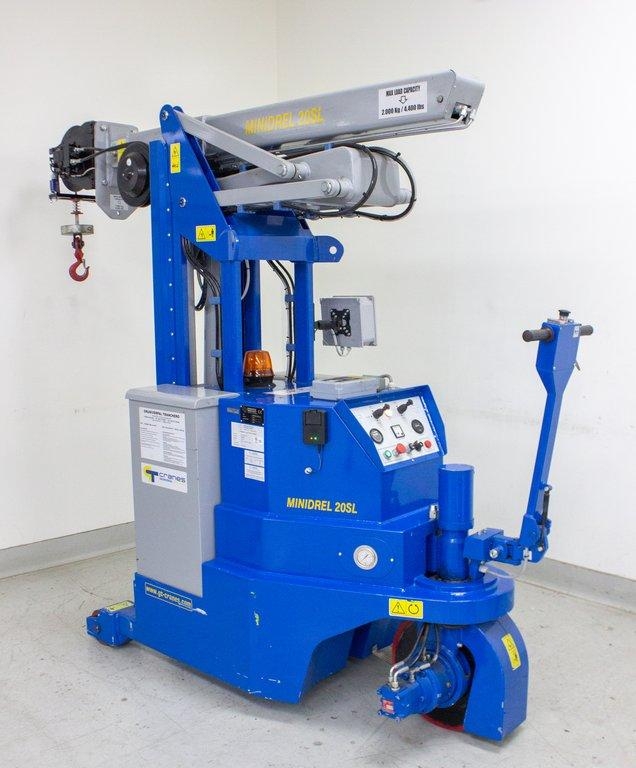

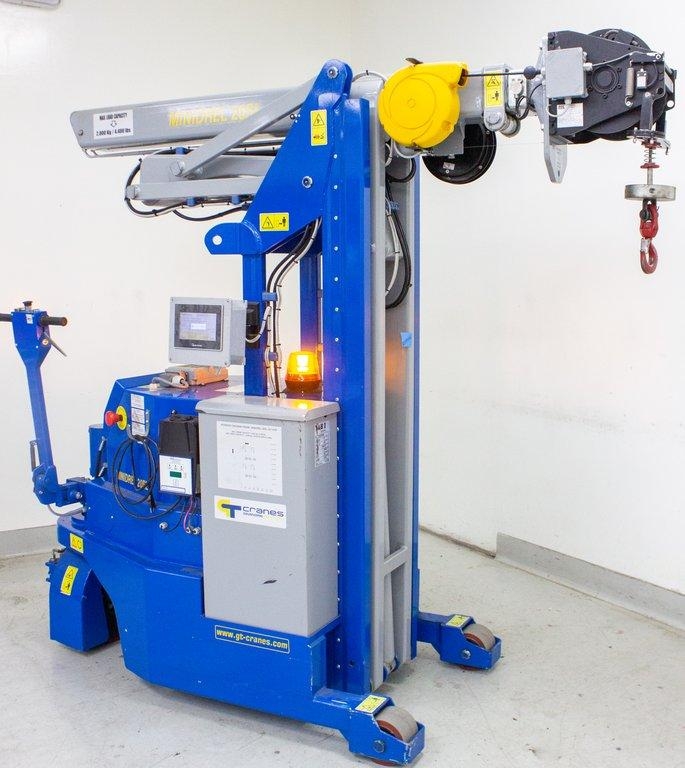

The GT Cranes Minidrel 20SL 3x1, manufactured in the USA, is a versatile and compact mobile crane designed for use in confined and limited spaces. With a lifting capacity of up to 2,000 kg, it is well-suited to the industrial, automotive, aerospace, and manufacturing industries for precise mold handling and heavy component positioning. Its small footprint allows activities in tight spaces like narrow aisles and between machinery. The crane features a 3x1 configuration for stability and maneuverability and is powered by an electric motor, making it eco-friendly and suitable for indoor environments. Operators benefit from precision handling with advanced controls, supporting a variety of industrial tasks where accuracy is paramount. Recognized for its reliability and durability, its light weight ensures ease of relocation and improved operational efficiency in challenging environments.
Key Features
- Lifting capacity up to 2,000 kg
- Operate in confined spaces
- Electric motor-powered
- 3x1 wheel configuration
- Eco-friendly, low noise levels

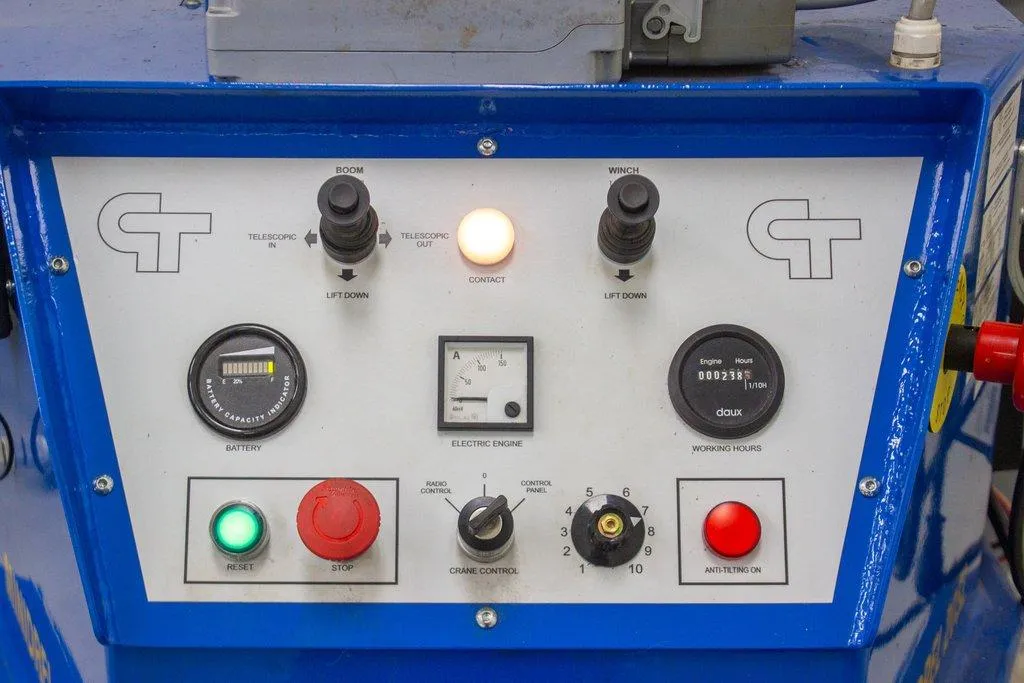

- Precision handling with advanced controls
- Versatile use across industries
Specifications
- Maximum load capacity: 2,000 kg
- Minimum hook height: 1,800 mm
- Maximum hook height: 3,600 mm
- Telescopic extension: up to 1,500 mm
- Capacity at max telescopic extension: 225 kg
- Wheelbase: 1,500 mm
- Front wheels material: Polyurethane
- Electric motor power: 3.0 KW, 24 V
- Battery charger: 360 Ah, on-board
- Overloading safety system
- Proportional control of movements
- Made to 2006/42 CE standards
Weight
Imperial: 9600.0 Pounds
Metric: 4354.48 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 132.0 lb x 109.2 lb
Metric: 112.78 cm x 335.28 cm x 277.37 cm
Harmonized Code
84262000
Harmonized Code Details
Harmonized code 84262000 corresponds to 'Tower cranes'. This code is appropriate for the GT Cranes Minidrel 20SL as it pertains to equipment used for hoisting and transporting heavy loads, aligned with the crane's primary function.
