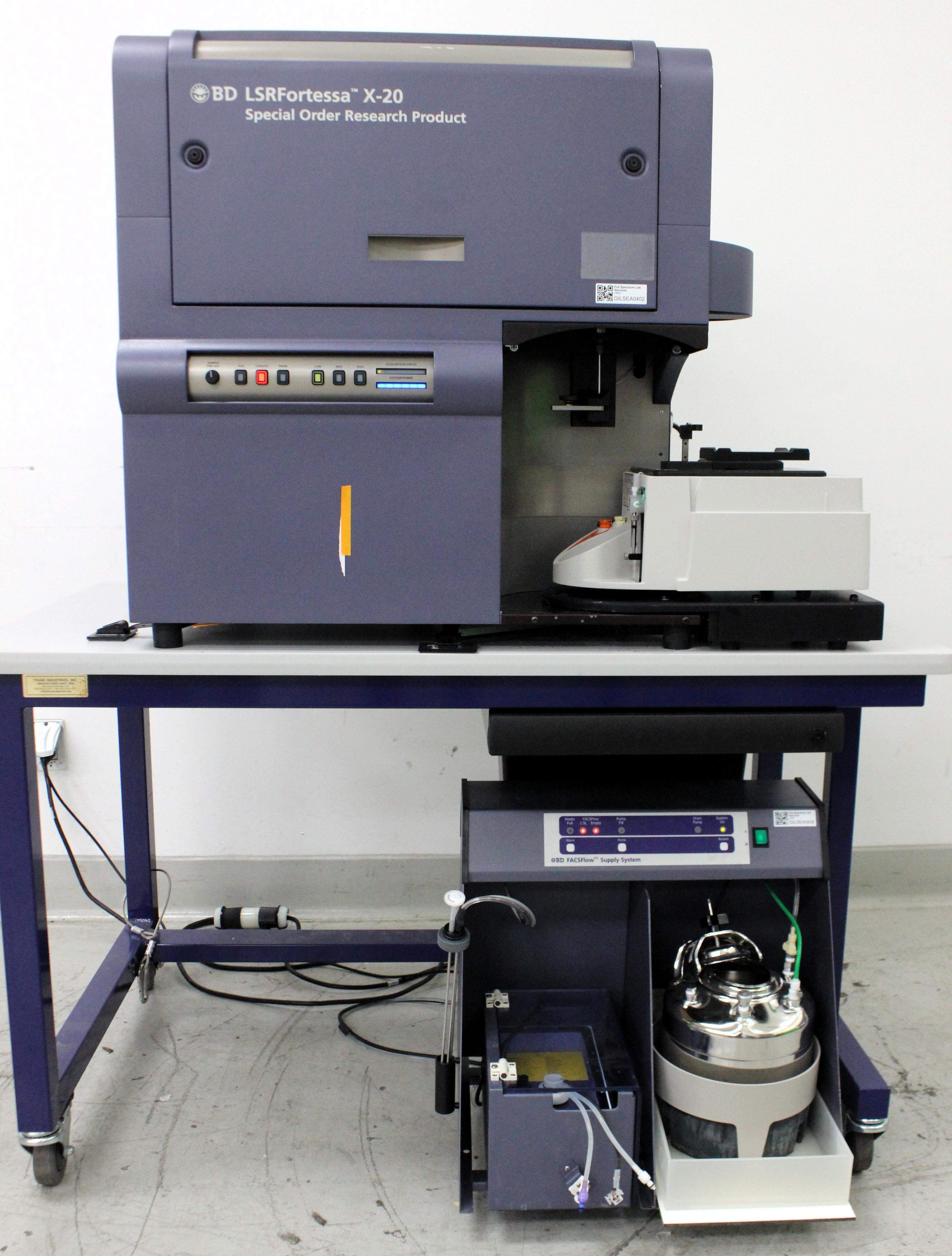

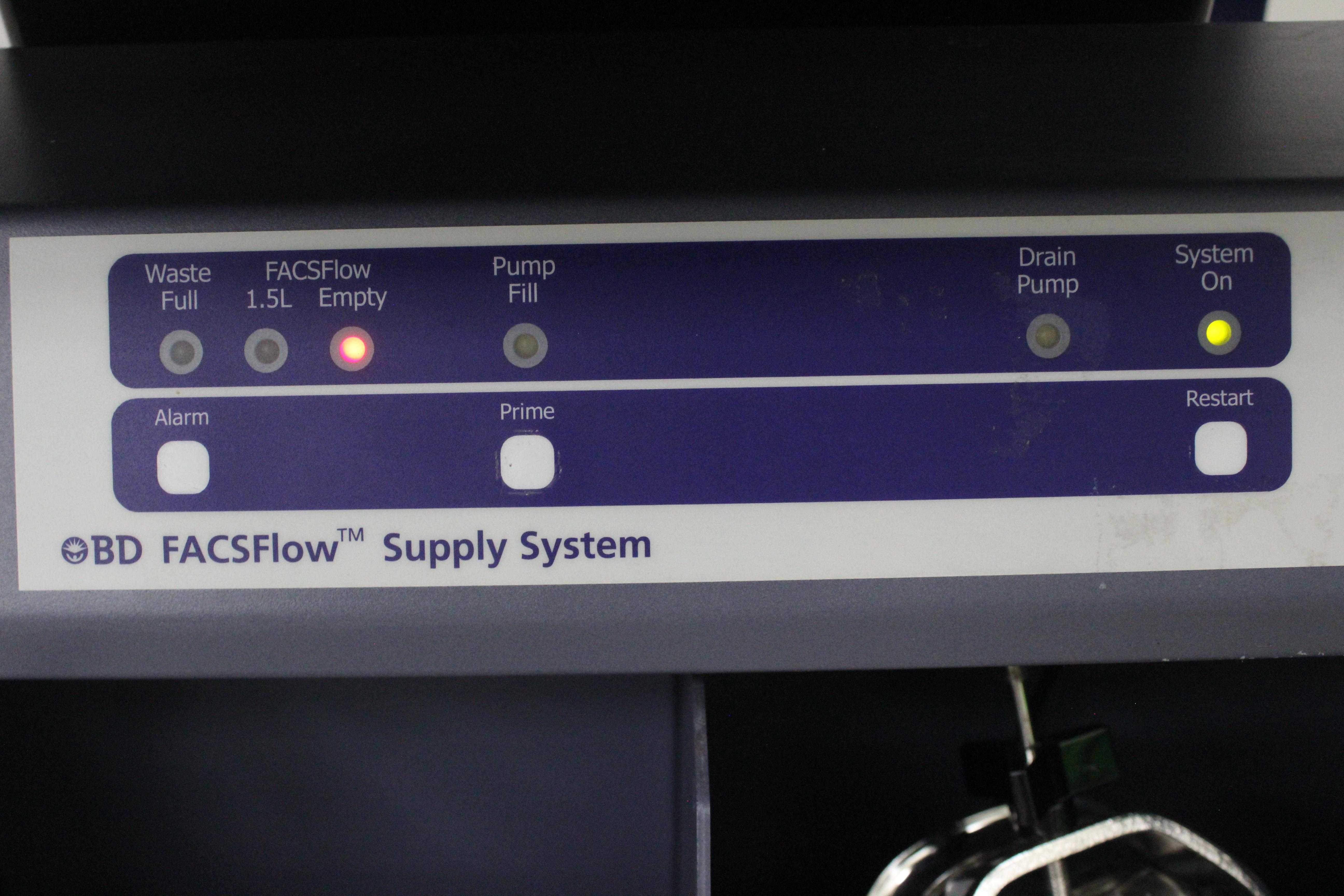

BD Biosciences LSRFortessa X-20 Cell Analyzer with 5 Lasers and FACSFlow
BD
Details
-
CategoryCell Counting / Sorting
-
Dimension33.0in x 54.0in x 62.0in
-
SerialH656385042, N3492774204
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz115V / 50Hz/60Hz
Description
The BD Biosciences LSRFortessa X-20 Cell Analyzer, originating from the United States, is designed for high-performance, multicolor analysis within a compact footprint. In good condition, this unit powers on and seems to function normally, as per inspection, but a computer for full testing is not included. Equipped with five lasers (Blue, Red, Violet, YeGR, UV), it supports the detection of up to 20 parameters simultaneously, making it ideal for complex cell analysis. Its flow cell design uses a rectangular quartz cuvette for optimal laser light transmission, while the emission optics allow highly efficient signal collection. The optical layout supports up to five lasers with specified power outputs. Certified by UL 61010 standards, it operates efficiently within a temperature range of 19°C to 26°C and a humidity range of 10% to 90%.
Technician comment
Unit powers on and performs normal functions, We were not able to fully test due to not having computer with software. The system did come from a working environment and appears in very good condition overall.
Key Features
- Includes 5 lasers: Blue, Red, Violet, YeGR, UV
- Up to 20 parameters analysis simultaneously
- Compact benchtop design for optimal lab space usage
- Excitation optics with fixed optical assembly

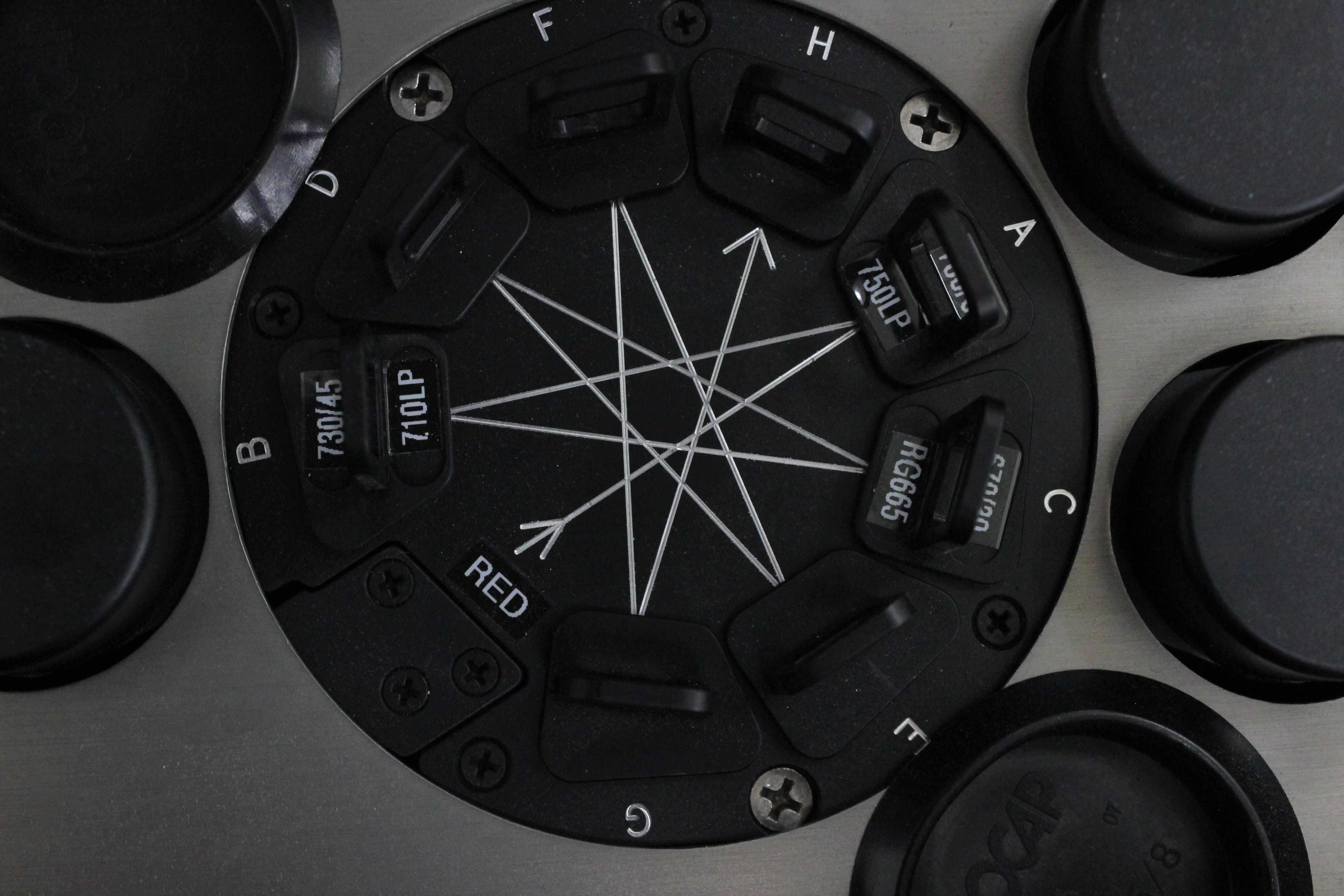

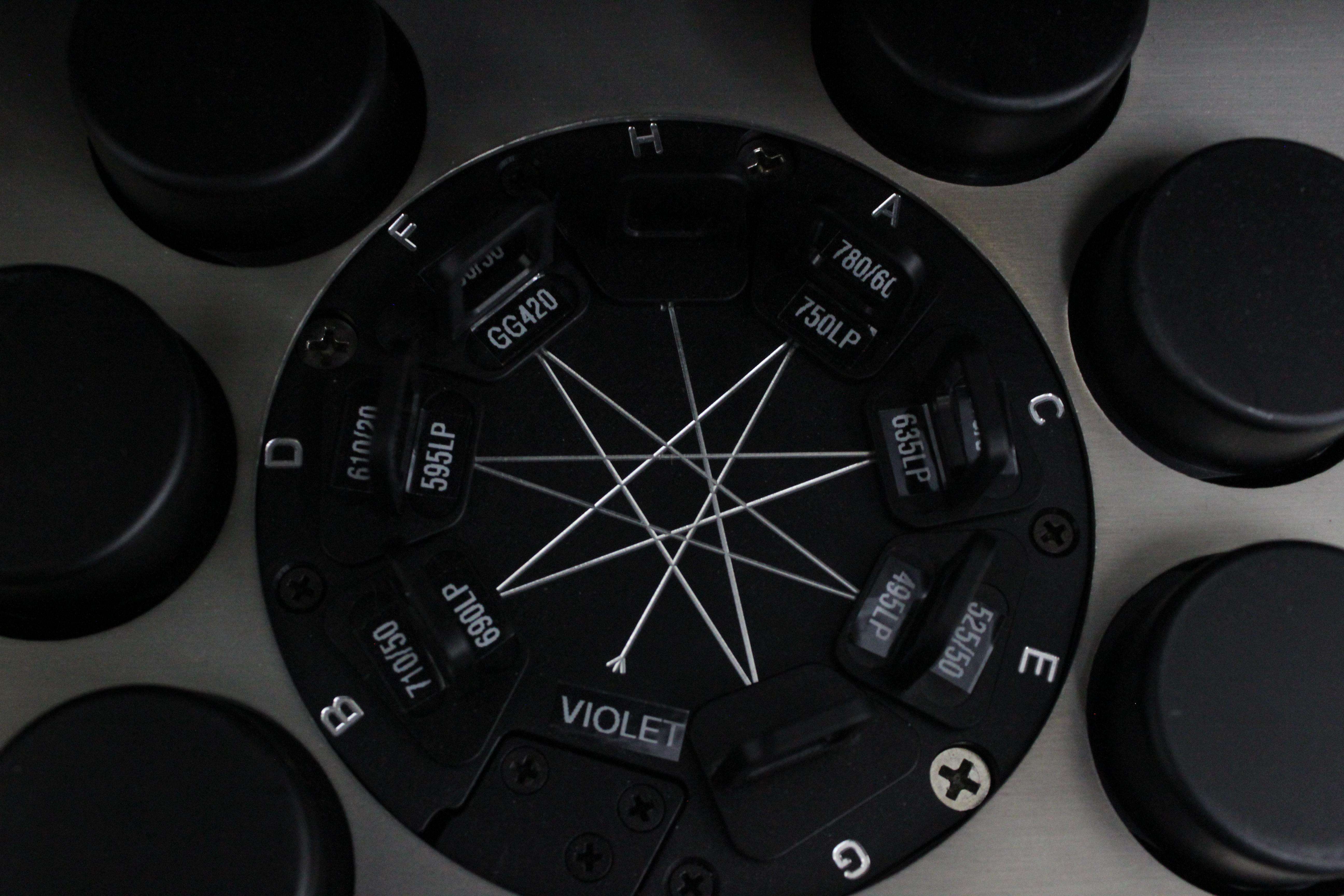

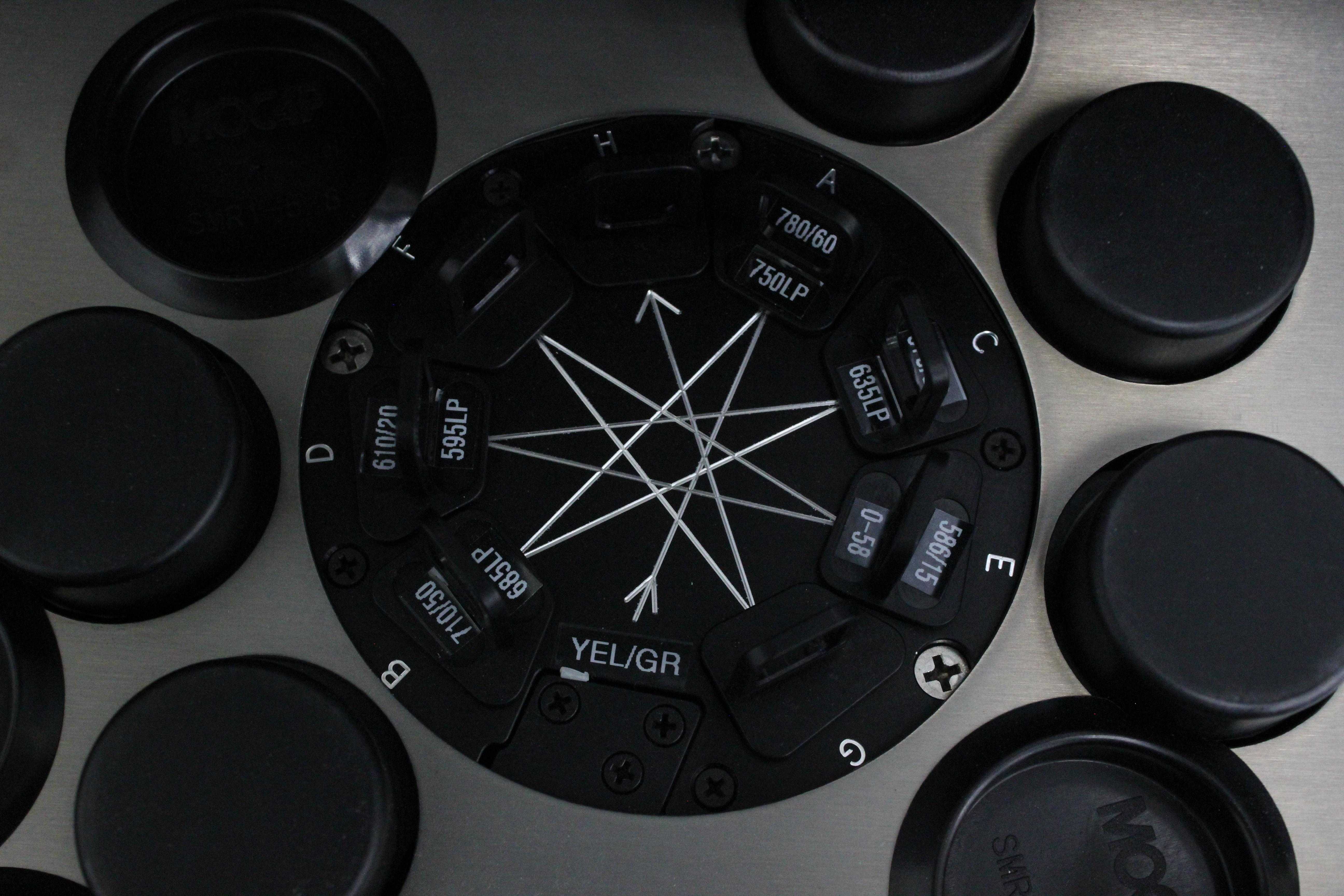

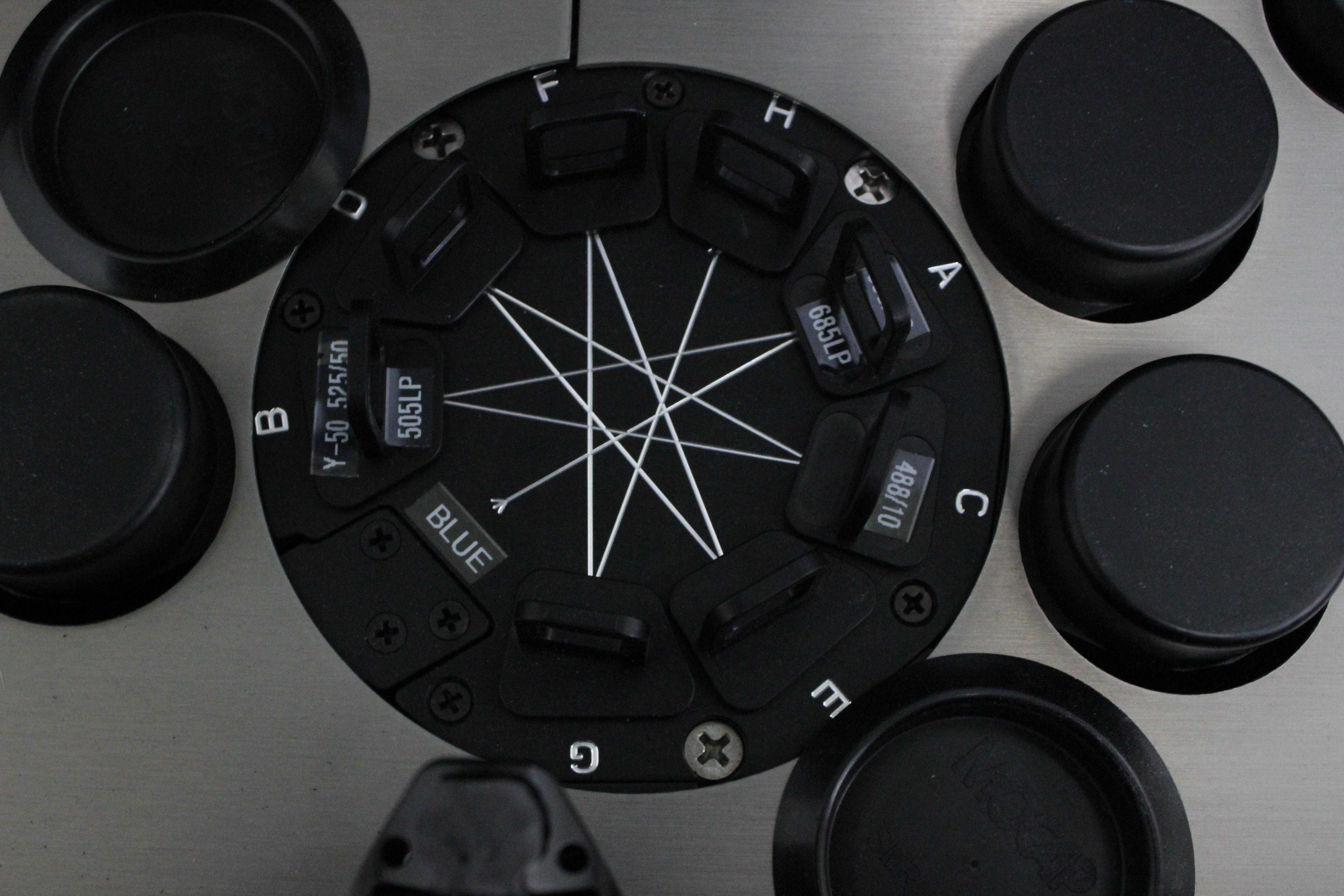

- Emission optics with gel-coupled quartz cuvette
Specifications
- Laser Power: 355 nm: 15 mW, 405 nm: 50 mW, 488 nm: 50 mW, 561 nm: 50 mW, 640 nm: 40 mW
- Fluorescence Sensitivity: FITC: 80 MESF-FITC
- Data Acquisition Rate: 40,000 events/sec with beads

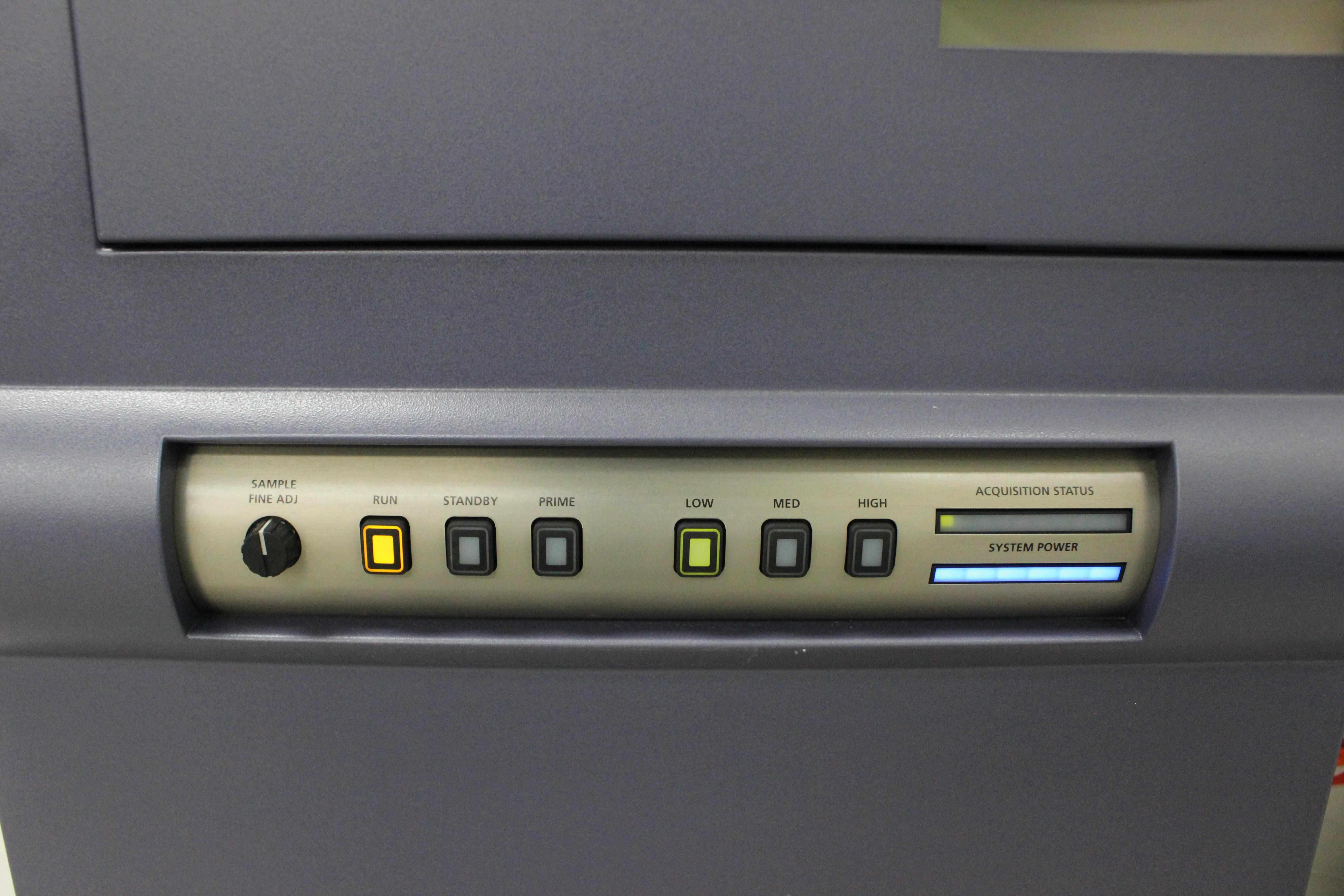

- Sample Flow Rates: LO: 12 μL/min; MED: 35 μL/min; HI: 60 μL/min
- Operating Temperature: 19°C–26°C
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 39.6 lb x 64.8 lb x 74.4 lb
Metric: 100.58 cm x 164.59 cm x 188.98 cm
Harmonized Code
902690
Harmonized Code Details
902690 - Parts and accessories for measuring, checking, analyzing instruments and apparatus. This code fits due to the laboratory and analytical function of the cell analyzer.
