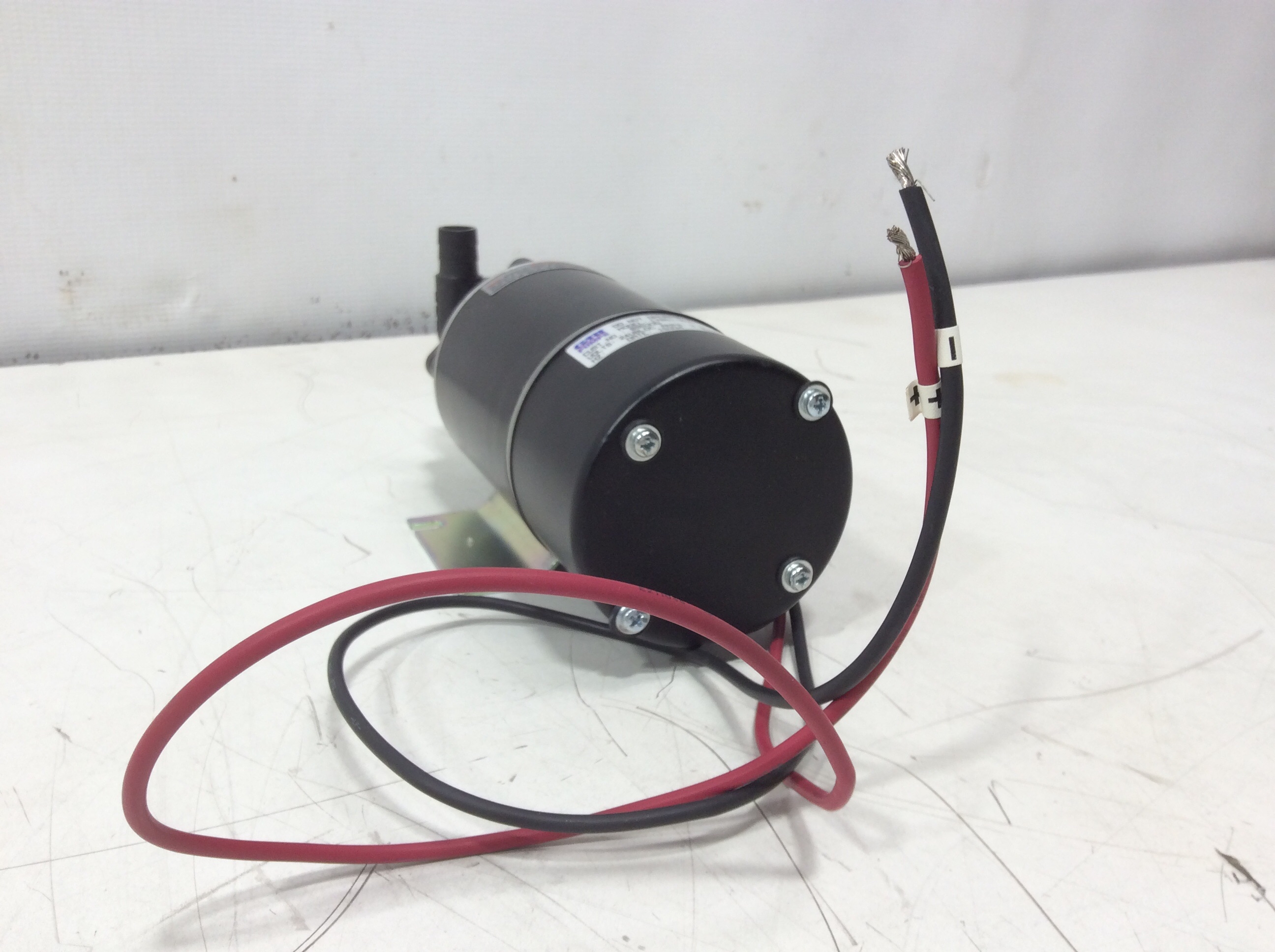

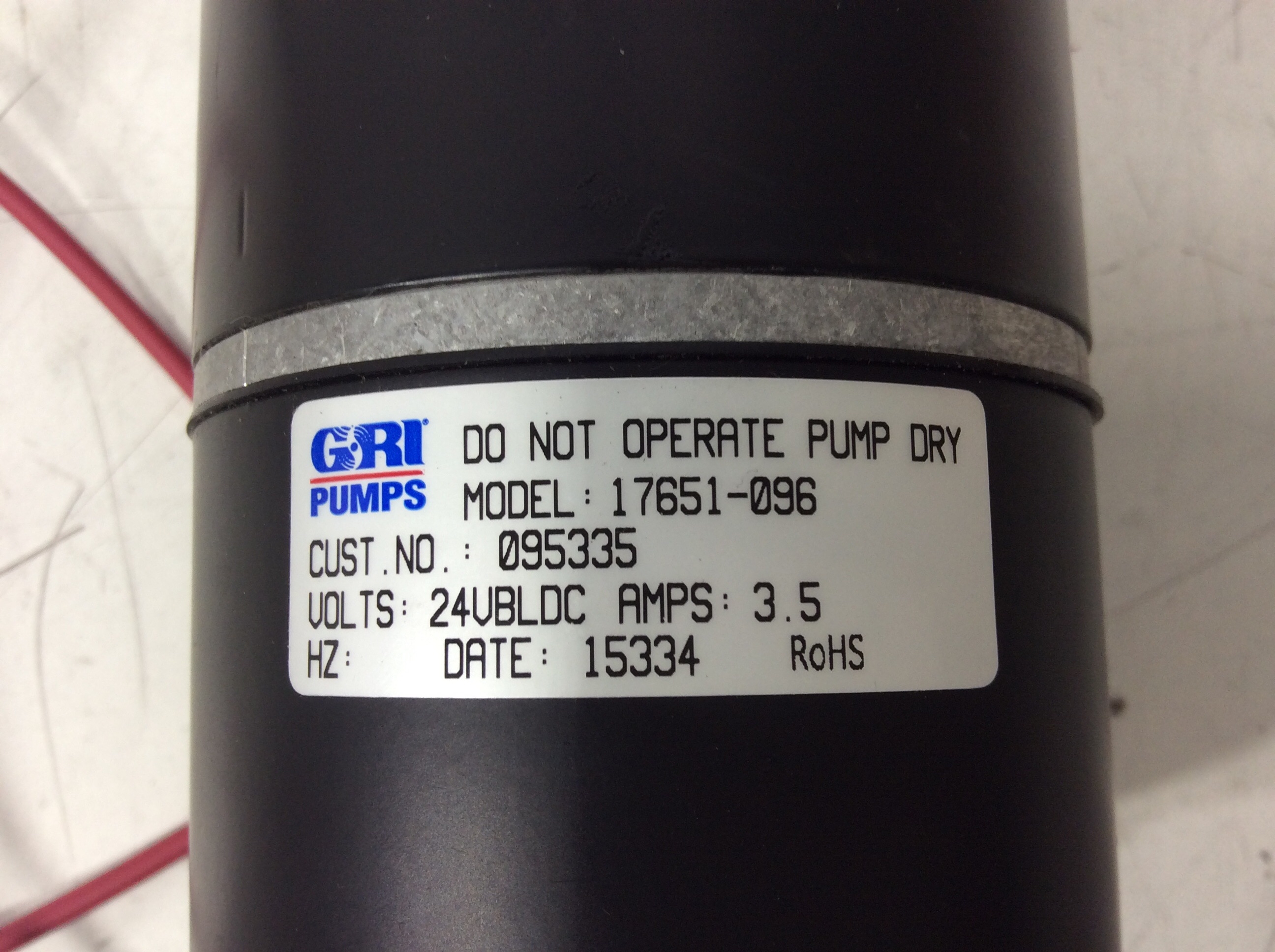

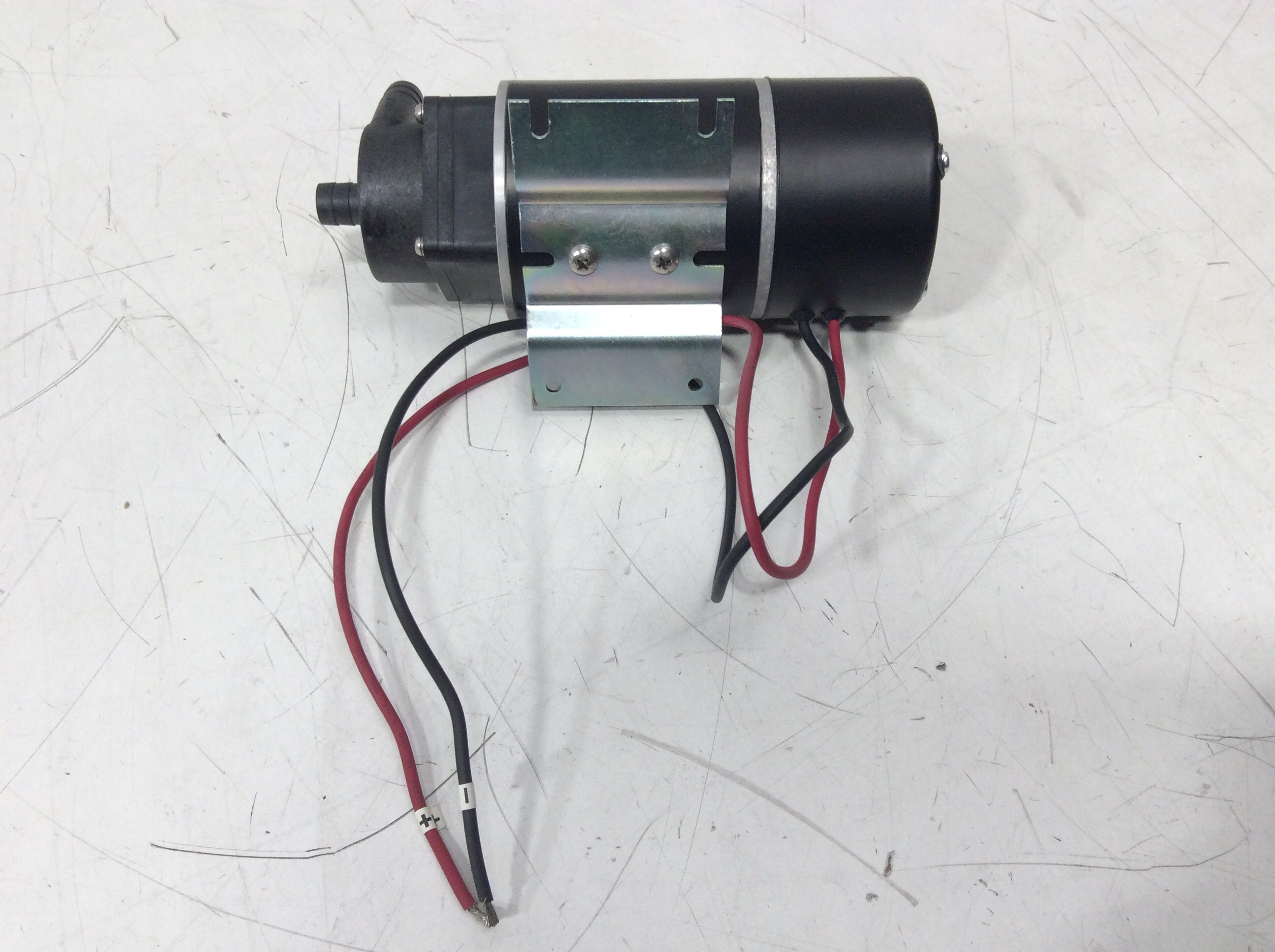

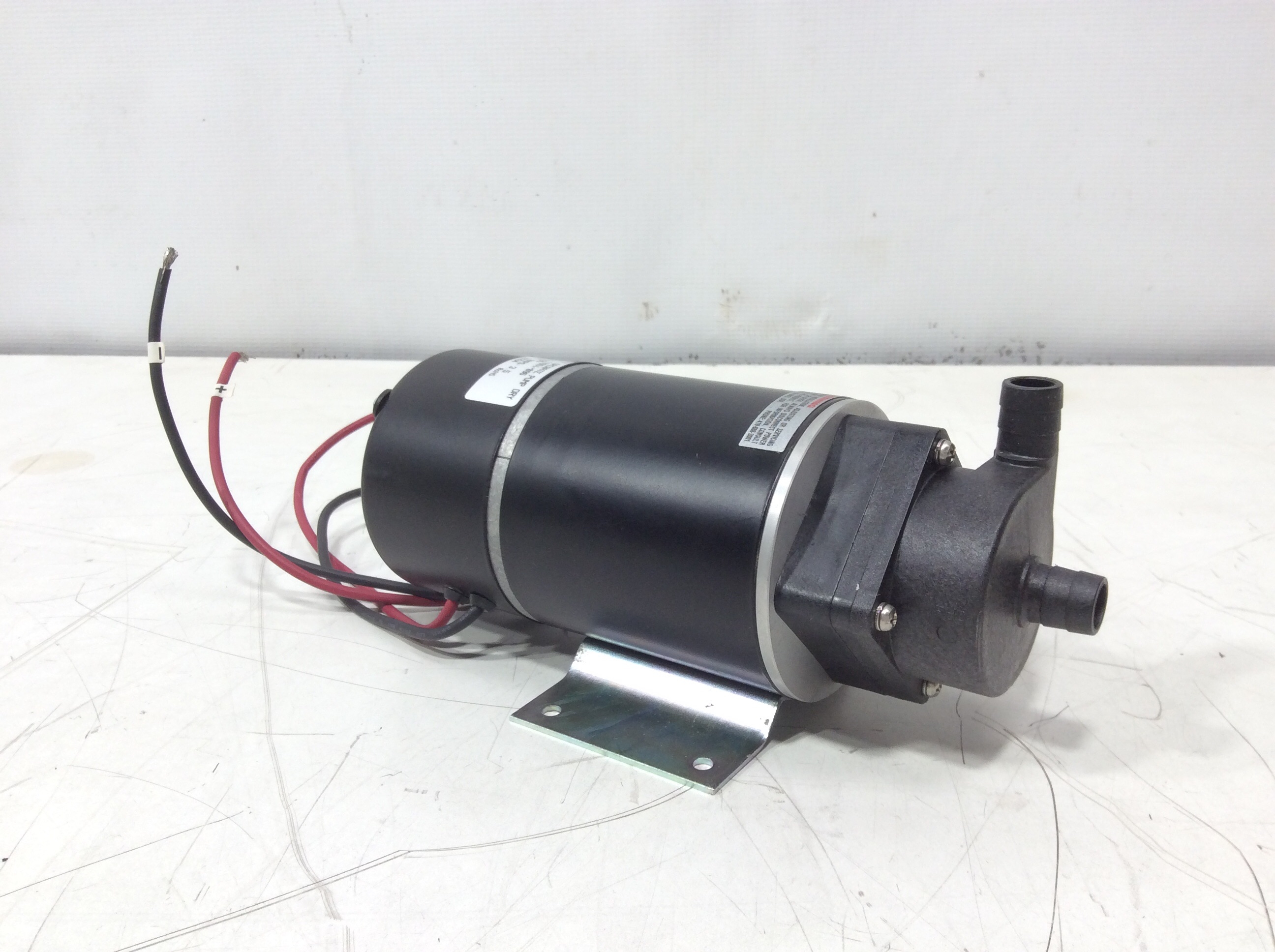

GRI 17651-096 Pump High-Speed Mag-Drive Brushless DC Motor 75PSI 8.68GPM
GRI Pumps
Details
-
CategoryPump
-
Dimension8.0in x 4.0in x 4.0in
-
Serial095335
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The GRI Pumps 17651-096, made in the United States, is a high-performance Mag-Drive pump featuring a ceramic thrust washer that enhances longevity compared to earlier models. Equipped with a high RPM brushless DC motor, the pump can achieve pressures up to 24 psi, making it ideal for applications requiring continuous duty cycles. This unit is currently in turnkey condition and has been recently refurbished, reflecting great operational and physical condition. The pump offers a maximum flow rate of 8.68 GPM, a discharge head up to 50.41 feet, and a system pressure capacity of up to 75 PSI. It can handle fluid temperatures of up to 195°F and operates on a 24V power supply. The inlet and outlet are both 1/2 MHB types. While no power/data cables, computer, software CDs/Files, user manuals, or service records are included, a power cord is provided. This robust pump is ideal for laboratories and industrial settings where reliability and efficiency are critical.
Key Features
- High performance brushless DC motor
- Ceramic thrust washer for increased longevity
- Maximum flow rate of 8.68 GPM
- Pressure capacity of up to 75 PSI
- Continuous duty cycle
- Operates at 24V
Specifications
- Max. Flow Rate: 8.68 GPM
- Max. Discharge Head: 50.41 ft
- Max. System Pressure: 75 PSI
- Max. Fluid Temperature: 195°F
- Inlet/Outlet Connection: 1/2 MHB
- Duty Cycle: Continuous
- Approximate Weight: 4 lbs
- Operating Voltage: 24V
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 4.8 lb x 4.8 lb
Metric: 24.38 cm x 12.19 cm x 12.19 cm
Harmonized Code
8413.70.2030
Harmonized Code Details
Harmonized code 8413.70.2030 refers to 'Centrifugal pumps fitted with a measuring device.' It includes various types of pumps used widely in industrial and laboratory settings for efficient fluid handling.
