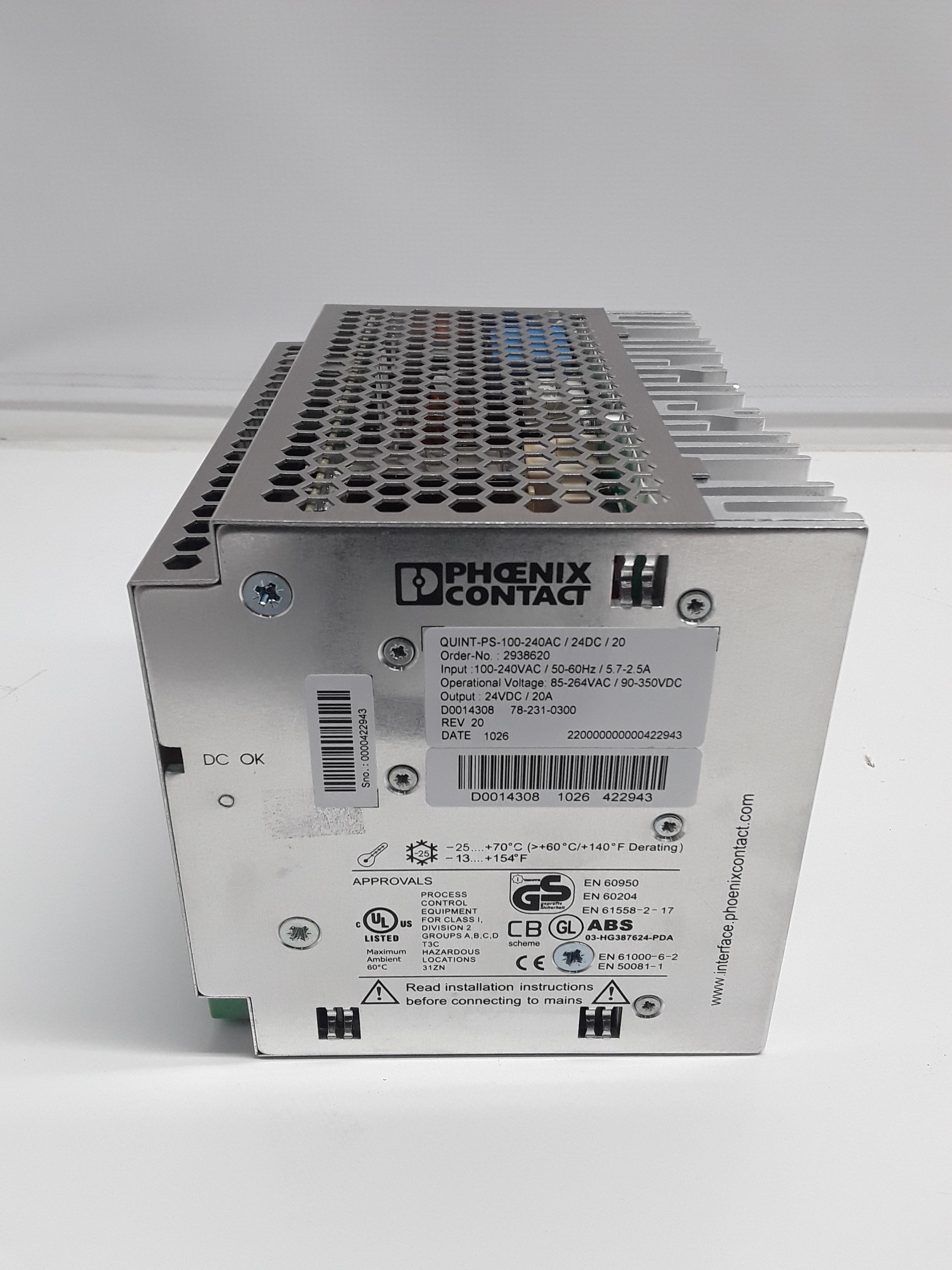

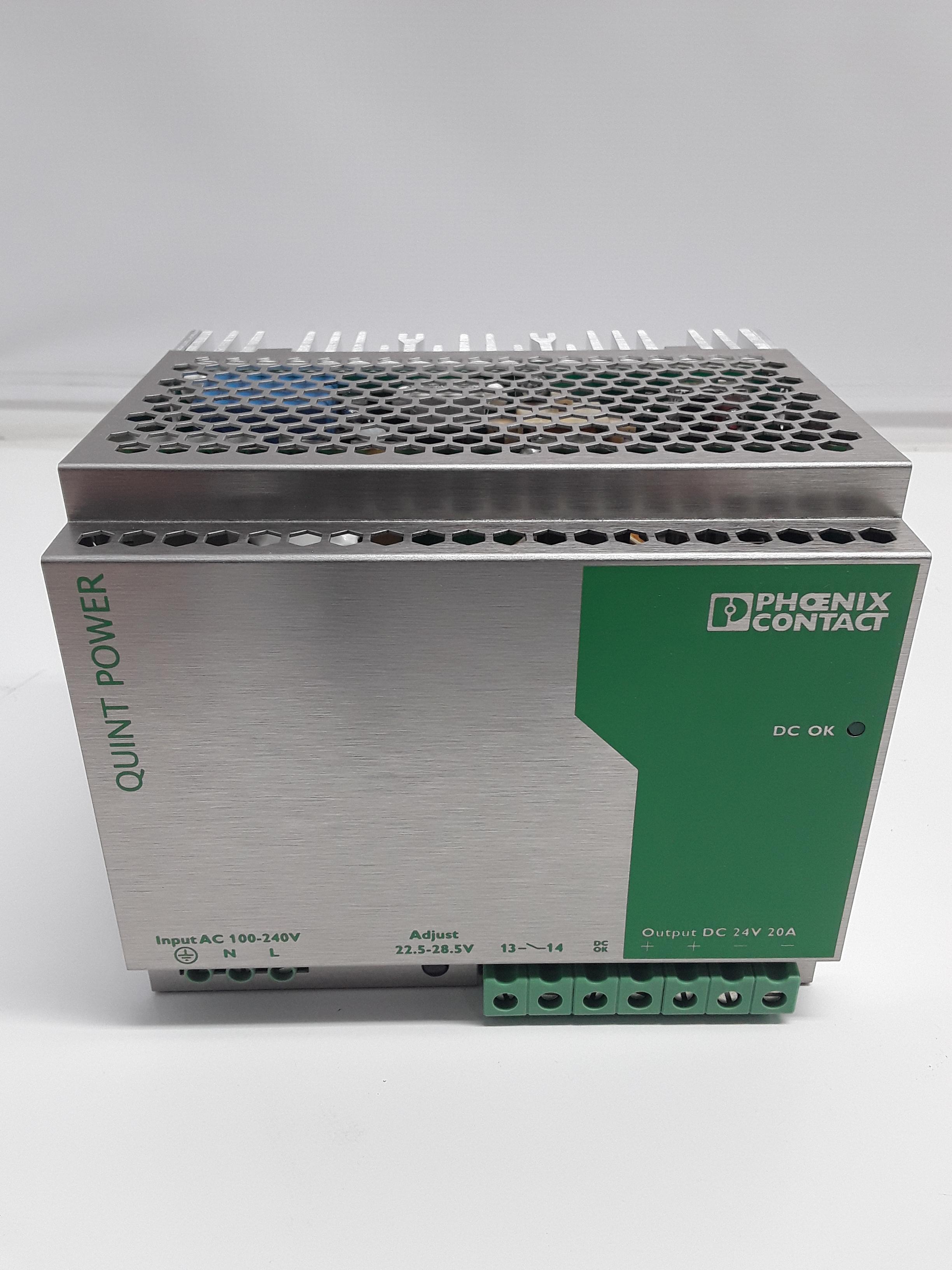

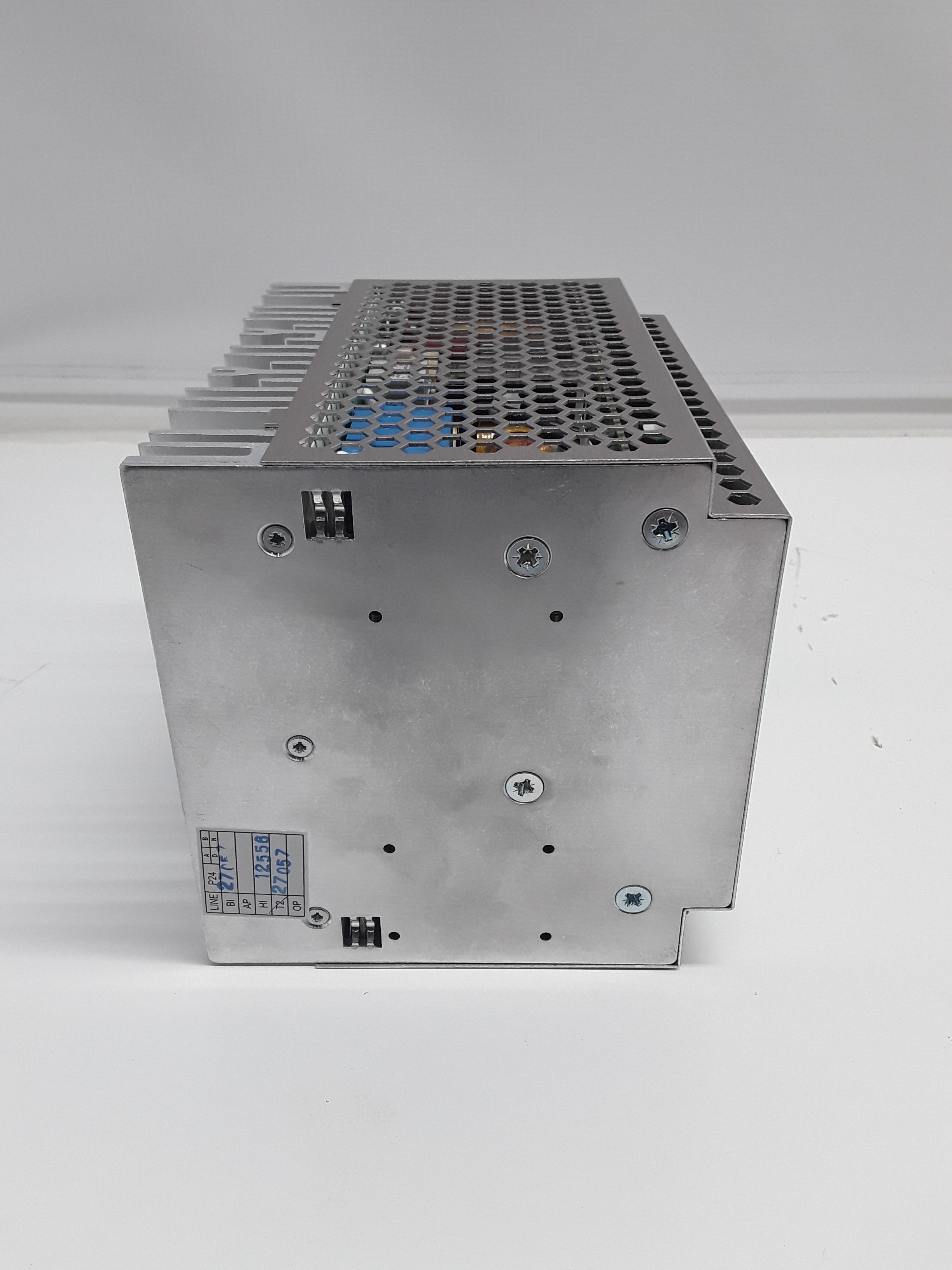

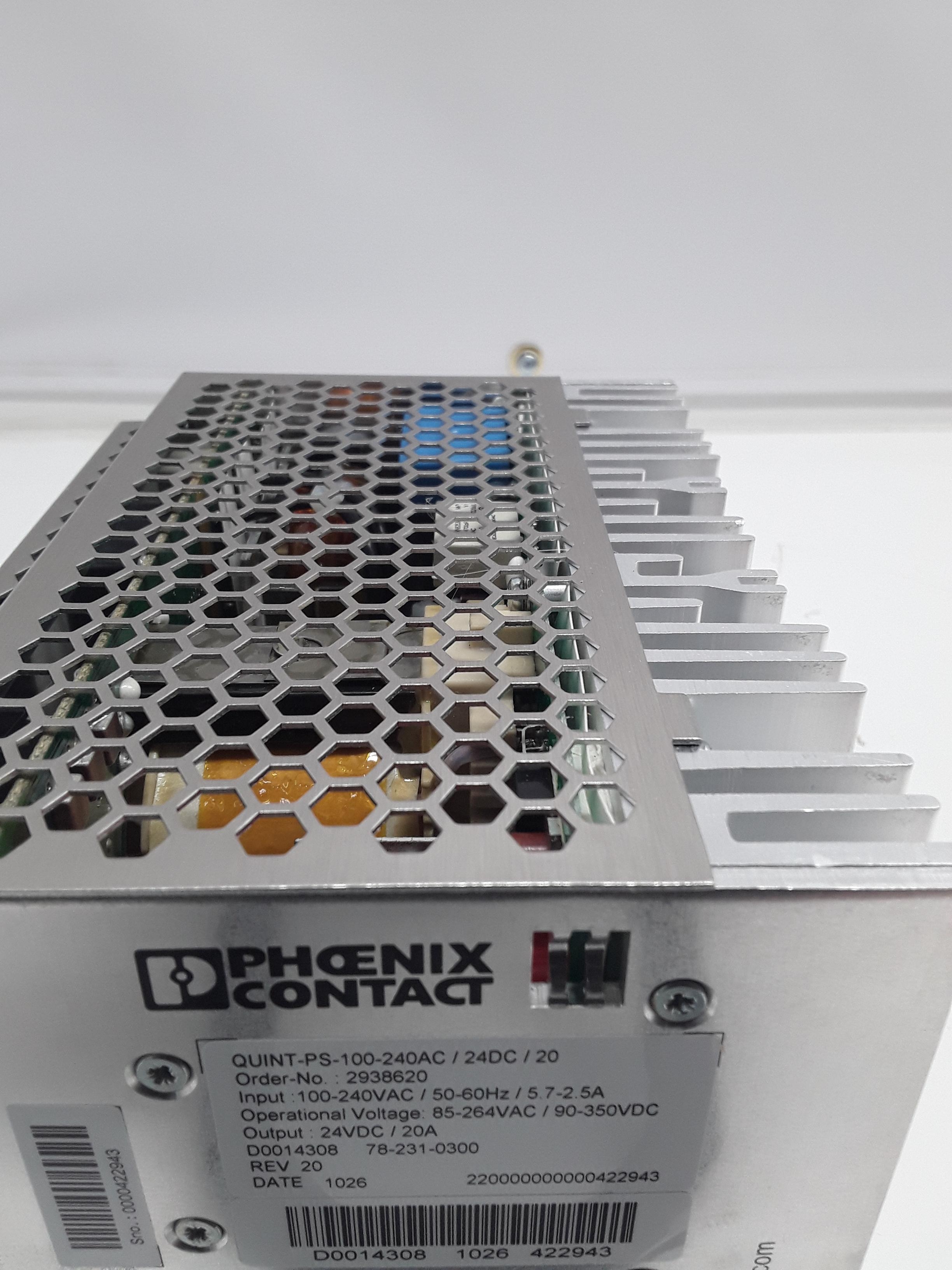

Phoenix Contact Quint-PS-100-240 Power Supply - UPS

Product Information

The Phoenix Contact Quint-PS-100-240 is a powerful 60-960W DC power supply unit suitable for universal use. It offers a wide-range input, single and three-phase versions, and an international approval package. This reliable power supply unit features generously dimensioned capacitors for mains buffering, full output power even in the event of a permanent phase failure, and a Power Boost power reserve for high inrush currents. Remote monitoring and preventive function monitoring ensure system uptime. The regulated and adjustable output voltage of 12, 24, and 48V DC with output currents ranging from 2.5A to 40A makes it versatile for various applications. This unit is especially beneficial for industries requiring industrial-grade power supplies.

• Wide-range input
• Single and three-phase versions
• International approval package
• Regulated and adjustable output voltage of 12, 24, and 48V DC
• Output currents from 2.5A to 40A

• Connection Type: Terminal
• Convection Rating: 480 W
• Convection Rating Temp: 60C
• Cooling Method: Convection
• Efficiency: 92%
• Industry: Industrial
• Input Type: AC - Class I
• Input Voltage Nominal: 100-240 VAC
• IP Rating: IP20
• Isolation: 4000 VAC

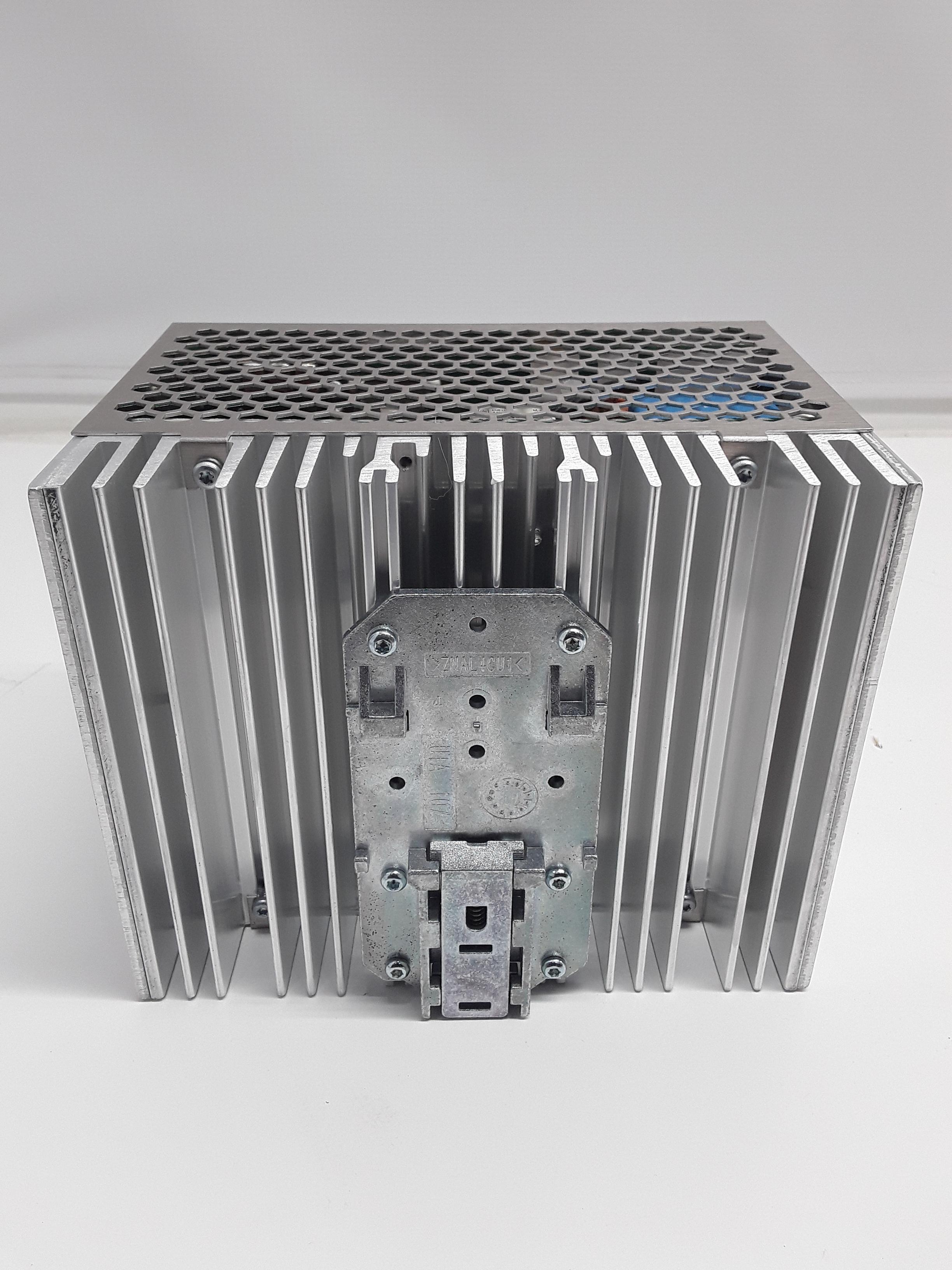

• Mechanical Style: DIN Rail Mount
• Mounting: DIN Rail Mount
• Number of Outputs: 1
• Operating Temperature: -25 to +70C (see derating)
• Output Amps: 20.0 A
• Output Voltage V1 Nominal: 24 VDC
• Package Type: DIN Rail Mount
• Power: 480 W

Metric: 2.72 kg
Imperial: 6.00 lb

Metric: 25.4 cm x 25.4 cm x 25.4 cm
Imperial: 10 in x 10 in x 10 in

8504409555

The selected harmonized code 8504409555 is for DC motors, DC generators of an output not exceeding 750 W. This code aligns with the power supply unit's functionality and output capacity.
