Nikon MM-410 Microscope Imager X Y Z Stage Missing Objectives and Light
Nikon
Details
-
CategoryMicroscope / Imager
-
Dimension18.0in x 16.0in x 31.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Nikon MM-410, manufactured in the United States, is a compact imaging system designed for precision and adaptability in laboratory settings. This used microscope features a robust stage capable of 150mm travel on the X-axis, 100mm on the Y-axis, and 150mm on the Z-axis. Despite being in fair condition with some cosmetic imperfections, it is fully functional for detailed specimen observation. Key options include two- and three-stage focusing knobs, and a choice of monocular or trinocular optical heads, enabling custom solutions for specific laboratory needs. Note that this unit is missing its light and objectives. It comes standard with an erect image monocular optical head inclined at 30 degrees from the horizontal, a dedicated 10x eyepiece, and various stages such as 8x6 and 6x4. The maximum specimen height accommodated is 150mm. With a power requirement of 120V/220V and operational frequencies of 50Hz/60Hz, this microscope integrates well into diverse laboratory setups.
Key Features

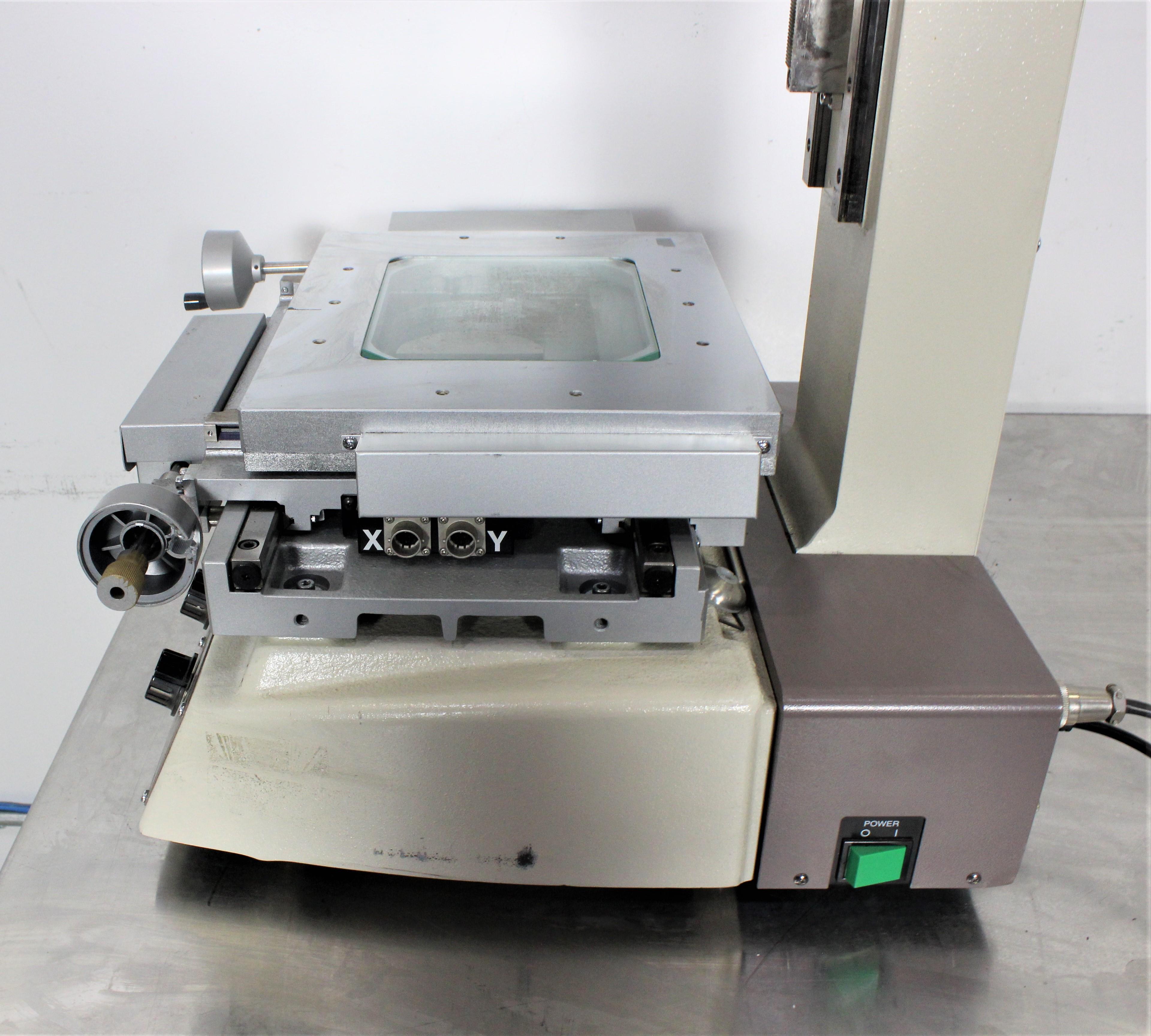

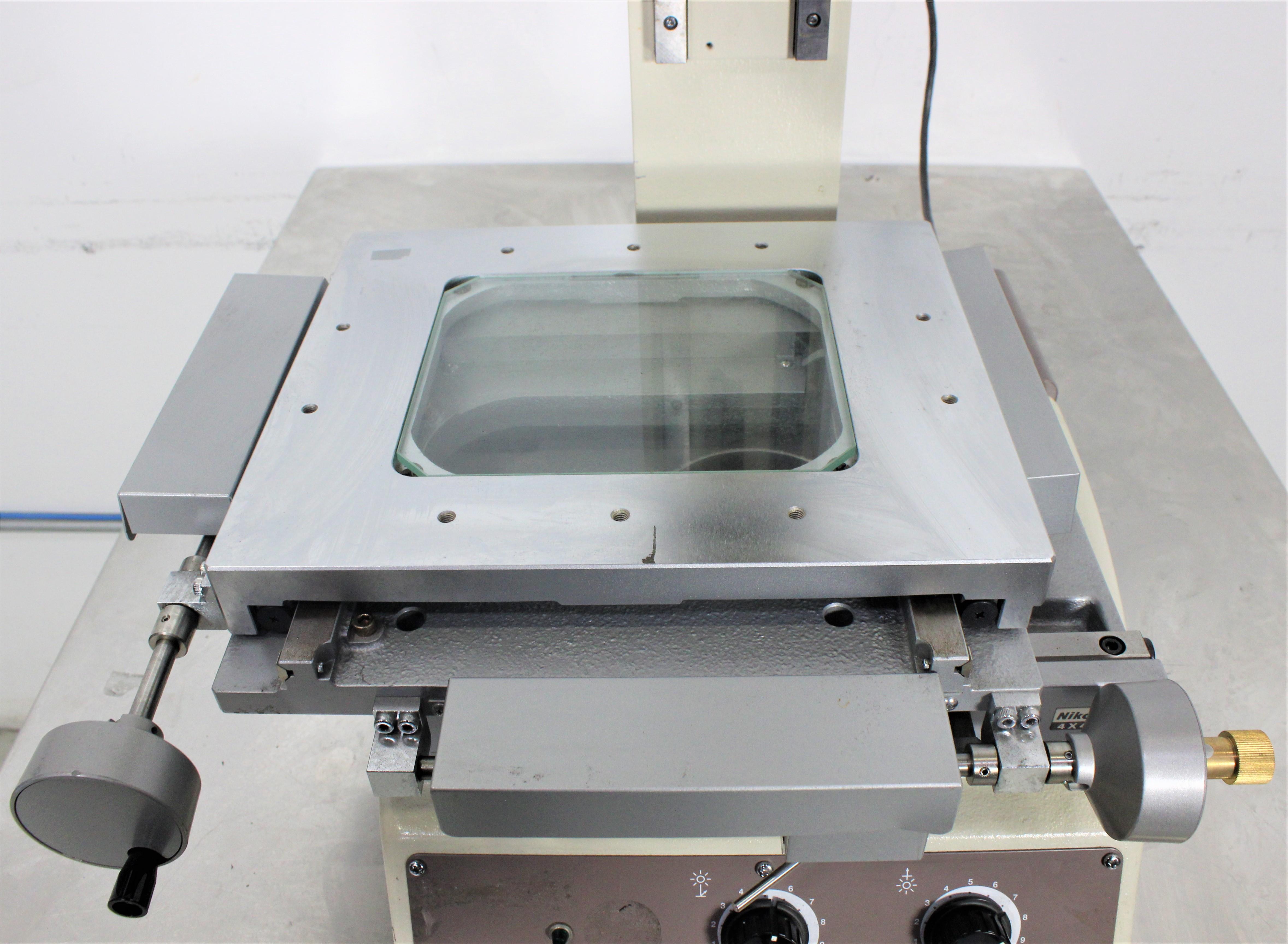

- XYZ Stage with 150mm (X), 100mm (Y), 150mm (Z) travel
- Monocular optical head inclined at 30 degrees
- Two- and three-stage coarse/fine focusing knobs
- 120V/220V voltage compatibility
- Missing light and objectives
Specifications
- Compact body with robust stage travel: 150mm (X), 100mm (Y), 150mm (Z)
- Inclined monocular optical head at 30 degrees
- Dedicated 10x eyepiece for detailed viewing
- Maximum specimen height: 150mm
- Various stage sizes: 8x6, 6x4, 4x4
- Two- and three-stage focusing knobs for precision
- Voltage: 120V/220V, Frequency: 50Hz/60Hz
Weight
Imperial: 120.0 Pounds
Metric: 54.43 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 19.2 lb x 37.2 lb
Metric: 54.86 cm x 48.77 cm x 94.49 cm
Harmonized Code
901180
Harmonized Code Details
Code 901180 applies to 'Other microscopes, not elsewhere specified', which best fits the Nikon MM-410 due to its specific microscope functionalities and features.
