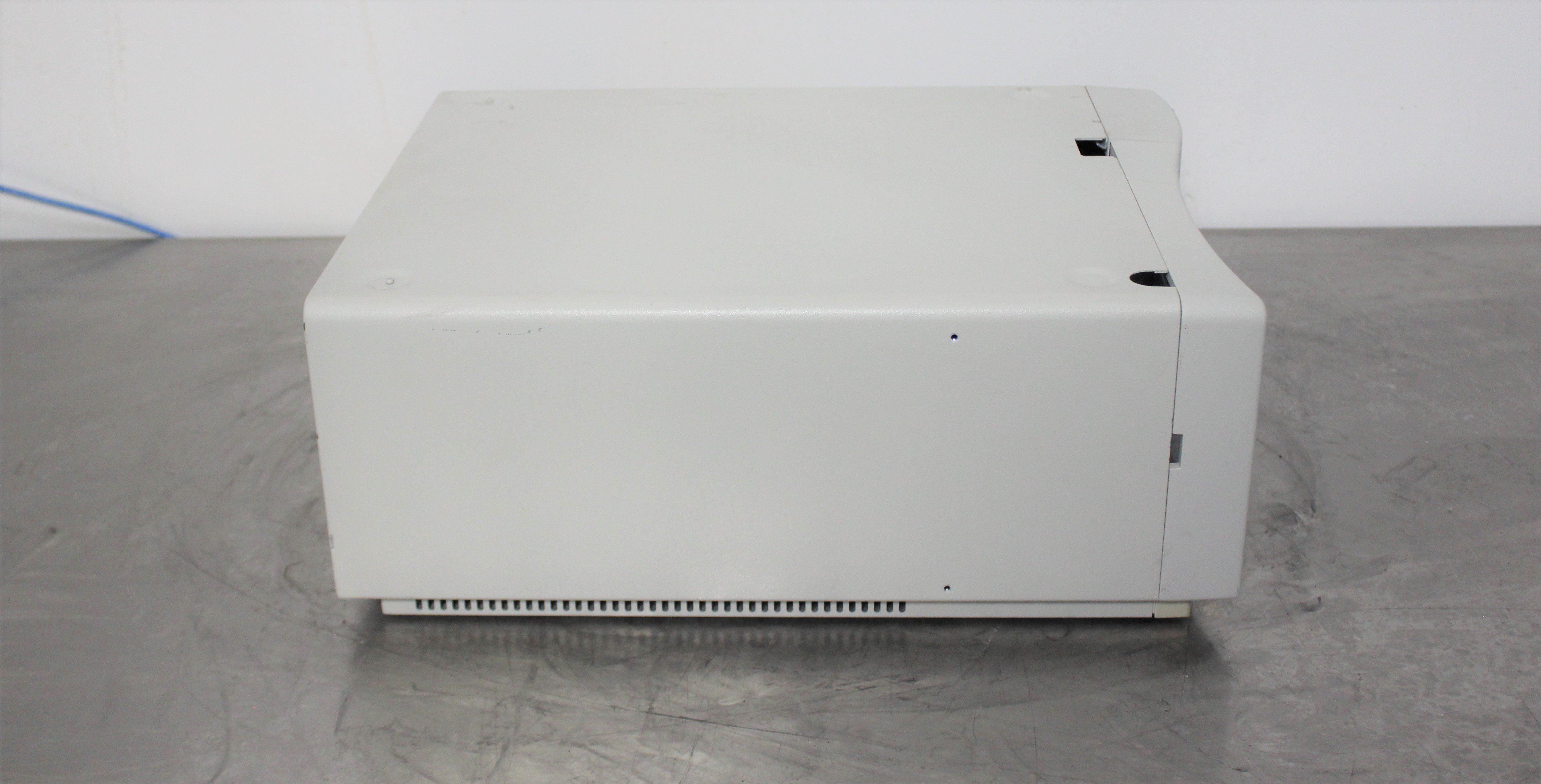

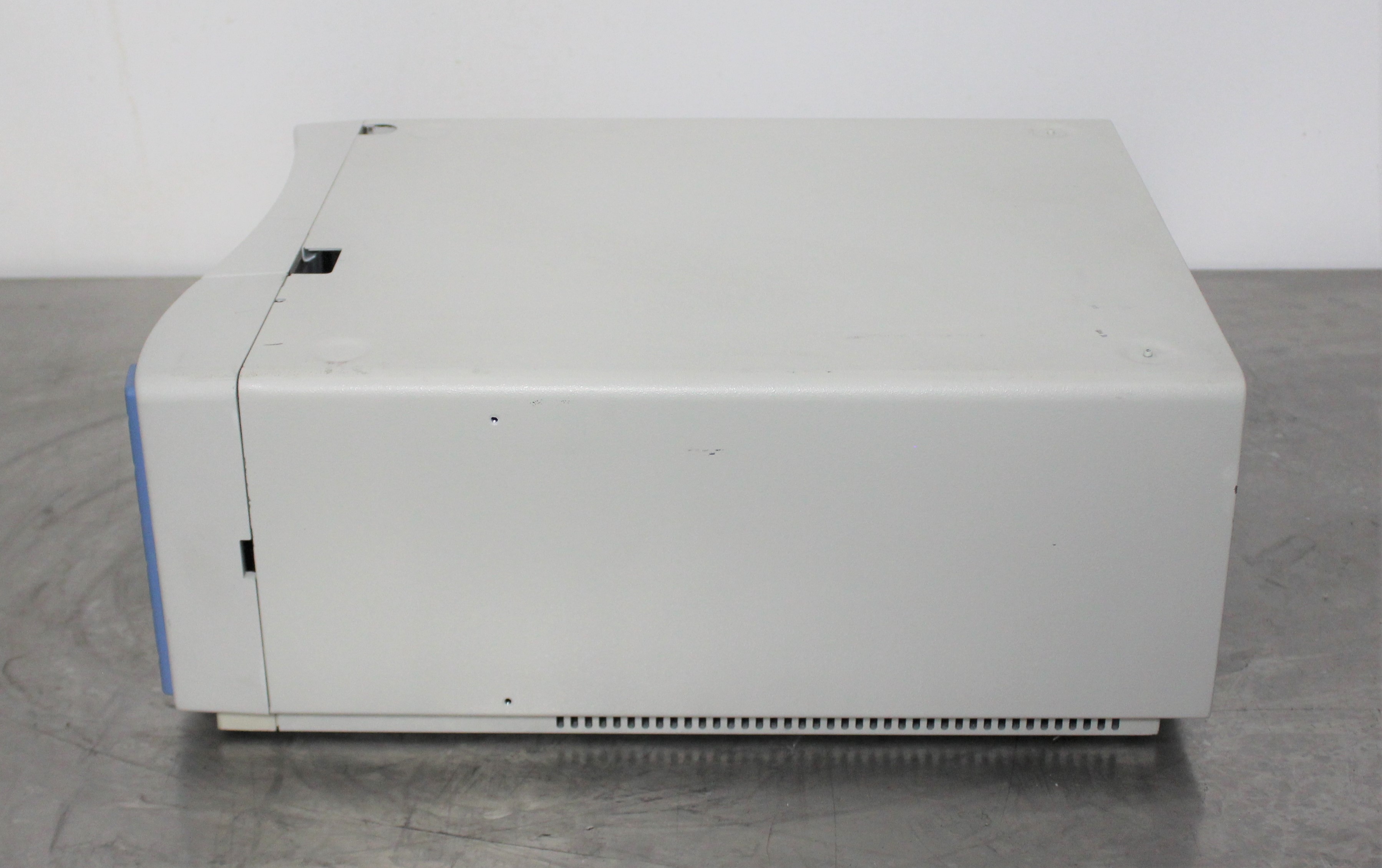

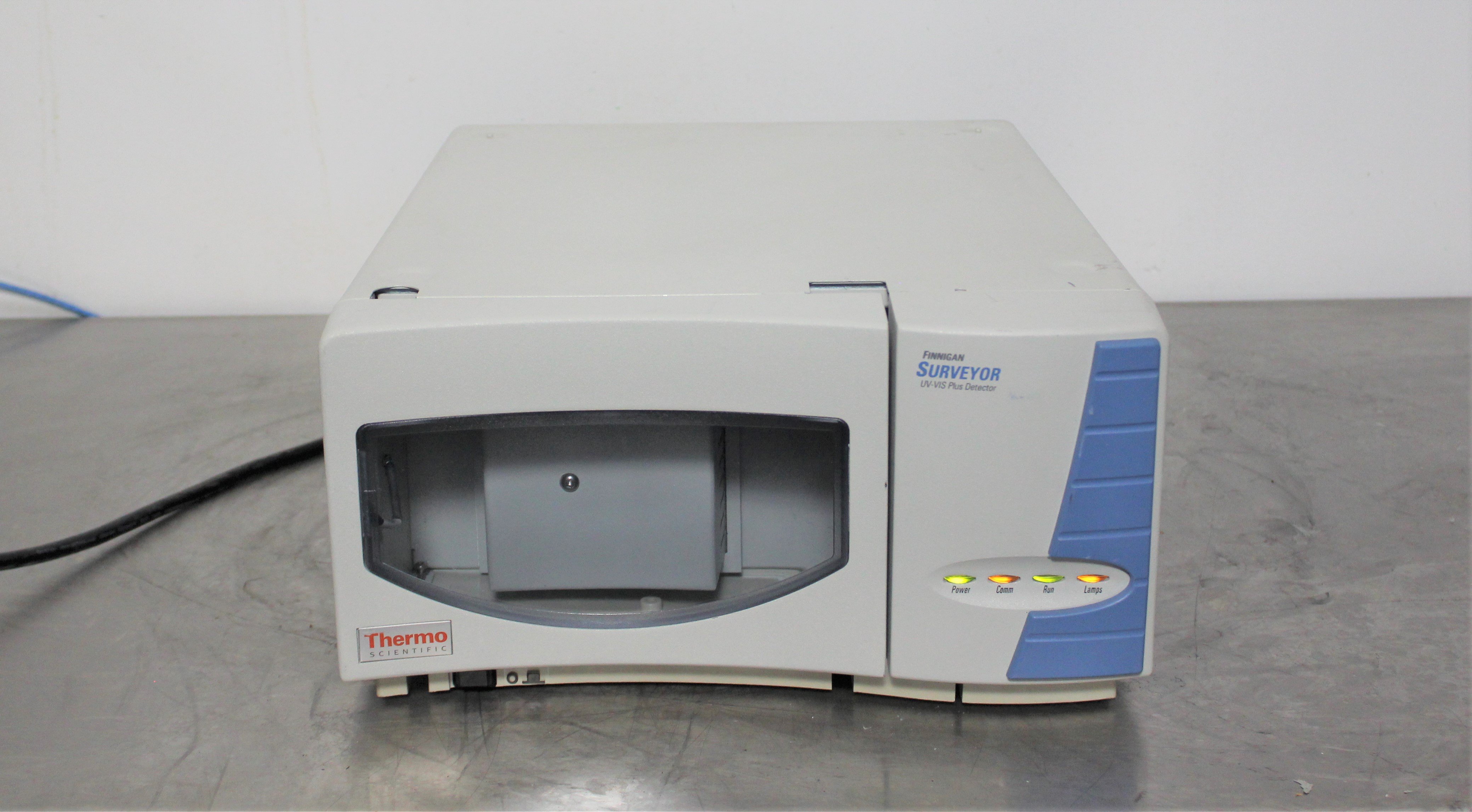

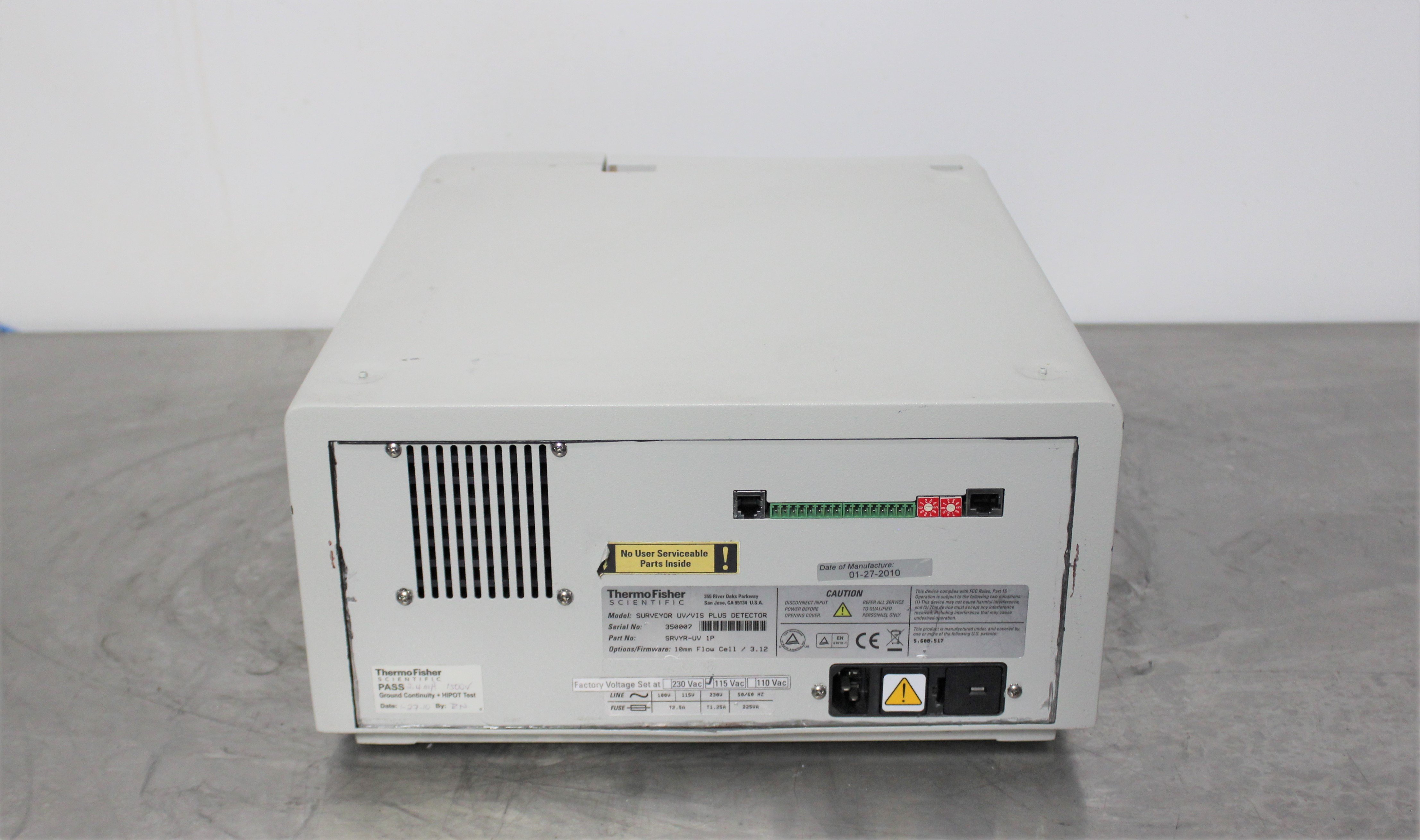

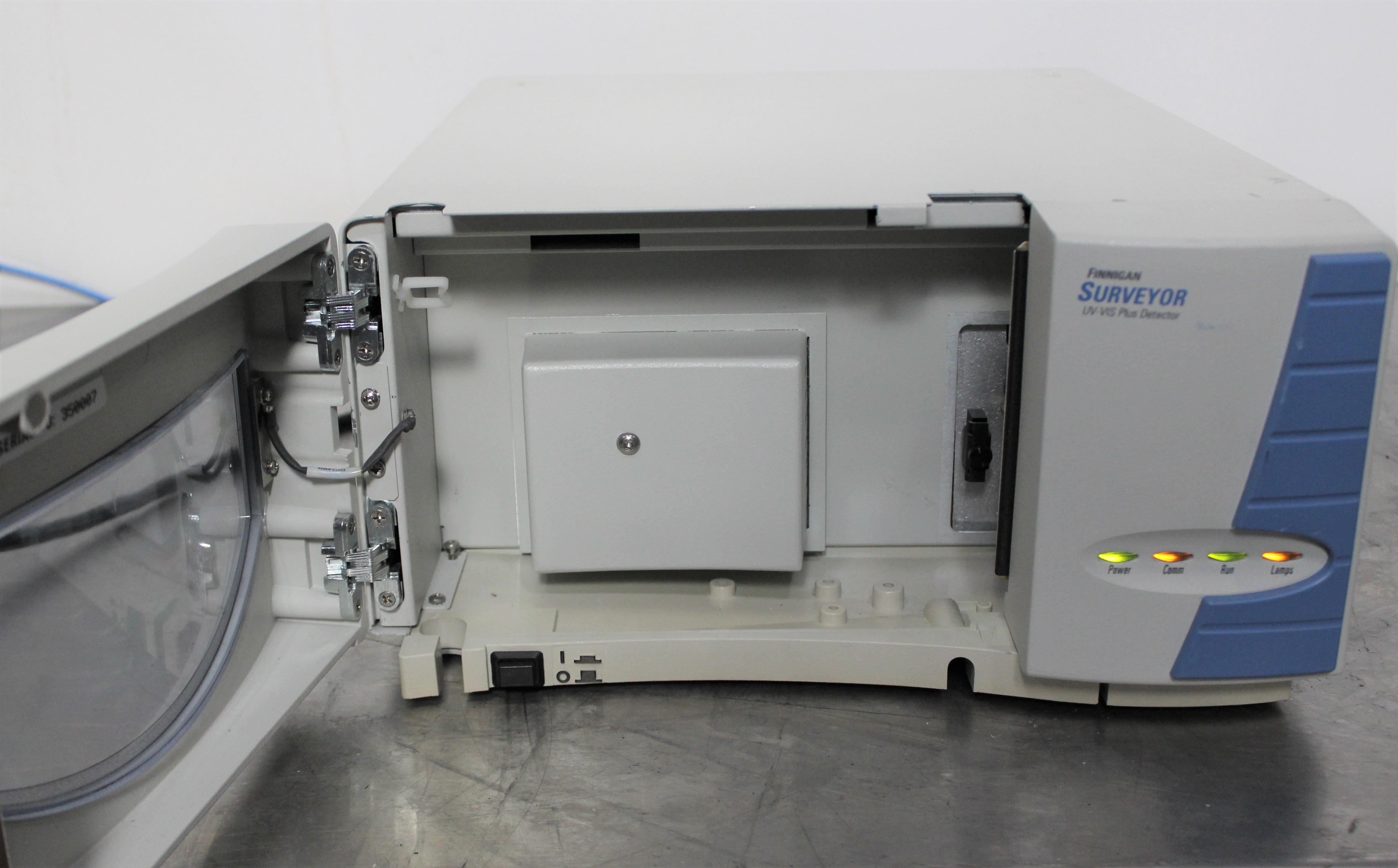

Thermo Scientific Surveyor UV-VIS Plus Detector, UV/Vis Light Absorbance Detection
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension19.0in x 14.0in x 7.0in
-

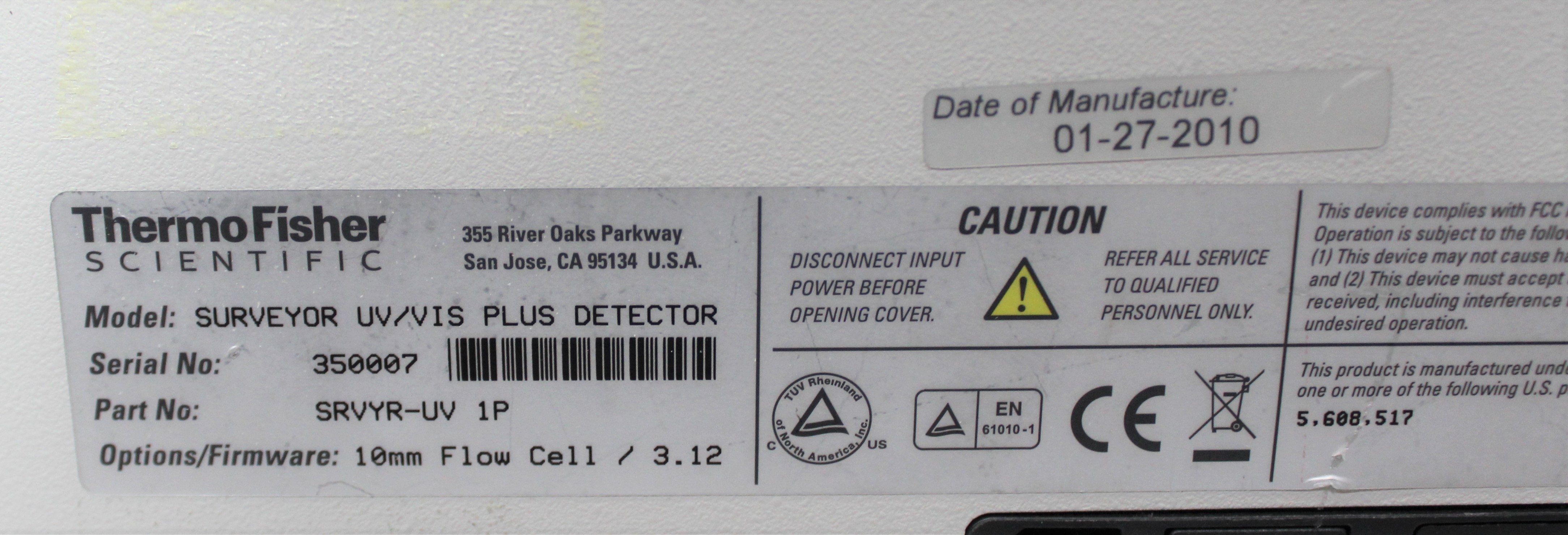

Serial350007
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Scientific Surveyor UV-VIS Plus Detector is a versatile and reliable ultraviolet/visible light absorbance detector, well-suited for integration into Surveyor LC Systems. This bench-top unit features a dual light source with deuterium and tungsten lamps and operates in both single and dual wavelength modes for UV or visible light ranges. The detector's wavelength range spans from 190 nm to 800 nm, with a wavelength accuracy of 1 nm. It offers a spectral bandwidth of 6 nm and an absorbance range from 0.0005 AUFS to +3.0 AUFS. While the exact functionality cannot be fully verified, the equipment powers on and passes basic tests without known issues, albeit showing some cosmetic wear from use. Designed for labs requiring precise detection, the Surveyor UV-VIS Plus Detector brings accuracy, with remote control capabilities for enhanced usability.
Key Features
- Dual light source with deuterium and tungsten lamps
- Wavelength range: 190 nm to 800 nm
- Single or dual wavelength mode operation
- Spectral bandwidth: 6 nm
- Absorbance range: 0.0005 AUFS to +3.0 AUFS
- Remote control via RJ45 Ethernet interface
Specifications
- Wavelength Range: 190 nm to 800 nm
- Wavelength Accuracy: 1 nm at 254 nm and 656 nm
- Spectral Bandwidth: 6 nm
- Absorbance Range: 0.0005 AUFS to +3.0 AUFS
- Drift: 1 mAU/h at 254 nm and 546 nm with 50 mm Light Pipe flow cell
- Warm-up time: 90 min
- Linearity Deviation: 5% up to 2.0 AU at 256 nm
- Operating Temperature: +10 to +30 C
- Storage Temperature: -40 to +70 C
- Operating Humidity: 5% to 95% non-condensing
Weight
Imperial: 50.4 Pounds
Metric: 22.86 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 16.8 lb x 8.4 lb
Metric: 57.91 cm x 42.67 cm x 21.34 cm
Harmonized Code
90273000
Harmonized Code Details
90273000 - Spectrometers, spectrophotometers, and spectrographs using optical radiations, as the Surveyor UV-VIS Plus Detector utilizes optical radiation for measuring light absorbance.
