MA25HA Piston Air Compressor 1/8 HP 120VAC 20L/Min Turn-Key Ready
Unknown
Details
-
CategoryFacility
-
Dimension10.0in x 10.0in x 5.0in
-
Serial17130100010
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

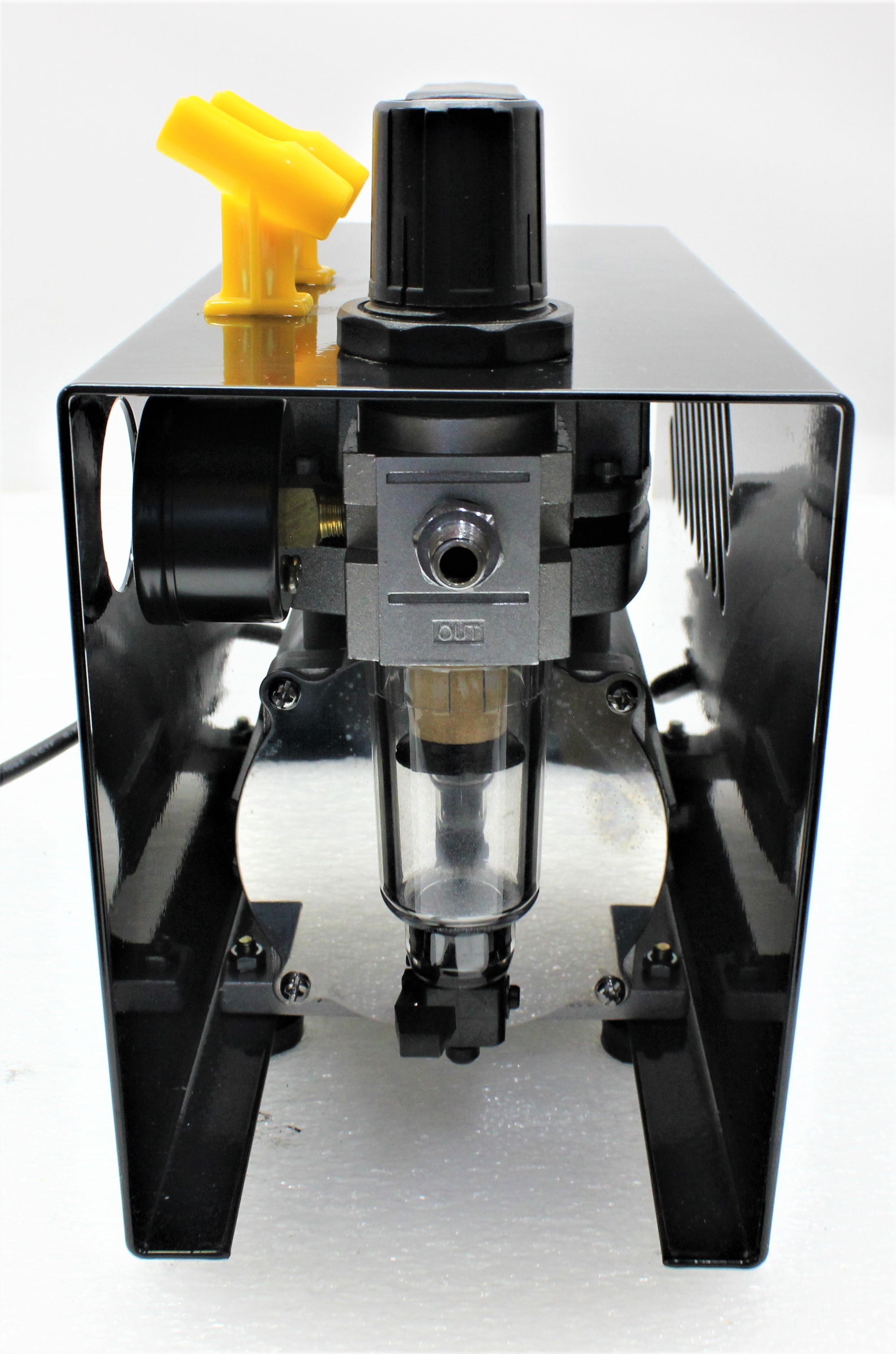

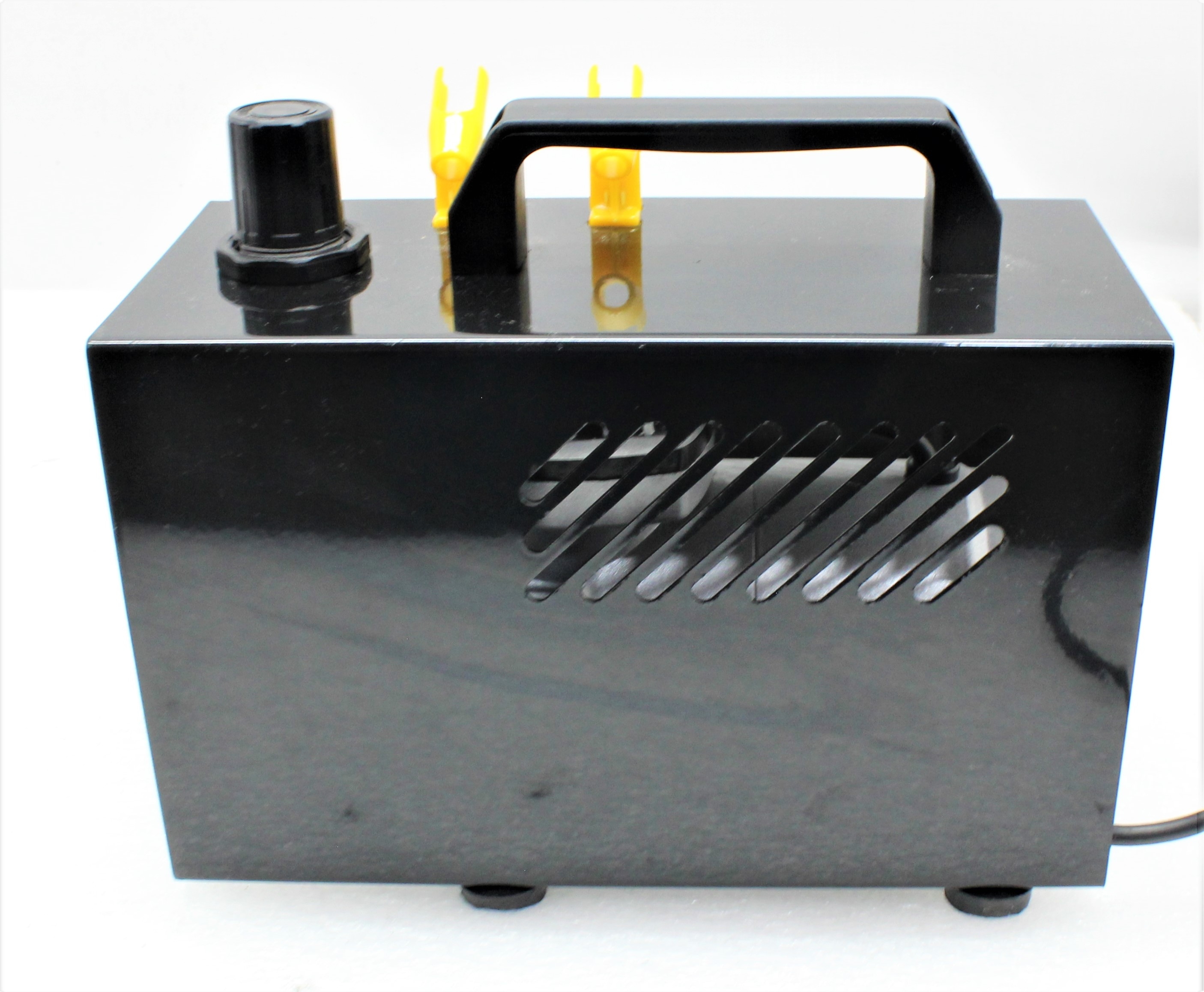

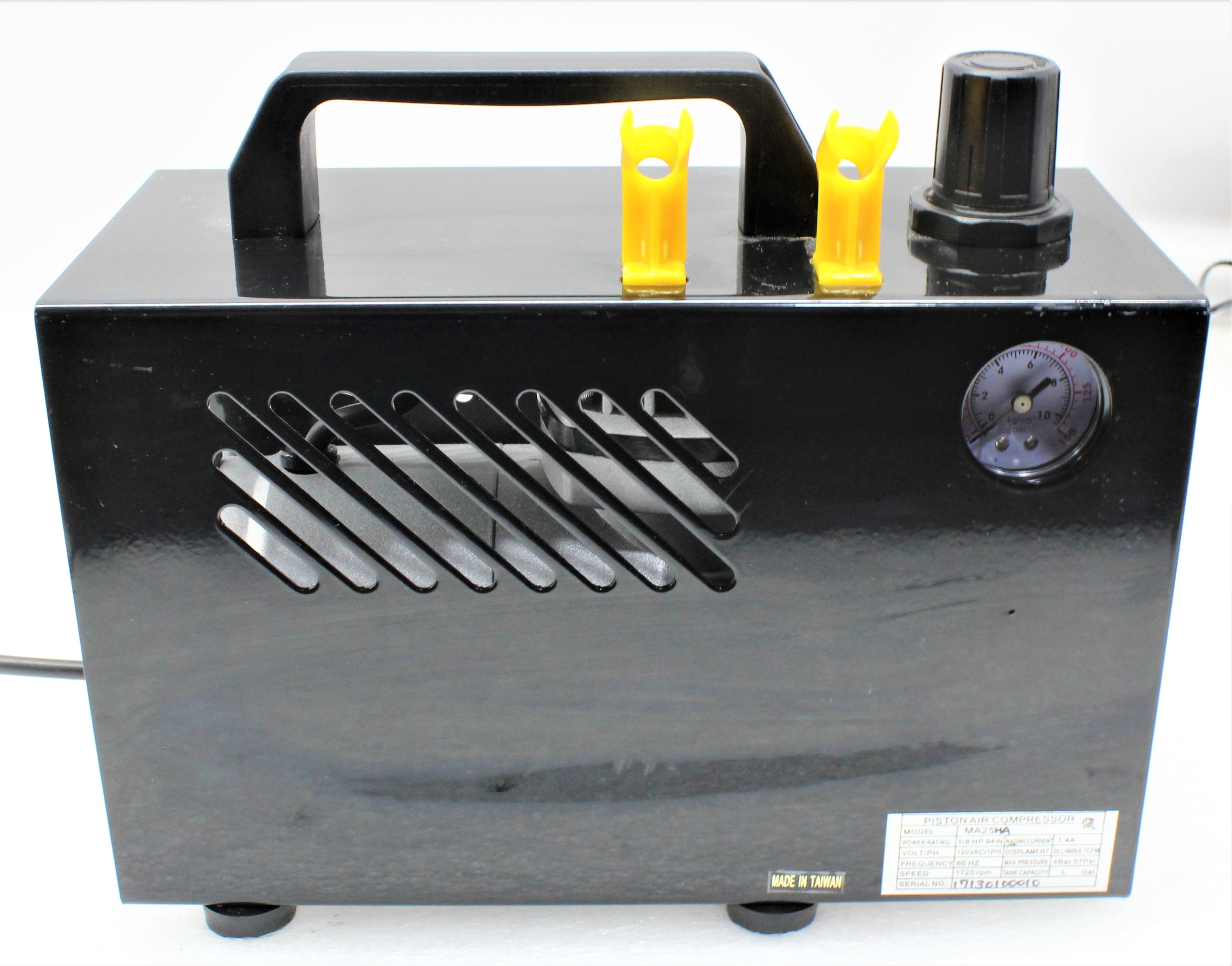

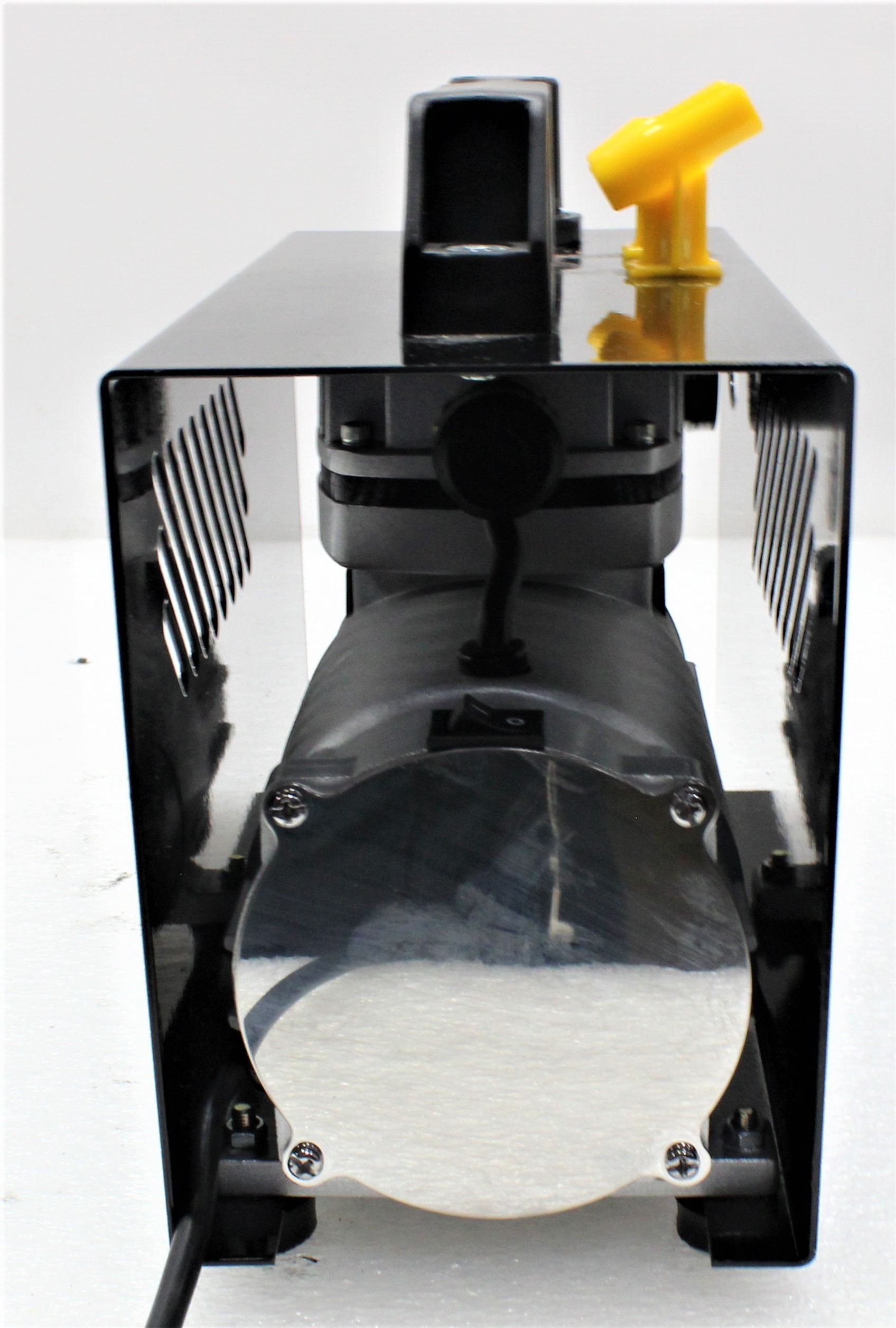

The Piston Air Compressor MA25HA is a reliable and fully operational unit, ideal for various industrial and laboratory applications. With a power rating of 1/8 hp and operating at 120VAC, this compressor features a displacement of 20L/min (0.7CFM), making it suitable for tasks requiring a stable compressed air supply. It can handle a maximum pressure of 57 Psi (4 Bar) and operates at a speed of 1720 rpm. This used, turnkey system is fully functional upon setup, offering convenience and efficiency in high-demand environments.
Key Features
- Piston Air Compressor
- 1/8 HP motor
- 120VAC power requirement
- 20L/min displacement
- 57 Psi maximum pressure
- 1720 RPM speed
- Turn-Key Ready

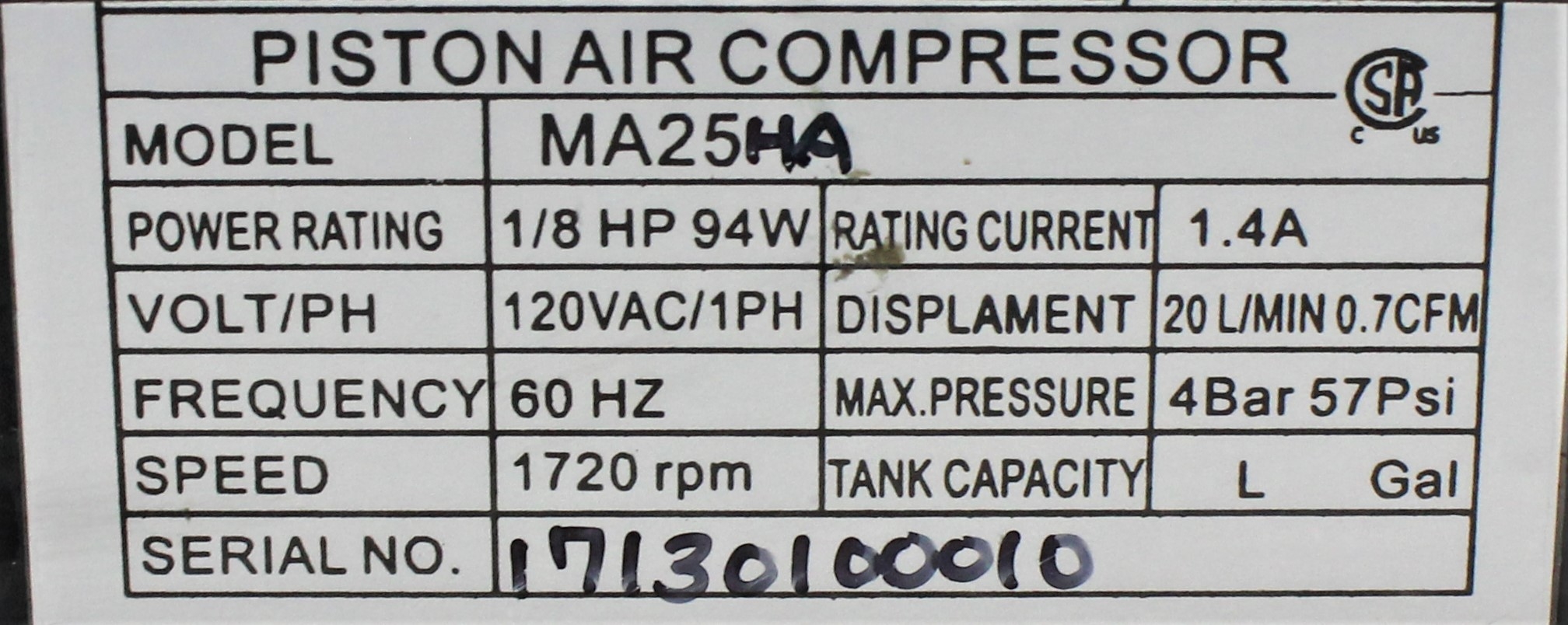

Specifications
- Power Rating: 1/8 hp
- Current: 1.4A
- Voltage: 120VAC/1PH
- Frequency: 60Hz
- Displacement: 20L/min (0.7CFM)
- Maximum Pressure: 4 Bar (57 Psi)
- Speed: 1720 rpm
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 12.0 lb x 6.0 lb
Metric: 30.48 cm x 30.48 cm x 15.24 cm
Harmonized Code
84144000
Harmonized Code Details
84144000 - Air compressors mounted on a frame or on a wheeled chassis for ground air use. This product category is appropriate as the MA25HA is a frame-mounted air compressor designed for industrial use.
