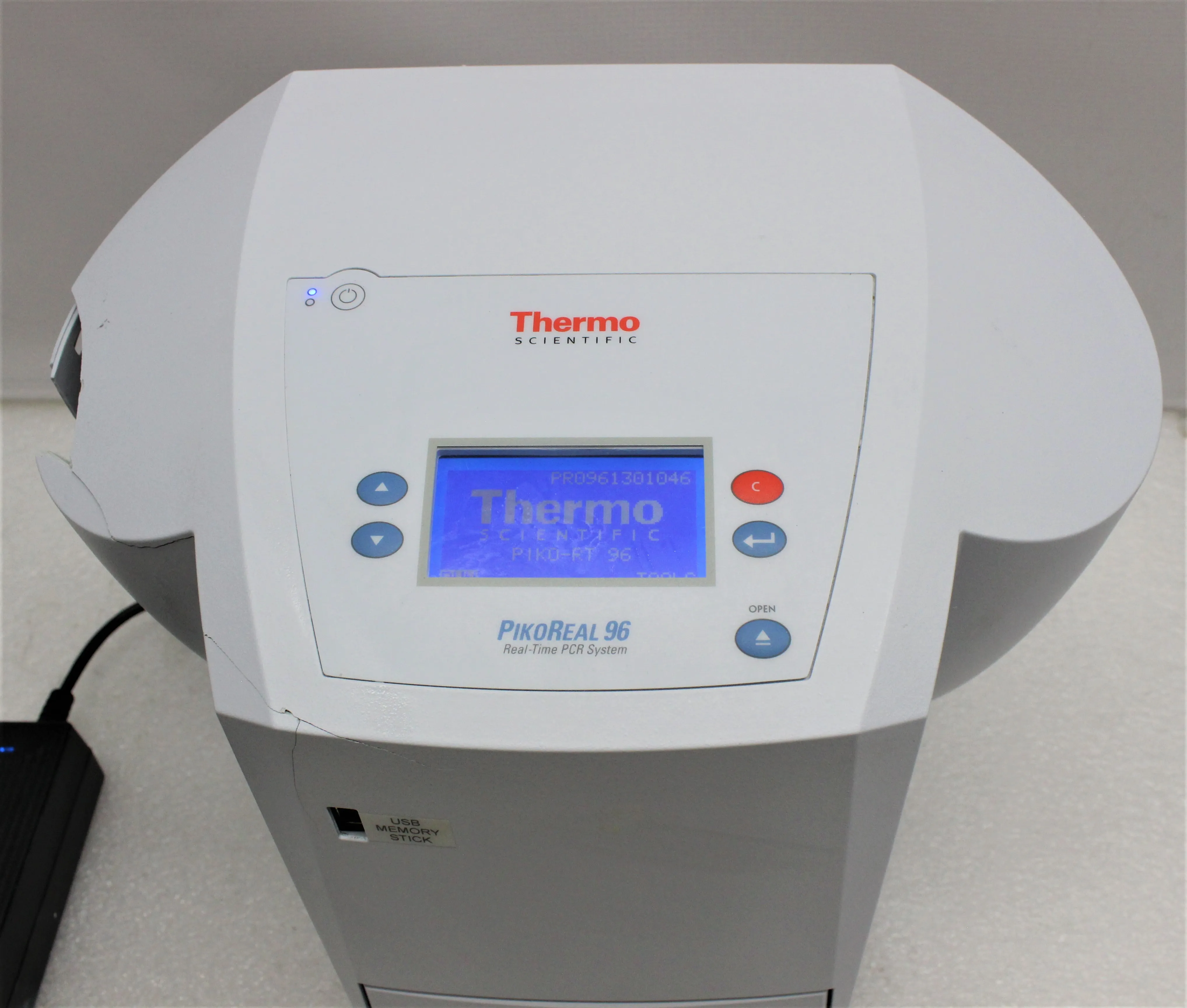

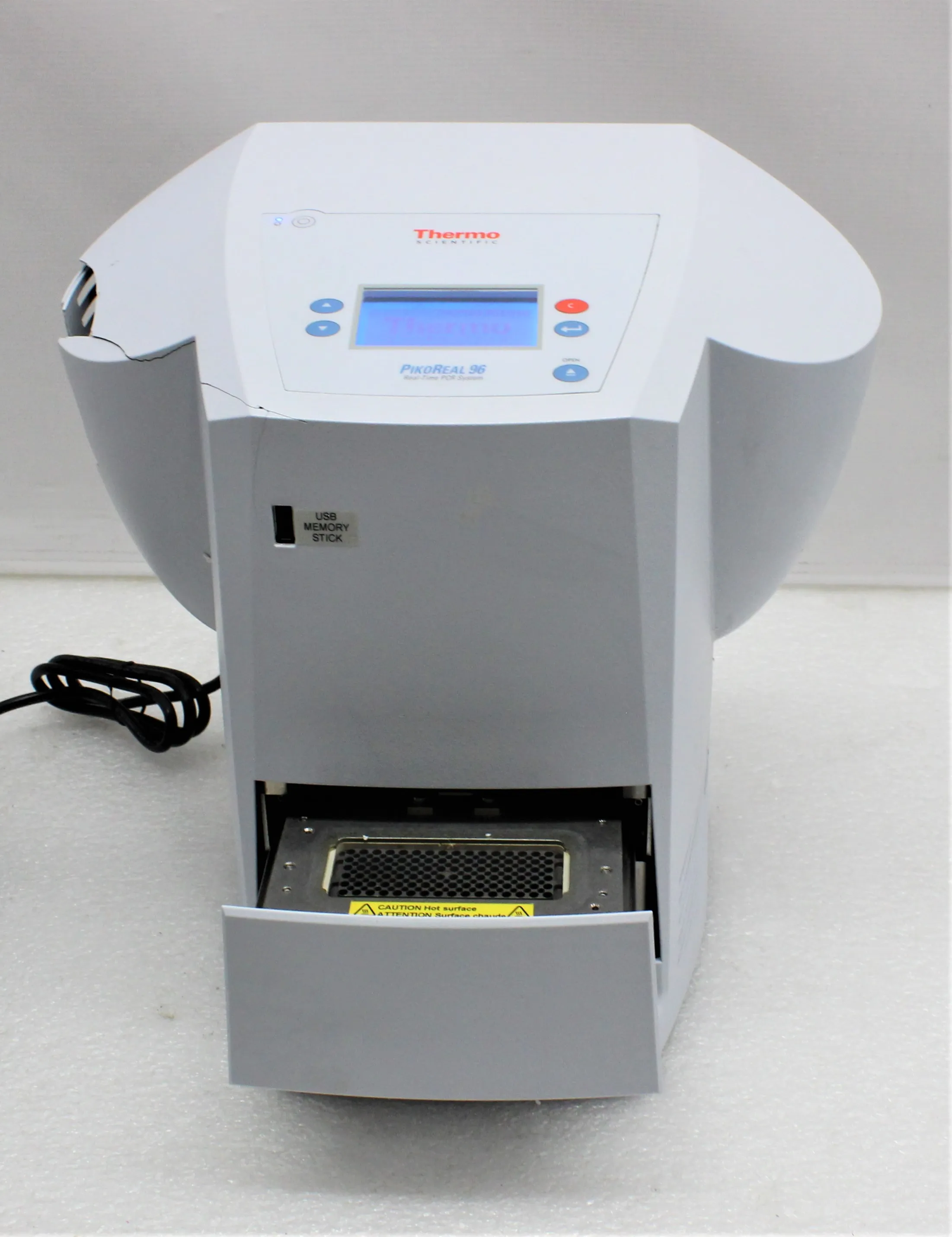

Thermo Scientific PikoReal 96 Real-Time PCR System

Product Information

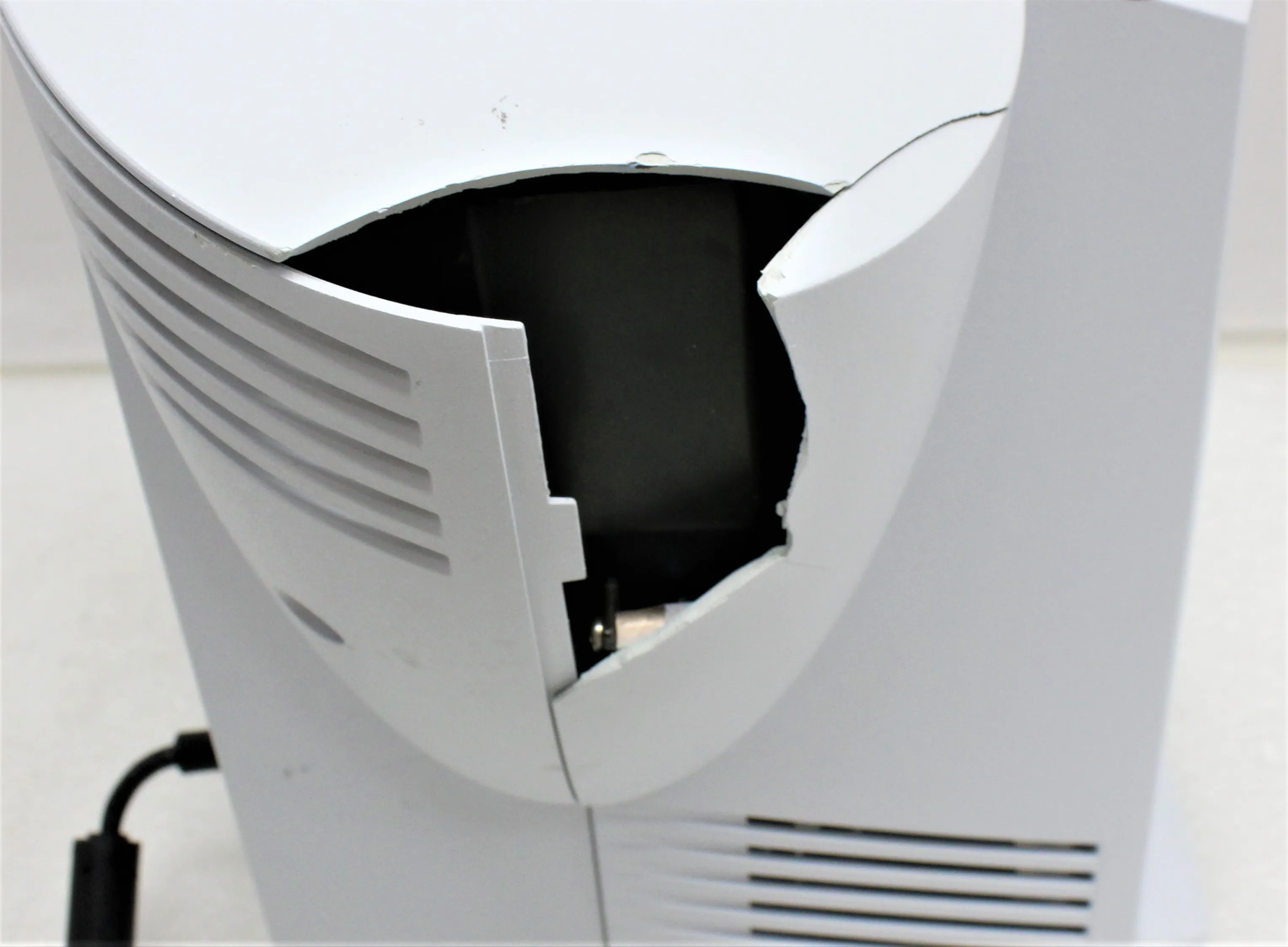

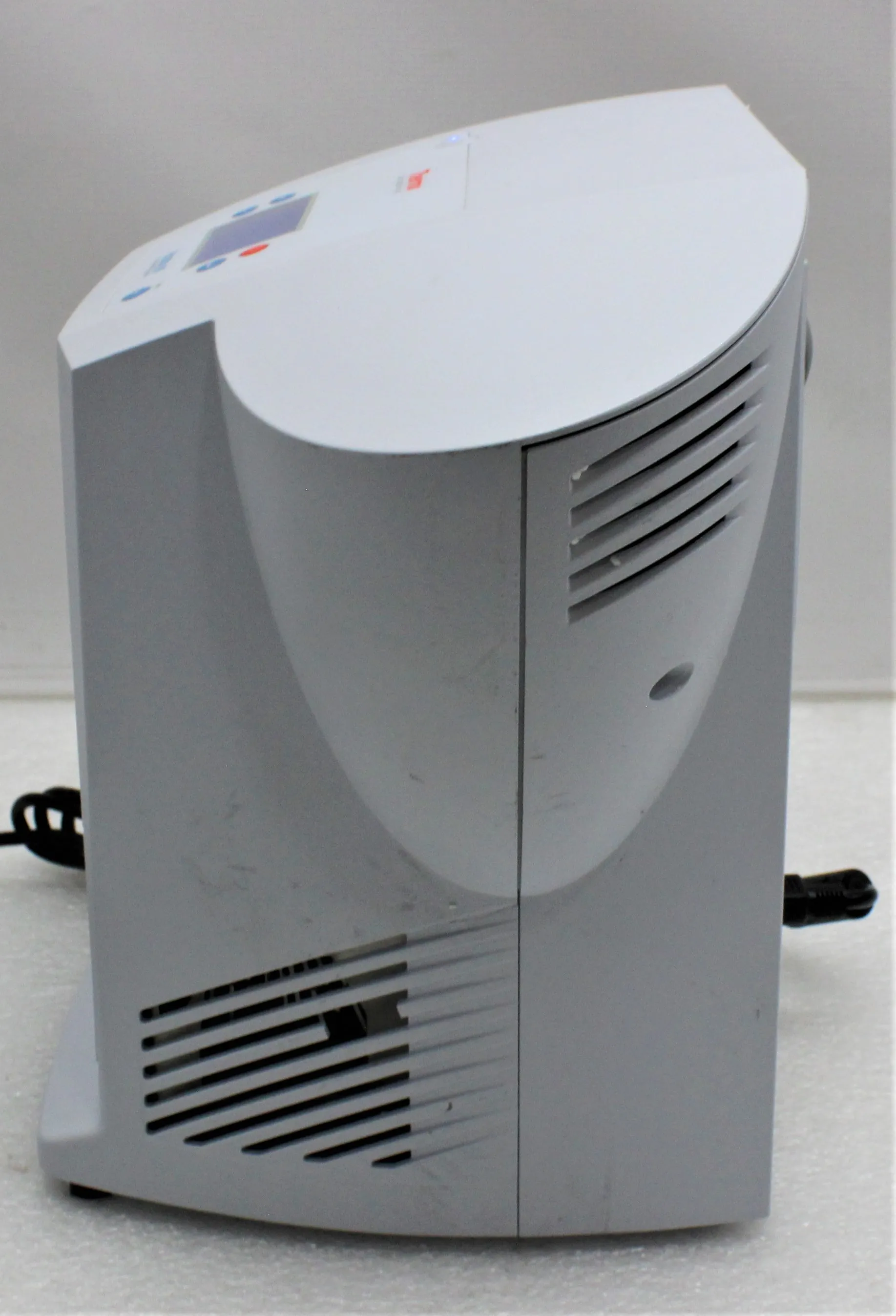

The Thermo Scientific PikoReal 96 Real-Time PCR System offers excellent qPCR performance in a small footprint, making it ideal for both personal use and field applications. The system's superior thermal performance, precise temperature control, and five optical channels facilitate multiplexing, resulting in reliable and reproducible quantification results. The PikoReal software enables remote monitoring of qPCR experiments and provides modules for various types of quantification, melting curve analysis, allelic discrimination, and High Resolution Melting (HRM). The uniquely designed heating block and small plate format allow significant savings in plastics and reagent consumption, reducing the cost of research and producing less plastic waste. The system is recommended for use with 24-well Piko PCR plates, low-profile strips, and tubes. **Cosmetic damage is present on the left side of the unit.

• Superior thermal performance with precise temperature control
• Five optical channels for multiplexing
• Remote monitoring and control via PikoReal software
• Significant savings in plastics and reagent consumption
• Recommended for use with 24-well Piko PCR plates, low-profile strips, and tubes

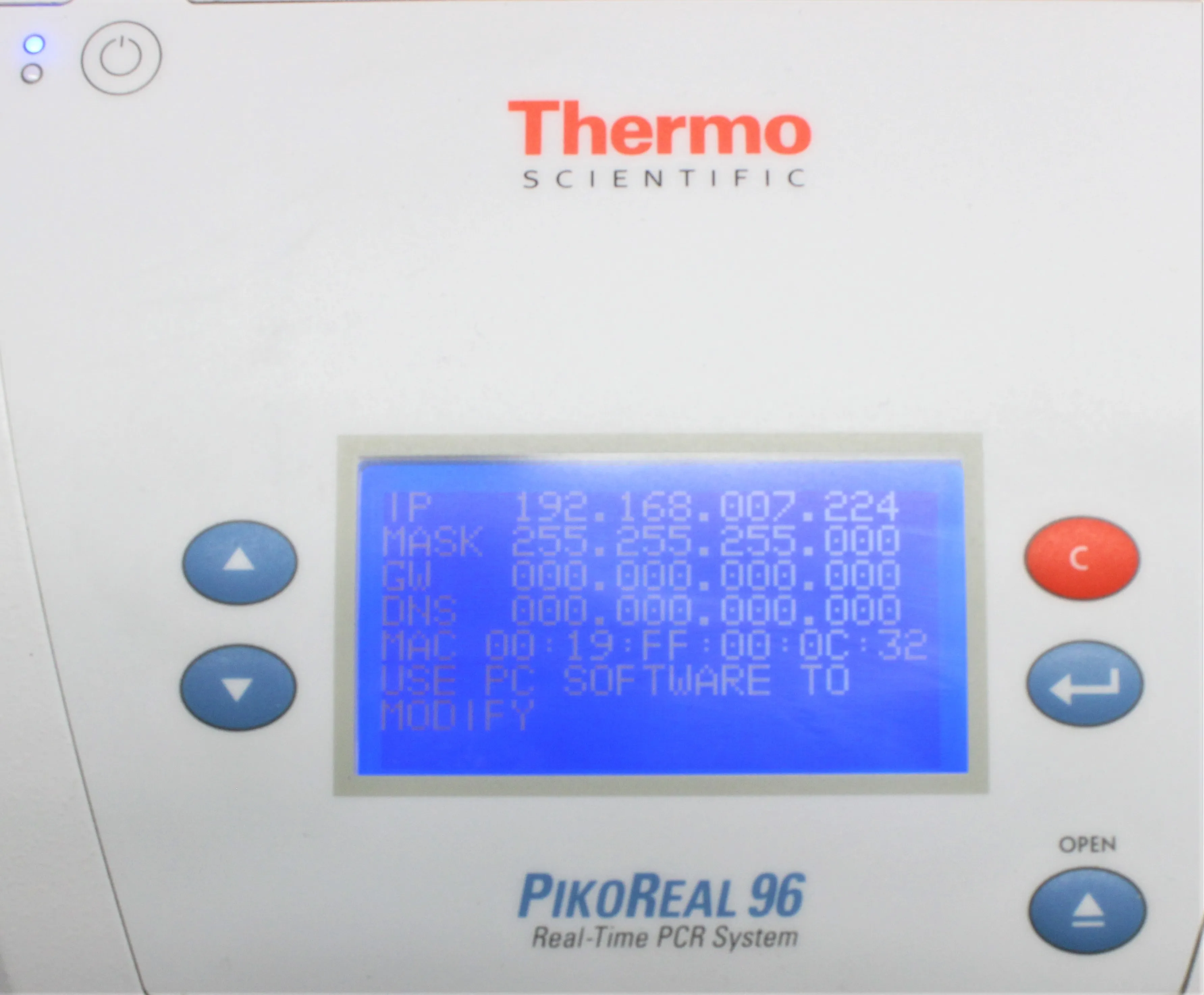

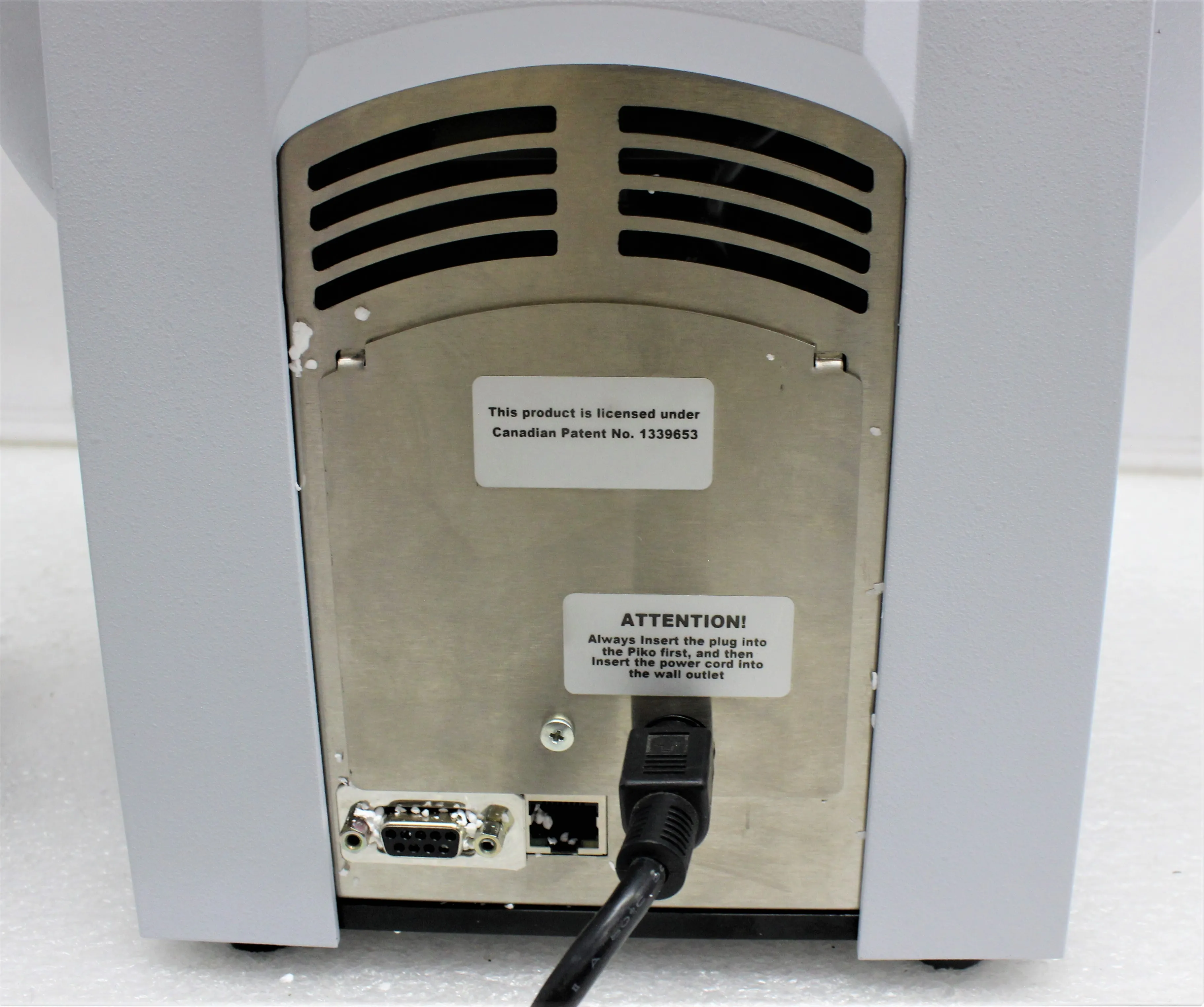

• Communications: Ethernet, up to 10 instruments can be operated from a single PC
• Dynamic Range: 10 logs
• Excitation Range: 475 to 640nm
• Max. Heating Rate (Thermal Block): >5C/sec.
• Sensitivity: 1 copy (theoretical)
• Temperature Accuracy (Thermal Block): 0.2C
• Temperature Range (Thermal Block): 4 to 99.9C
• Volume (Metric) Thermal Block Sample: PikoReal 24: 10 - 50L; PikoReal 96: 5 -20L
• Control (Heated Lid): Automatic temperature and pressure setting
• Detection Range: 520 to 740nm
• Excitation: 5 LEDs
• For Use With (Application): Real-time qPCR, gene expression analysis, gene quantification
• Max. Cooling Rate: 4.5C/sec.
• Multiplex: Up to 4 targets
• Scan Time for Four Multiplexing Channels: <10 sec.
• Software Analysis Modes: Absolute quantification; Relative quantification; Melt curve analysis; Allelic discrimination; High Resolution Melt (HRM)
• Temperature Range (Heated Lid): 30 to 110C

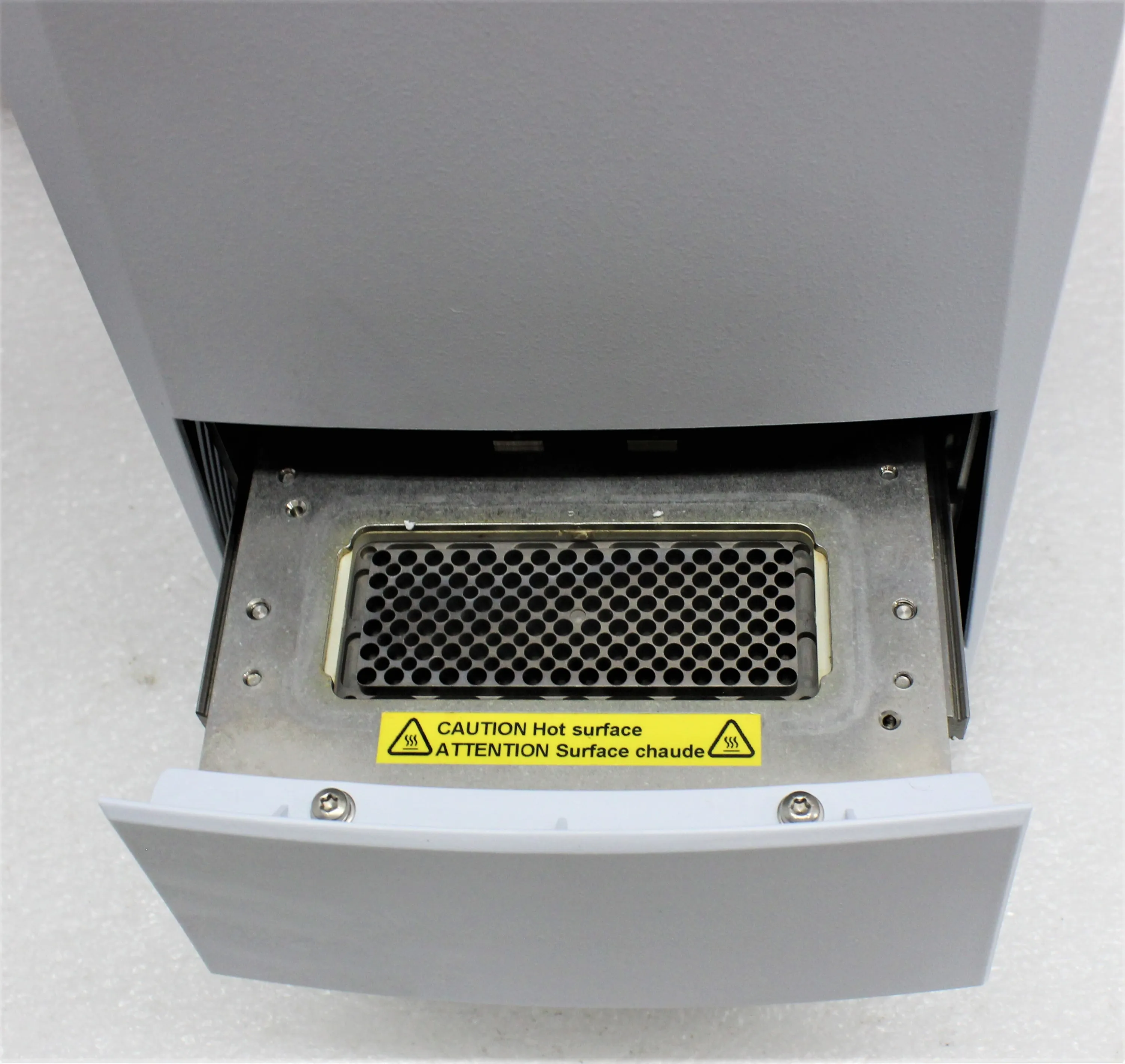

• Thermal Block Formats: 24-well, 96-well (not interchangeable)

Metric: 14.5 kg
Imperial: 32 lb

Metric: 45.72 cm x 50.8 cm x 50.8 cm
Imperial: 18 in x 20 in x 20 in
