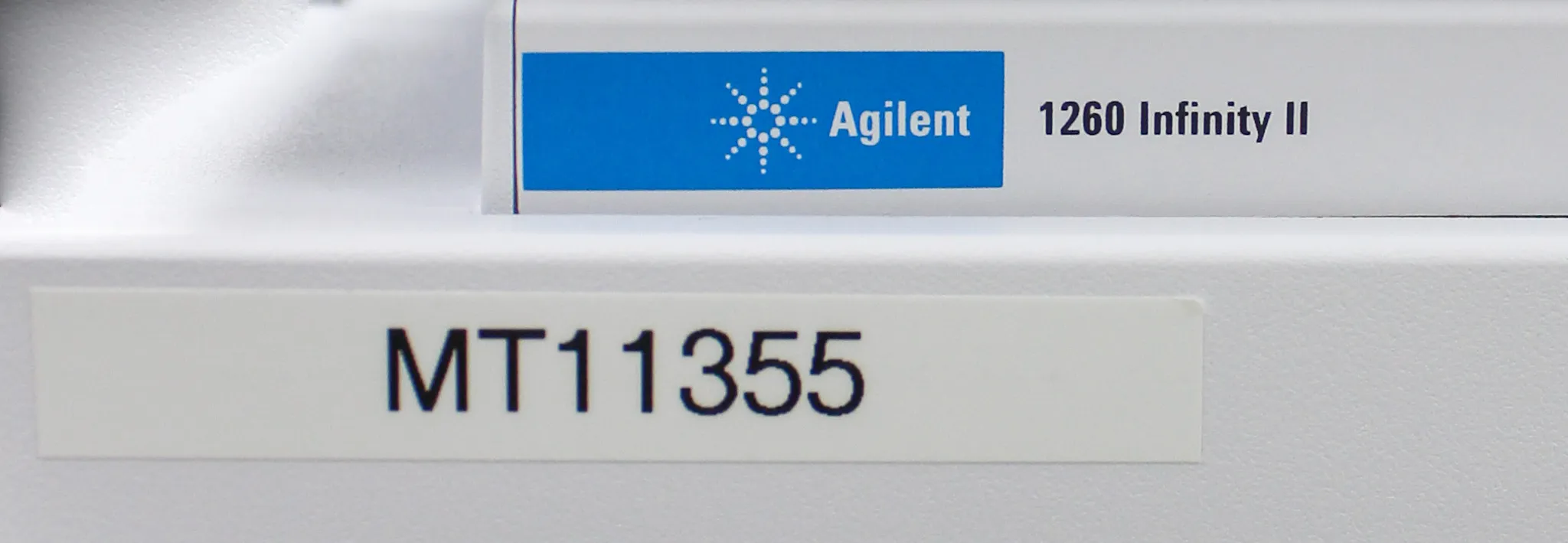

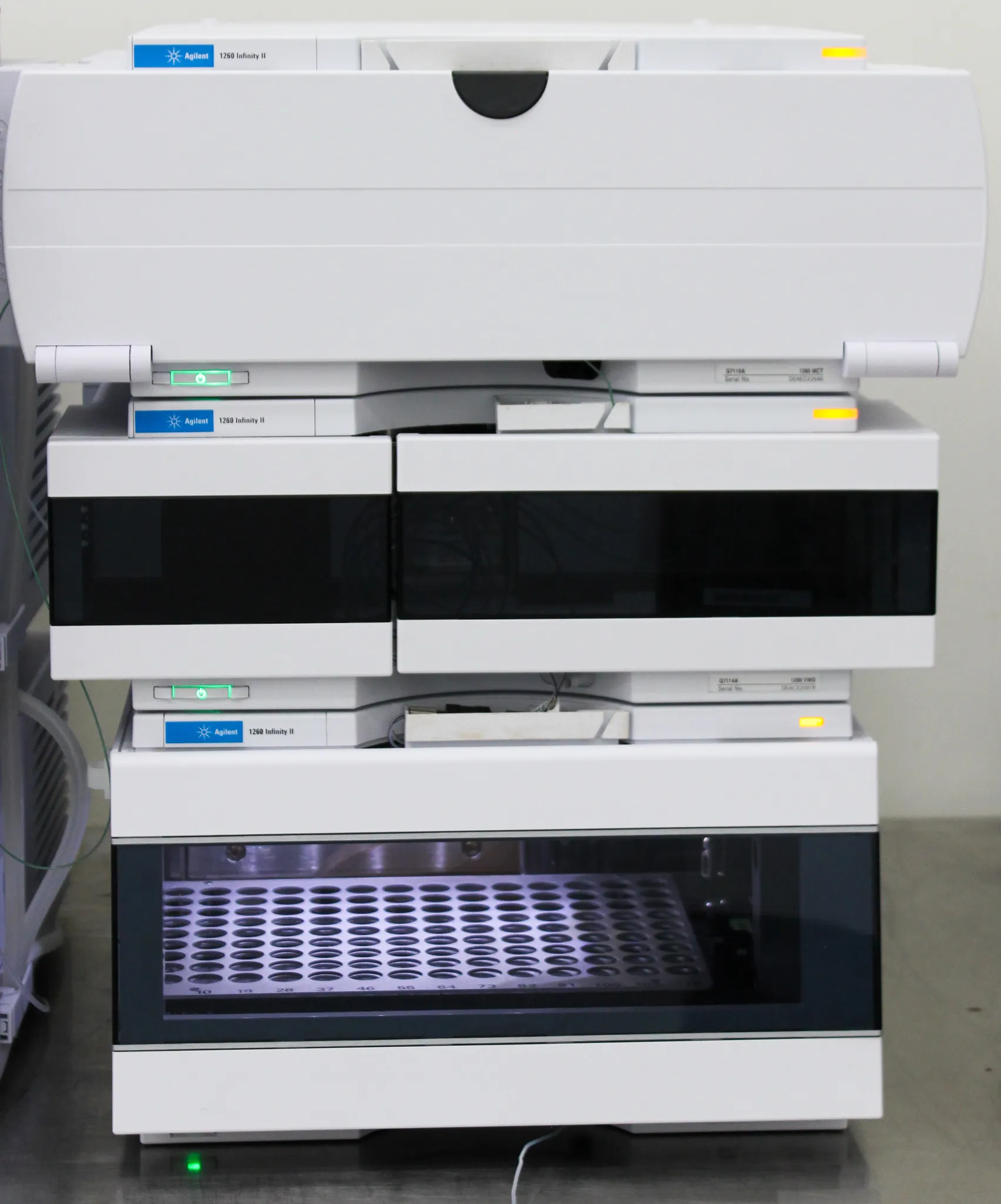

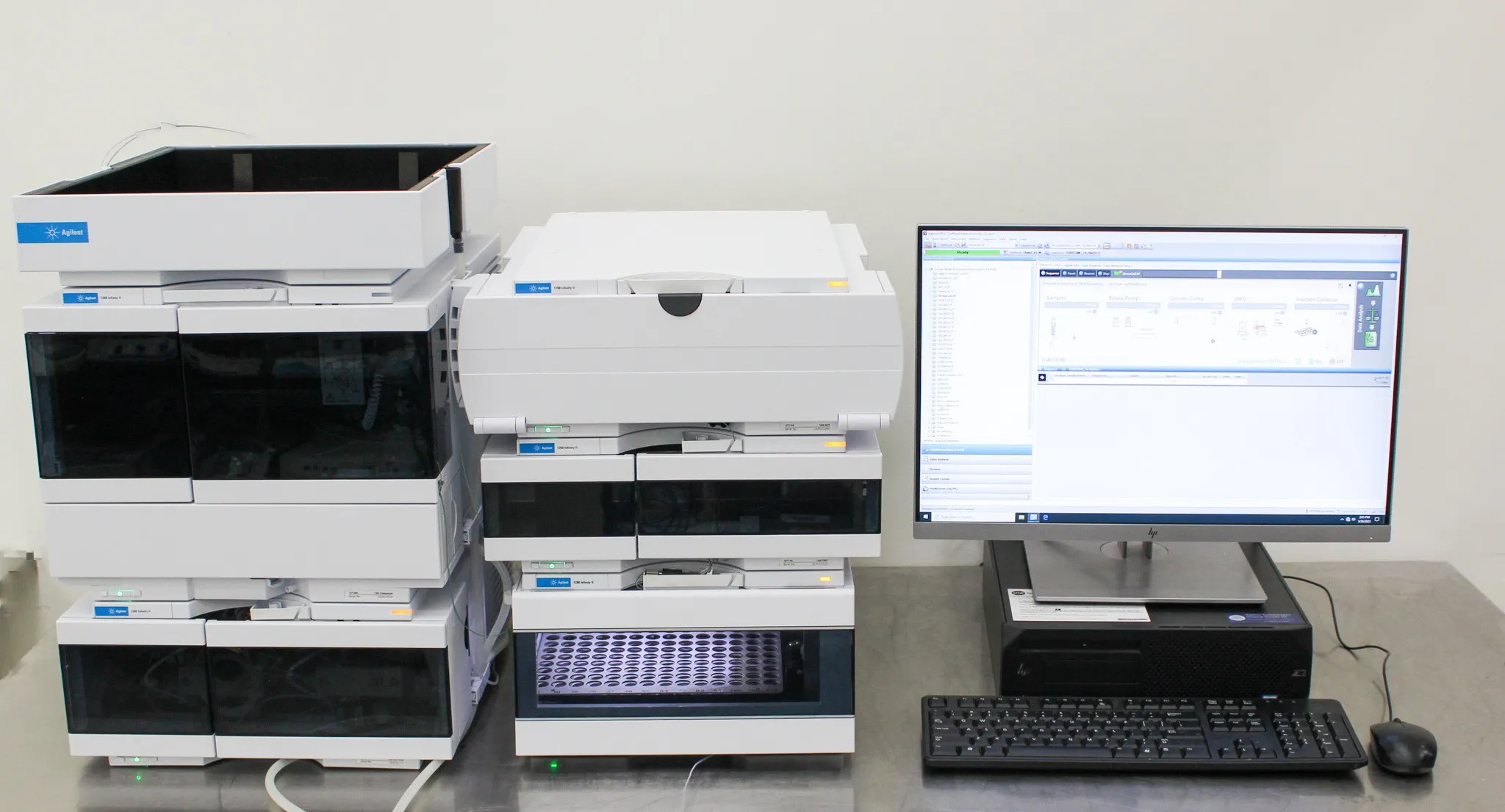

Agilent 1260 Infinity II Analytical Scale LC Purification System

Product Information

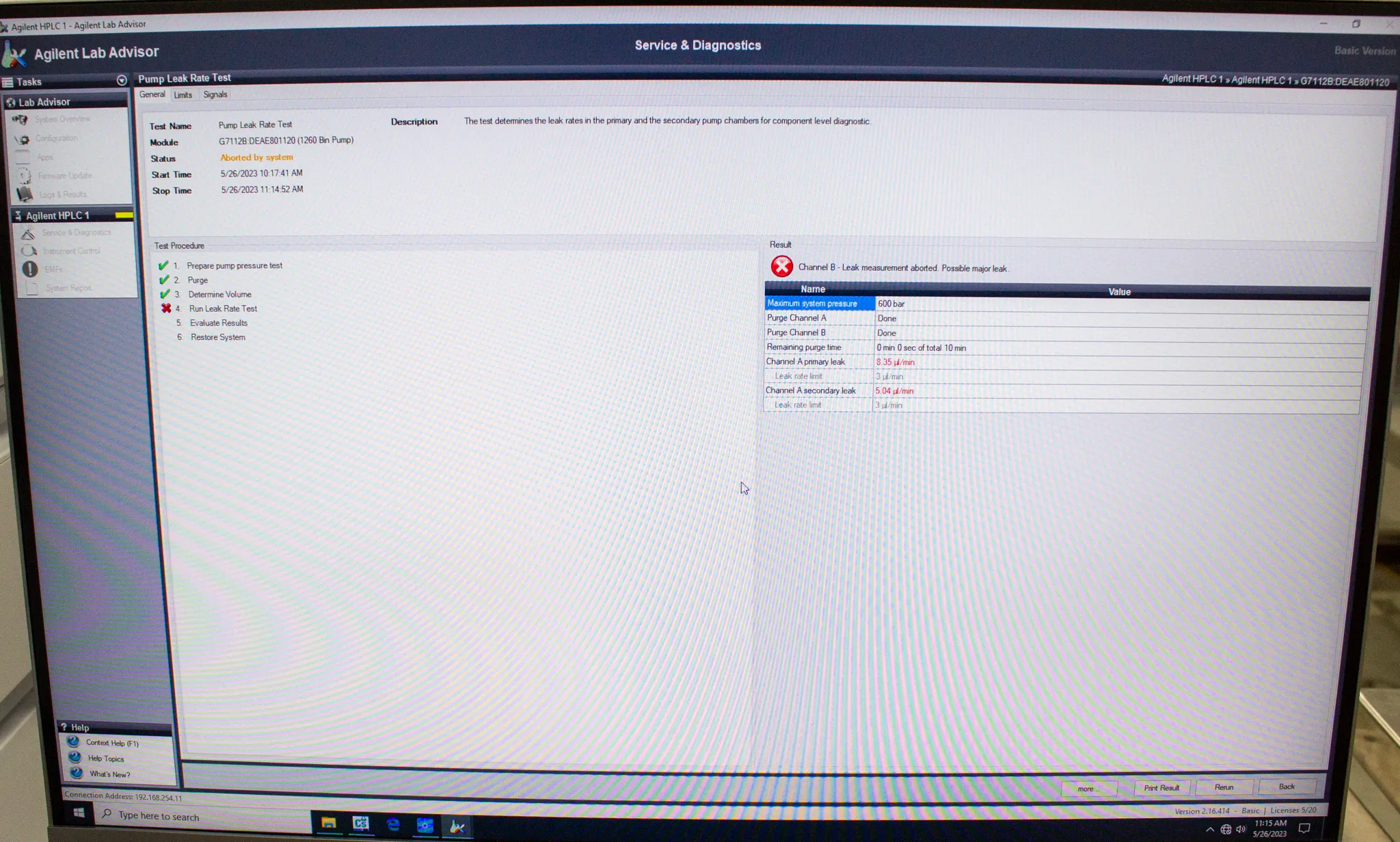

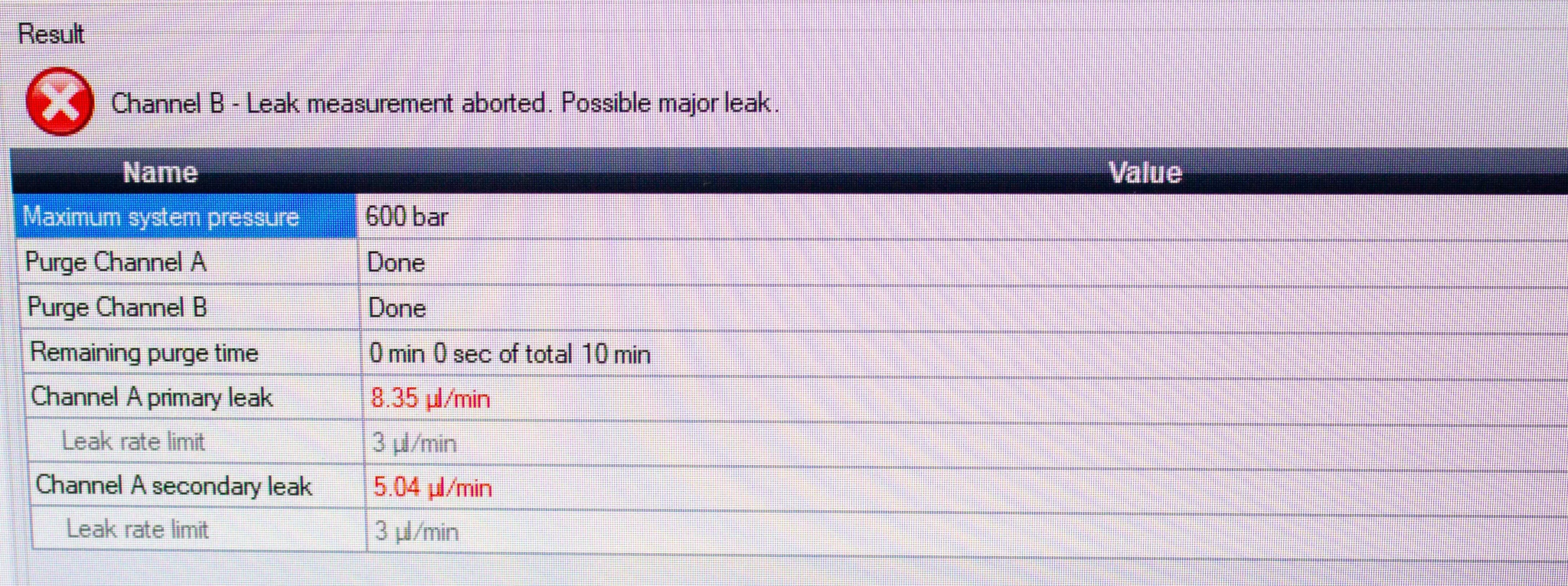

The Agilent 1260 Infinity II Analytical Scale LC Purification System is a versatile solution ideal for compound isolation within the InfinityLab LC purification portfolio. It can purify multi-milligram quantities of materials. The system handles flow rates between 0.1 and 10 mL/min with a range of id columns. UV or MS detection is possible as well as clustering of multiple fraction collectors. The pump needs Service PM and it has been tested. It offers flexibility, future-proof investment, and precise isolation of compounds. It's designed for various purification needs, making it a valuable asset for any lab.

• Dynamic flow range up to 10 mL/min at 600 bar
• UV or MS detection, clustering of multiple fraction collectors
• Low-dispersion fraction collection for precise isolation of compounds
• Easy-to-install upgrades available for higher flow rates or lower dispersion

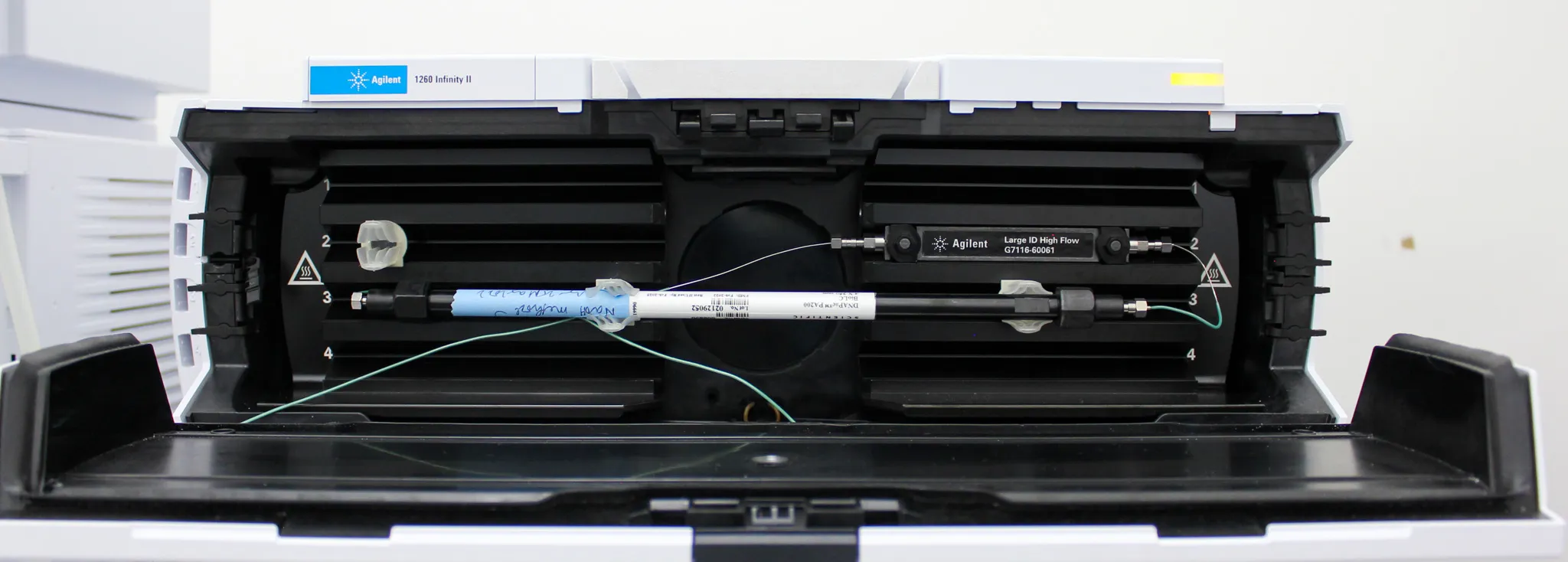

• Column Capacity: 4
• Column ID Reader Option: Optional
• Depth: 468 mm

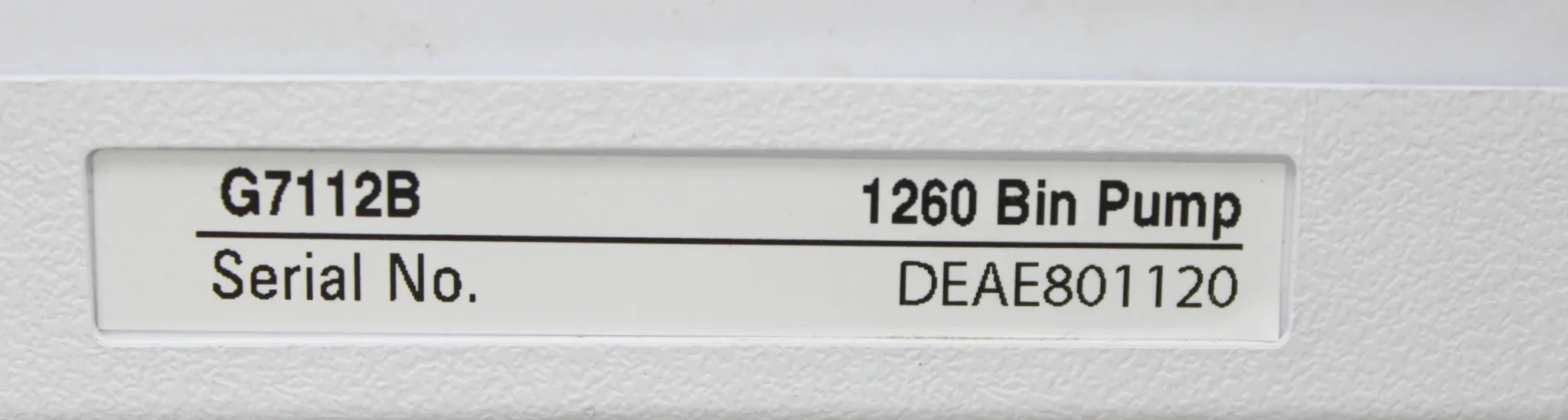

• Flow Range: 0.05 to 5 mL/min with G7112B, 0.2 to 10 mL/min with G7110B, G7111A, G7111B
• Injection Range: 0.1-100 L, 0.1-900 L with Extended Injection Range Option, 0.1 to 1800 L with Multi Draw Kit
• Intelligent System Emulation Technology: No
• Line Voltage: 100-240 VAC
• Maximum Number of Fractions: 384
• Maximum Number of Solvents: 4, up to 15 with additional Solvent Selection Valve

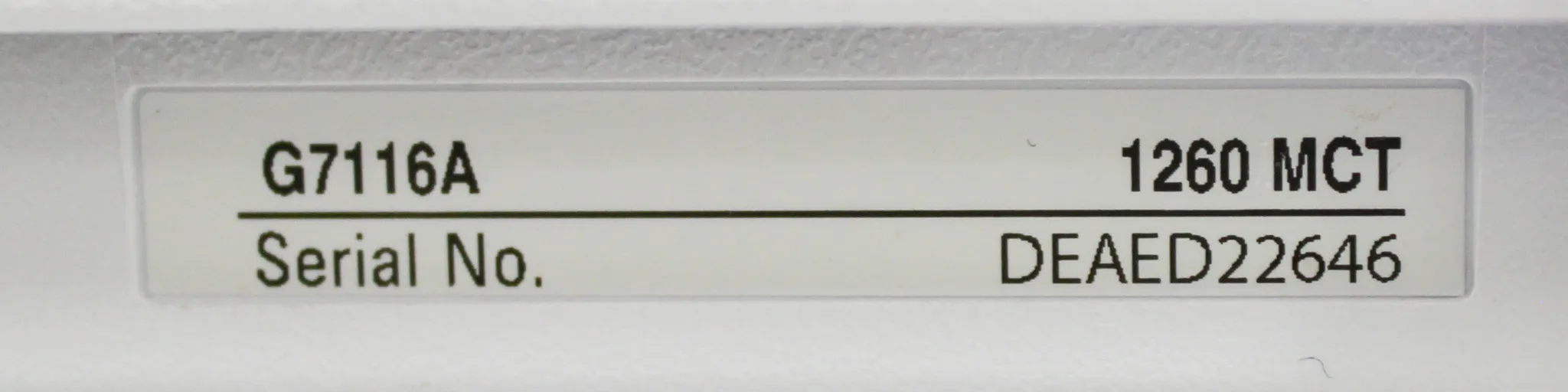

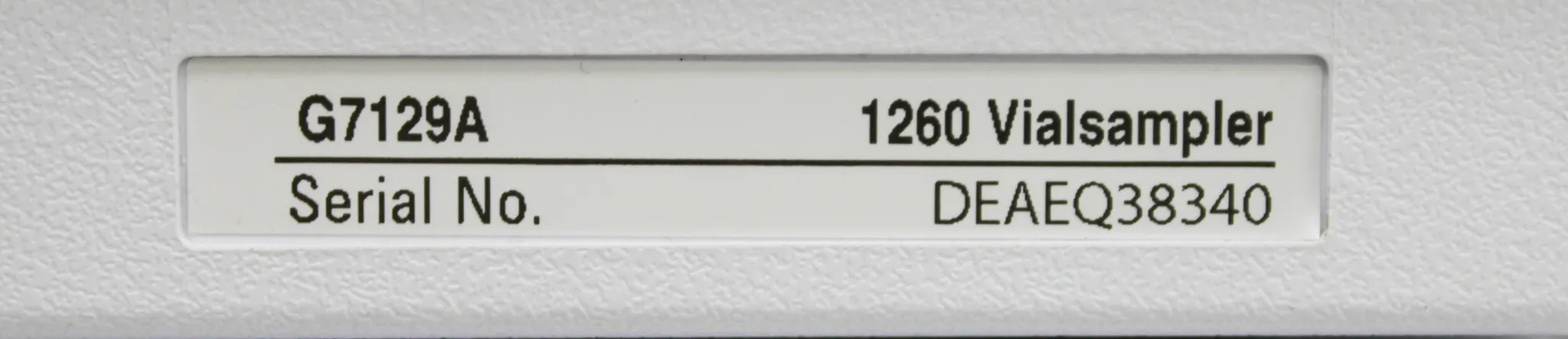

• Maximum Number of Temperature Zones: 2 with G7116A/B, 1 with Vial Sampler with Integrated Column Compartment

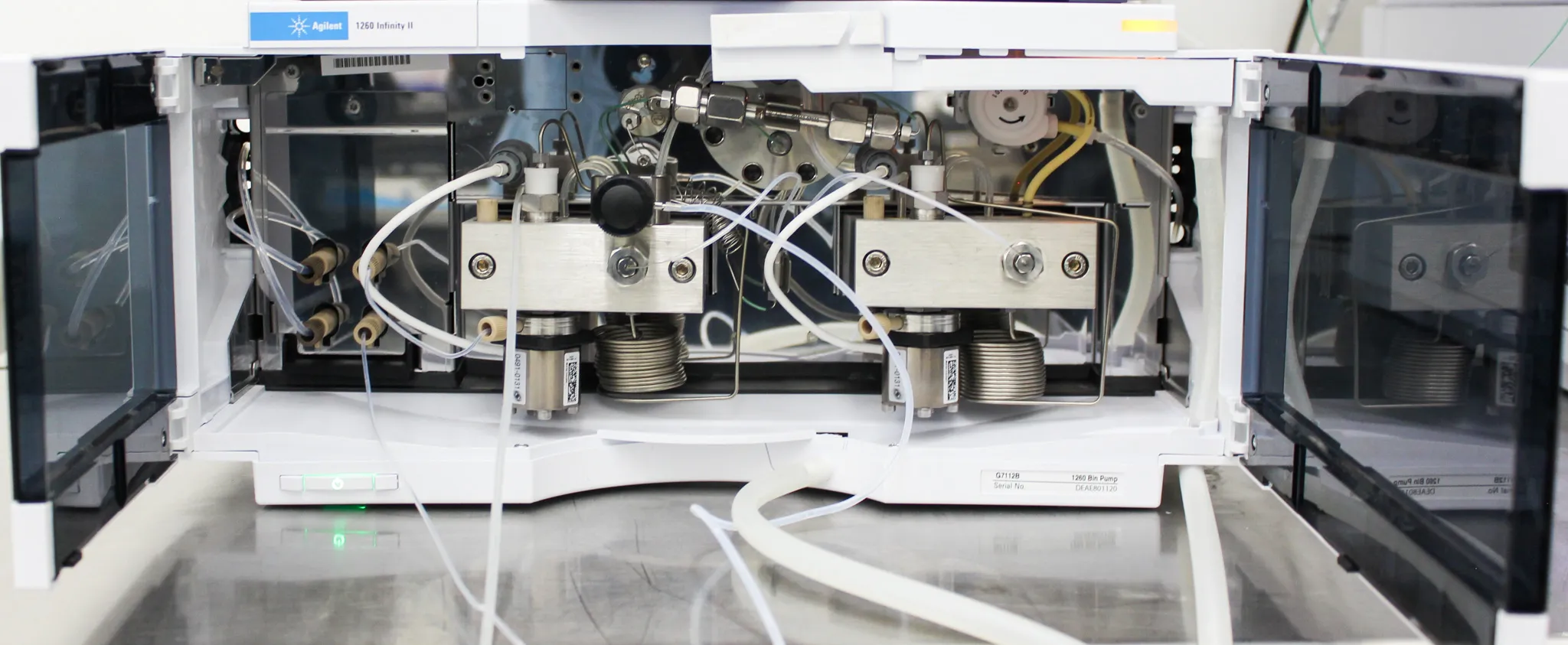

• Pump Type: Binary
• Special Features: Delay Sensor, Automated Delay Volume Calibration
• System Pressure Operating Range: up to 600 bar
• Width: 980 mm

Metric: 0.453 kg
Imperial: 1 lbs

Metric: 39.0 cm x 23.0 cm x 37.0 cm
Imperial: 15.35 in x 9.06 in x 14.57 in

902720

902720: Liquid chromatographs and electromyographs
