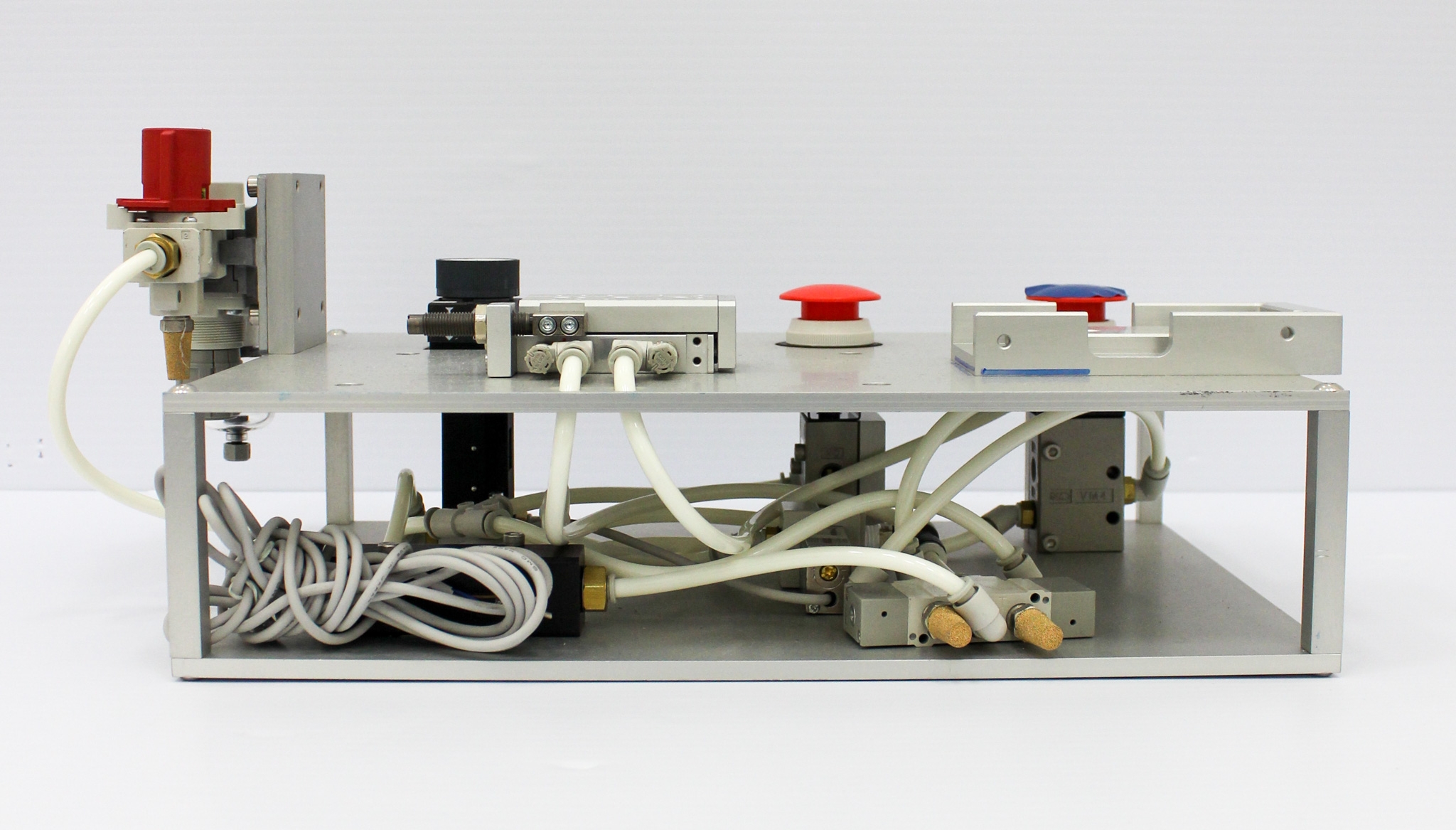

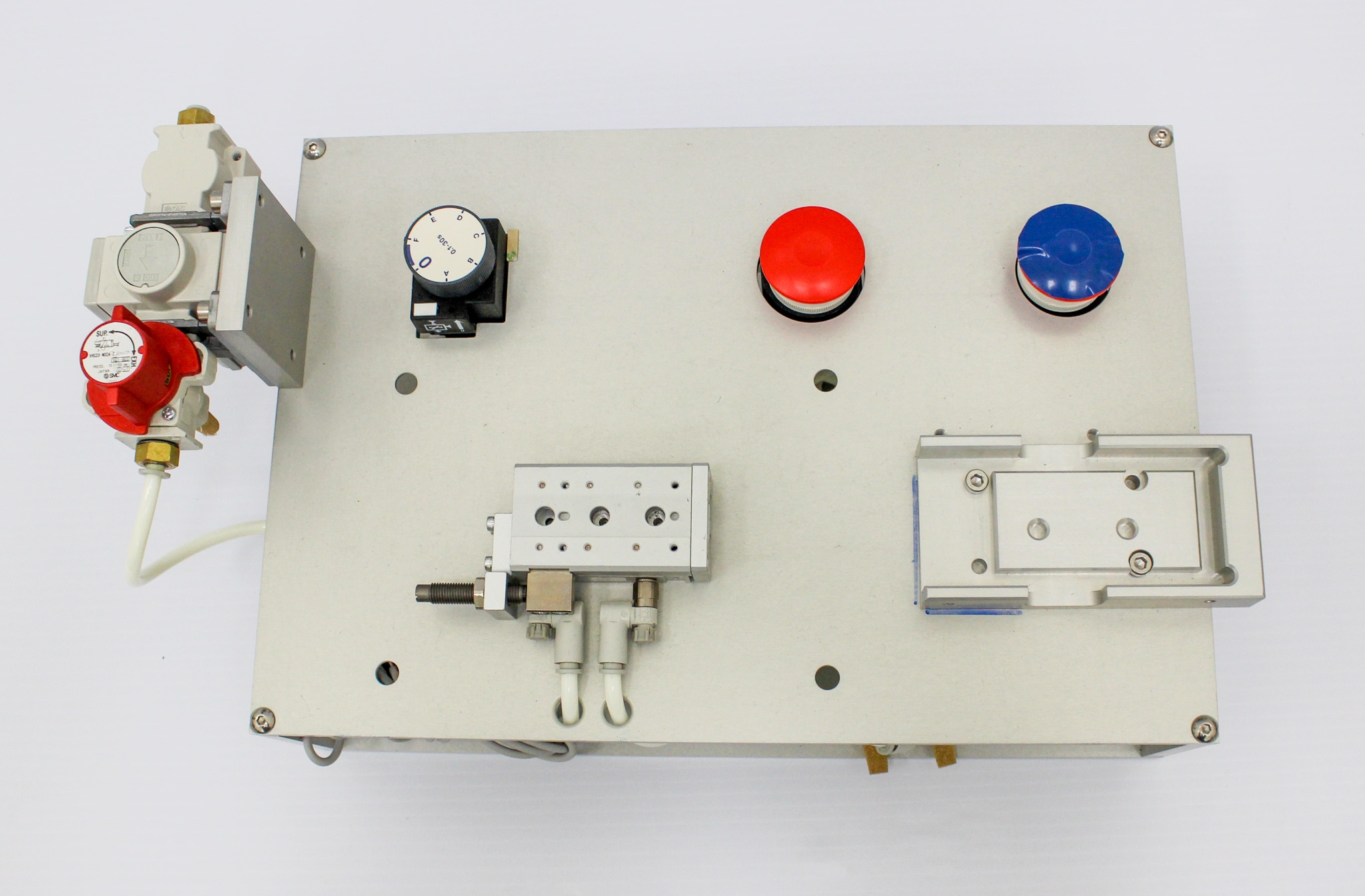

SMC MXS8-30P Air Slide Table with Custom Stopper Base for Precise Positioning
SMC
Details
-
CategoryMiscellaneous
-
Dimension18.0in x 10.0in x 8.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

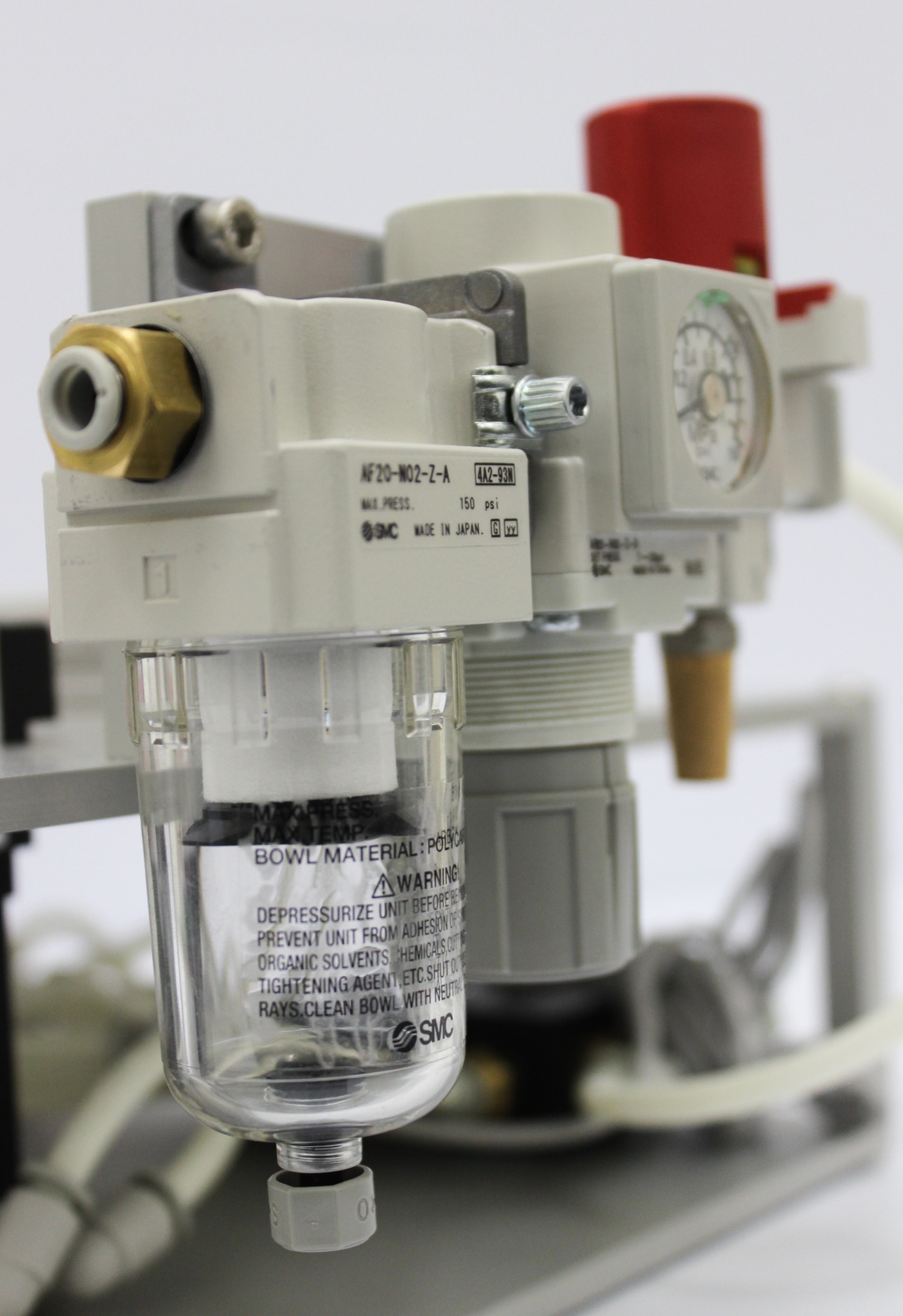

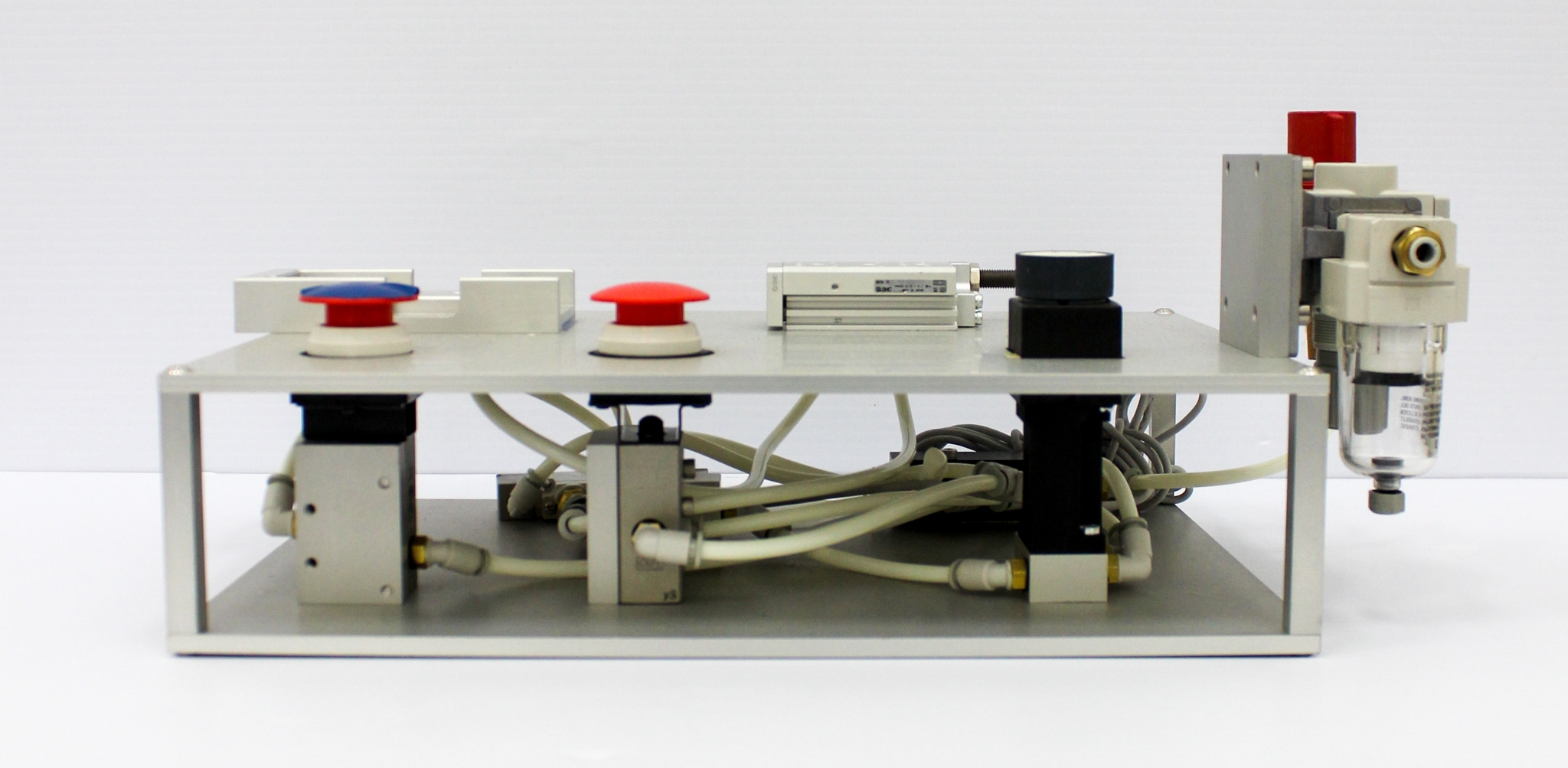

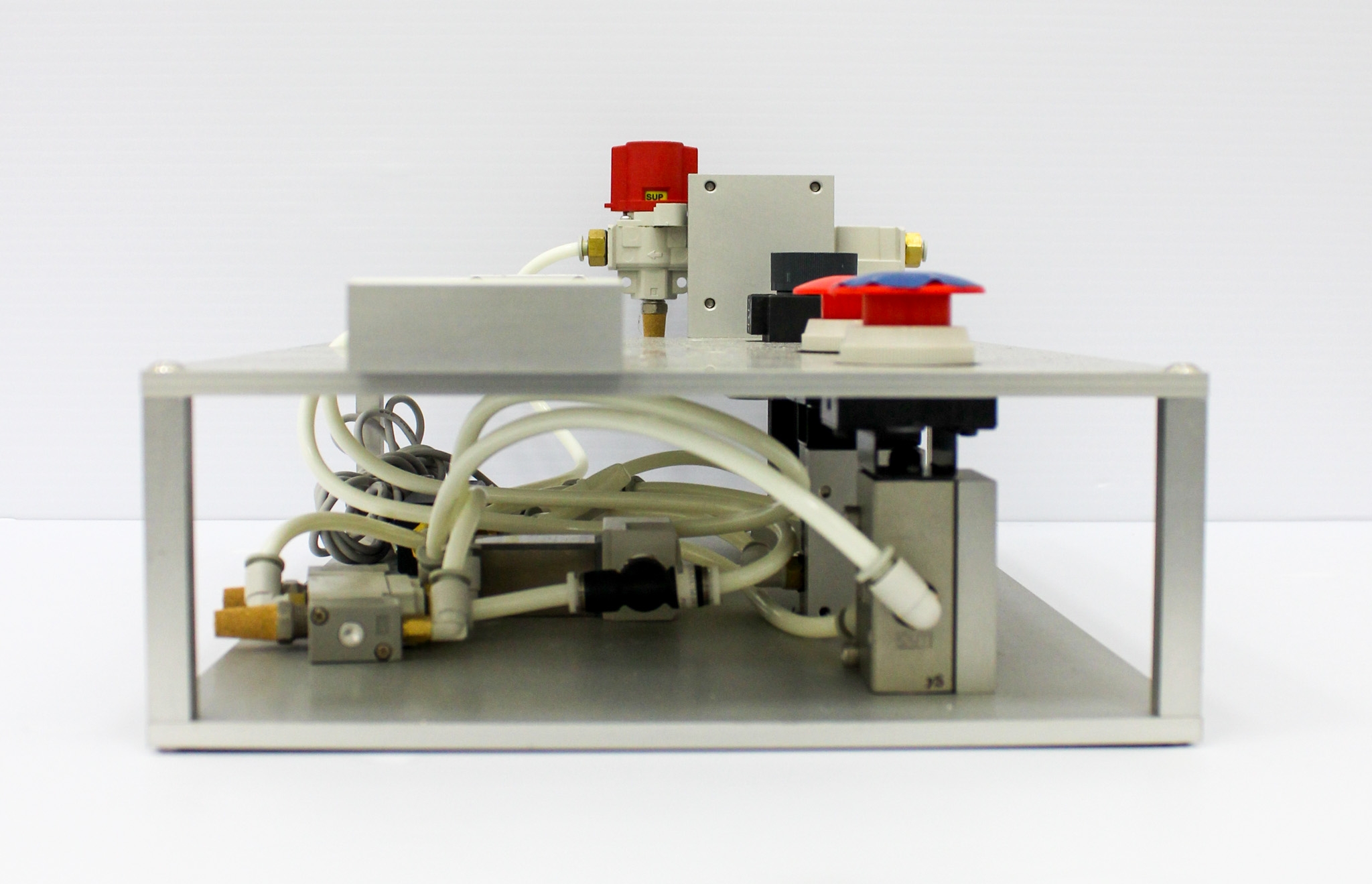

The SMC MXS8-30P is a precision air slide table equipped with a custom stopper base, ensuring accurate load handling in diverse applications. Manufactured by SMC, this model features integrated guides, rails, and cross roller bearings to isolate load bearing from dual rods and piston seals. It includes rubber bumpers or shock absorbers for various stroke adjustments. The slide table, suitable for both horizontal and vertical applications, prevents drop during air pressure loss with an end lock feature. Bore sizes include 6, 8, 12, 16, 20, and 25 mm, offering versatility in use. The unit operates on a press range of 0.15-0.7 Mpa and supports modular connections with a locking adjustment knob for stability. Designed with a robust AR20-N02-Z-B regulator and AF20-N02-Z-B filter system, this equipment ensures protection from accidental setting changes and easy maintenance. Despite cosmetic wear, this used unit is functional and has passed initial testing for basic functions. Ideal for engineers needing reliable positioning and air slide solutions.
Key Features
- Precision slide table with custom stopper base
- Rubber bumpers and shock absorbers for stroke adjustments
- End lock to prevent drops in vertical uses
- Integrated guides and cross roller bearings
- Compatible with modular SMC air equipment
Specifications
- Bore sizes: 6, 8, 12, 16, 20, 25 mm

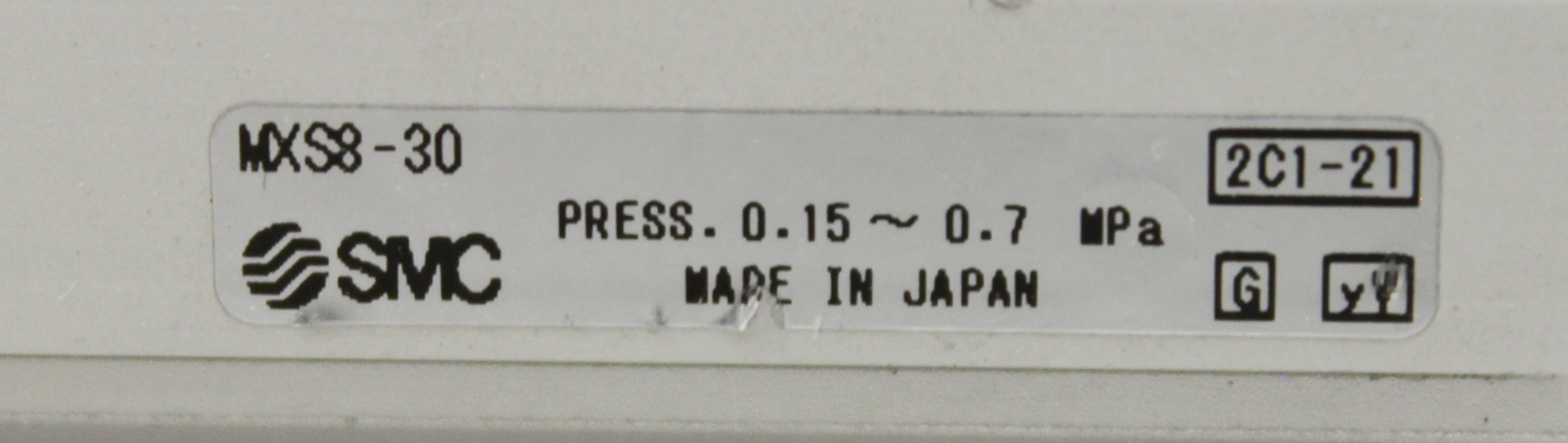

- Pressure range: 0.15-0.7 Mpa
- Modular type regulator with locking adjustment
- Auto switch capability
- RoHS compliant materials
- Rubber bumper with stroke adjuster
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 12.0 lb x 9.6 lb
Metric: 54.86 cm x 30.48 cm x 24.38 cm
Harmonized Code
84818099
Harmonized Code Details
84818099 - Other appliances having individual functions, not elsewhere specified or included. Chosen due to the custom and specialized nature of the air slide equipment for precision applications.
