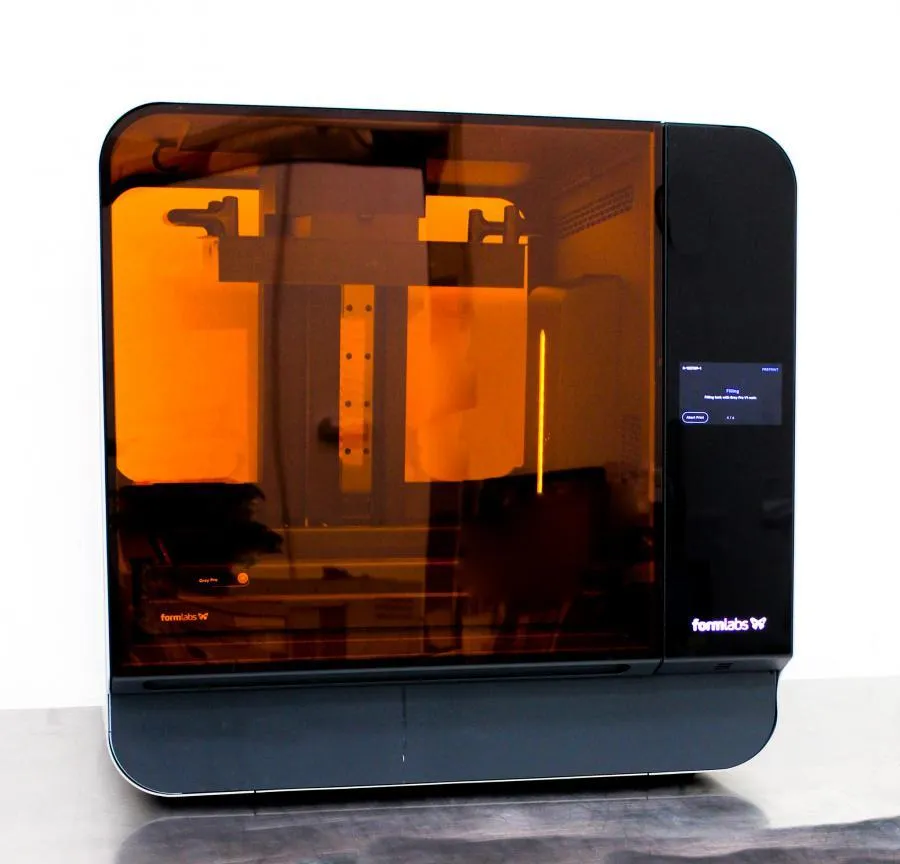

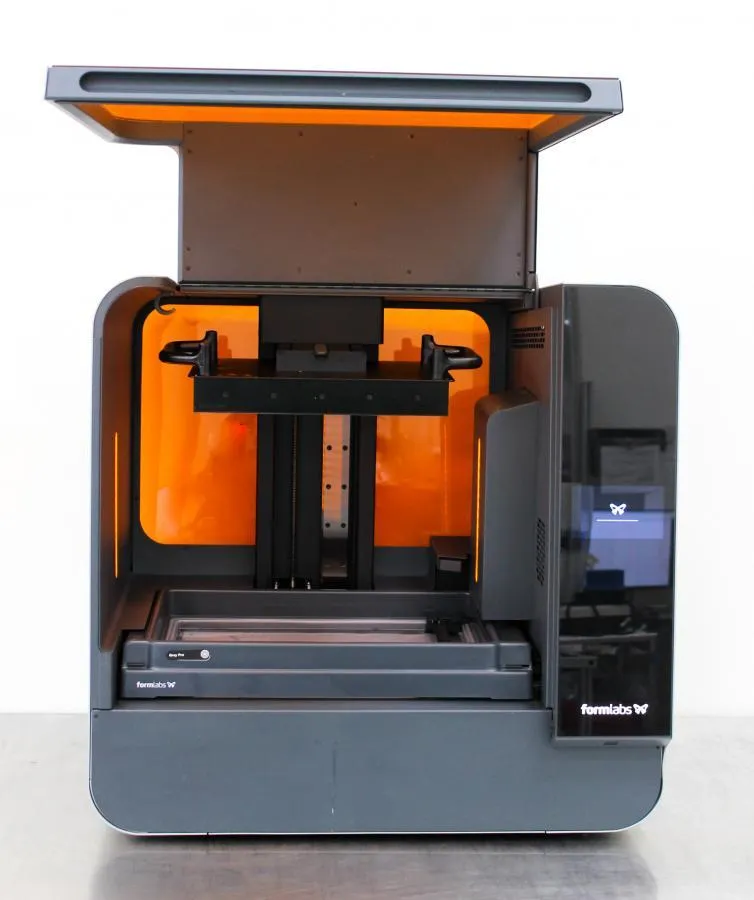

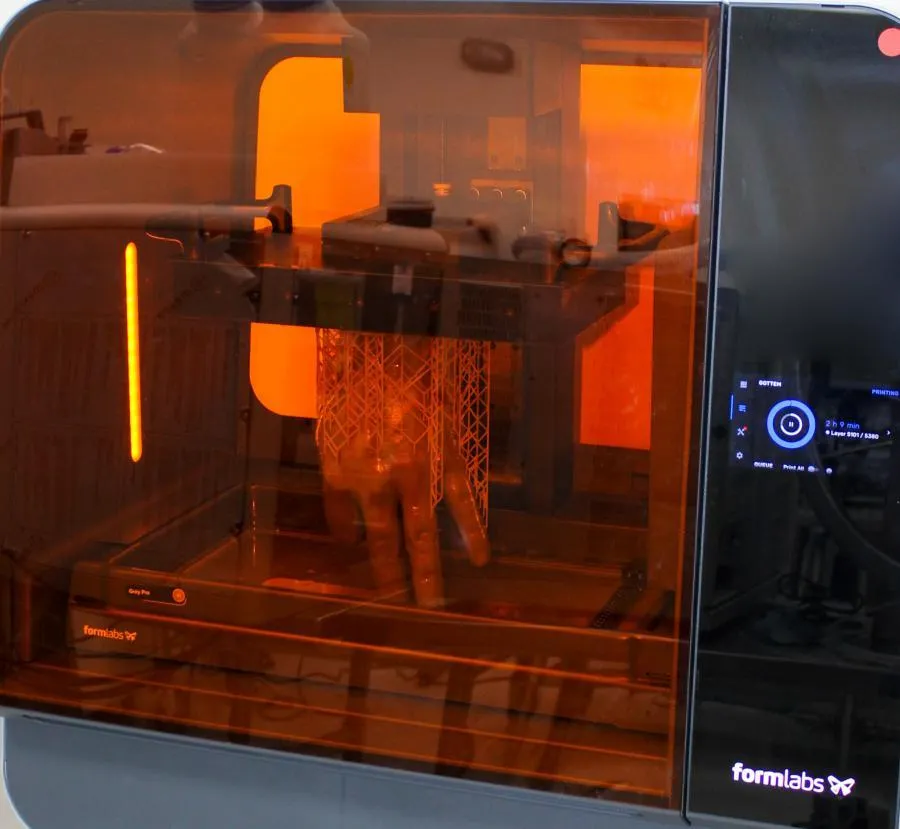

Formlabs Form 3 L Printer 3D

Formlabs Form 3 L Printer 3D

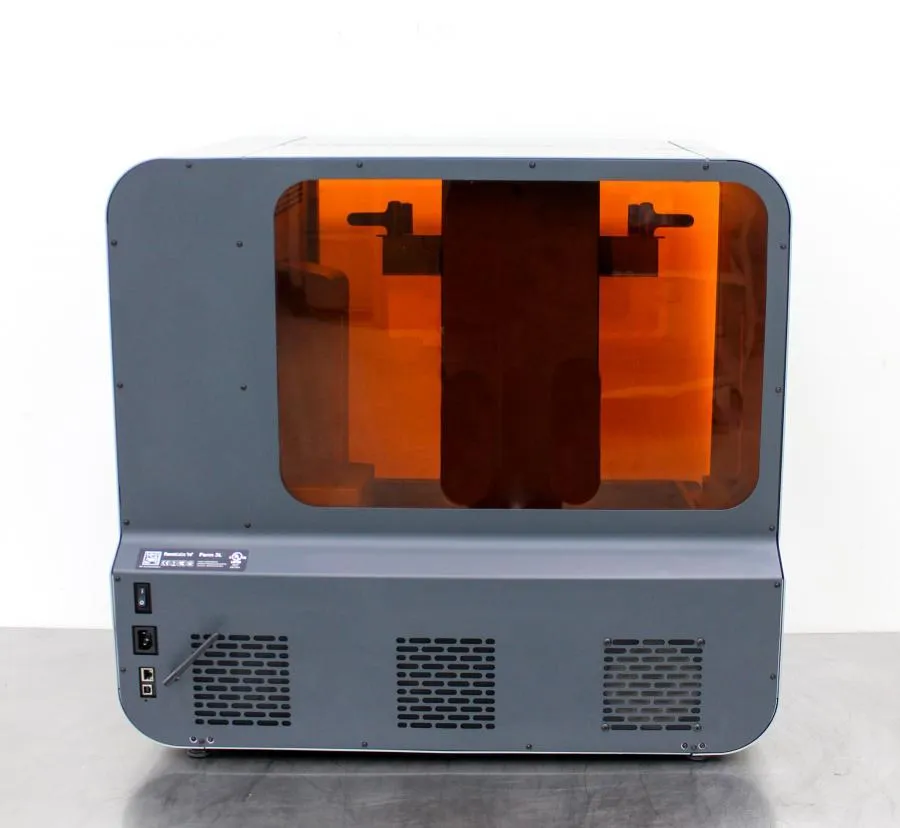

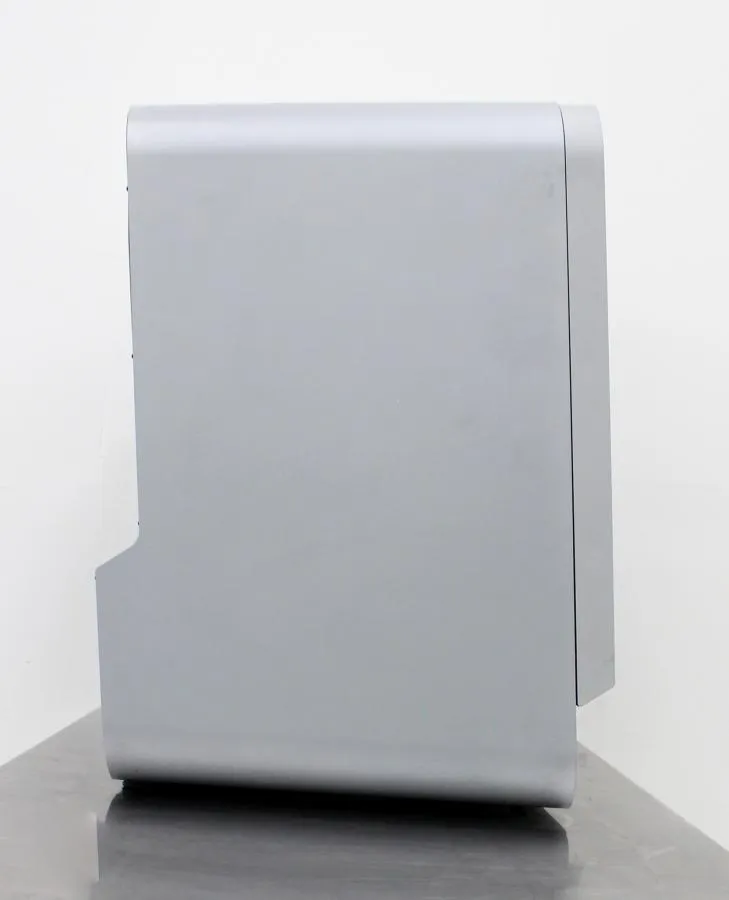

**This Unit has been tested to specifications. Will need to replace 3L Resin Tanks. Everything in pictures are included. Has slight cosmetic blemishes from normal use. See photos for further details.

Include:

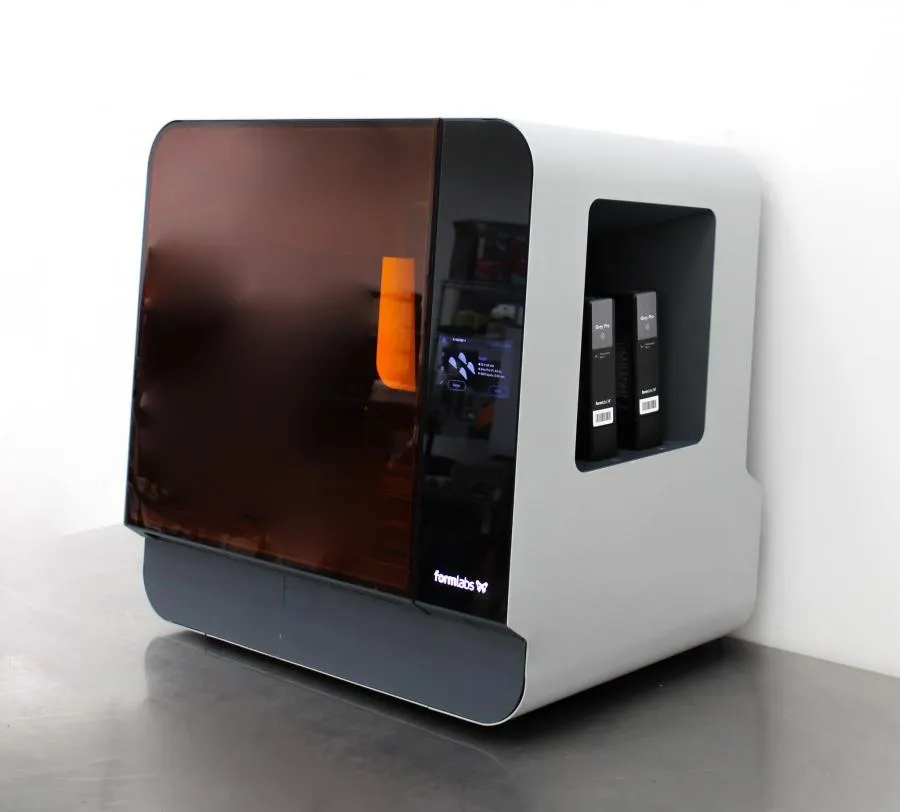

• Form 3L 3D Printer
• Formlabs Form Cure: Vivid Beagle
• (9) Formlab 3L Resin Tanks Flexible Film Tanks

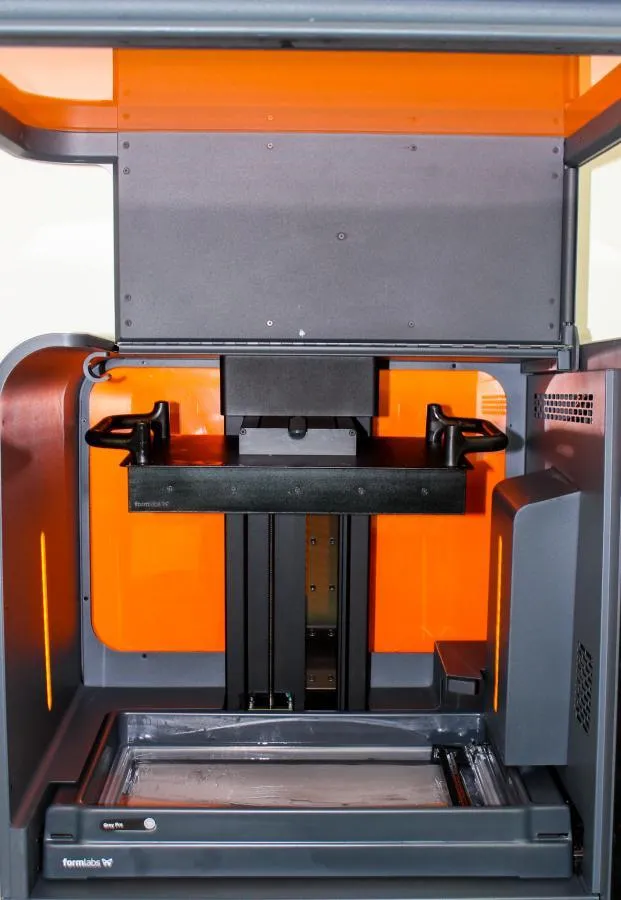

• Form 3L Build Platform

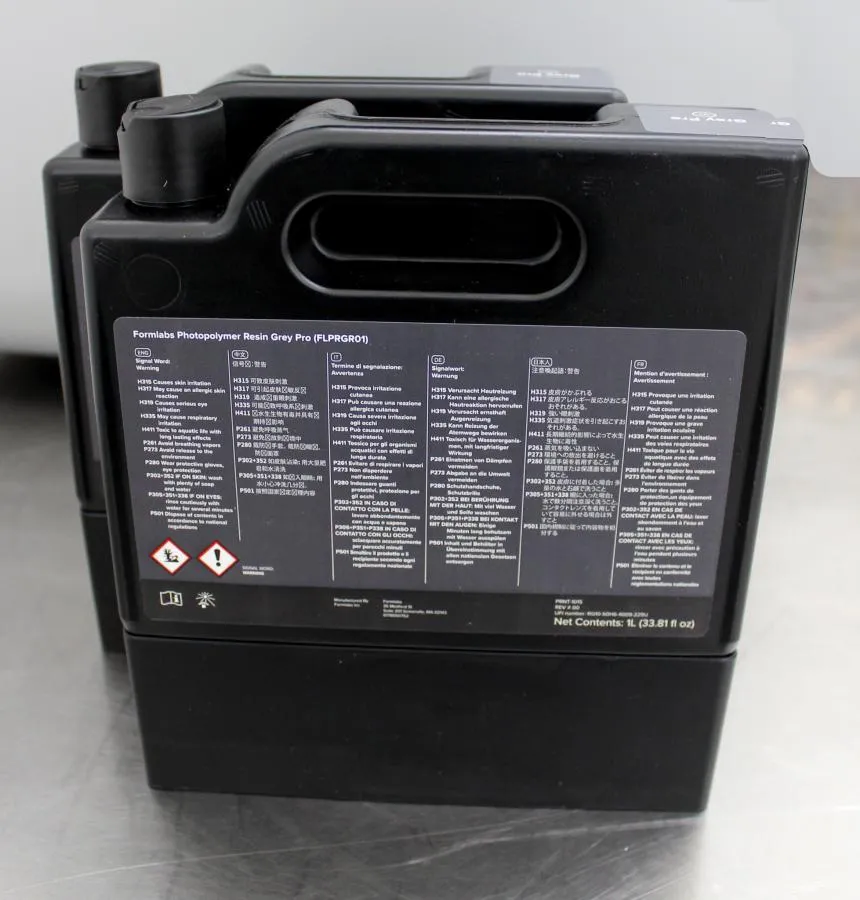

• (44) Formlabs Flexible Photopolymer Resin Colors

Each Form 3L large format SLA 3D printer includes the essential tools required to start printing. Whether you’re printing full-scale bulky prototypes or detailed models, the Form 3L is the ideal solution for using 3D printing to bring your big ideas to life. Fabricate large parts with the incredible surface finish and fine detail that stereolithography 3D printing is known for. The Form 3L prints around the clock with minimal supervision and is compact enough for an office and robust enough for the factory floor. The Form 3L is an affordable large-format 3D printer designed for professionals to provide fast turnaround of industrial-quality parts, printed using the advanced Low Force Stereolithography (LFS) process. Eliminate the turnaround time of outsourcing or the manual work of assembly for large scale 3D prints. The Form 3L offers a massive build volume at an unprecedented value. With advanced Low Force Stereolithography (LFS) technology, Formlabs has completely re-engineered resin-based 3D printing to drastically reduce the forces of the print process.

• Low-Force Stereolithography (LFS) 3D Printer
• 335 × 200 × 300 mm
• Resin / SLA
• One of the largest SLA printers on the market, produces smooth parts with fine details and sharp points

• OPTIMIZED LASER PATH: Two staggered Light Processing Units (LPUs) inside the printer use a compact system of lenses and mirrors to deliver accurate, repeatable prints.
• CRISP, CLEAN FEATURES: Each high-density laser passes through a spatial filter to guarantee a clean laser spot.
• CONSISTENT PRECISION: A parabolic mirror ensures that the laser prints perpendicular to the build plane, ensuring uniform print quality across the entire build platform.
• Intuitive and Efficient: No specialized technicians required. The Form 3L offers automatic resin dispensing, simple print preparation software, and an interface anyone at your company can use.
• NONSTOP PRINTING: Integrated sensors help maintain ideal print conditions and send you alerts about the state of your machine.
• CLOSED-LOOP CALIBRATION: Optical sensors continuously correct for scale and power, and can even detect dust.
• USER-REPLACEABLE COMPONENTS: The Light Processing Units, rollers, and optics window can be replaced in-house, reducing the need for replacement printer shipments.

Printing Specifications

Layer Thickness: 25-300 microns Minimum layer thickness dependent on resin type
Build Volume: 33.5 × 20 × 30 cm [13.2 × 7.9 × 11.8 in]
Materials Supported: Formlabs Resins
Print Technology: Low Force Stereolithography (LFS)

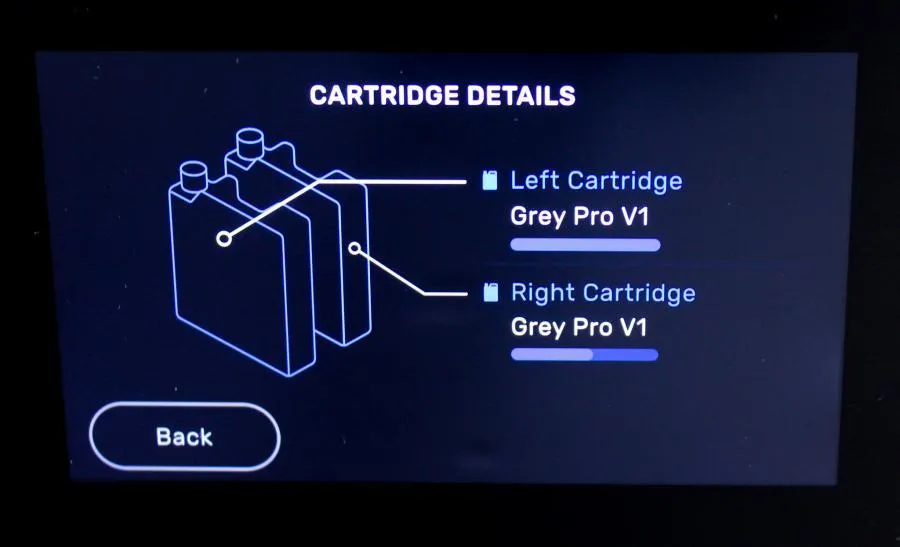

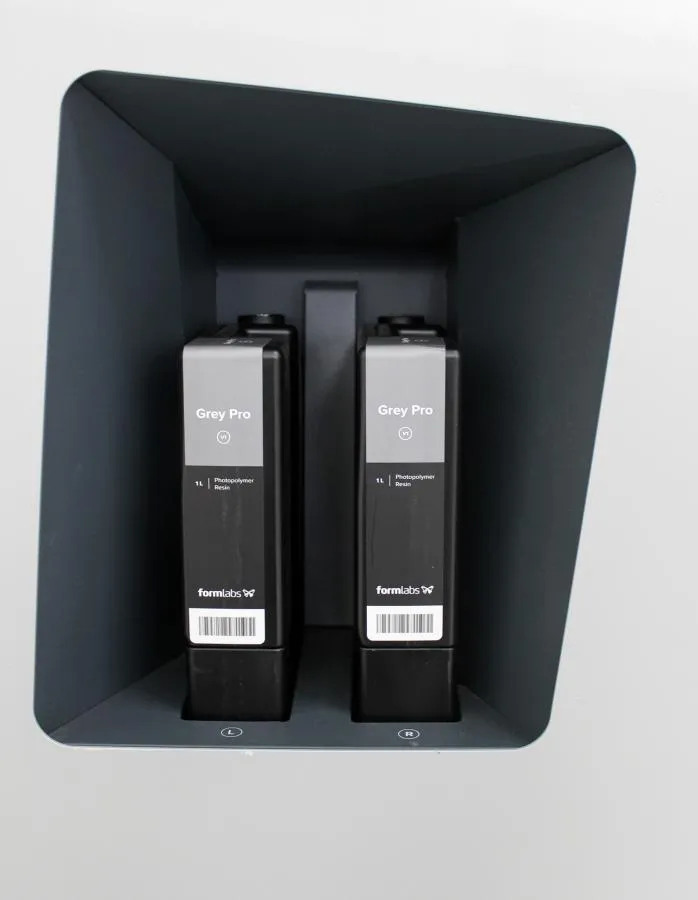

Resin Fill System: Automated

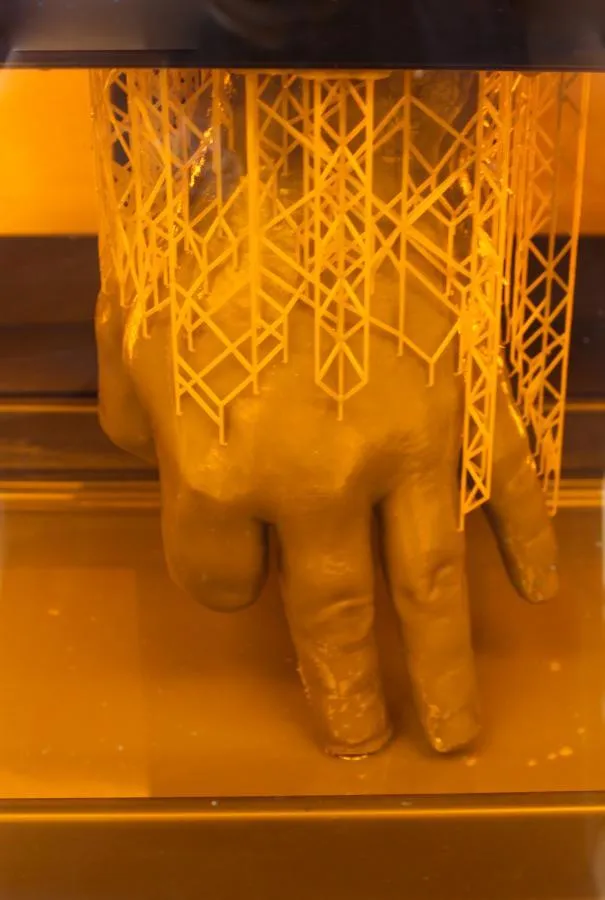

Supports: Auto-generated

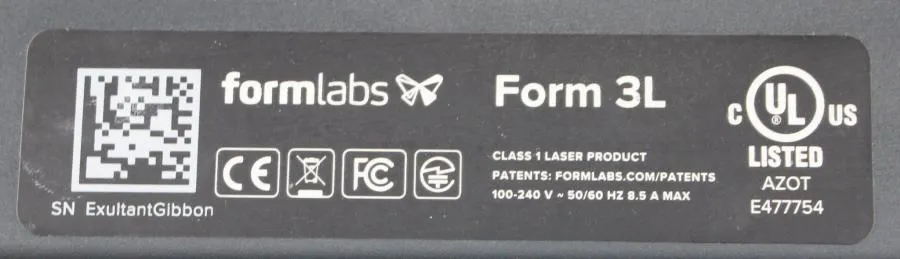

Laser Specifications: 2 Light Processing Units/ EN 60825-1:2007 certified Class 1 Laser Product
405 nm wavelength/ 250 mW power/ 85 micron (0.0033 in) laser spot

Software Specifications

Software Bundle: PreForm Software/ PreForm requires 4GB RAM and OpenGL 2.1
PreForm features: One-Click Print / Adaptive layer thickness for faster printing with fine details  Remote Print (not available on Form 2)/ Auto-orient for optimal print position/ Auto-mesh repair/ Auto-generation of supports /Rotate, scale, duplicate, and mirror /Layer slicer for path inspection
Available in multiple languages
Supported Operating Systems: Windows 7 (64-bit)+ Mac OS X 10.10+
Supported File Types: .STL & .OBJ

Connectivity Specifications

Connectivity: WiFi, Ethernet, USB 2.0

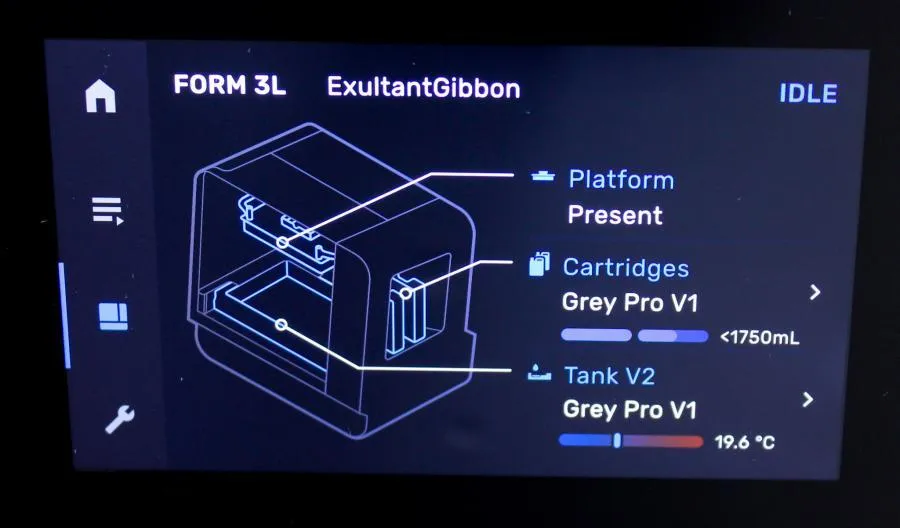

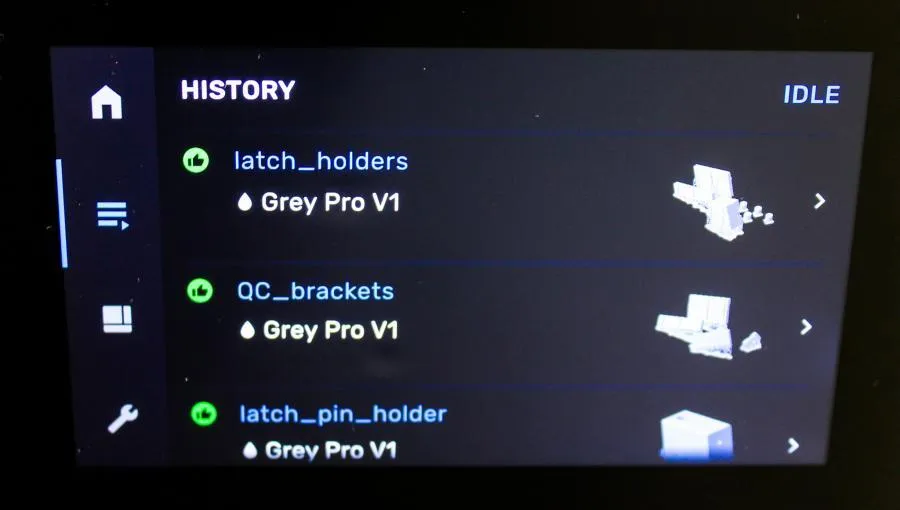

Printer Control: 5.5" 1280 x 720 touchscreen
Dashboard Printer Management Features: Manage prints and printers via the cloud
Track resin and tank usage over time. SMS and email alerts. Create enterprise group accounts with admins to more easily share printers and control access. Minimum Access: 105 × 90 × 105 cm [41.3 × 35.4 × 41.3 in]/ Power Requirements: 100–240 VAC , 7.5 A 50/60 Hz, 650 W/ Operating Temperature: Auto-heats to 35 C [95 F]
