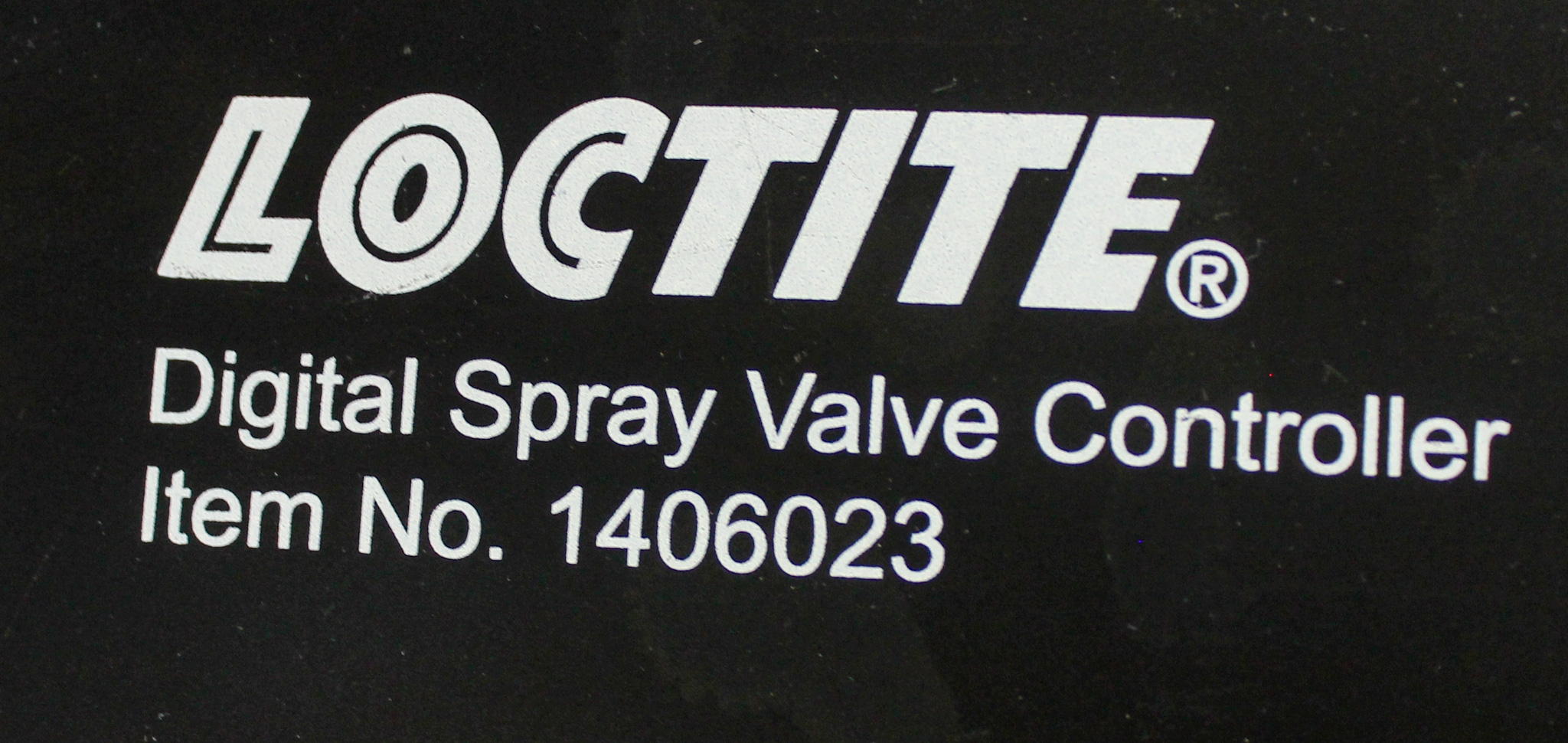

Loctite 1406023 Valve Controller Digital Spray Automatic Low Viscosity Use
Loctite
Details
-
CategoryLiquid Handling
-
Dimension11.0in x 8.0in x 4.0in
-

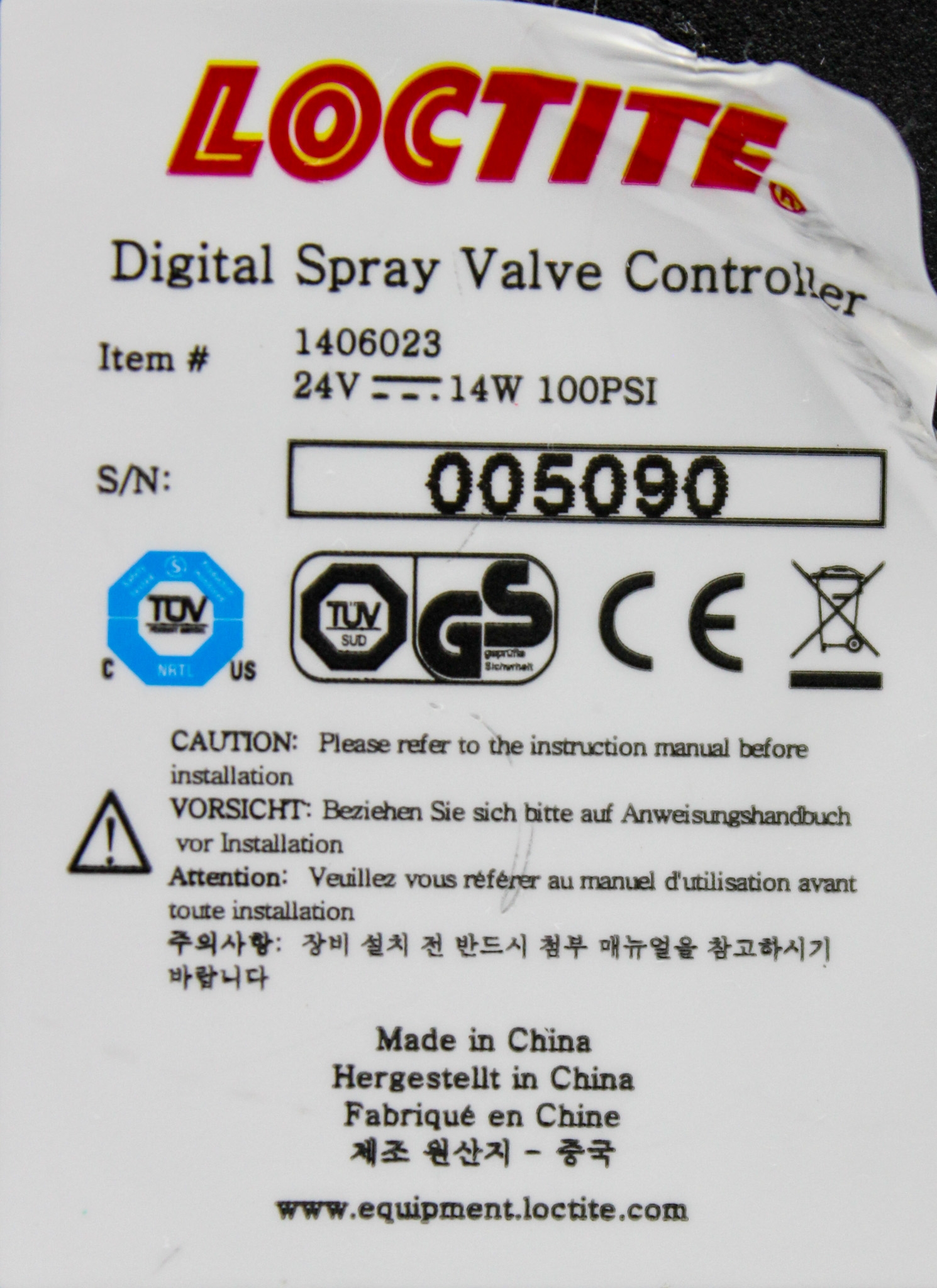

Serial005090
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Loctite 1406023 Digital Spray Valve Controller is designed to optimize automatic spraying of low viscosity primers, accelerators, and activators with precision and reliability. This used unit, made in the United States, has been tested to meet specifications despite some cosmetic wear from normal use. The controller features a microprocessor-based timed control system with fully independent valve open/close and atomization air supply functions. It operates in timed or manual mode via a foot pedal, with three separate sequences for effective spray management. Suitable for applications up to 1200 cPs, it ensures minimal over-spray and nozzle dripping, maintaining operational consistency across varied conditions. Equipment comes with an AC power adapter, foot pedal, and air supply line with filter, but not applicable for adhesives or flammable products. Ideal for life science and industrial applications requiring precise liquid dispensing.
Key Features
- Microprocessor-based timed controller
- Fully independent valve open/close
- Atomization air supply

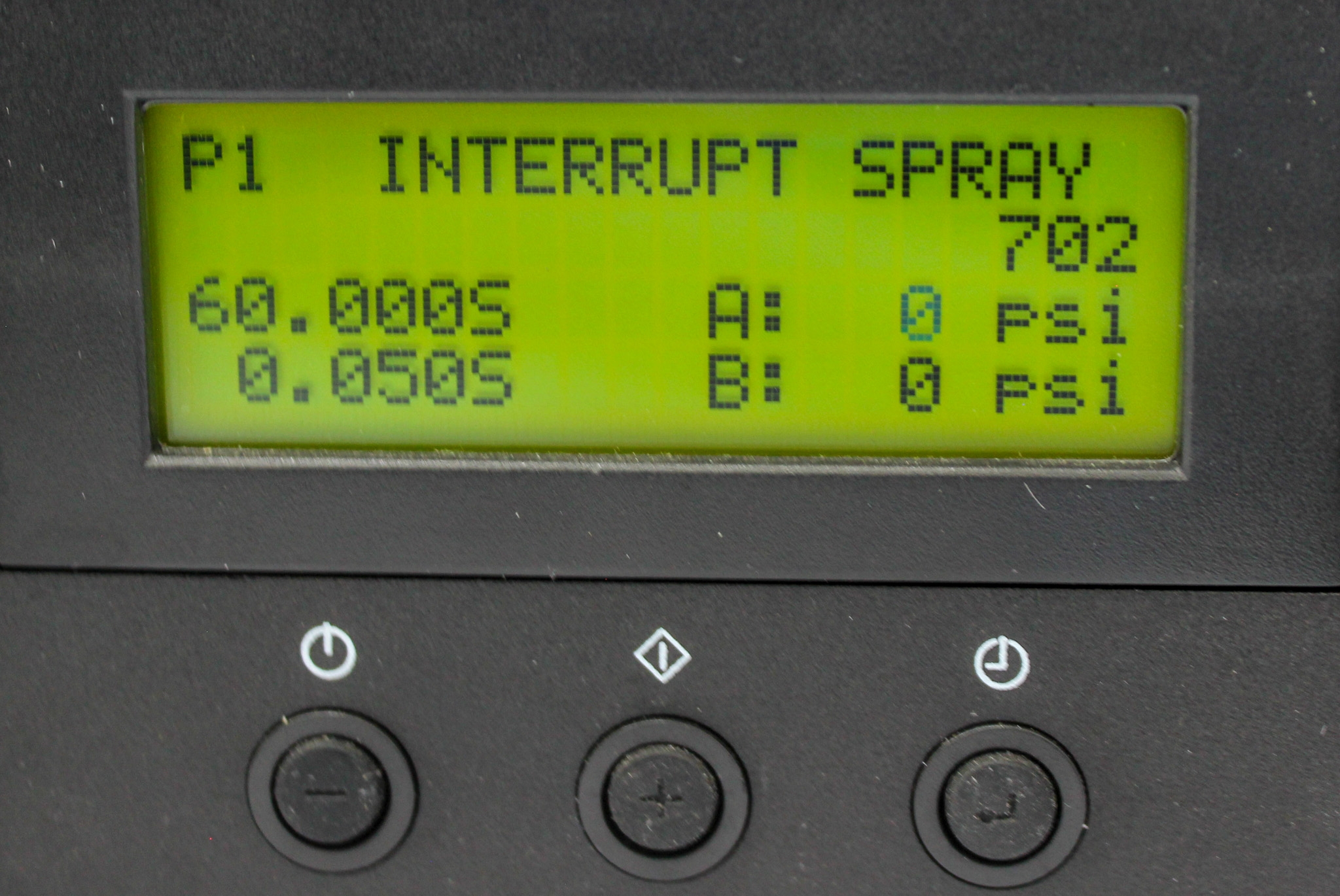

- Three timed sequences: pre-spray, valve on, post-spray/valve off
- Timed or manual mode with foot pedal control
- Built-in memory for time modes when power is off
Specifications
- Condition: Used, tested to specifications
- Accessory Type: Valve Controller
- For Use With: Automatic Spraying of Low Viscosity Primers, Accelerators and Activators
- Weight: Actual 8 lbs, Shipping 13 lbs
- Dimensions: Actual (10in x 7.5in x 4in), Shipping (18in x 15in x 11in)
- Voltage: 120V, Frequency: 50/60Hz

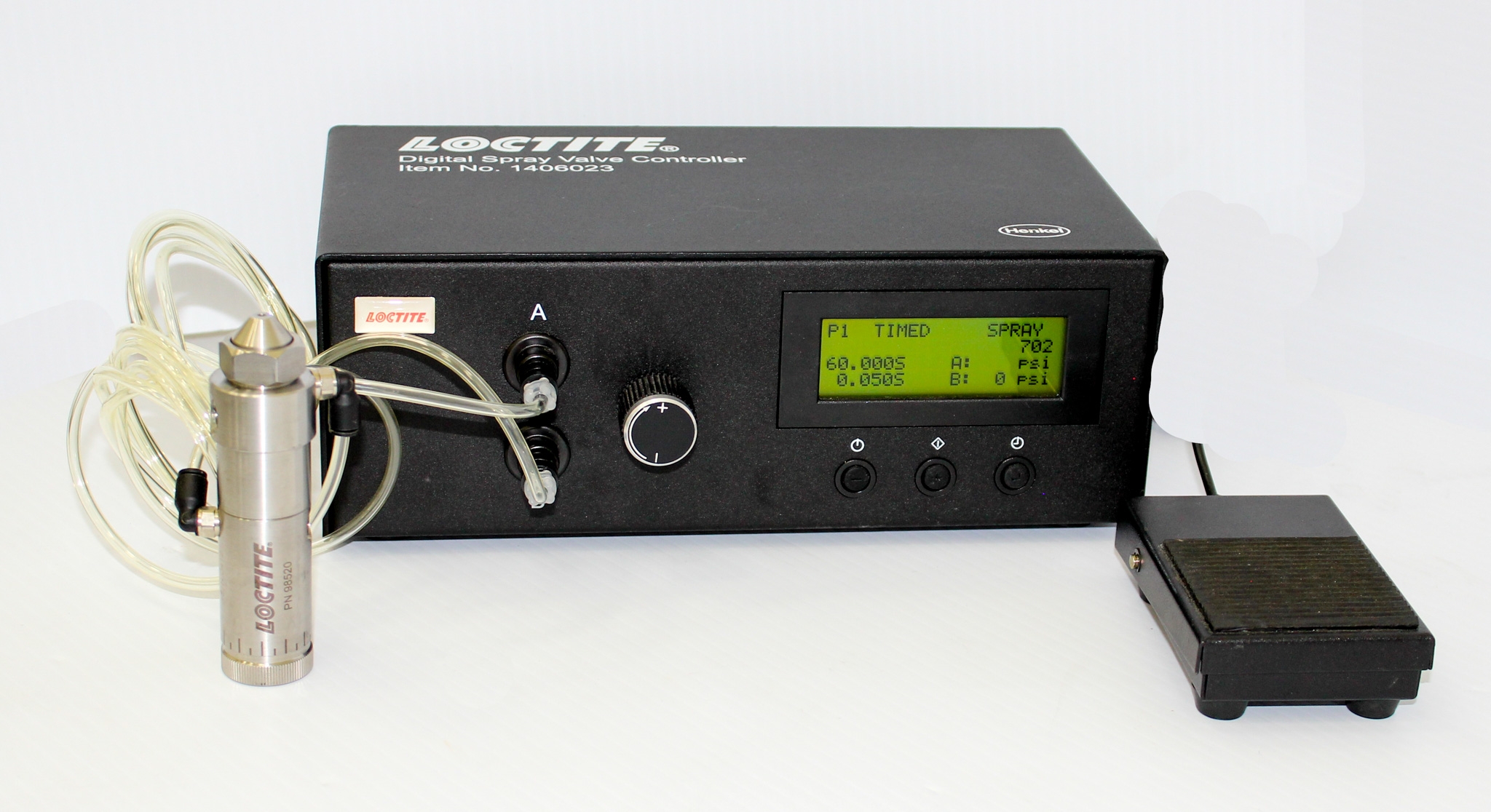

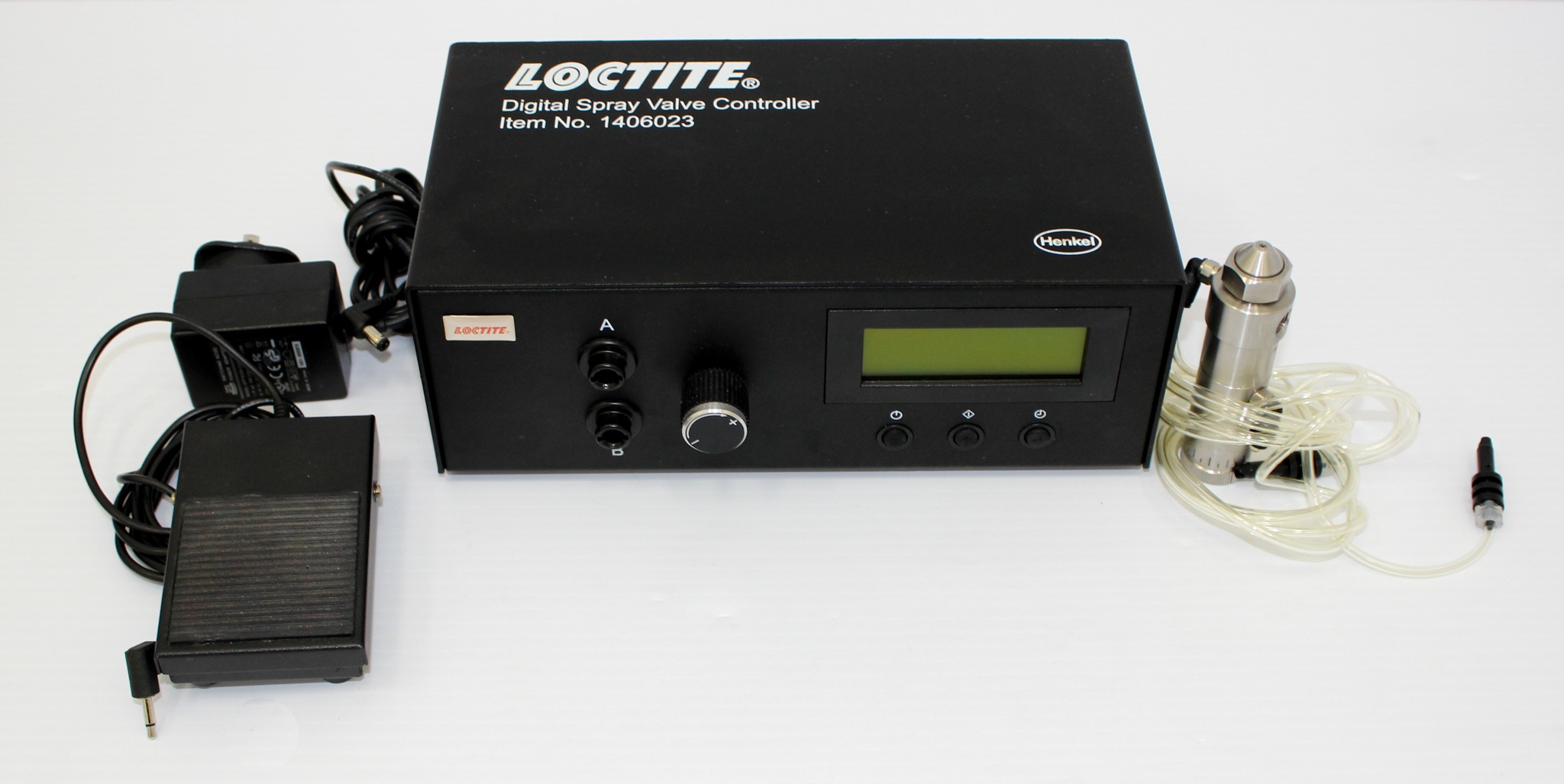

- Includes: Controller, AC Power Adapter, Foot Pedal, Air Supply Line with Filter
Weight
Imperial: 9.6 Pounds
Metric: 4.35 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 9.6 lb x 4.8 lb
Metric: 33.53 cm x 24.38 cm x 12.19 cm
Harmonized Code
84798997
Harmonized Code Details
Harmonized Code 84798997 covers machines and mechanical appliances having individual functions, not specified elsewhere. This code is used because the Loctite 1406023 functions independently in managing the spray process for low viscosity fluids.
