Omega OM-USB-TC Thermocouple Data USB 8-Channel Input Module w I/O Support
Omega
Details
-
CategoryComputer / IT
-
Dimension12.0in x 9.0in x 3.0in
-

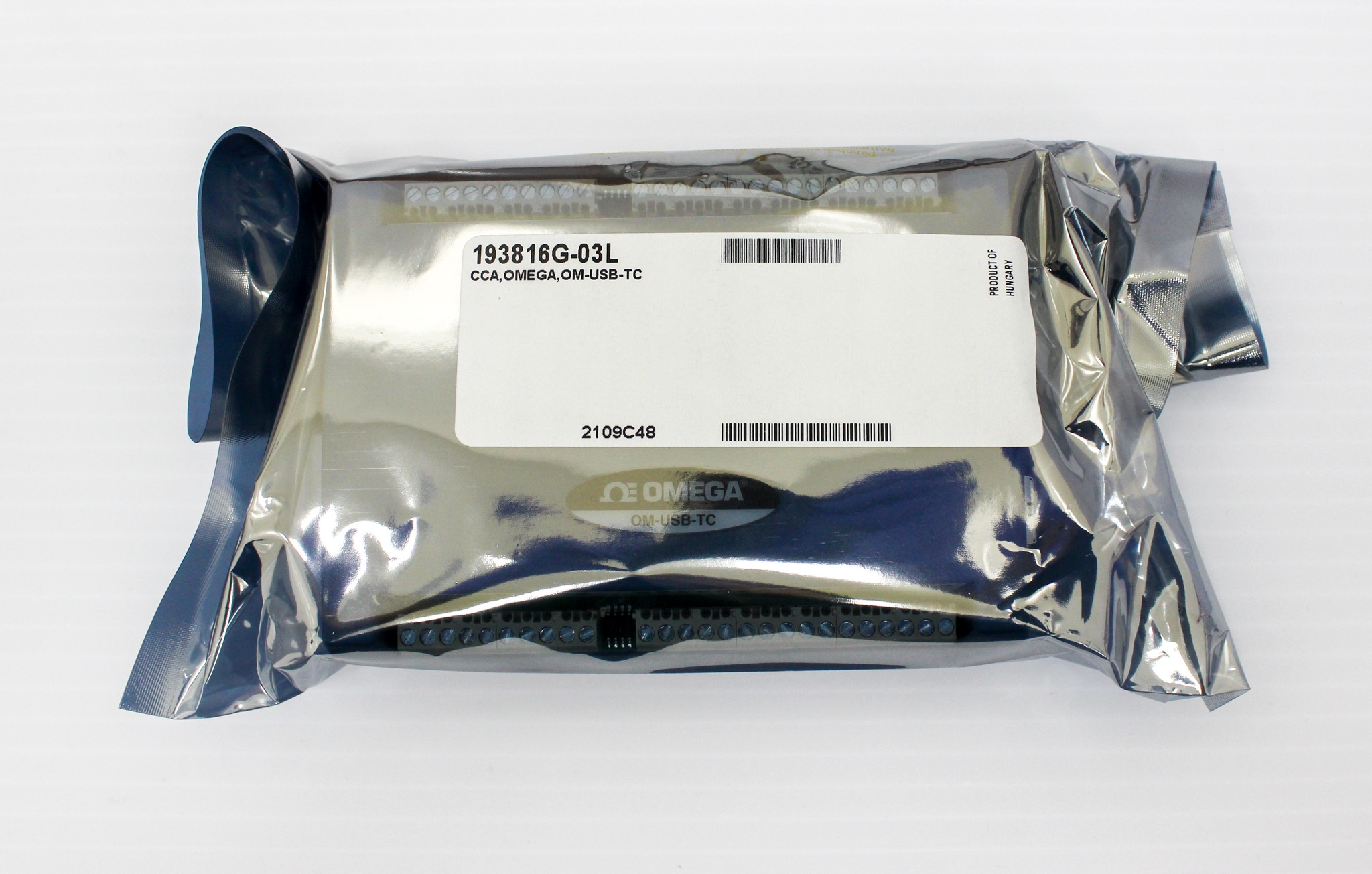

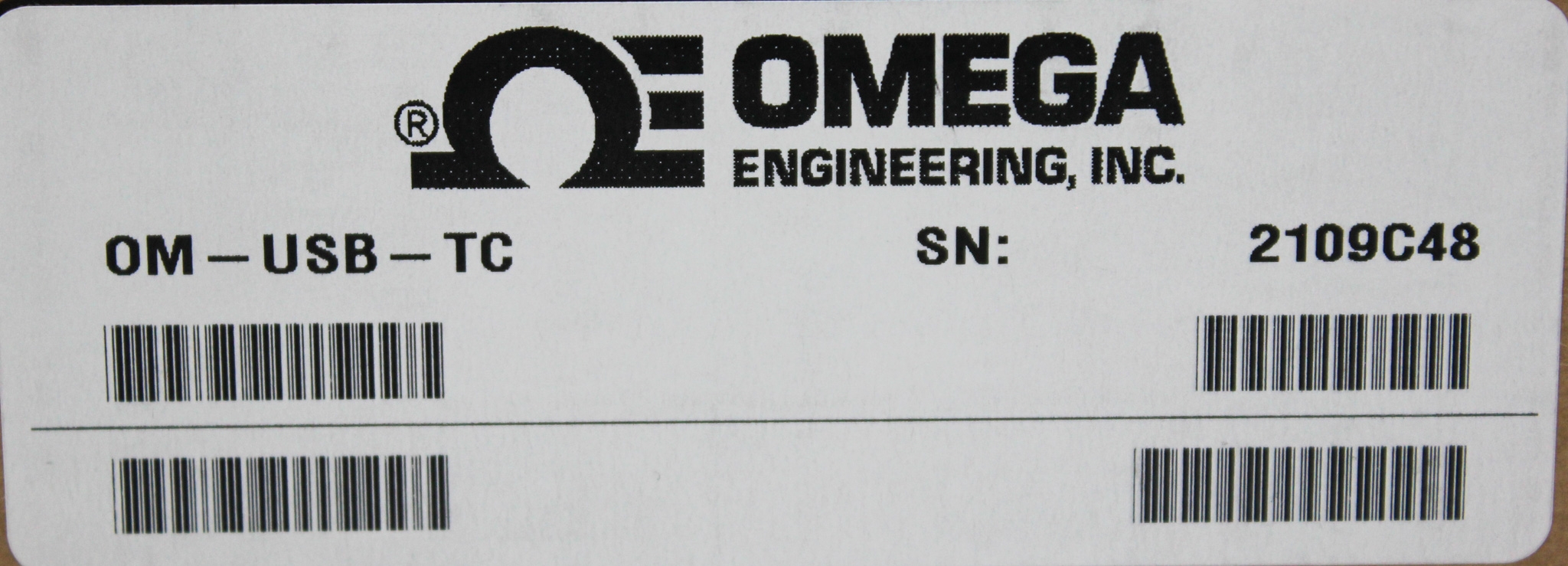

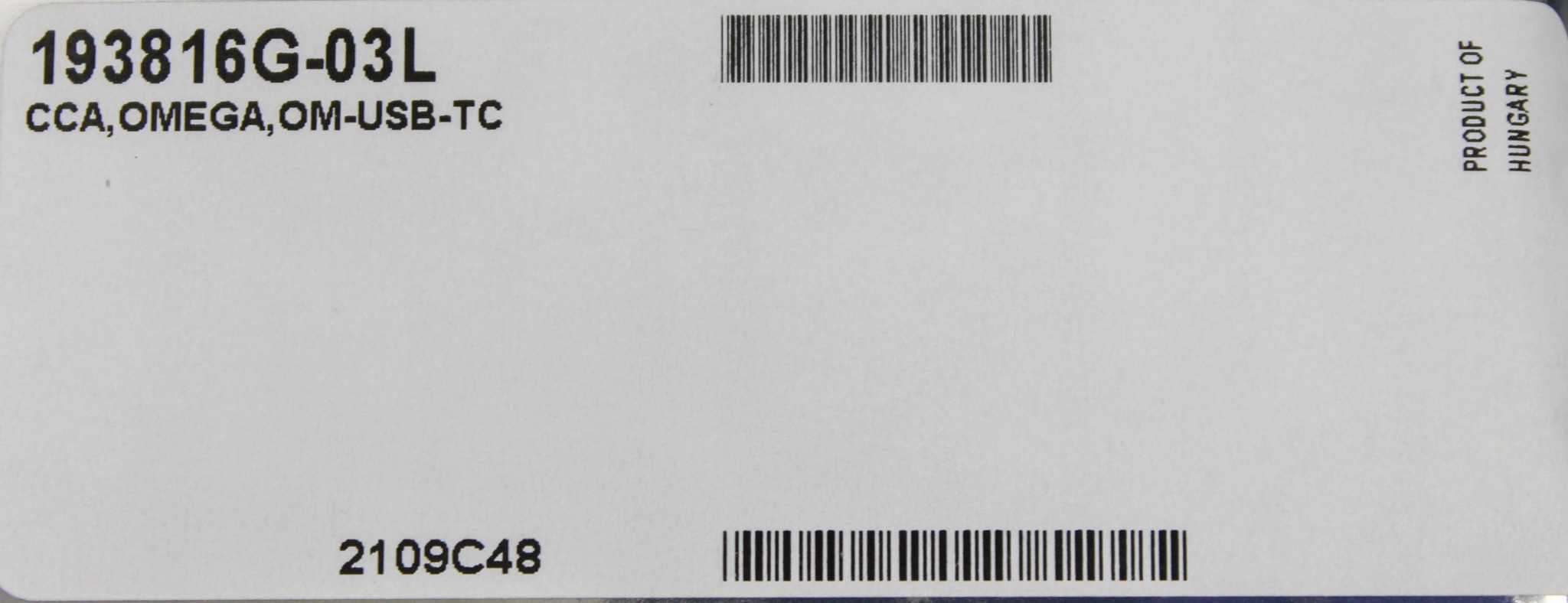

Serial2109C48
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Omega OM-USB-TC is a USB 2.0 thermocouple input module providing exceptional data acquisition capabilities. Designed for use with popular Microsoft Windows operating systems, it includes eight differential thermocouple input channels and eight digital I/O channels for monitoring TTL-level inputs. These digital I/O channels are programmable for both input and output, offering flexibility in various laboratory settings. Compatible with type J, K, R, S, T, N, E, and B thermocouples, the module offers integrated cold junction compensation (CJC) sensors for accurate measurements. Featuring a robust standalone plug-and-play design, this module operates via USB without external power and includes configurable software options. Ideal for precise thermocouple temperature measurements and digital monitoring in research and industrial laboratories, the OM-USB-TC stands out for its advanced functionality and ease of use.
Key Features
- Eight differential thermocouple input channels
- Supported type J, K, R, S, T, N, E, B thermocouples
- Eight programmable digital I/O channels
- Standalone plug-and-play with USB power
- Integrated cold junction compensation sensors
- Open thermocouple detection
Specifications
- Channel Type: Differential
- Resolution: 24 bits
- Input Isolation: Minimum 500 VDC
- Input Voltage Range: 0.080 V for sensor type
- Absolute Maximum Input Voltage: 25 V power on, 40 V power off
- Input Impedance: 5 Gigohm minimum
- Leakage Current: 105 nA max with open thermocouple detect
- Rejection Ratios: Normal Mode 90 dB (60 Hz), Common Mode 100 dB (50/60 Hz)
- Warm-up Time: 30 minutes minimum
- CJC Sensor Accuracy: 0.25 C typical / 0.5 C maximum (15 C to 35 C)
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 10.8 lb x 3.6 lb
Metric: 36.58 cm x 27.43 cm x 9.14 cm
Harmonized Code
84733020
Harmonized Code Details
84733020 - Parts and accessories of the machines of heading 8471, suitable for use solely or principally with such machines. Justified as the module is an accessory for data acquisition, functioning as part of a broader computer/IT system.
