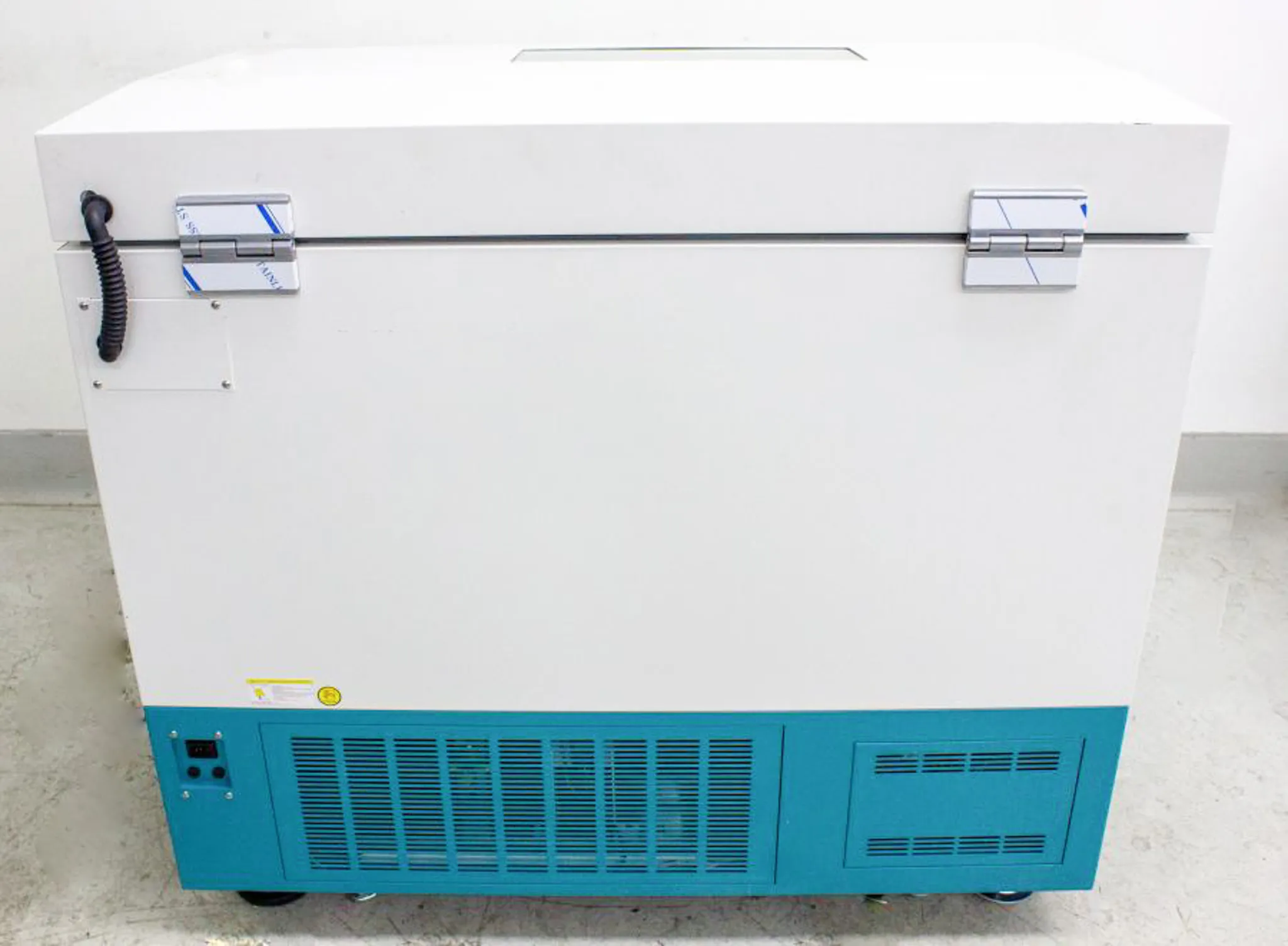

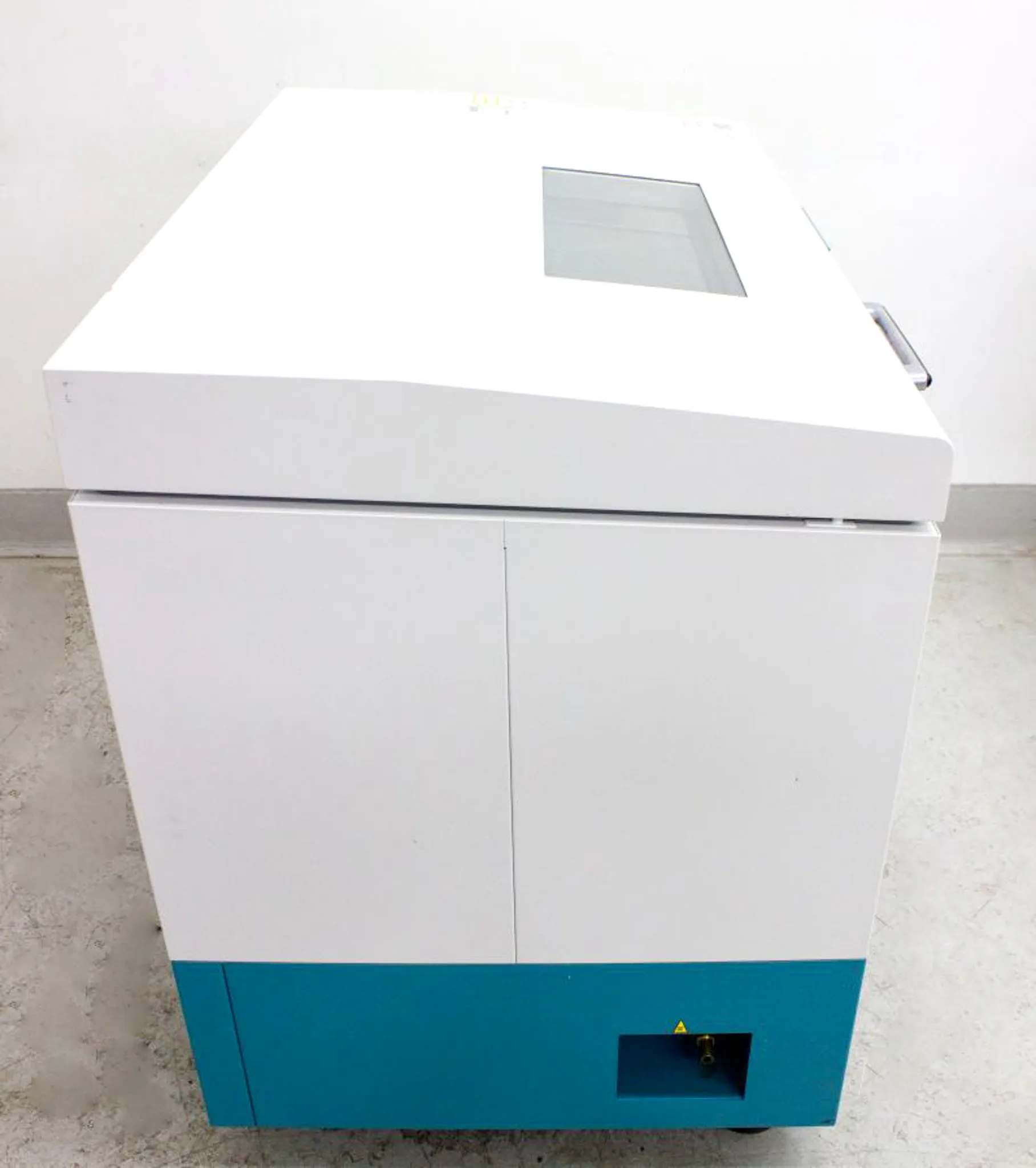

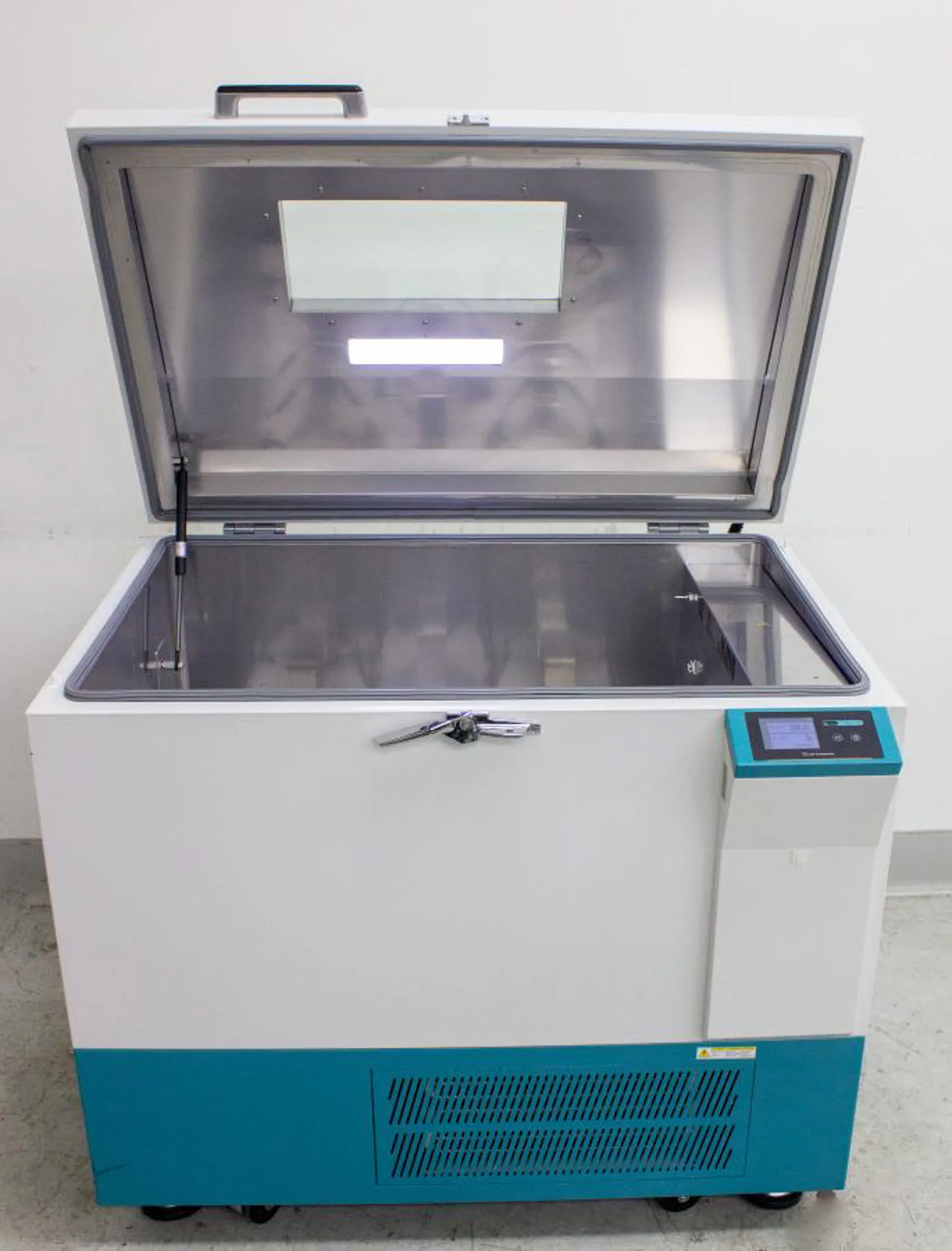

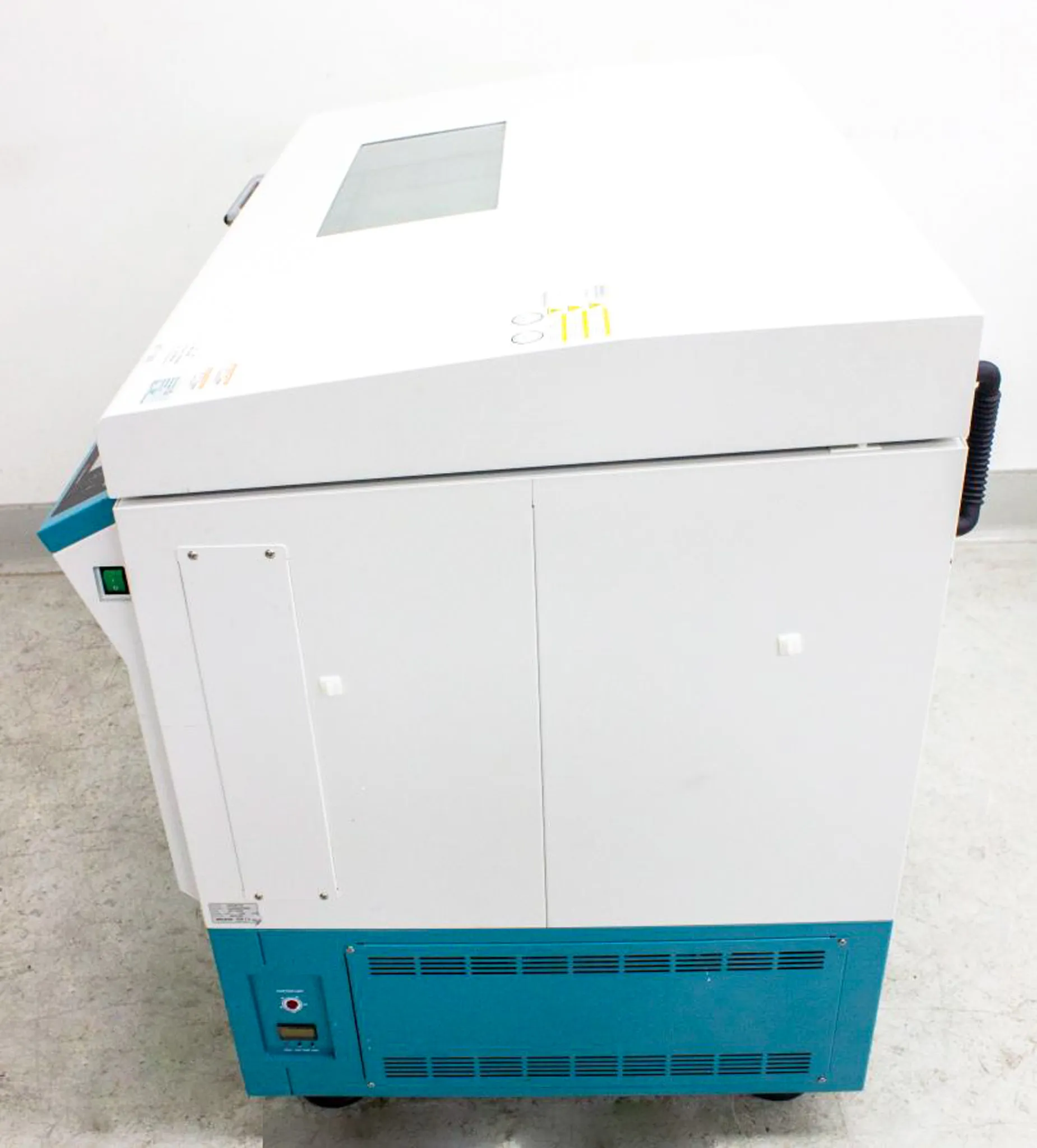

JEIO TECH Lab Companion ISF-7100R Refrigerated Incubated Shaker Floor

Product Information

The JEIO TECH Lab Companion ISF-7100R is a refrigerated incubated shaker floor unit tested to reach its lowest set temperature, with slight cosmetic scratches from normal use. The technology excursion of this equipment is evident in its large capacity, high workload performance, and ergonomic design. The ISF-7100R's competitive high shaking speed up to 500 rpm caters to various shaking needs, and its wide speed range, even with a heavy workload, ensures maintenance-free, high-torque operation. Intuitive touch screen LCD controller with logical menus and easy-set digital timer for shaking operation provides user convenience. The safety features include automatic run after power interruption, temperature and shaking speed deviation alarm, and an environment-friendly CFC-free refrigerant. The meticulous details in the design of this equipment make it a reliable and technologically-advanced asset to any laboratory. While some cosmetic wear is evident, its functionality is assured, backed by a 30-day warranty for 100% parts and labor. The ISF-7100R is deployed in laboratories for applications such as culturing, cell aeration, solubility studies, and bioreactions.

• Competitive high shaking speed up to 500 rpm
• Fine-tuned temperature range from -20C to 80C

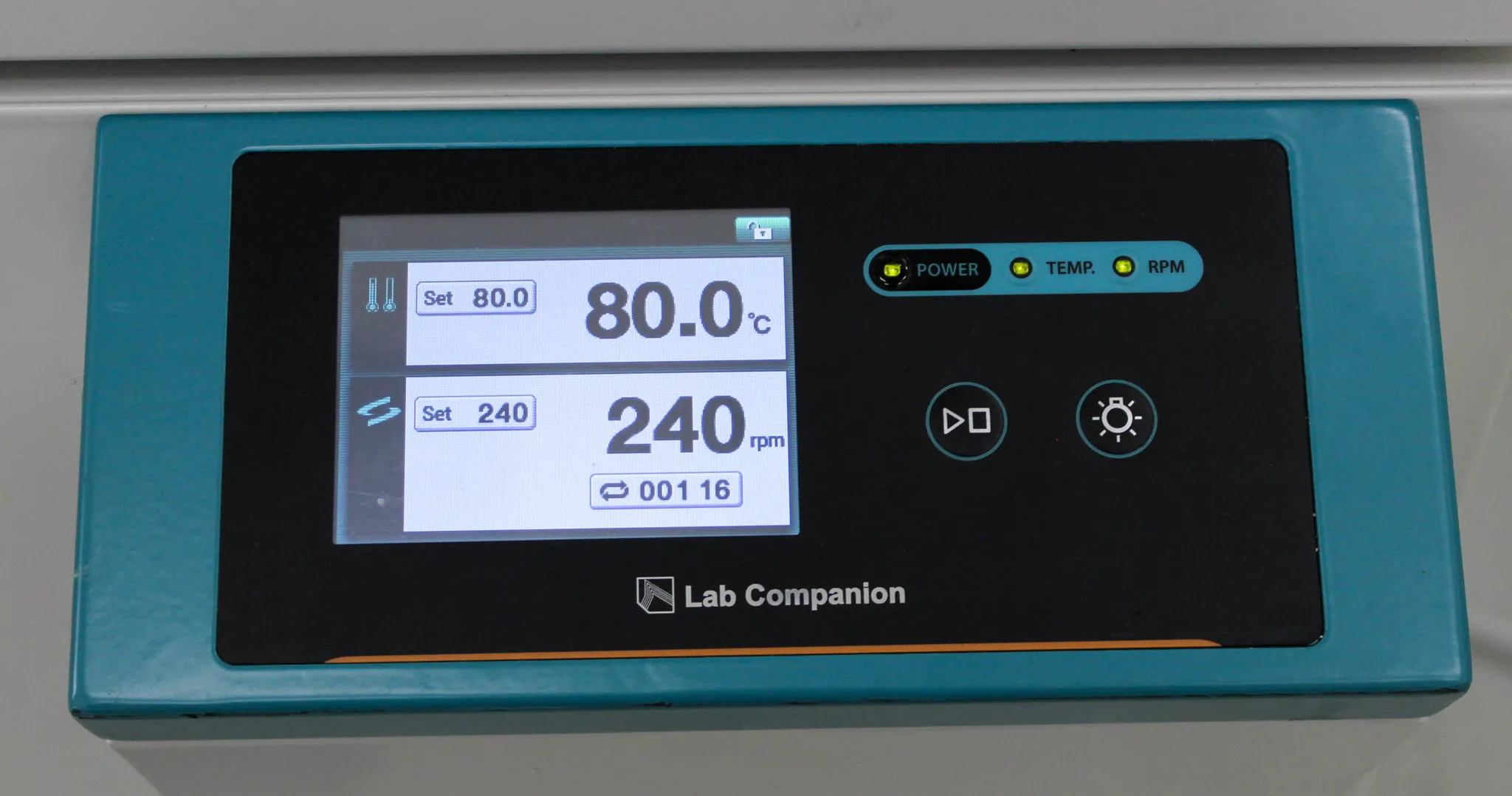

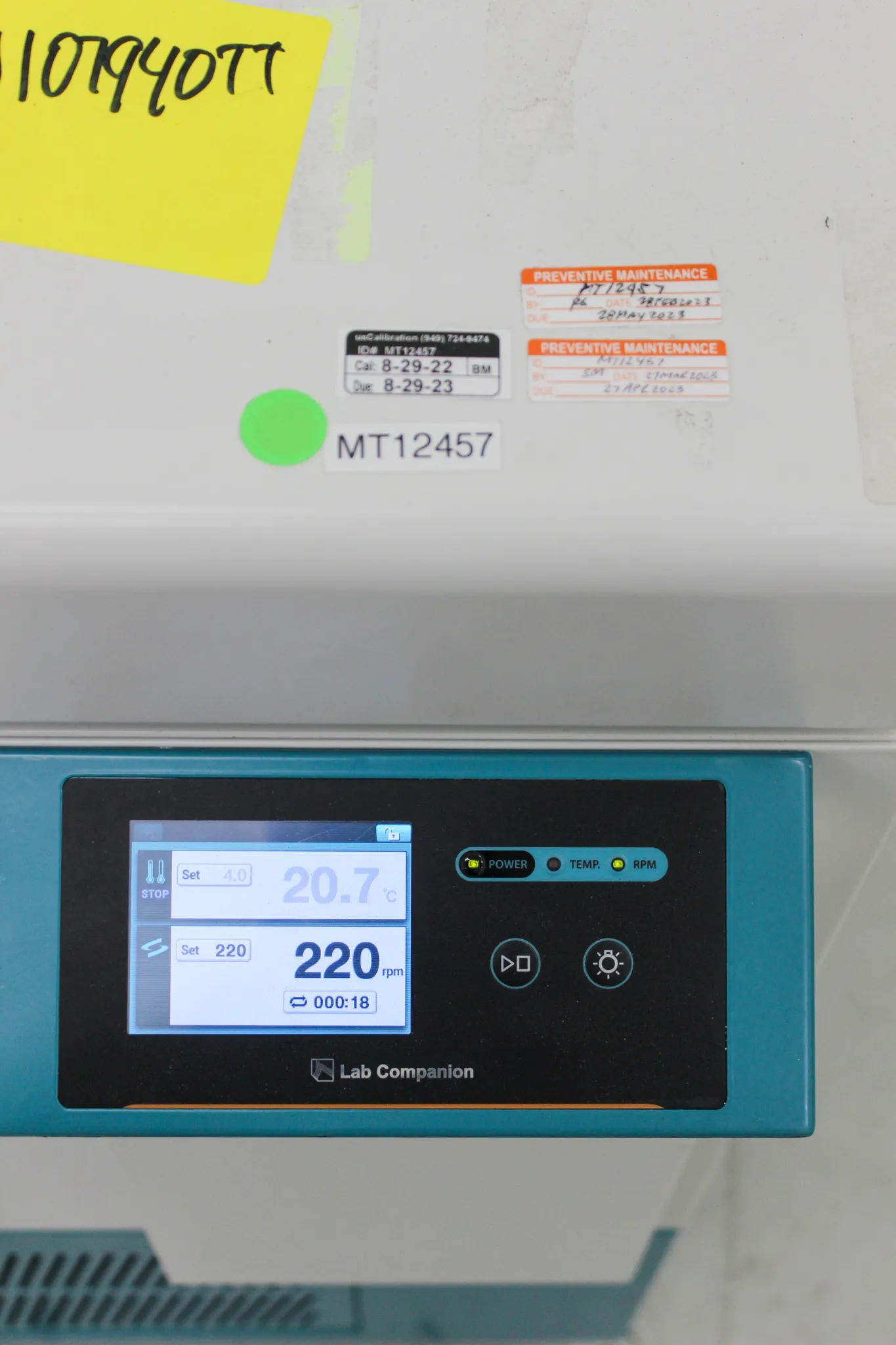

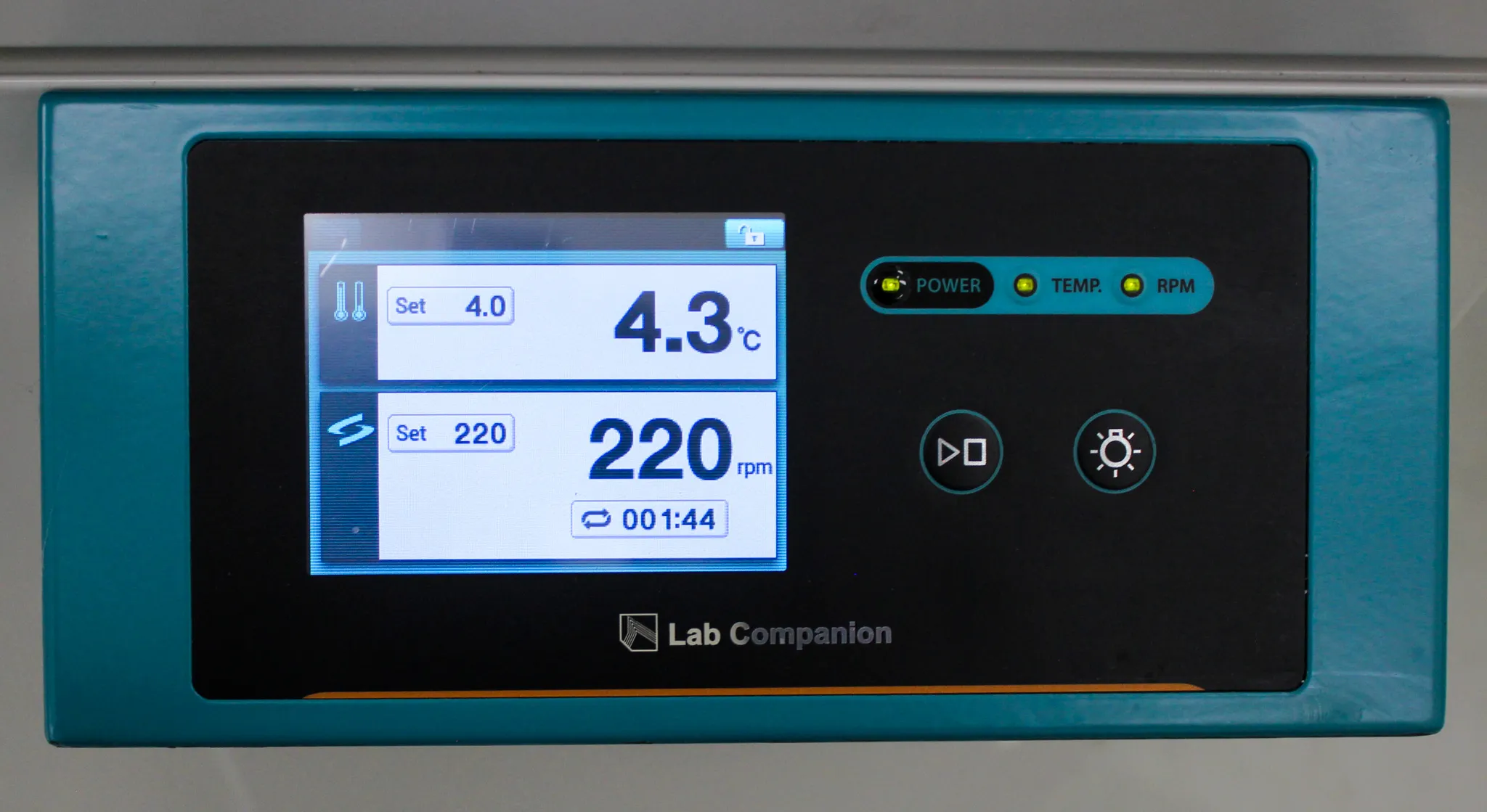

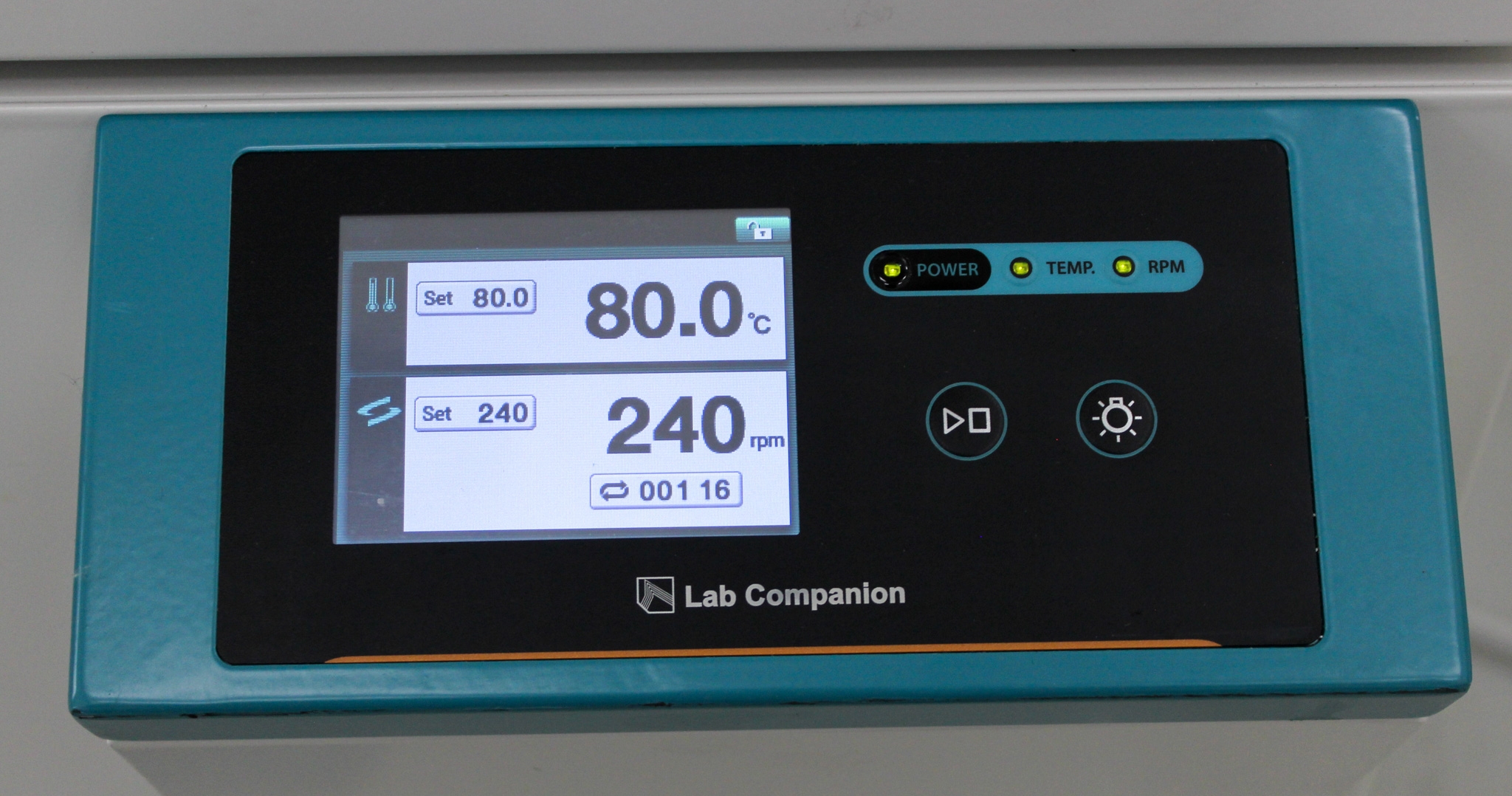

• Ergonomic Design with intuitive touch screen LCD controller
• Intelligent features such as automatic shaking speed adjustment and smooth acceleration and deceleration control
• Designed with safety features including automatic run after power interruption and temperature and shaking speed deviation alarm

• Temperature Range: Ambient +5C to 80 C
• Speed Range: 30 to 500 rpm
• Orbital Shaking Motion in various diameters: 25.4mm for ISF-7100/R, 50.8mm for ISF-7200/R
• Microprocessor PID Control with three-point temperature calibration and automatic tuning
• Smooth Start and Smooth Stop function for preventing chemical spills

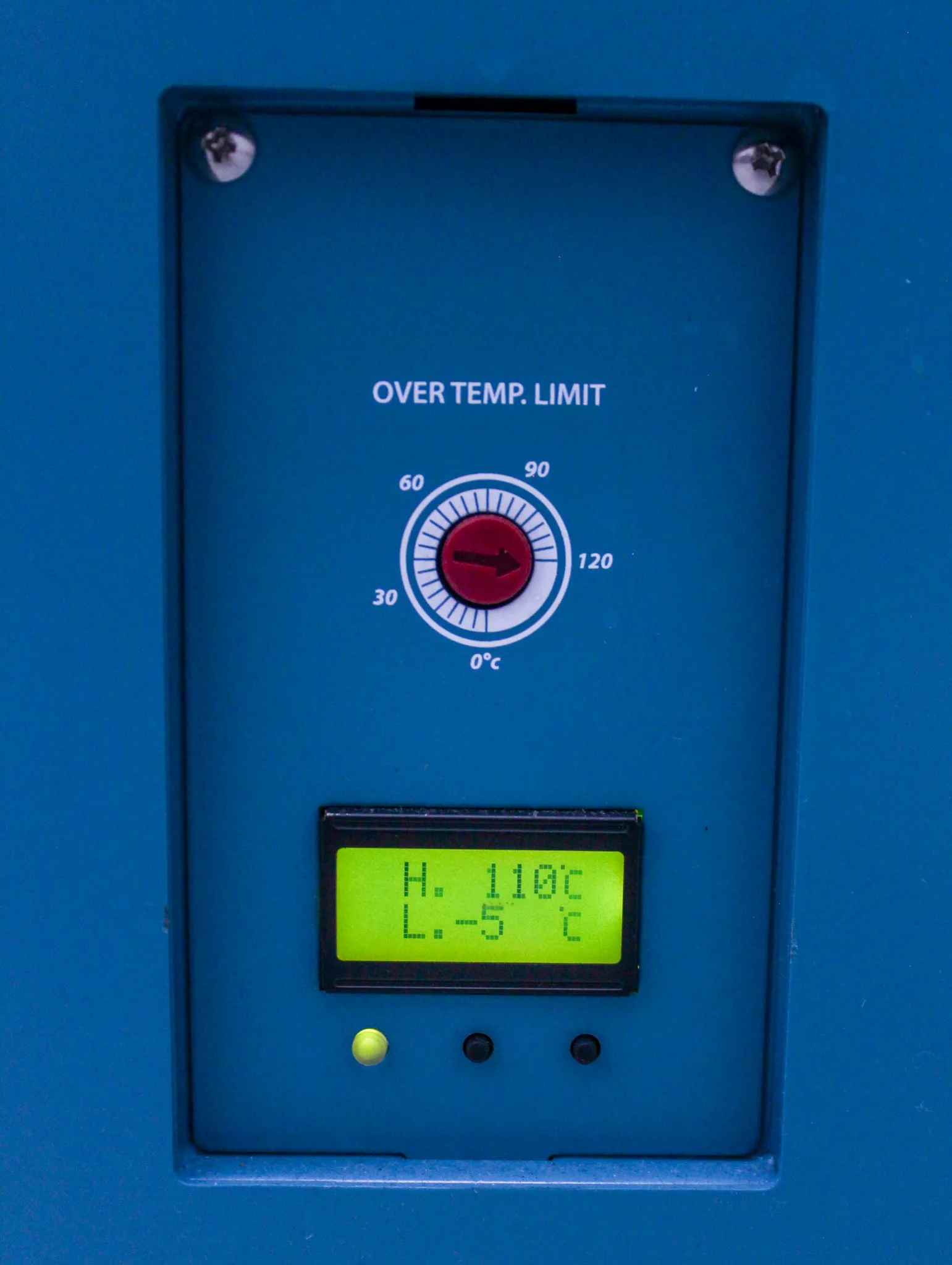

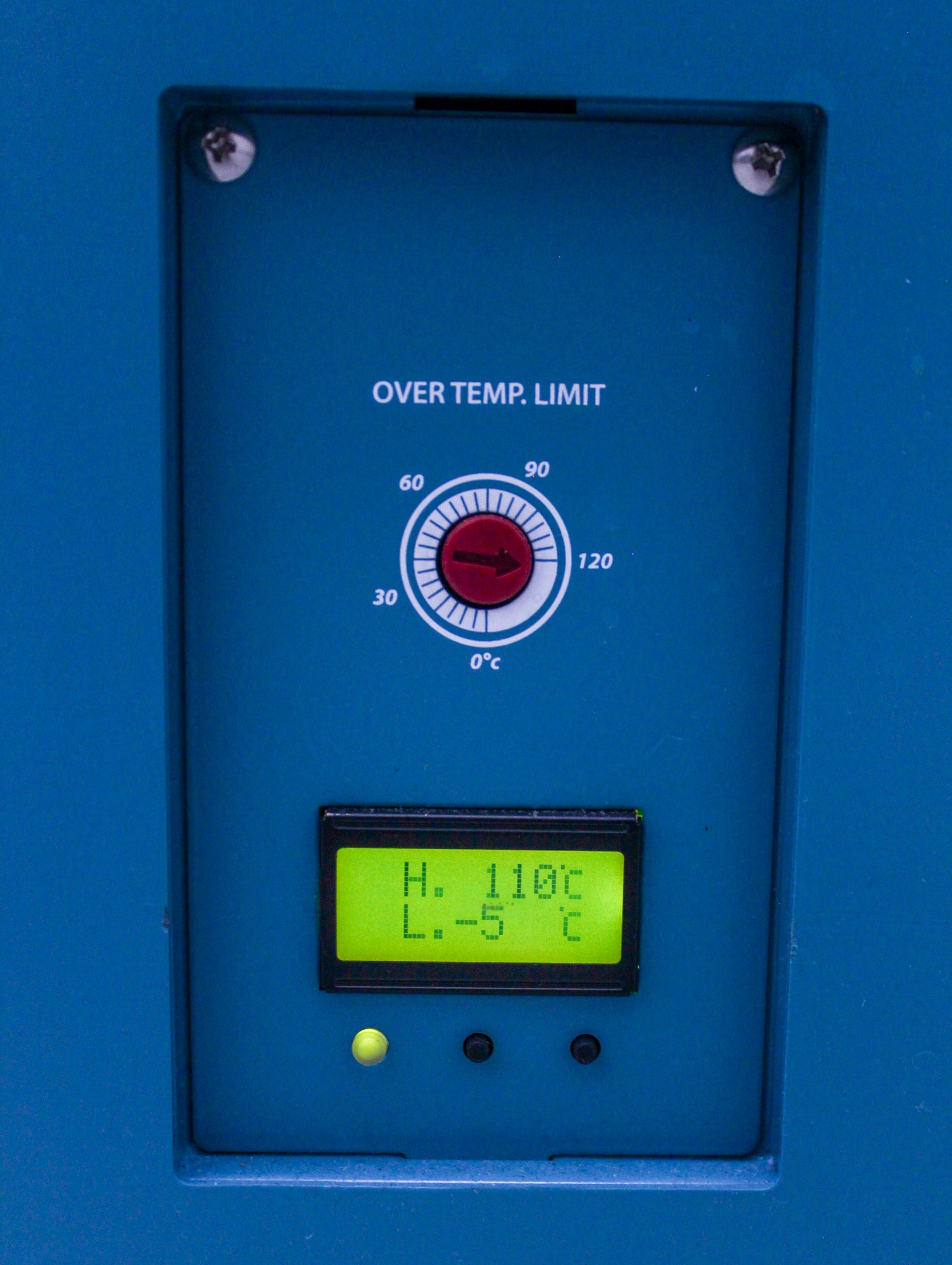

• Three-point temperature monitor system with temperature deviation alarms and mechanical over-temperature limiter
• Wide speed range even with heavy workload, operated by an IdealDD (Direct Drive) brushless motor and triple cam system
• Built-in RS-232 port and USB port for external control and data collection
• High-velocity fan for uniform temperature distribution and rapid thermal recovery

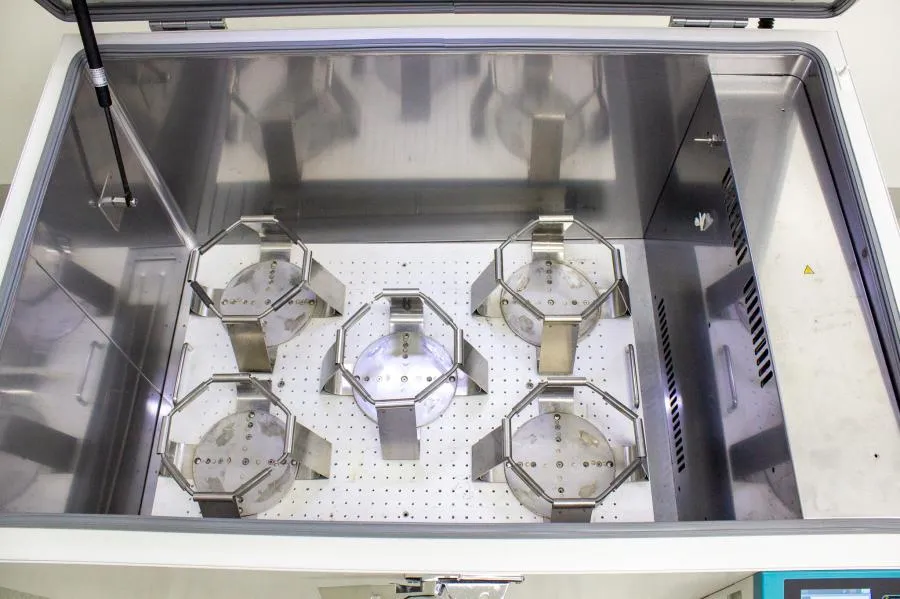

• Chamber Volume: 270L / 9.5 cu ft
• Net Weight: 287 kg / 632.7 lbs
• Electrical Requirements(230V, 50/60Hz): 3.7A5.6A

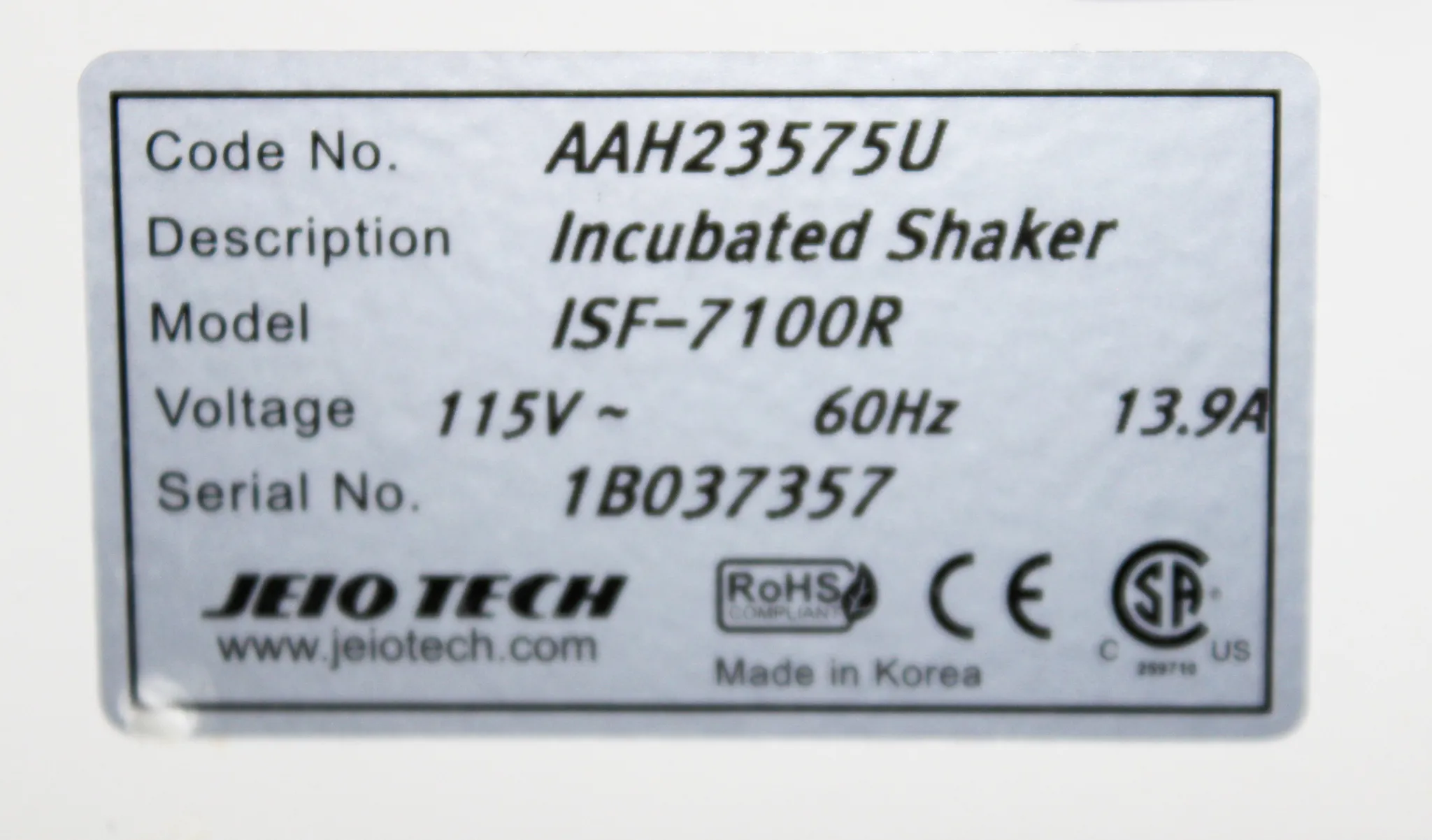

• Electrical Requirements(120V, 60Hz): 7.3A10A

Metric: 287 kg
Imperial: 632.7 lb

Metric: 112.8 cm x 85.4 cm x 103.5 cm
Imperial: 44.4 in x 33.6 in x 40.8 in
