Waters Acquity UPLC Ultra-Performance Liquid Chromatography System

Product Information

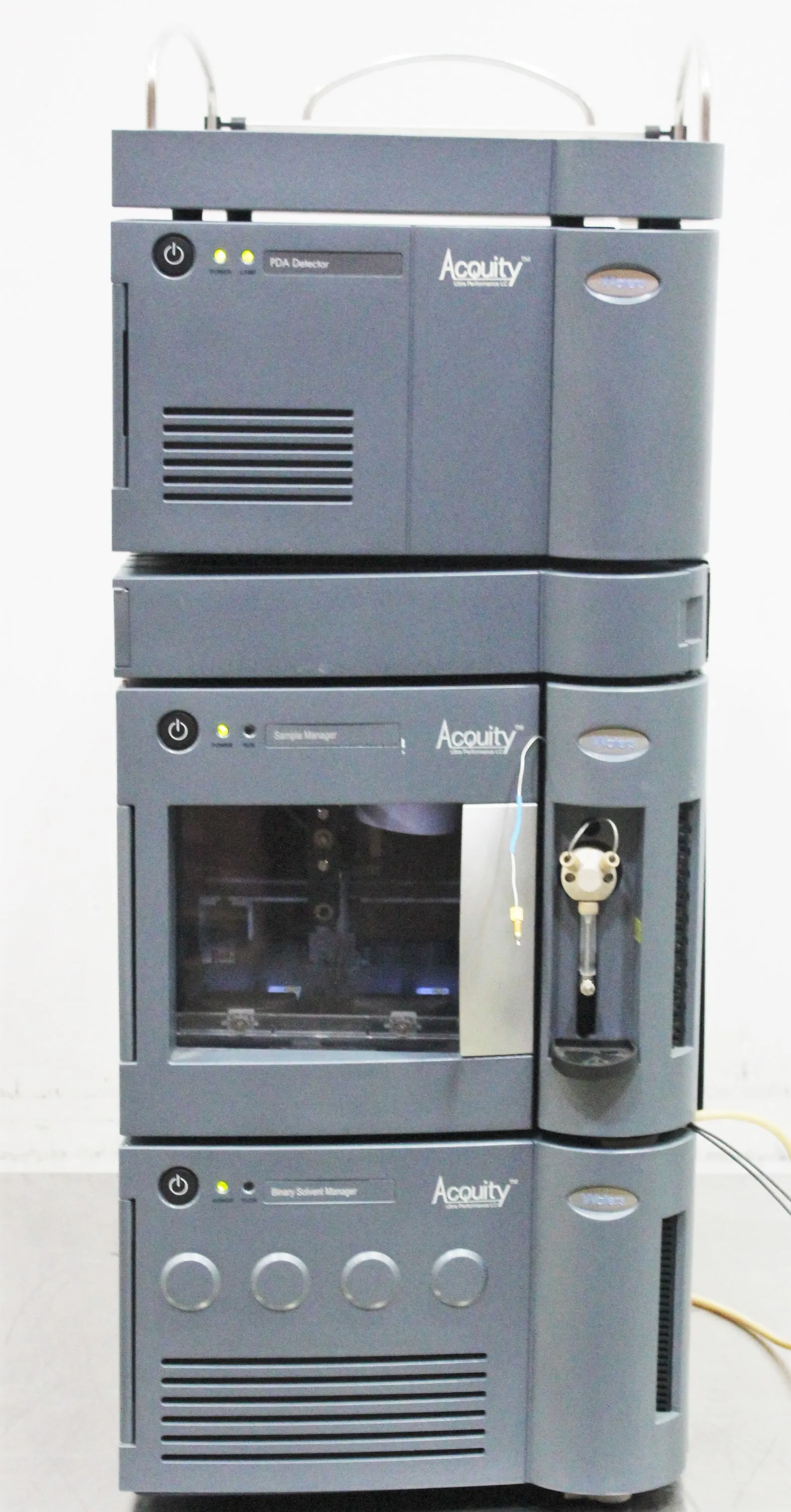

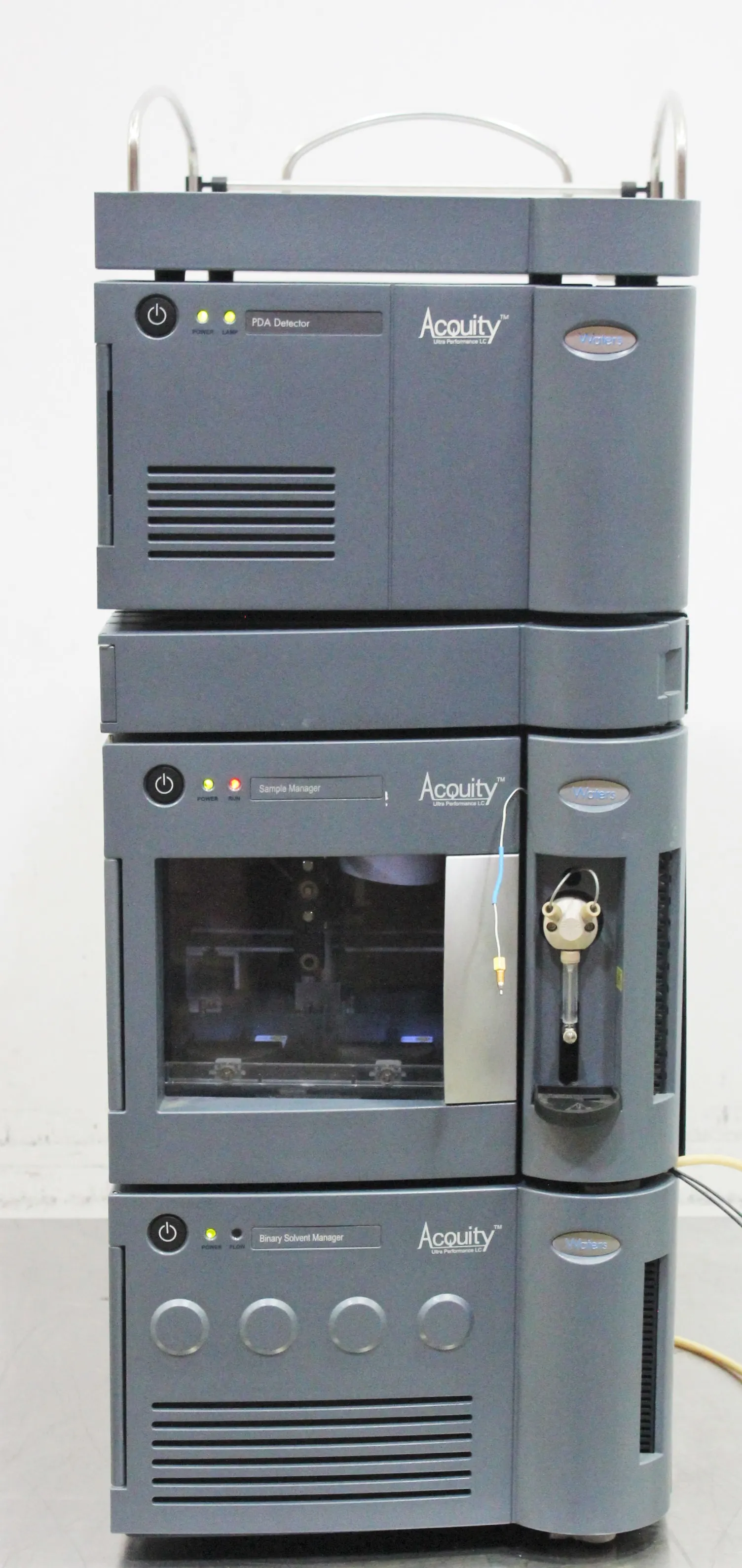

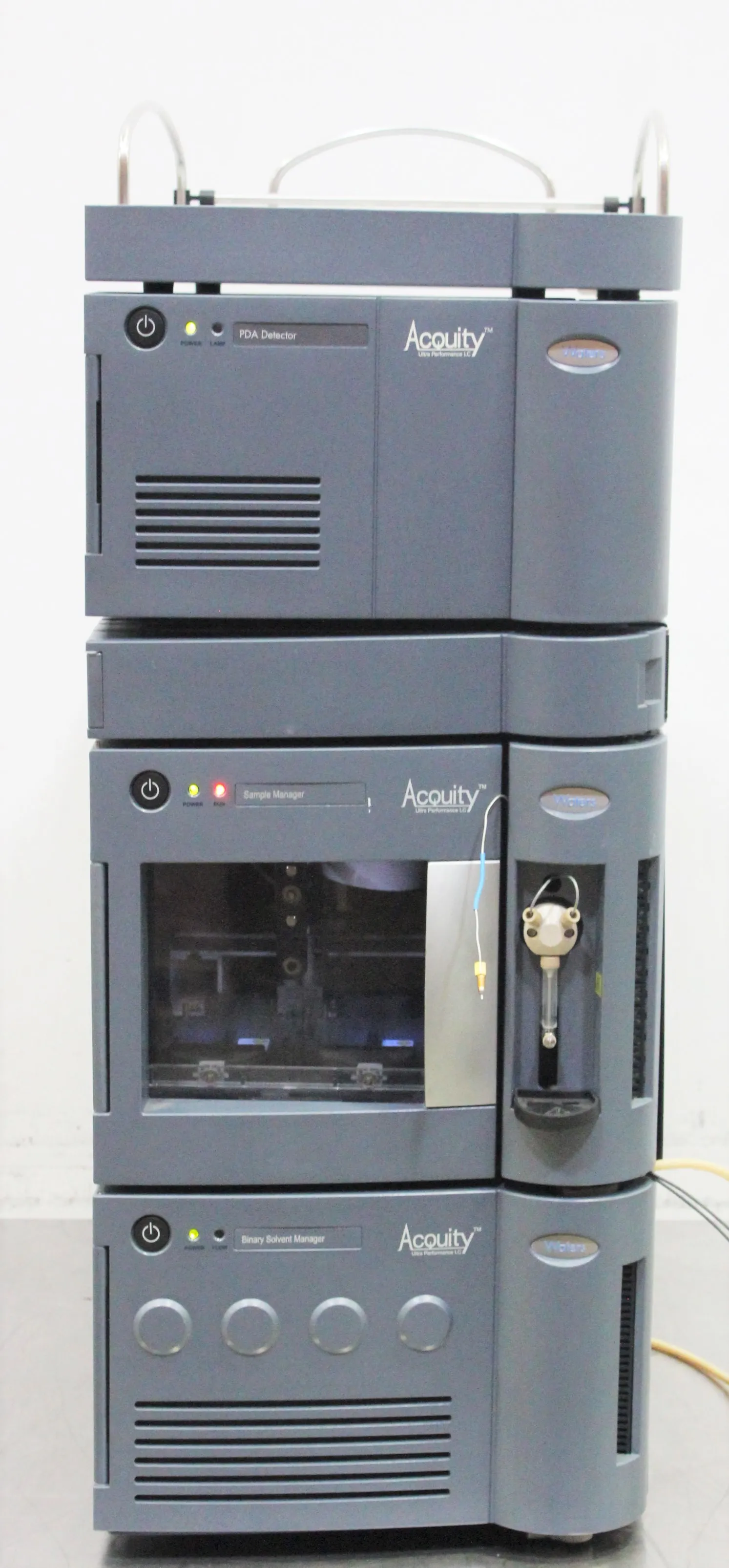

The Waters Acquity UPLC system offers reproducible, dependable, and data-rich results, featuring a wide range of flow rates, back pressures, and linear velocities, with increased throughput and high efficiency. This UPLC system features a contained tower design with a sample manager, column heater, binary solvent manager, and a PDA detector. It provides enhanced resolution with a unique sub 2 m particle system, offering 3 times the efficiency of a 5 m system with 70% higher resolution. It has the capability to run separations at a flow rate 3 times faster than HPLC, without a loss in resolution. With a PDA Detector, sampler manager autosampler, binary solvent manager, solvent and waste tray, this system provides a comprehensive solution for ultra-performance liquid chromatography in a laboratory setting. One of the unique features is its solvent manager, which provides flexibility with up to four solvents and various gradient profiles. The sample manager has a wide capacity, expanding up to 8,448 samples, and supports various injection volumes and sample temperature control. The column heater accepts a range of columns with controlled temperature, and the PDA detector offers an extensive wavelength range and flow cell options.

• Reproducible and dependable liquid chromatography results
• Unique sub 2 m particle system for higher resolution

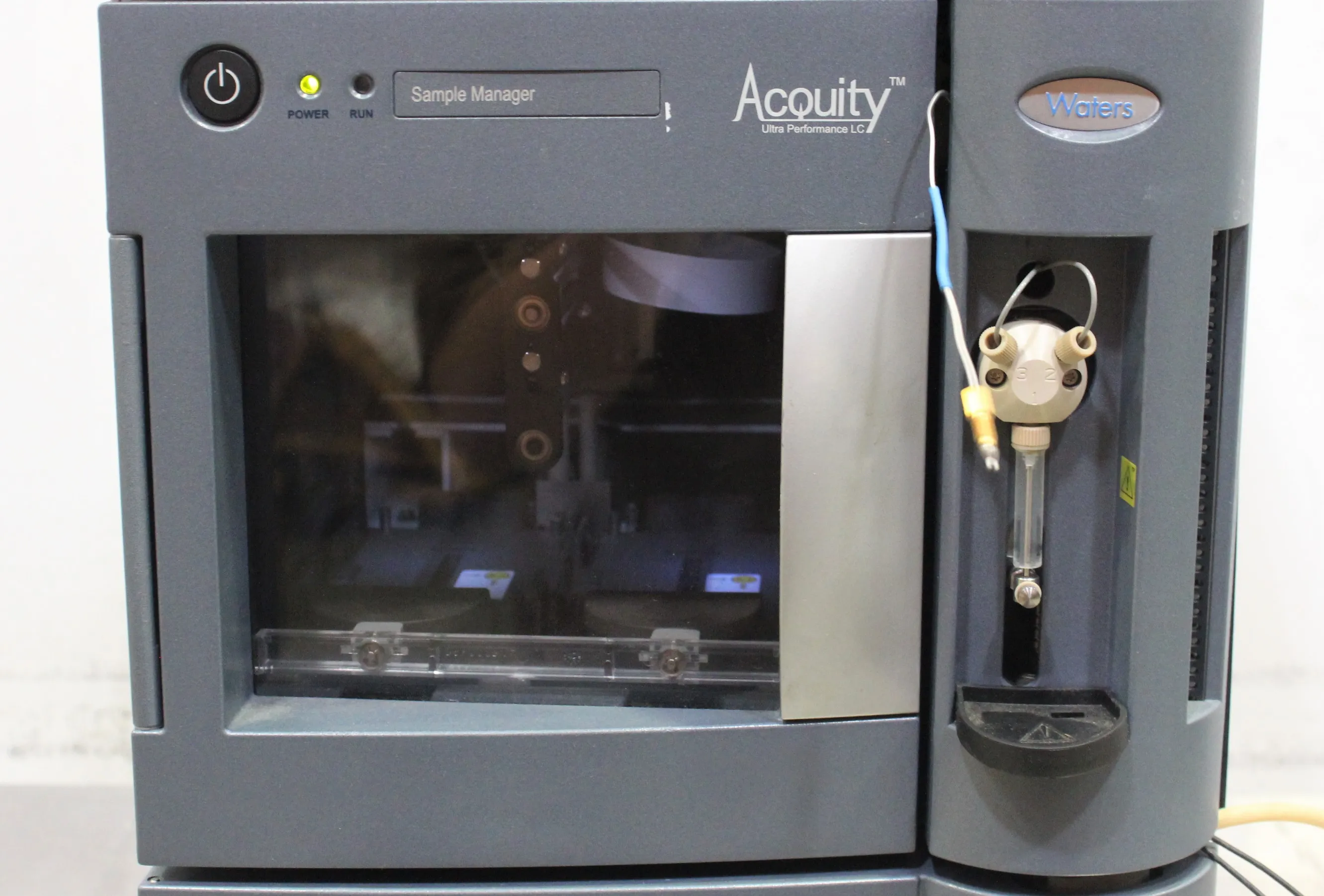

• Sample manager with high capacity and temperature control

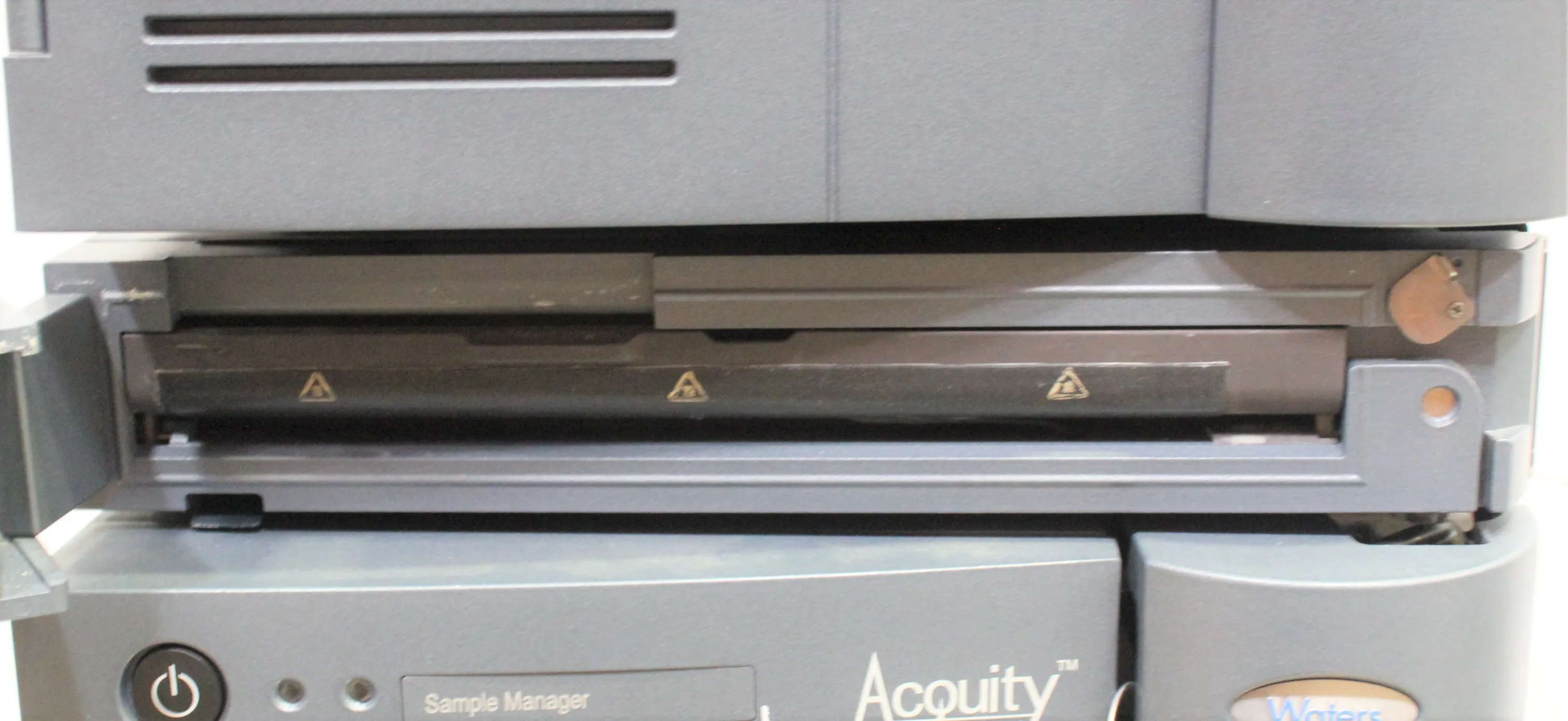

• Column heater with variable column acceptance and temperature control
• PDA Detector with an extensive wavelength range and flow cell options

• Solvent Manager
• Up to four solvents with various gradient profiles
• Settable flow rate range: 0.001 to 2.000 mL/min
• Maximum operating pressure: 103,421 kPa up to 1 L/min, 62,053 kPa up to 2 mL/min
• Sample Manager
• Expandable up to 8,448 samples with support for various injection volumes and temperature control

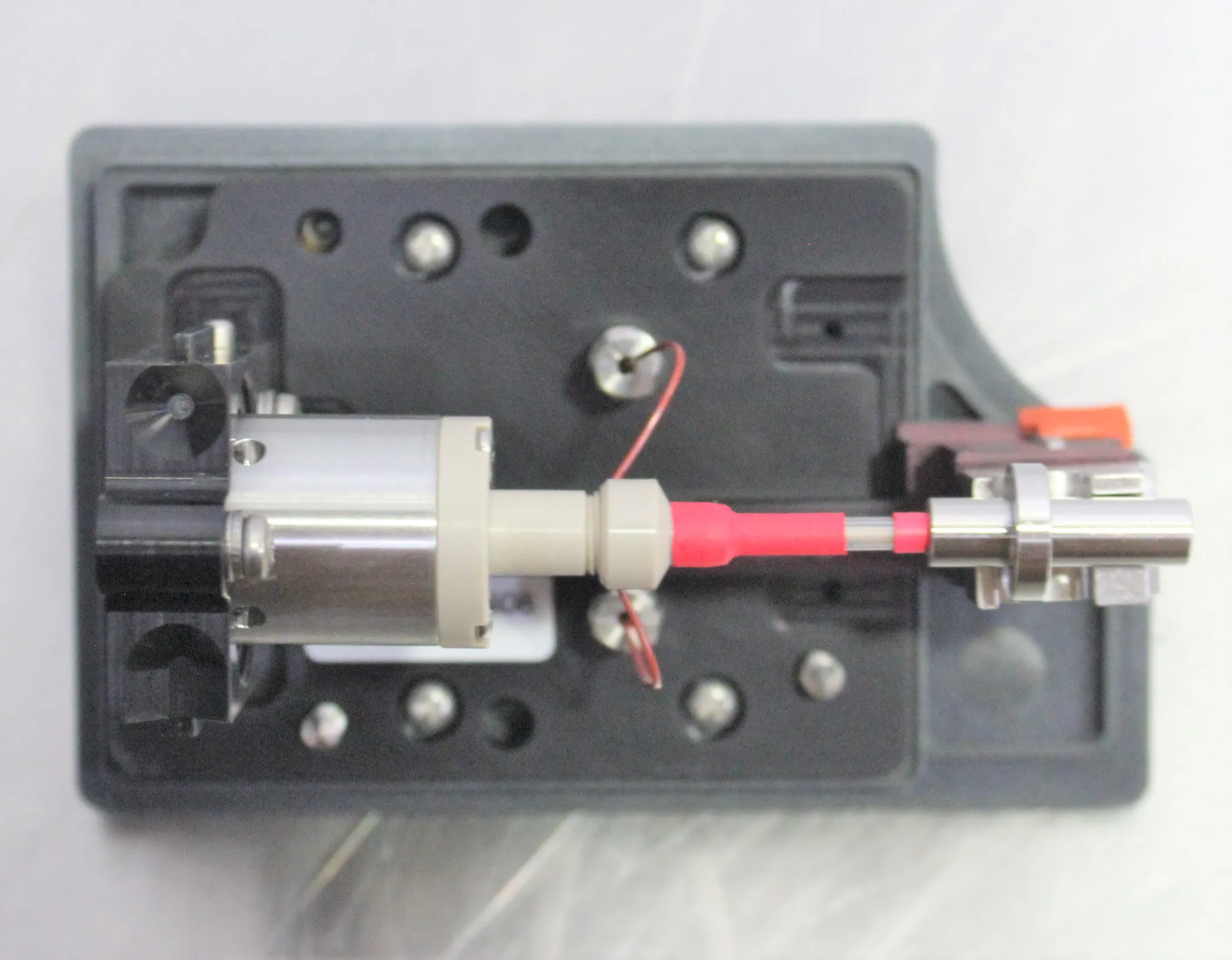

• Column Heater
• Accepts a range of columns with a temperature range of 5 above ambient to 65C

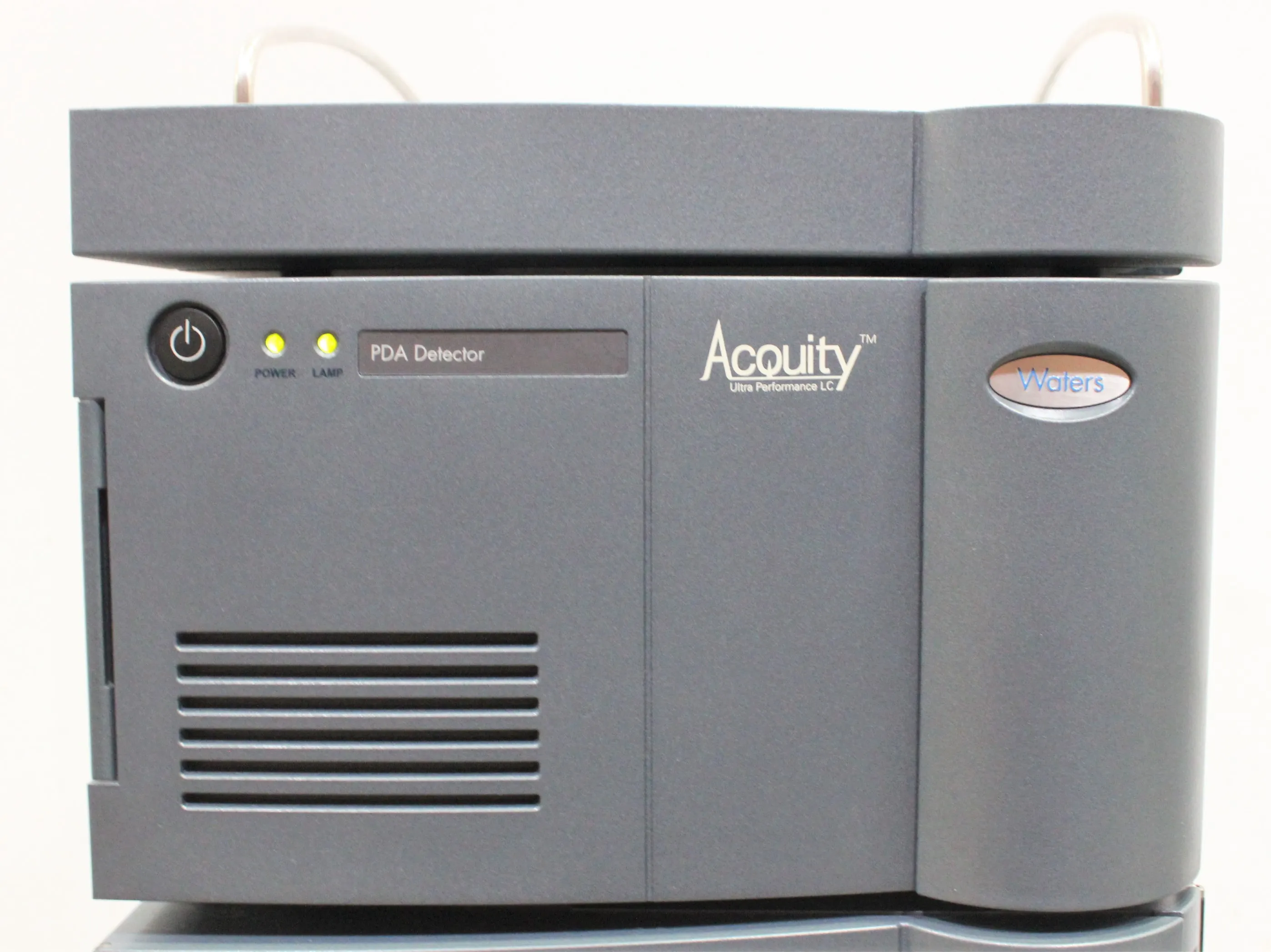

• PDA Detector
• Extensive wavelength range: 190-500 nm and flow cell options

Metric: 78.9 kg
Imperial: 173.9 lbs

Metric: 92 cm x 61 cm x 117 cm
Imperial: 36 in x 24 in x 46 in

9027200000

The harmonized code 9027200000 applies to liquid chromatography and has been selected based on the make and model of the equipment.
