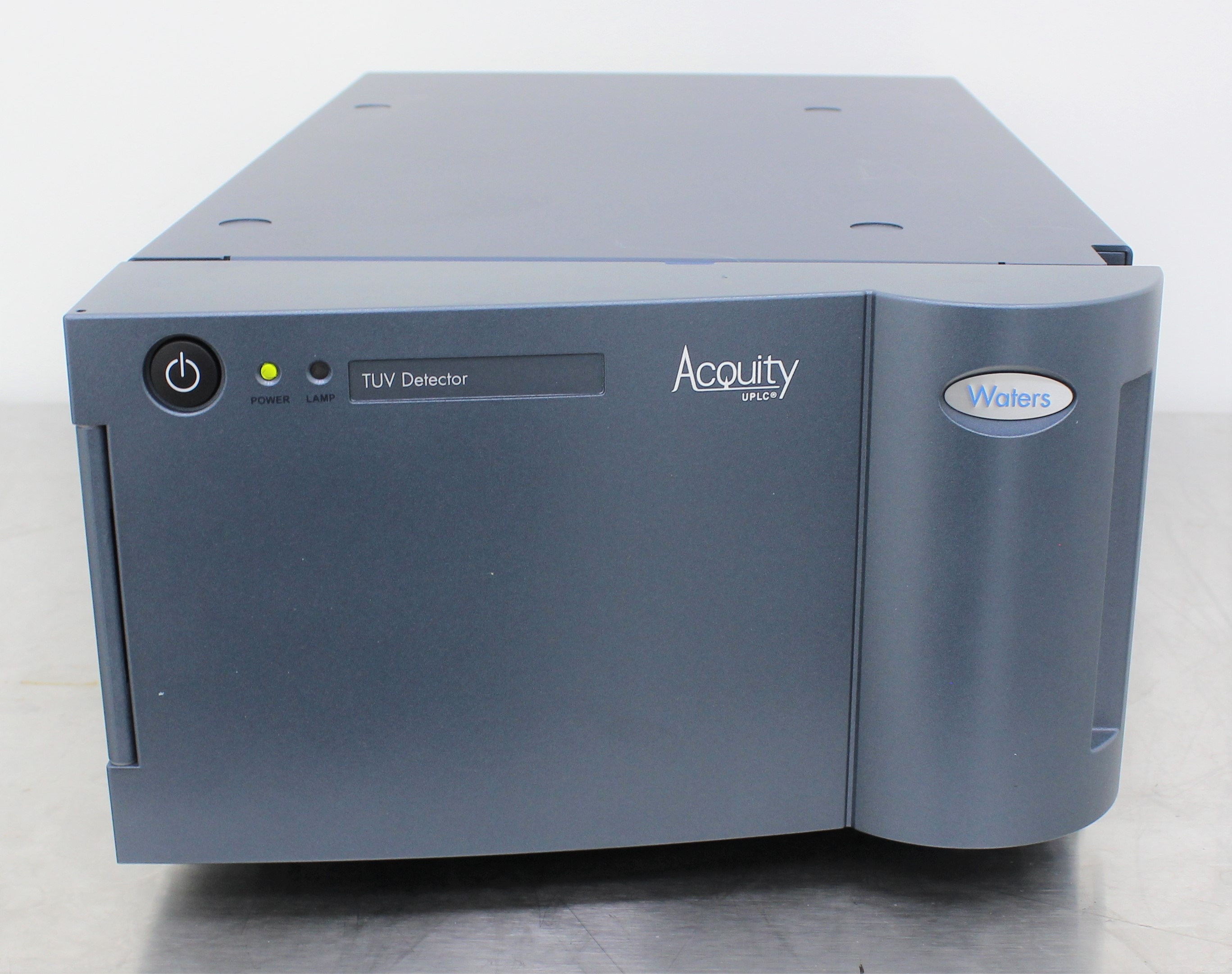

Waters TUV Detector Analytical Double Wavelength UV Vis UPLC Analyser
Waters
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension23.0in x 14.0in x 8.0in
-
SerialN/A
-
Shipping TypeGround
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Waters ACQUITY UPLC TUV Detector is a highly reliable tunable, dual wavelength UV/Vis detector designed specifically for optimal performance in complex and routine analyses across numerous sectors, including pharmaceuticals, life sciences, environmental, agriculture, energy, and petrochemical industries. This used unit (very good condition) effectively delivers excellent linearity, resolution, and sensitivity in UPLC/UV separations. It incorporates patented light-guiding flow cell technology to ensure low-noise performance and support data rates up to 80 Hz. The detector covers a wavelength range from 190 to 700 nm, with excellent wavelength accuracy of ±1 nm, and features a linear dynamic range extending over 3.5 orders of magnitude. Designed for reliable detection of both major and minor component quantitation, the Waters ACQUITY TUV Detector is ideal for applications requiring precise and high sensitivity measurements.
Key Features
- Tunable dual wavelength UV/Vis detector
- Optimal linearity, resolution, and sensitivity
- Patented light-guiding flow cell technology
- Low-noise performance (6 AU)
- Supports data rates up to 80 Hz
- Wavelength range: 190-700 nm
- Wavelength accuracy: ±1 nm
- Linear dynamic range: >3.5 orders of magnitude
Specifications
- Detector type: Dual wavelength UV/Vis
- Wavelength range: 190-700 nm
- Wavelength accuracy: ±1 nm
- Linear dynamic range: >3.5 orders of magnitude
- Unique light-guiding flow cell technology
- Low-noise performance: 6 AU
- Data rate support: up to 80 Hz
- Voltage options: 120V/220V
- Frequency: 50Hz/60Hz
- Ideal for pharmaceutical, life sciences, environmental applications
Weight
Imperial: 38.4 Pounds
Metric: 17.42 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 16.8 lb x 9.6 lb
Metric: 70.1 cm x 42.67 cm x 24.38 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, spectrophotometers and spectrographs using UV, visible or infrared optical radiations: This code fits as the Waters ACQUITY UPLC TUV Detector is used for analytical detection in UV/Vis spectrum.
