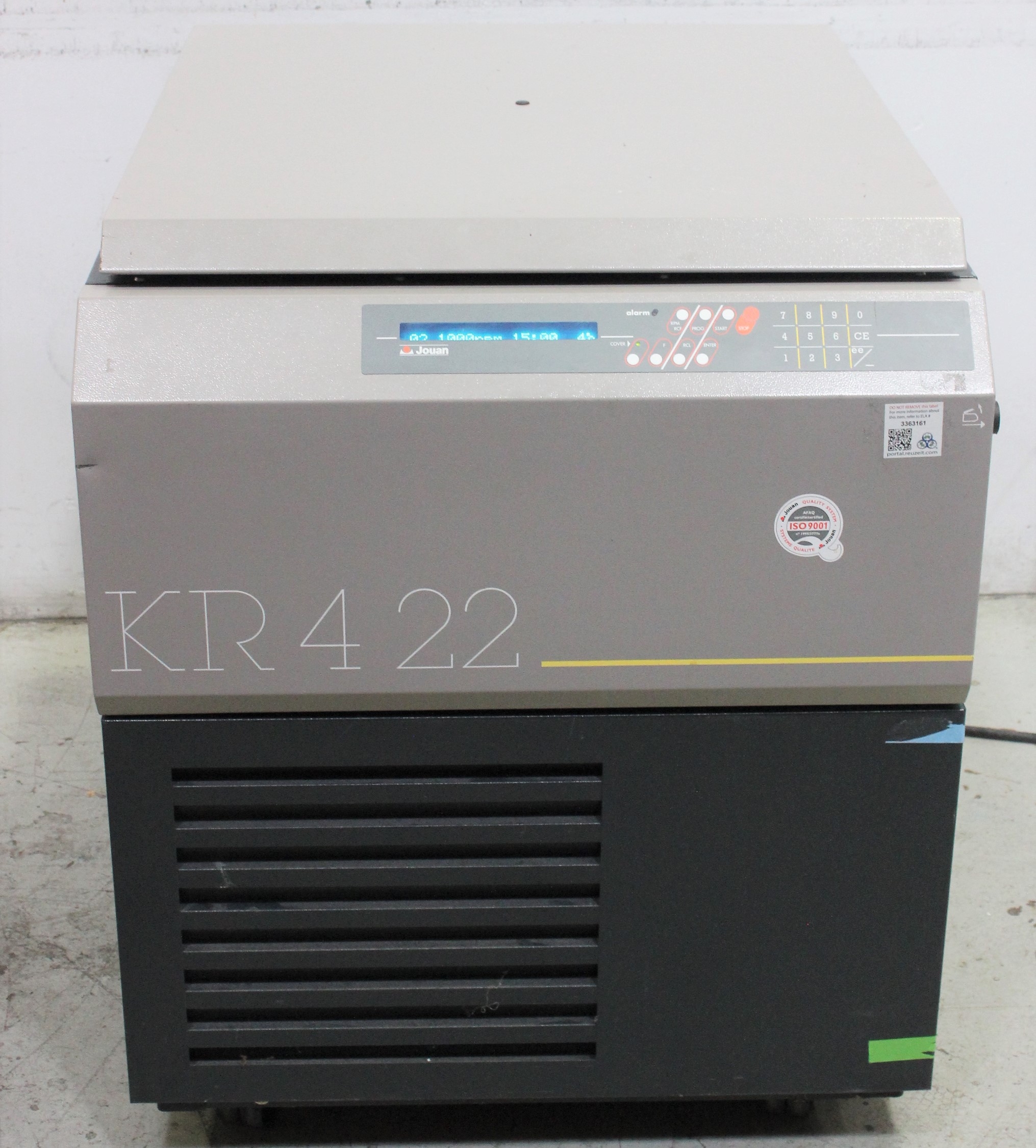

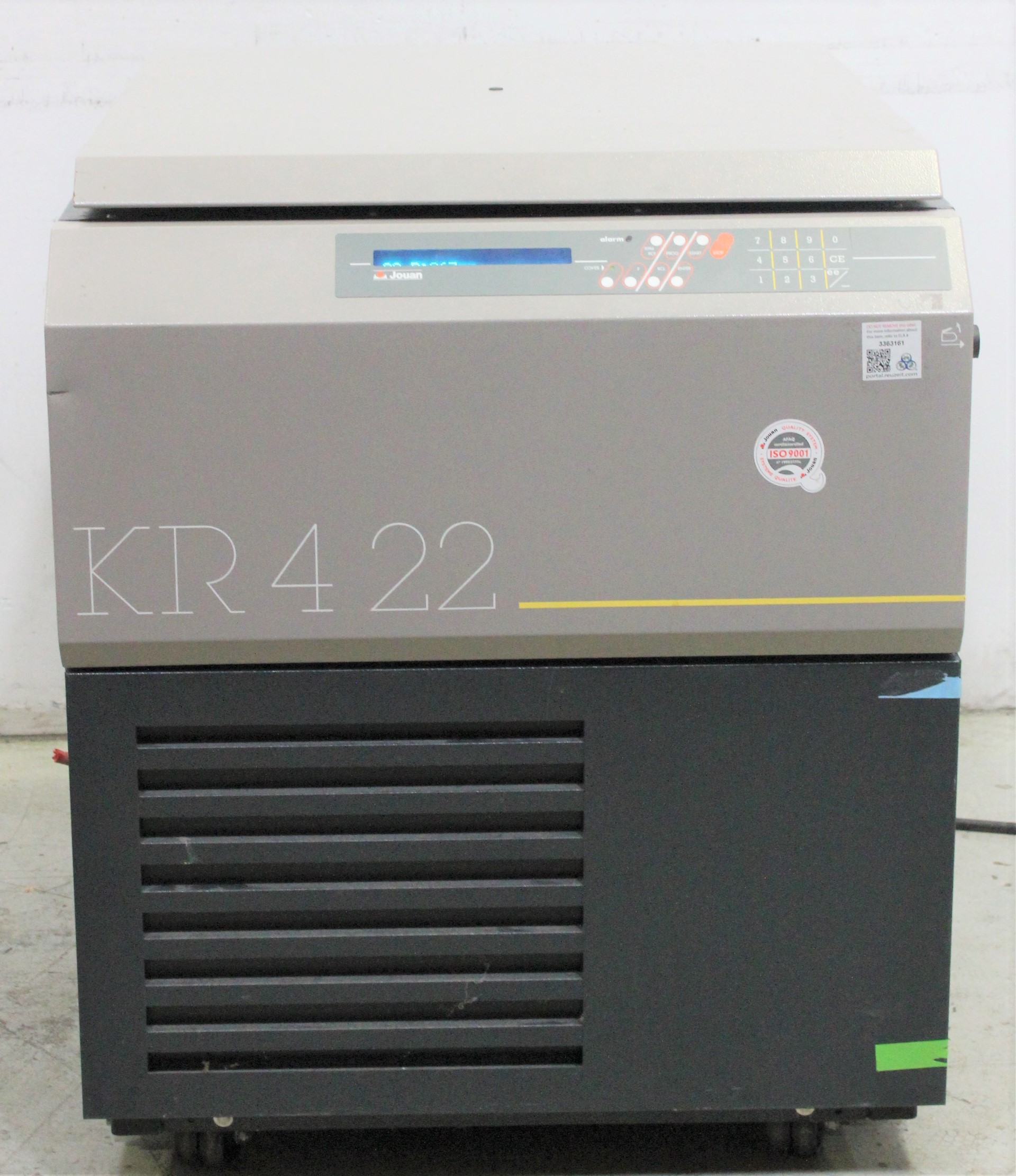

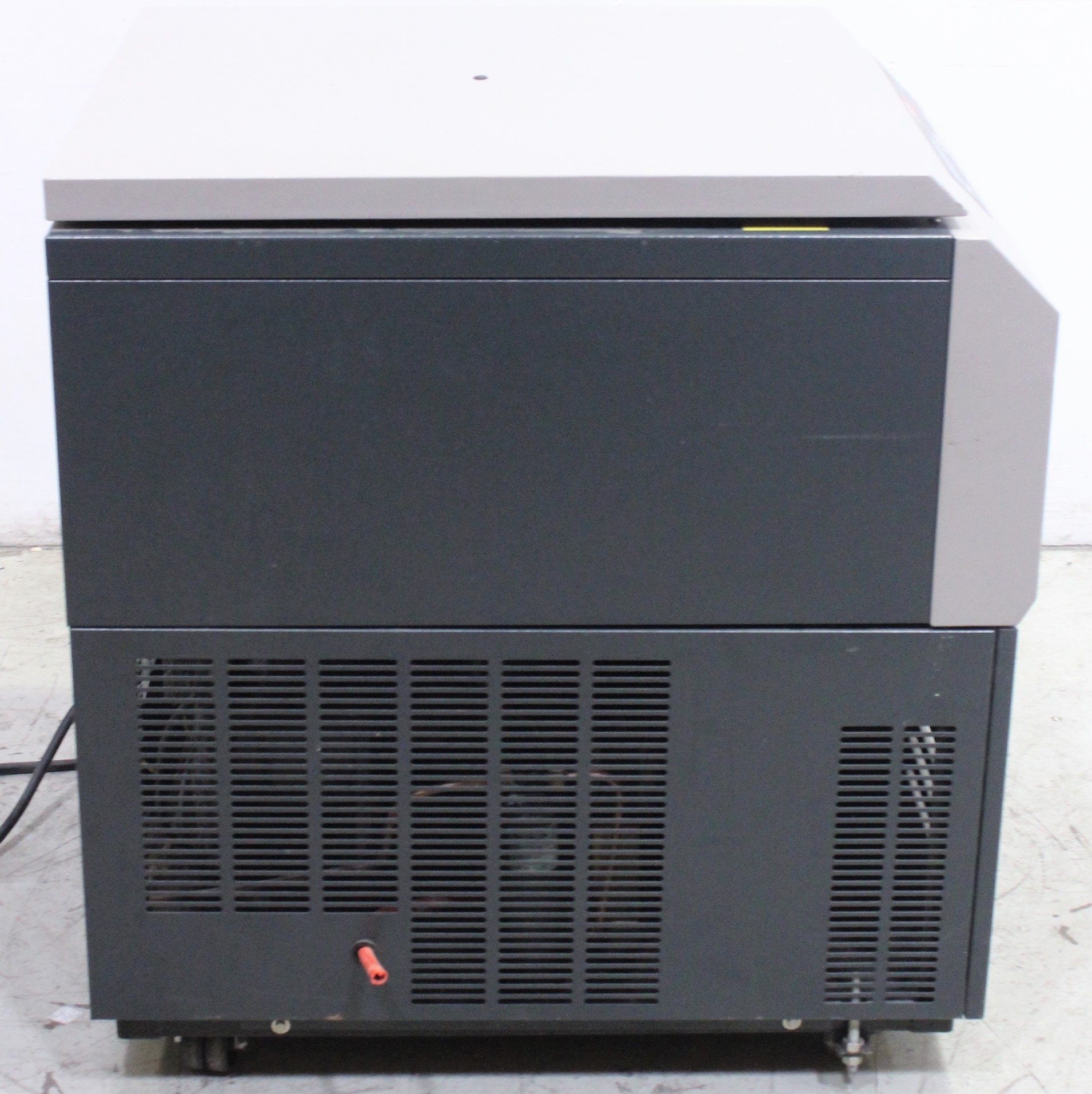

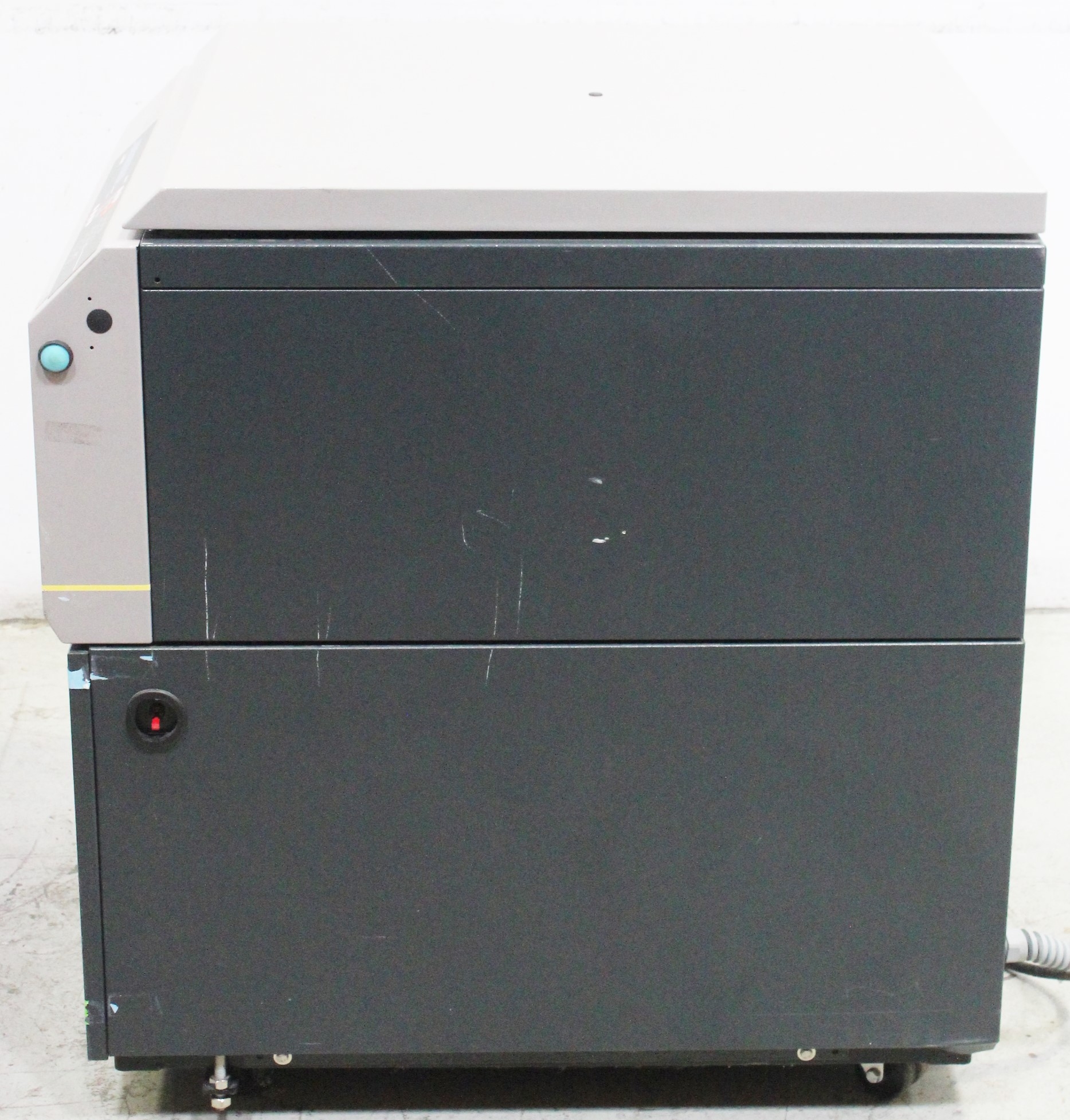

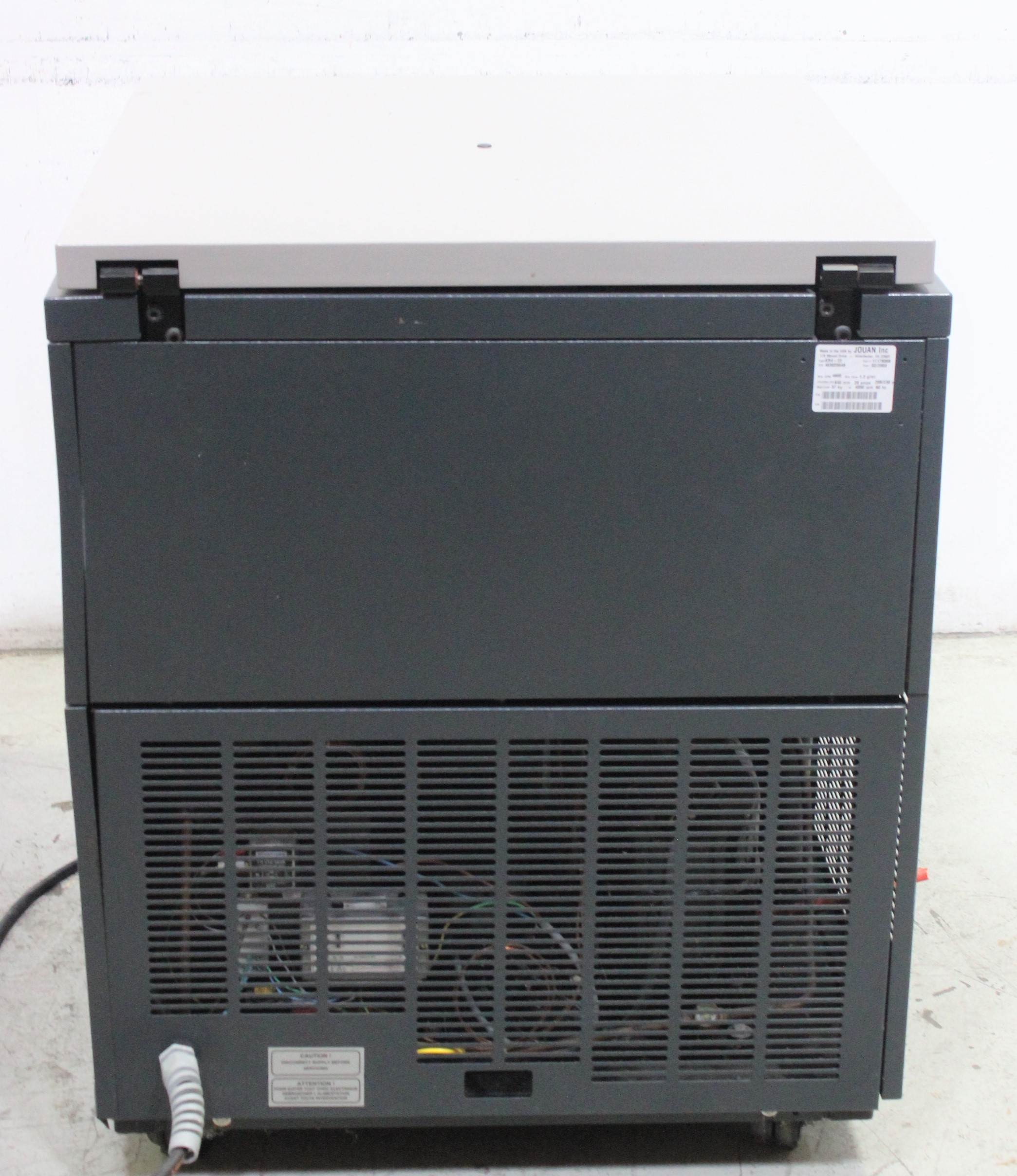

Jouan KR4-22 Refrigerated Centrifuge Floor Model 4900 RPM 230V AS-IS Parts
Jouan
Details
-
CategoryCentrifugation
-
Dimension34.0in x 31.0in x 38.0in
-
Serial403020049
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 60Hz US
Description

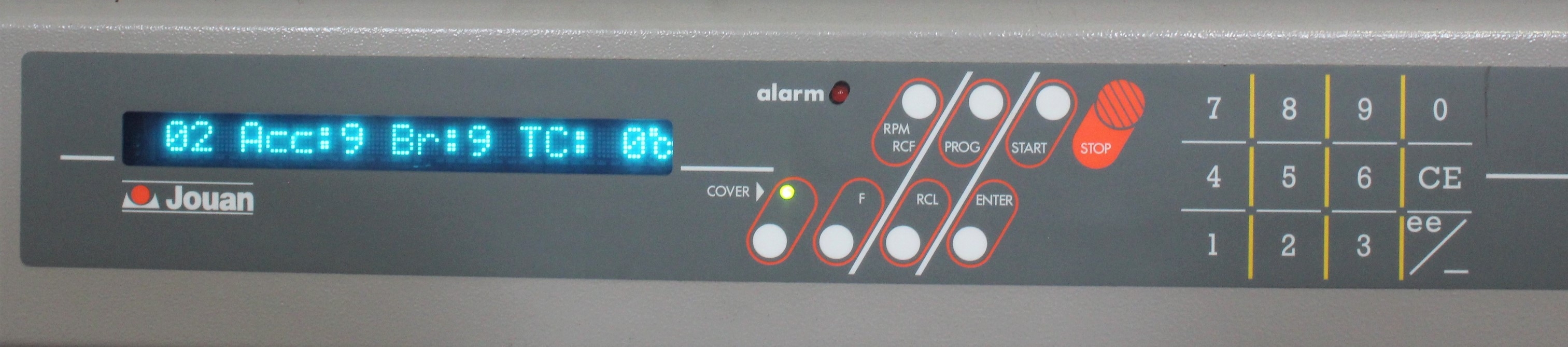

This Jouan KR4-22 model is a refrigerated floor centrifuge designed to guide users through a straightforward programming interface, storing protocols in one of 50 permanent memories, with capabilities to program performance in RPM or RCF. Simple program creation and retrieval support consistent and reliable operation. Its microprocessor provides continuous monitoring and control of acceleration, braking, and temperature, though note this unit's refrigeration function is non-operational, and lid access is unavailable. The manufacturer's specifications include a temperature range of -8 to +40°C, maximum speed of 4,900 RPM, and a maximum RCF of 7,200 x g. It can hold up to six 1,000 ml or four 1,600 ml bottles, equipped with a timer from 0 to 100 minutes plus hold, integrator, and air-cooled condenser, delivered AS-IS and ideal for parts harvesting.
Key Features
- Refrigerated floor model
- Programmable RPM or RCF
- Temperature range: -8 to +40°C
- Max speed: 4,900 RPM
- Max RCF: 7,200 x g
- Capacity: 6 x 1,000 ml or 4 x 1,600 ml
- Air-cooled condenser
- Microprocessor control
Specifications
- Temperature range: -8 to +40°C [Holds 4°C at full speed]
- Max speed: 4,900 rpm
- Max RCF: 7,200 x g
- Max capacity: 6 x 1,000 ml bottles; 4 x 1,600 ml bottles
- Timer: 0 to 100 min.+ hold
- Programmable radius 70 to 310 mm
- Air cooled condenser
- Unit Sold AS/IS. Refrigeration inoperative, lid does not open.
Weight
Imperial: 900.0 Pounds
Metric: 408.23 Kilograms
Shipping Dimensions
Imperial: 40.8 lb x 37.2 lb x 45.6 lb
Metric: 103.63 cm x 94.49 cm x 115.82 cm
Harmonized Code
84211900
Harmonized Code Details
The code 84211900 is related to centrifugal machines used for laboratories with refrigeration functionality. This code justifies the equipment's specification as a floor model centrifuge, though sold AS-IS primarily for part recovery.
