Omega DPGM409-350HG Digital Pressure Gauge, Very Good Condition

sku: 3364254
1 In Stock
Ask a question
Condition : VG (Very Good)
Warranty : 30-Day Warranty, 100% Parts and Labor
Region : US
$199.00
Apply For Finance
Make Offer
Enquiry Here
ADD TO CART
Product image

Same item available with different options / conditions

Click to explore
  • Make Omega
  • Hertz Does Not Apply

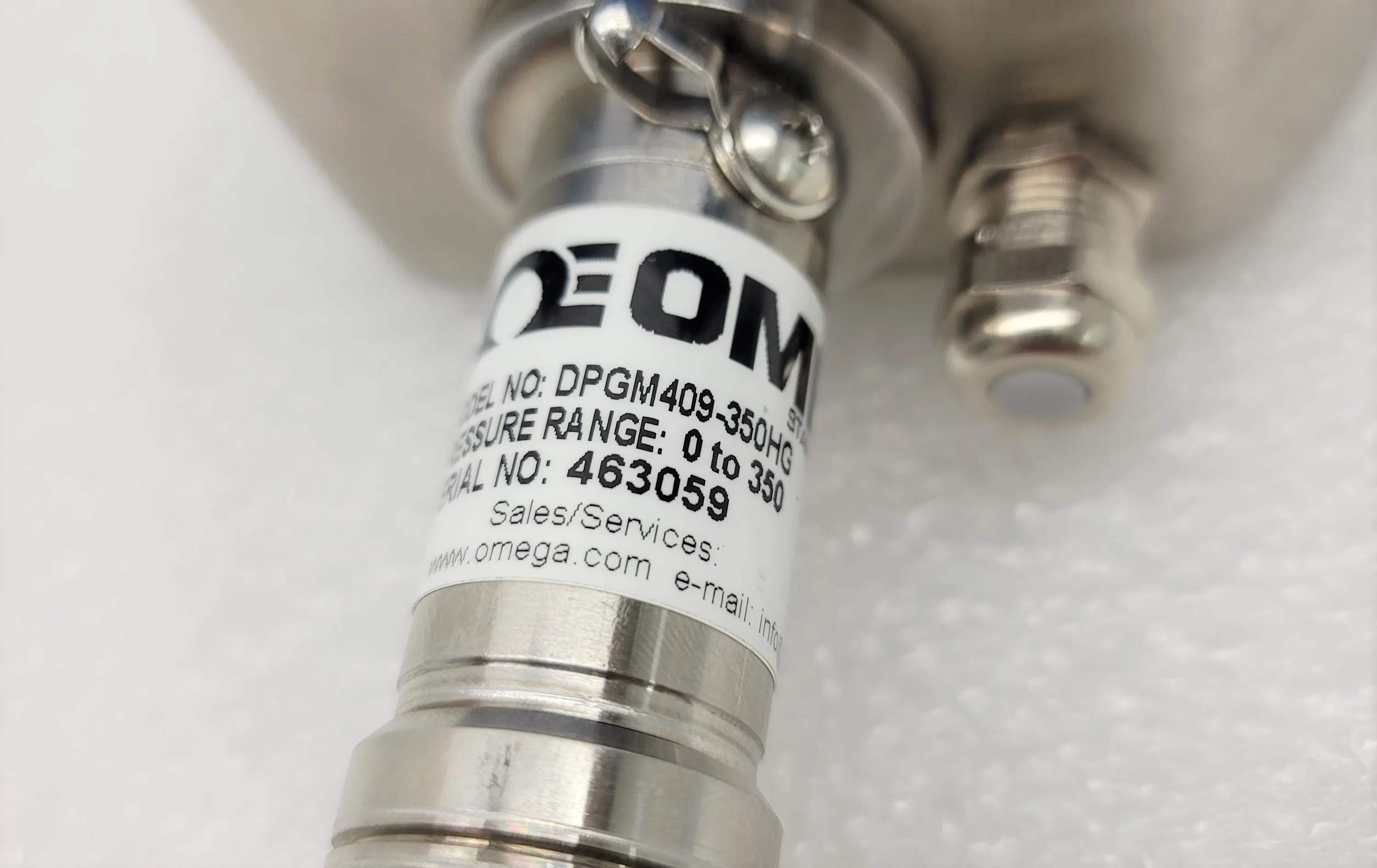

  • Model DPGM409-350HG
  • Serial 463059
  • Weight 7.0 Lb
  • Voltage Does Not Apply
  • Warranty 30-Day Warranty, 100% Parts and Labor
  • Dimensions 12.0in x 10.0in x 9.0in
  • Shipping Type FedEx Ground
  • Item Condition VG (Very Good)
  • Manufacturing Date Does Not Apply

Product Information

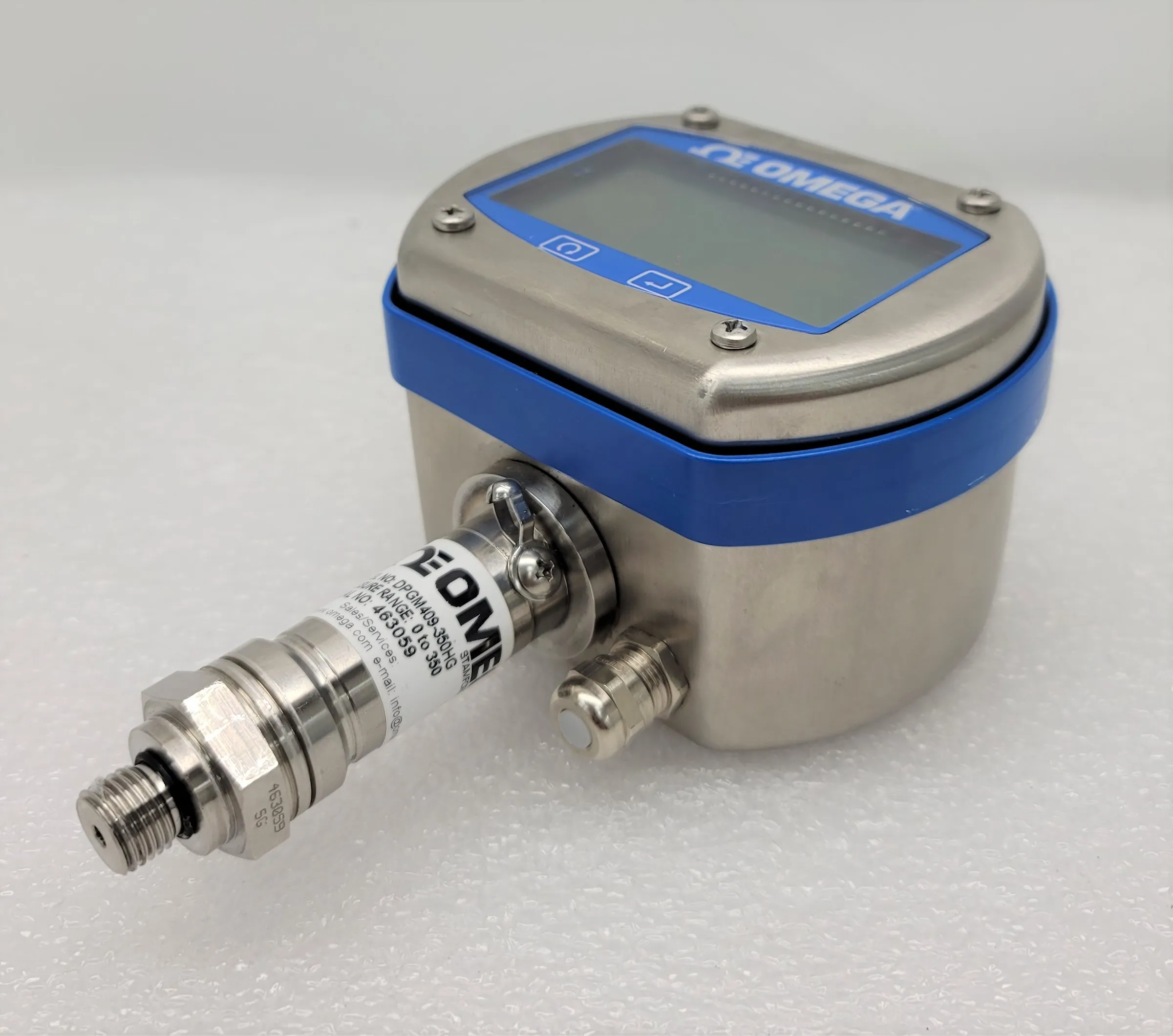

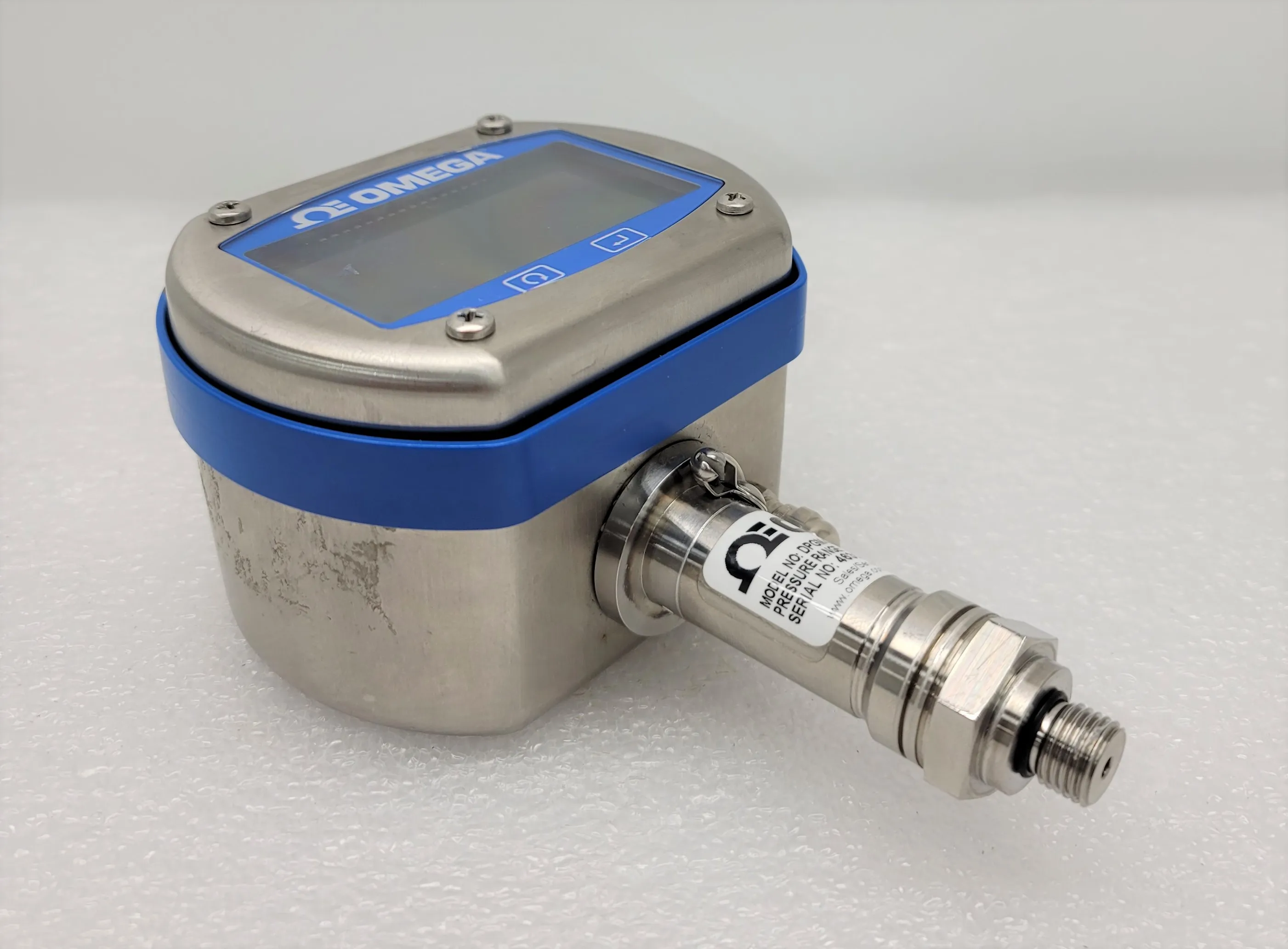

Unit is in great working condition. Omega DPGM409-350HG digital pressure gauge incorporates a rugged 316 SS enclosure designed for washdown and marine applications with a precision 0.08% accuracy pressure transducer with 316L SS wetted parts and body. The result is an extremely durable digital pressure gage designed to survive harsh industrial environments. The large 25 mm (1") display is easy to read at a distance up to 11 m (36'). Models are available in Gauge, Sealed Gauge, Compound Gauge, Absolute, Vacuum and Barometric pressure ranges. Standard features include a highly stable silicon sensor, selectable MIN/MAX and AVG readings, Hi and LO alarms and an externally powered user selectable analog output. Manufacture Specification - High 0.08% Accuracy, Easy to Read 25 mm (1") Backlit LCD Display, Hi and Lo Alarms Standard, MIN/MAX/AVG Reading, Tested to Industrial CE Standards, G 1/4 B Pressure Connection.

Key Features

  • Rugged 316 SS enclosure
  • 0.08% accuracy pressure transducer with 316L SS wetted parts and body
  • Large 25 mm backlit LCD display
  • Hi and Lo alarms standard
  • Selectable MIN/MAX and AVG readings
  • Tested to Industrial CE Standards
  • G 1/4 B pressure connection
Specifications

  • Accuracy: 0.08%
  • Display: 25mm Backlit LCD
  • Pressure Ranges: Gauge, Sealed Gauge, Compound Gauge, Absolute, Vacuum, Barometric
  • Sensor: Highly stable silicon sensor
  • Alarms: Hi and Lo standard
  • Readings: Selectable MIN/MAX and AVG
  • Standards: Tested to Industrial CE Standards
  • Pressure Connection: G 1/4 B
Weight

Metric: 3.175 kg
Imperial: 7 lb

Dimensions

Metric: 17.78 cm x 12.7 cm x 22.86 cm
Imperial: 7 in x 5 in x 9 in

Harmonized Code

9026.20.2000

Harmonized Code Details

9026.20.2000 - Manometers, vacuum gauges and pressure gauges, other than digital
