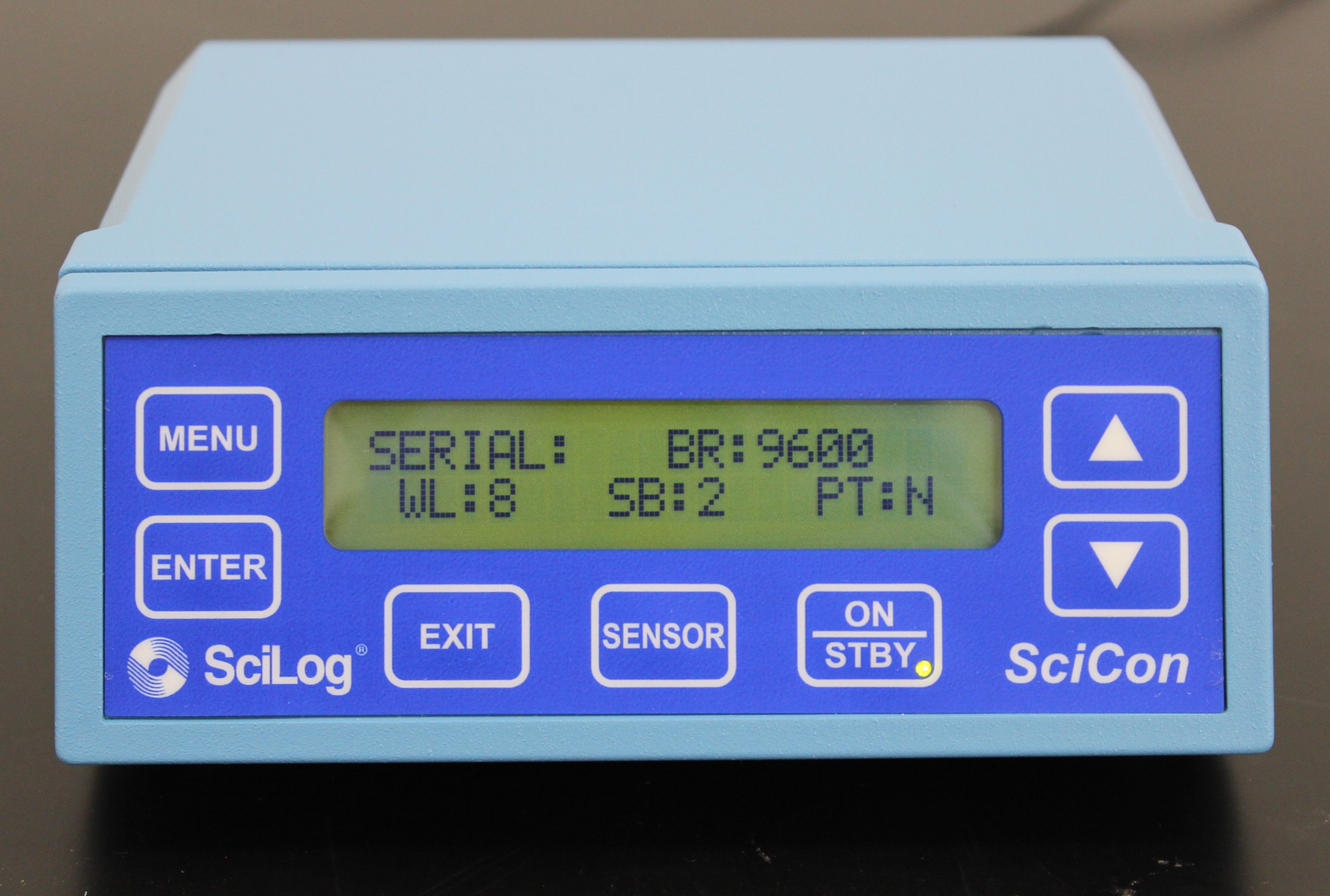

SciLog SciCon Conductivity Meter 4-Electrode w/ Disposable Sensors 4-50C
SciLog
Details
-
CategoryAnalytical
-
Dimension13.0in x 11.0in x 6.0in
-
SerialSC0307F-1058
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

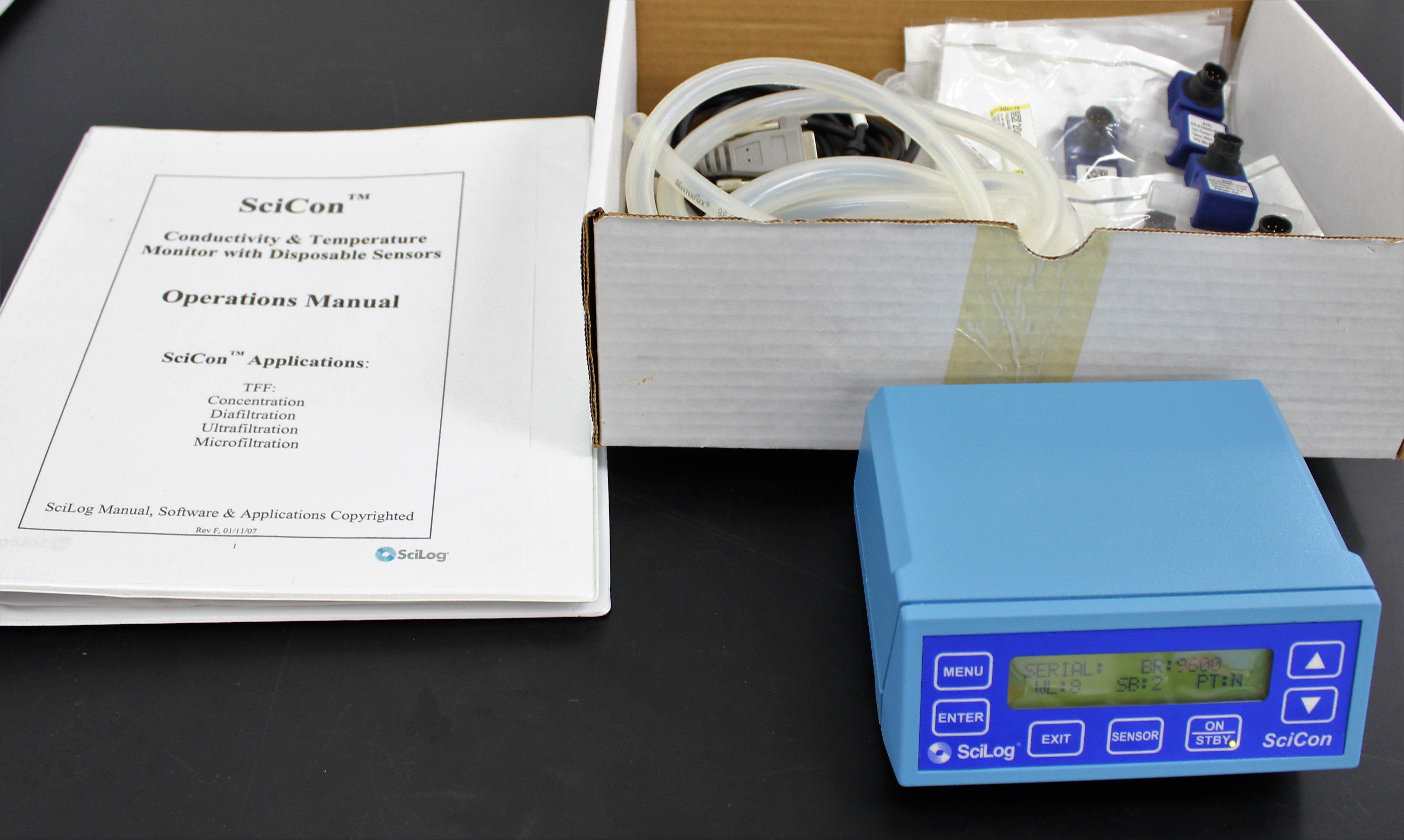

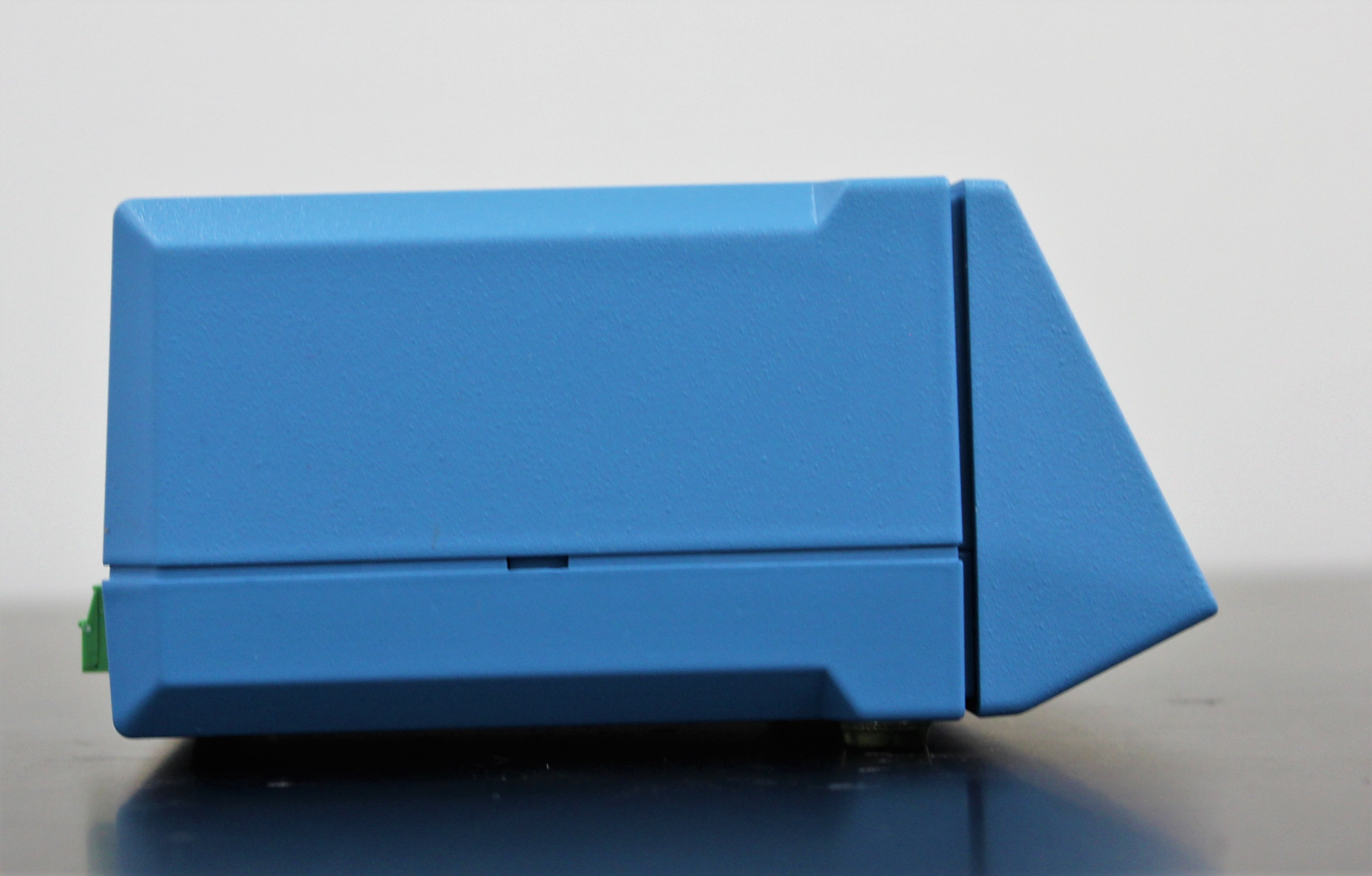

The SciLog SciCon Conductivity Meter is a high-performance, factory-calibrated system designed for precision conductivity and temperature monitoring. This unit is suitable for both single-use and reuse applications, offering flexibility in various lab settings. The SciCon meter employs a 4-electrode conductivity cell made from medical-grade materials that meet USP Class VI and FDA 21 CFR 177.1520 standards, ensuring reliability and safety in fluid contact. With a conductivity range of 1 S/cm to 200 mS/cm and temperature range of 4-50 C, it guarantees precise and accurate measurements. The integrated thermistor provides stable temperature readings with 0.5 C accuracy. This device also offers lockable, waterproof sensor connections, optimizing ease of use and durability. The SciCon Meter supports extensive data connectivity with analog (4-20 mA) and digital (RS-232) outputs and allows customization via software-selectable parameters for auto-ranging, alarm settings, and re-calibration options. Included in the package are a power cord, software CDs, and a user manual. Ideal for laboratory and industrial applications requiring rigorous conductivity and temperature profiling.
Key Features

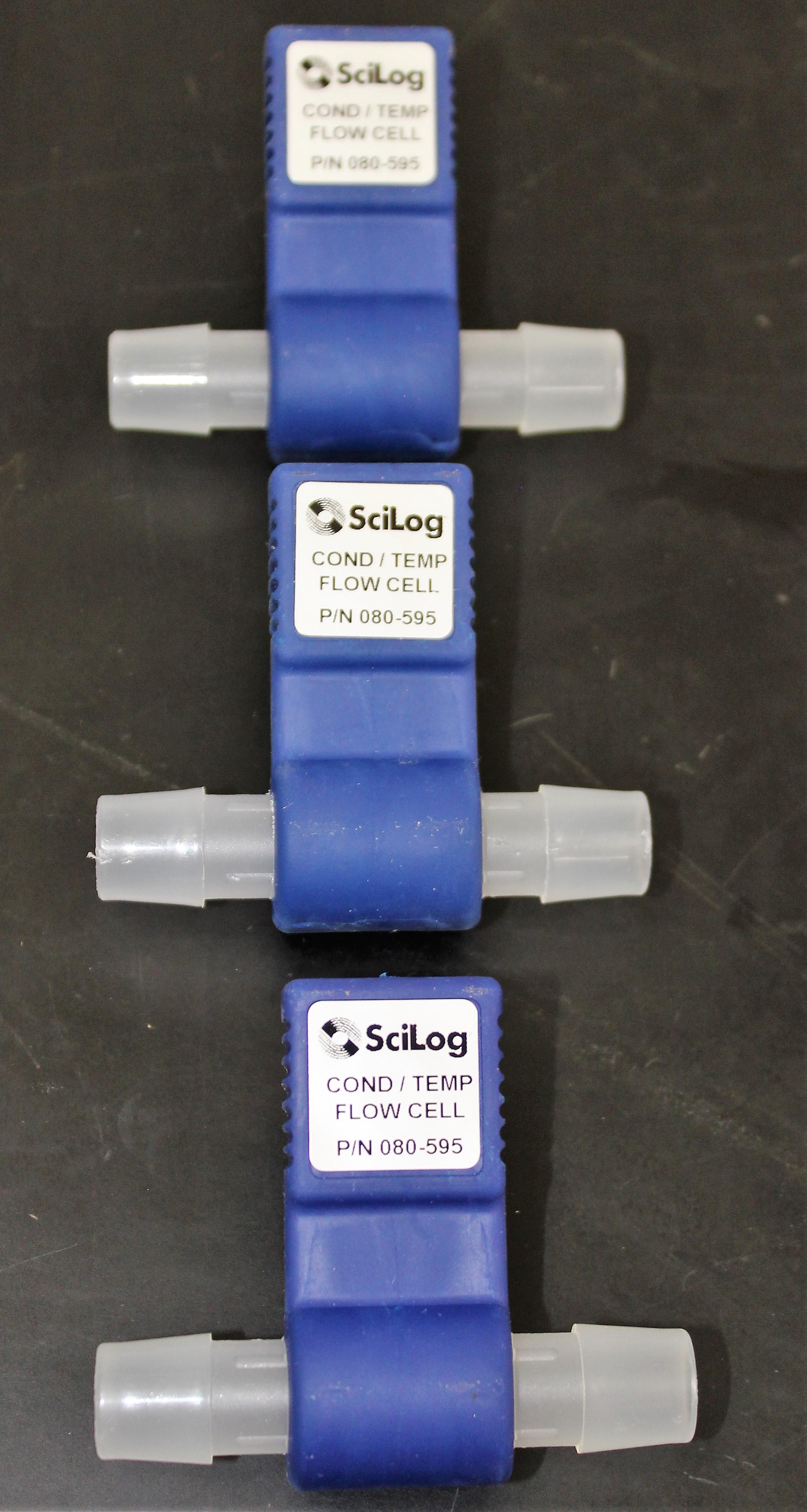

- Factory-calibrated 4-electrode conductivity cell
- Wide conductivity range: 1 S/cm to 200 mS/cm
- Temperature range: 4 C to 50 C
- High accuracy: 0.25 mS (high range), 0.5 C temperature
- Medical-grade materials safe for fluid contact
- Analog and digital output for data integration
- Customizable software parameters and alarm settings

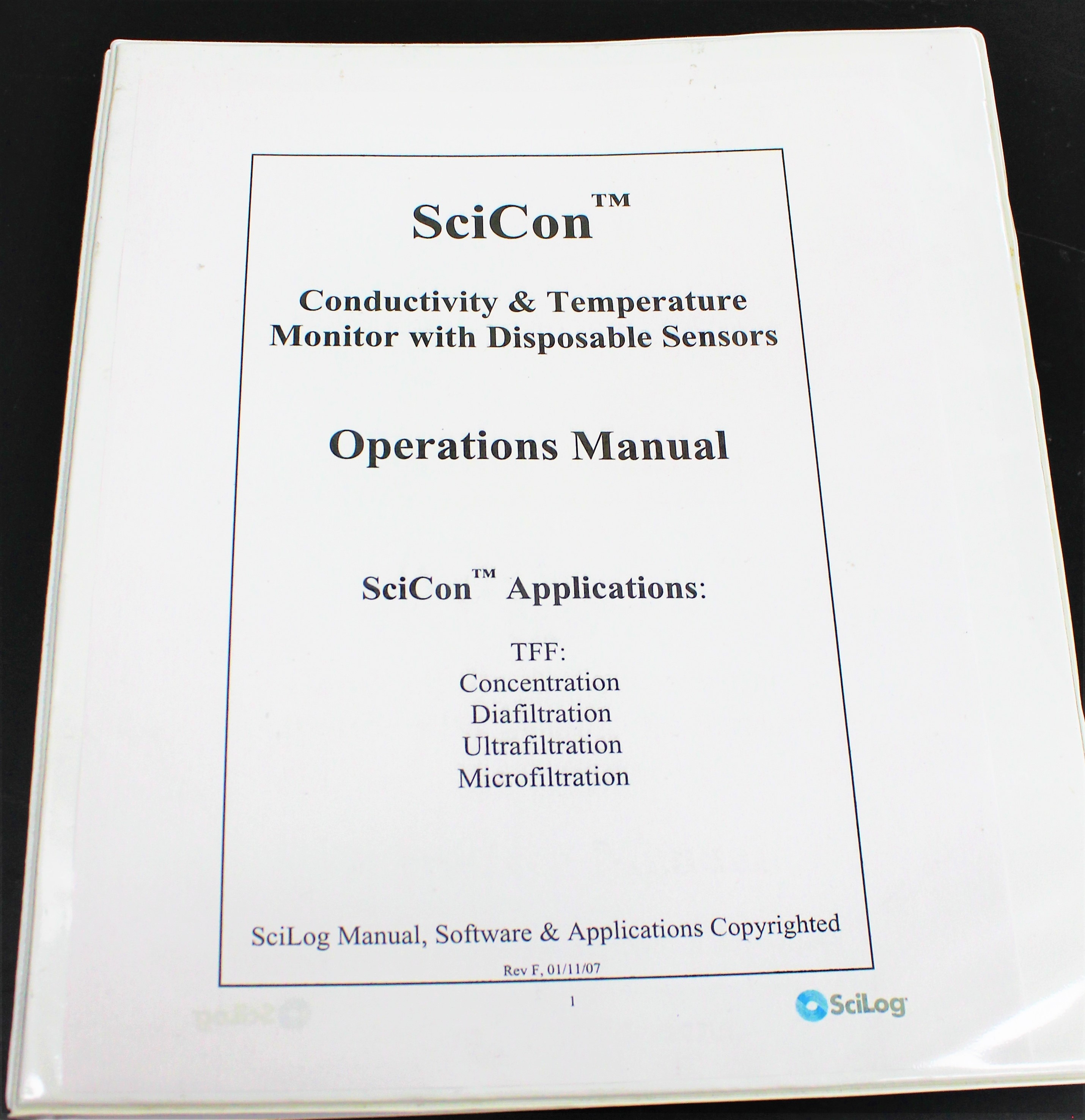

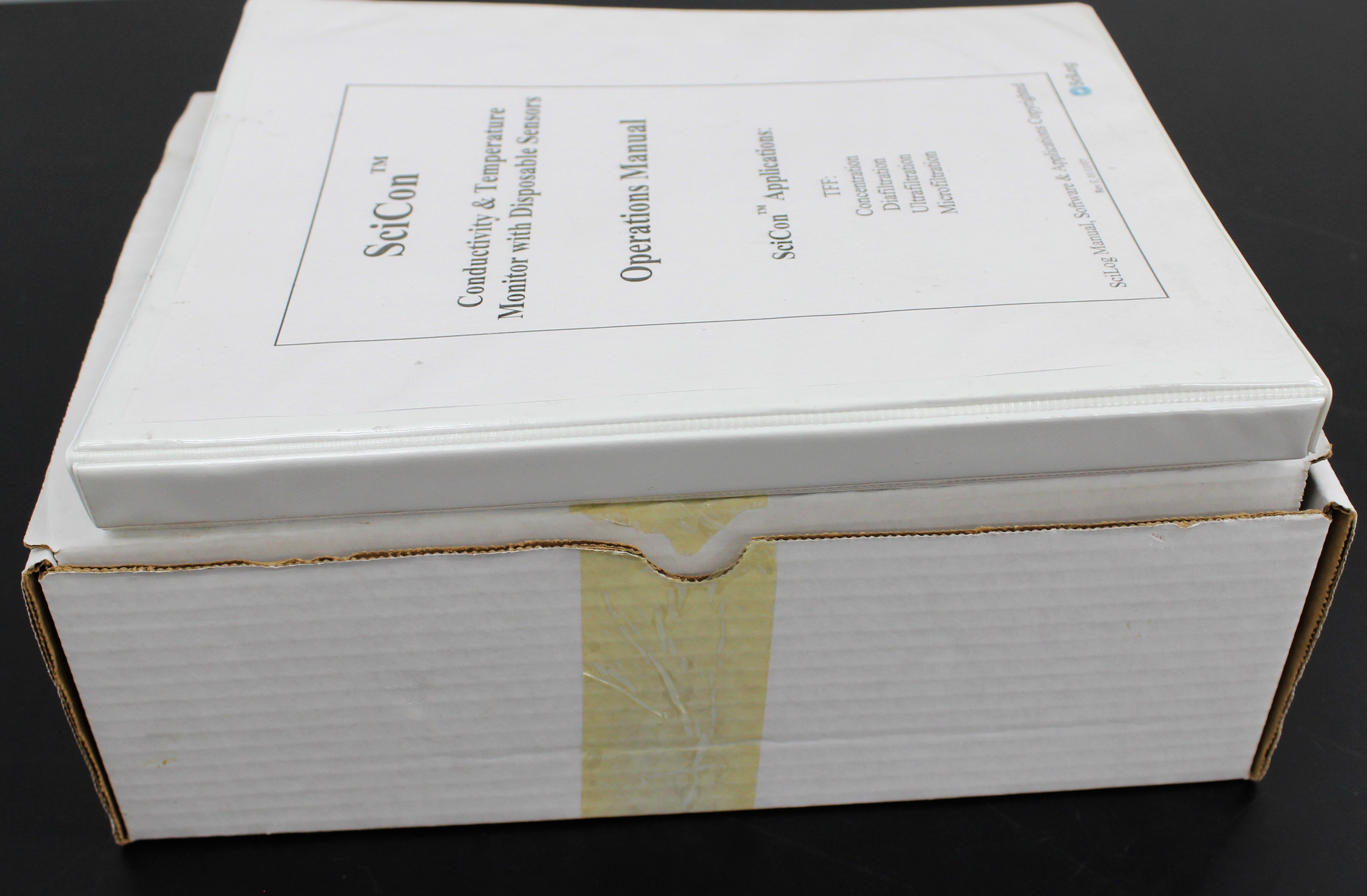

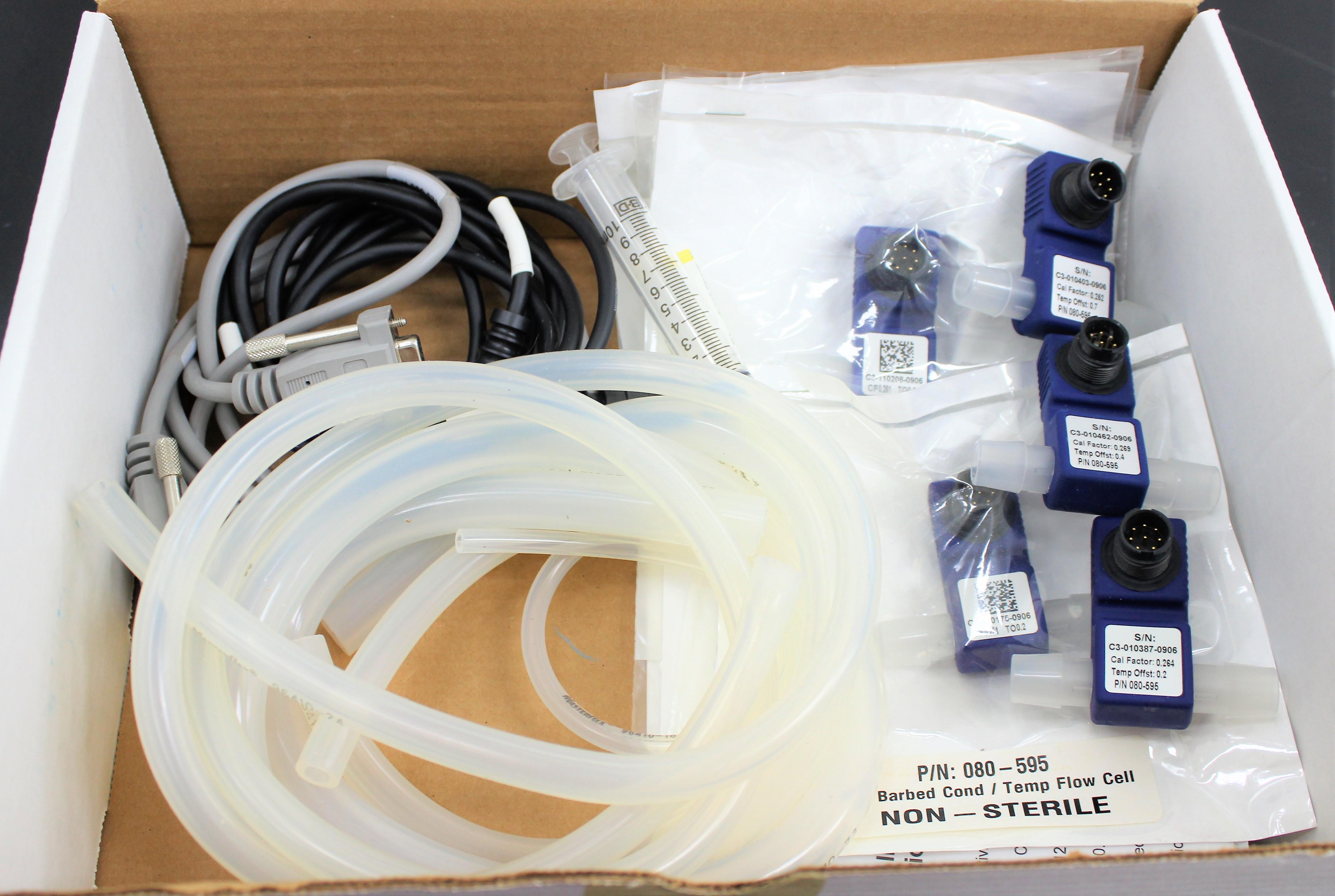

- Includes power cord, software CDs, and user manual
Specifications
- Material, Fluid Contact: Natural Polypropylene or Polysulfone with Gold Electrodes
- Compatible with NaOH, Hypochlorite; Autoclavable and Gamma Stable
- Sensor Microchip: EPROM, stores Device ID, Cell Constant, Temp Offset, Factory Cal Data
- Sensor Connector & Cables: Lockable & Waterproof
- Operating Mode: Auto range display from 200 mS/cm to 1 S/cm; Temperature: 0 - 50 C, resolution 0.1 C
- Digital Output: RS-232, Analog Output: 4 to 20 mA
- Alarm Outputs: 4 TTL, Hi/Lo Conductivity, Hi/Lo Temperature

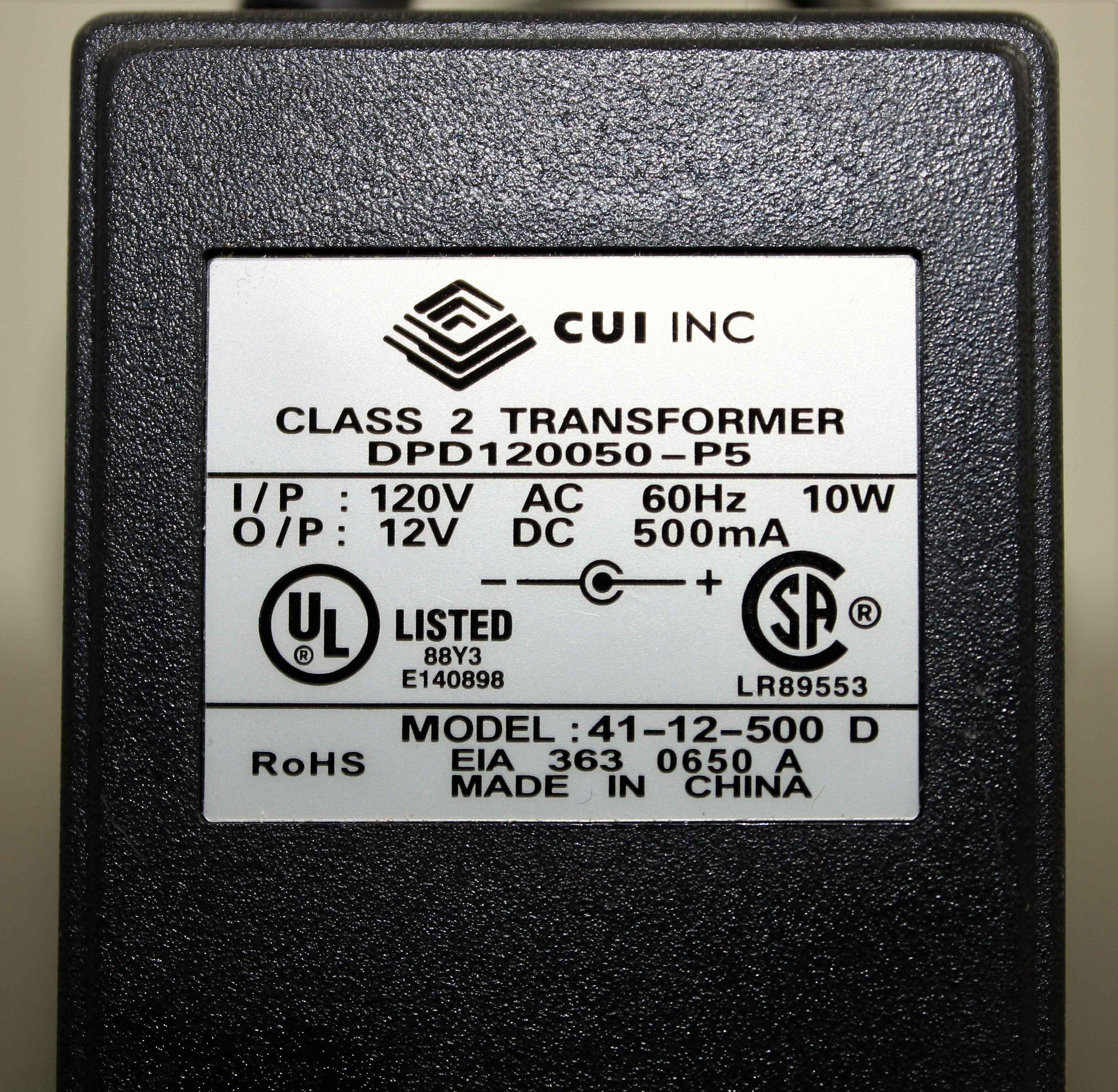

- Power Supply Options: Wall Transformer (Lab); 115/230 VAC (Process)
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 13.2 lb x 7.2 lb
Metric: 39.62 cm x 33.53 cm x 18.29 cm
Harmonized Code
902780
Harmonized Code Details
902780 - Instruments and apparatus for physical or chemical analysis, or for measuring or checking the viscosity, porosity, expansion, surface tension or the like, of apparatus of heading 9027. This code is relevant as it accurately captures the functionality of the SciCon Conductivity Meter in measuring physical properties.
