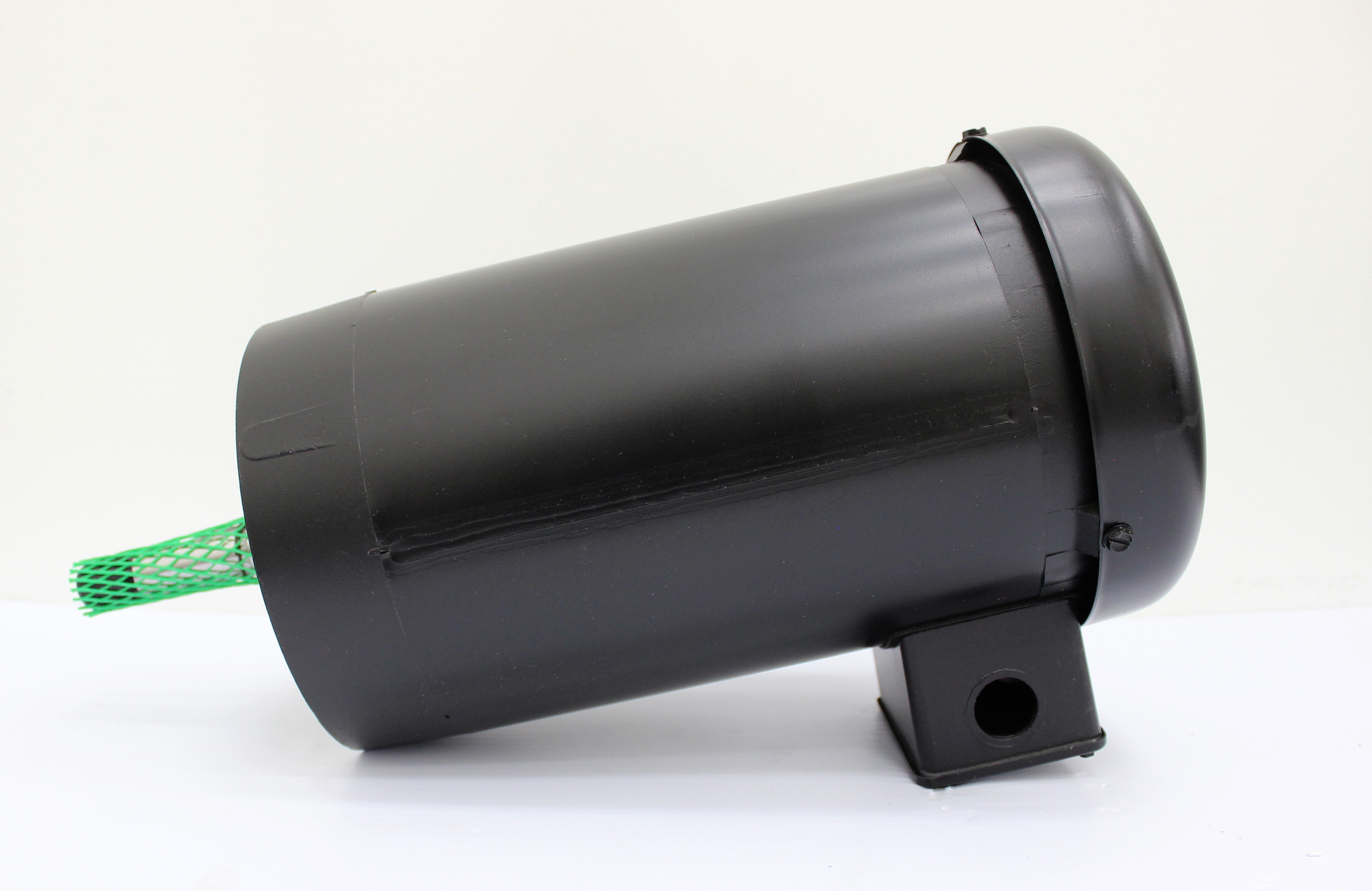

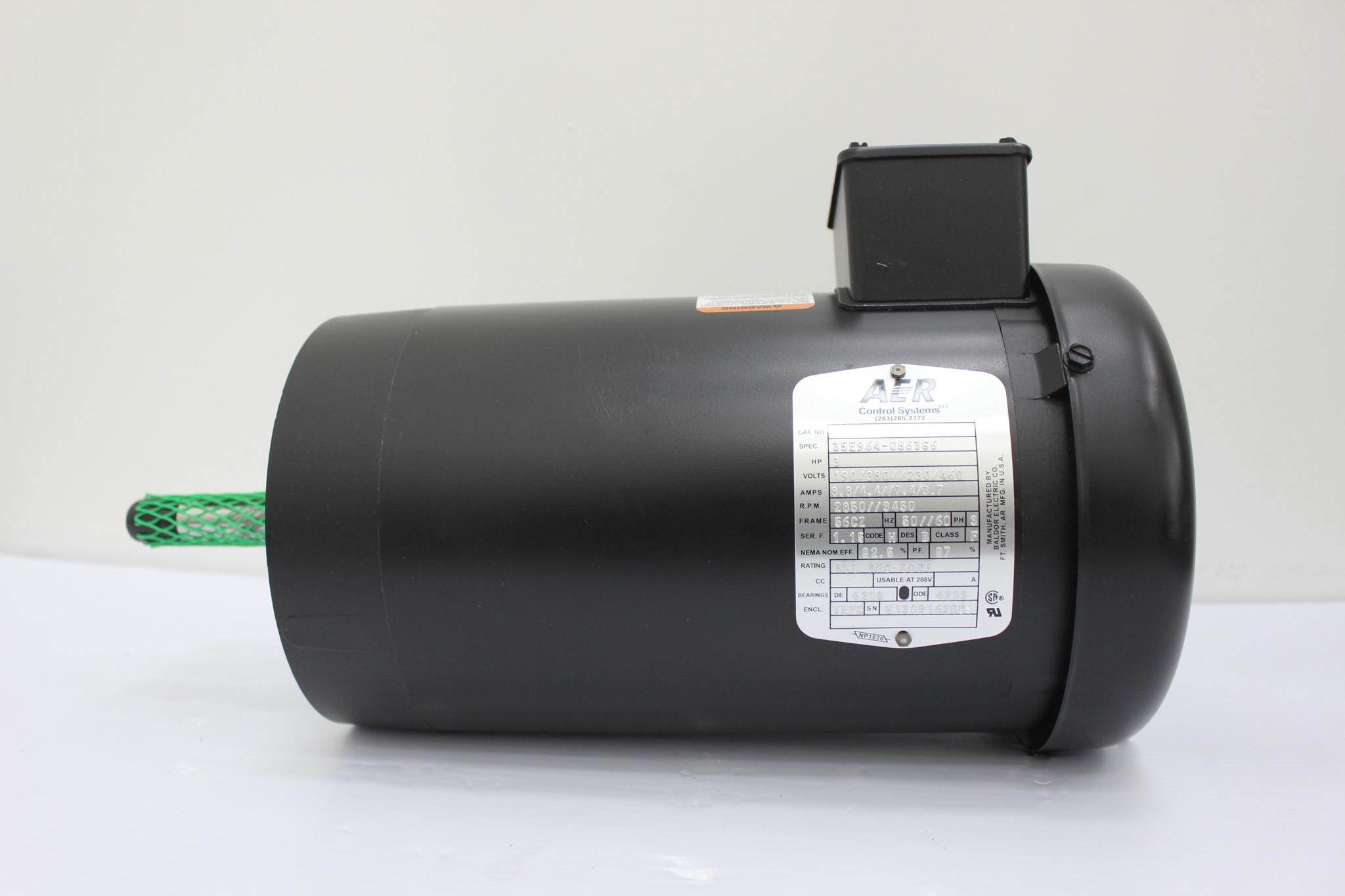

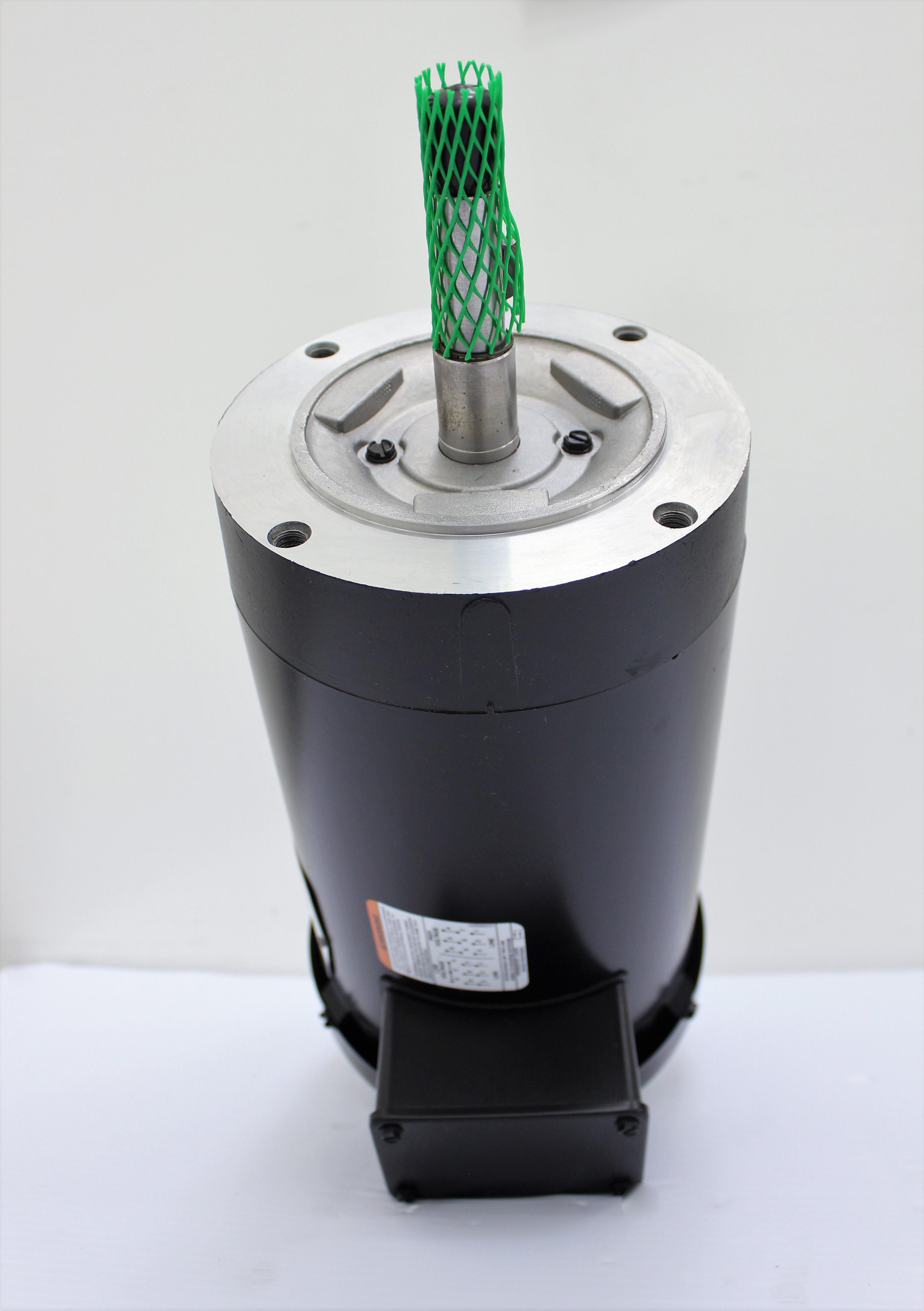

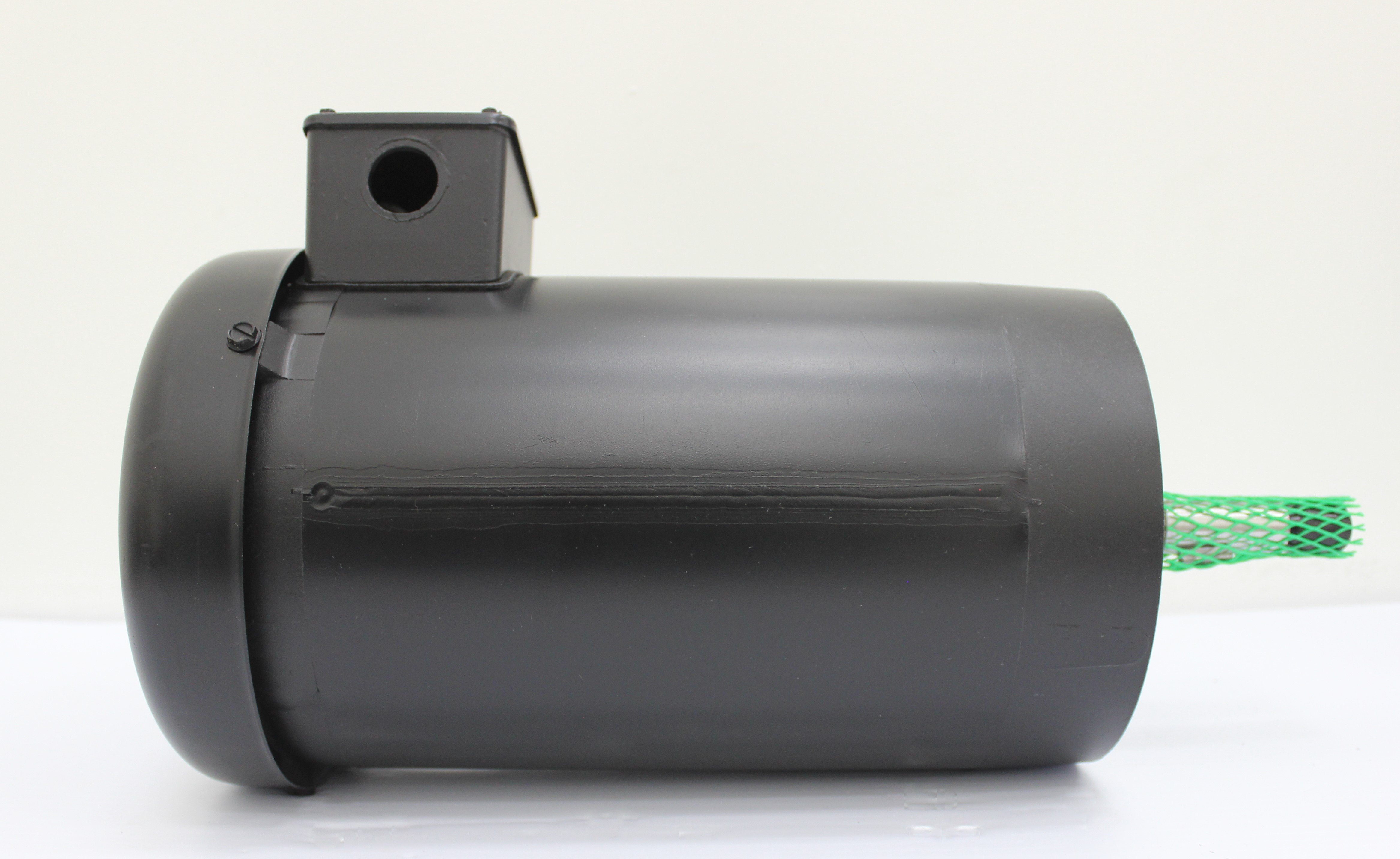

Baldor 35E964-0863G6 3HP Motor 2850 RPM For Control Systems, Frame 56CZ
Baldor
Details
-
CategoryFacility
-
Dimension19.0in x 14.0in x 13.0in
-
SerialW1309162885
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description

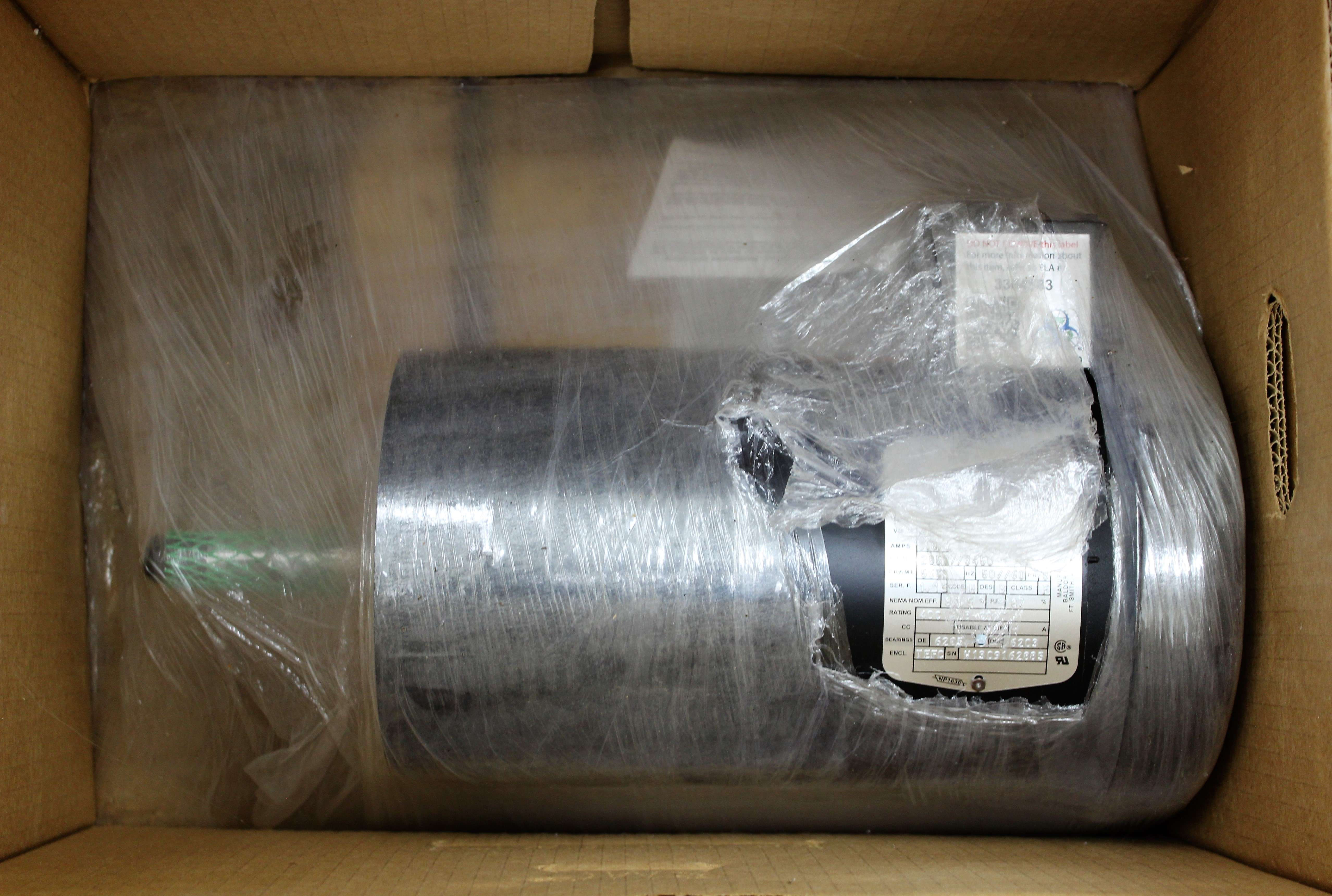

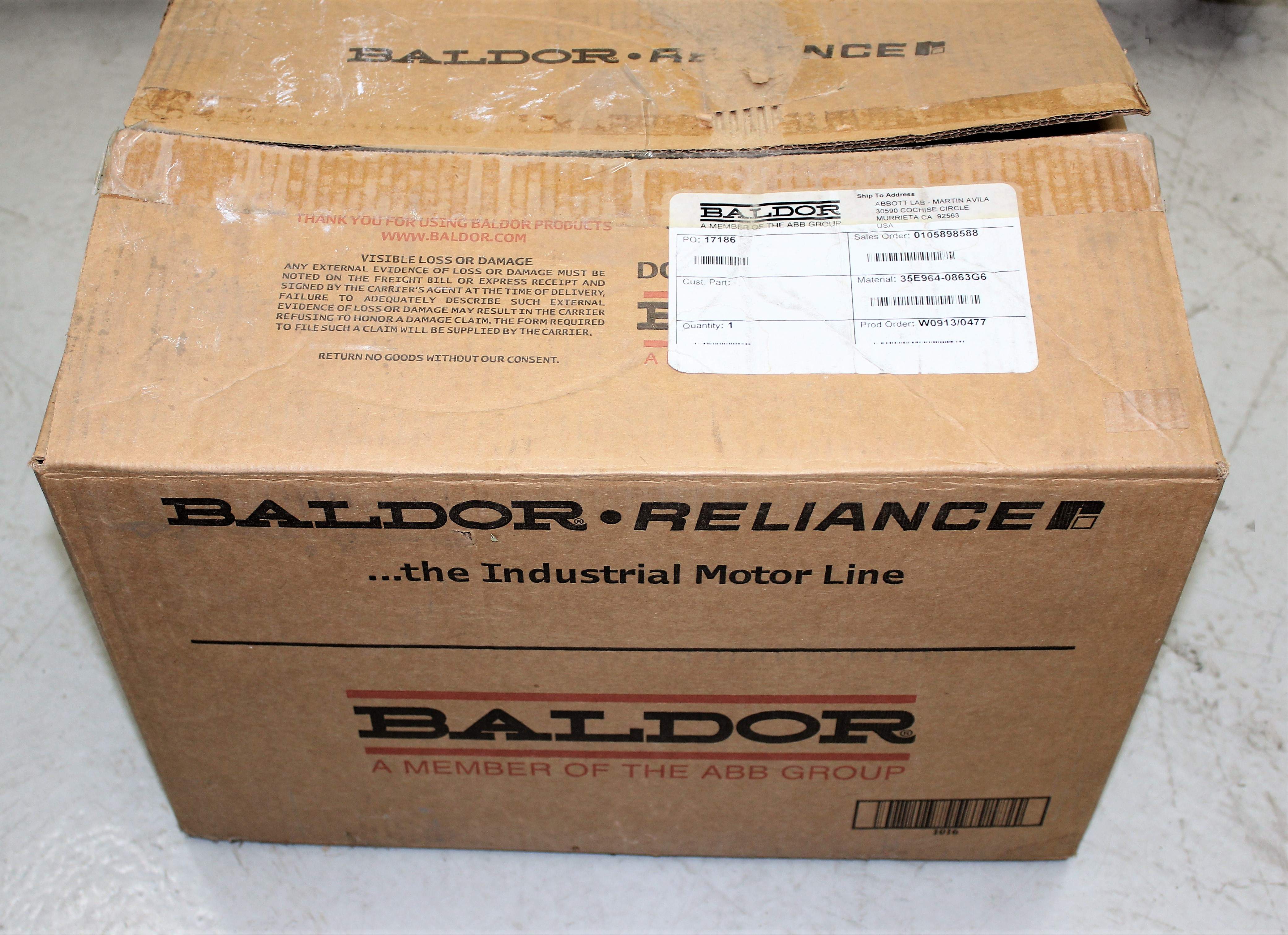

The Baldor 35E964-0863G6 is a general-purpose 3HP motor, ideal for control systems. This new unit is shipped in an open box, revealing minor cosmetic blemishes from storage. Manufactured in the USA, this robust motor fits the 56CZ frame with added mounting hole variations for versatile installation. It operates on three-phase power with a voltage rating of 190/380/230/460 and supports dual RPMs of 2850 and 3450. Featuring a NEMA-defined frame, the motor includes bearings 6205 ODE and 6203, ensuring efficient performance. With a NEMA nominal efficiency of 82.5% and power factor of 87%, it's suitable for a broad range of industrial applications.
Key Features
- 3HP general-purpose motor

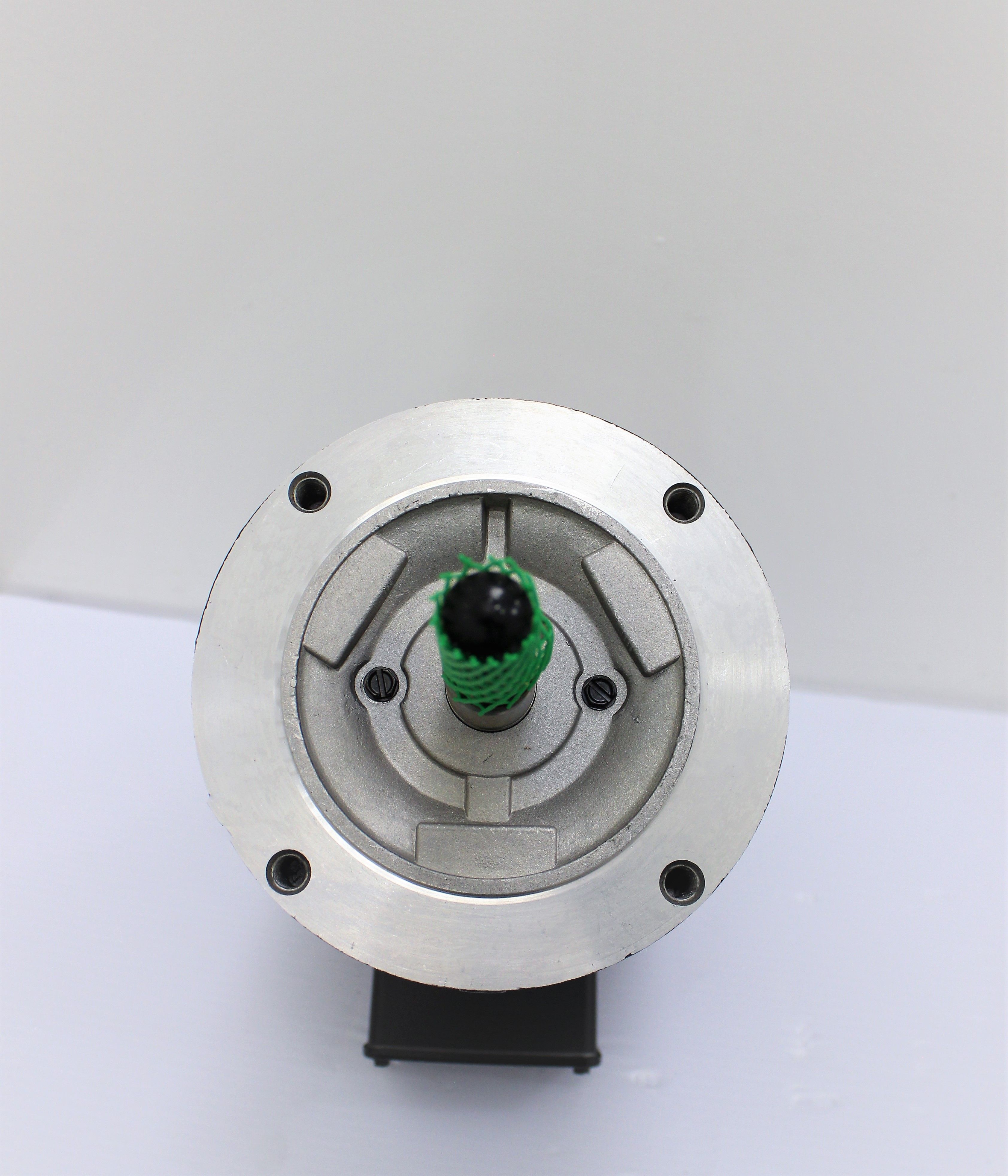

- Frame 56CZ with mounting variations
- Voltage ranges: 190/380/230/460V
- Dual RPM settings: 2850 and 3450
- NEMA-defined frame with efficiency of 82.5%
- Versatile industrial applications

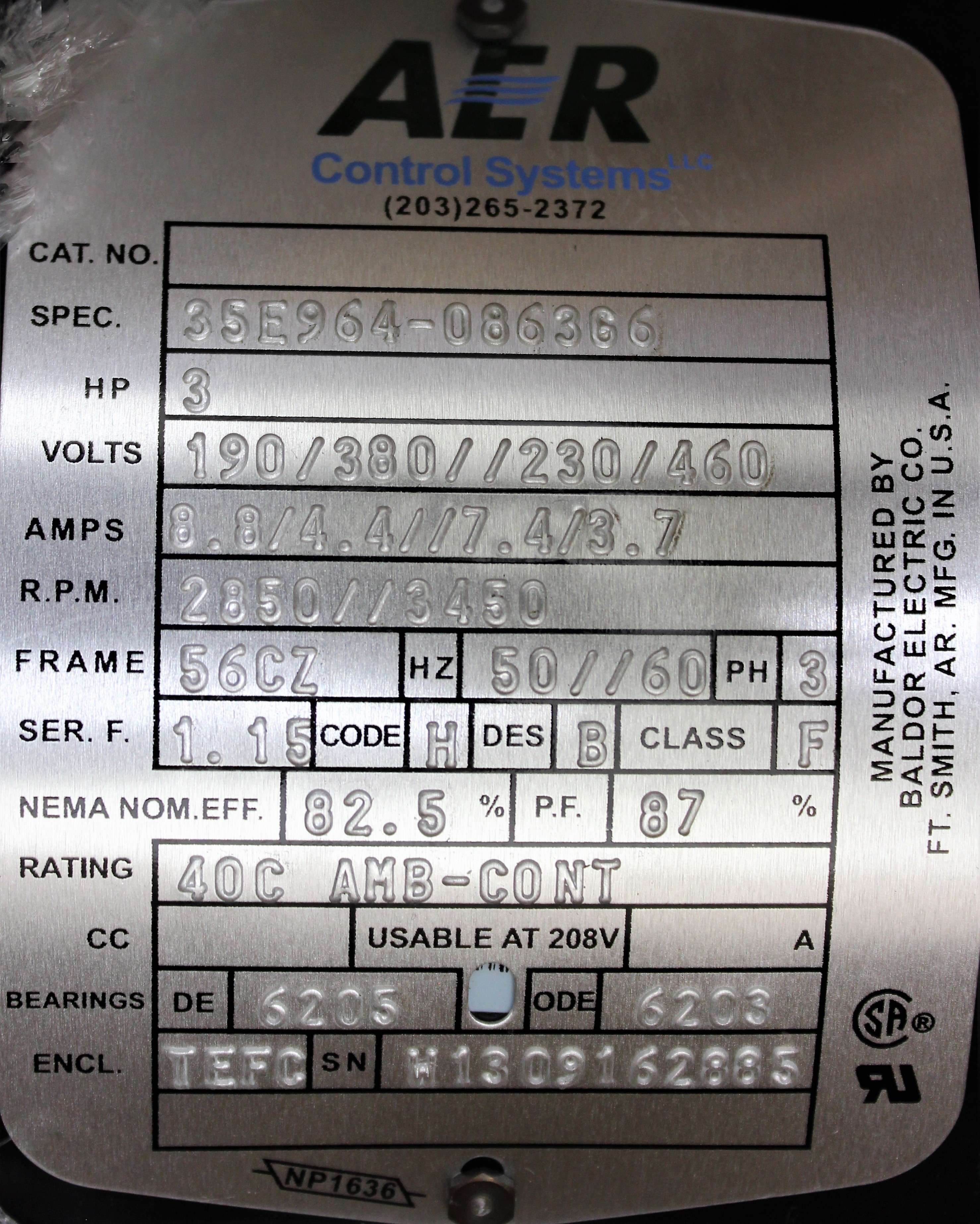

Specifications
- Motor HP: 3
- Frame: 56CZ with NEMA designation
- Voltage: 190/380/230/460V
- Amperage: 8.8/4.4/7.4/3.7
- RPM: 2850/3450
- Frequency: 50/60Hz
- Service Factor: 1.15
- Efficiency: 82.5%, Power Factor: 87%

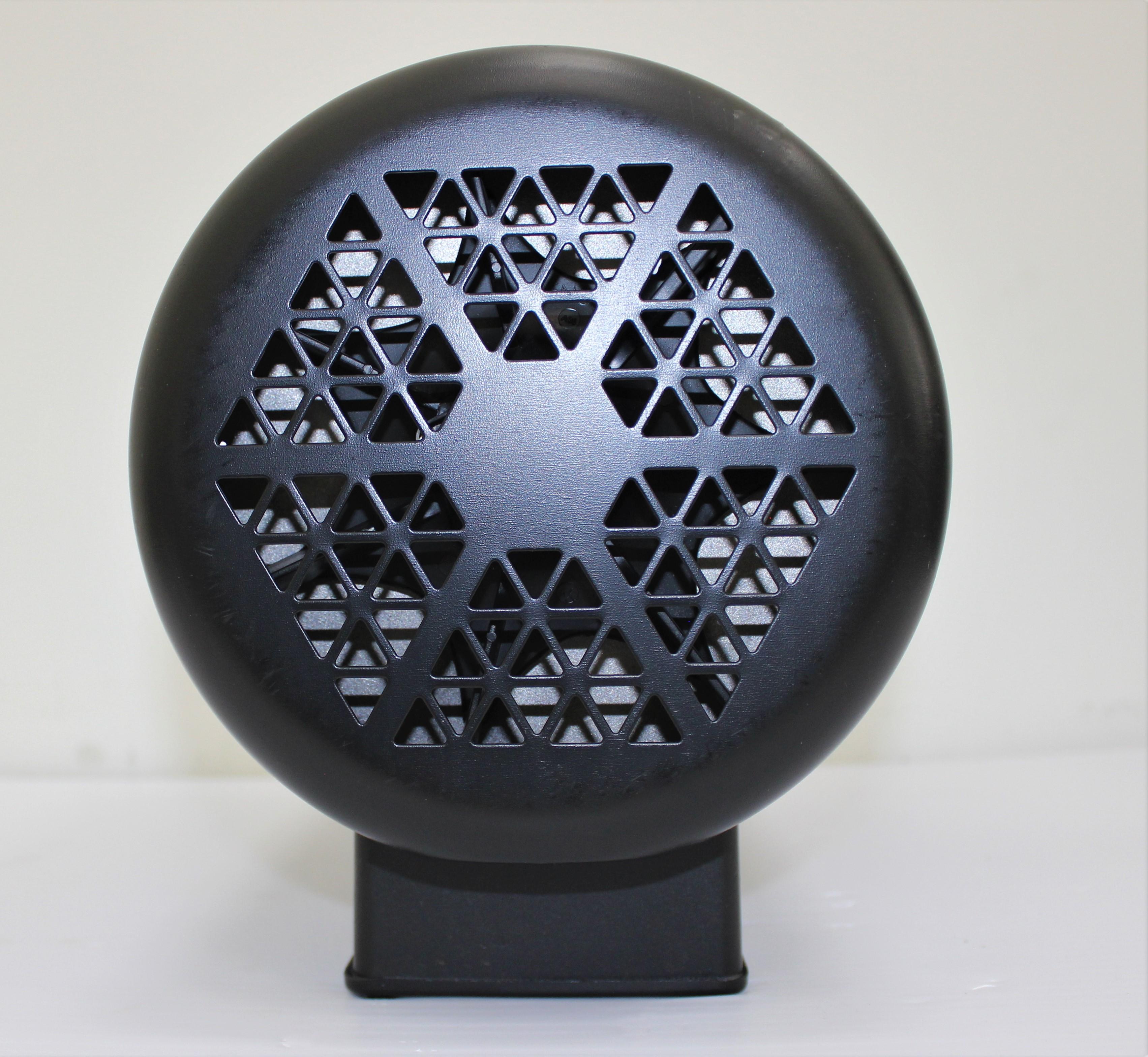

- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Bearing Types: 6205 ODE, 6203
- Ambient Rating: 40C Continuous
Weight
Imperial: 62.4 Pounds
Metric: 28.3 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 16.8 lb x 15.6 lb
Metric: 57.91 cm x 42.67 cm x 39.62 cm
Harmonized Code
85015220
Harmonized Code Details
85015220 - Electric Motors, Other AC motors, multi-phase, output exceeding 750 W but not exceeding 75 kW. This code is appropriate as the Baldor motor is a multi-phase AC motor with a 3HP output (approximately 2.2 kW), fitting within the defined range.
