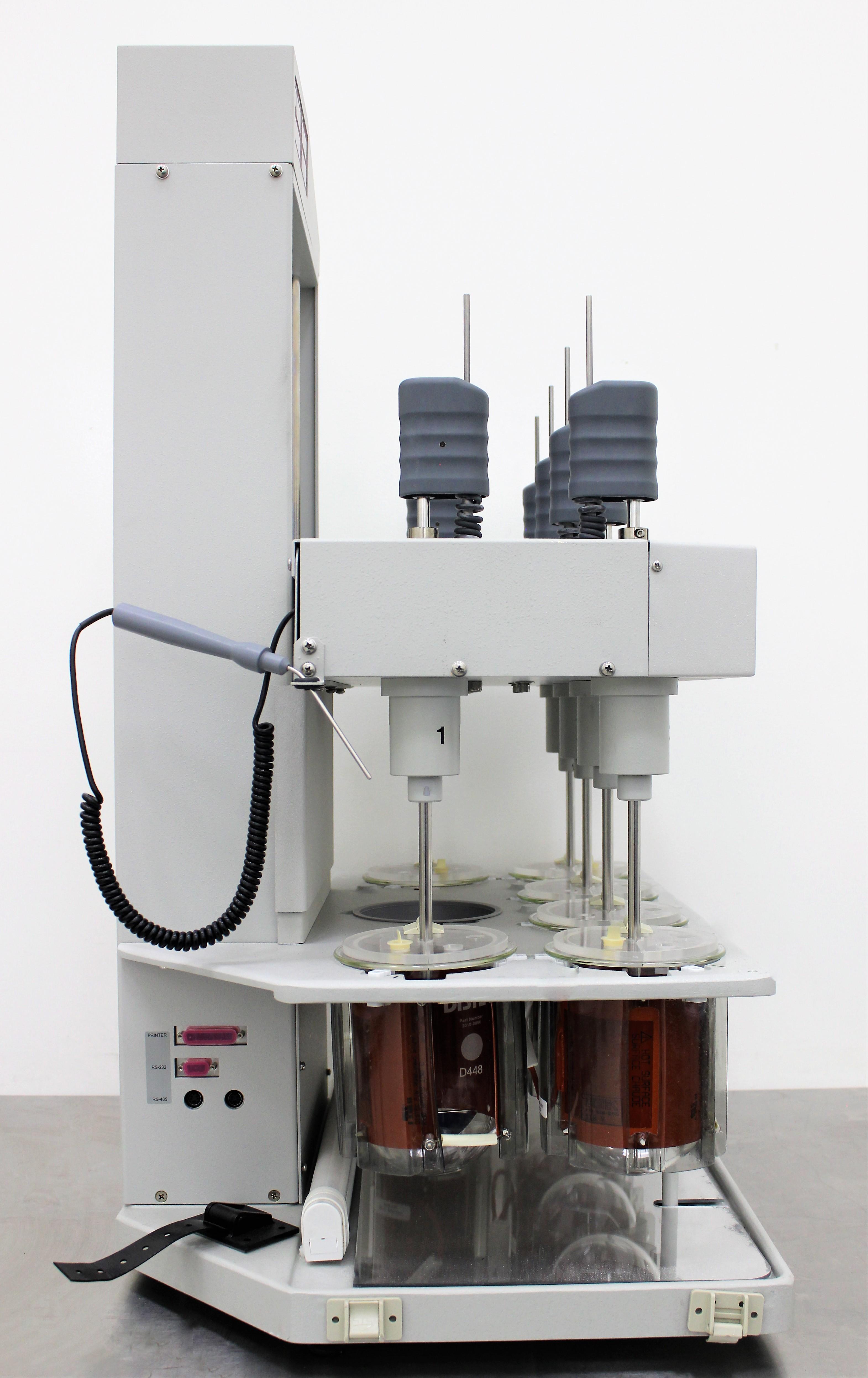

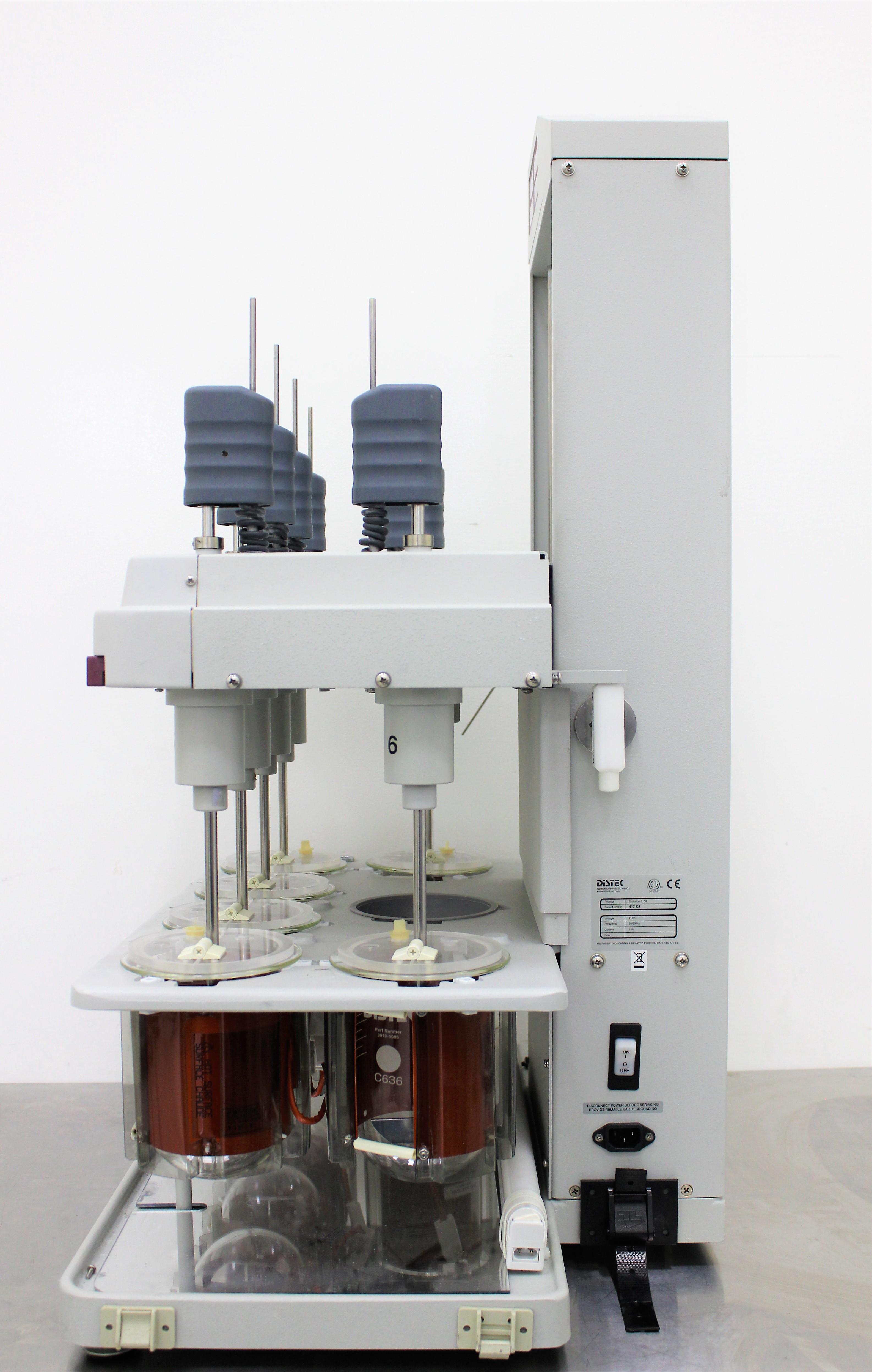

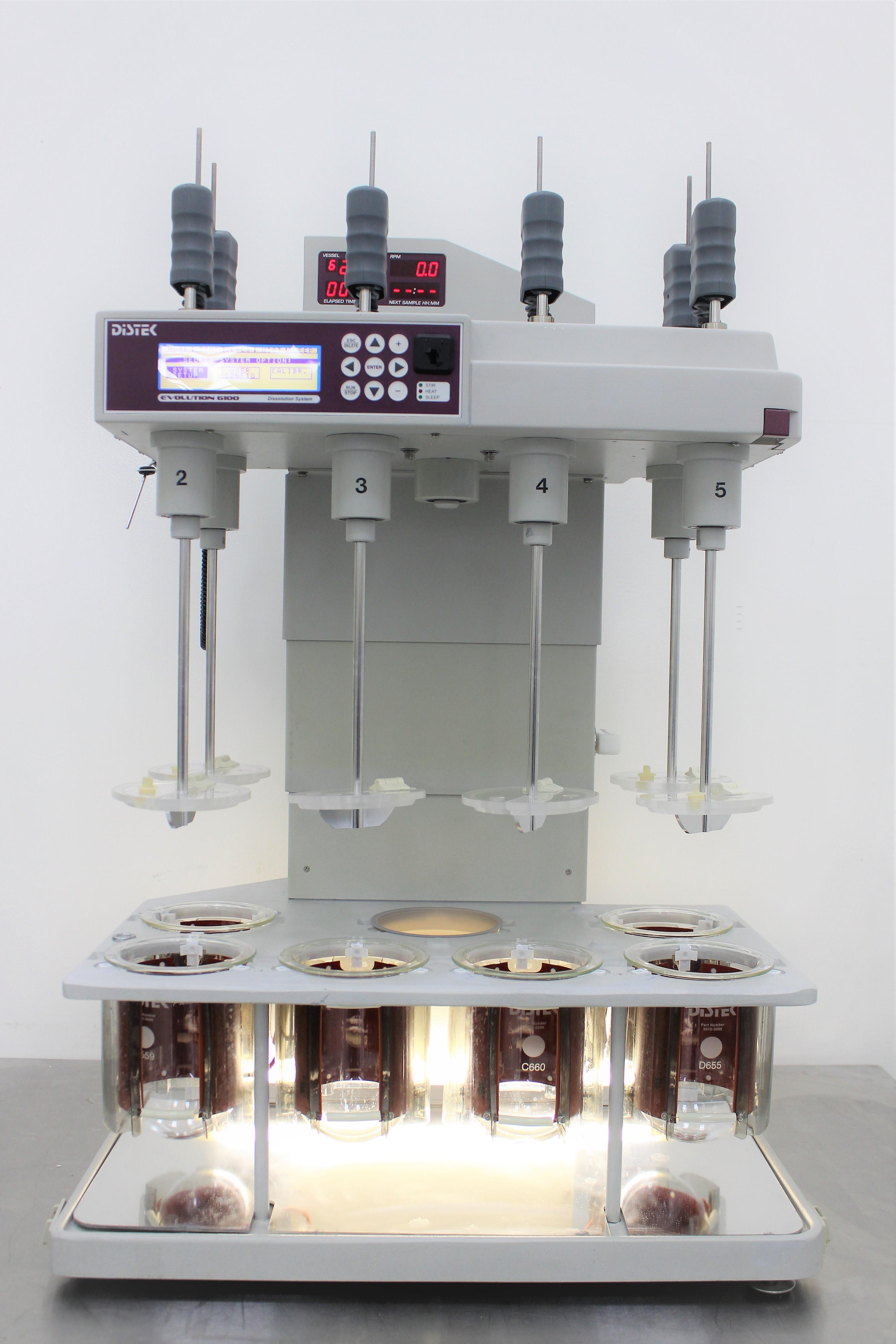

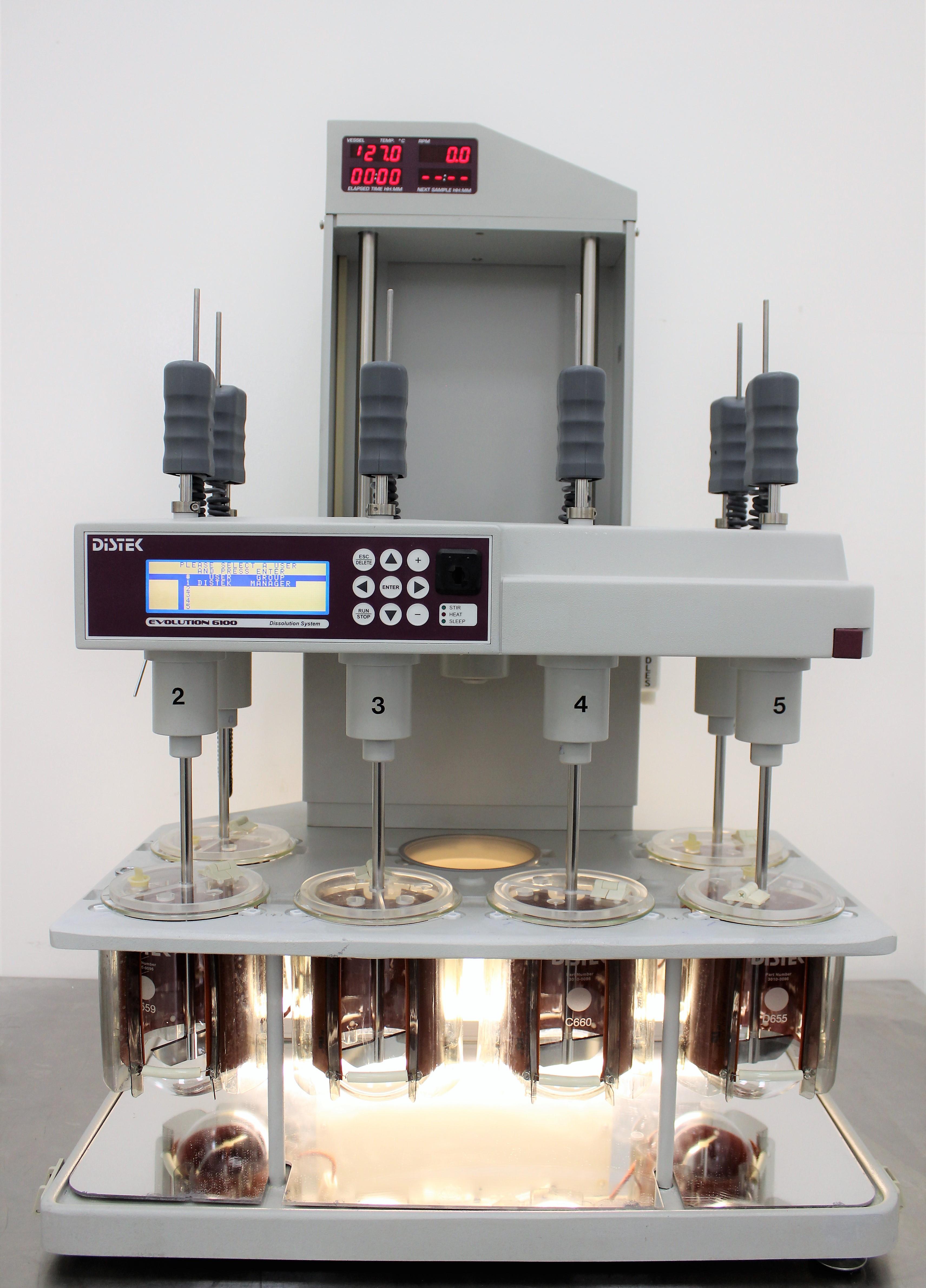

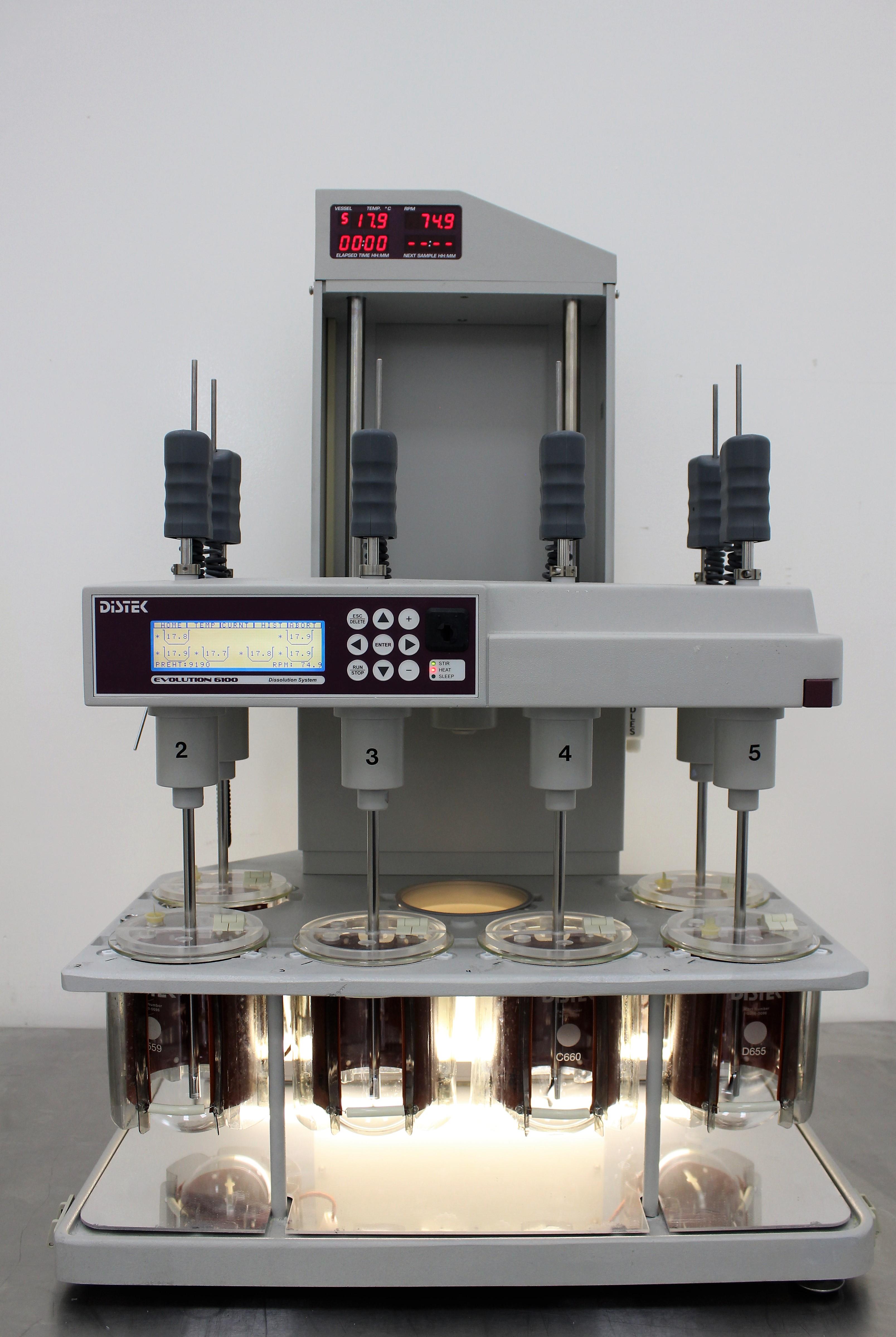

DISTEK Evolution 6100 Bathless Dissolution Test System

Product Information

The DISTEK Evolution 6100 Bathless Dissolution Test System is a revolutionary piece of equipment that eliminates water bath issues with its patented bathless technology. It is designed to meet today's demanding standards for accurate temperature control and test reporting, maintaining much tighter tolerances for temperature and RPM than conventional water bath systems. The unit has been tested and comes with a 30-day warranty, with slight cosmetic blemishes from normal use. With six complete sets of vessels, lids, shafts, paddles, and heating jackets, the Evolution 6100 offers enhanced precision and functionality. It offers rapid media heating, precise individual vessel temperature control, and advanced method storage and sorting capabilities.

• Patented bathless technology for accurate temperature control

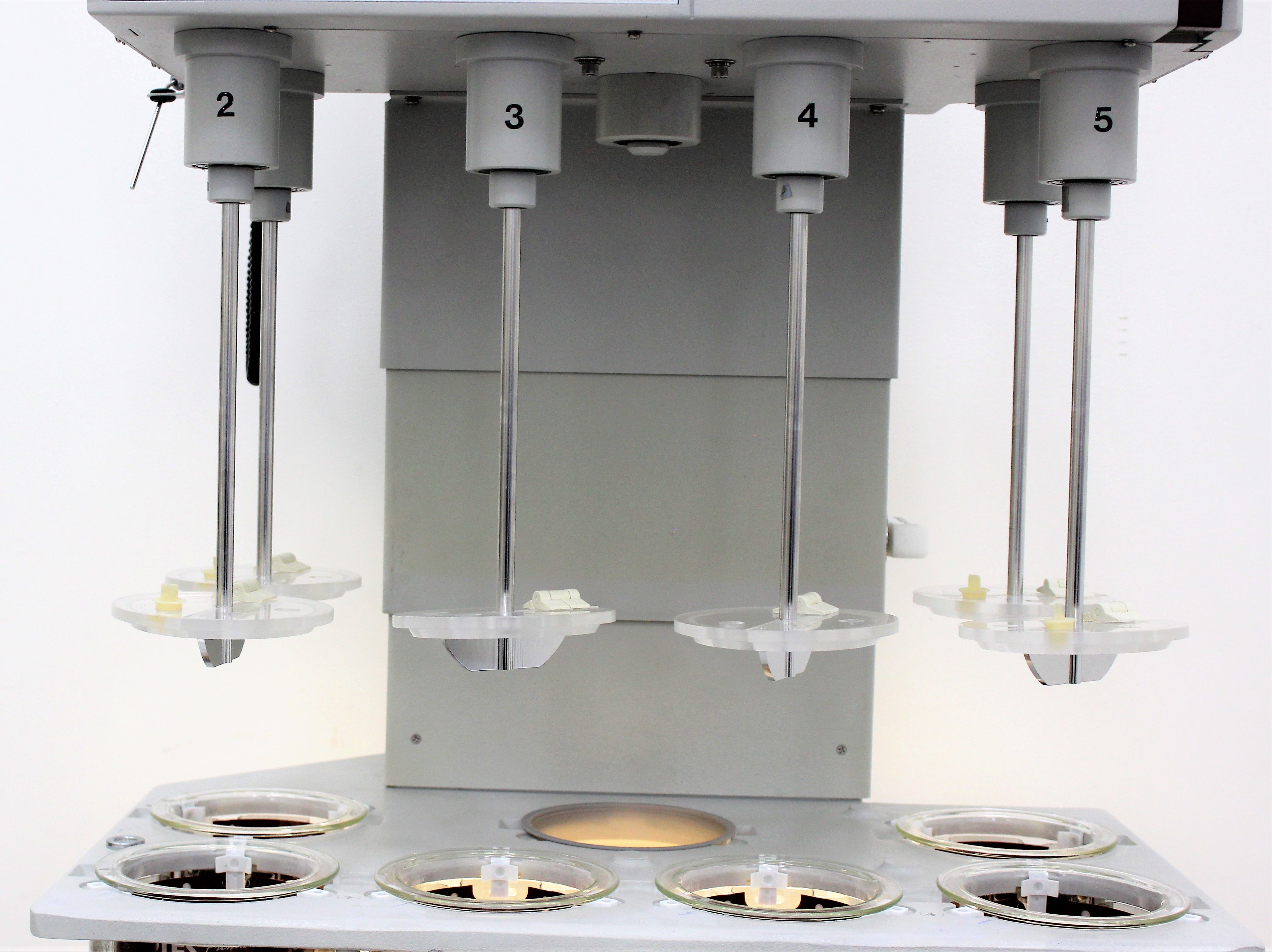

• 6 complete sets of vessels, lids, shafts, paddles, and heating jackets
• Rapid media heating and precise individual vessel temperature control
• Advanced method storage and sorting capabilities

• Dissolution Vessels: Six Standard/Up to Seven Vessels
• Volume: 500mL - 1000mL programmable
• Vessel Heating Rate: Approx. 1.5C per minute
• RPM Control Range: 25-300 RPM, digitally controlled, closed loop
• Resolution: 0.1 RPM
• Accuracy: 0.2 RPM
• Display: LED's, .75 (19mm) high
• Motor: High Torque, Permanent Magnet

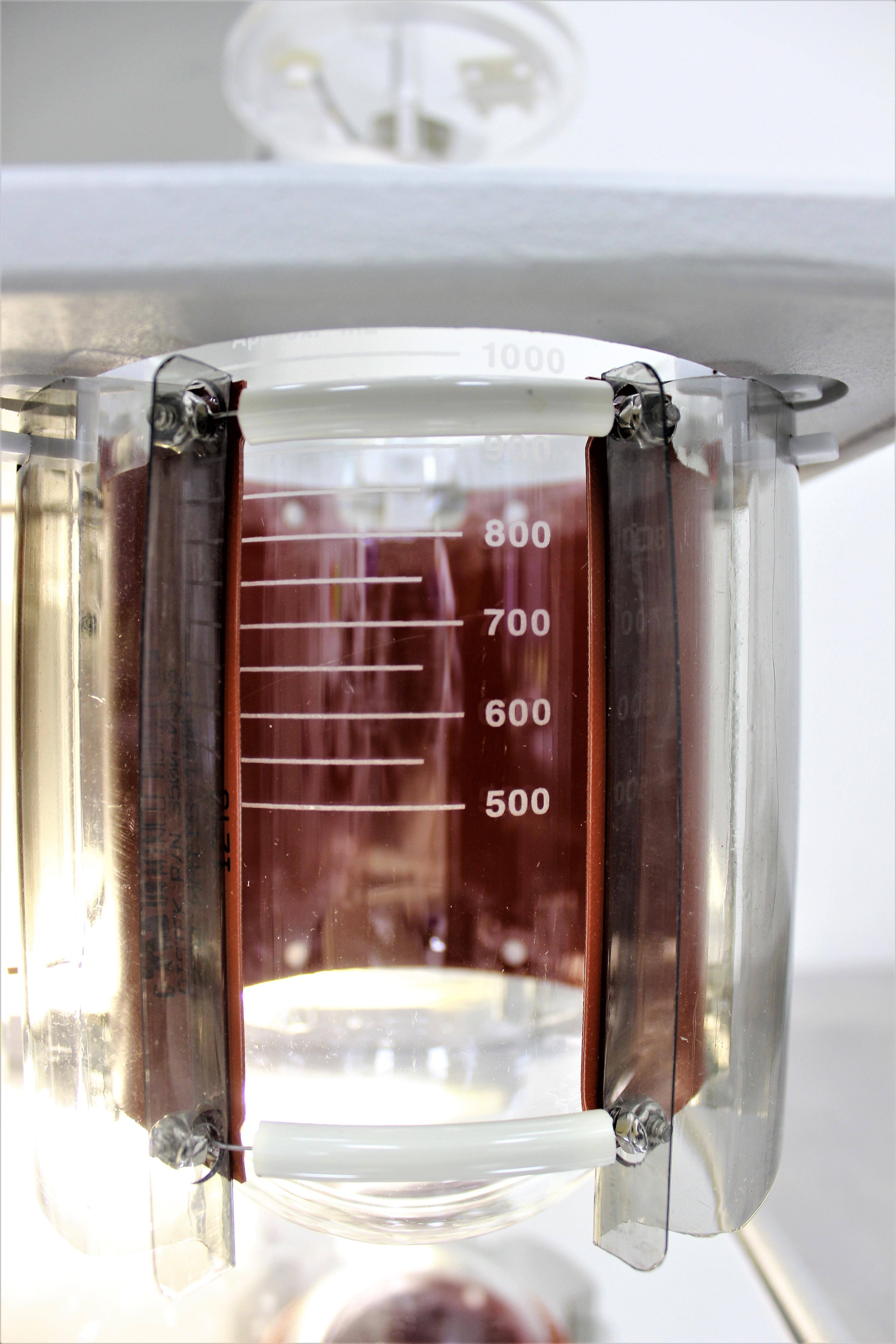

• Vessel Temperature Control: Independently controlled two-zone heater jackets
• Display Resolution: 0.01 C
• Accuracy: 0.25 C
• Interface Ports: RS-232 (2), RS-485 (1), Parallel Printer (1)
• Construction Materials: Cast Aluminum, Stainless Steel, Acid resistant solid state heating elements, Engineered Plastics

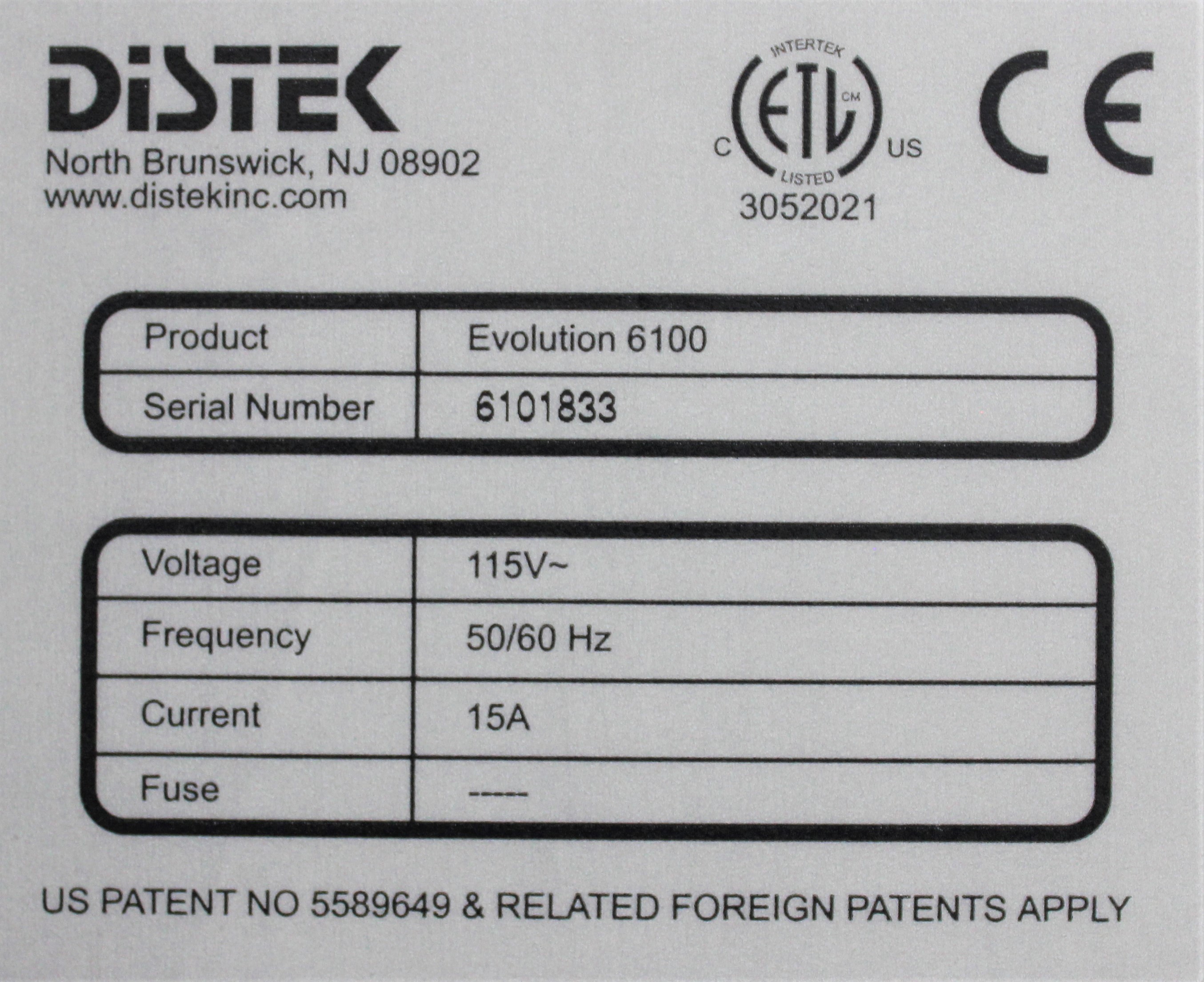

• Electrical Power: 115V 15V 50/60Hz 15A or 230V 15V 50/60Hz 9A

Metric: 86.1826 kg
Imperial: 190 lb

Metric: 27.94 cm x 53.34 cm x 116.84 cm
Imperial: 11 in x 21 in x 46 in

841989

The harmonized code 841989 is used for machinery, plant or laboratory equipment whether or not electrically heated, for the treatment of materials by a process involving a change of temperature such as heating, cooking, roasting, distilling, rectifying, sterilizing, pasteurizing, steaming, drying, evaporating, vaporizing, condensing or cooling, other than machinery or plant of a kind used for domestic purposes; instantaneous or storage water heaters, non-electric
