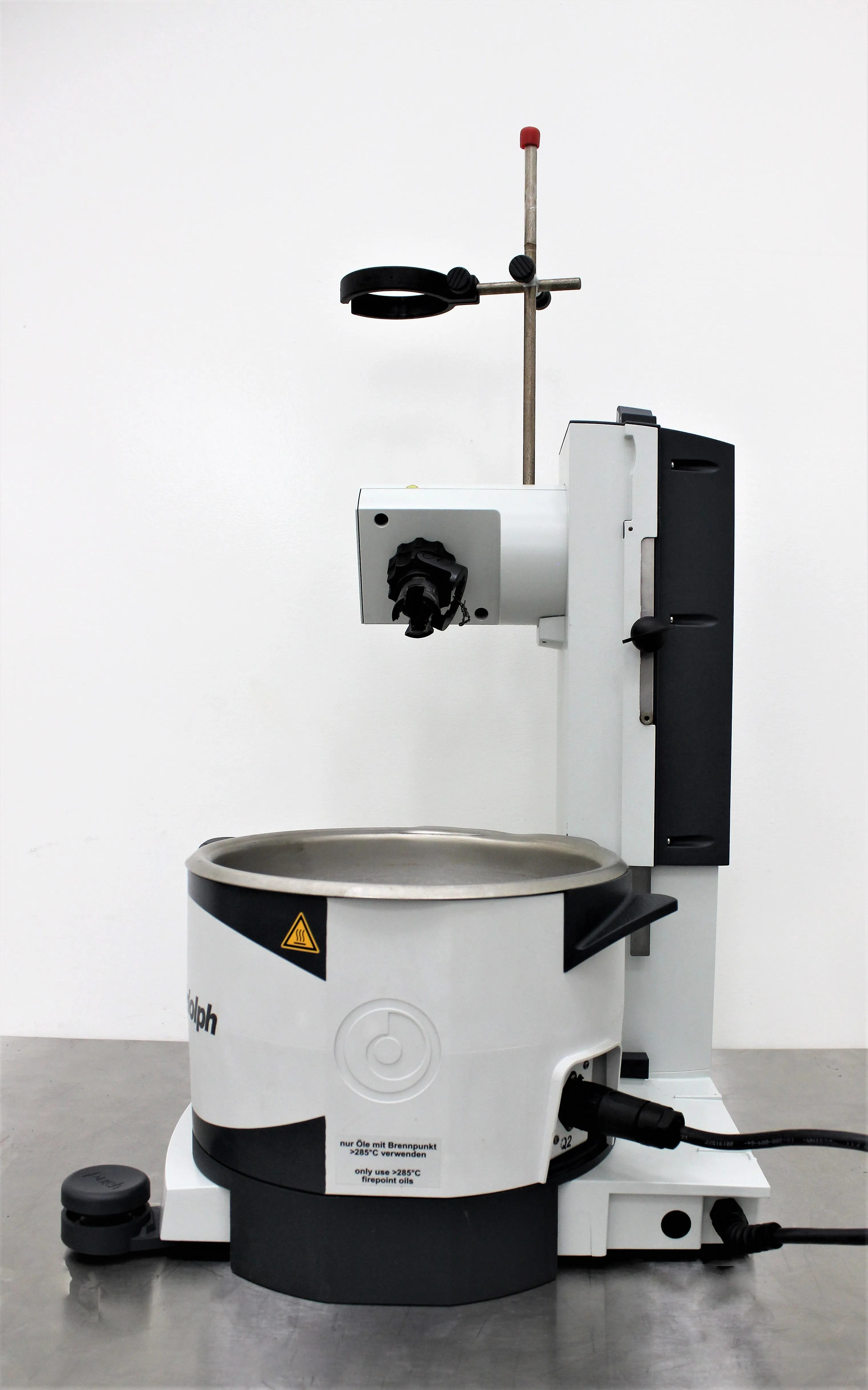

Heidolph Basis Hei-VAP Rotary Evaporator with Heizbad and Rotavac Valve 560-00000-01-1 021002760

Product Information

The Heidolph Basis Hei-VAP Rotary Evaporator with Heizbad and Rotavac Valve model 560-00000-01-1, serial number 021002760, is a top-tier digital rotary evaporator. Tested for basic functionality and in very good condition, it removes low-boiling organic chemicals, usually solvents, from a mixture of compounds. Its precision is backed by 30-day warranty for 100% parts and labor. The unit is capable of handling temperatures from 20 to 210°C, with a rotation speed of 10 - 280 1/min, and a heating capacity of 1400W. This versatile evaporator is an industry workhorse for solvent removal in modern organic laboratories, designed to operate under a vacuum to lower a compound's boiling point while concurrently heating the sample, and condensing the vapors to a liquid. Features include a vacuum pump, controls for spin speed and bath temperature, a safety heating bath, and a vacuum release valve. This equipment is essential in organic laboratories for its ability to distill and remove solvents and low-boiling compounds by a simple distillation process.

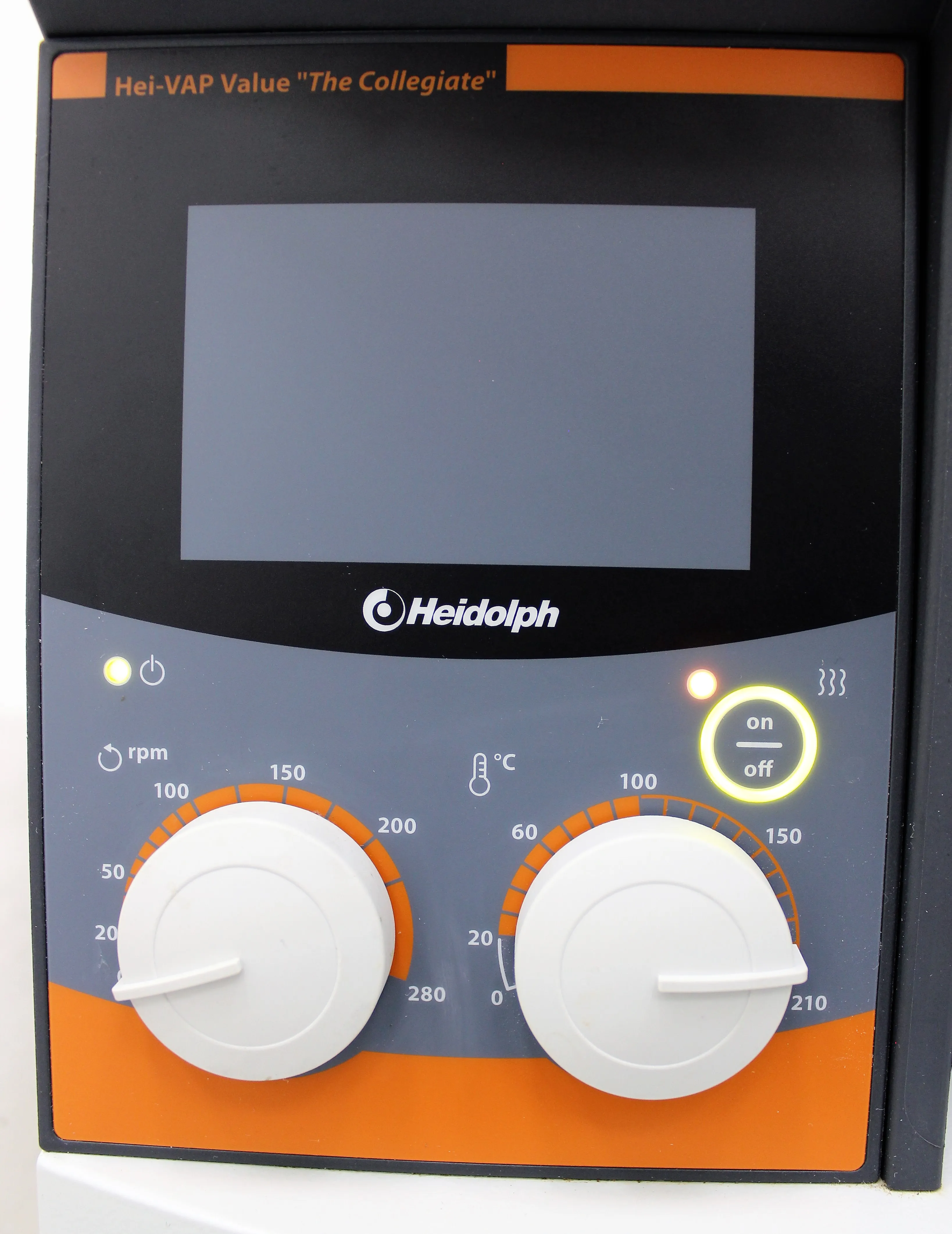

• Rotary Evaporator Model: Basis Hei-VAP Value 560-00000-01-1, SN: 021002760
• Voltage: 115V, 50/60Hz, 1400W
• Temperature Range: 20-210°C, Rotation Speed: 10-280 1/min

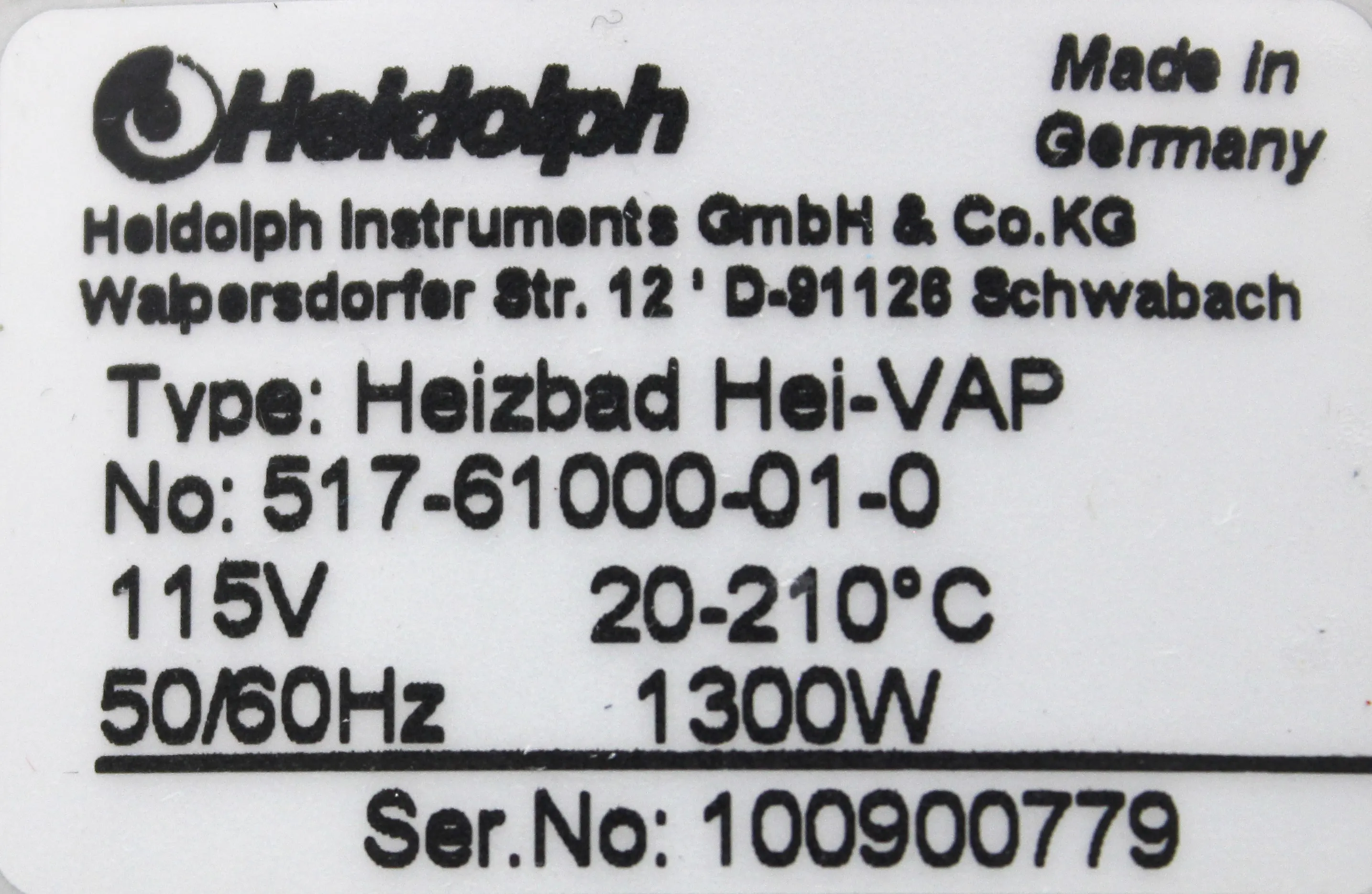

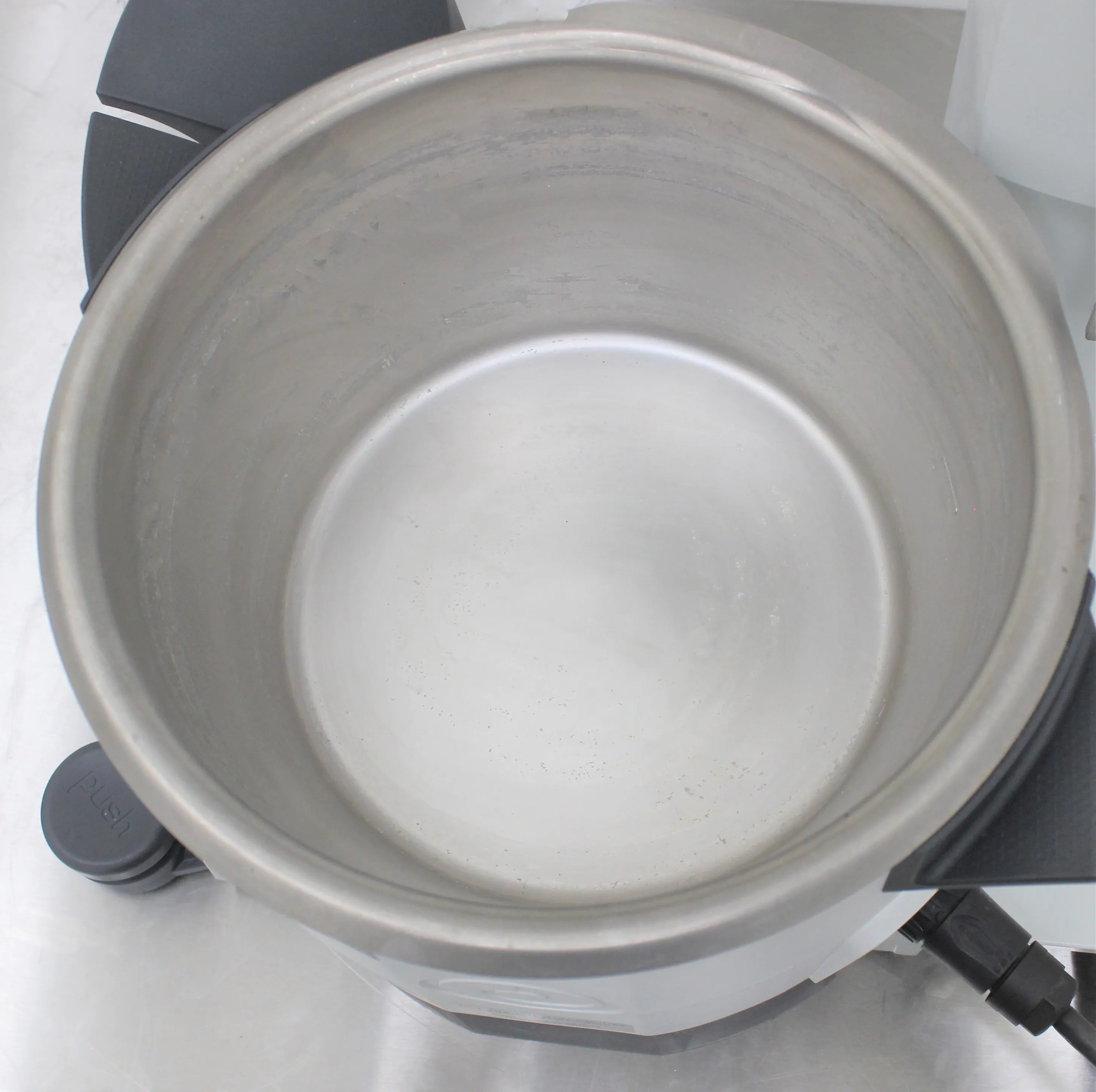

• Heating Bath: Heizbad Hei-VAP No: 517-61000-01-0, SN: 100900779, Voltage: 115V, 50/60Hz, 1300W, 20-210°C

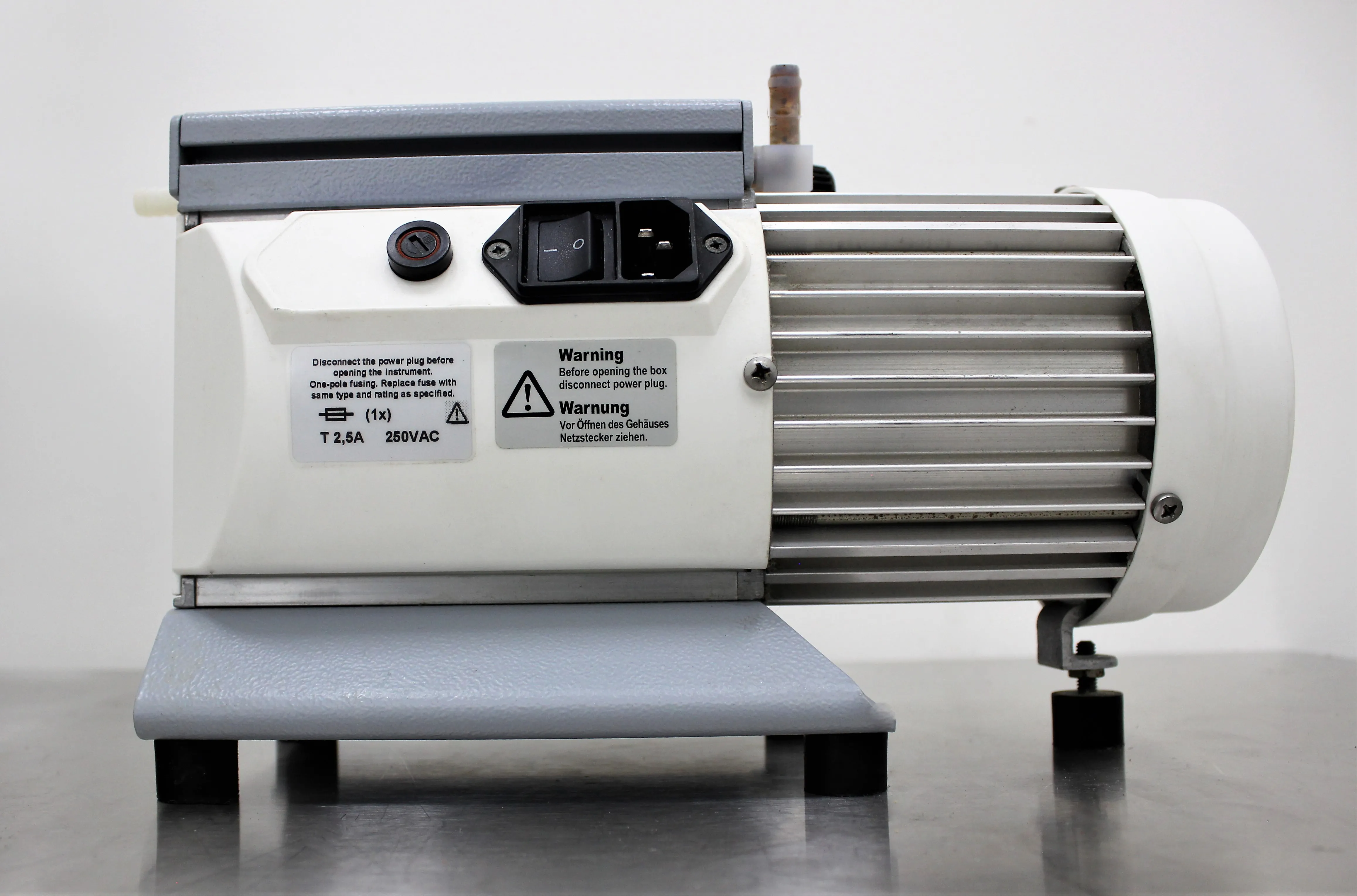

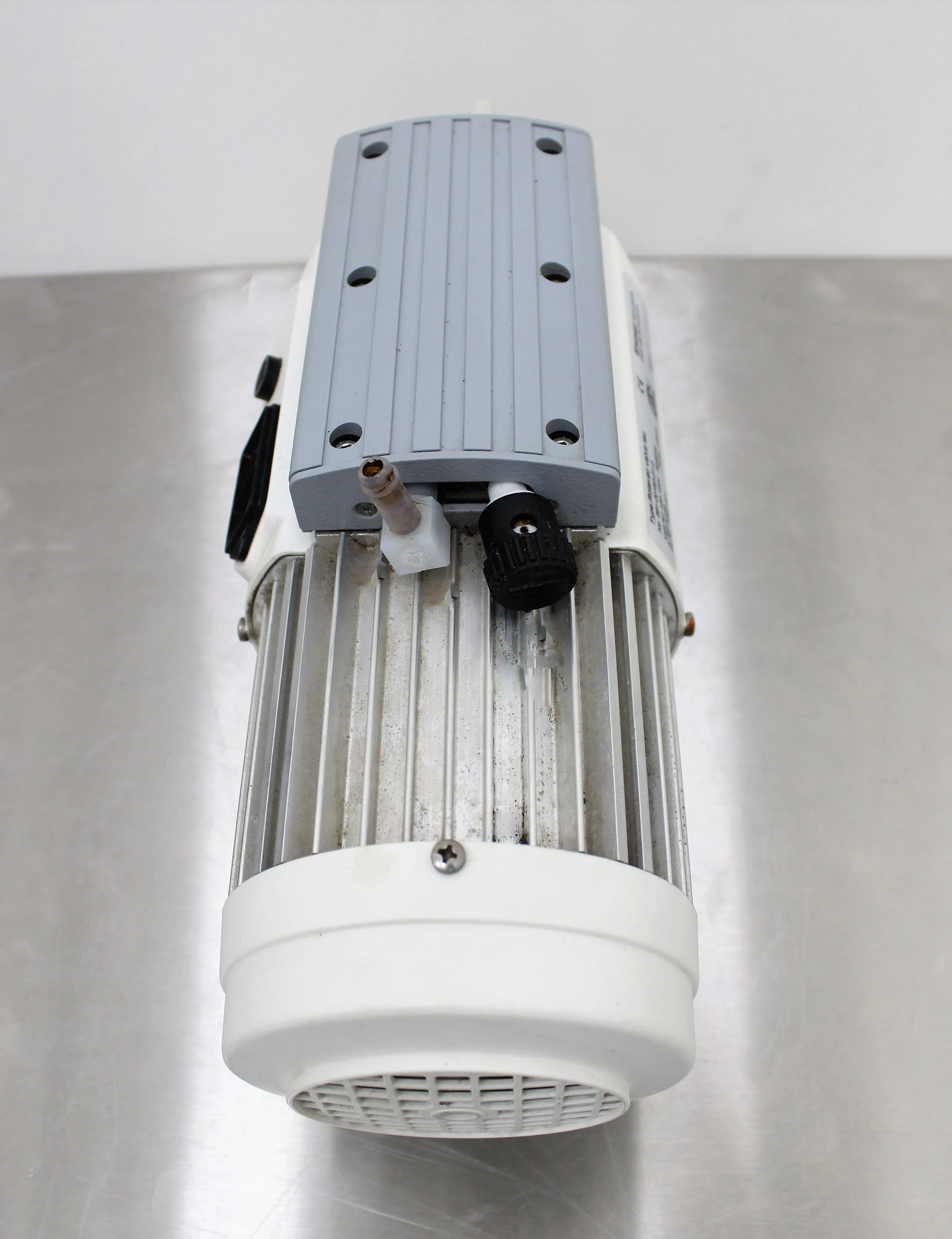

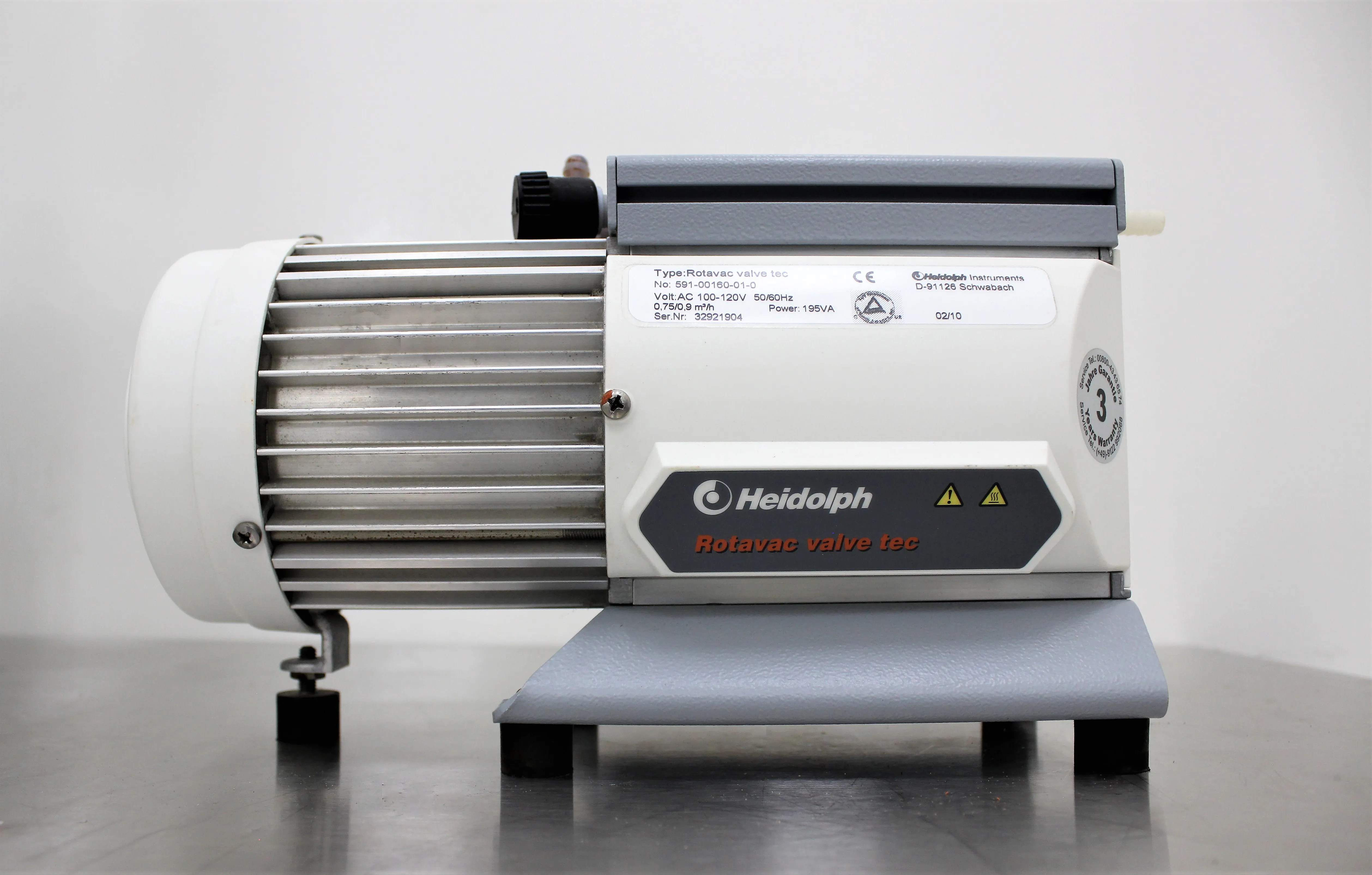

• Vacuum Pump: Rotavac Valve tec No: 591-00160-01-0, SN: 32921904, Voltage: AV 100-120V 50/60Hz, 0.75/0.9 m3/h, Power: 195VA, MFG: 02/10
• 30-Day Warranty, 100% Parts and Labor

• Temperature Range: 20-210°C, Rotation Speed: 10-280 1/min, Heating Capacity: 1400W, Cooling Surface: 1400 cm, Bath Capacity: 4.5 L, Lift Distance: 155 mm
• Heating Bath Capacity: 1300W, Temperature Range: 20-210°C, Temperature Accuracy: +- 1°C, Overheat Protection cut off at 5°C Over set temperature, Material: Stainless Steel AISI 316L, Bath Volume: 4 to 5L, Temperature Control: Manual/Digital
• Rotavac Valve tec Suction Capacity: 0.75/0.9m 3/h, Ultimate Vacuum: 7mbar, Diaphragm Stage: Two-stage, Power Input: 195 VA, Weight: 15 kg

Metric: 68.03 kg
Imperial: 150 lb

Metric: 53.34 cm x 63.5 cm x 101.6 cm
Imperial: 21 in x 25 in x 40 in

841989

This code applies to machinery, plant or laboratory equipment for the treatment of materials by a process involving a change of temperature, including (but not limited to) those intended for removing organic solvents.
