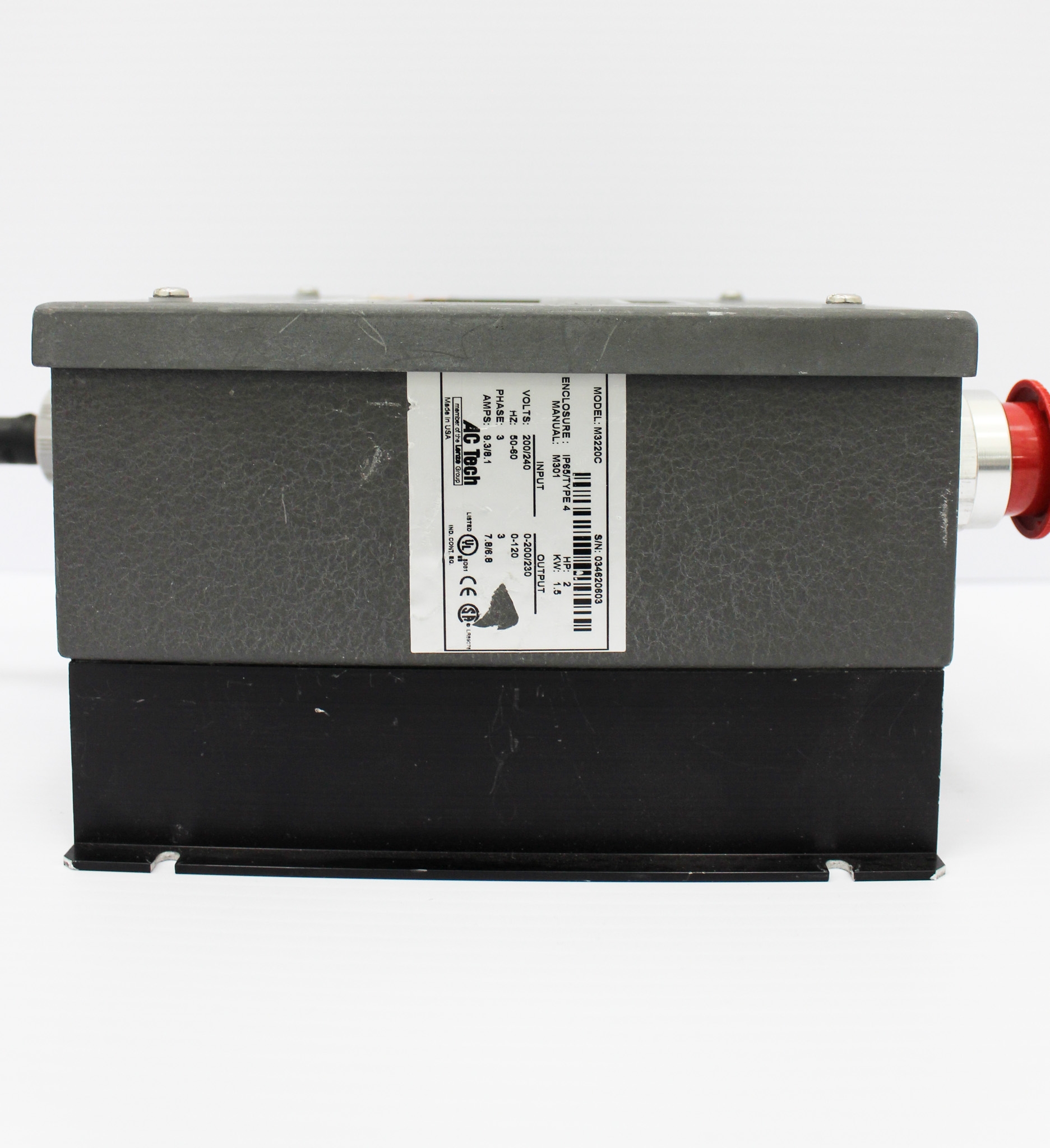

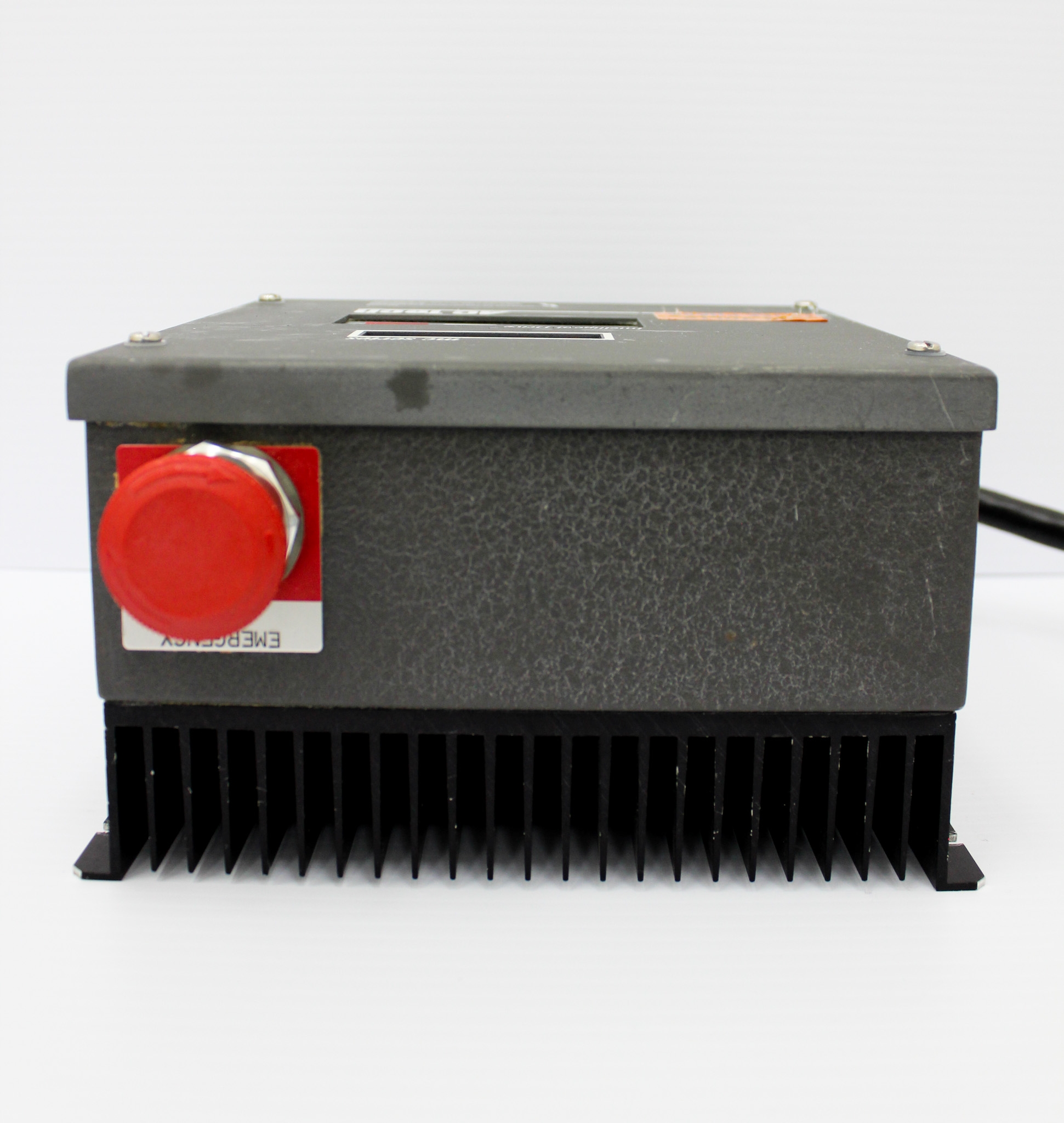

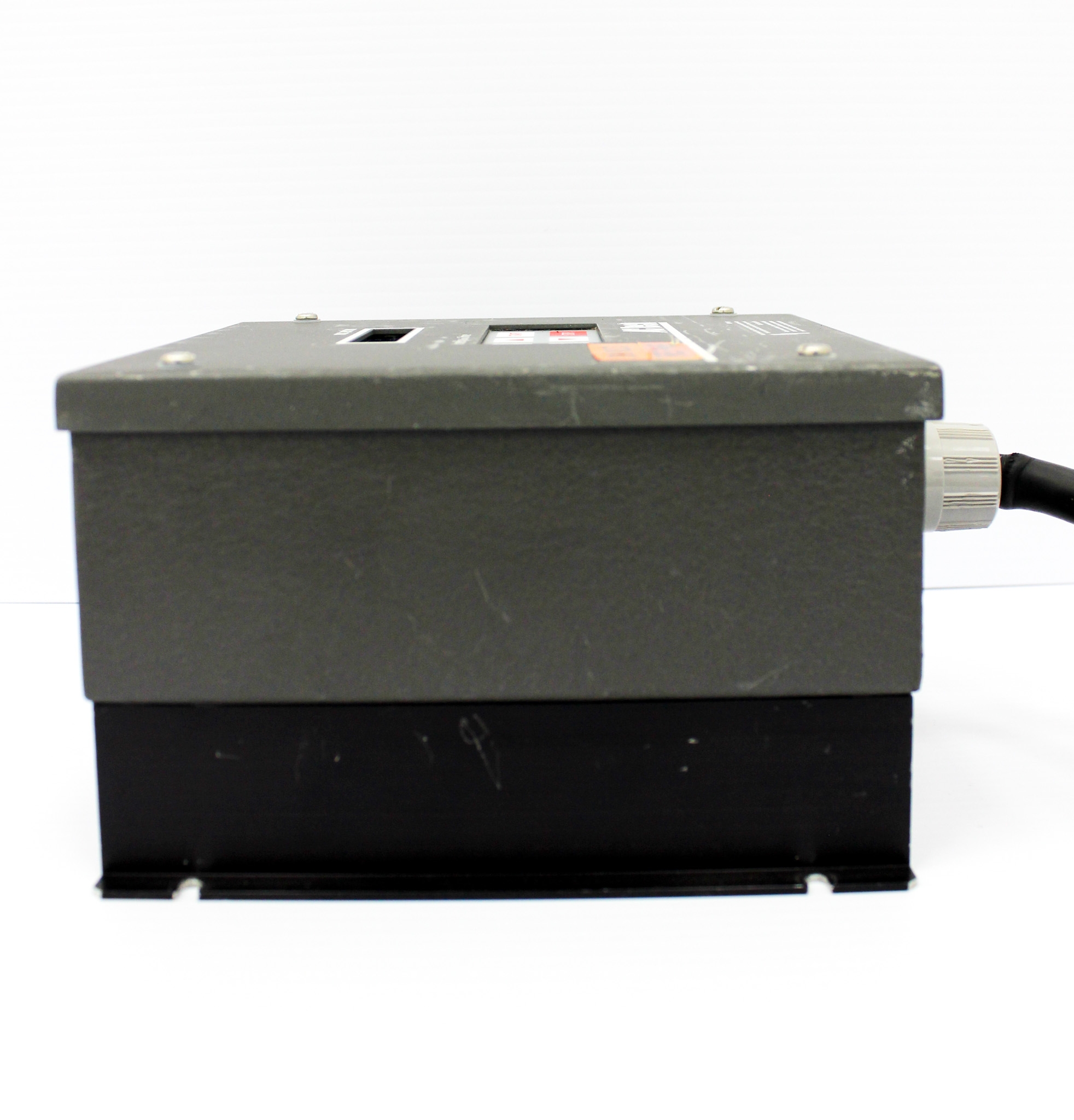

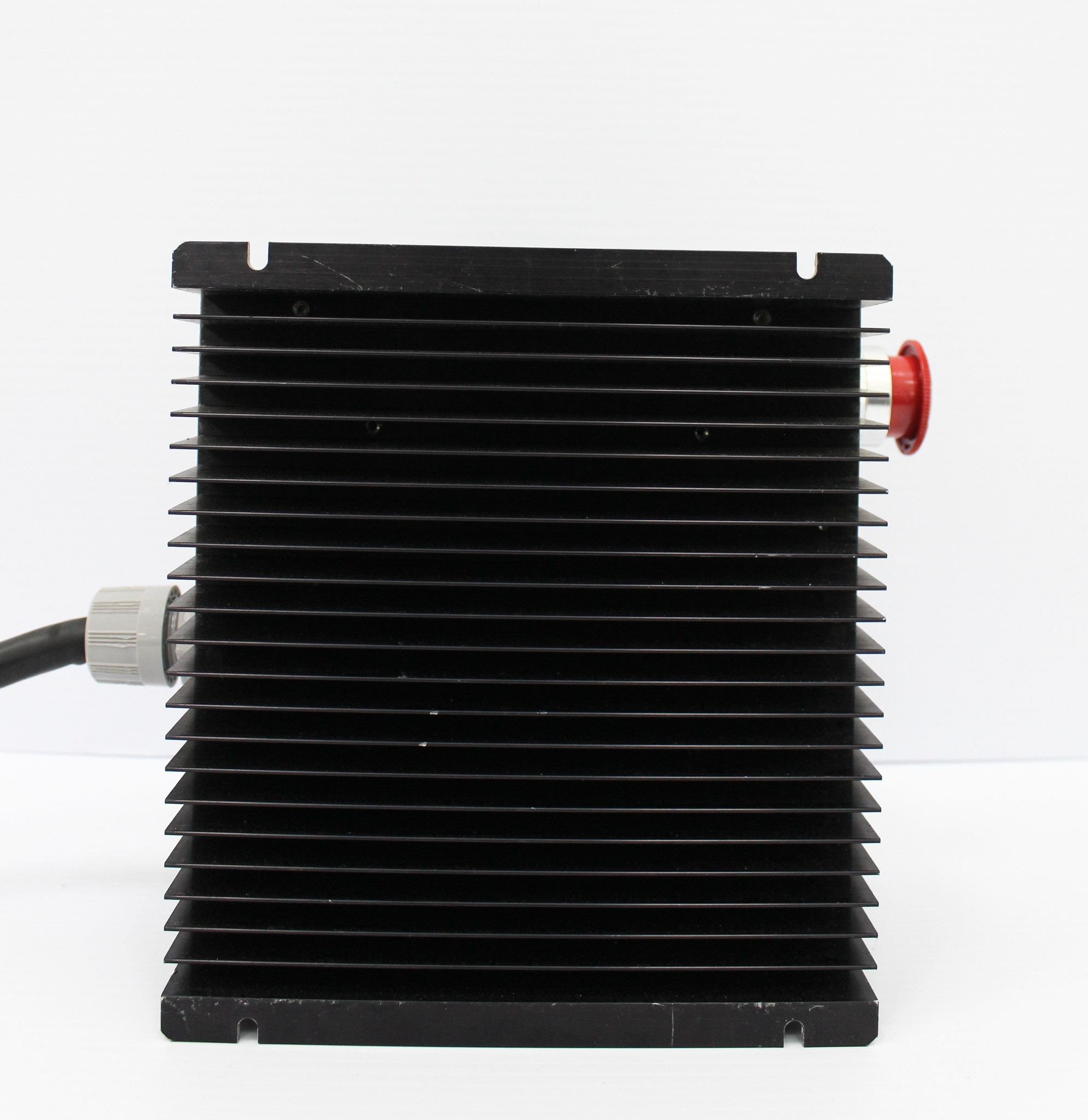

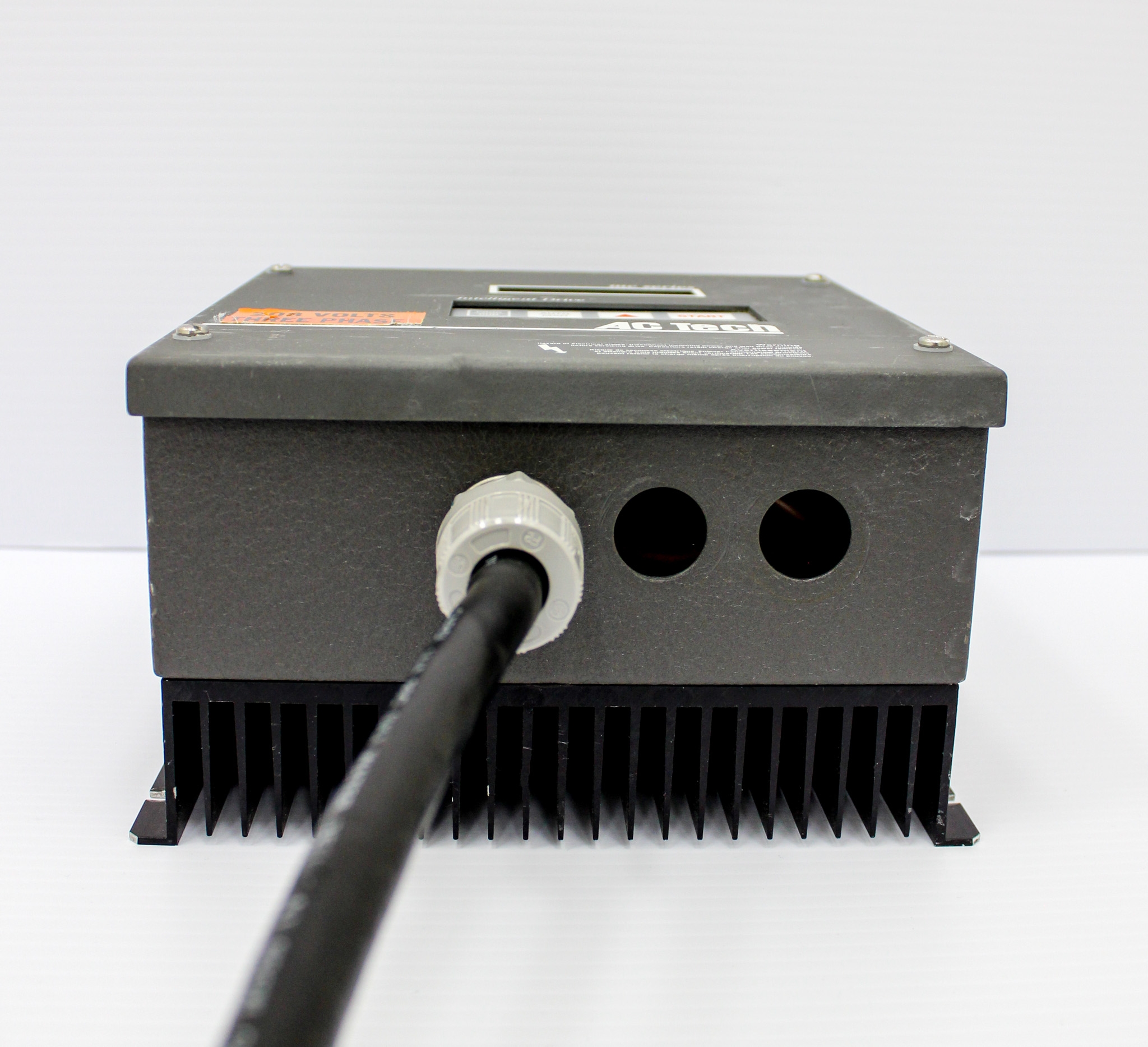

AC Tech M3220C Frequency Inverter Motor Drive Variable Speed IP65
AC Tech
Details
-
CategoryFacility
-
Dimension8.0in x 5.0in x 10.0in
-
Serial034620603
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The AC Tech M3220C Variable Frequency Drive is a robust and reliable motor operation unit designed for precise control of three-phase AC motors. With a 16-bit microprocessor, keypad programmable interface, and support for 0-10 VDC and 4-20 mA analog inputs, this drive ensures efficient control of motor speed and load. It consists of major components like the input diode bridge, filter, and intelligent power module, converting incoming AC voltage to a controlled DC output. Though used, it remains functional with cosmetic wear typical of its usage history. Ideal for industrial applications requiring synchronized motor speed and operation parameter adjustments. Manufactured in the United States by AC Tech, this device is built to withstand demanding environments with its IP65/Type 4 enclosure.
Key Features
- 16-bit microprocessor-based operation

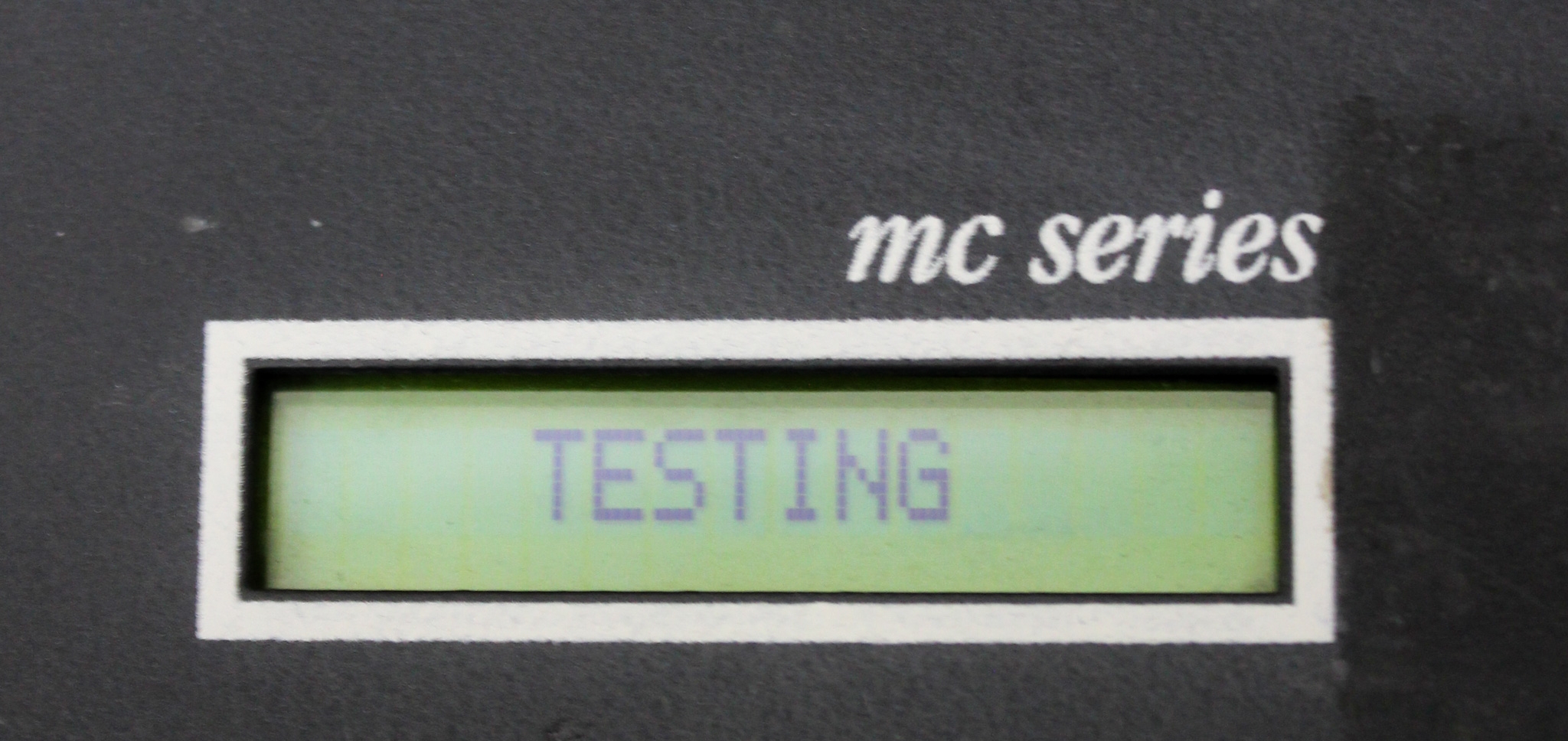

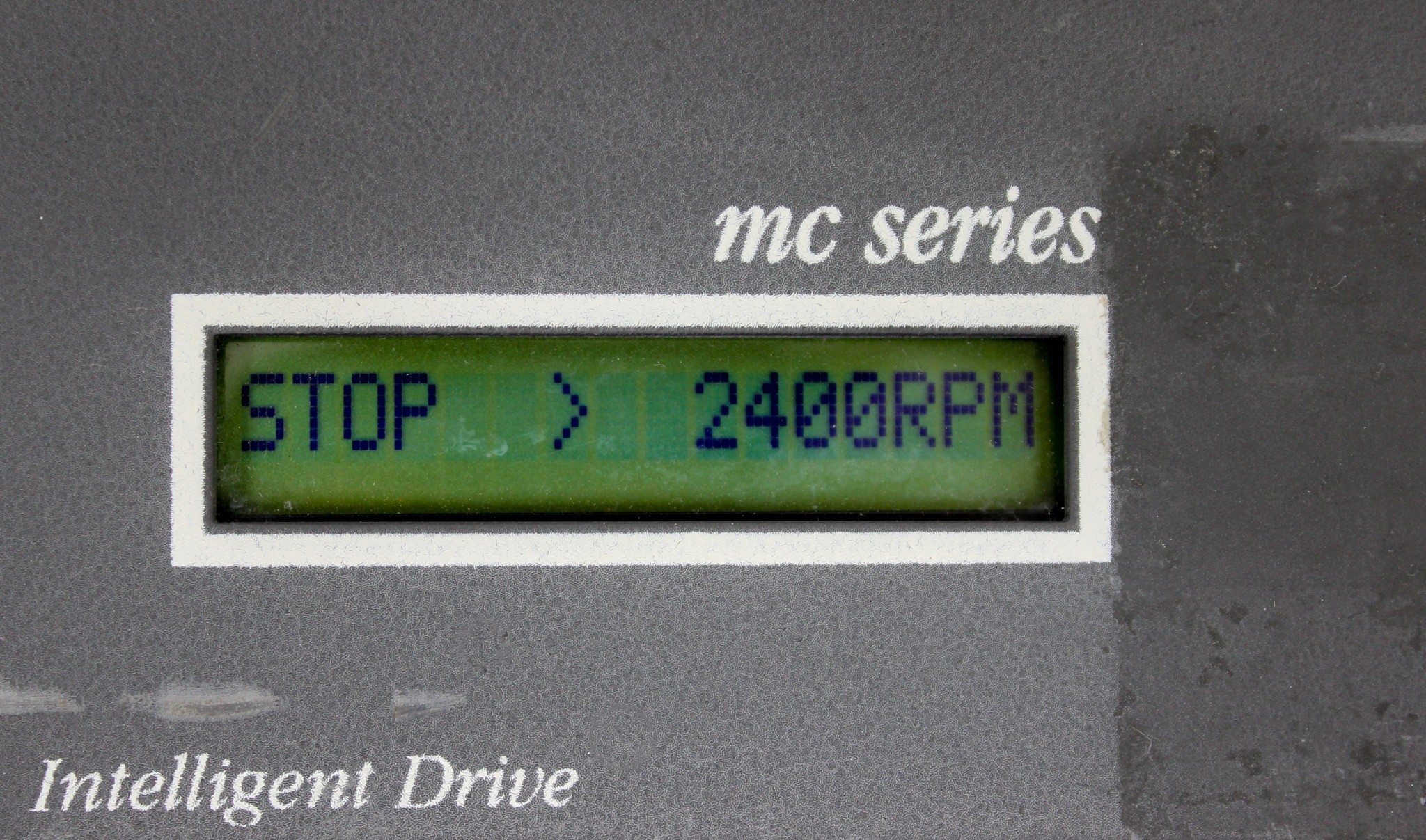

- Keypad programmable for ease of use
- Dual analog inputs for speed and PID control
- IP65/Type 4 rated enclosure for robust protection
- Supports 3-phase AC motor applications
Specifications
- Model: M3220C

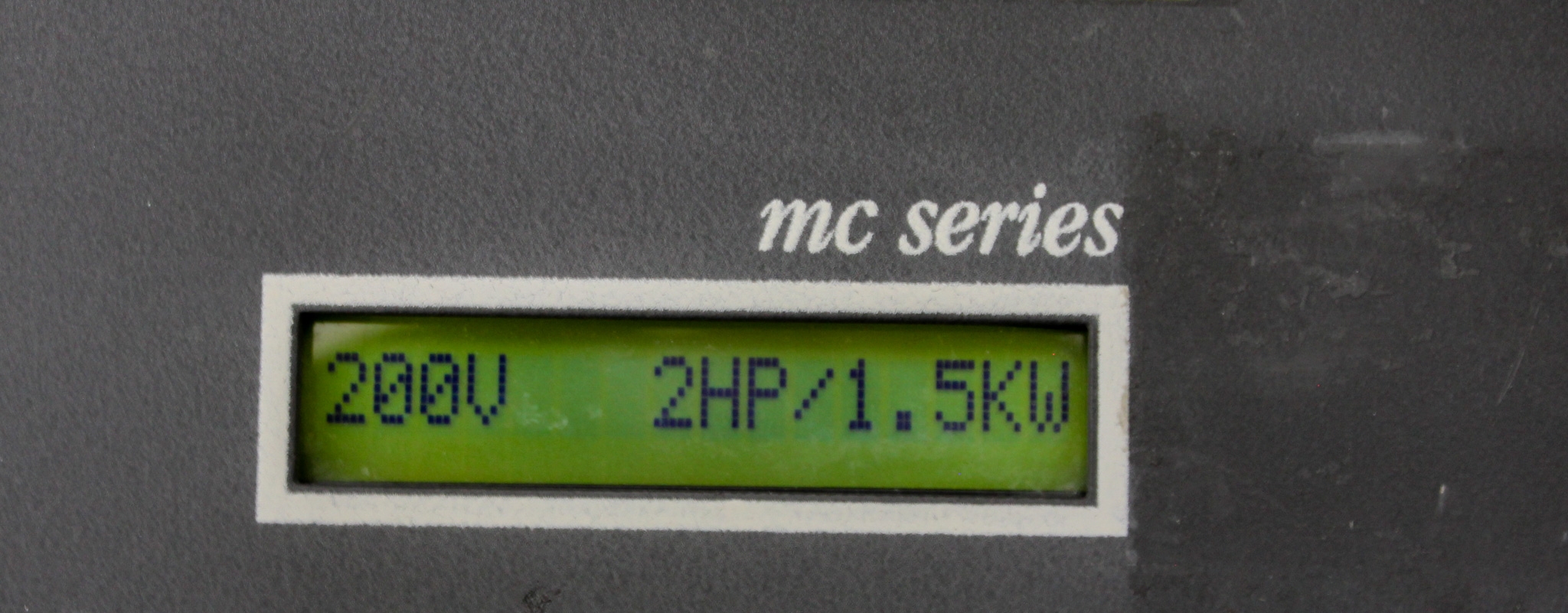

- Motor Rated: 2/1.5 HP (kW)
- Input Phase: 3
- Nominal Current (AMPS): 9.3/8.1
- Power KVA: 3.4
- Nominal Current (AMPS) Output: 7.8/6.8
- Power KVA Output: 2.7
- Power Input: 200-240Vac, 50/60Hz
- Power Output: 0-200/230 Vac
- Storage Temperature: -20 to 70 °C
- Operating Temperature: -10 to 55 °C
- Input Line Voltages: 240/120 Vac, 240/200 Vac
- Input Voltage Tolerance: +10%, -15%
- Input Frequency Tolerance: 48 to 62 Hz
- Output Frequency: 0-120 Hz
- Overload Current Capacity: 150% for 60 secs, 180% for 30 secs
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 6.0 lb x 12.0 lb
Metric: 24.38 cm x 15.24 cm x 30.48 cm
Harmonized Code
850440
Harmonized Code Details
850440: Static converters - This code is appropriate as it pertains to power converters like the frequency inverter, which is used to convert and regulate AC motor speed and power.
