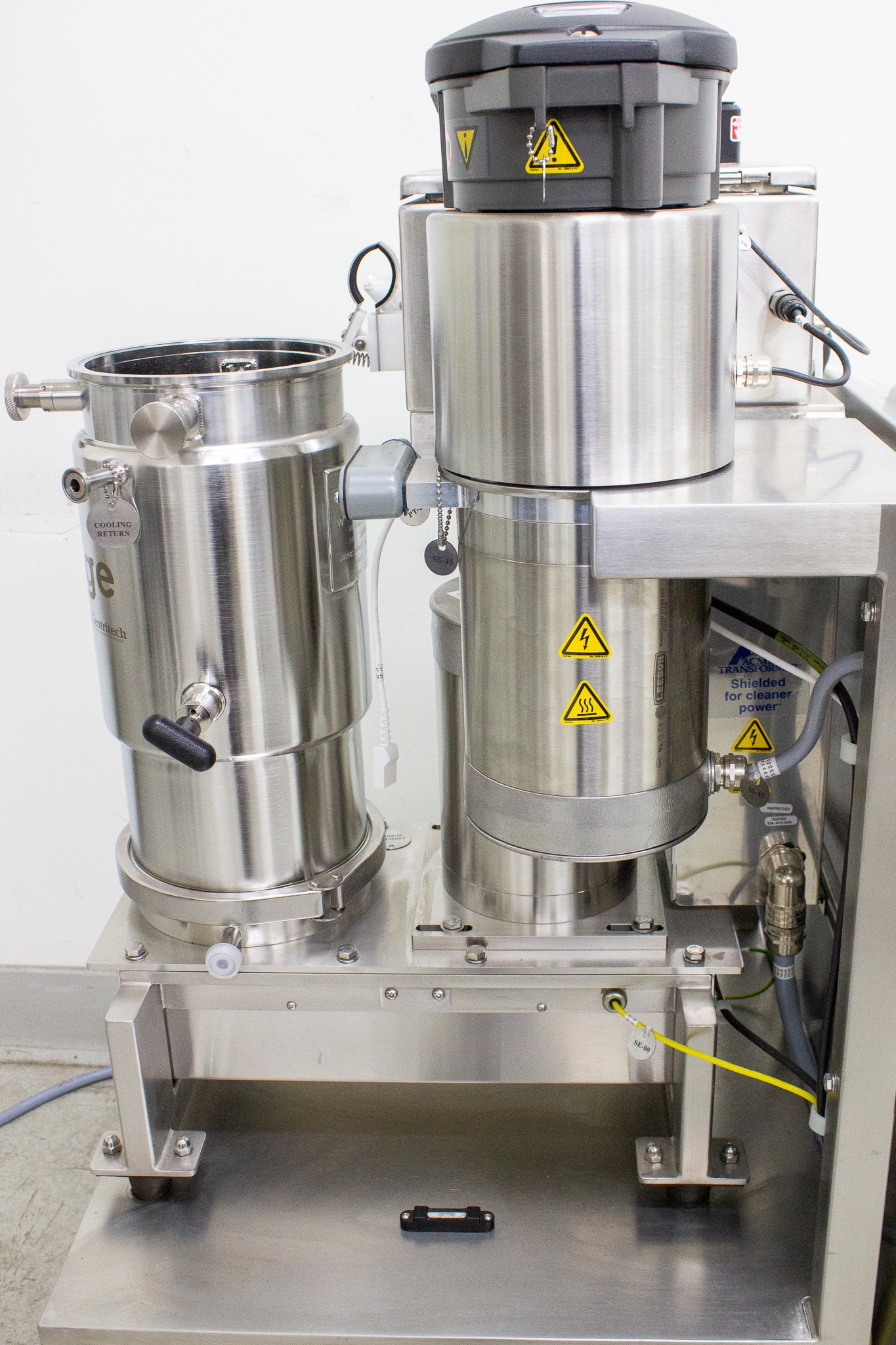

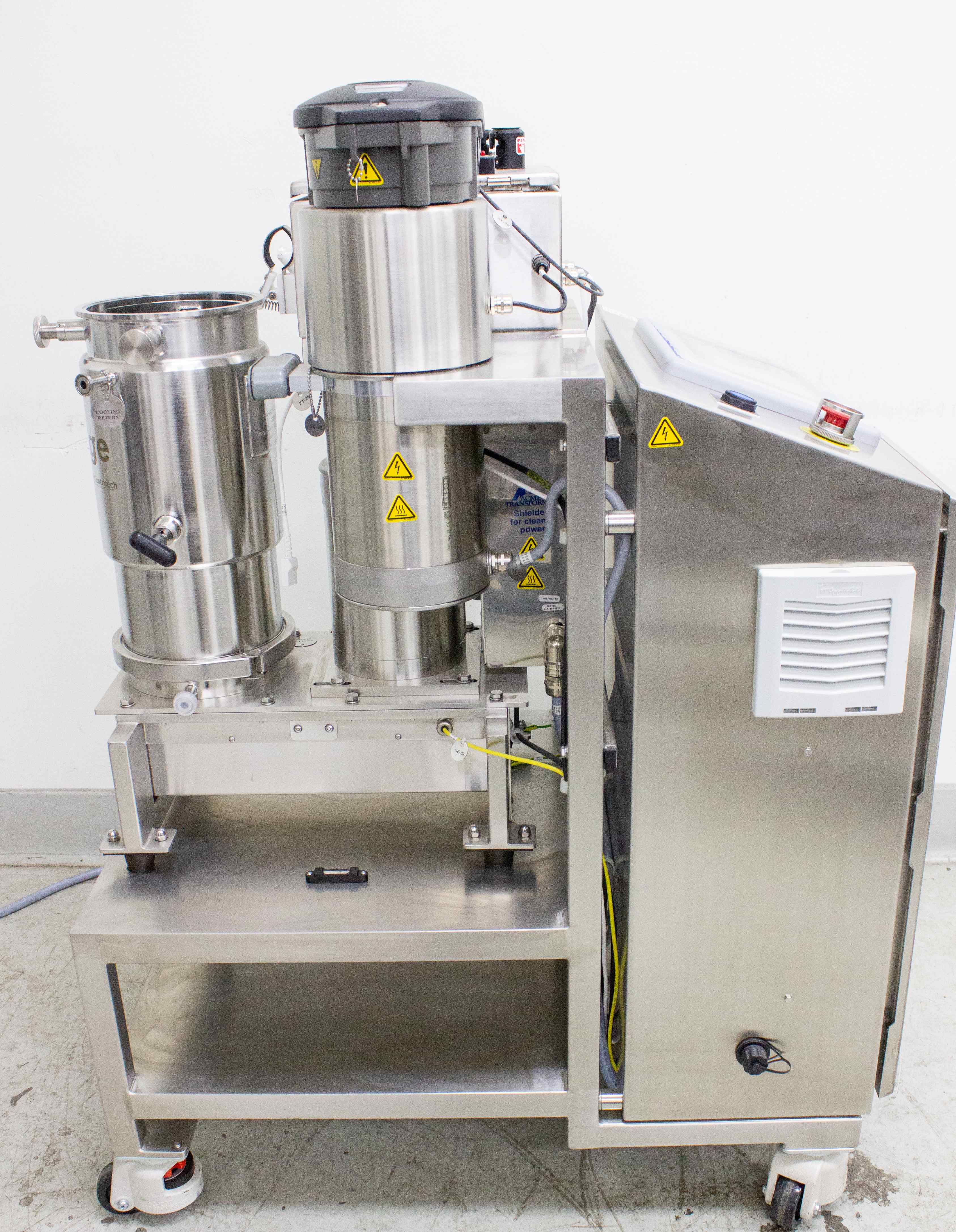

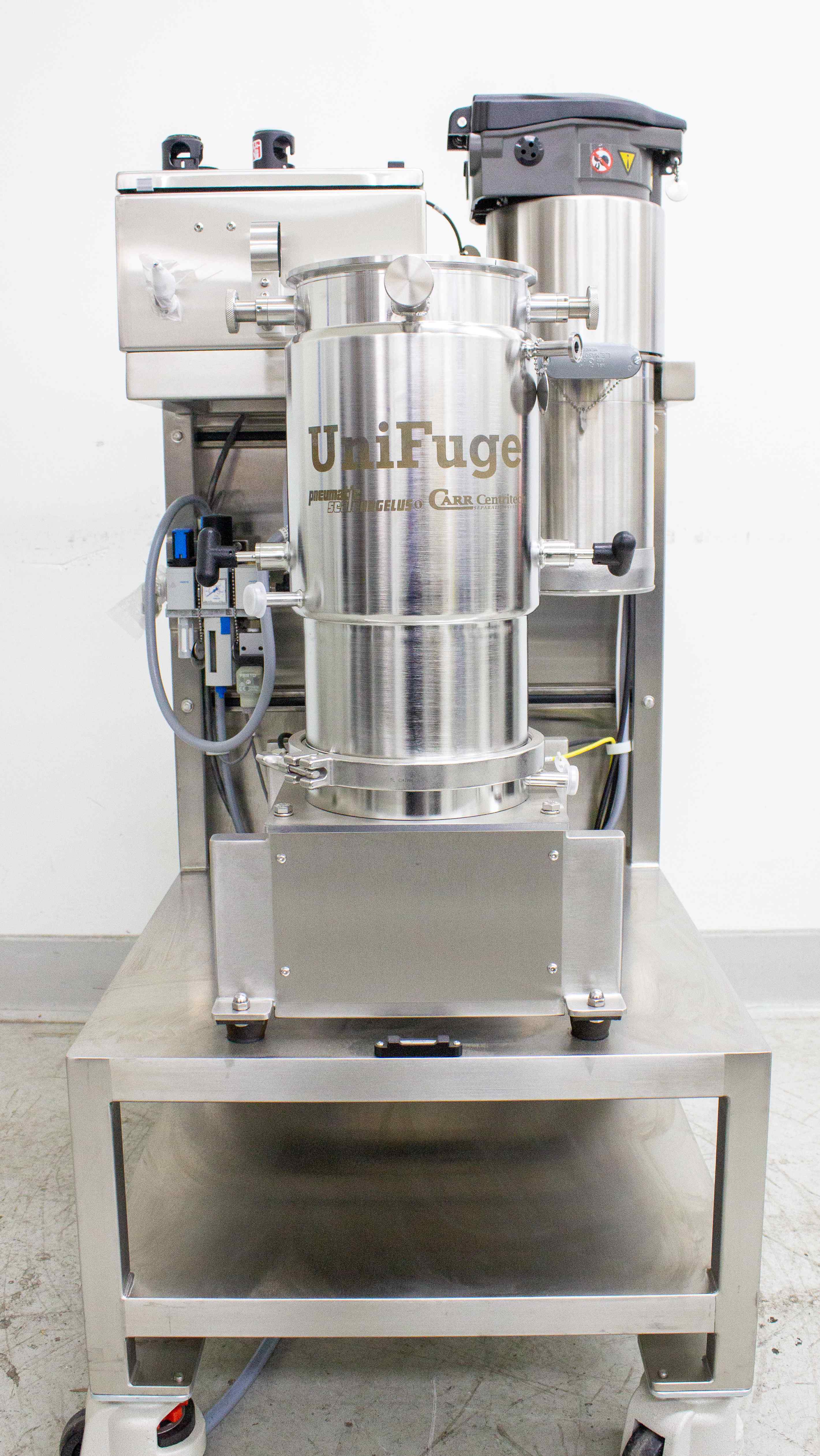

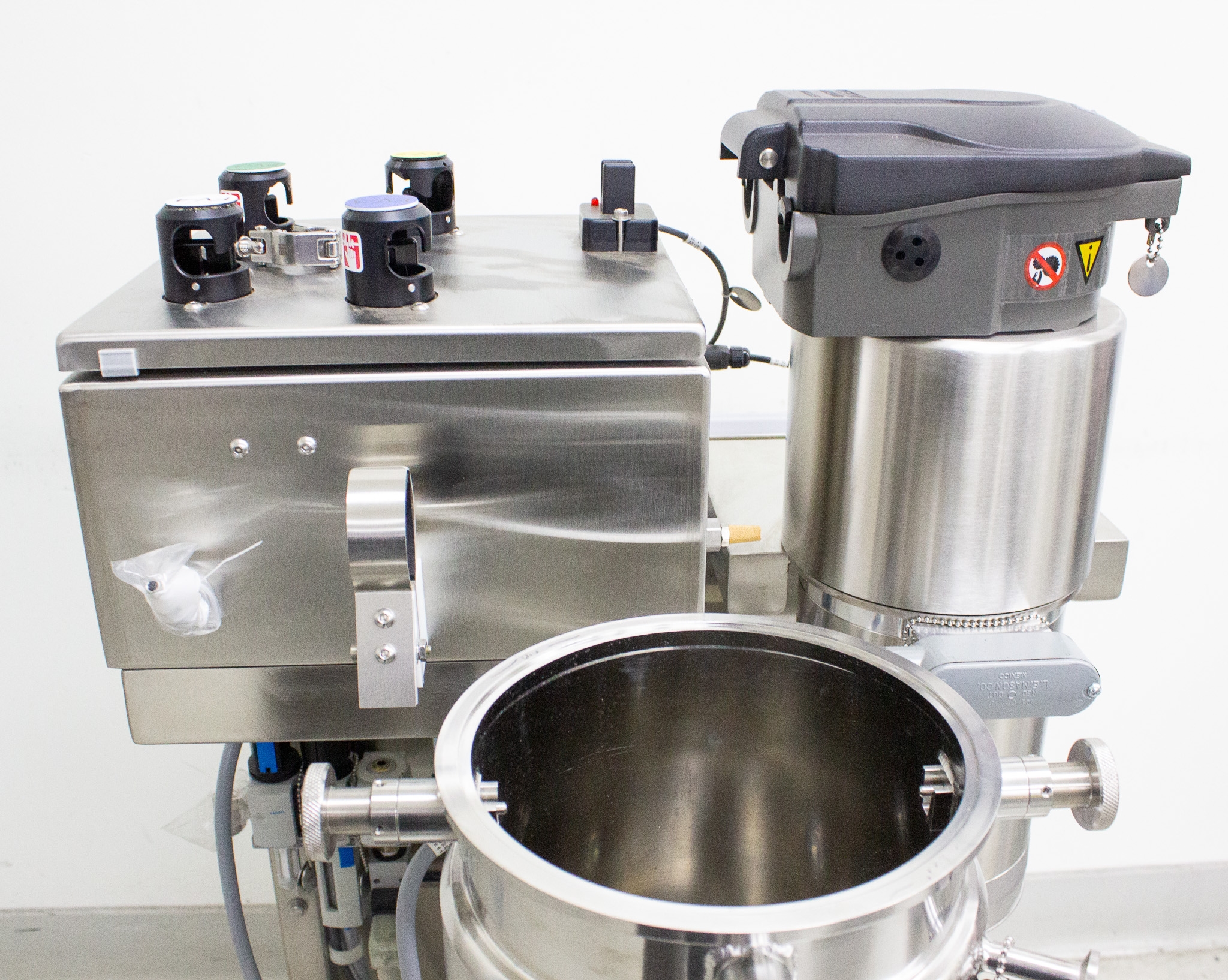

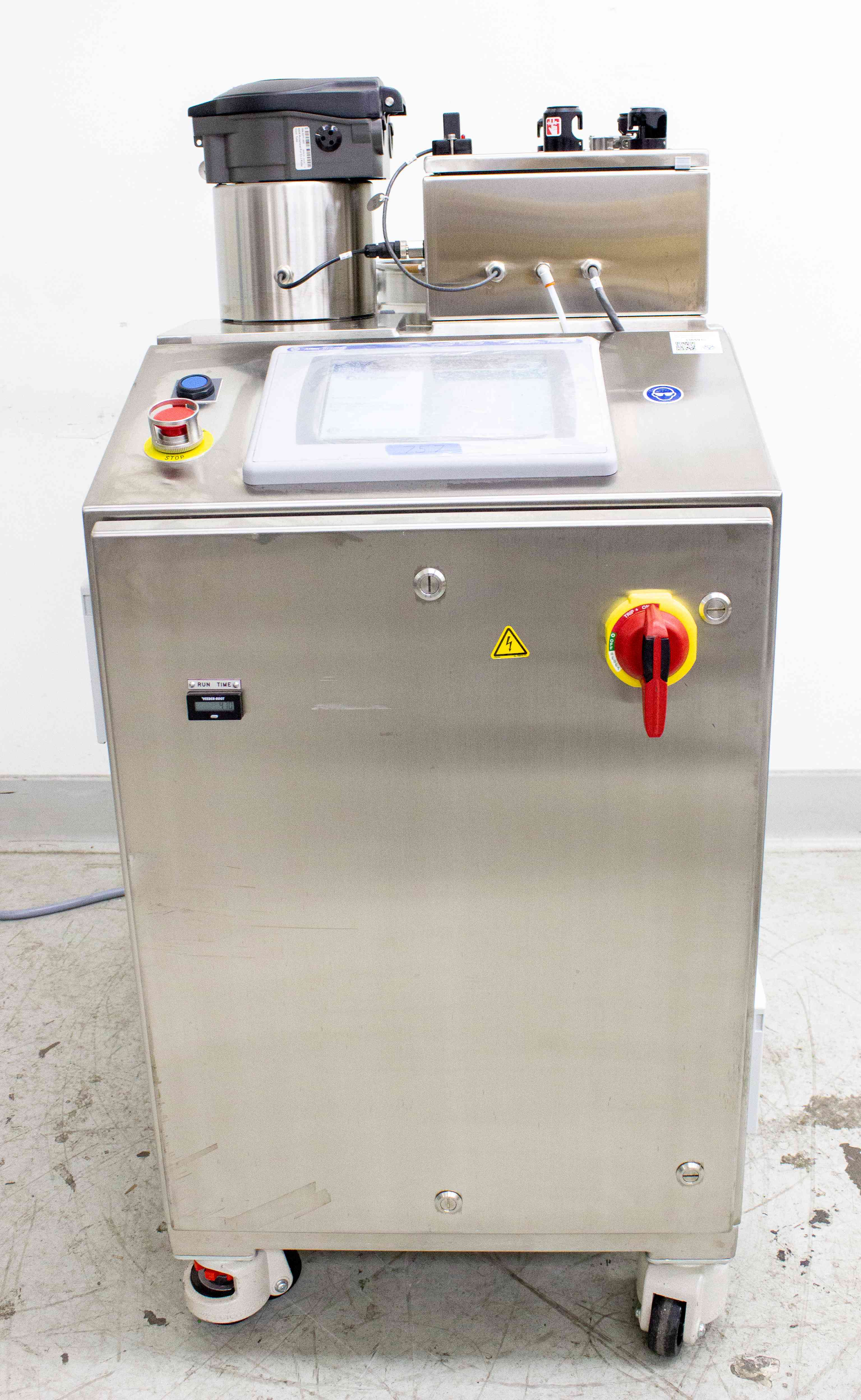

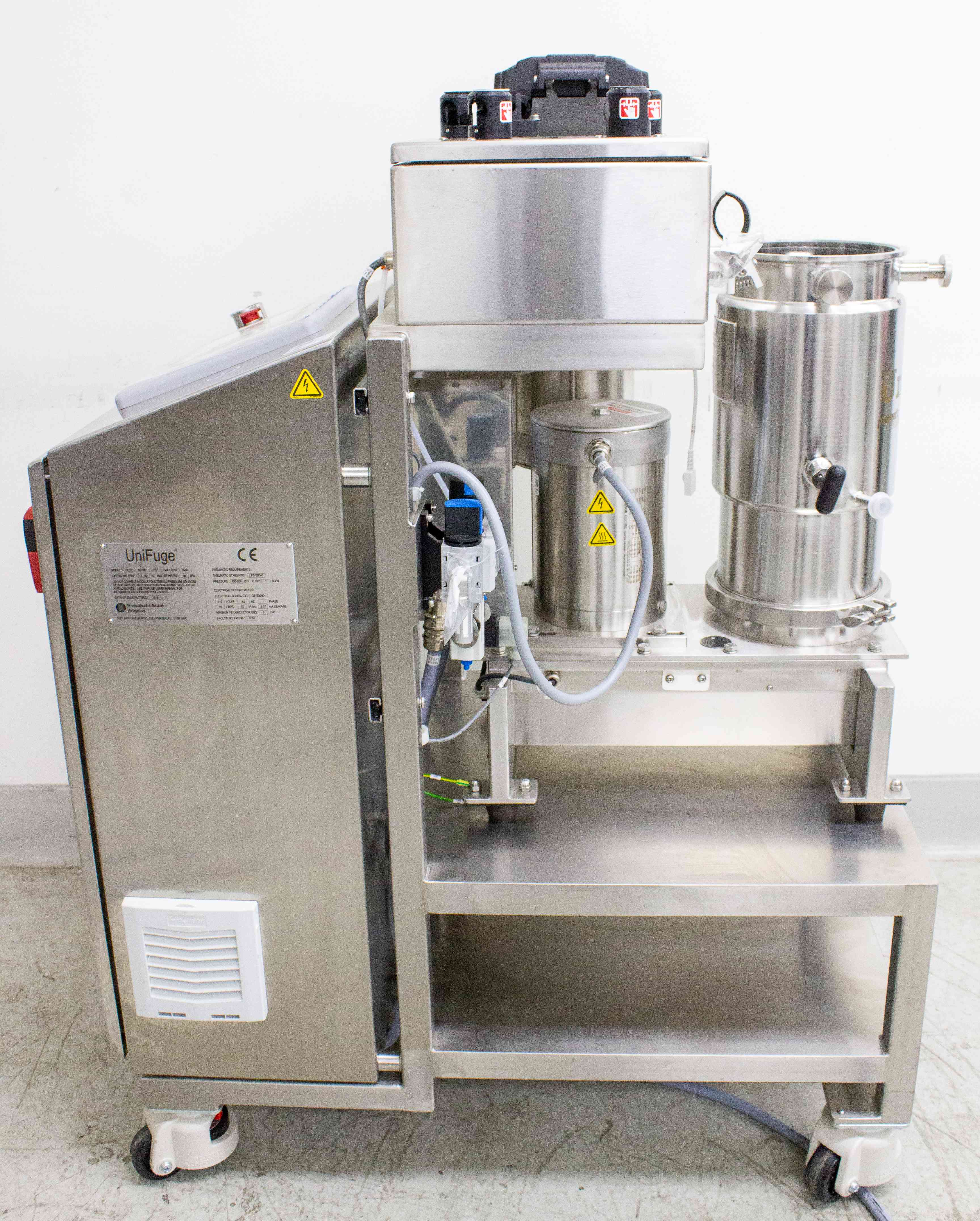

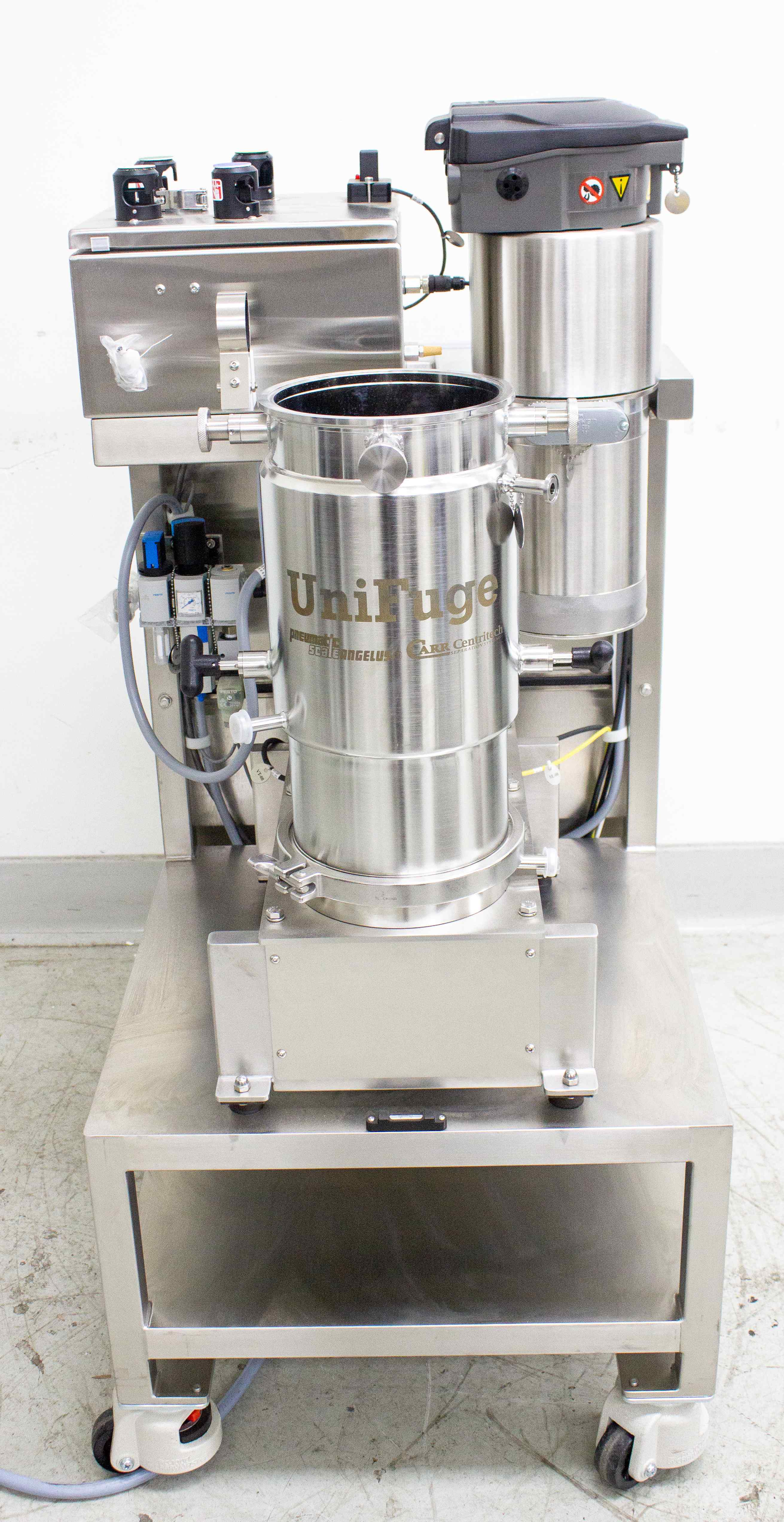

Pneumatic UniFuge Pilot Single-Use Centrifuge 1.8L 4L/min Used Biotech
Pneumatic Scale Angelus
Details
-
CategoryCentrifugation
-
Dimension39.0in x 25.0in x 53.0in
-
Serial757
-
Shipping TypeFreight
-
Manufacturing2018-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Pneumatic Scale Angelus UniFuge Pilot, manufactured in 2018, is a highly efficient single-use centrifugation system designed for primary clarification of mammalian cell cultures and harvesting stem cells. This used centrifuge features a gamma-irradiated module to eliminate cleaning, a bowl capacity of 1.8L, and a flow rate of 1-4 L/min. It supports centrifugation operations with low-shear, achieving high-quality and high-recovery separation. Integrated with intuitive, fully automated software, it minimizes contamination risks through its fully enclosed system. Engineered in the US, it adheres to stringent quality standards. The item is functional and demonstrates basic operational capability, although full testing isn't completed. Notable features include a PLC color touch screen and the ability to be included in automated workflows seamlessly.
Key Features
- Used state, powers on, basic operational function
- Manufactured in 2018
- Gamma-irradiated single-use module
- 1.8L bowl capacity with 1-4 L/min flow rate
- Automatic, low-shear operation
- Flexible cycle parameter entry

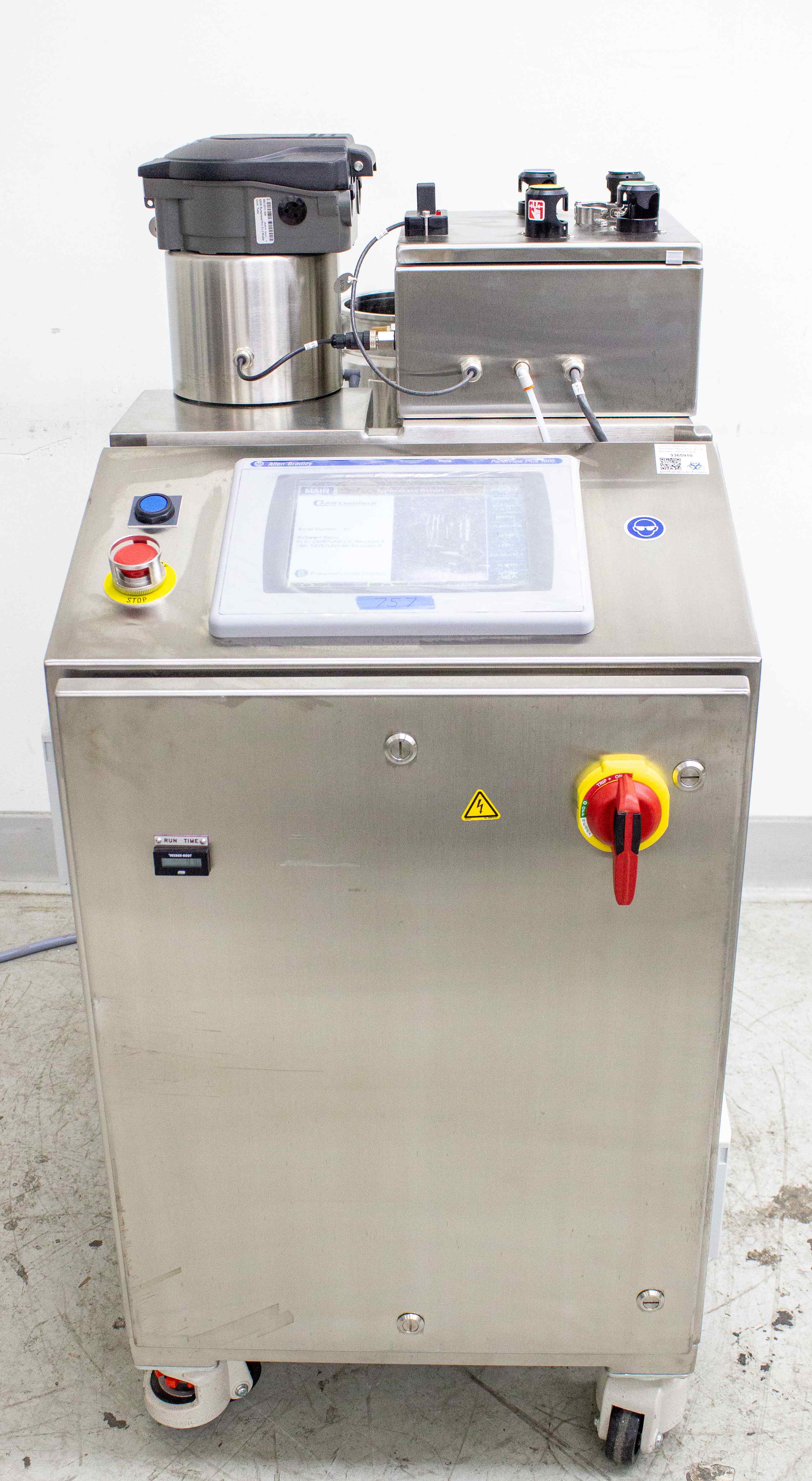

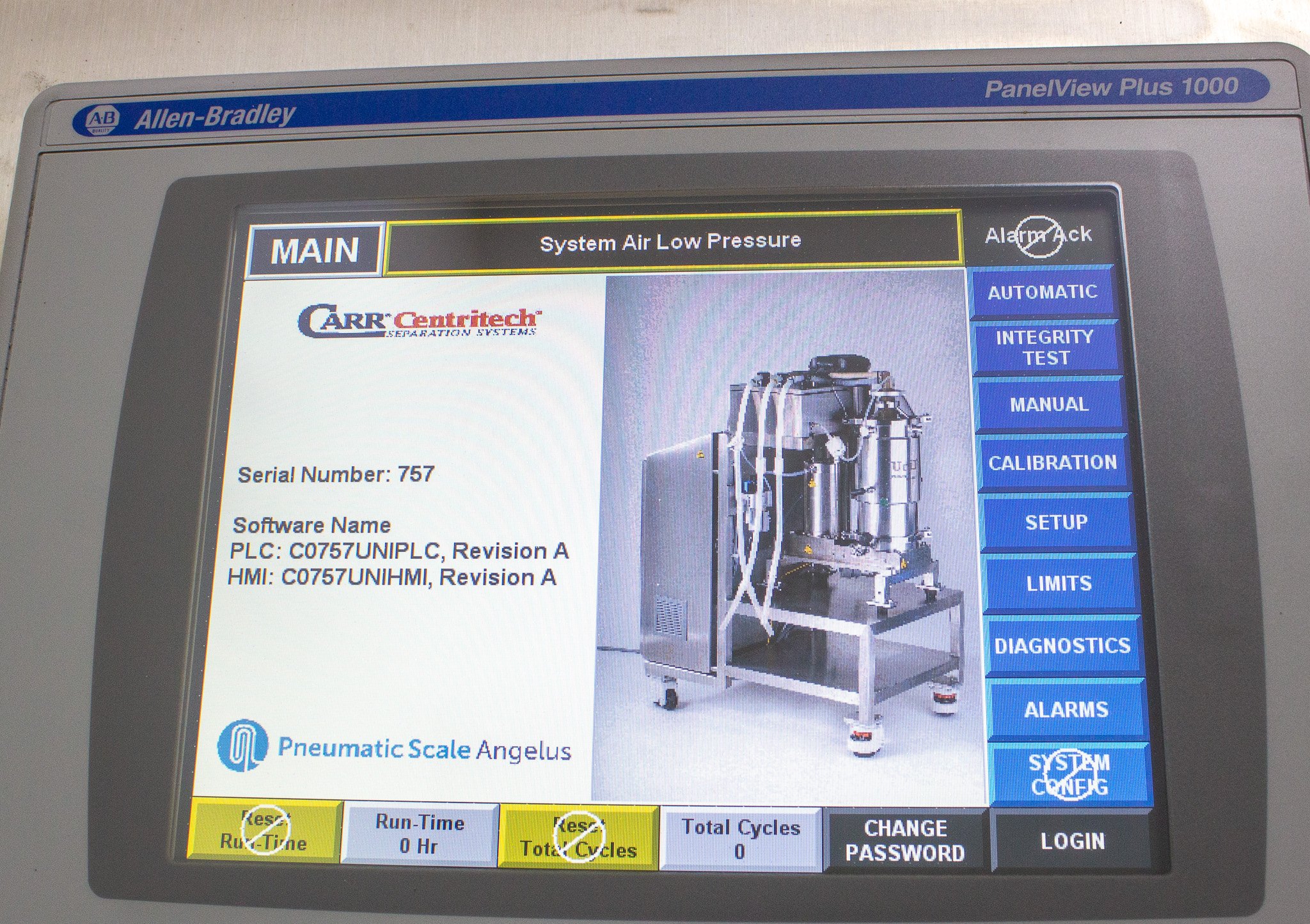

- PLC color touch screen
- Fully enclosed system minimizing contamination
Specifications

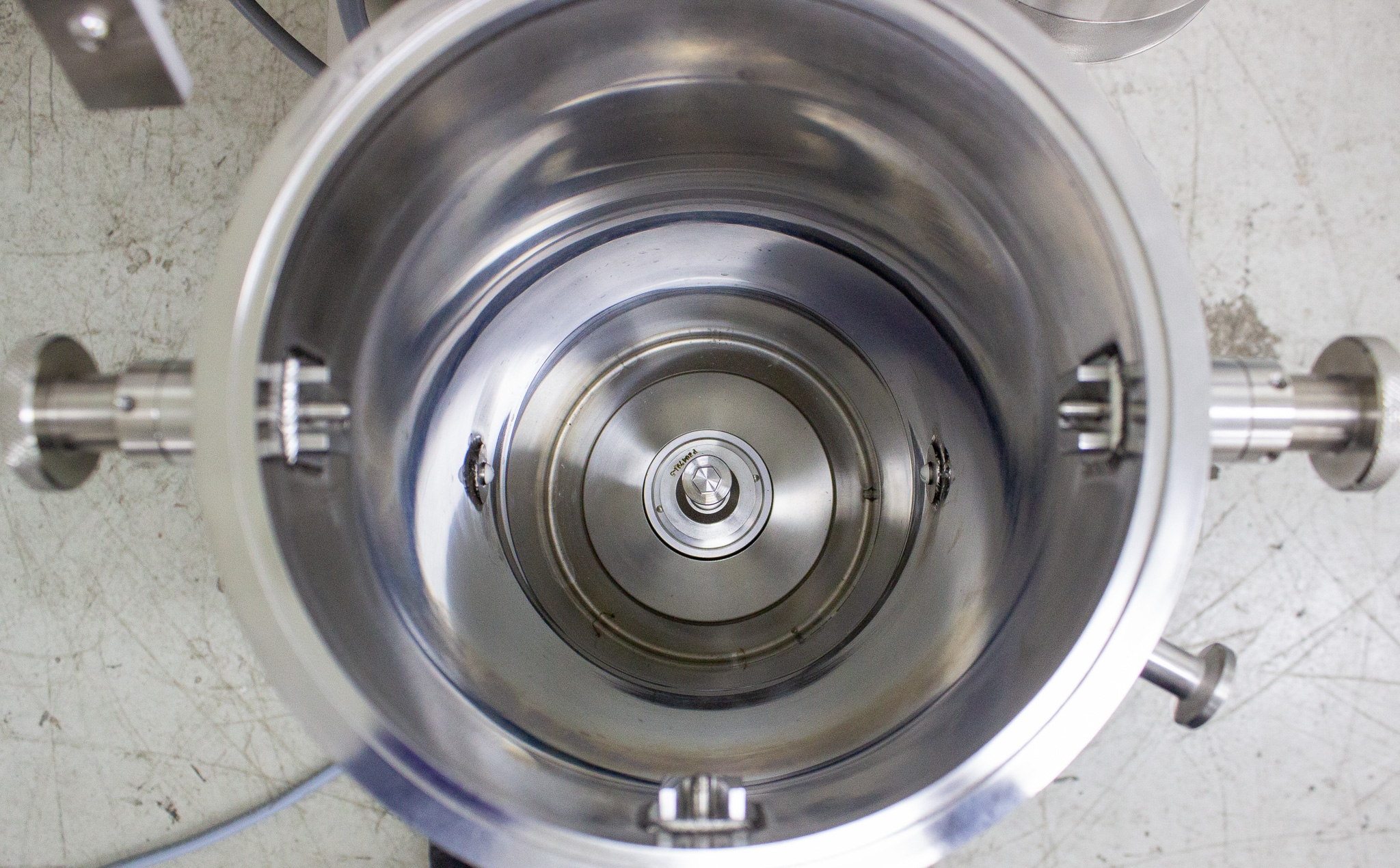

- Bowl capacity: 1.8 L
- Flow rate: 1-4 L/min (higher may be achieved)
- Variable speed: 300 to 4,000 x g
- Total skid weight: 291 kg (690 lbs.)
- Power: 120V/220V, 50Hz/60Hz

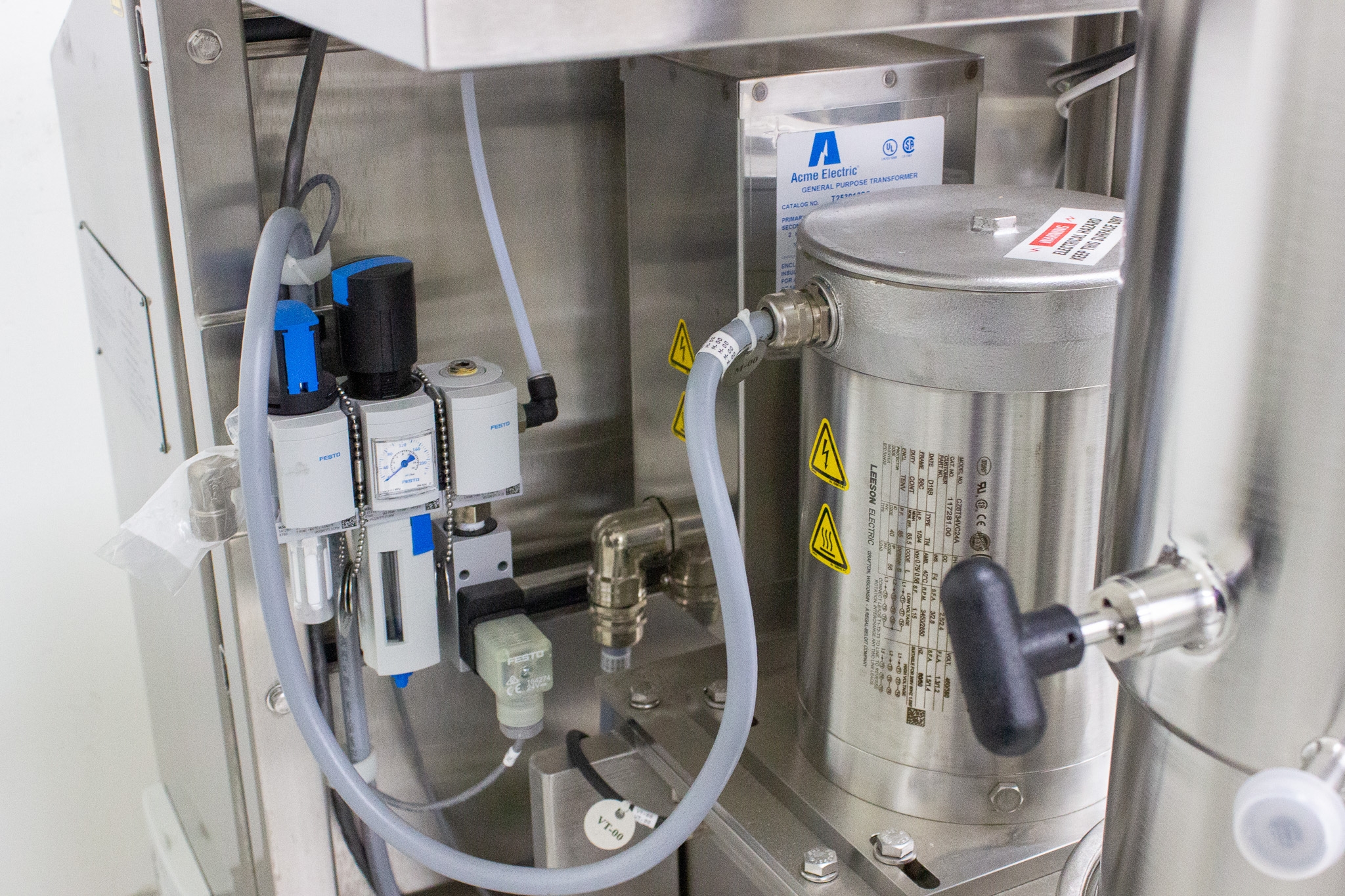

- Pneumatic: 4.5-6.6 bar (65-95 PSI)
- Automated with Allen-Bradley PLC
- Noise level: <80 dB during operation
- Compliant: cGMP 21 CFR Part 11
- Includes PLC color touch screen
- Utility Requirements: 120/230 VAC, 50/60 Hz
Weight
Imperial: 828.0 Pounds
Metric: 375.57 Kilograms
Shipping Dimensions
Imperial: 46.8 lb x 30.0 lb x 63.6 lb
Metric: 118.87 cm x 76.2 cm x 161.54 cm
Harmonized Code
8421190000
Harmonized Code Details
This harmonized code pertains to centrifugal machines for laboratory use. This choice was made based on the device being a centrifuge used for biological and pharmaceutical applications.
