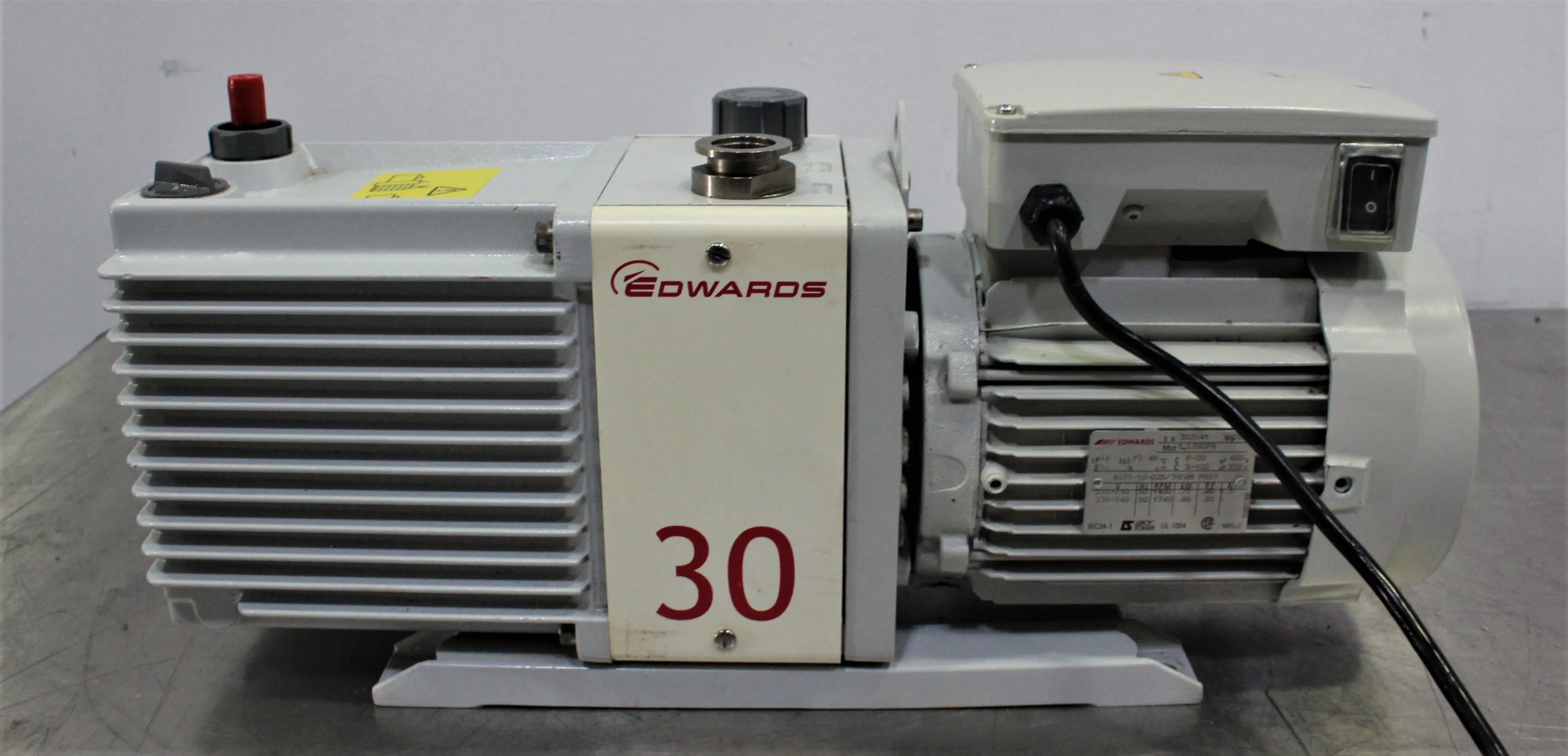

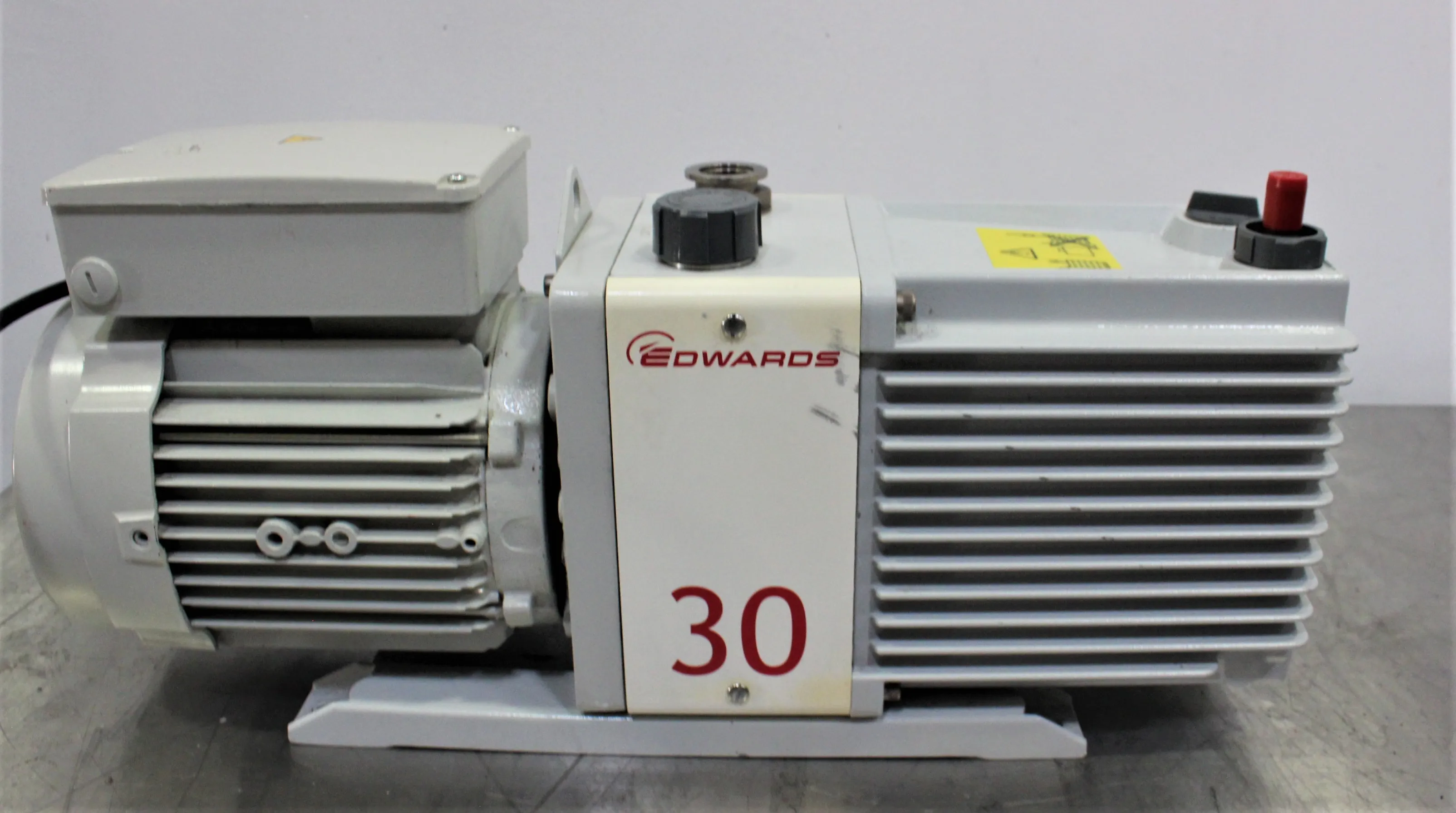

Edwards E2M30 Rotary Vane Vacuum Pump 220V 60Hz US

Product Information

The Edwards E2M30 Rotary Vane Vacuum Pump offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M30 is a reliable and versatile 220V vacuum pump. There are a multitude of applications for the Edwards E2M30, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes. The pump is designed for reliable, long-term operation with a thermal overload device that prevents overheating in single phase only. The pump is a free-standing unit, drive is provided through a flexible coupling by a single-phase motor, and the motor is totally enclosed and cooled by the motor-cooling fan. A pressure die-cast oil box with integral oil seals prevents oil leaks, and the gas ballast valve provides a large water vapor handling capacity.

• Quiet operation
• Outstanding vapor handling capabilities
• Thermal overload device for overheating prevention
• Free-standing unit
• Flexible coupling drive

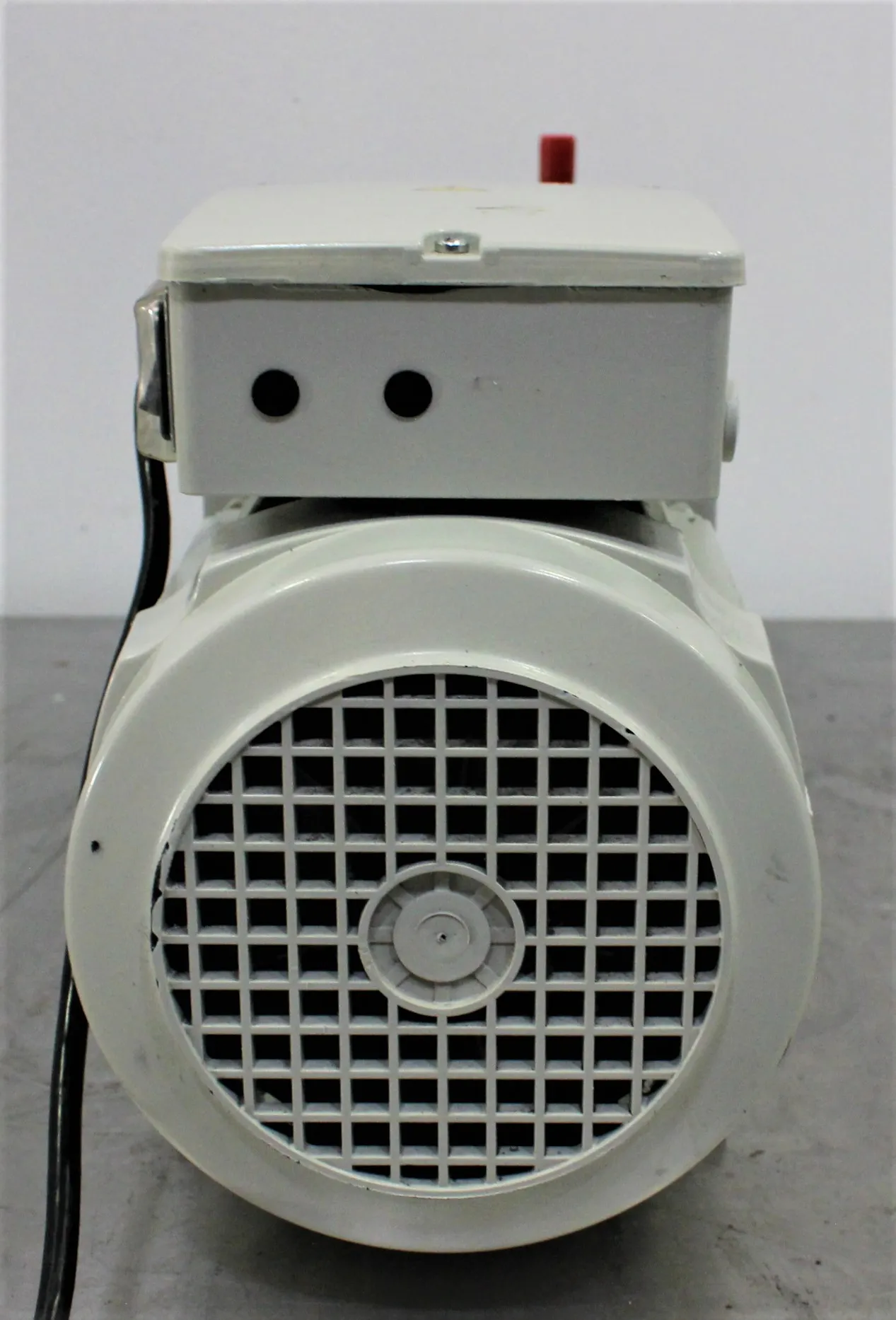

• Totally enclosed motor with motor-cooling fan
• Pressure die-cast oil box with integral oil seals
• Gas ballast valve for large water vapor handling capacity

• Voltage: 220V
• Frequency: 60Hz US
• Product condition class: Class 2
• Current condition: Used
• Working: Yes
• Warranty: 30-Day Warranty, 100% Parts and Labor

Metric: 48.53 kg
Imperial: 107 lbs

Metric: 34 cm x 15 cm x 21 cm
Imperial: 13.39 in x 5.91 in x 8.27 in

8414105090

Vacuum pumps; other rotary positive displacement pumps; other; Of pumps fitted or designed to be fitted with a measuring device
