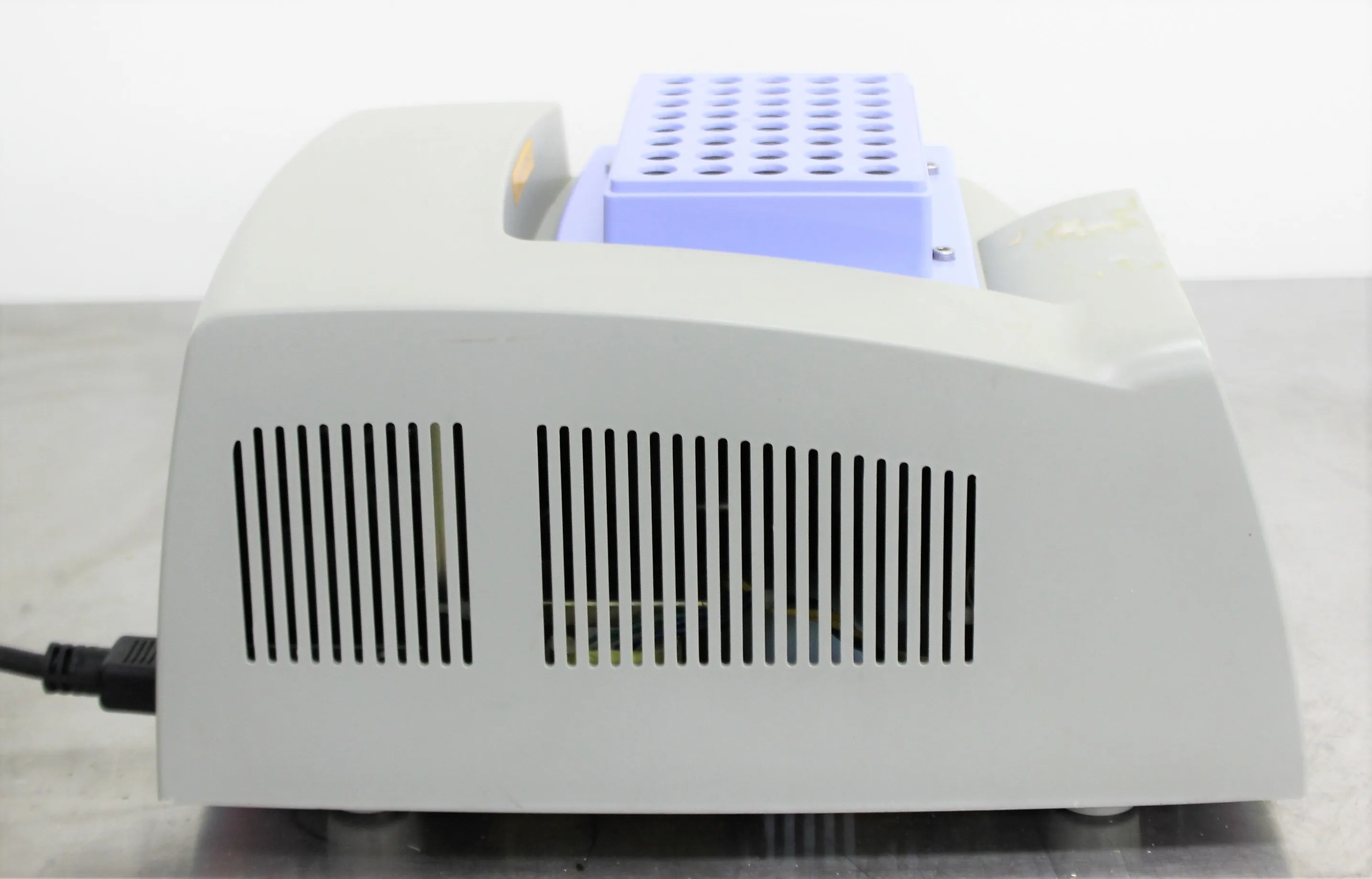

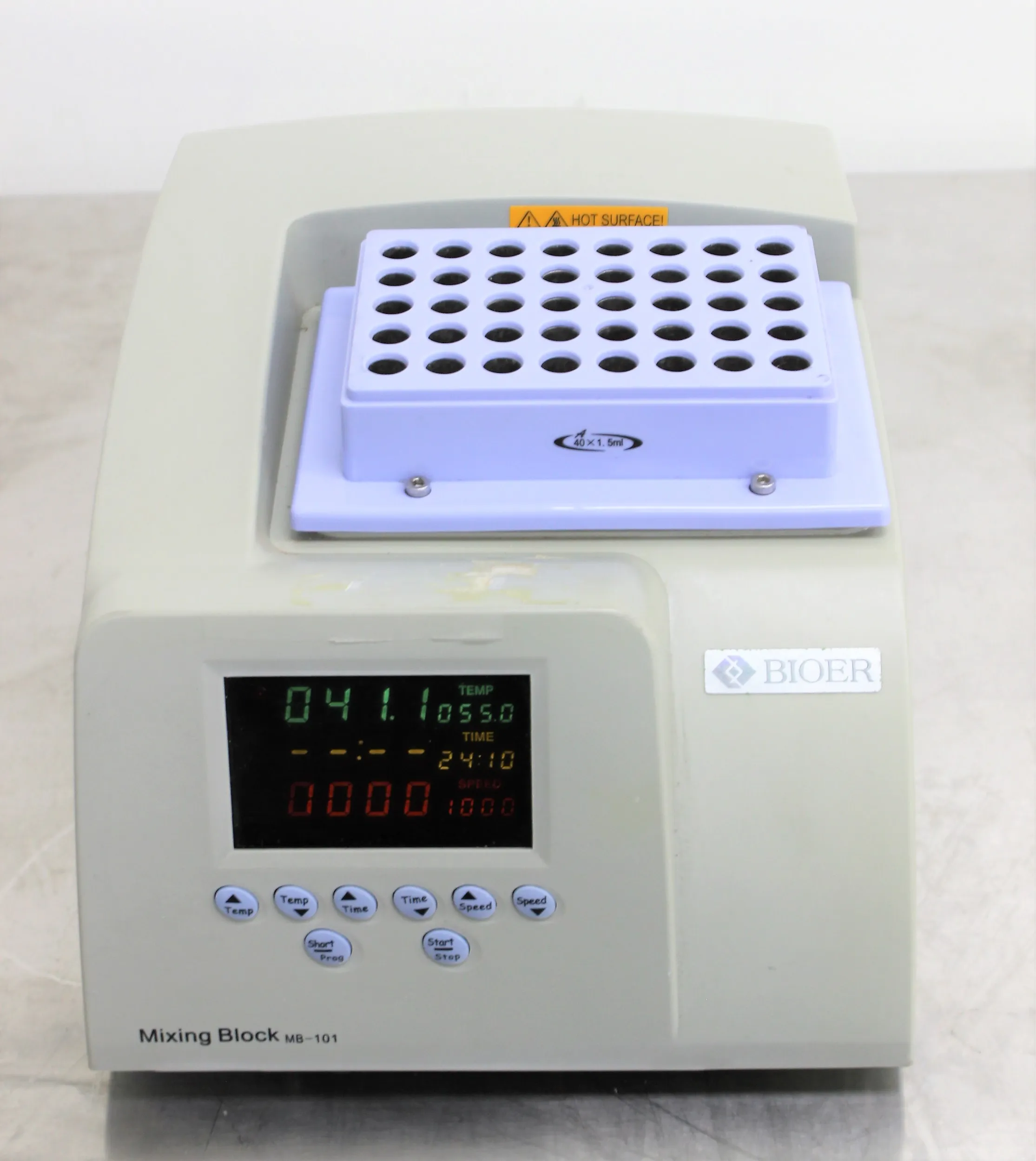

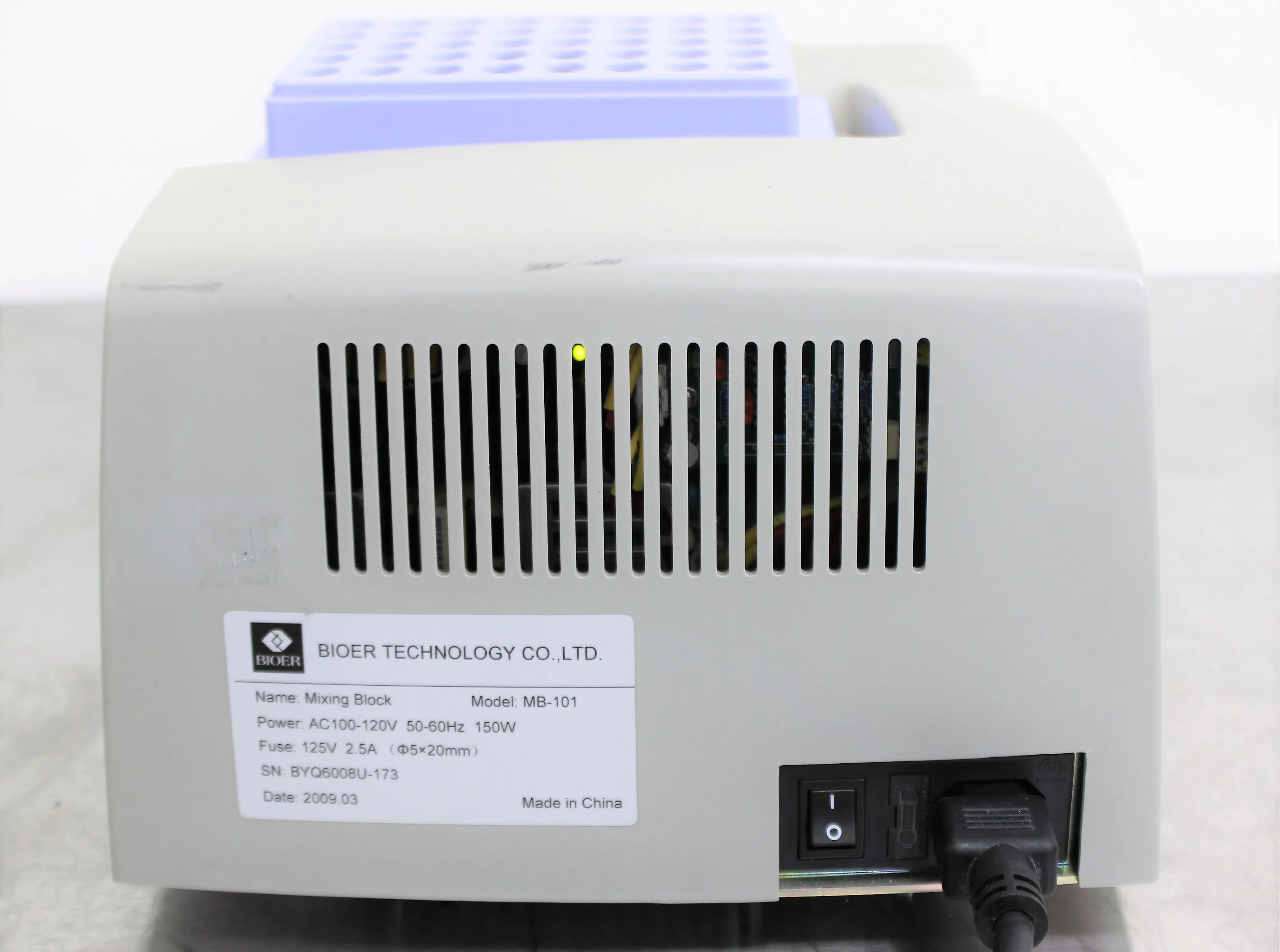

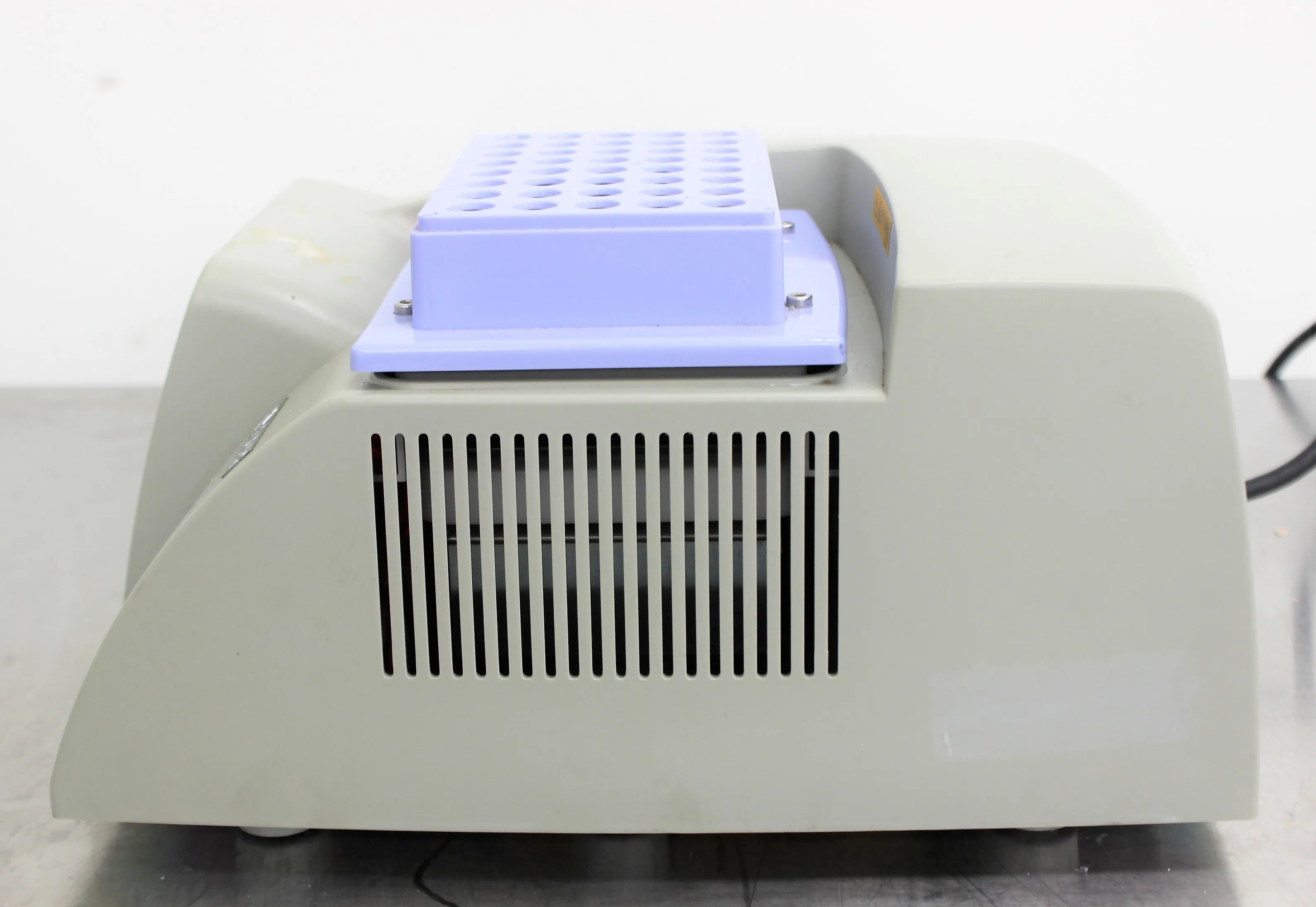

Bioer ThermoCell Mixing Block MB-101 Vortexer / Rotator / Shaker

Product Information

The Bioer ThermoCell Mixing Block MB-101 is a Vortexer / Rotator / Shaker that combines the functions of mixing and Temperature Control. It employs Peltier Effect heat exchange technology to provide accurate, stable temperature control. The unit is compatible with interchangeable Blocks for plates and tubes, offering a user-friendly interface and precise control over time, temperature, and speed. Manufactured in 2009, it is in very good condition, functions as intended, and passes function tests.

• Accurate time, temperature, and speed control
• Peltier Effect heat exchange technology

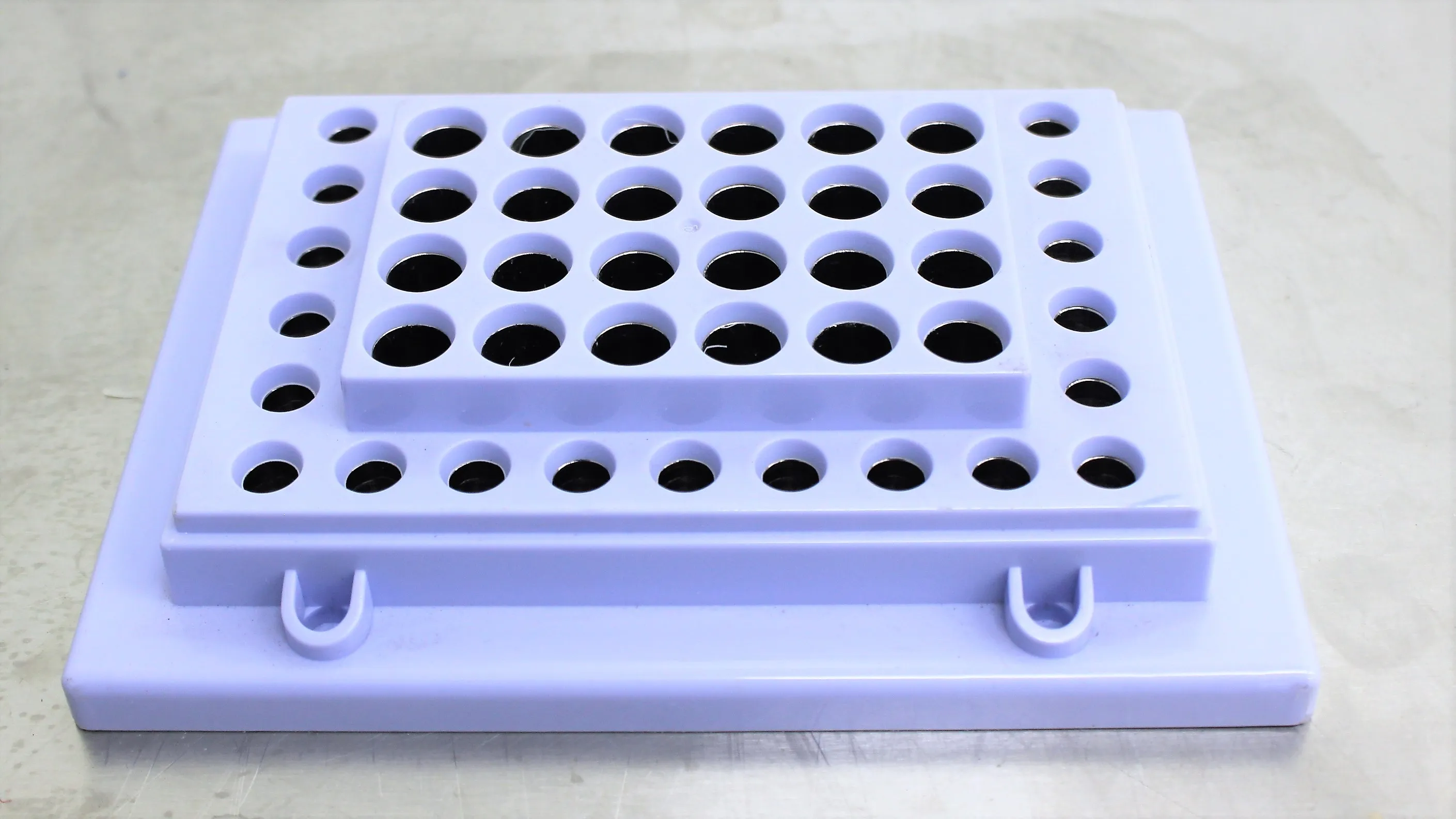

• Interchangeable Blocks for plates and tubes
• User-friendly interface with large VFD display
• Functions as intended and passes function tests

• Temperature Setting Range: 0 - 105°C
• Temperature Control Range: RT -14°C ~ 100°C
• Timing Range: 1 min ~ 99 h 59 min
• Mixing Speed Range: 300 rpm ~ 1500 rpm
• Mixing Amplitude: 3 mm
• Temperature Control Accuracy: < 0.5°C
• Display Accuracy: < 0.5°C
• Temp. Uniformity: < 0.5°C
• Heating Time:< 12 min (from 20°C to 100°C)
• Cooling Time:< 8 min (from RT to RT -10°C), < 15 min (from 100°C to RT + 10°C)

Metric: 11.79 kg
Imperial: 26.0 lb

Metric: 33.02 cm x 22.86 cm x 33.02 cm
Imperial: 13.0 in x 9.0 in x 13.0 in

841989

Machinery, plant or laboratory equipment; for the treatment of materials by a process involving a change of temperature; n.e.c. in chapter 84. Description: For laboratory use, combining mixing and temperature control functions.
