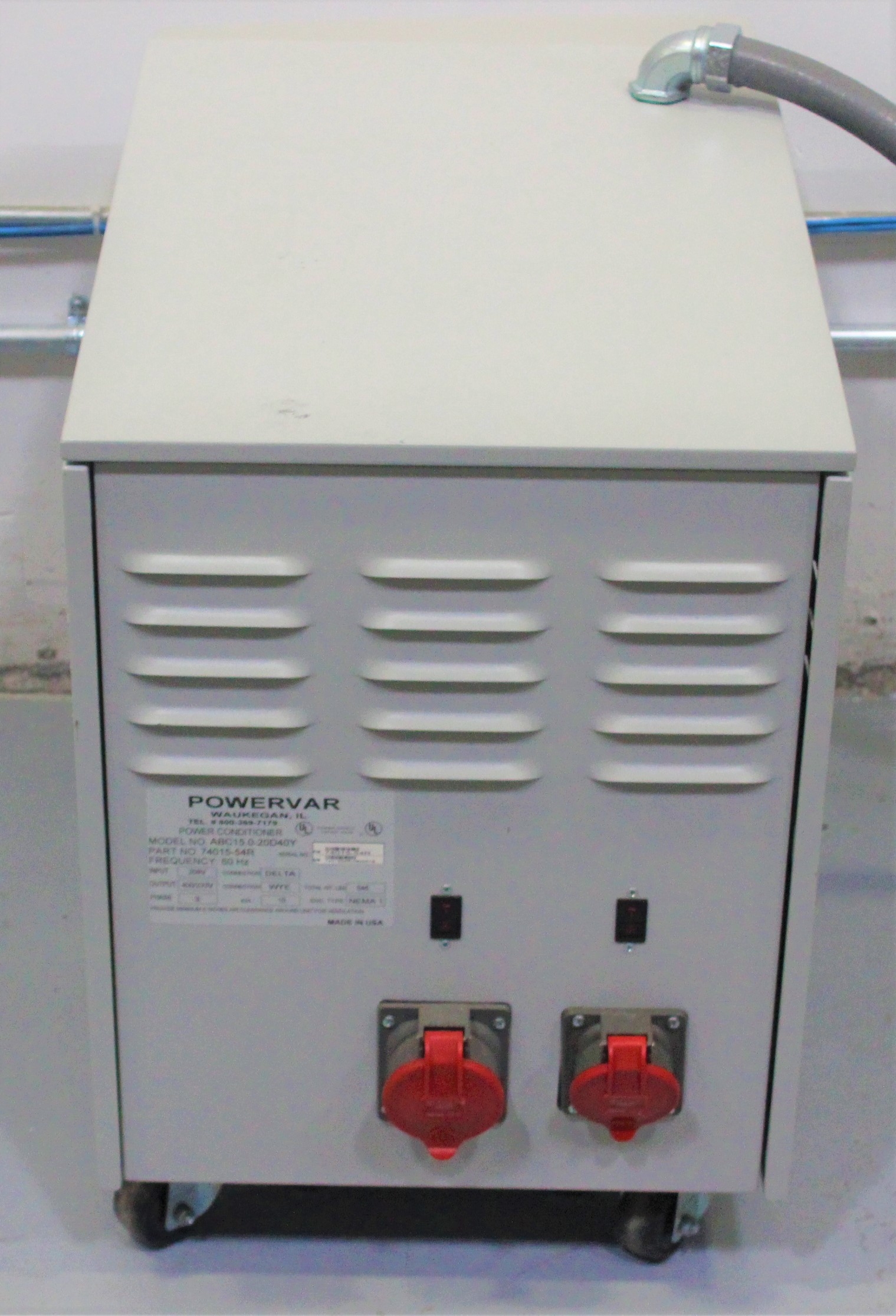

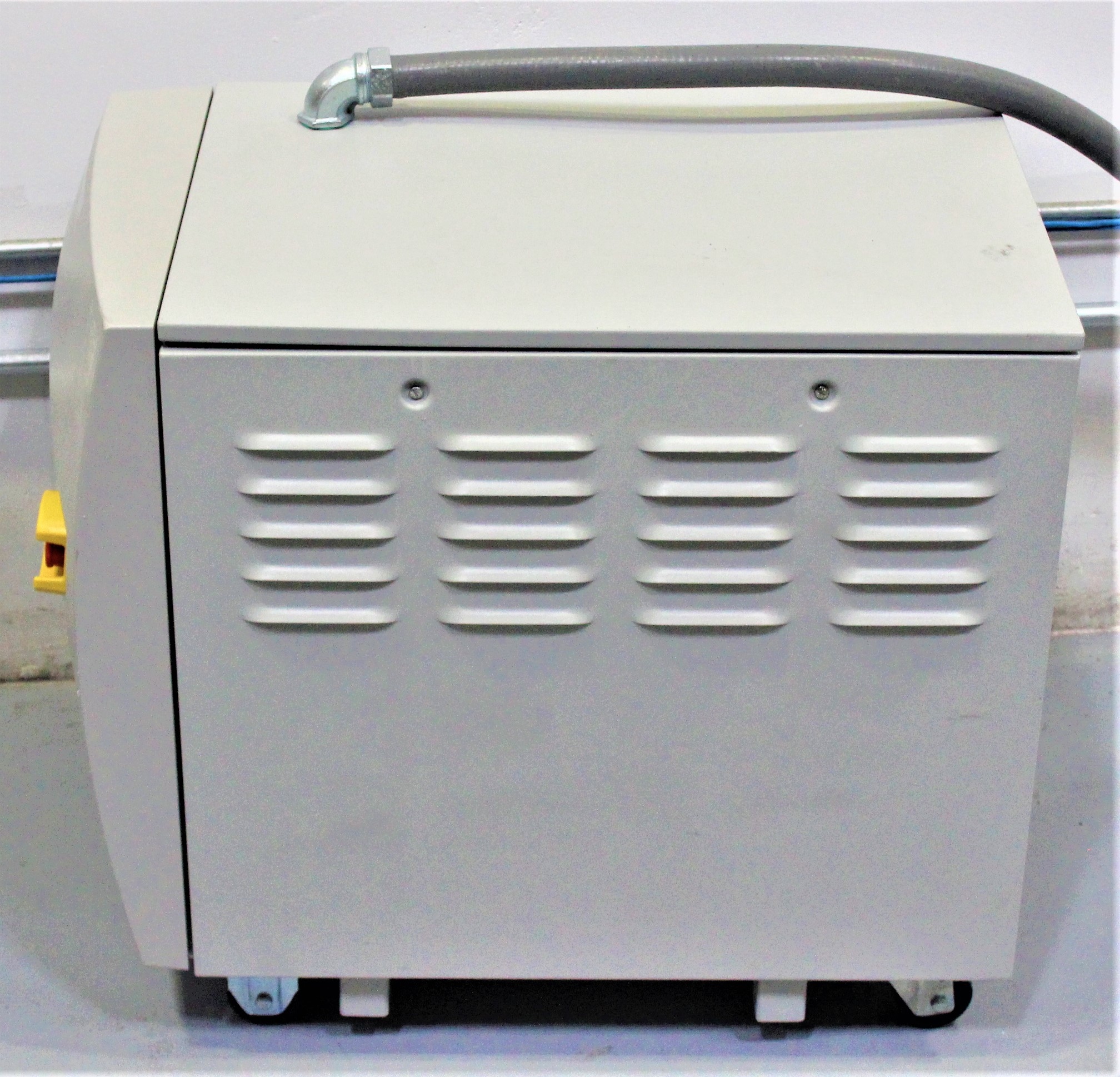

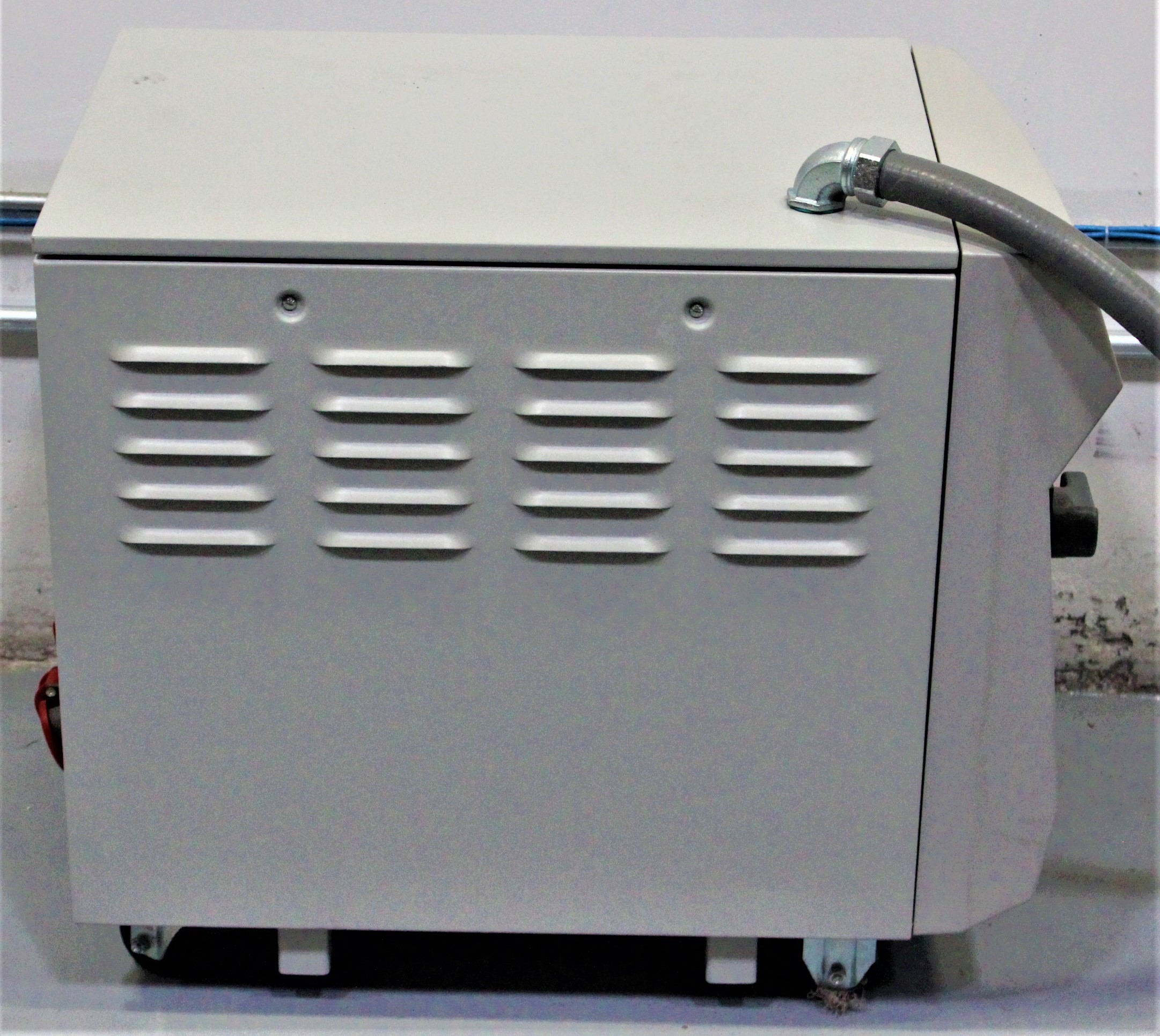

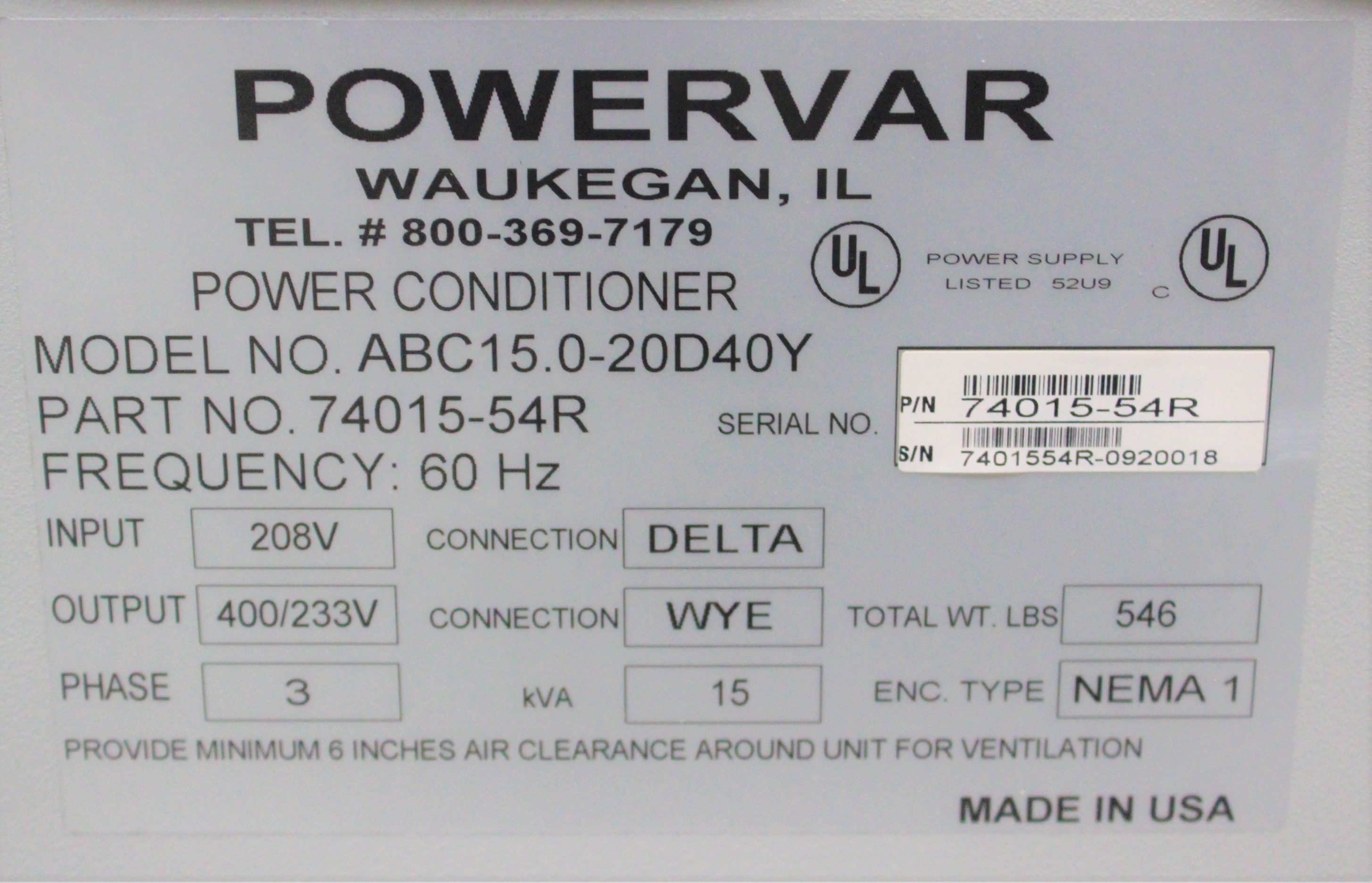

Powervar ABC15.0-20D40Y Power Conditioner Global Voltage Surge Protection
Powervar
Details
-
CategoryComputer / IT
-
Dimension30.0in x 18.0in x 26.0in
-
Serial74015-54R
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
This Powervar ABC15.0-20D40Y power conditioner is a reliable choice for advanced Voltage distribution and power line conditioning. Originating from the United States and designed for consistent performance, the Powervar model features an efficient isolation transformer, surge diverter, and power line filter mechanisms that guard against equipment damage due to noise, spikes, and power transients. The device operates on a dual voltage of 120V/220V at a frequency of 50Hz/60Hz, and has a substantial continuous capacity of 15 kVA. Built to perform under stringent conditions, it boasts copper transformer wires insulated with high-grade Class H materials and provides an impressive efficiency rating of over 97% at full load. The safety of operations is assured with standard safety features including emergency machine off (EMO), safety interlocks, and lockout/tagout breaker. With passing function tests and in a very good used condition, this unit is a steadfast component for maintaining stable power. Casters allow for easy mobility, while compliance with RoHS standards ensures it is environmentally friendly.
Key Features
- Efficient isolation transformer for reduced noise
- Surge diverter and power line filter for spike protection

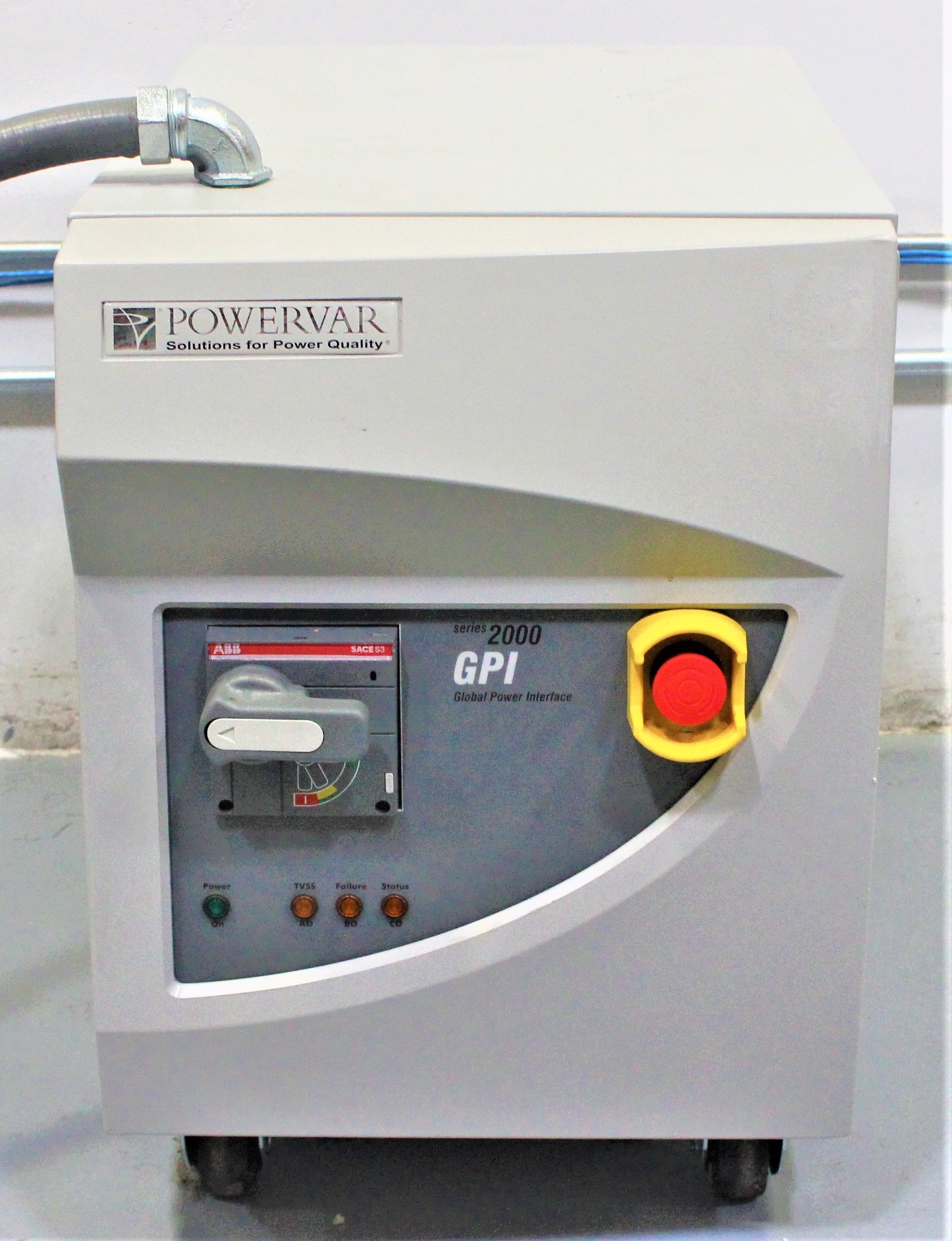

- Standard safety features: EMO, safety interlocks
- Dual voltage operation: 120V/220V
- High efficiency >97% at full load
- Casters for mobility
- RoHS compliant materials
Specifications
- Input Voltage: 208/240/480/600 delta connection (4 wire)
- Output Voltage: 208/120 wye (5 wire)
- Frequency: 60 Hz.
- Continuous Capacity: 15 kVA
- BTU/Hr. Output: 1536
- Step Load Change: + 0.8% at unity power factor
- Noise Rejection: ANSI/IEEE C62.41
- Surge Voltage Withstand: Up to 6000 volts @ 3000 amp
- Construction Materials: Class H copper and Nomex insulation
- RoHS Compliant
Weight
Imperial: 655.2 Pounds
Metric: 297.19 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 21.6 lb x 31.2 lb
Metric: 91.44 cm x 54.86 cm x 79.25 cm
Harmonized Code
8504.40.95
Harmonized Code Details
This code applies to static converters, such as power supplies and UPS devices, relevant for the Powervar ABC15.0-20D40Y's function as a power conditioner providing voltage regulation and surge protection.
