Meyer Plug Pin Gage Set Model 100414 Gage 190 Pieces Class Z USA
N/A
Details
-
CategoryMiscellaneous
-
Dimension16.0in x 10.0in x 3.0in
-
Serialn/a
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

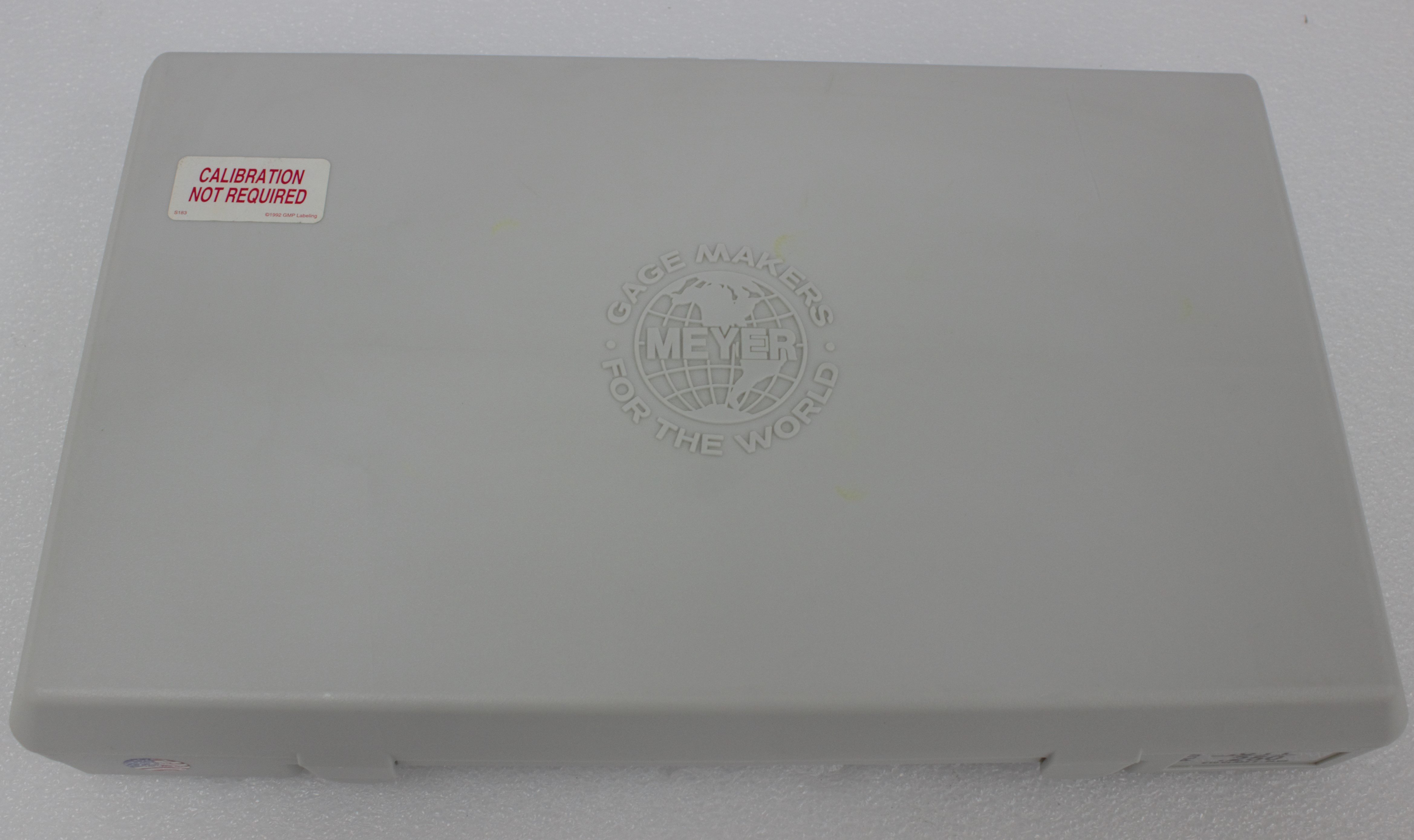

The Meyer Plug Pin Gage Set Model 100414 is a complete gage set ranging from .0115 to .2505 inch, designed to achieve precise measurements within tight tolerances. It includes 190 pieces, ideal for tasks requiring detailed dimensional analysis such as maintaining or calibrating mechanical components. These Class Z Pin Gages are produced with a size deviation of 0.0025mm, offering enhanced accuracy compared to the older Class ZZ metric. Ensuring compliance to NIST standards, each gage in this set comes traceable, providing high reliability for industrial applications. Despite being used, the gages perform effectively, meeting original specifications without compromising on functionality. It is important to note that while the unit powers on and completes basic test passes, full functionality checks were not feasible. Please view the photos for additional cosmetic details. A perfect tool for engineers or professionals working on critical dimensional tolerances.
Key Features

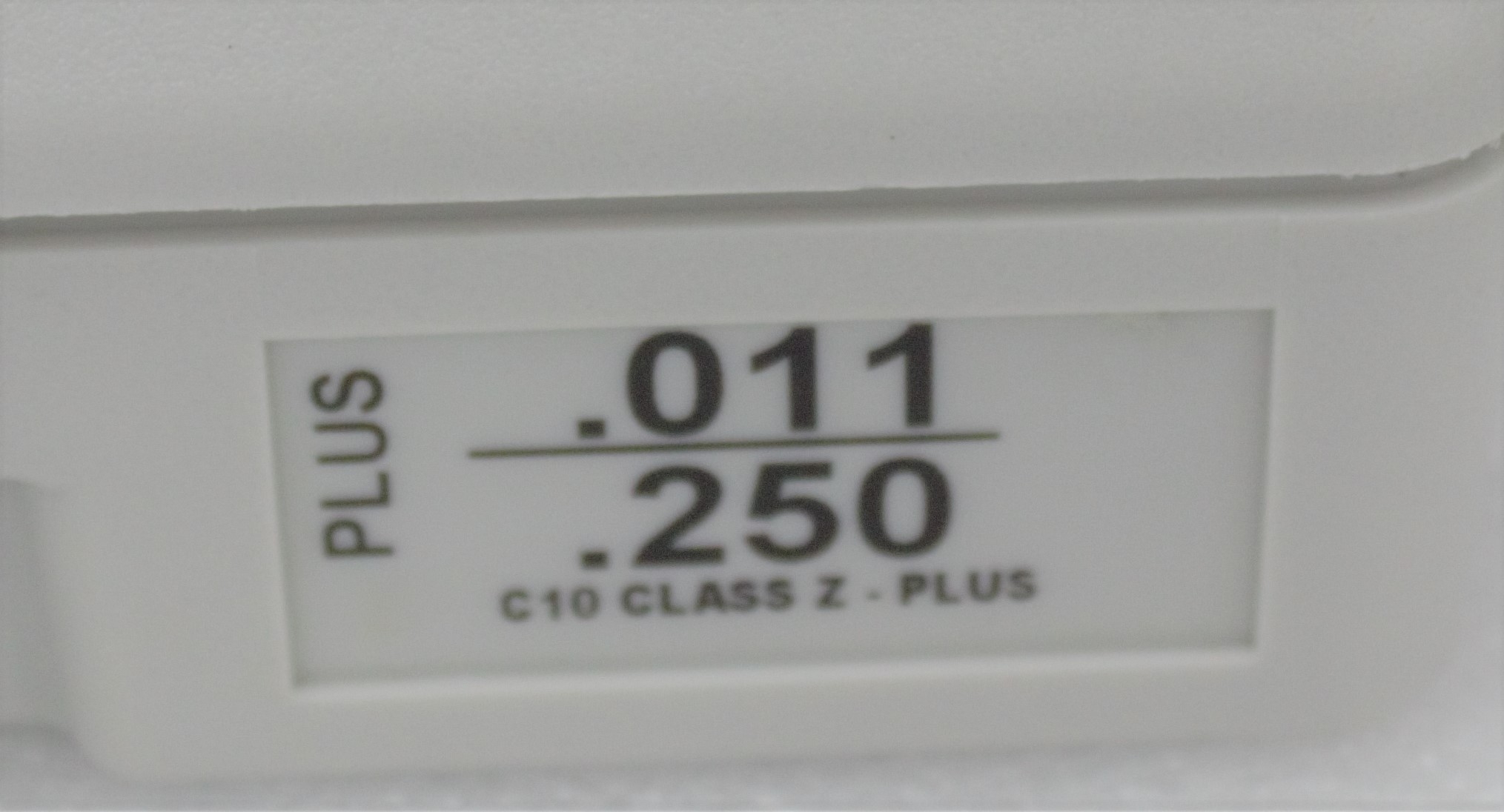

- 190 pieces ranging from .0115 to .2505 inch
- Class Z size deviation of 0.0025mm for accurate measurements
- Traceable to NIST standards for reliability
- Suitable for detailed dimensional analysis
- Ideal for engineers and professionals working with mechanical components
Specifications
- Includes 190 Gage Pins ranging from .0115 to .2505 inches
- Class Z size tolerance of 0.0025mm for improved precision
- Set traceable to NIST standards ensuring high reliability
- Made in the United States
- Used condition with basic functionality test passed
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 12.0 lb x 3.6 lb
Metric: 48.77 cm x 30.48 cm x 9.14 cm
Harmonized Code
9031808085
Harmonized Code Details
9031808085 - Measuring or checking instruments, appliances and machines, n.e.s: Other. This code is justified as the product is primarily used for precise measurement and gauging within industrial environments.
