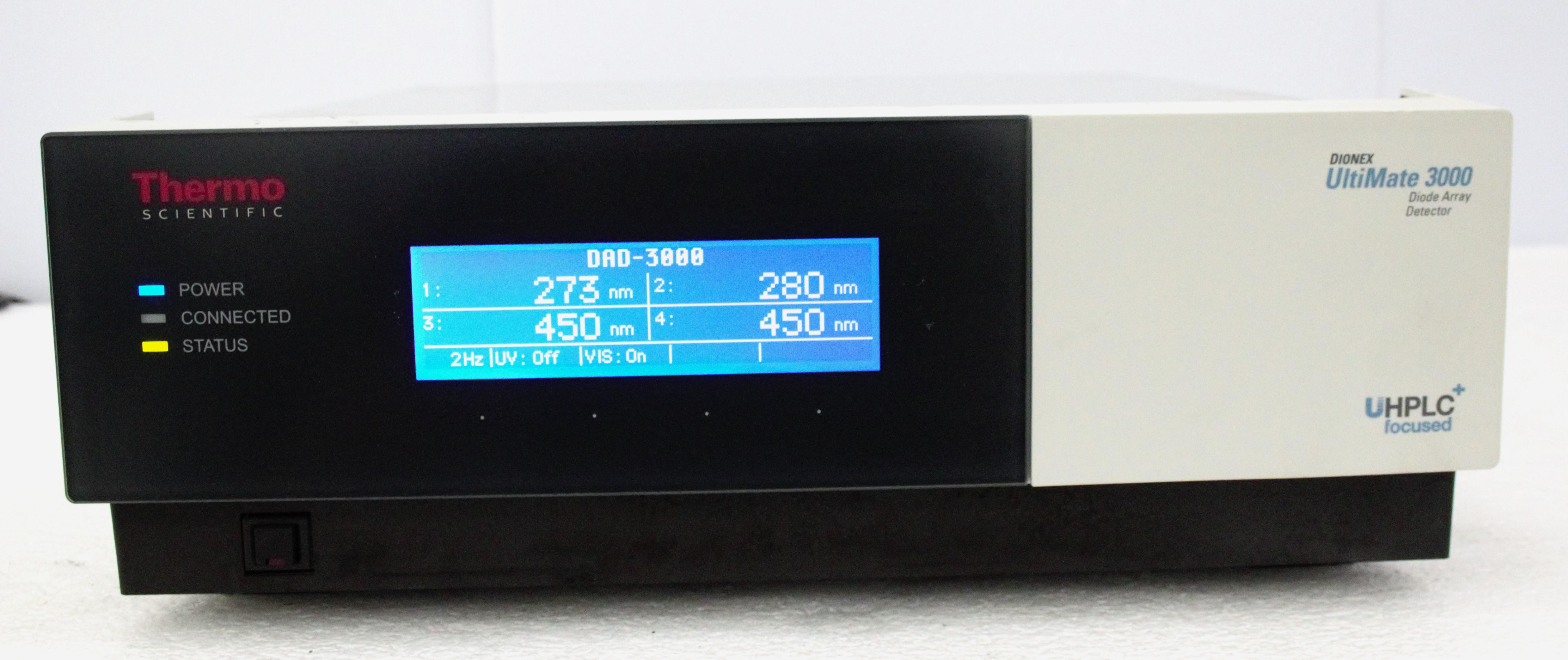

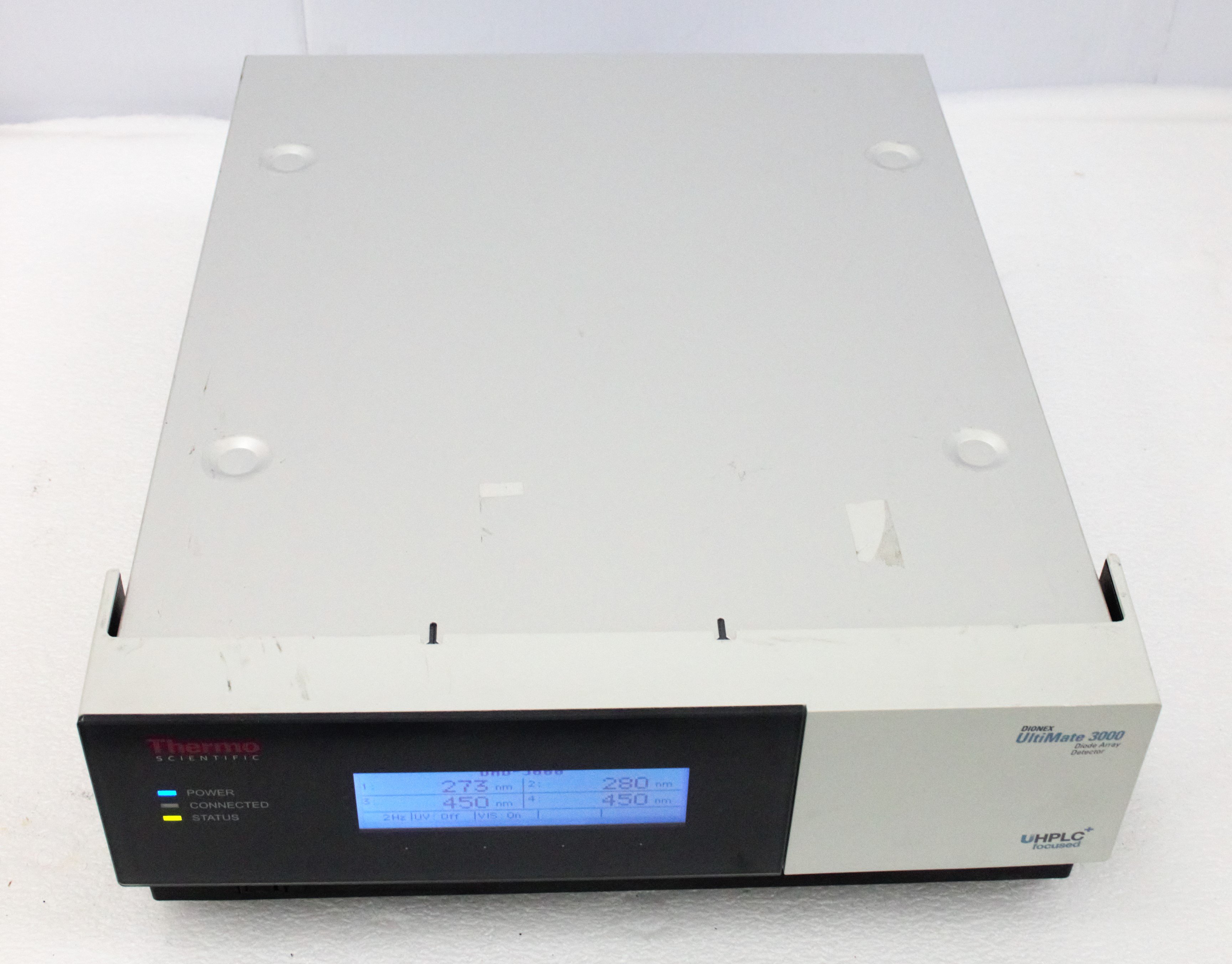

Thermo DAD-3000 Diode Array Detector HPLC UV-vis 200Hz Single-Beam
Thermo Fisher Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 17.0in x 6.0in
-

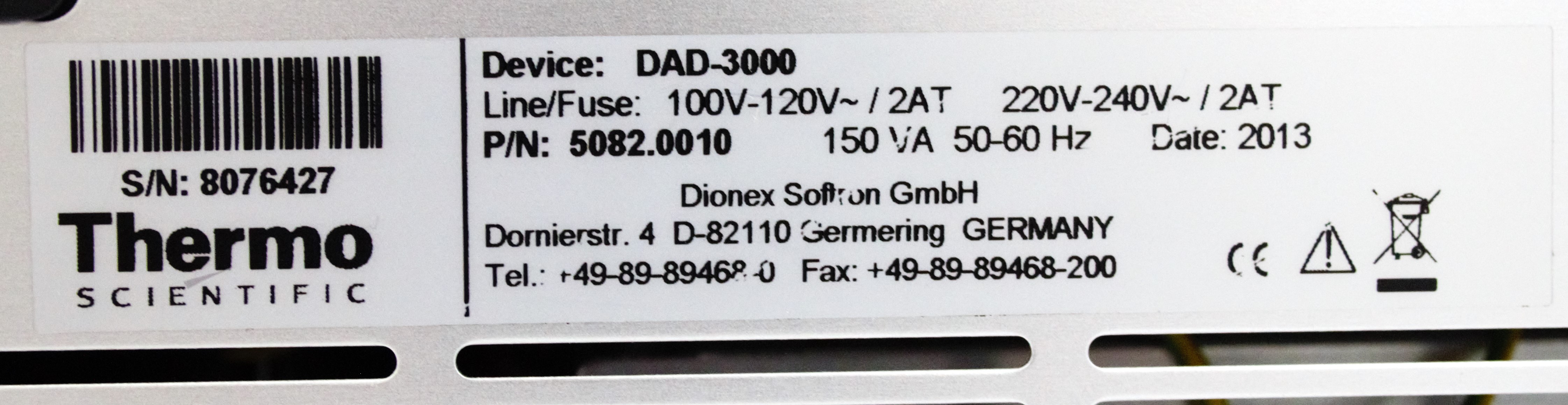

Serial8076427
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Thermo DAD-3000 Diode Array Detector is in excellent condition, showcasing only minimal signs of use. Designed for precision in HPLC applications, this versatile unit can also operate effectively in UHPLC environments. It features a 1024-element diode array, delivering remarkable noise and drift performance through forward-optic detection. With the ability to collect full spectral data post-acquisition, it supports up to eight channels of single-wavelength data acquisition at remarkable speeds of up to 200Hz. The DAD-3000's sophisticated three-dimensional data tools, designed to be used with the Thermo Scientific Dionex Chromeleon Chromatography Data System software, facilitate straightforward data processing and reporting. Notably, this unit includes a Deuterium and Tungsten lamp, ensuring optimal detection between the 190 to 800 nm wavelength. The model does not include a flow cell, allowing users to customize their system. Note that the voltage range of 85 to 260V makes it flexible for diverse operational settings.
Technician comment

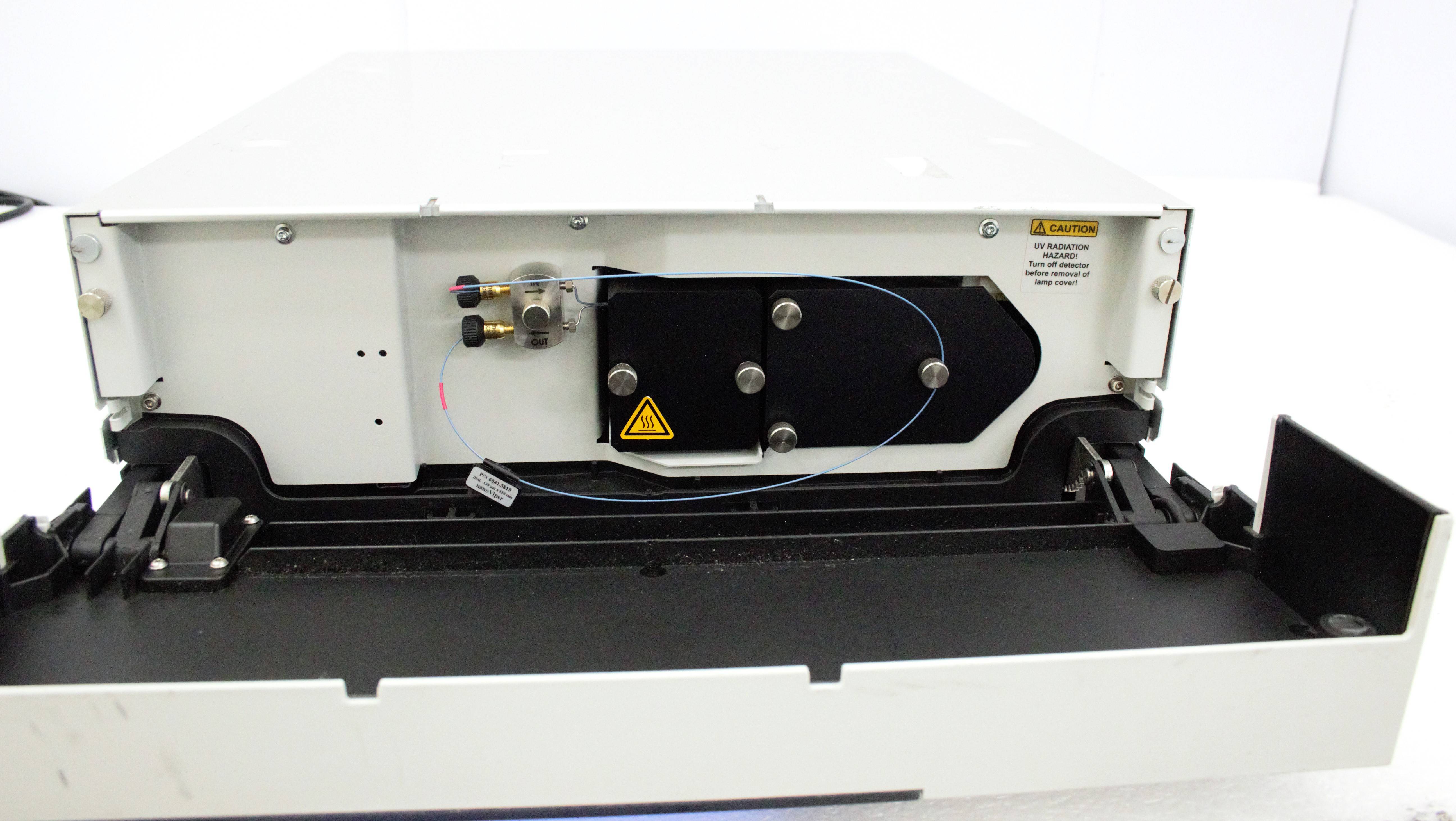

Does not include flow cell
Key Features
- 1024-element diode array
- Supports HPLC and UHPLC applications
- Eight channels for single-wavelength data acquisition
- Forward-optic detection for low noise and drift
- Data collection rate of up to 200Hz
- Wavelength range: 190 to 800 nm
- Deuterium and Tungsten lamps included

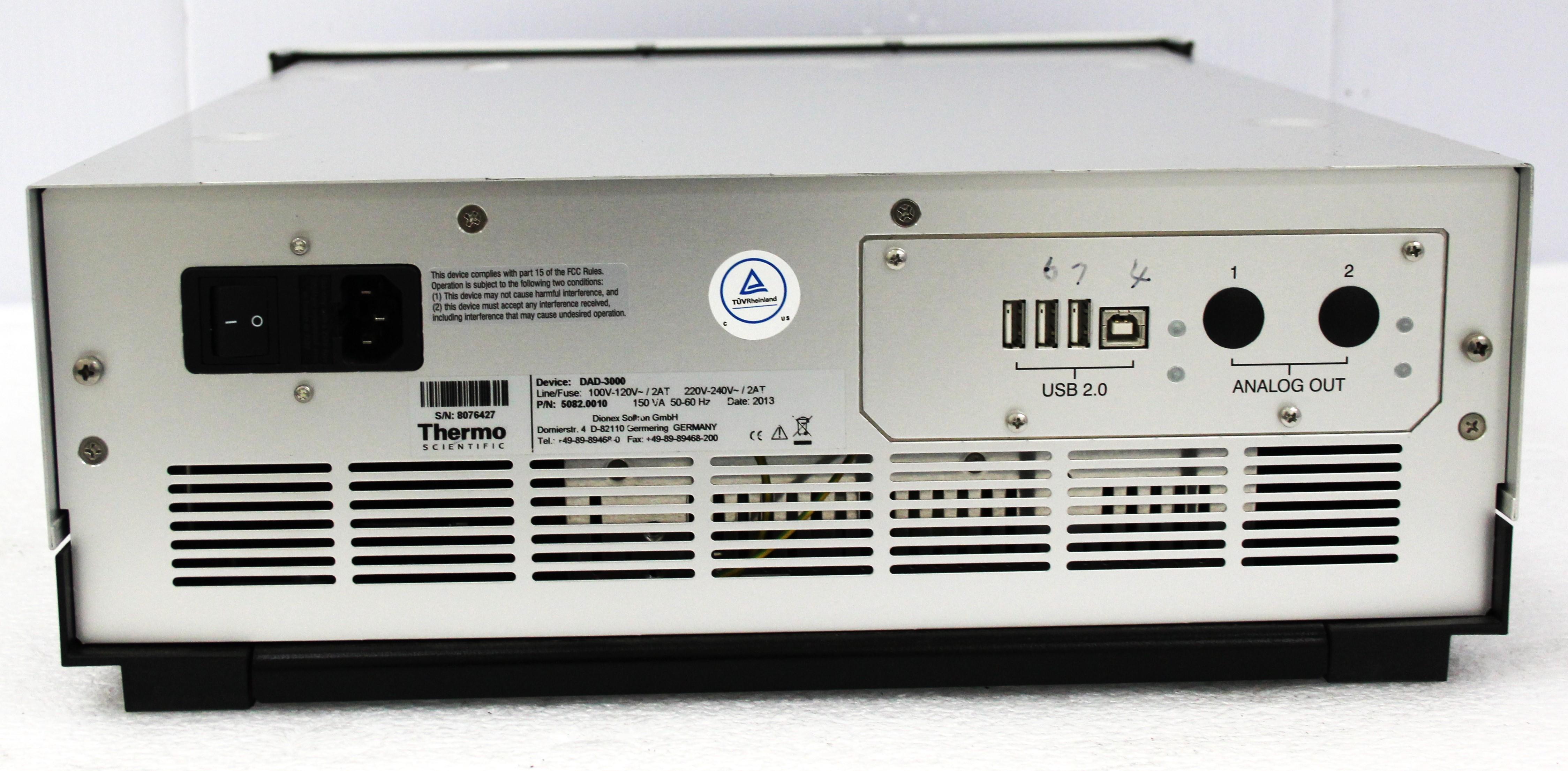

- USB PC connection
- Automatic system wellness and monitoring with Chromeleon Software
- Customizable flow cell options
Specifications
- Data Collection Rate: up to 200Hz
- Detection Mode: UV-vis Detection, 8 Channels
- Detector Type: Single-Beam Diode Array
- Display: LCD Monitor
- Drift: <1 mAU/hr
- Noise: <8 AU
- Optical System: Single-Beam
- PC Connection: USB
- Pixel Resolution: <1.0 nm
- Slit Width: Narrow or Wide Slit, Settable
- Temperature Control: Yes
- Wavelength Accuracy: 1.0 nm
- GLP Features: AutoQ, Lamp and Cell ID Chips
- Voltage: 85 to 260V
- Weight: 25 lbs (11.4 kg)
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 7.2 lb
Metric: 60.96 cm x 51.82 cm x 18.29 cm
Harmonized Code
9027.20
Harmonized Code Details
9027.20 - Instruments and apparatus for physical or chemical analysis: Chromatographs and electrophoresis instruments. Chosen due to the specific usage in chromatography setups for analytical purposes.
