Synrad UC-1000 Controller for Synrad CO2 Lasers with Manual Power Adjust
Synrad
Details
-
CategoryLaser
-
Dimension6.0in x 5.0in x 2.0in
-

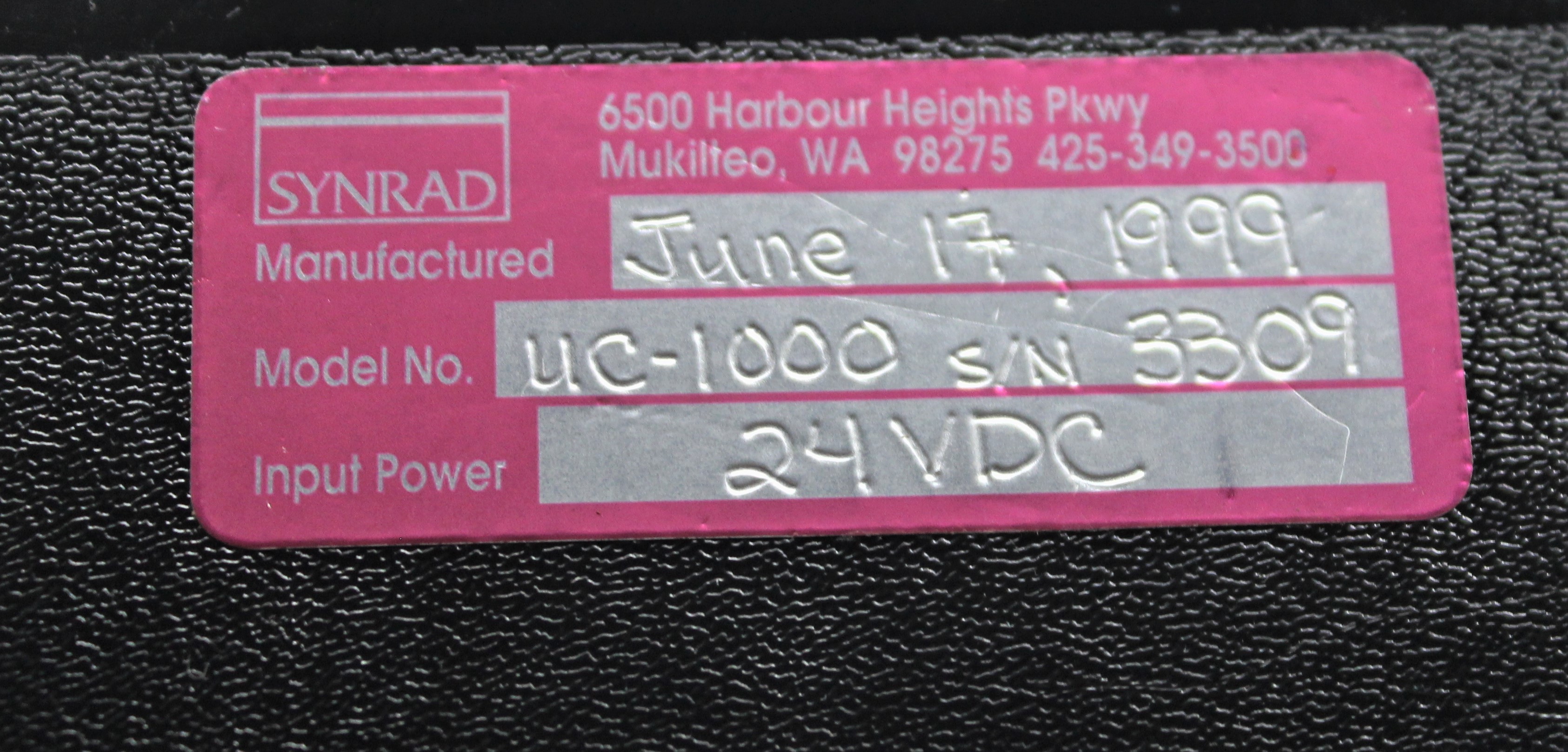

Serial3309
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Synrad UC-1000 is a used stand-alone controller providing versatile interfacing with Synrad 48, 57, 60, and Evolution Series CO2 lasers. Designed in the United States, this model fits applications requiring precise laser power control. The UC-1000 supports remote analog control through current and voltage inputs, catering to zero to maximum power needs with safe input currents up to 100 mA and voltages up to 15 VDC. Manual mode allows for direct laser power adjustments via the Power Adj control knob, extending flexibility for users. The controller confidently supports operation with few cosmetic damages and passes function tests without showing error messages. Standby and tickle signal outputs ensure laser system readiness while maintaining zero to maximum power operations. Includes a power cord for easy integration. Computer and software are not included.
Key Features
- Stand-alone controller
- Interfaces with Synrad 48, 57, 60, Evolution Series CO2 lasers
- Remote analog control via current and voltage inputs
- Manual laser power control
- Tickle and standby signal outputs
Specifications
- Remote Analog Current Input: 4-20 mA with 5% tolerance
- Zero to max power output capacity
- Safe Input Current: +100 mA
- Input Resistance: 220 ohms to ground
- Remote Analog Voltage Input: 0-10 VDC with 5% tolerance
- Safe Input Voltage: +15 VDC
- Input Resistance: 10 k ohms to ground
- Closed Loop Low/High Gain Sensor Inputs: 3-13 VDC, 1-5-4 VDC

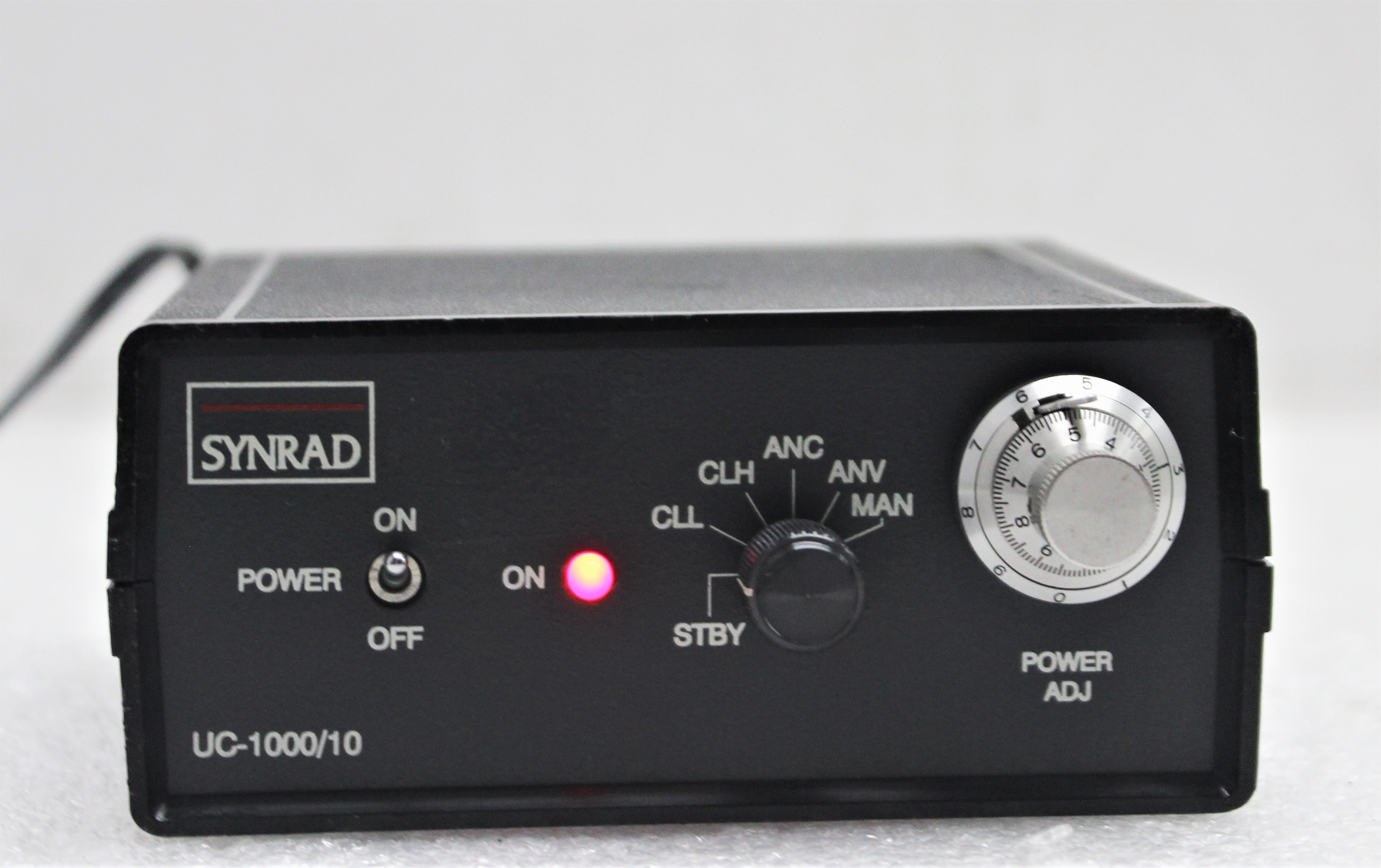

- Manual Mode Control via Power Adj control knob
- Output Signal Range: Zero power (tickle) to 95% duty cycle
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 6.0 lb x 2.4 lb
Metric: 18.29 cm x 15.24 cm x 6.1 cm
Harmonized Code
854231
Harmonized Code Details
The harmonized code 854231 covers electronic integrated circuits used in equipment like this laser controller, designed for converting, controlling electronic signals. The Synrad UC-1000 serves as an intermediary for laser applications, fulfilling this role.
