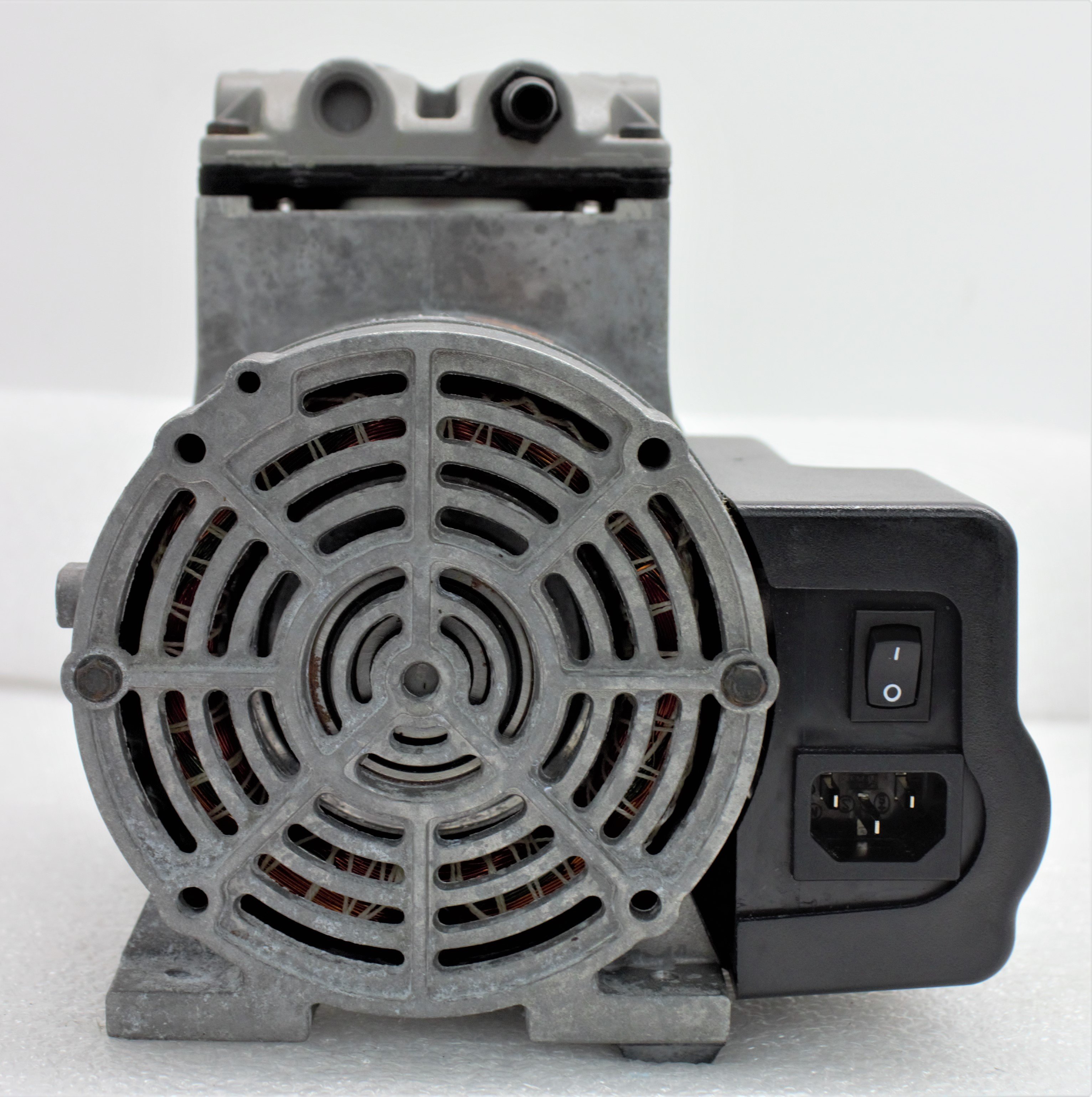

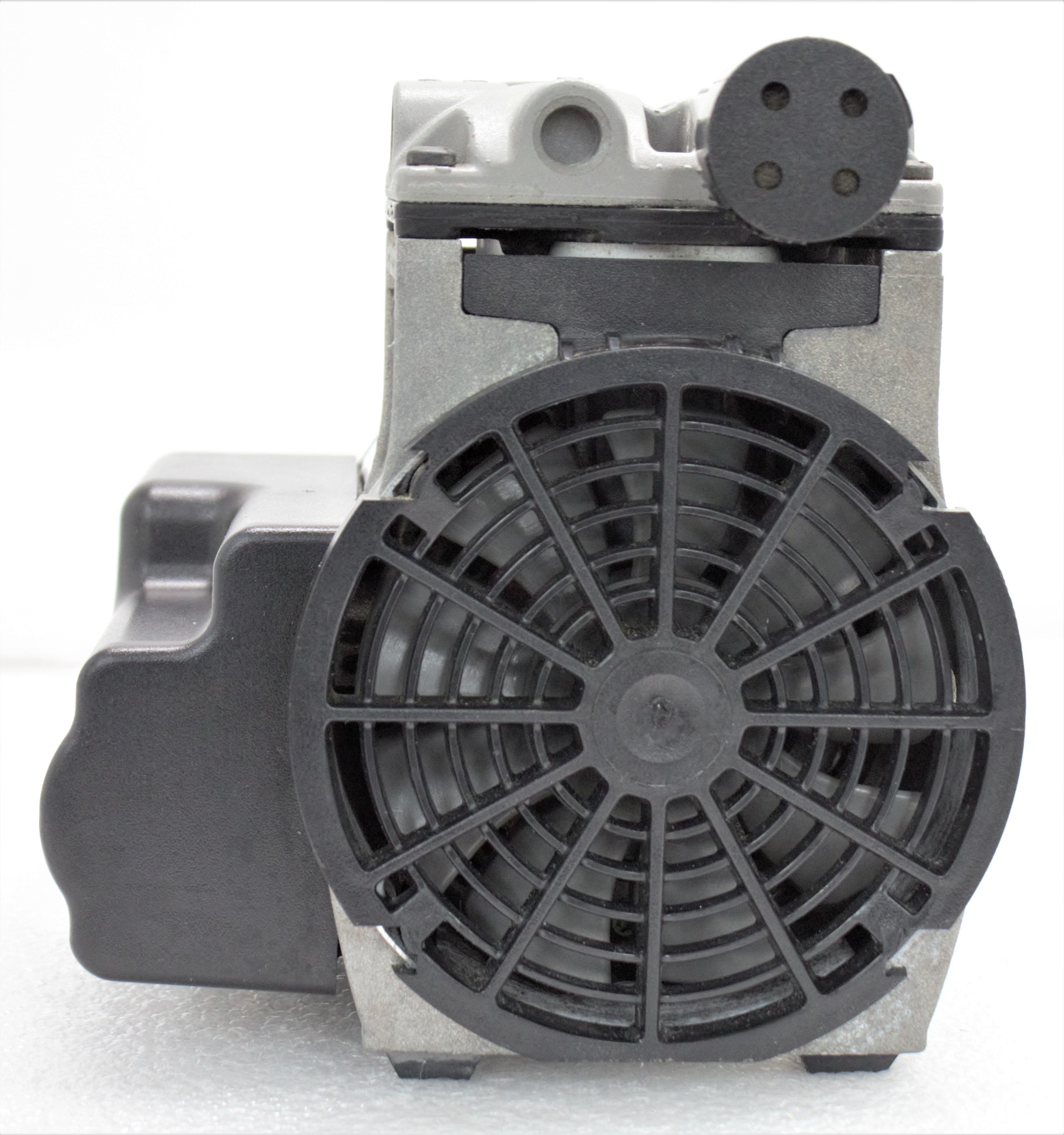

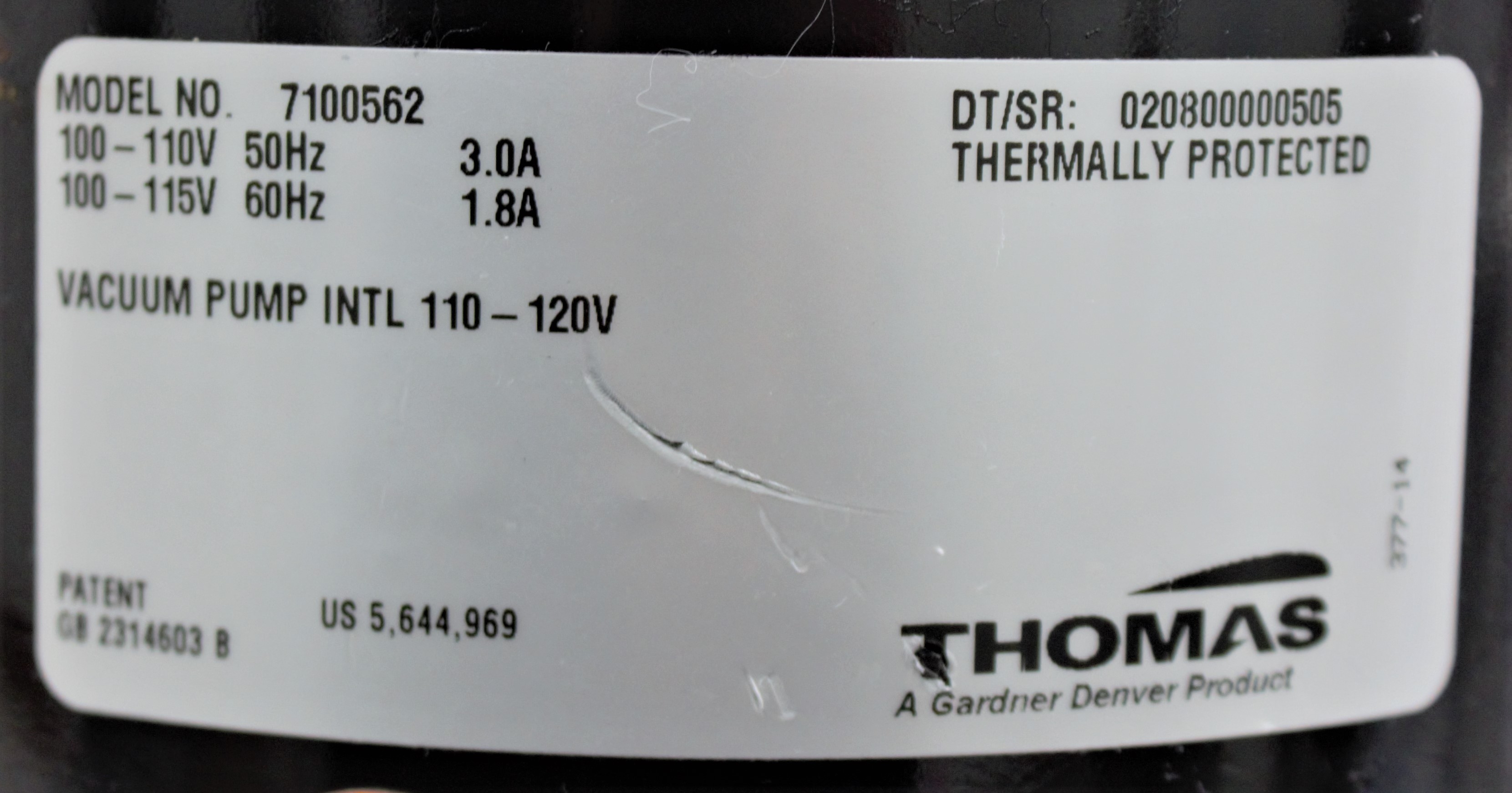

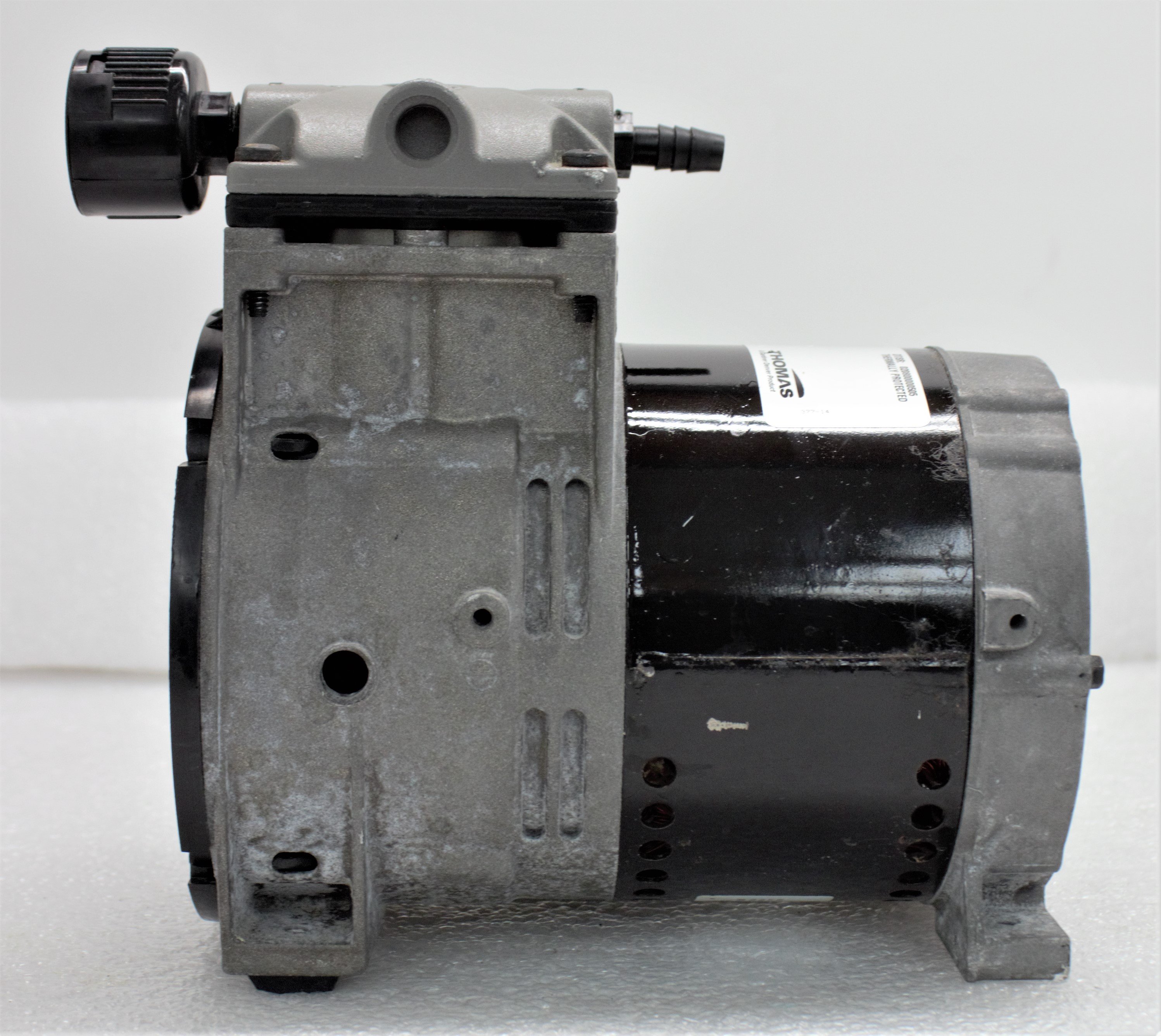

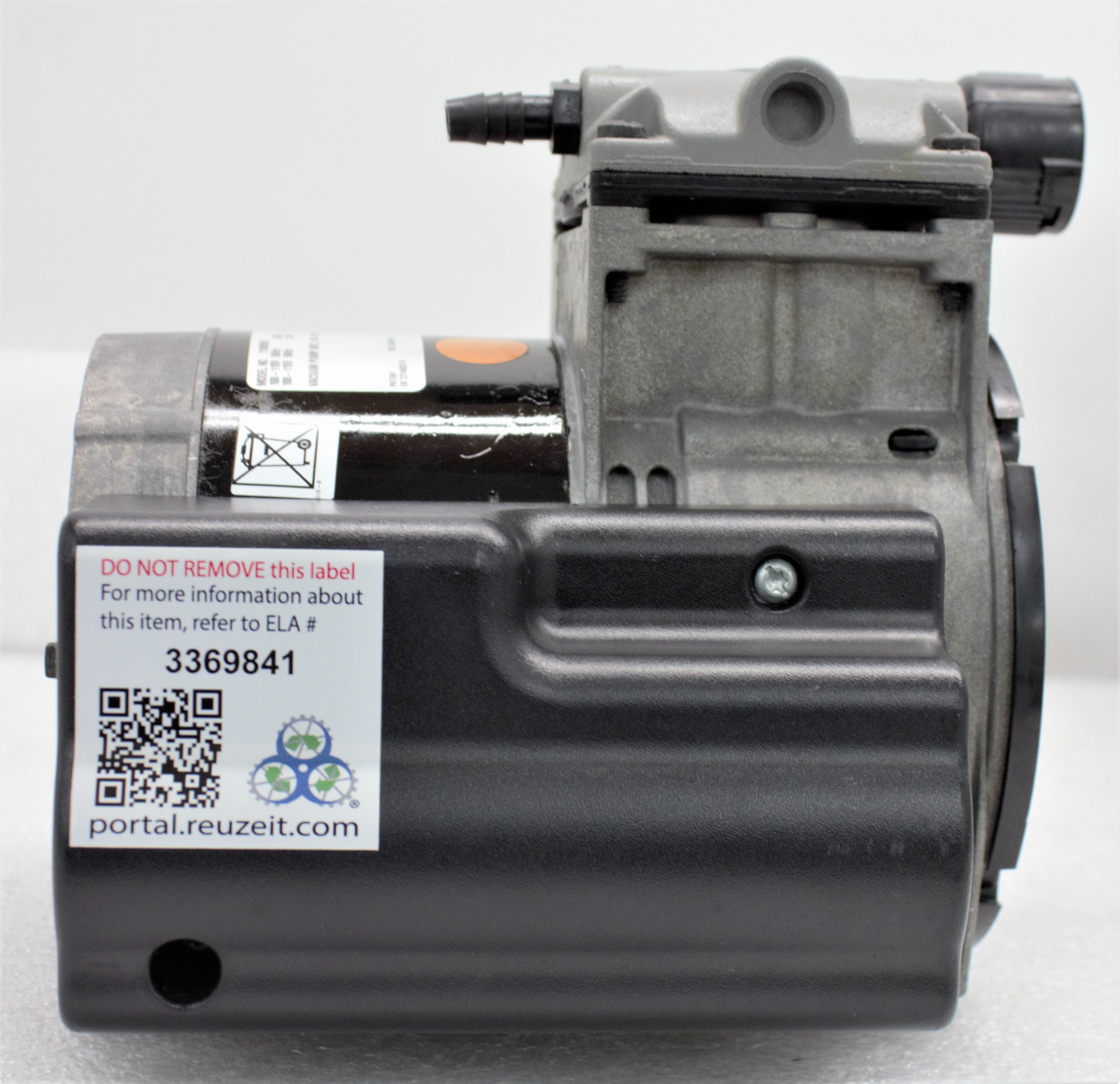

Thomas 7100562 Piston Vacuum Pump 2.7 CFM Oil-less Stainless Valves
Thomas
Details
-
CategoryPump
-
Dimension7.0in x 7.0in x 8.0in
-
Serial020800000505
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Thomas model 7100562 Oil-Less Piston Vacuum Pump, manufactured in the United States, delivers reliable performance with sophisticated design features. This equipment performs effectively as tested, though it has one missing peg, resulting in a slight tilt and minor cosmetic wear visible on its sides. The pump employs an oil-less, non-lube piston and cylinder system, reducing maintenance needs and ensuring clean operation. Its stainless-steel valves, aluminum valve plates, and lightweight die-cast aluminum construction make it a durable choice for various lab processes. Designed with a long-life PTFE compound piston seal, this pump supports a flow rate of 2.7 CFM (77 LPM), a maximum pressure of 35 PSIG (2.4 bar), and can reach a maximum vacuum of 28.5 in Hg V (-966 mbar). Ideal for applications requiring high efficiency and reliability without the use of oil-based lubrication.
Key Features
- Oil-less, non-lube design
- Permanently lubricated bearings
- Stainless steel valves
- Die-cast aluminum components
- PTFE compound piston seal
- Flow rate: 2.7 CFM / 77 LPM
- Max pressure: 35 PSIG / 2.4 bar
- Max vacuum: 28.5 in Hg V / -966 mbar
Specifications
- Model: 7100562
- Flow Rate: 2.7 CFM / 77 LPM
- Max Pressure: 35 PSIG / 2.4 bar
- Max Vacuum: 28.5 in Hg V / -966 mbar
- Voltage: 120V
- Frequency: 50Hz/60Hz
- Stainless steel valves
- Aluminum valve plates
- Long-life PTFE compound piston seal
- Die-cast aluminum construction
- Product is used with minor cosmetic signs
Weight
Imperial: 16.8 Pounds
Metric: 7.62 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 8.4 lb x 9.6 lb
Metric: 21.34 cm x 21.34 cm x 24.38 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps: This code applies as the unit specifically functions as an oil-less vacuum pump, suitable for various scientific and industrial applications.
