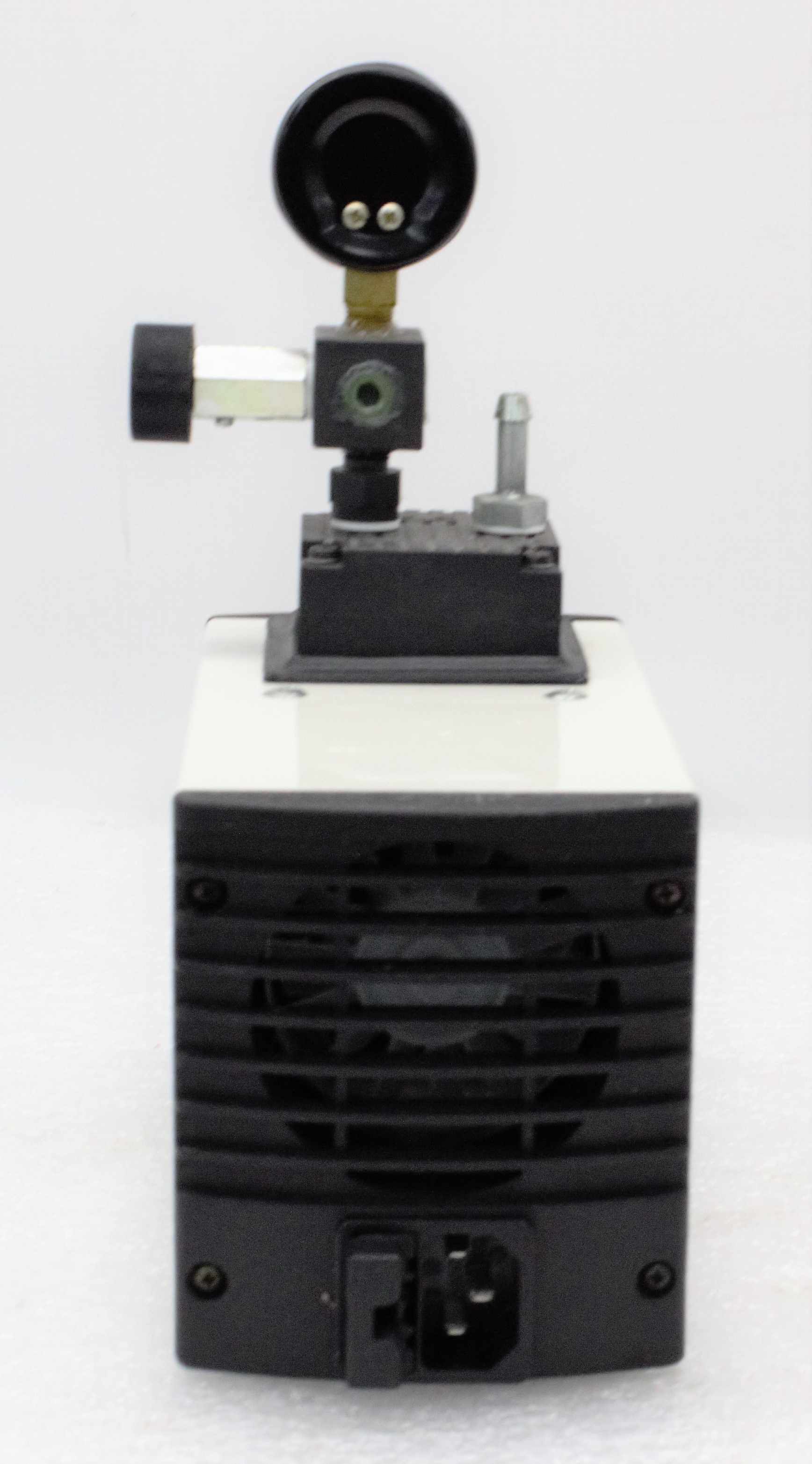

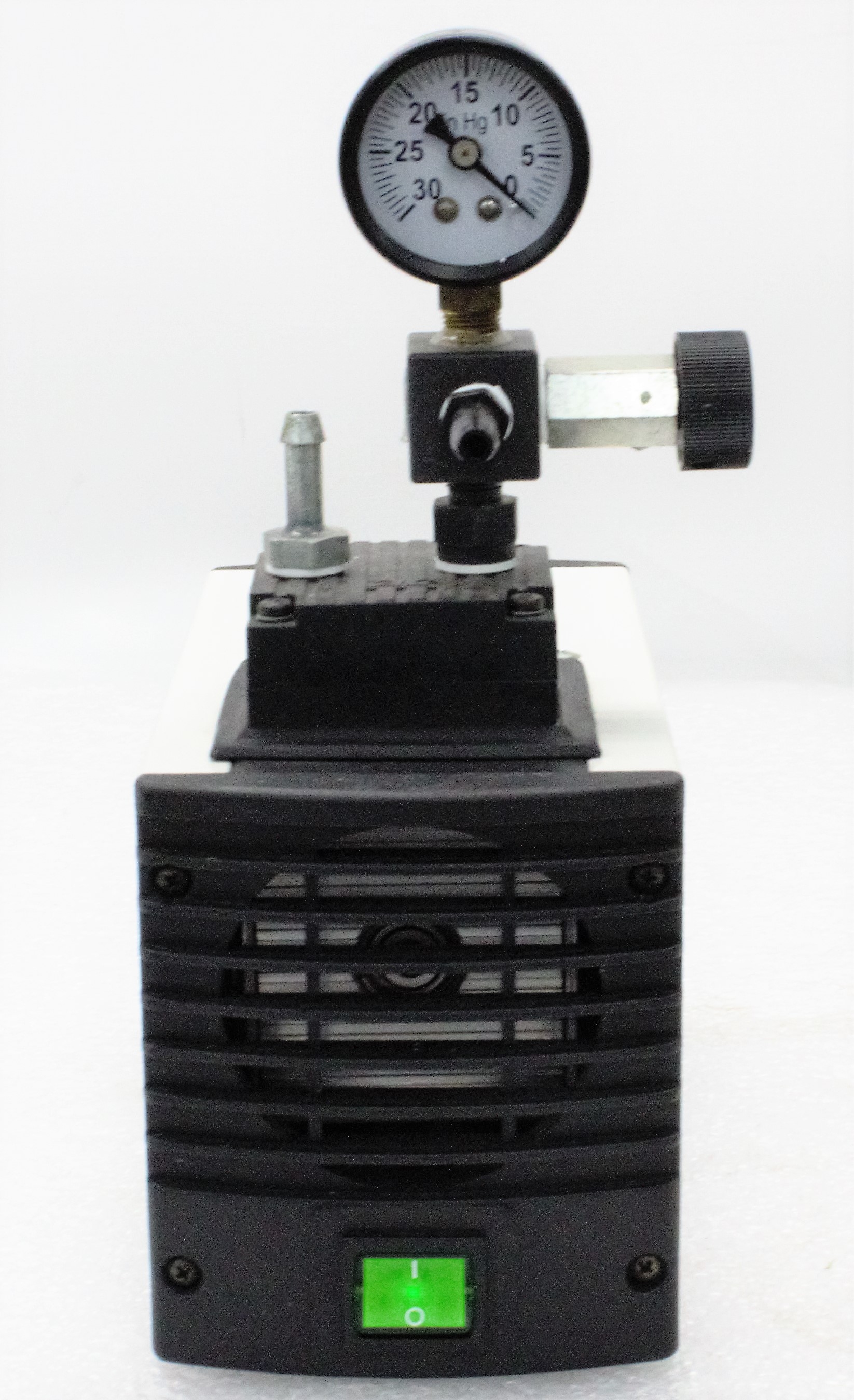

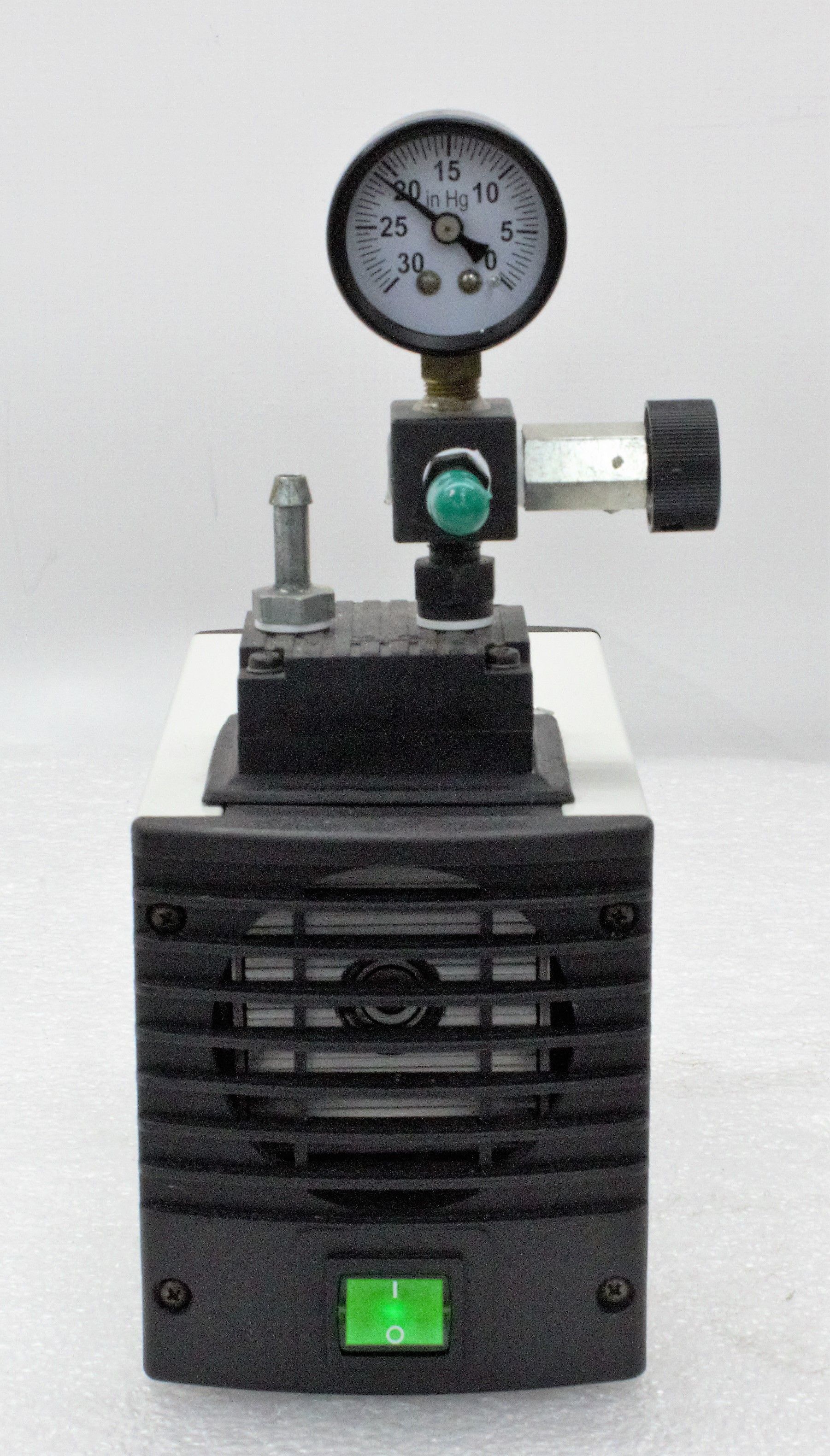

KNF UN811KV.45P Vacuum Pump Diaphragm Filtration 100mbar 13l/min Used
KNF
Details
-
CategoryPump
-
Dimension8.0in x 4.0in x 9.0in
-

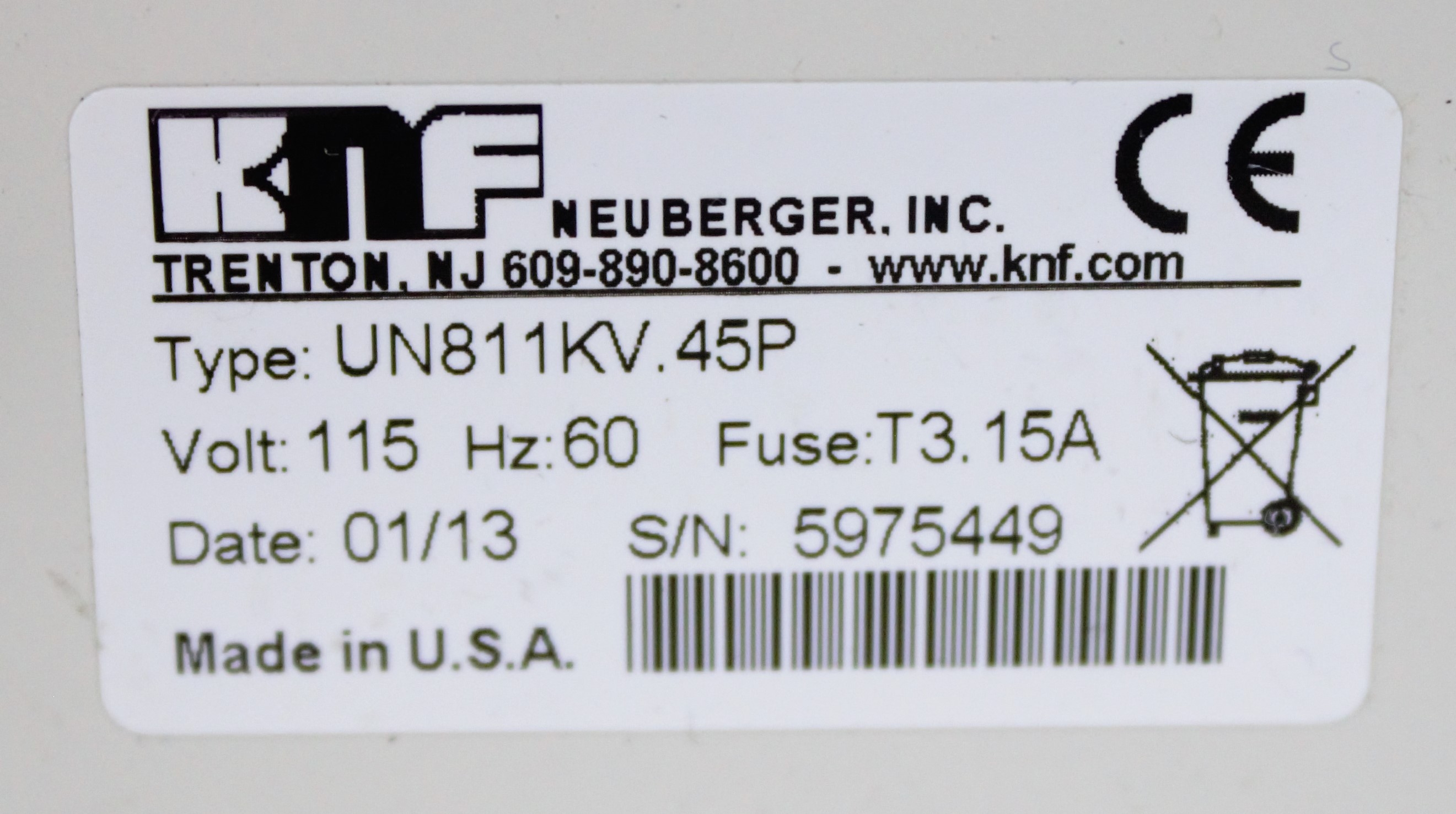

Serial5975449
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The KNF UN811KV.45P Mini Diaphragm Filtration Vacuum Pump, manufactured by KNF in the United States, is a versatile and chemically resistant, oil-free diaphragm vacuum pump designed for a broad spectrum of laboratory applications. This device is equipped with a PPS head and PTFE-coated diaphragm, along with FPM valves to ensure effective and reliable performance. With an integrated vacuum gauge and regulator, it offers easy control over vacuum processes, making it a valuable asset in laboratories. Key specifications include a maximum flow rate of 13 liters per minute, ultimate vacuum pressure of 100mbar (abs), and maximum pressure of 0.5 bar (rel). The unit operates oil-free, ensuring a clean and safe environment for sensitive experiments. Its efficient design is complemented by corrosion resistance and a compact footprint, making it ideal for space-constrained workspaces. This product has been tested and is in excellent condition with little use, without notable cosmetic damage.
Key Features
- Chemically resistant
- Oil-free operation
- PPS head with PTFE-coated diaphragm
- Integrated vacuum gauge and regulator
- Flow Rate: 13 l/min
- Ultimate Vacuum: 100mbar
- Corrosion-resistant
- Compact design
Specifications
- Maximum Flow Rate: 13 liters per minute
- Ultimate Vacuum Pressure: 100mbar (absolute pressure)
- Maximum Pressure: 0.5 bar (relative pressure)
- Permissible Media Temperature: 5-40°C
- Permissible Ambient Temperature: 5-40°C
- Oil-free, clean operation
- Corrosion-resistant materials: PPS head, PTFE-coated diaphragm, FPM valves
- Integrated vacuum gauge and regulator for enhanced control
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 4.8 lb x 10.8 lb
Metric: 24.38 cm x 12.19 cm x 27.43 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; this code is applicable as the KNF UN811KV.45P is categorized under vacuum pumps, suitable for laboratory and industrial use, and meets the description and purpose defined in the harmonized tariff schedule.
