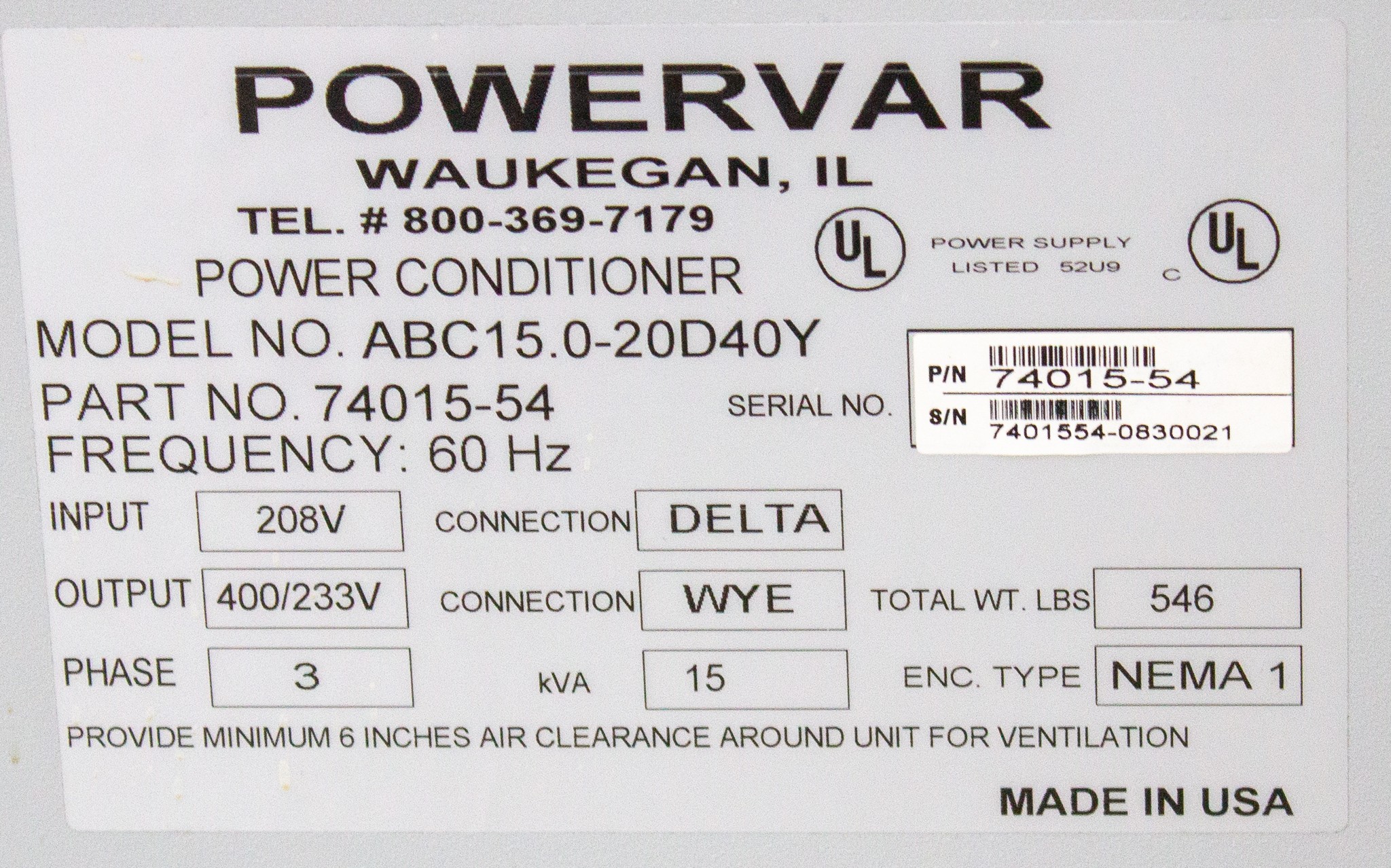

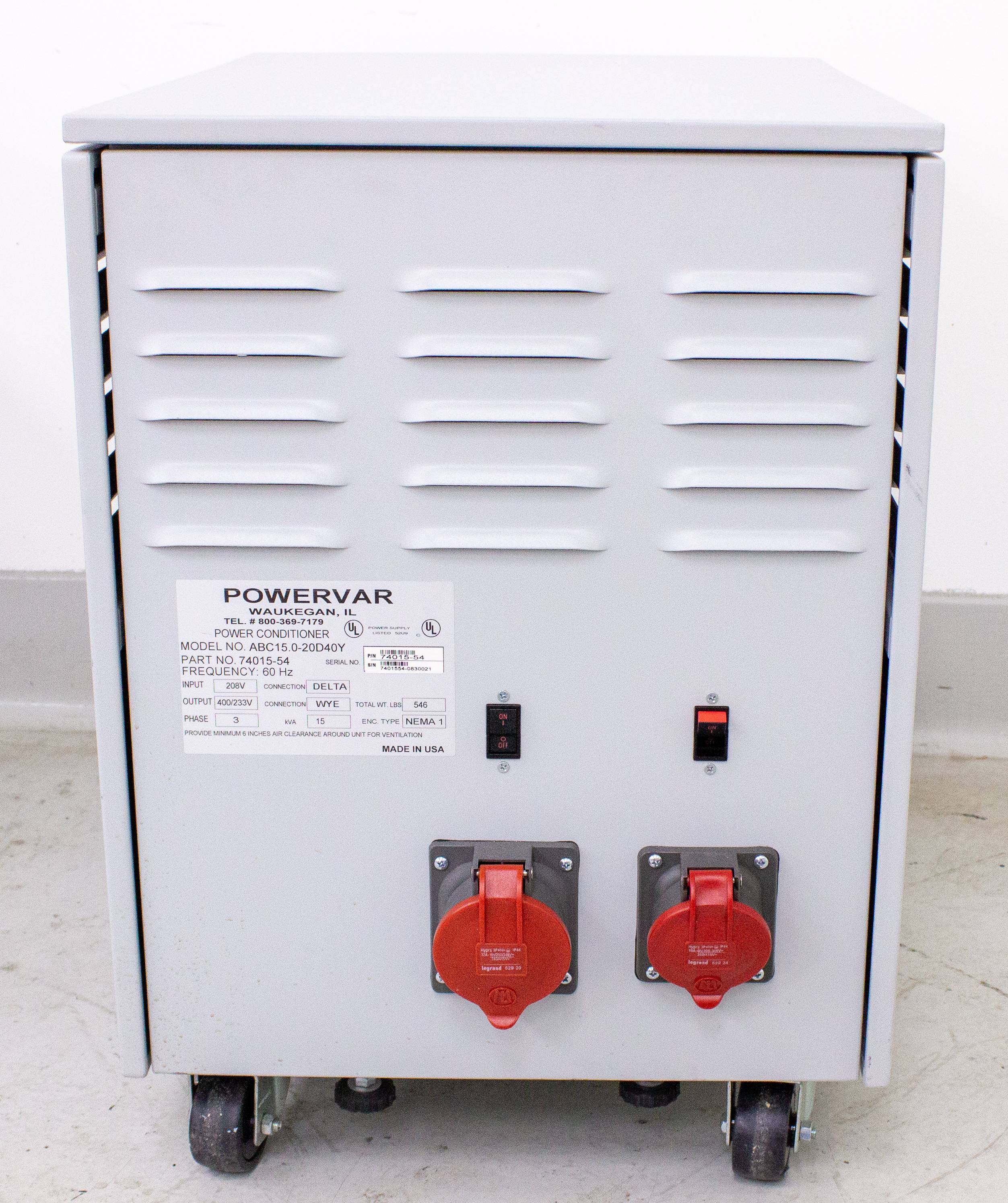

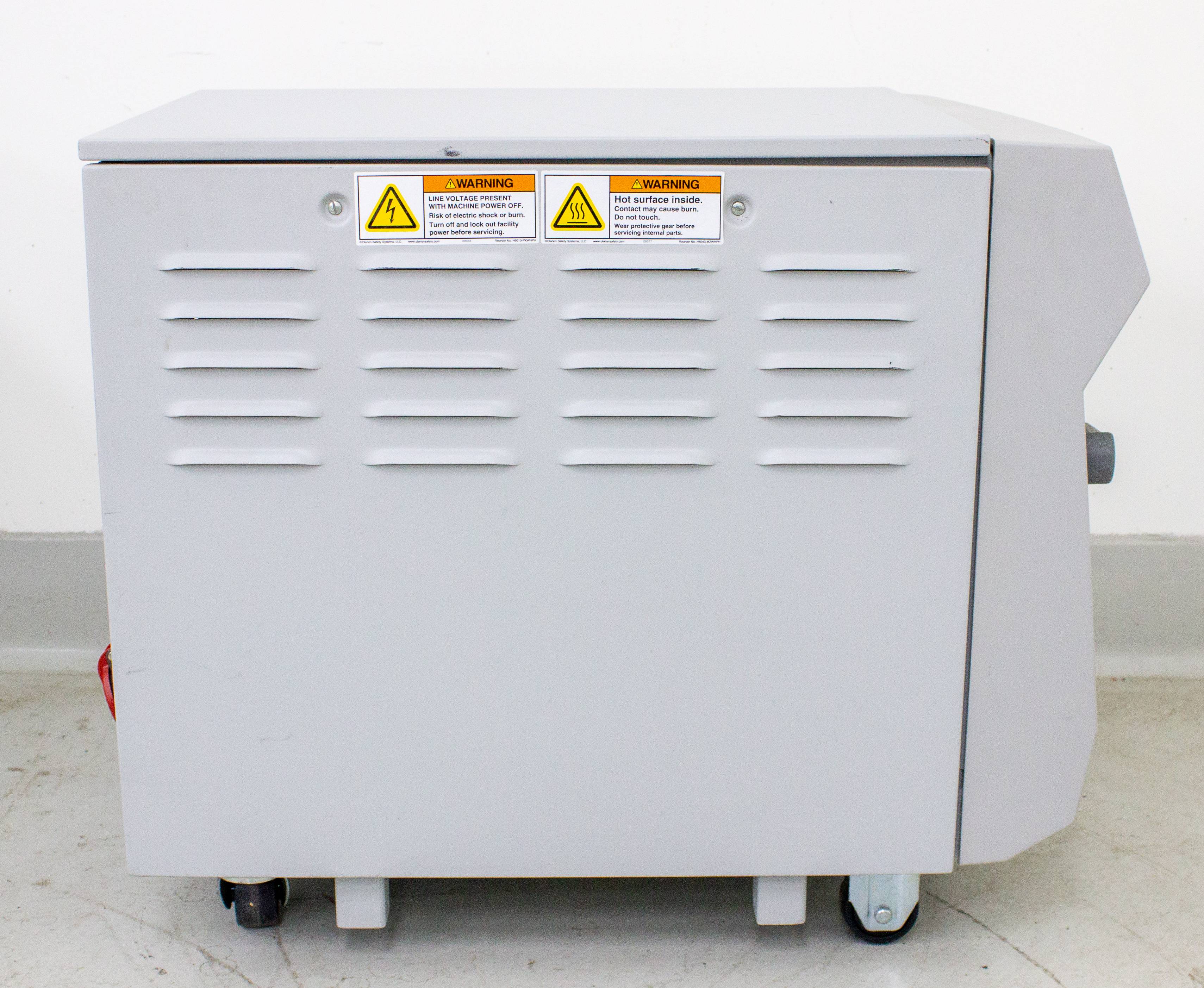

Powervar ABC15.0-20D40Y Power Conditioner 220V 15kVA 3-Phase Noise Rejection
Powervar
Details
-
CategoryMiscellaneous
-
Dimension31.0in x 18.0in x 26.0in
-
Serial7401554-0830021
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description

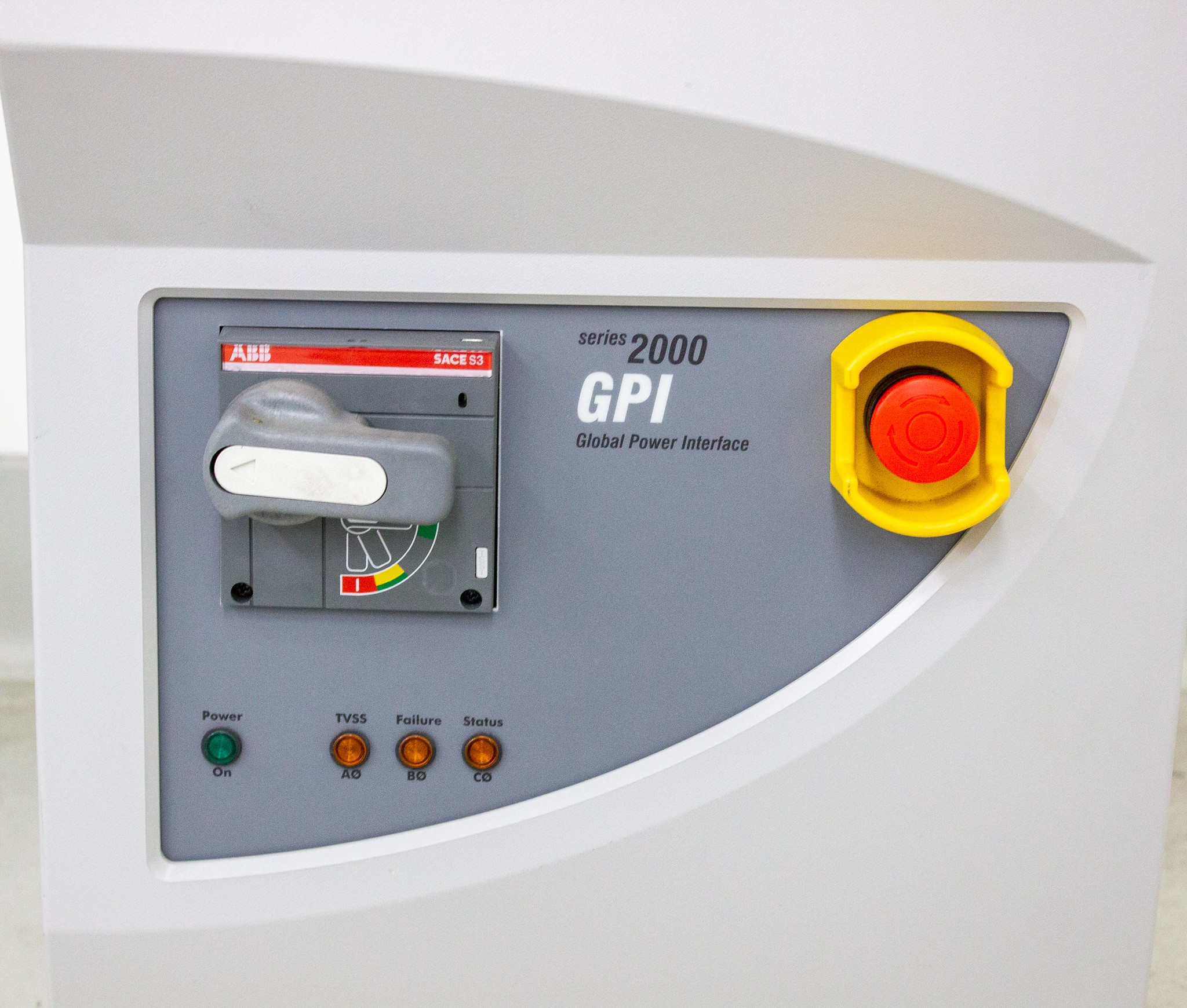

The Powervar 2000 GPI Global Power Interface ABC15.0-20D40Y is a used power conditioner designed for eliminating high-frequency noise and high-voltage impulses in AC power, vital for electronic equipment's reliability. Classified as 'Very Good' condition, it demonstrates impressive capabilities including surge protection and noise rejection under ANSI/IEEE standards. With a capacity of 15 kVA, it efficiently handles power with over 97% efficiency at full load. Despite some cosmetic wear, it functions well for intended purposes. Note that a power cord is not included. Crafted with robust construction materials, it is RoHS compliant.
Key Features
- Eliminates high-frequency noise and high-voltage impulses
- Three-phase protection for all transformer phases
- Sophisticated electronic protection
- 15 kVA continuous capacity
- > 97% efficiency at full load
- RoHS compliant construction
Specifications
- Input Voltage: 208/240/480/600 delta connection (4 wire)
- Output Voltage: 208/120 wye (5 wire)
- Continuous Capacity: 15 kVA
- BTU/Hr. Output: 1536
- Efficiency: > 97% (at full load, unity power factor)
- Step Load Change: +0.8% (at unity power factor)
- Noise Rejection: < 10 volts normal mode, < 0.5 volts common mode
- Surge Voltage Withstand: Up to 6000 volts @ 3000 amp ringwave
- Construction Materials: Copper wires, Class H insulation, Nomex paper
- RoHS compliant
Weight
Imperial: 655.2 Pounds
Metric: 297.19 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 21.6 lb x 31.2 lb
Metric: 94.49 cm x 54.86 cm x 79.25 cm
Harmonized Code
850440
Harmonized Code Details
The code 850440 applies to static converters including power conditioners as they convert electrical currents and provide power conditioning.
