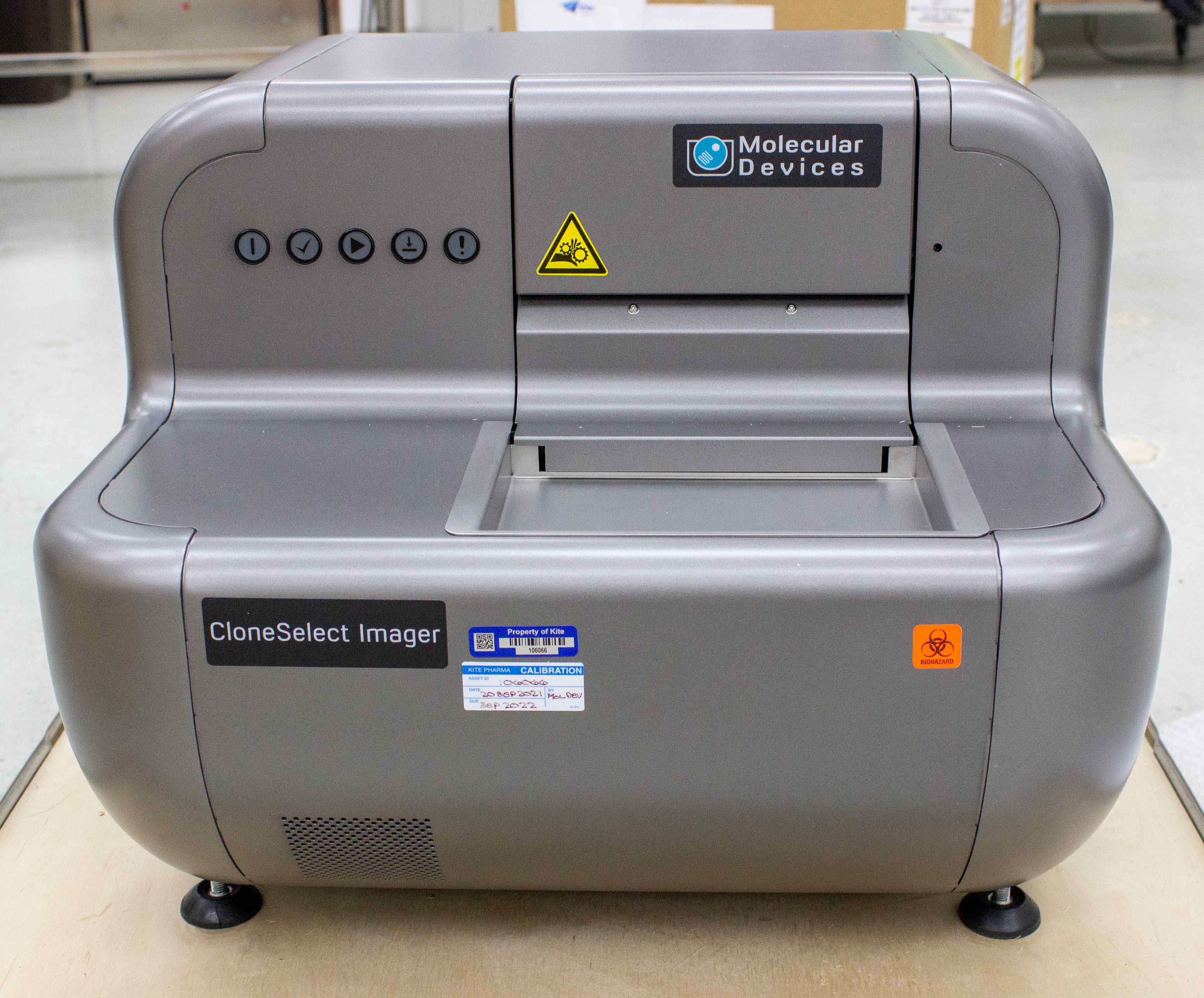

Molecular Devices Clone Select Imager Cell Analyzer Automation 96 Well Plate
Molecular Devices
Details
-
CategoryAnalytical
-
Dimension28.0in x 24.0in x 18.0in
-

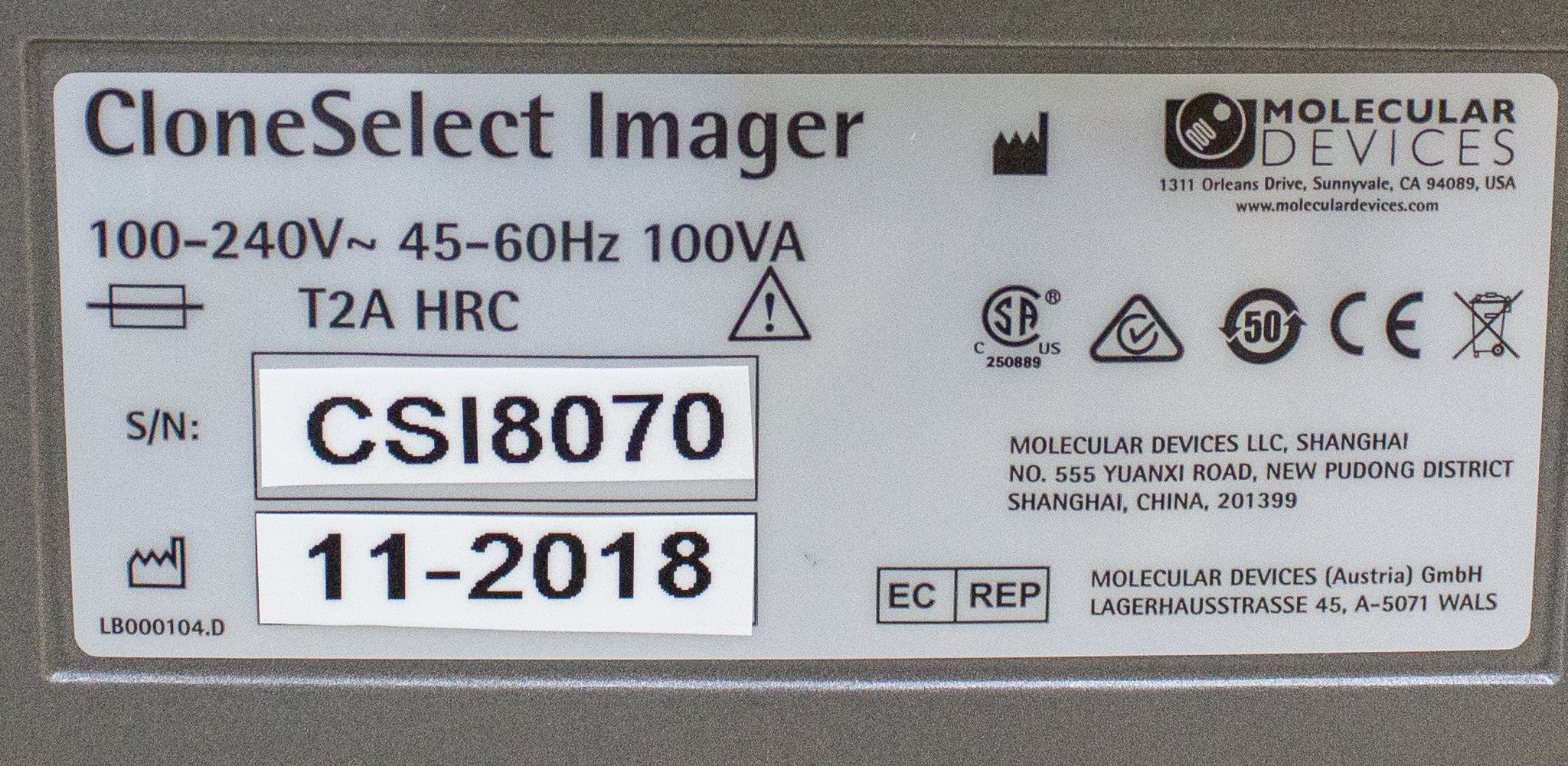

SerialCSI8070
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 60Hz US
Description
The Molecular Devices Clone Select Imager is a sophisticated cell analyzer that utilizes an automated CCD camera system to image and determine the confluence of cells in microplates. Capable of analyzing mammalian cells with high throughput, this machine automates imaging and analysis, ensuring consistent and accurate results. The Clone Select Imager can image a 96-well plate in just 90 seconds. With intelligent analysis and data tracking via barcoded plates, the system supports applications like cell line development, colony forming assays, and monoclonal antibody production. Operating in versatile conditions, the device functions at temperatures from 10C to 40C, and humidity from 20% to 80% non-condensing, at altitudes up to 2000M, making it adaptable for various laboratory environments.
Key Features
- Automated CCD camera-based system
- High-throughput imaging and analysis
- Images 96-well plates in 90 seconds
- Tracks colony formation with barcoded plates
- Intelligent data analysis and decision support
- White light imaging and trans-illumination
- Supports Cell Line Development, Colony Assays
Specifications
- Voltage: 100 to 200 VAC, 50 to 60 Hz, single phase
- Power: 100 VA
- Connections: IEC input
- Fuses: F1 - F3A
- Operational Temperature: 10C to 40C
- Operational Humidity: 20% to 80% non-condensing
- Altitude: Up to 2000 M
- Transient Overvoltage Category: II
- Pollution Degree: 2
- Barcoded plate tracking
Weight
Imperial: 144.0 Pounds
Metric: 65.32 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 28.8 lb x 21.6 lb
Metric: 85.34 cm x 73.15 cm x 54.86 cm
Harmonized Code
902780
Harmonized Code Details
902780 - Instruments and apparatus for physical or chemical analysis, using light or other methods, n.e.c. This categorization is suitable as the device is intended for cell imaging and confluence determination using a CCD camera system.
