Dionex DGP-3600M Pump HPLC System Isokinetic Pre-compression VG Condition
Dionex
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 17.0in x 8.0in
-

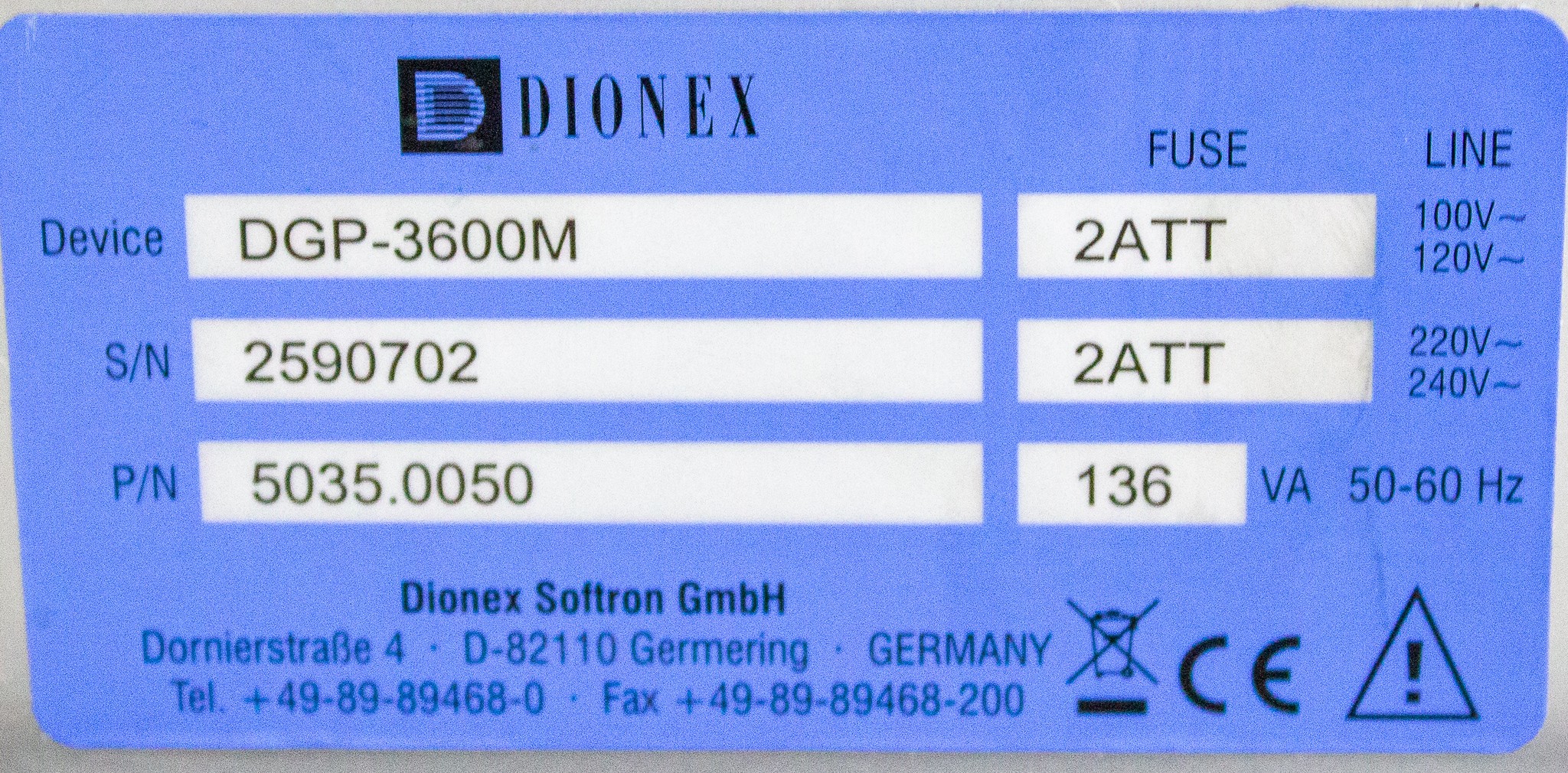

Serial2590702
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Dionex UltiMate 3000 DGP-3600M pump, manufactured in Germany and in very good condition, is designed for high performance liquid chromatography (HPLC) analysis, functioning effectively as part of the UltiMate 3000 system. It is a reliable module suitable for both routine analysis and advanced research tasks. This pump system features patented isokinetic pre-compression for maintaining precise and almost pulse-free flow, with technical specifications meeting high standards for reproducibility and reliability. It supports various laboratory environments with a recommended flow rate of 10-2500µL/min, pressure range of 2-50 MPa, and advanced features like a leak sensor and active rear seal washing. While it requires a PC with a USB port, this unit can integrate seamlessly with Chromeleon Chromatography Management System enhancing its functionality.
Key Features

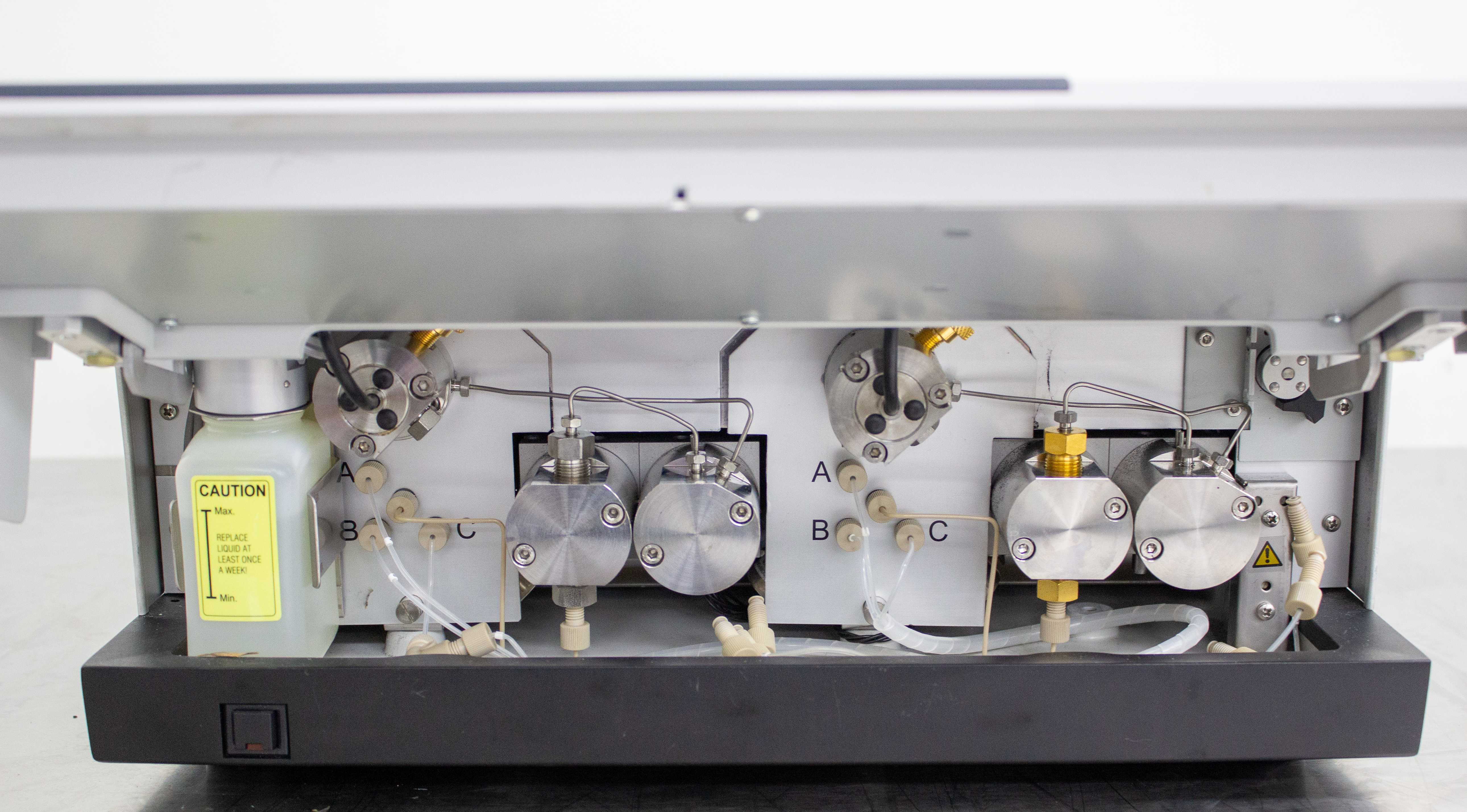

- Patented isokinetic pre-compression for precise flow
- Flow rate precision <0.05% RSD
- Pressure range: 2-50 MPa
- 6 eluent lines for versatility

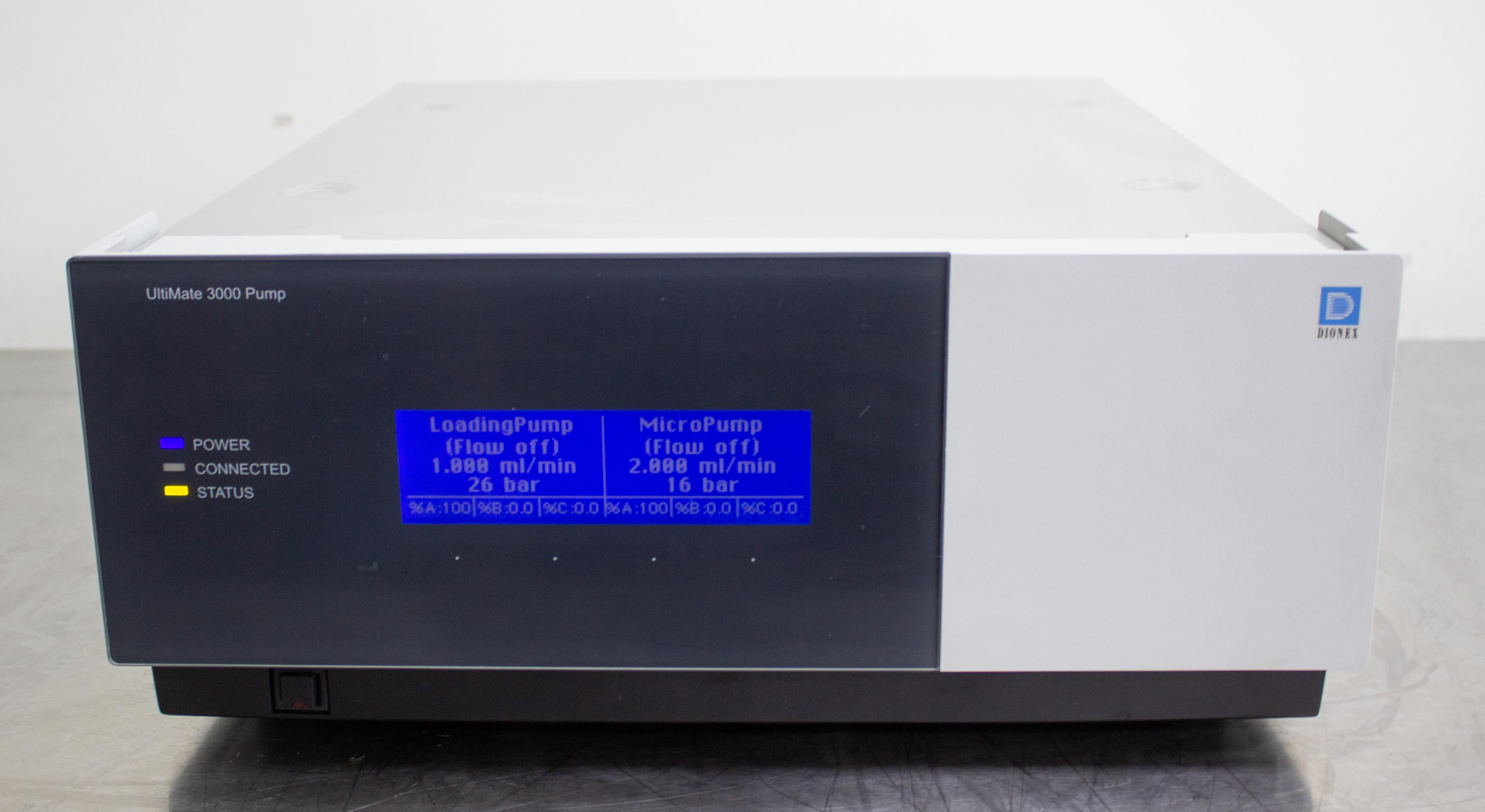

- LCD display with system status indicators
- Solvent resistance with durable materials
Specifications
- Recommended Flow Rate: 10-2500ul/min
- Flow Rate Accuracy: +/-0.5% at 200ul/min
- Flow Rate Precision: <0.05% RSD
- Pressure Range: 2-50 MPa (7250 psi)
- Proportioning Accuracy: 0.2% of full scale

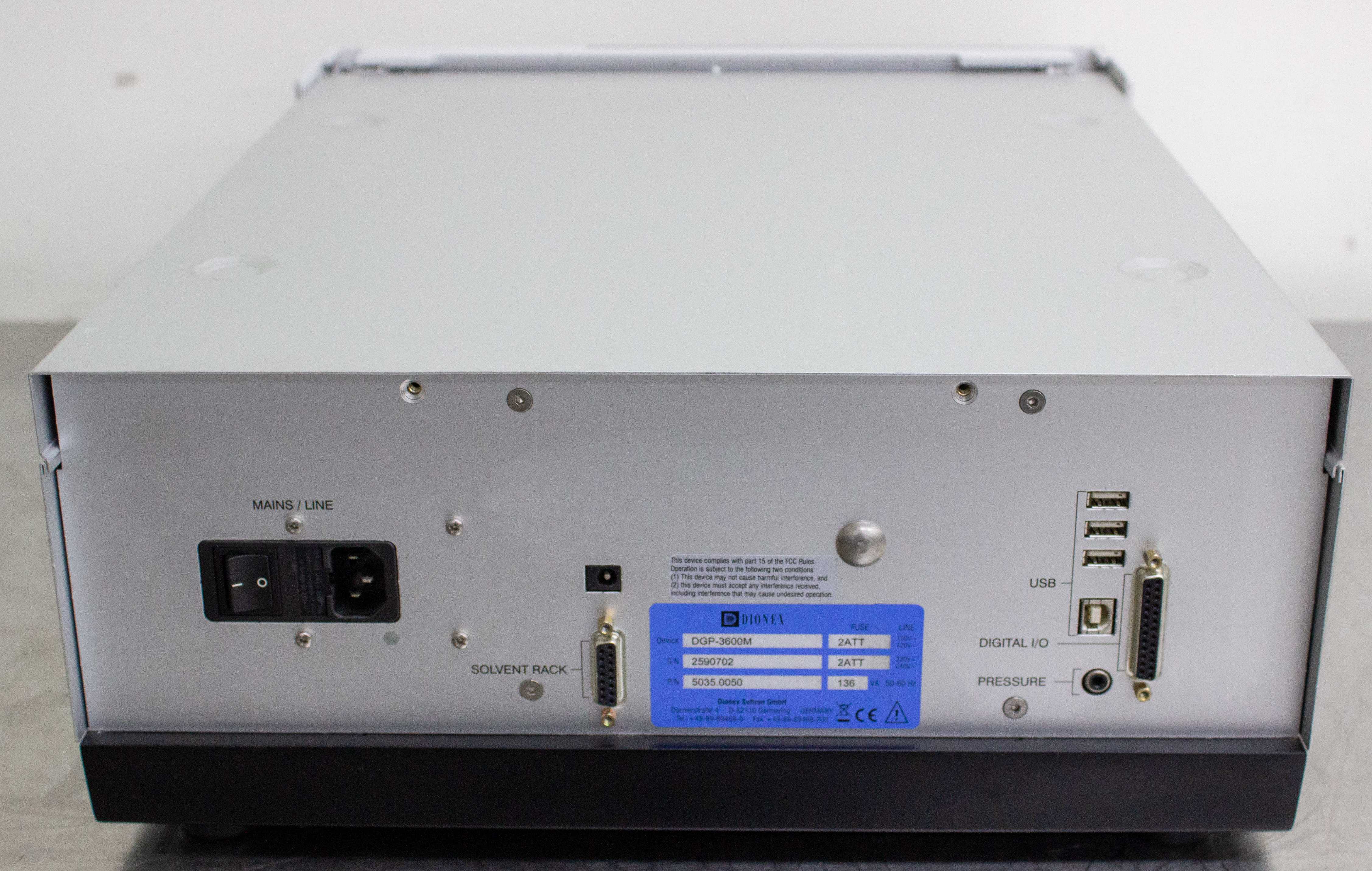

- PC Connection: USB 1.1 with 3 free USB ports
- I/O Interfaces: 3 digital inputs, 4 programmable relays, 1 analog output
- User Input/Display: LCD, standby button, 3 LEDs, 4 function keys
- Material: Stainless steel, titanium, sapphire, ruby, UHMW polyethylene
Weight
Imperial: 57.6 Pounds
Metric: 26.13 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 9.6 lb
Metric: 60.96 cm x 51.82 cm x 24.38 cm
Harmonized Code
9027.30
Harmonized Code Details
9027.30 - Instruments and apparatus for physical or chemical analysis, for measuring or checking viscosity, porosity, expansion, surface tension or the like. It is justified for this code as the Dionex DGP-3600M is primarily used for analytical purposes in HPLC systems.
