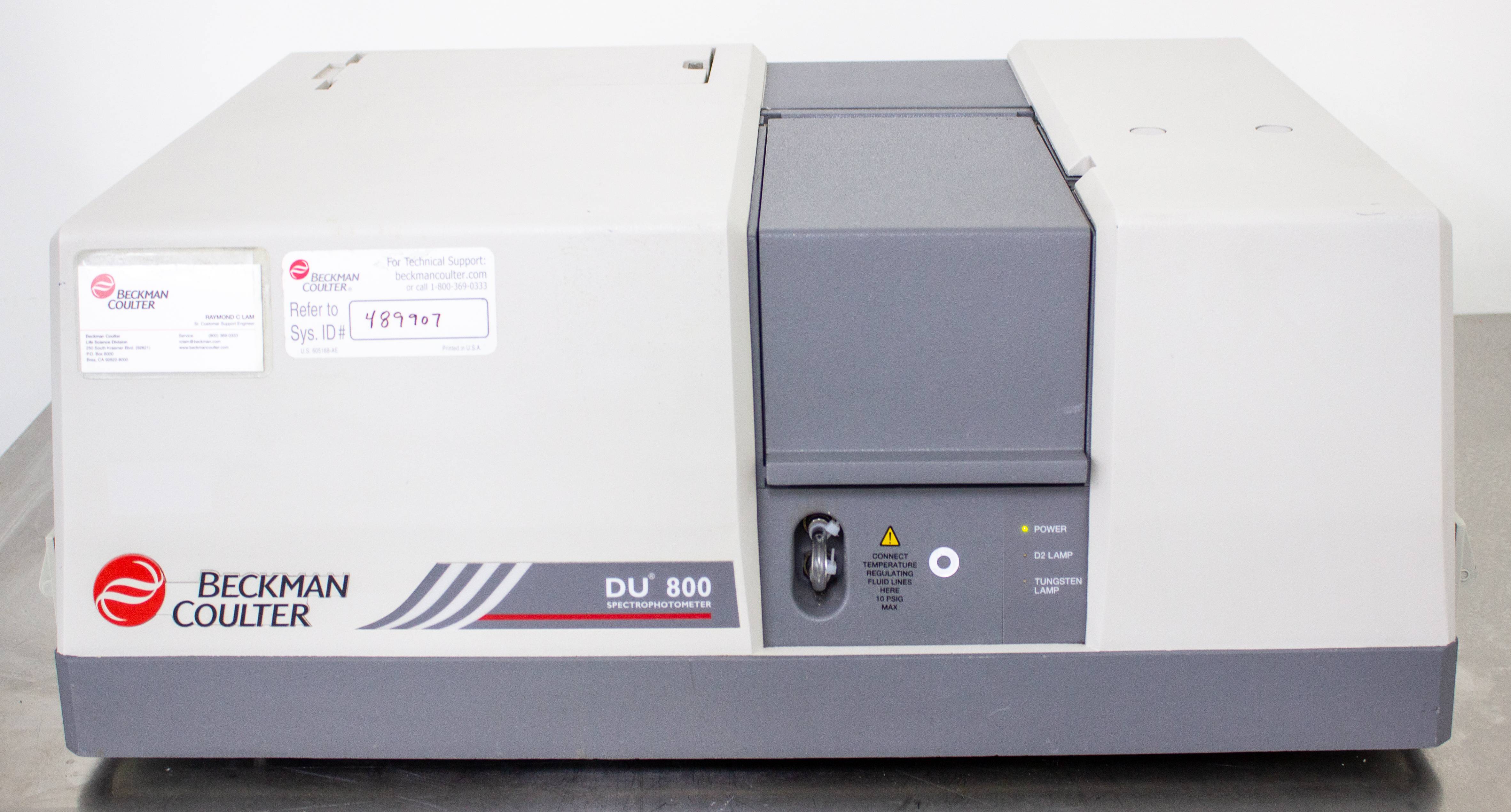

Beckman DU 800 UV-Vis Spectrophotometer PC-Controlled 6 Cell Holder 1.8nm
Beckman Coulter
Details
-
CategorySpectrometer - Single Well
-
Dimension21.0in x 27.0in x 11.0in
-

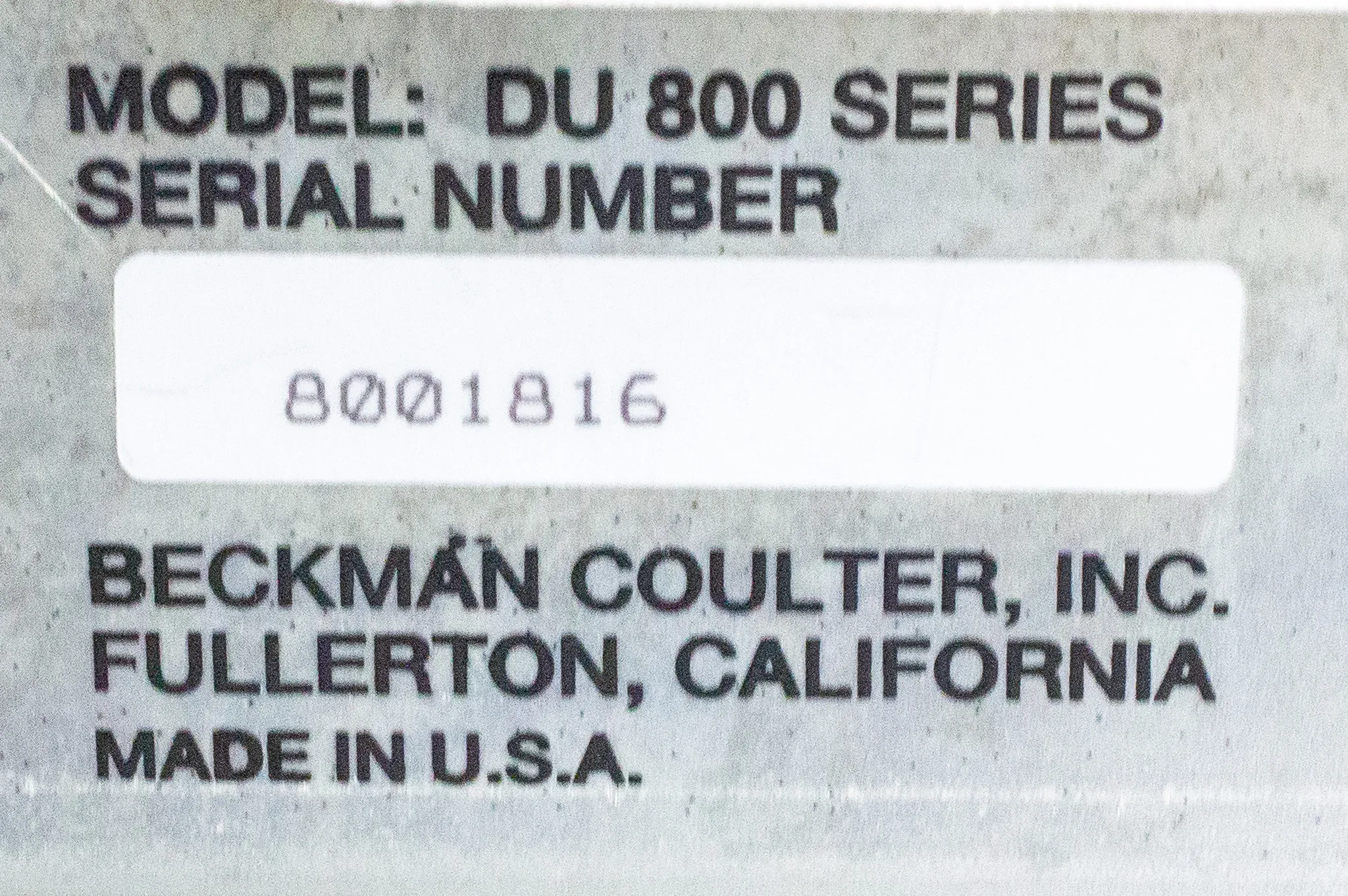

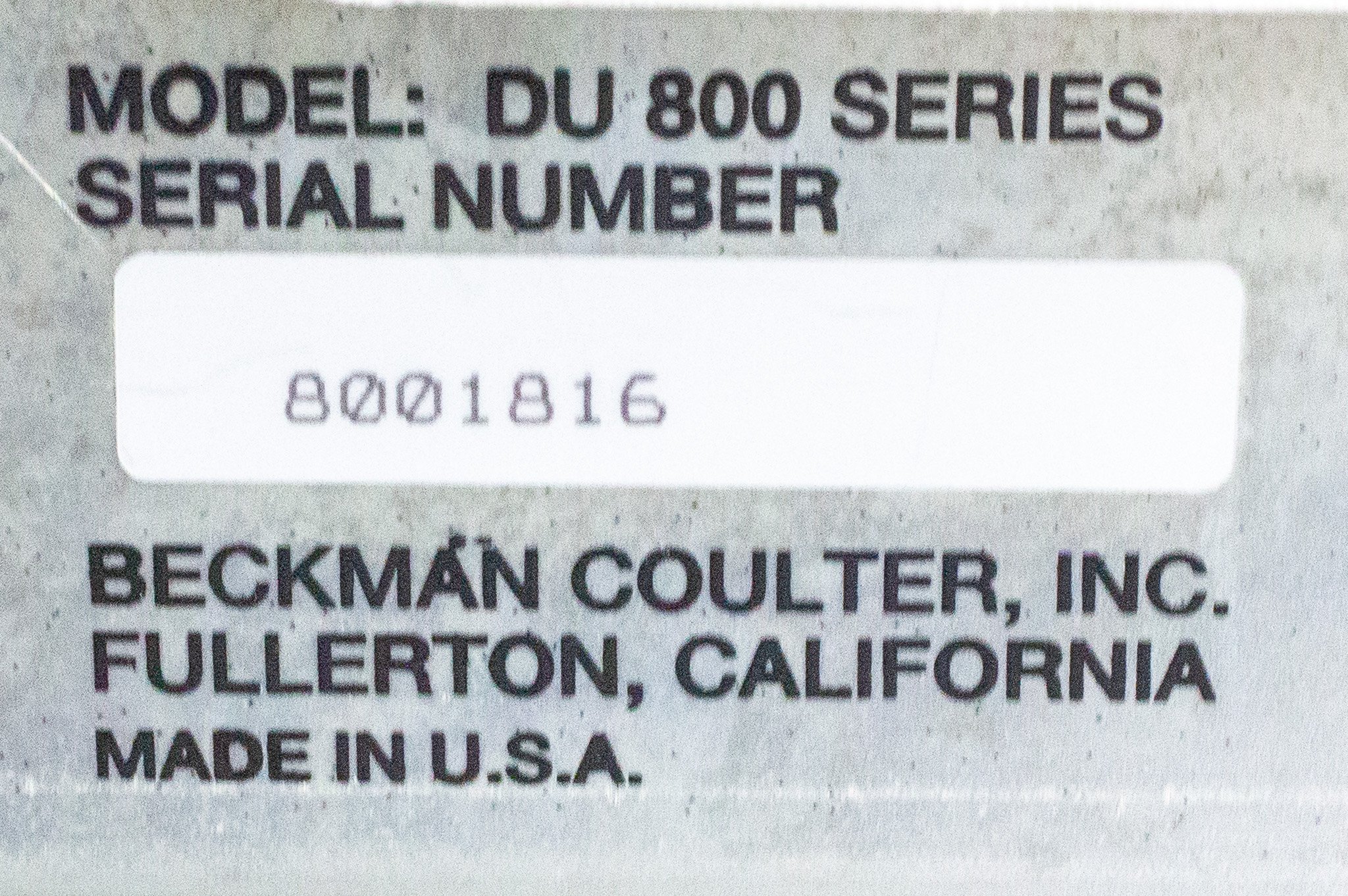

Serial8001816
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

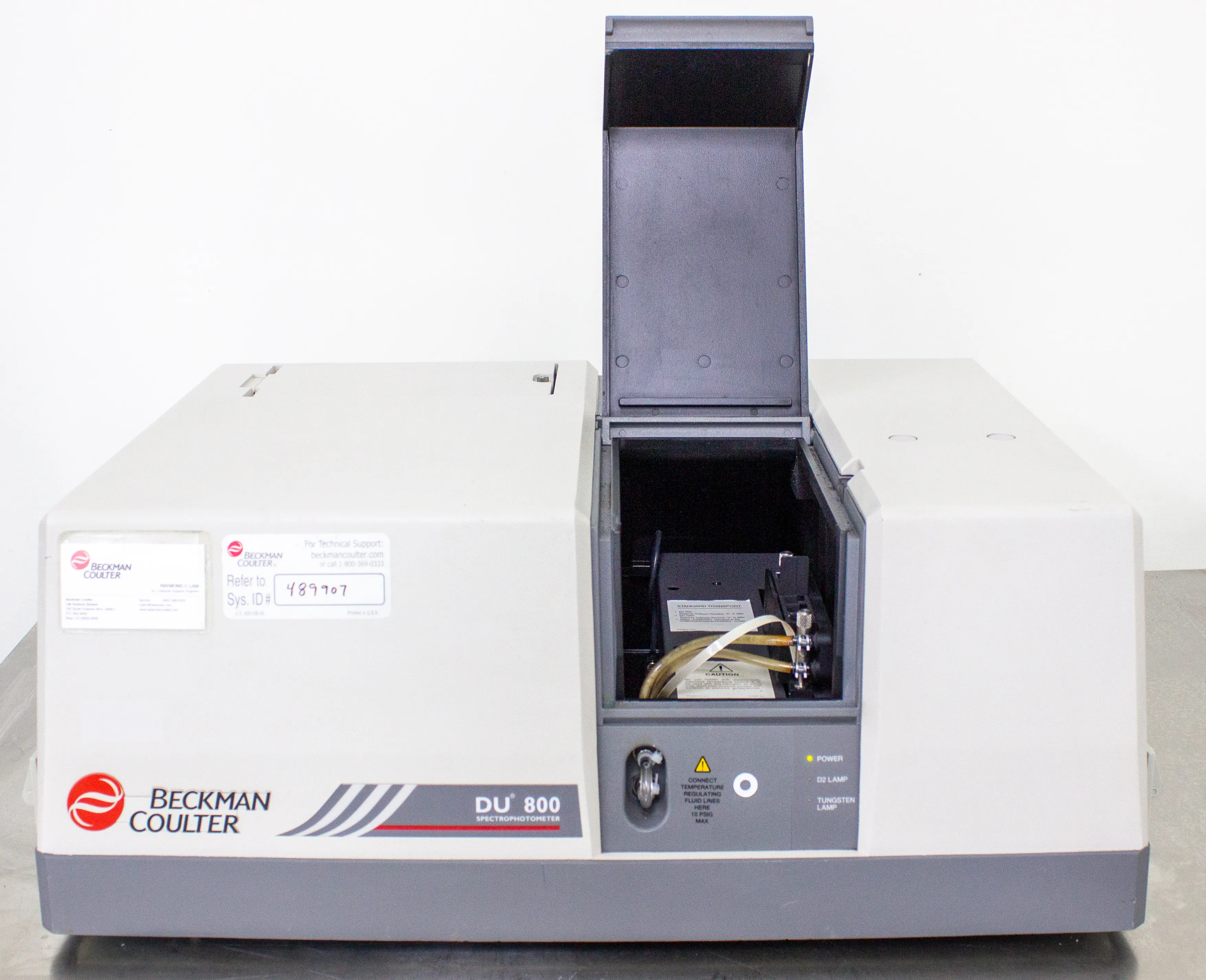

This Beckman Coulter DU 800 UV/Visible Spectrophotometer, manufactured in the USA, is designed for rigorous quantitative and qualitative analysis in the UV and visible spectrums, operating in a wavelength range of 190 to 1100 nm with a bandwidth of ≤ 1.8 nm. This very good condition unit has been tested for basic power functionality and shows minimal wear. It features a single beam design with monochromator light dispersion, supported by a concave holographic grating and a single photodiode detector for precise light measurement. Fitted with standard transport, a 6-cell holder, and Micro Auto-1 Accessory (P/N 523382), it's tailored for measuring small and precious samples with high accuracy, ideal for biological and industrial environments. The device is PC-controlled, offering convenient software-driven operations, though the computer and software are not included. Various microvolume sample accessories are available from the manufacturer to meet diverse analysis needs.
Technician comment

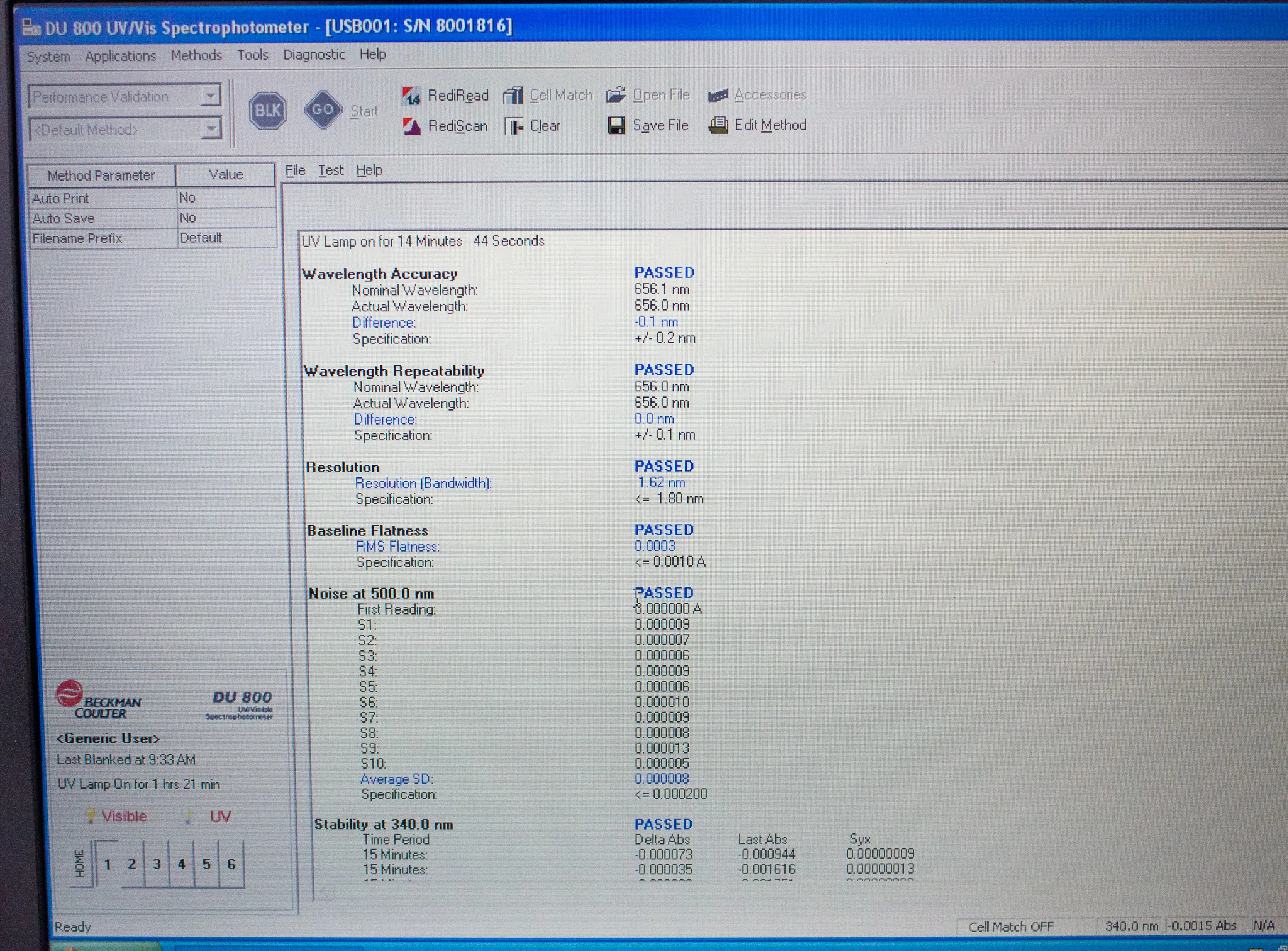

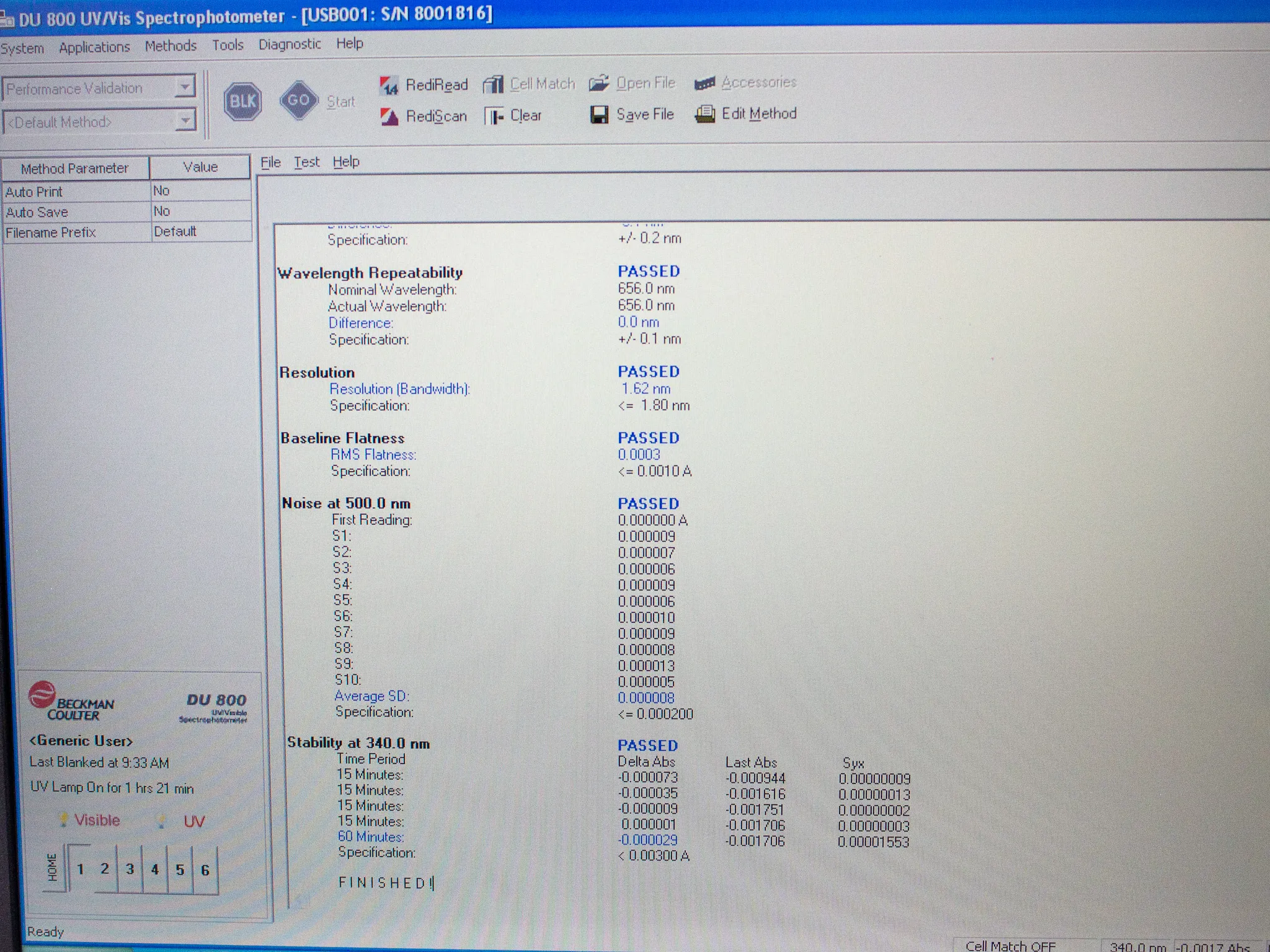

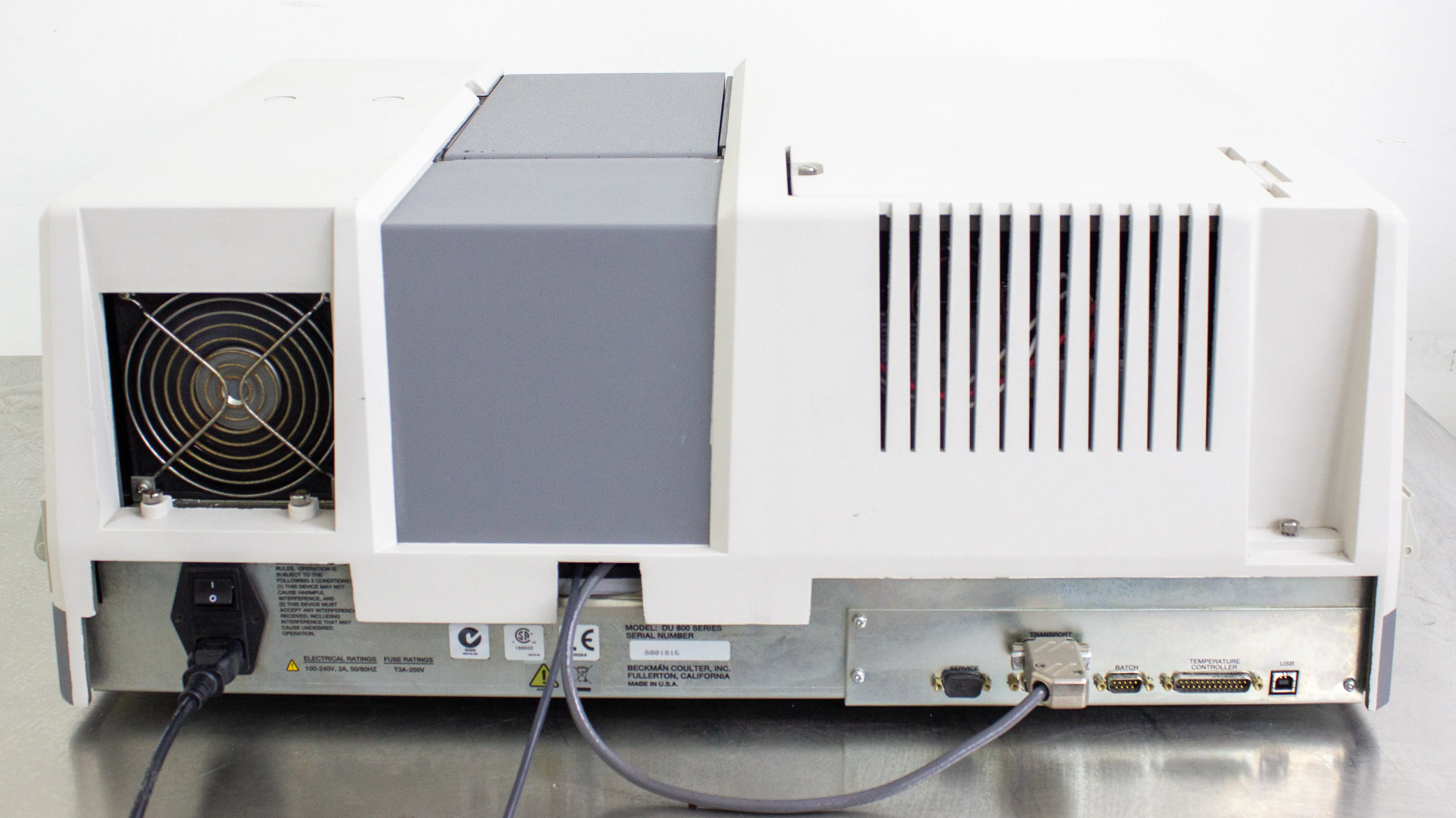

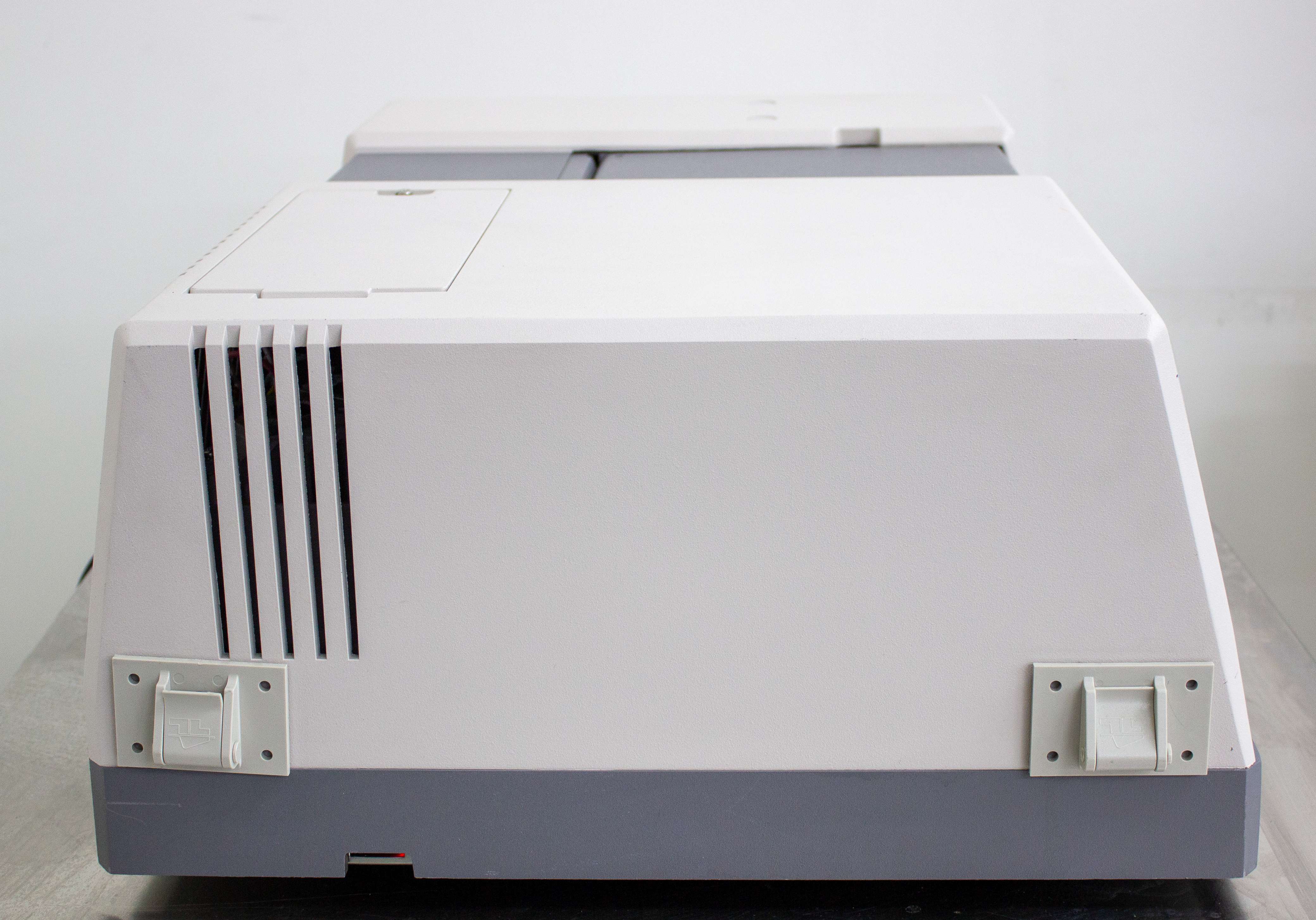

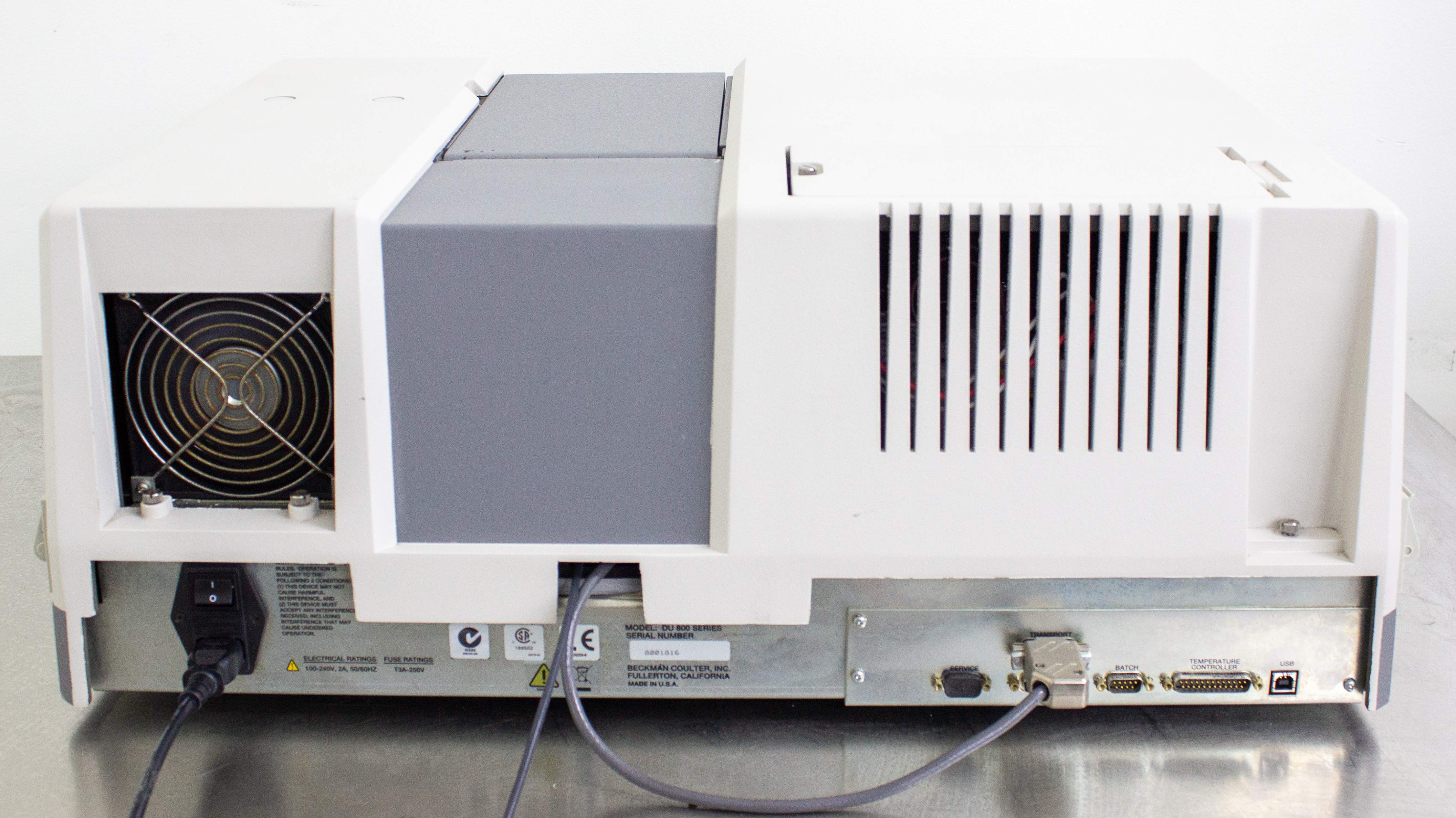

**This instrument has been tested for basic power function. Unit has slight wear from normal use. Does NOT include software. See photos for further details.
Key Features
- Wavelength range: 190 to 1100 nm
- Spectral bandwidth: ≤ 1.8 nm

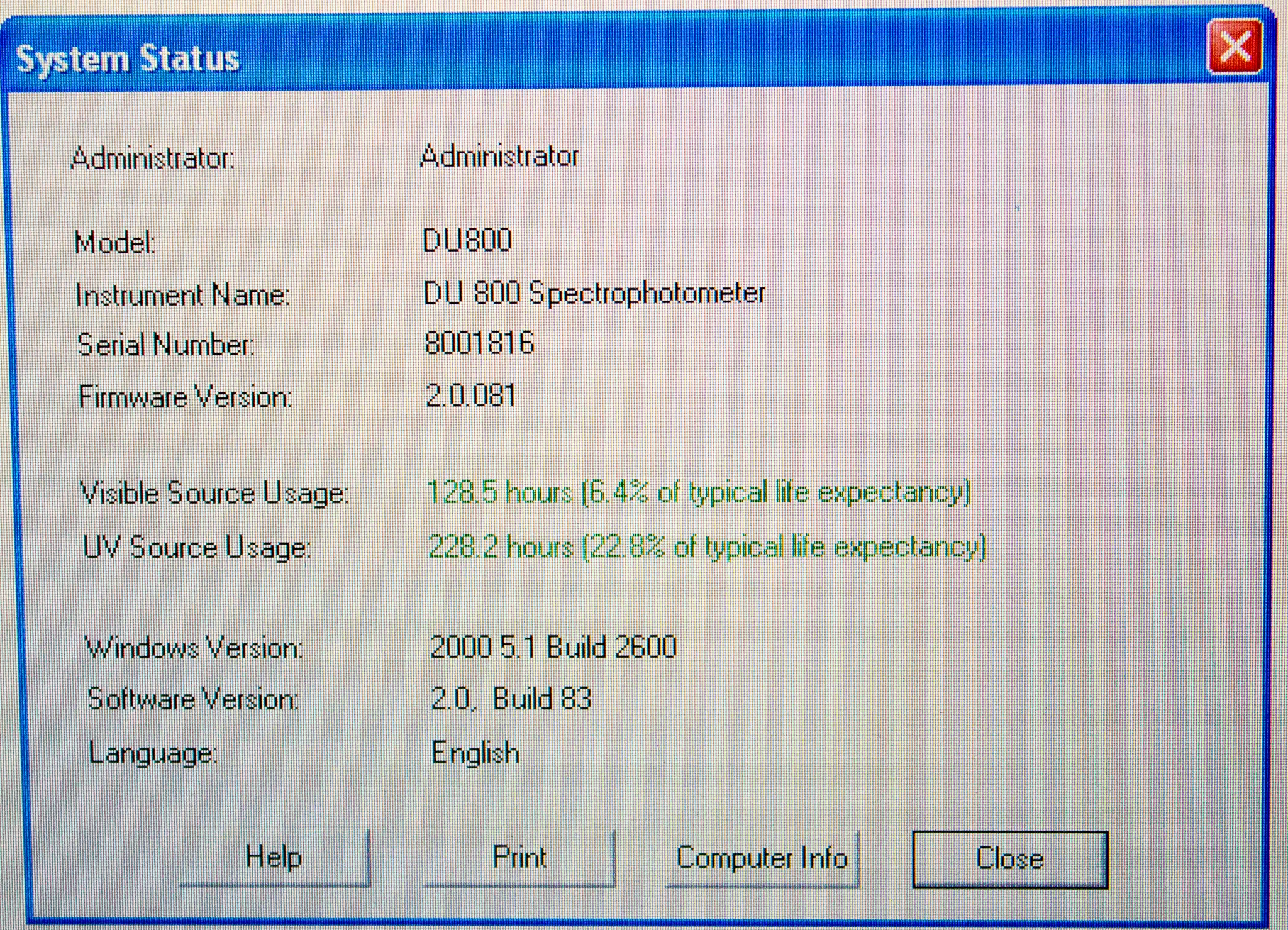

- PC-controlled system

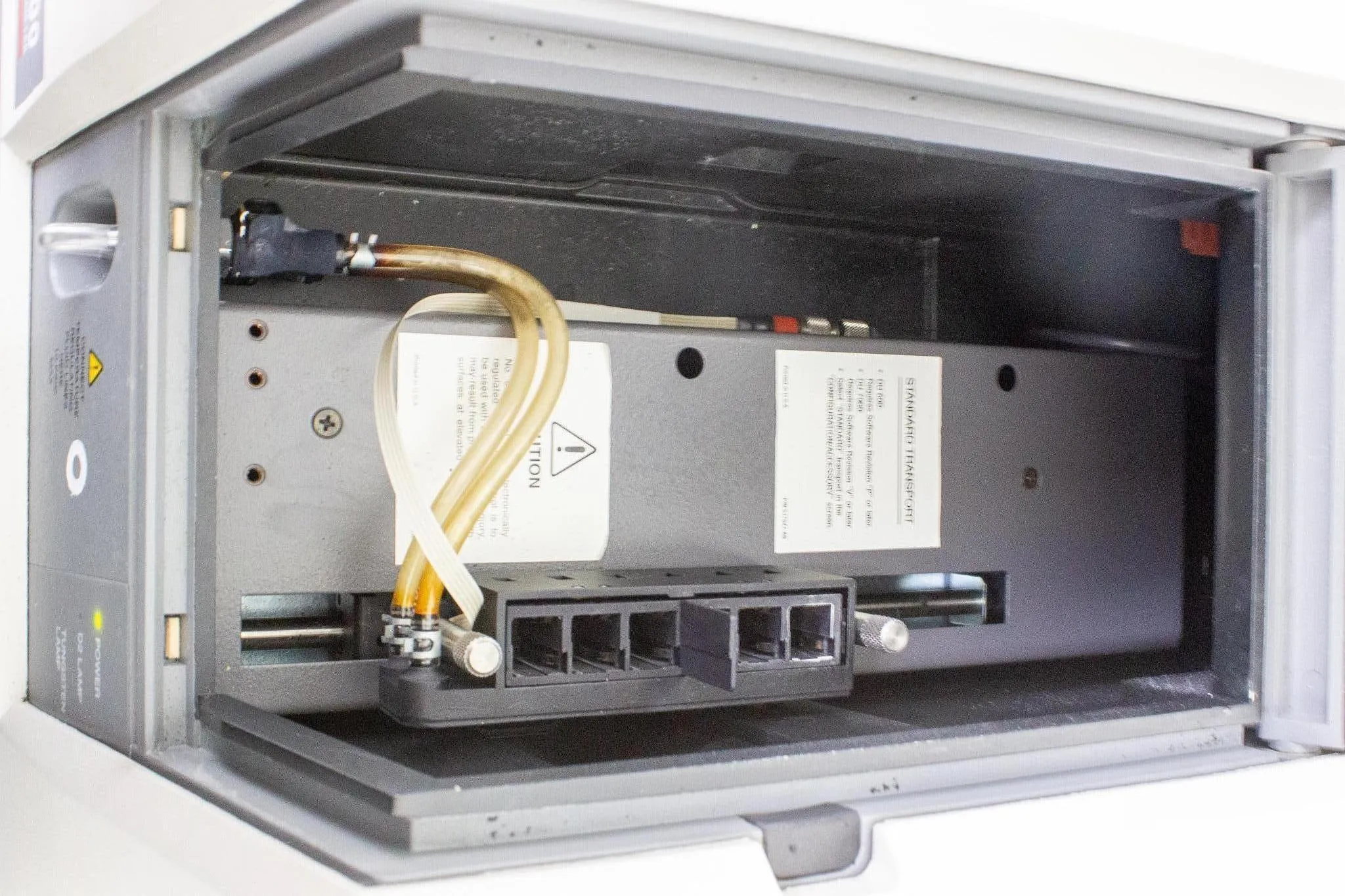

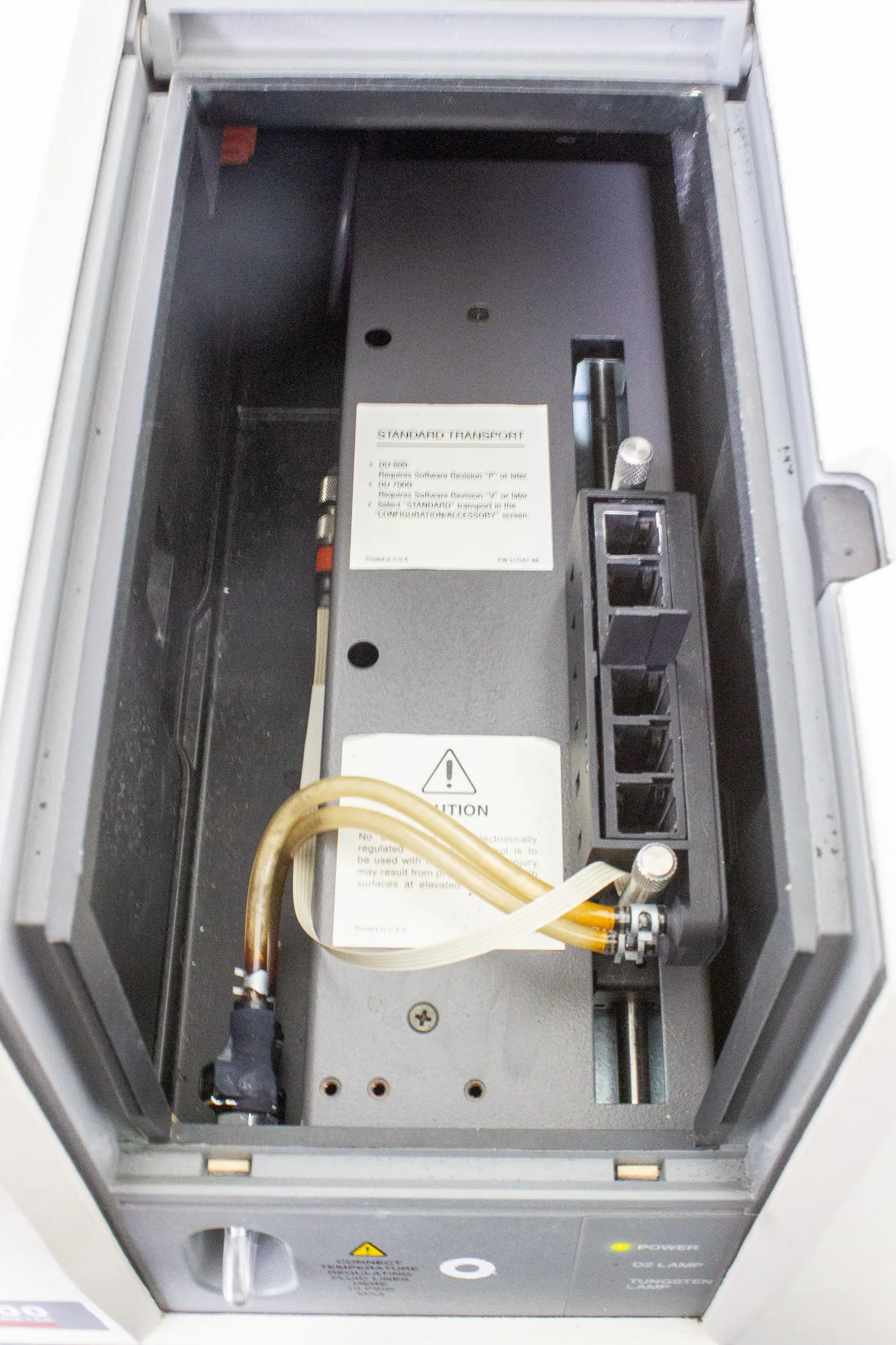

- Includes 6-cell holder and Micro Auto-1 accessory
- Single photodiode detector
Specifications
- Wavelength Setability: 0.1 nm increments

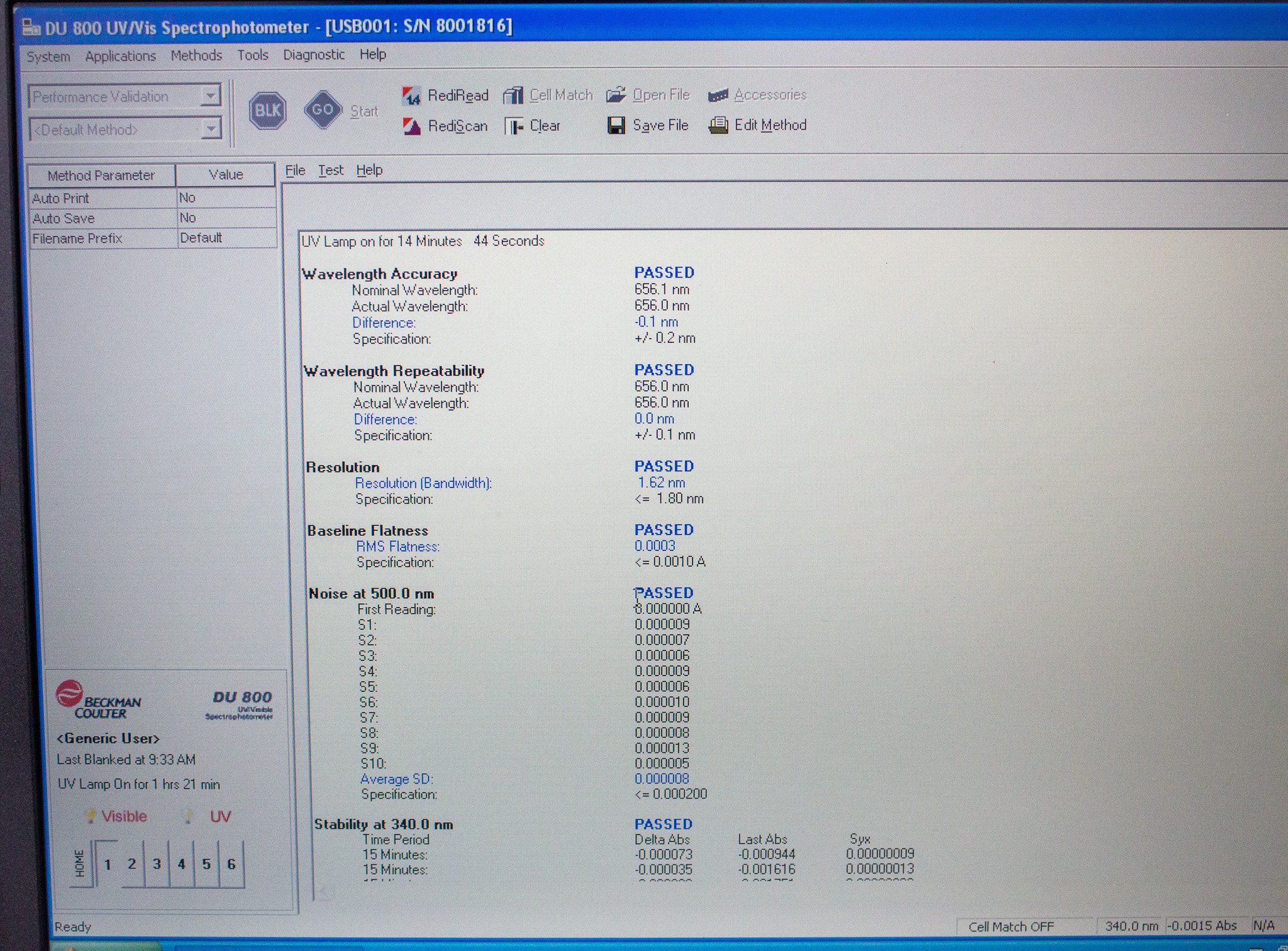

- Wavelength Accuracy: ±0.2 nm at 656.1 nm, ±0.5 nm full range
- Wavelength Repeatability: ±0.1 nm at 656.1 nm, ±0.2 nm full range
- Photometric Readout: -0.300 to 3.000A or 0.0 to 200%T
- Photometric Accuracy: ±0.005A (at 1A with NIST 930D solid filter at 546 nm)
- Scanning Speeds: 120 to 2400 nm/min
- Operating Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Actual Weight: 70 lbs; Shipping Weight: 84 lbs
Weight
Imperial: 84.0 Pounds
Metric: 38.1 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 32.4 lb x 13.2 lb
Metric: 64.01 cm x 82.3 cm x 33.53 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, using optical radiations (UV, visible, IR); This code is suitable due to the equipment's application in measuring the UV/vis spectrum, fitting the criteria of devices using optical radiations.
