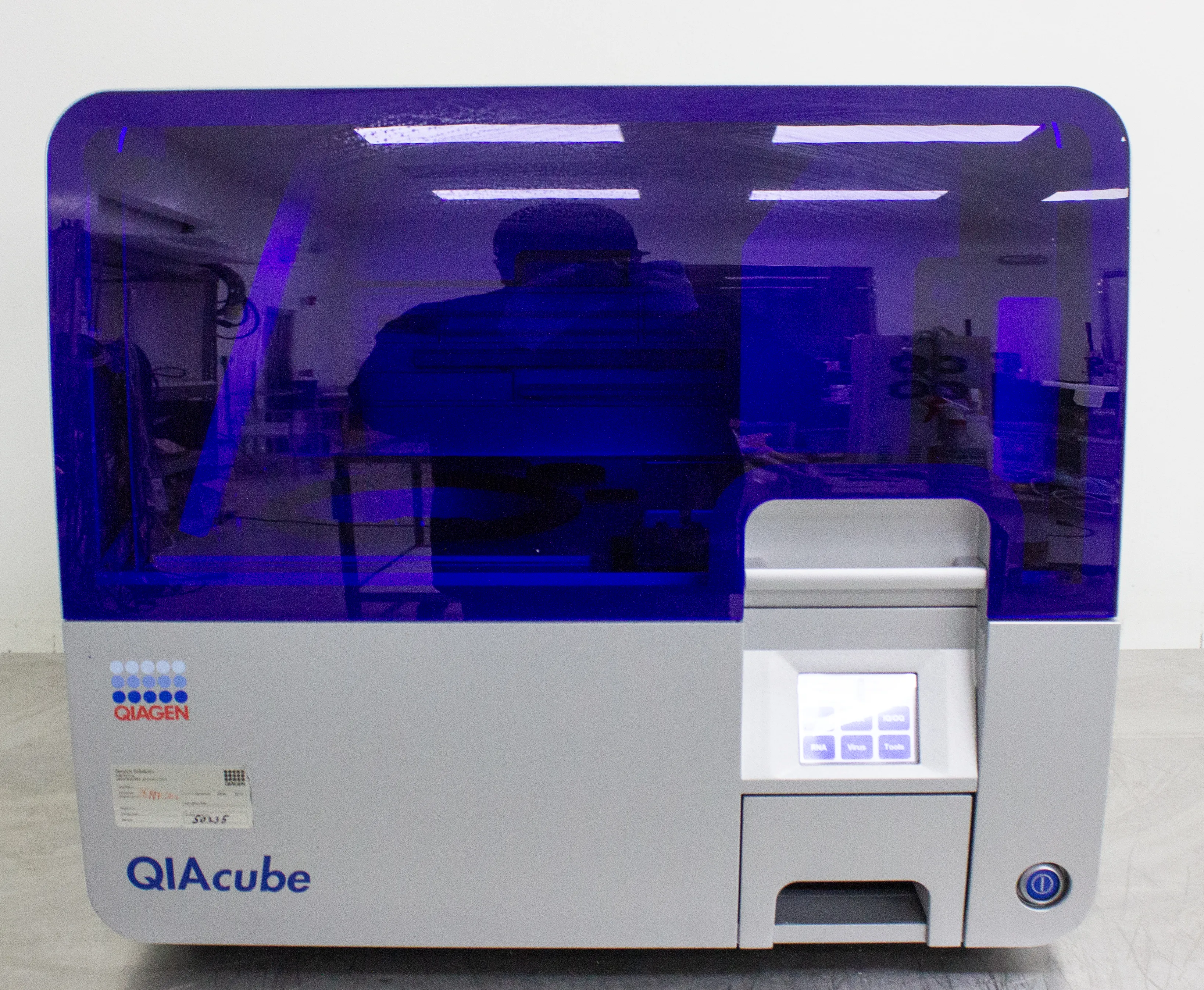

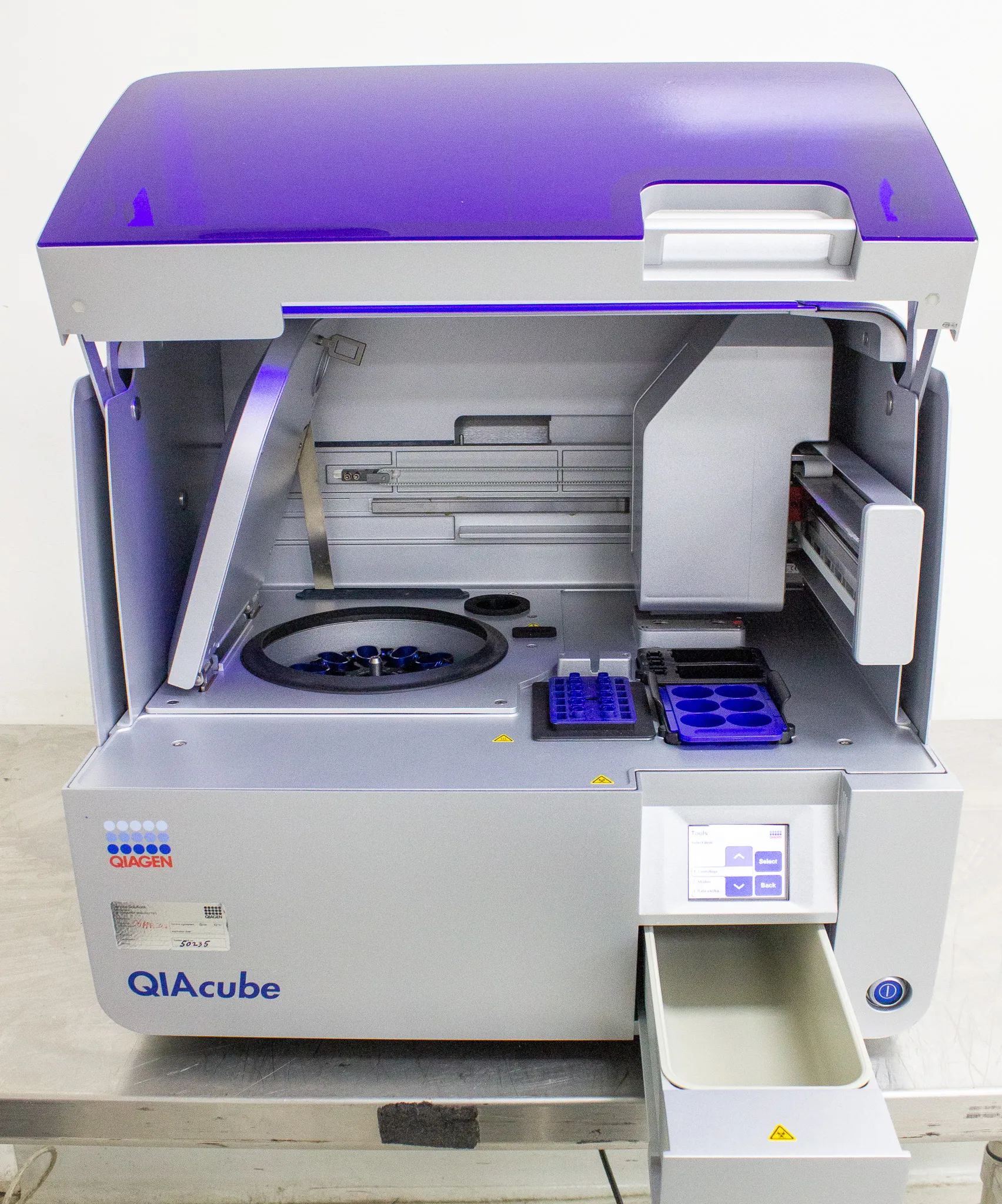

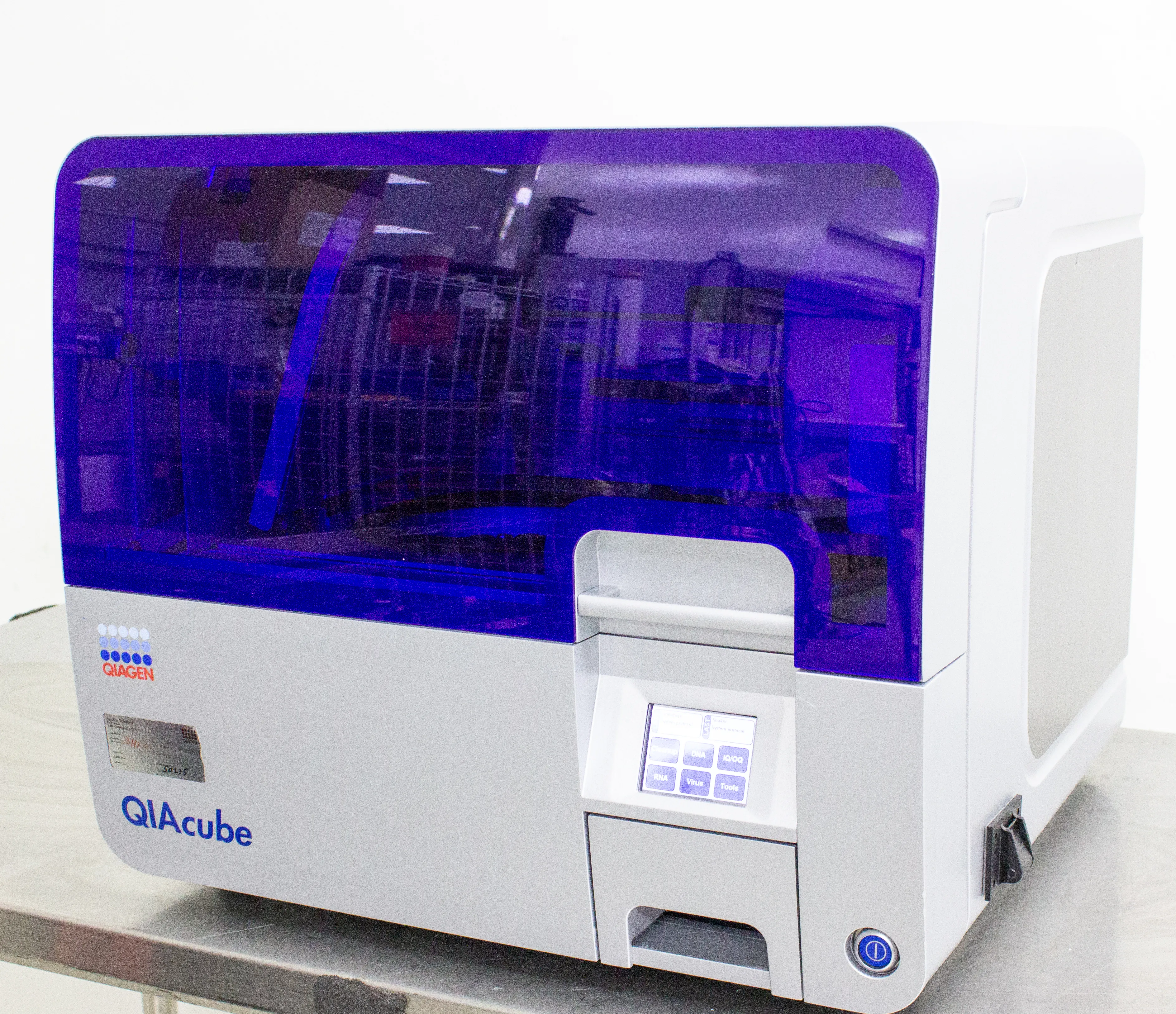

Qiagen QIAcube DNA Purification System with 30-Day Warranty

Product Information

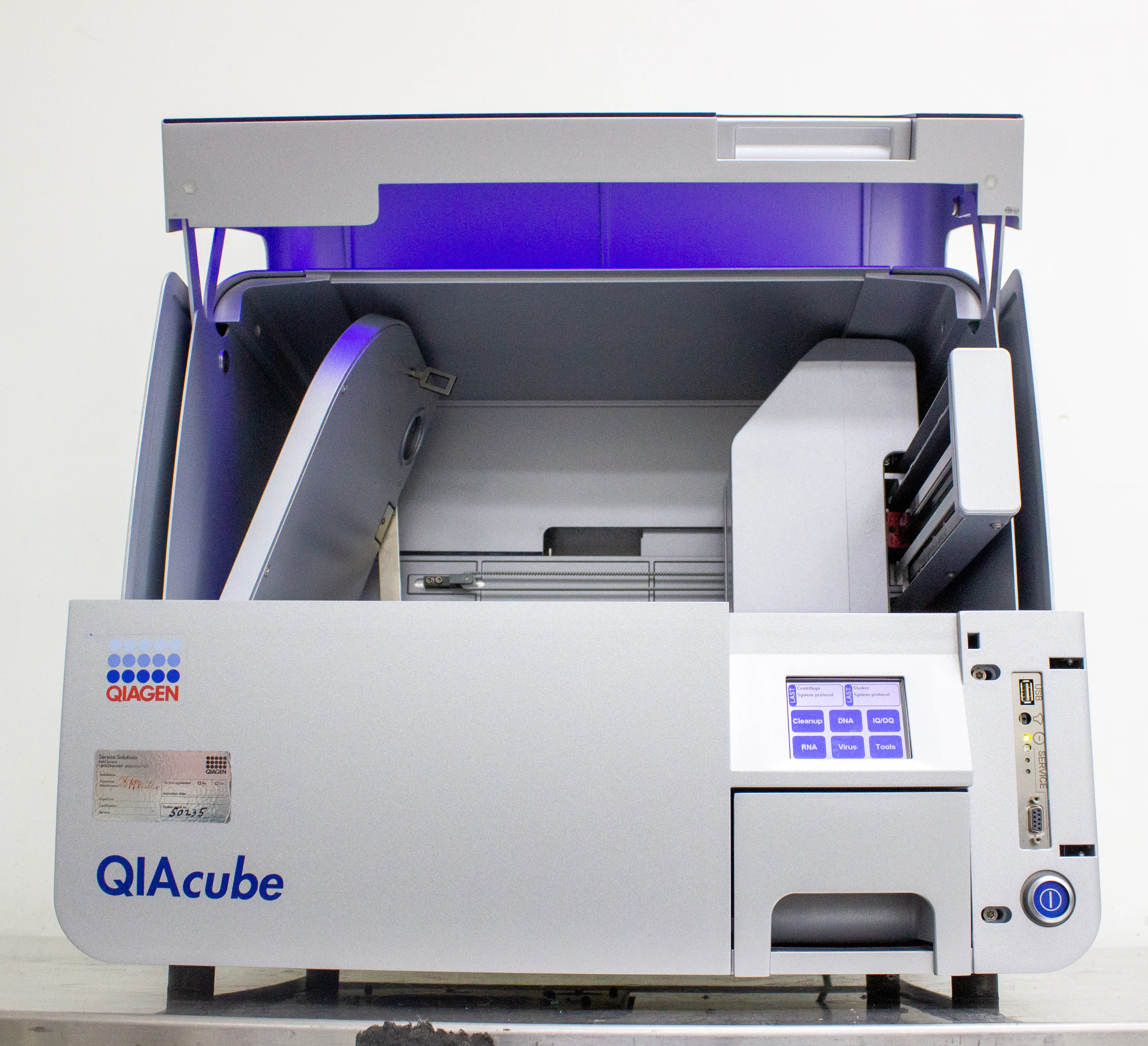

The Qiagen QIAcube DNA Purification System is an innovative and reliable automated sample prep system that uses advanced technology to process Qiagen spin columns, providing seamless integration into the laboratory workflow. It requires no change of purification chemistry, ensuring fast startup and immediate results. The fully automated system can process up to 12 samples per run and is designed for the purification of nucleic acids and proteins in molecular biology applications, making it an essential tool for professional users. This versatile system is preinstalled with various protocols for processing Qiagen spin columns, catering to RNA purification, genomic DNA purification, plasmid DNA purification, viral nucleic acid purification, protein purification, and DNA and RNA cleanup. The QIAcube features a built-in centrifuge, heated shaker, pipetting system, and robotic gripper, with integrated controls and a user-friendly touchscreen interface. The system offers standardized results, increased productivity, and more free time for affordable automated processing. The QIAcube is a reliable instrument that comes with the assurance of a 30-day warranty.

• Fully automated purification of nucleic acids and proteins
• Integration of Qiagen spin columns for seamless sample prep
• Preinstalled protocols for RNA, genomic DNA, plasmid DNA, viral nucleic acids, and protein purification
• Can process up to 12 samples per run
• Standardized results and increased productivity
• User-friendly touchscreen interface

• Altitude: Up to 2000 m

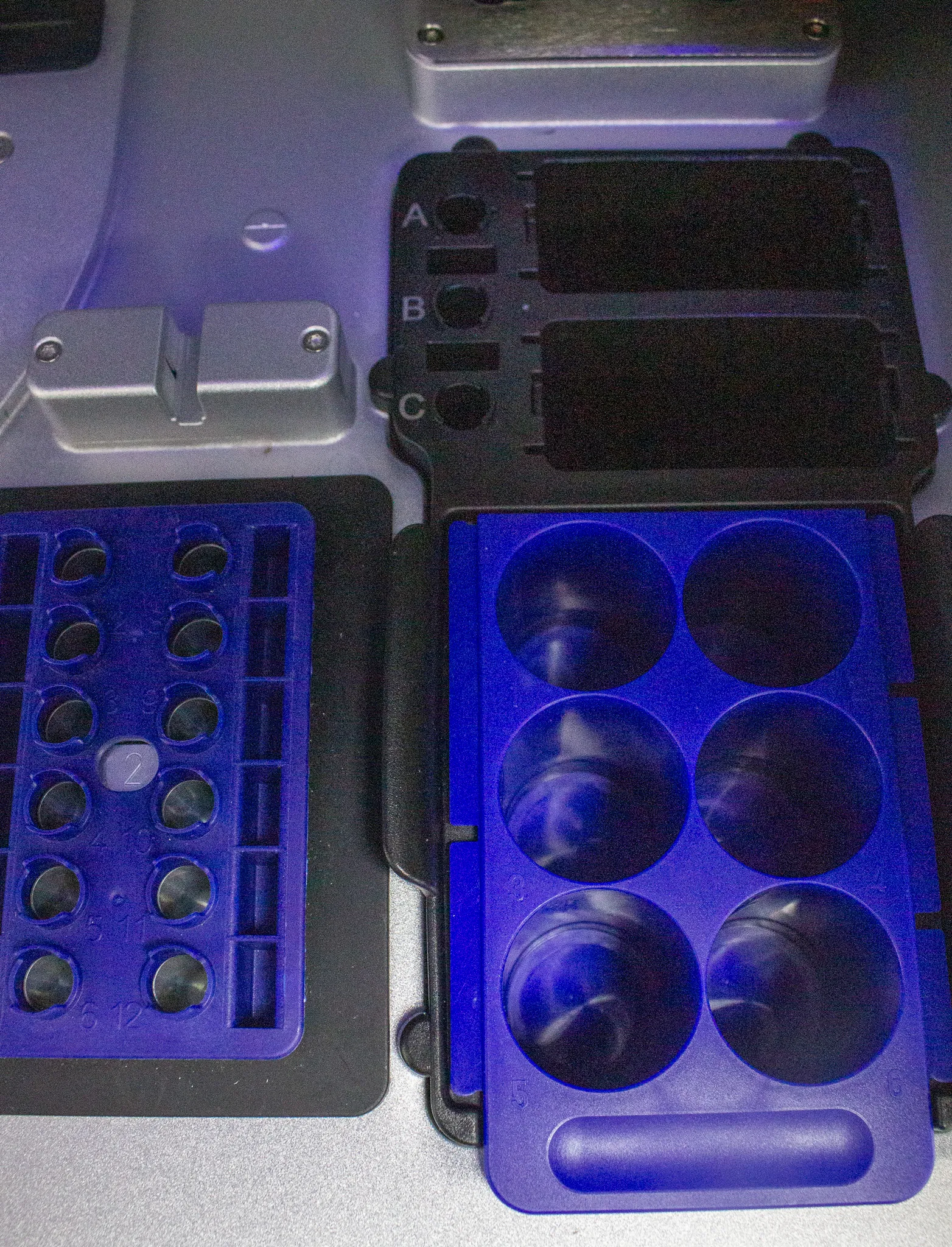

• Centrifuge: 12,000 x g maximum, swing-out rotor with 12 positions, maximum 45
• Humidity: Relative humidity of 10-75% (non-condensing)
• Instrument dimensions: 650 x 620 x 570 mm
• Kits designed for this instrument: Most Qiagen manual kits (e.g., QIAamp, QIAquick, QIAprep)
• Operating temperature: 18-28°C
• Overvoltage category: II
• Pipetting system: Syringe size 1 ml, pipetting range 5-900 µl
• Place of operation: For indoor use only
• Pollution level: 2
• Processing: Automated
• Protocols/main application on this instrument: DNA purification, RNA purification, protein purification
• Samples per run (throughput): 12 samples per run
• Shaker Speed: 100-2000 rpm, amplitude 2 mm, heating range of room temperature to 70°C, ramp-up time of <5 min from room temperature to 55°C (+/-)3°C
• Software: Qiagen protocols are preinstalled on the QIAcube or can be downloaded at www.qiagen.com/MyQIAcube
• Storage temperature: 15°C to 30°C in manufacturer's package
• Technical data of the instrument: 70.5 kg
• Technology: Depends on kit used

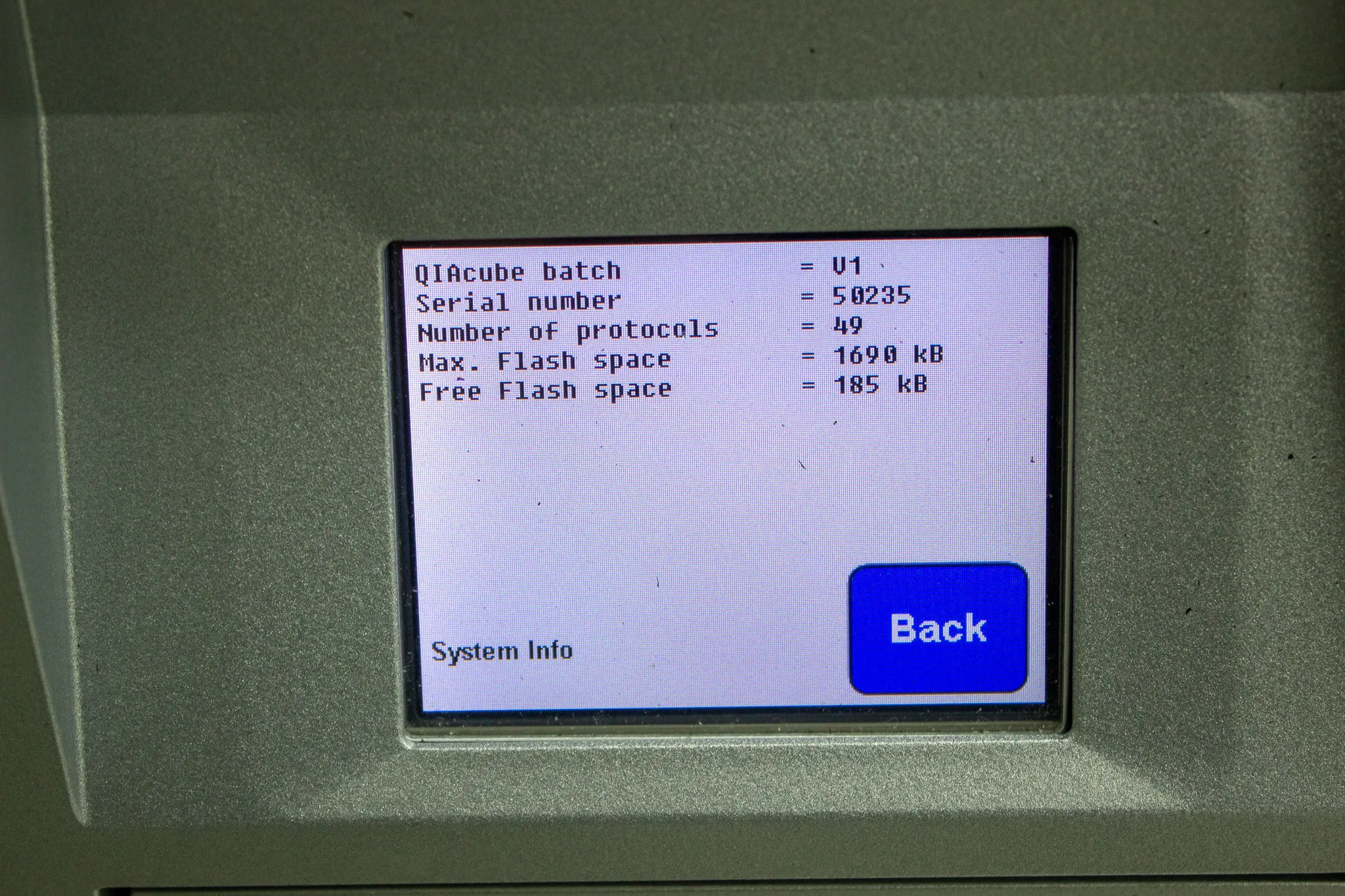

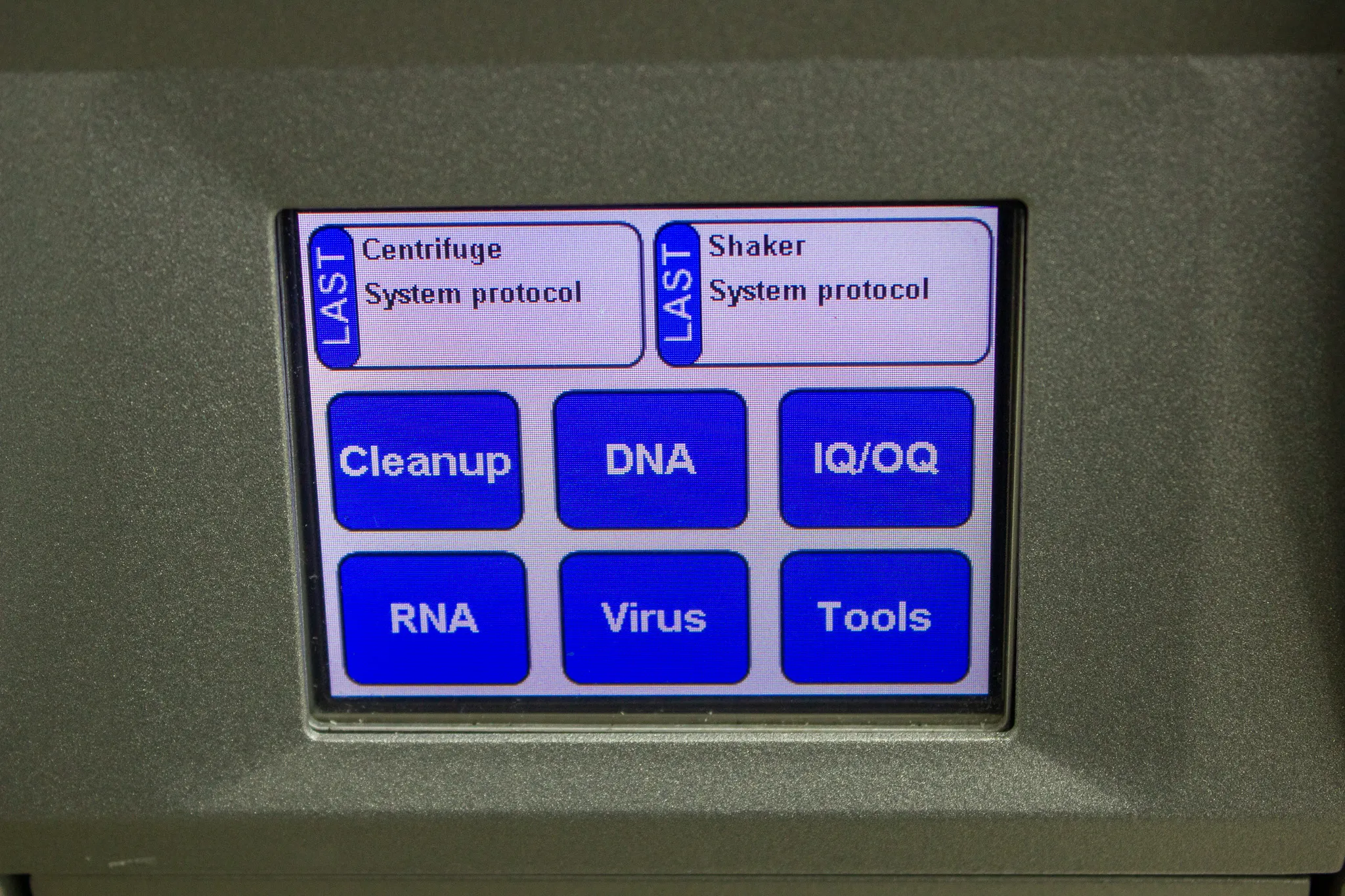

• Touchscreen: Transmissive TFT, 64 x 86 x 65 mm, white LED backlight, high brightness
• Transportation temperature: -25°C to 50°C in manufacturer's package

Metric: 70.5 kg
Imperial: 155.4 lb

Metric: 650 cm x 620 cm x 570 cm
Imperial: 255.91 in x 244.09 in x 224.41 in
