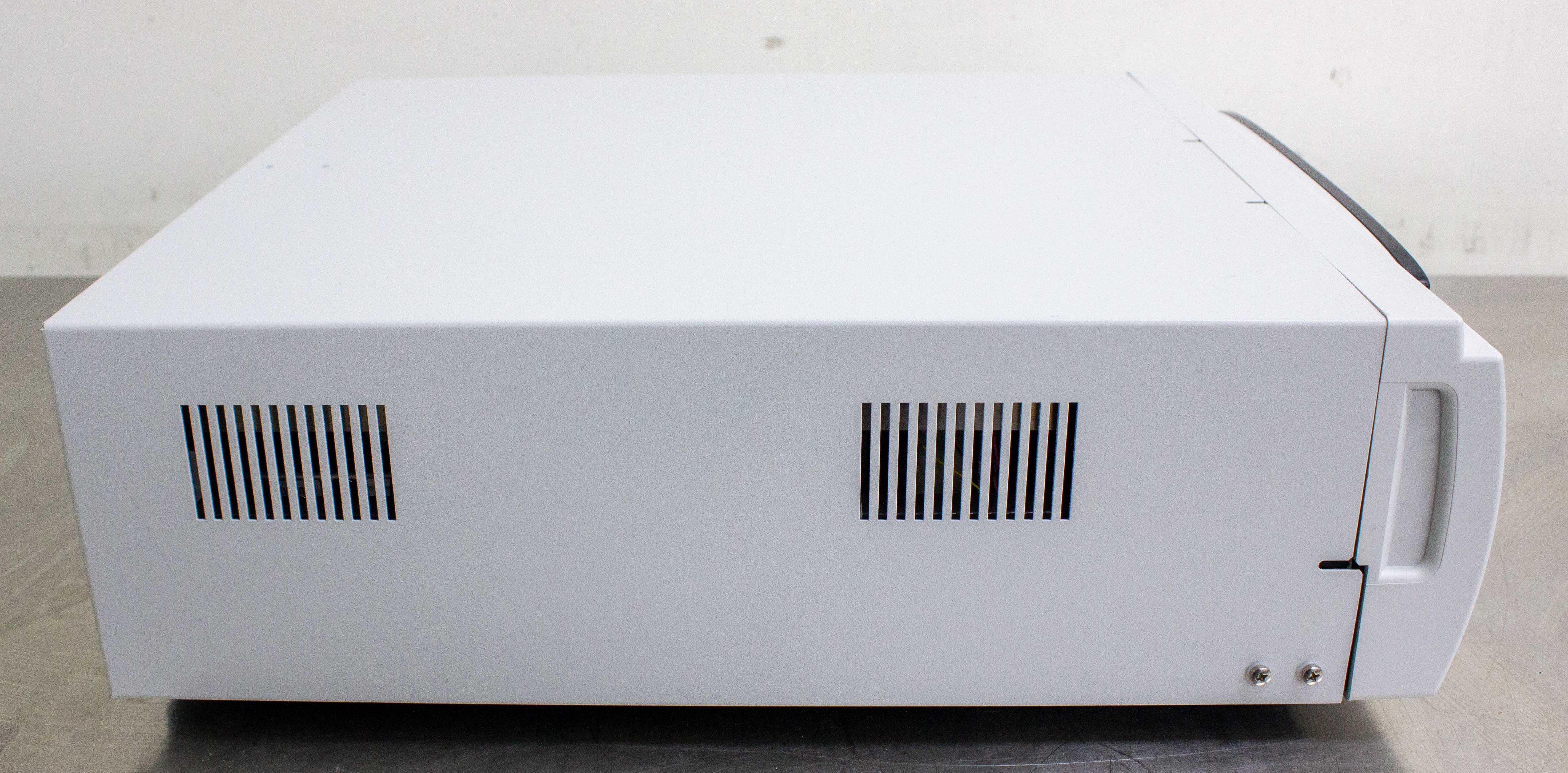

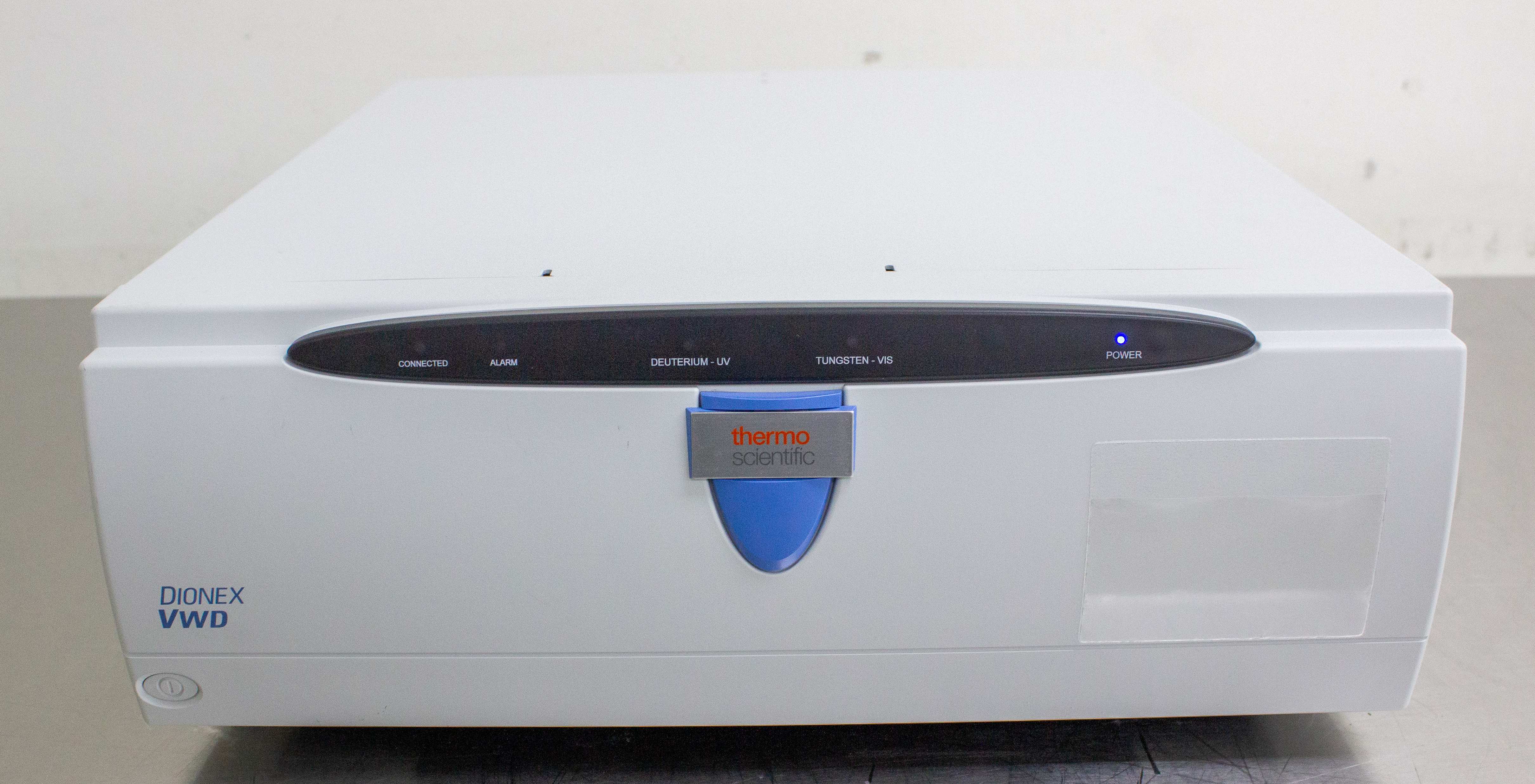

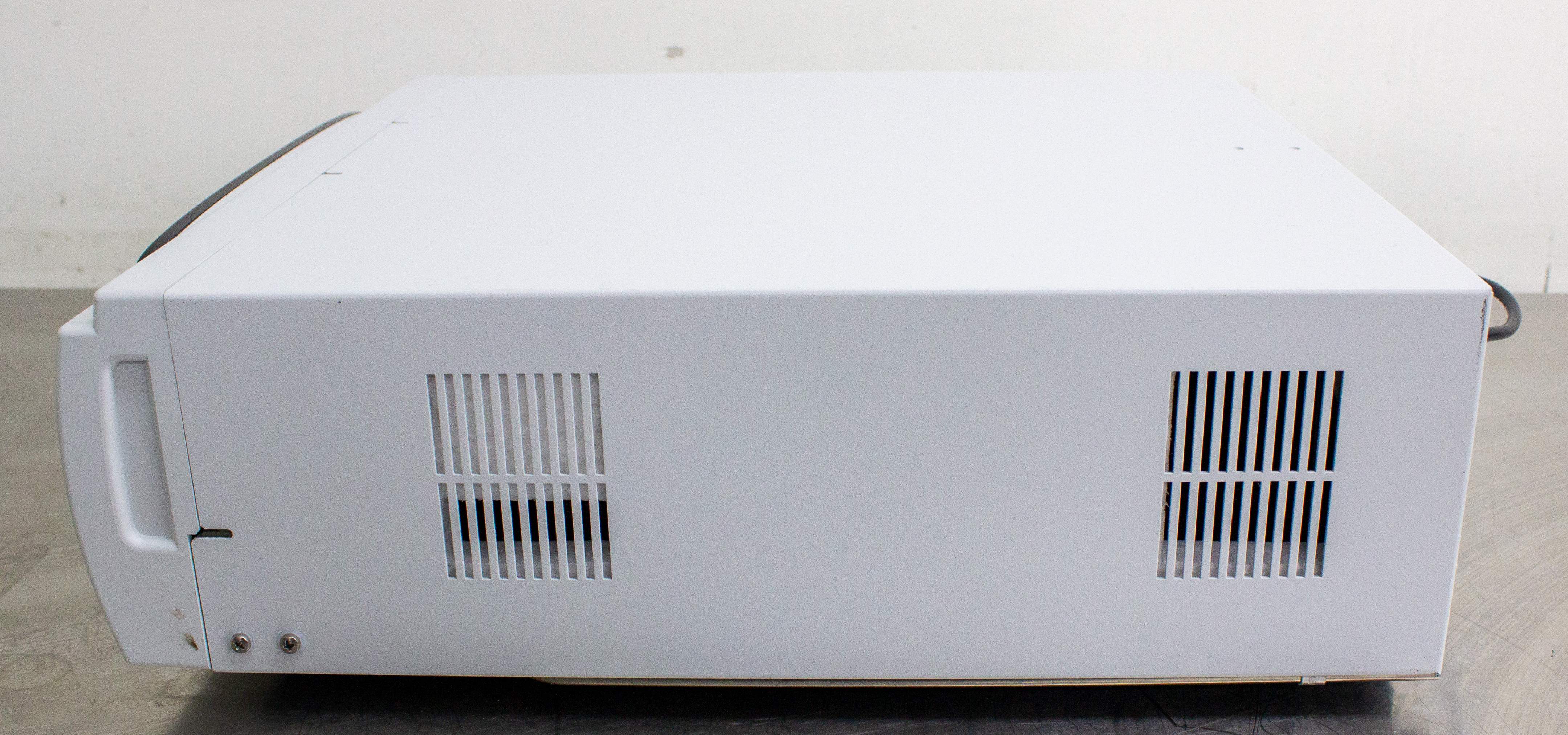

Thermo Dionex ICS-Series VWD Detector for Ion Chromatography Analysis
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 18.0in x 7.0in
-

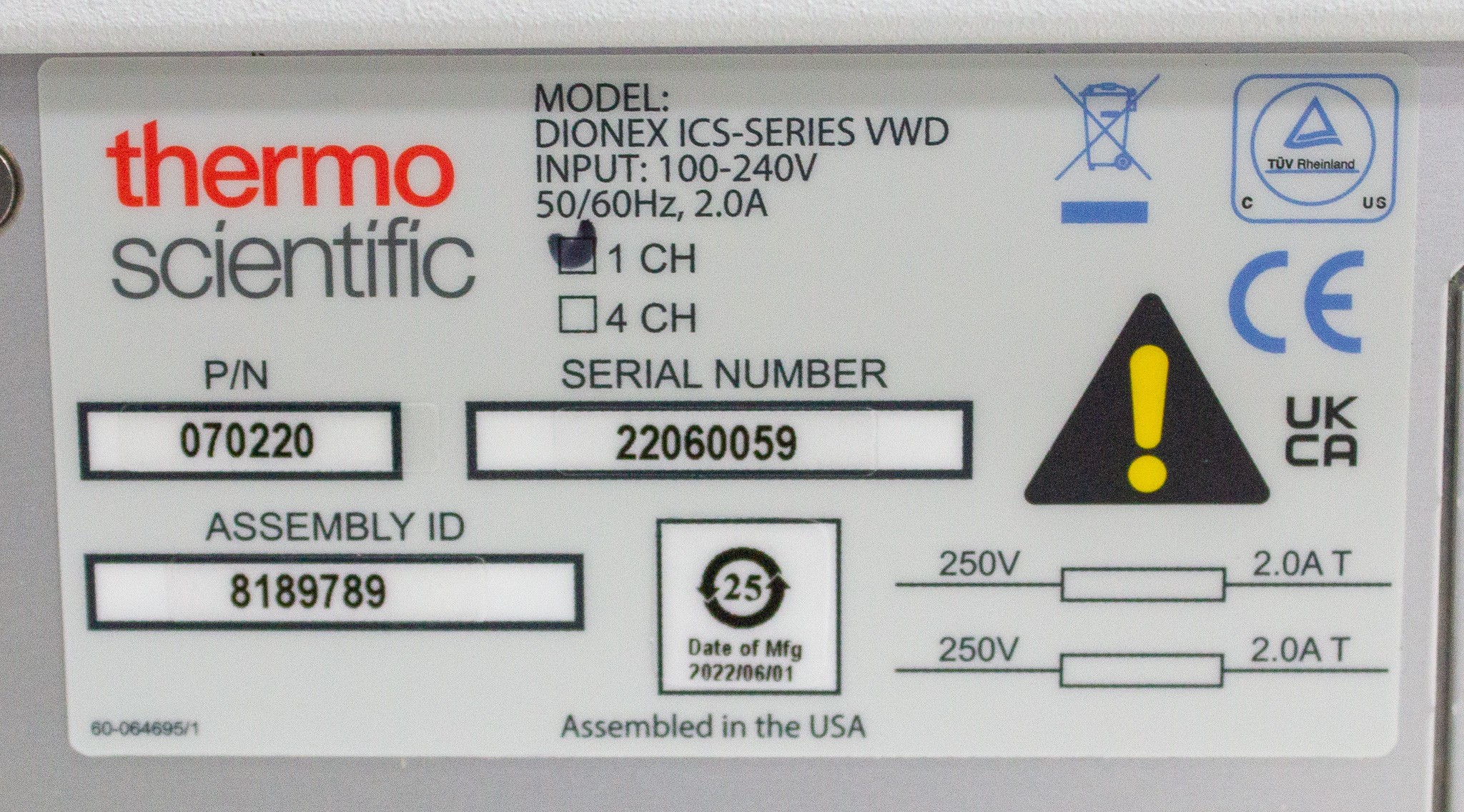

Serial22060059
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

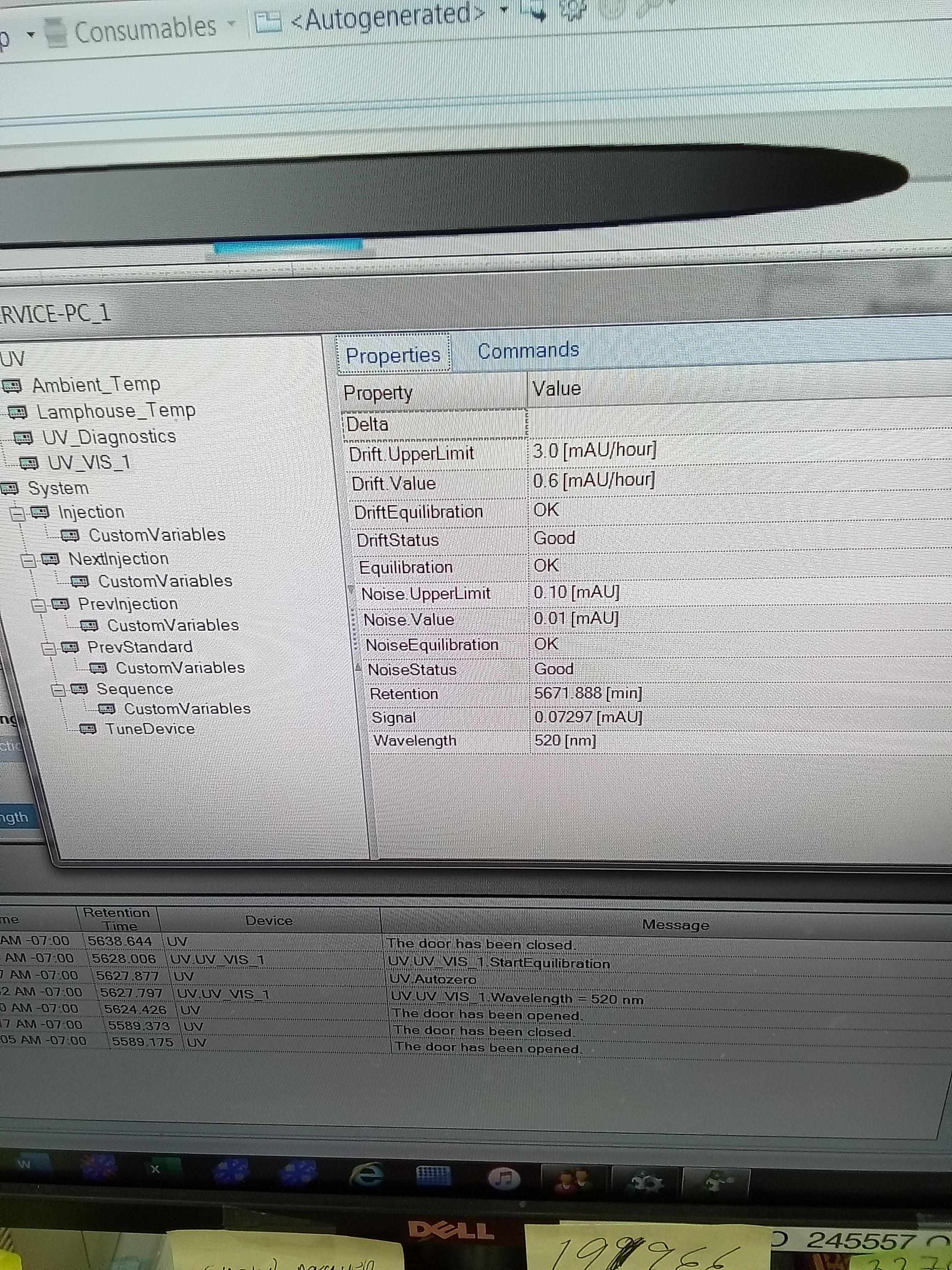

Thermo Dionex ICS-Series VWD model 070220 underwent comprehensive testing, confirming its performance aligned with benchmarks. It is a used instrument with minor cosmetic damages but delivers reliable functionality. This Variable Wavelength Detector (VWD) is crafted for ion chromatography with UV-Vis detection needs and fits seamlessly with multiple Thermo Dionex ICS systems, including ICS-5000, ICS-2100, ICS-1600, ICS-1100, and ICS-900, among legacy systems. It offers flexibility for routine laboratory analyses and sophisticated research tasks. The dual-lamp design ensures high sensitivity, while PEEK flow cells eliminate metal contamination concerns. The specifications include 190-900 nm wavelength range, USB PC connection, and simultaneous Tungsten and Deuterium lamp usage. It excels with a data collection rate up to 10 Hz and an impressive wavelength accuracy of 1 nm.
Key Features
- Used condition with verified functionality
- Minor cosmetic damage from previous use
- Supports Thermo Dionex ICS systems: ICS-5000, ICS-2100, ICS-1600, ICS-1100, ICS-900
- Variable Wavelength Detection (VWD)
- Wavelength range of 190 to 900 nm

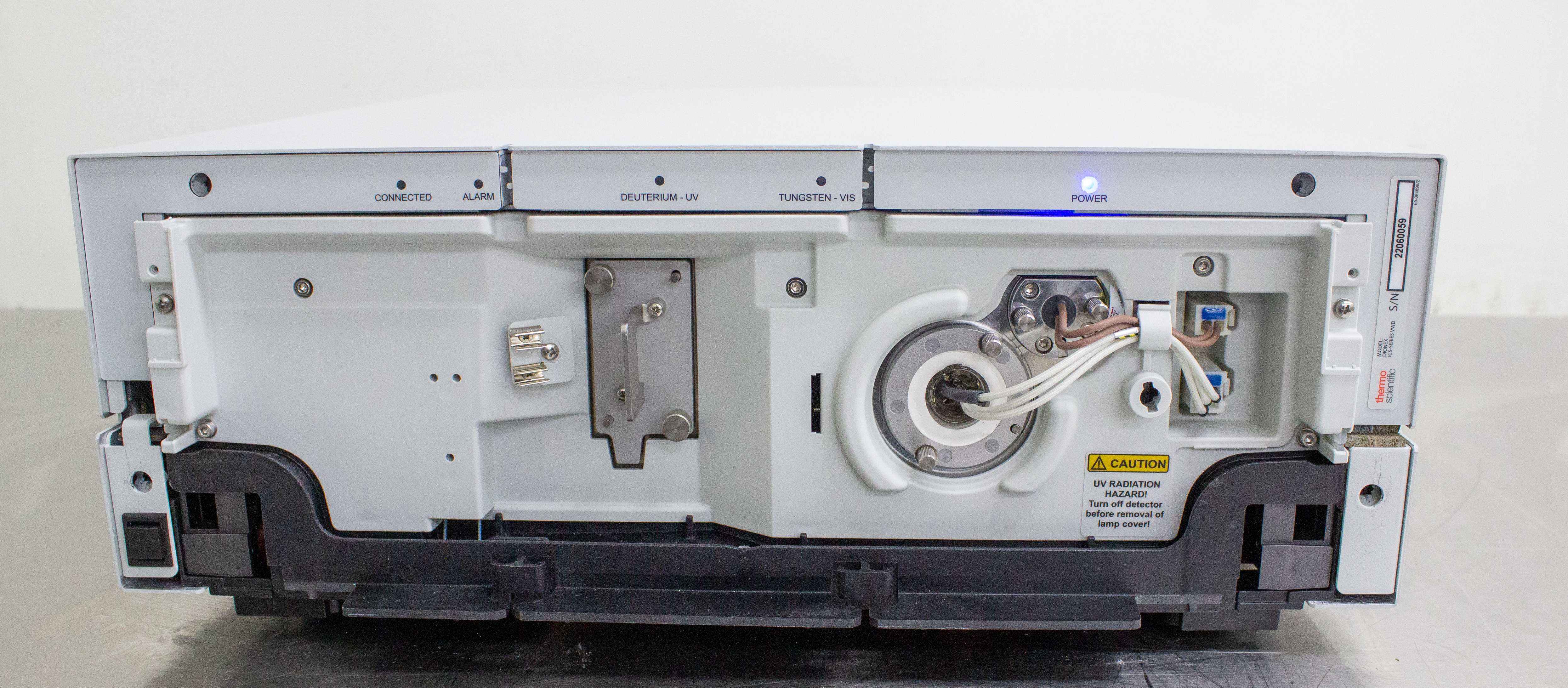

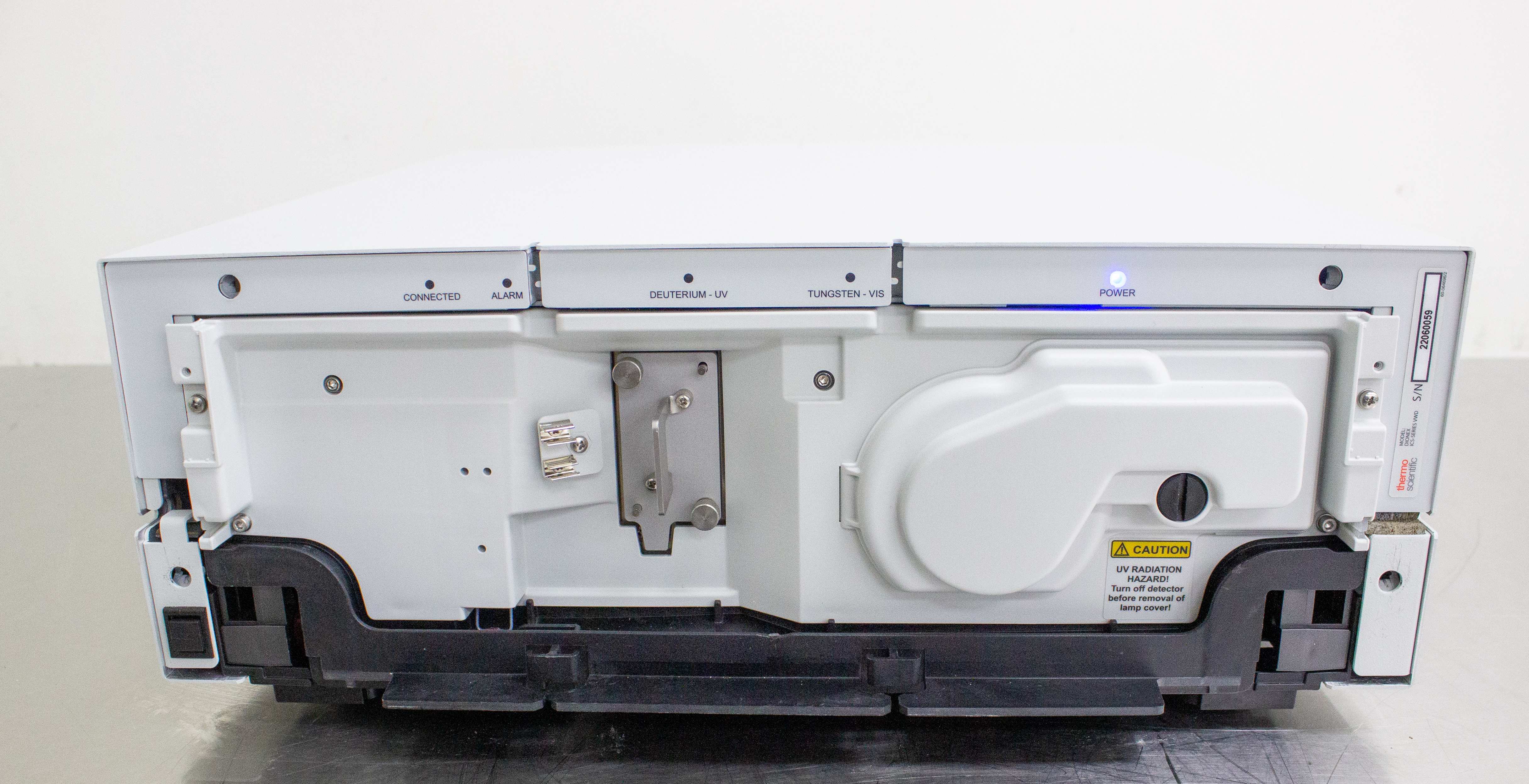

- Simultaneous use of Tungsten and Deuterium lamps

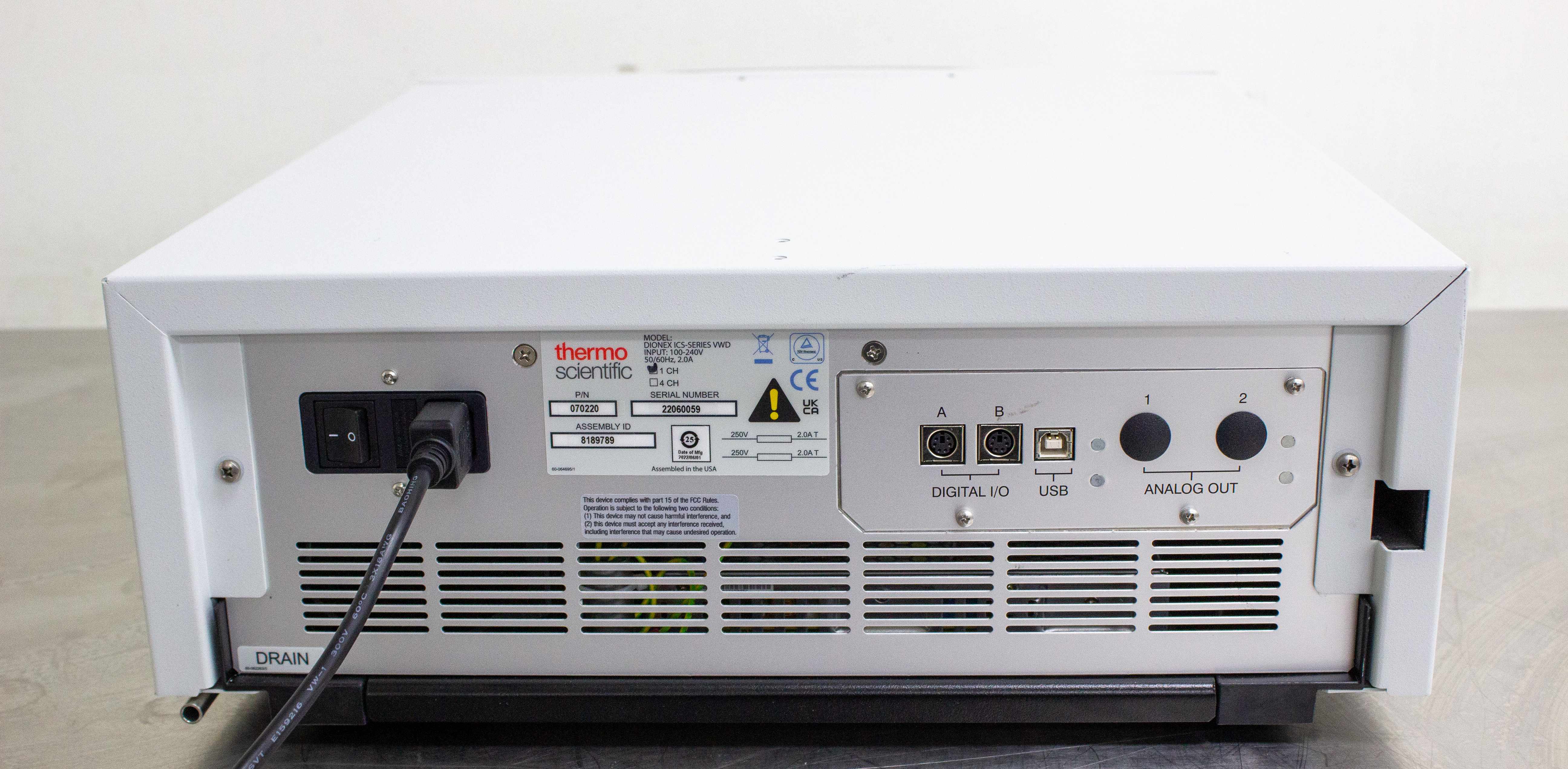

- Dual analog outputs with a resolution of 20-bit
- Analytical and semimicro flow cells made from PEEK material
- USB connectivity for PC interface
- Capable of data collection rates up to 10 Hz
- Flow cell volume: 11 L
Specifications
- Wavelength Range: 190 to 900 nm with 1 nm accuracy
- Flow Cell Material: PEEK
- Data Collection Rate: Up to 10 Hz
- Lamp Types: Simultaneous Tungsten and Deuterium
- Analog Outputs: Two options - absorbance with 20-bit resolution
- Noise Level: Less than 2.5 AU at 254 nm
- Drift: Less than 0.1 mAU/hr
- Wavelength Bandwidth: 6 nm at 254 nm
- PC Connection: USB
- Dimensions: 50.8 x 45.7 x 17.78 cm (LxWxH) - estimated
- Voltage Requirement: 120V/220V, Hertz: 50Hz/60Hz
Weight
Imperial: 38.4 Pounds
Metric: 17.42 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 21.6 lb x 8.4 lb
Metric: 60.96 cm x 54.86 cm x 21.34 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized code 902730 states 'Instruments and apparatus for measuring or checking ionizing radiations'. This was chosen due to the analytical nature and specific ion chromatography application of the detector.
