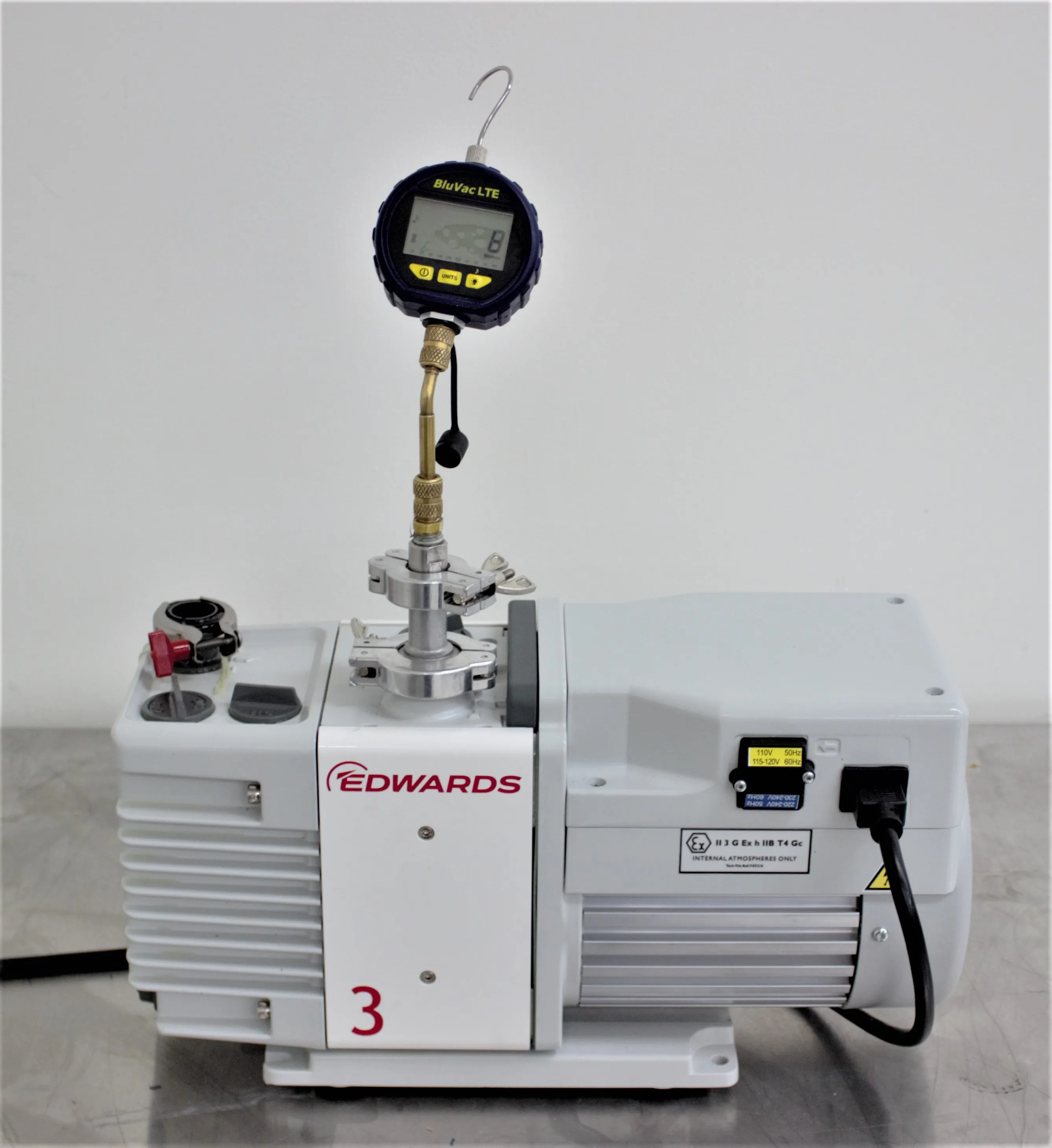

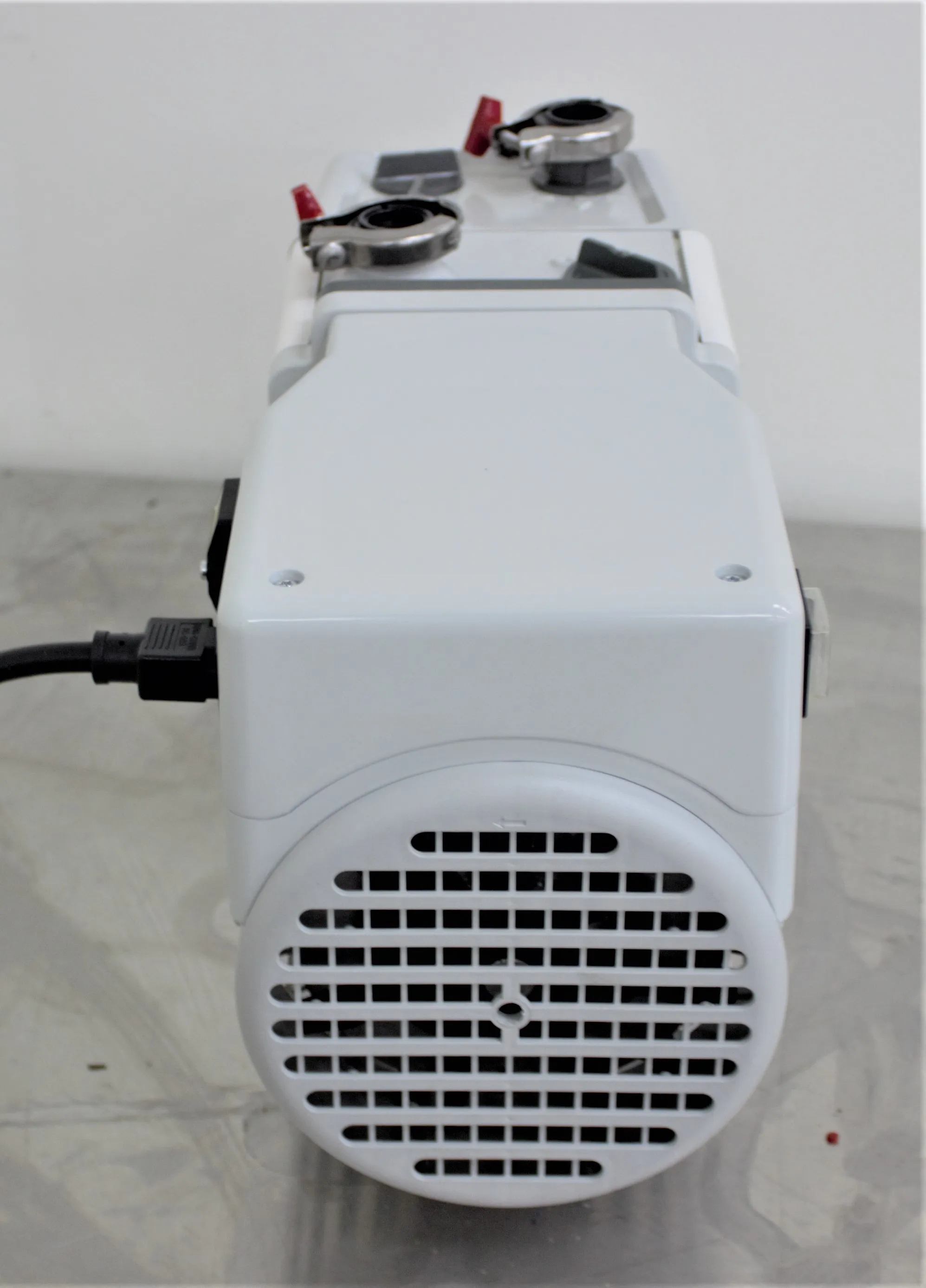

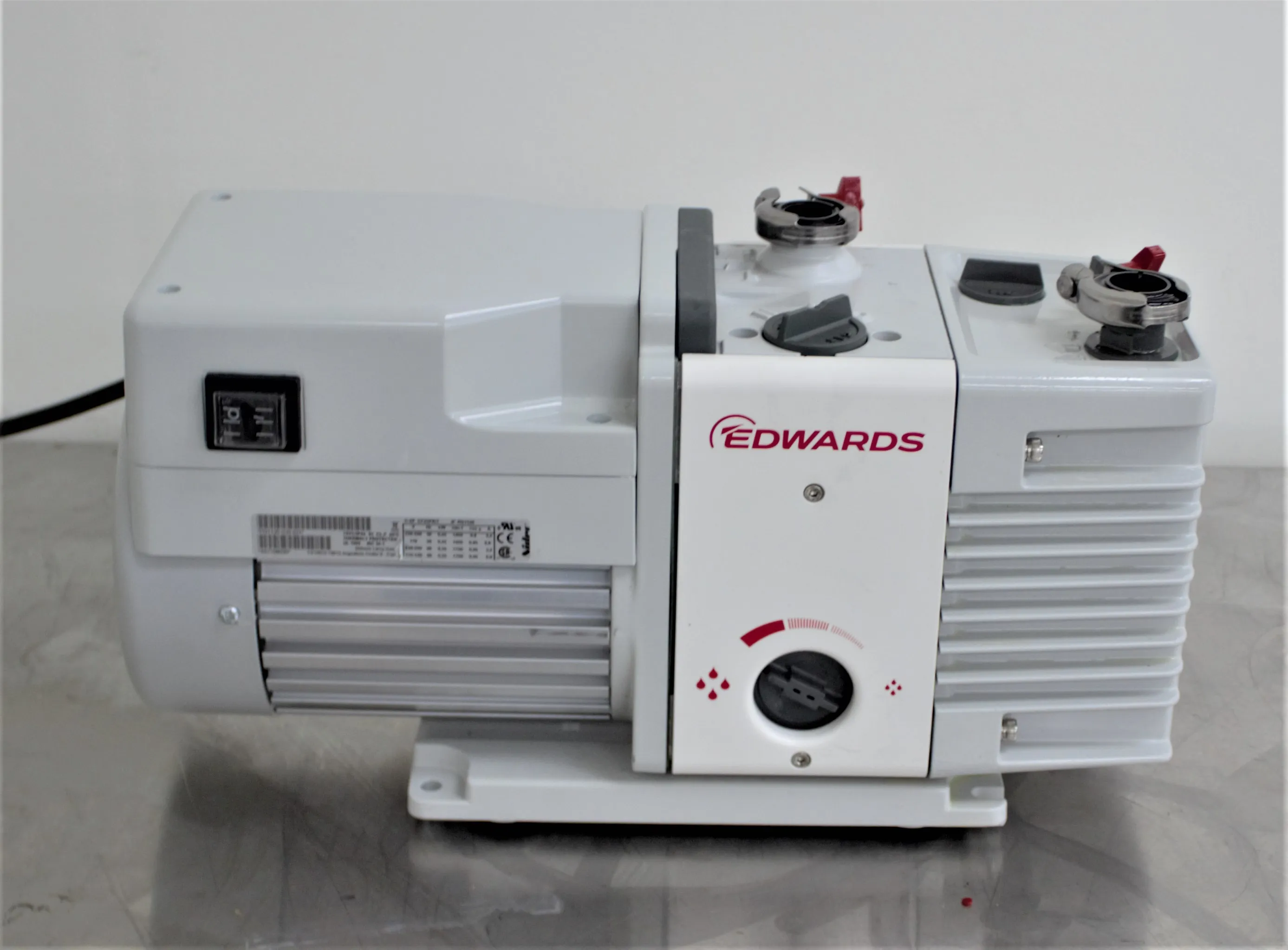

Edwards RV3 3 Model Rotary Vane Mechanical Vacuum Pump

Product Information

The Edwards RV3 3 Model RV3 is a dual stage rotary vane mechanical vacuum pump offering an excellent ultimate pumping speed with superior vapor handling capabilities. Its quiet operation, reliability, and accessories make it suitable for a wide range of applications. This used unit is in good working condition with very high gas load capability and quiet operation at 48dBA. The fast-acting inlet valve prevents oil and gas suckback. It is ideal for centrifugal concentrators, rotary evaporators, freeze dryers, gel dryers, and vacuum ovens. The Edwards RV3 is easy to use and service, with easily accessible controls, NW25 inlet/outlet connections, and a maximum pressure of 1.5 x 10-3mbar. The unit has a flow rate of 2.2 CFM, a temperature range of 12C to 40C, and a horsepower of 0.5hp.

• Dual stage rotary vane pump
• Quiet operation at 48dBA
• High gas load capability
• Easily reconfigurable
• Fast-acting inlet valve
• NW25 inlet/outlet connections

• Max. Pressure: 1.5 x 10-3mbar
• Flow Rate (CFM): 2.2
• Noise Level: 48dBA
• Temperature Range: 12C - 40C
• Flow Rate: 76L/min.
• Horsepower: 0.5hp
• Voltage: 120V/220V
• Hertz: 50Hz/60Hz

Metric: 24.947572 kg
Imperial: 55.0 lb

Metric: 20.0 cm x 8.0 cm x 12.0 cm
Imperial: 7.874015748 in x 3.1496062992 in x 4.7244094488 in

84141080

84141080 - Vacuum pumps: Other
