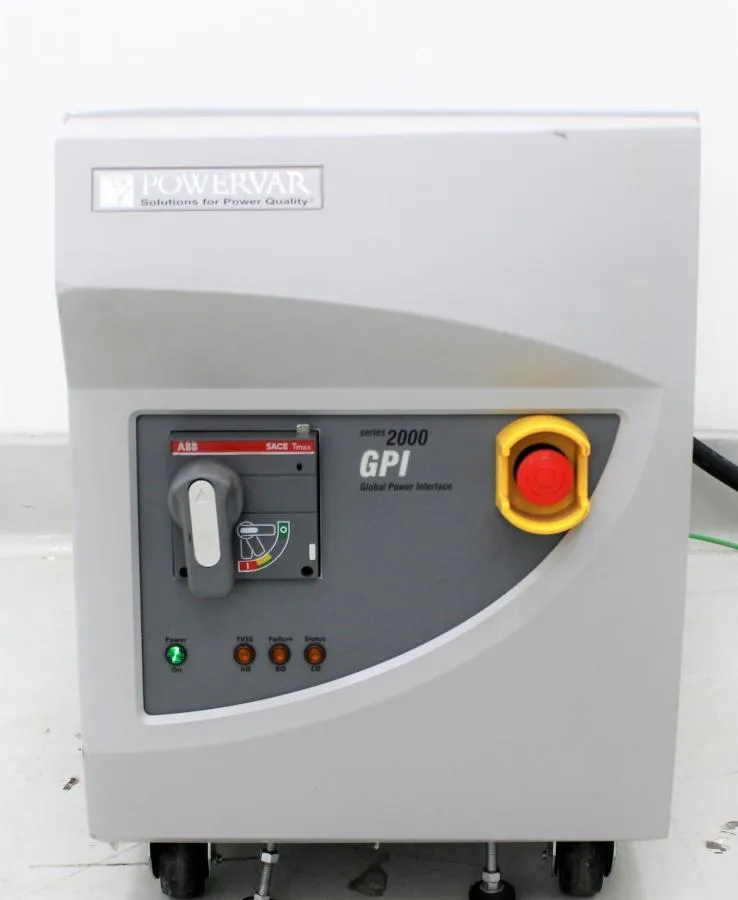

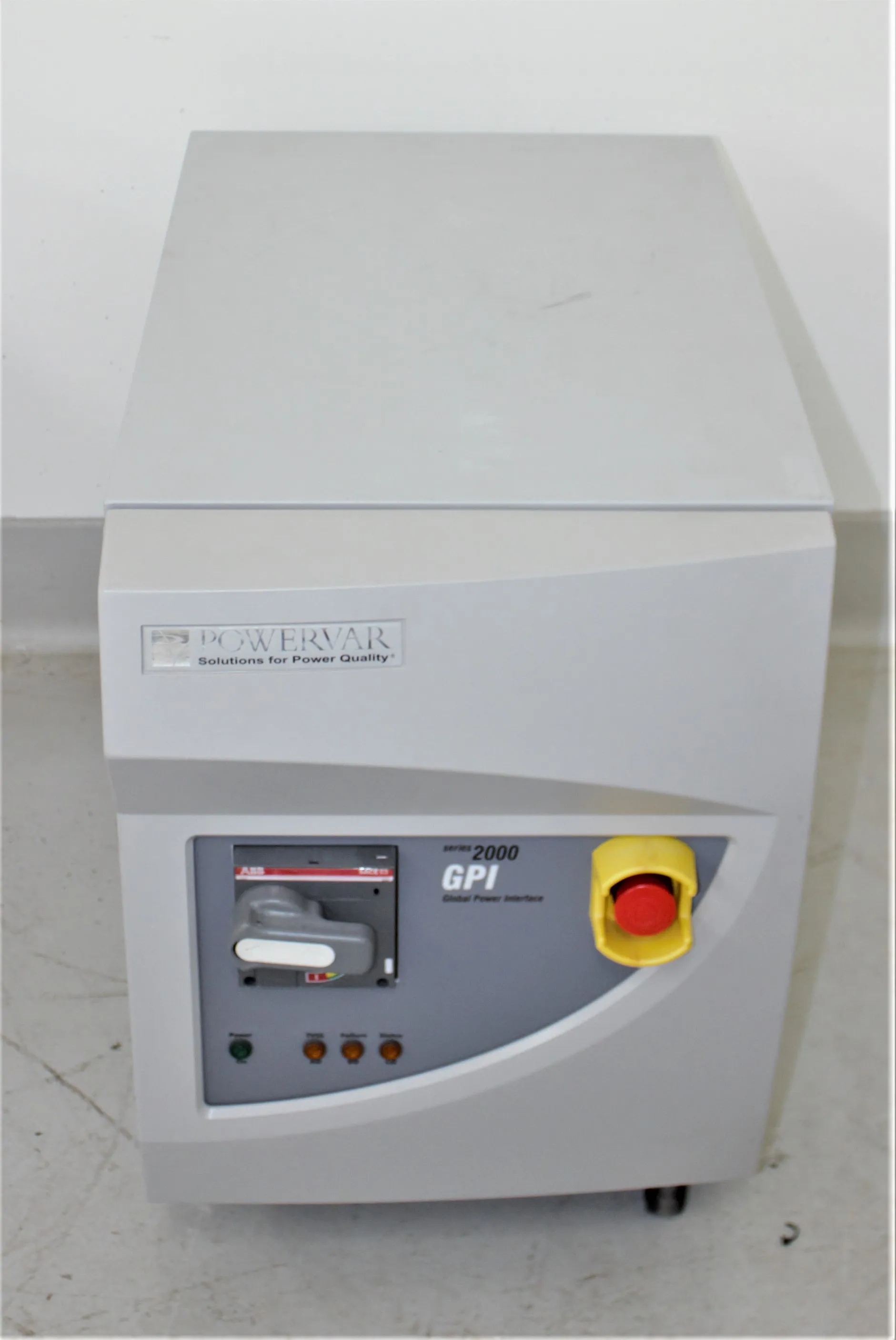

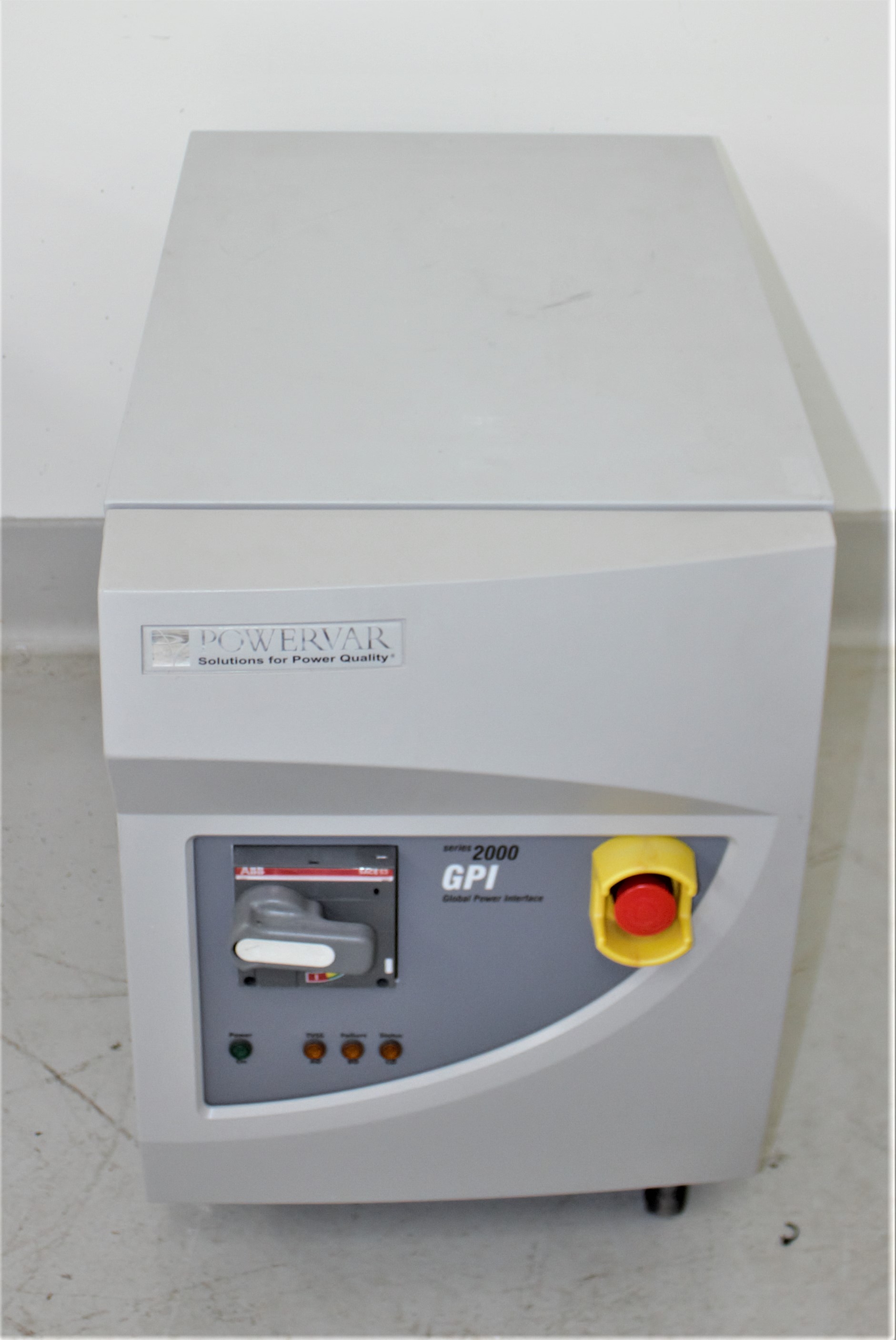

POWERVAR Global Power Interface 2000 Power Supply

Product Information

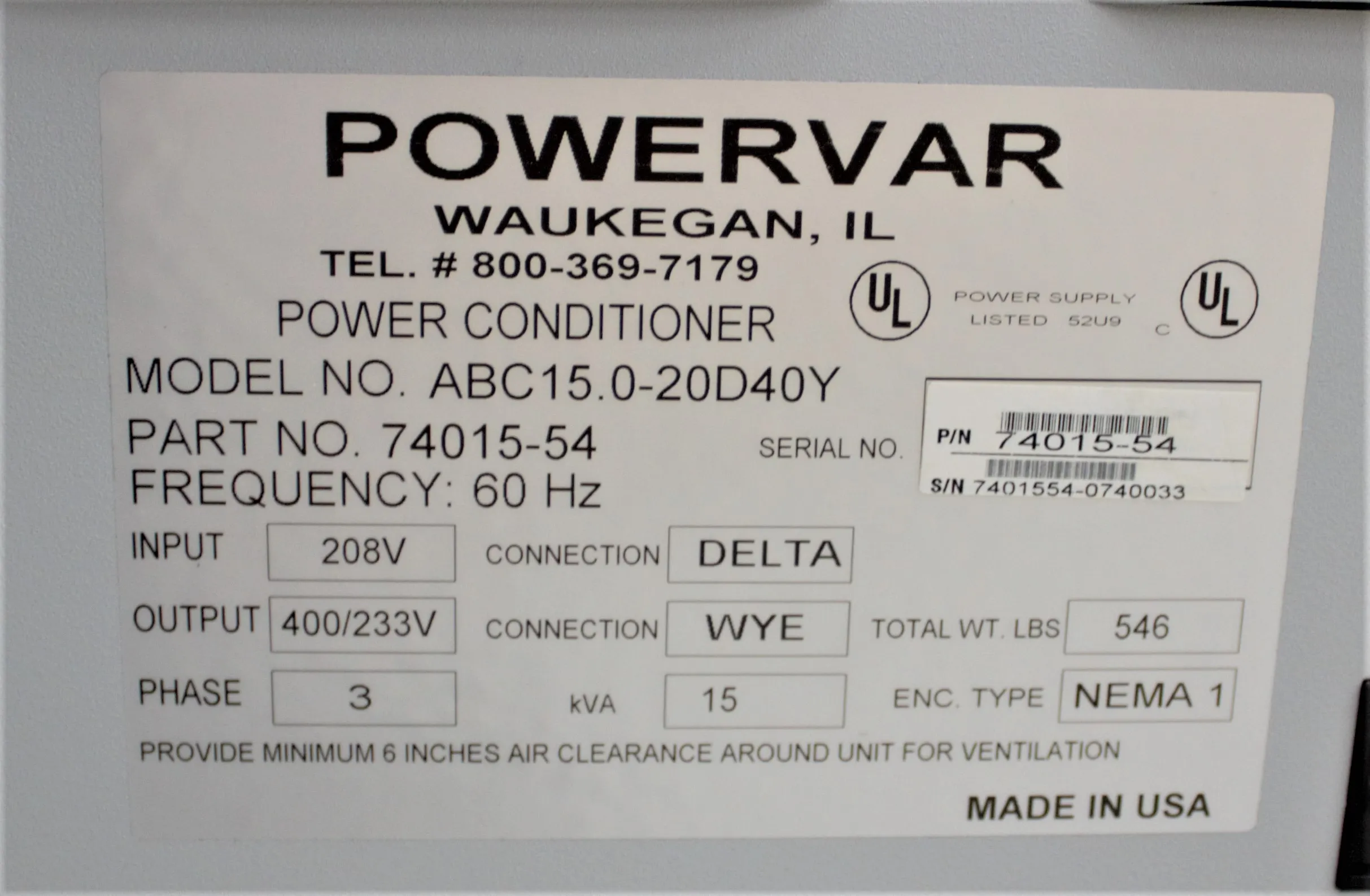

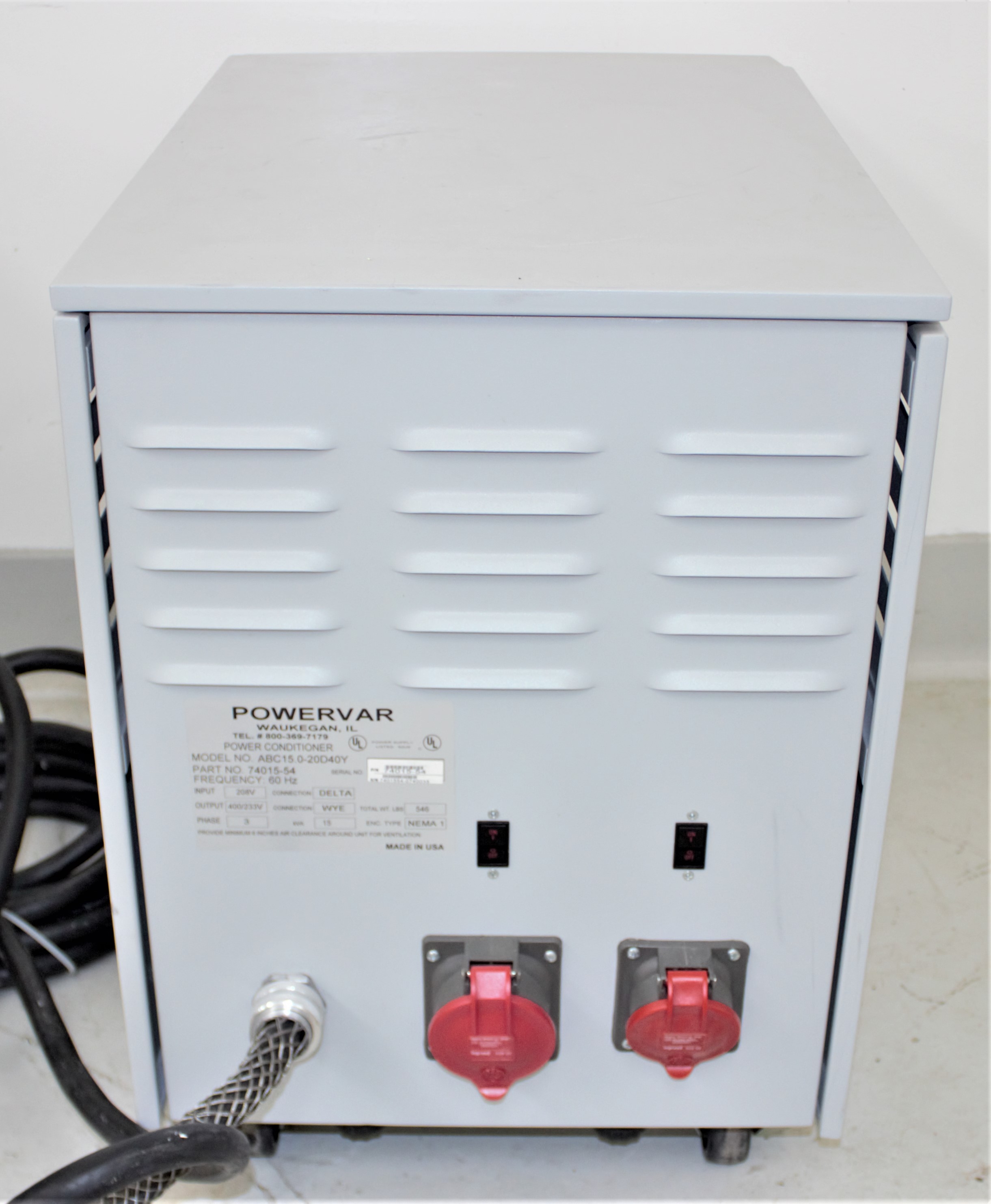

The POWERVAR Global Power Interface 2000 Power Supply by Powervar is designed to incorporate a low impedance isolation transformer, surge diverter and power line filter to eliminate noise, spikes, and transients. The voltage distribution and conditioning all in one solution are ideal for protecting equipment. This power supply features standard equipment including safety interlocks, emergency machine off (EMO), casters, and lockout/tagout breaker. It has been tested and functions with slight cosmetic blemishes. The model ABC15.0-XXD20Y's input voltage is 208/240/480/600 delta connection (4 wire), while the output voltage is 208/120 wye (5 wire) at a frequency of 60 Hz. The continuous capacity is 15 kVA, and the BTU/Hr. output is 1536.

• Incorporates a low impedance isolation transformer, surge diverter and power line filter to eliminate noise, spikes, and transients

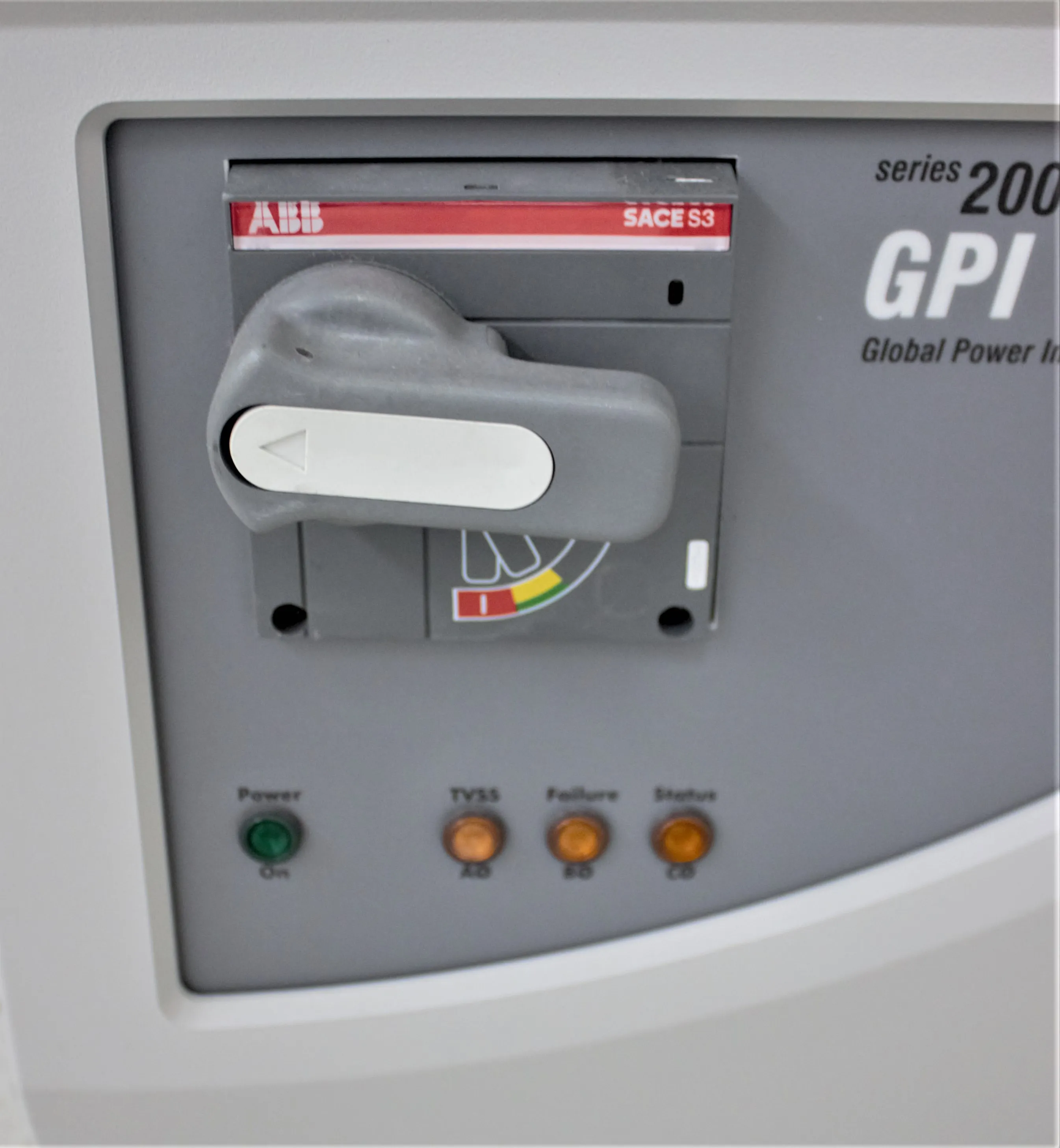

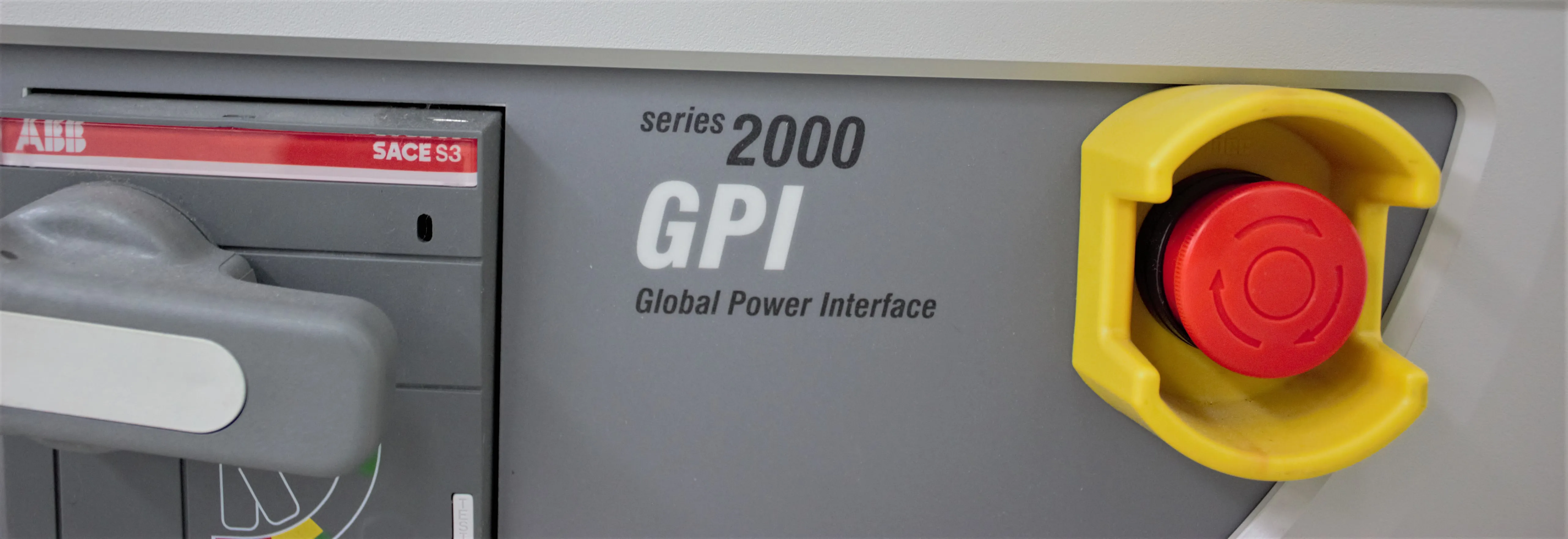

• Standard equipment includes safety interlocks, emergency machine off (EMO), casters, and lockout/tagout breaker
• Functions at 208/240/480/600 delta connection (4 wire) input voltage, and 208/120 wye (5 wire) output voltage with a frequency of 60 Hz
• Continuous capacity of 15 kVA and BTU/Hr. output of 1536

• Input Voltage: 208/240/480/600 delta connection (4 wire)
• Output Voltage: 208/120 wye (5 wire)
• Frequency: 60 Hz
• Continuous Capacity: 15 kVA
• BTU/Hr. Output: 1536
• Efficiency: > 97% (at full load, unity power factor)
• Step Load Change: +0.8% (at unity power factor)
• Noise Rejection: With unit under power and the isolation transformer configured for a transformation ratio of 1:1 and with an ANSI/IEEE C62.41, Category A pulse applied either normal mode or common mode at the input, the noise output voltage will be less than 10 volts normal mode and less than .5 volts ( of one volt) common mode in all four quadrants (CM-NM, NM-NM, CM-CM, NM-CM)
• Surge Voltage Withstand: Tested under power to ANSI/IEEE C62.41, Category A & B (formerly IEEE587-1980). Power conditioner tested to withstand up to 6000 volts @ 3000 amp ringwave and unipolar impulse
• Construction Materials: Transformer wires are copper, insulated with Class H materials. Windings are insulated with Nomex paper insulation before vacuum varnishing. Internal wiring is a minimum of 200-degree C rated and sleeved with Class H materials. Grain-oriented silicon iron cores are constructed using 14 mil. laminations interleaved one to one. Eddy currents are minimized and external magnetic fields are > 0.1 oersted (at 12 inches distance in any direction). Unit is RoHS compliant

Metric: 256.598 kg
Imperial: 565 lb

Metric: 40 cm x 30 cm x 30 cm
Imperial: 15.75 in x 11.81 in x 11.81 in

8504409550

Power supply units designed to be incorporated with apparatus for protecting electrical circuits
