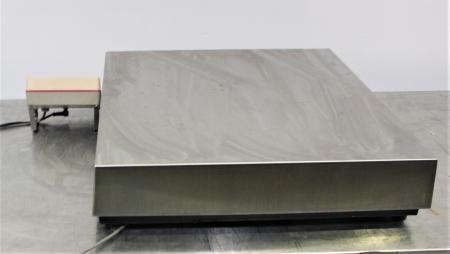

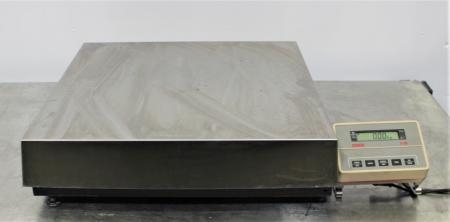

Ohaus I-10 Weight Scale Bench Scale 500 LBS Capacity VG Condition
Ohaus
Details
-
CategoryScale / Balance
-
Dimension36.0in x 36.0in x 12.0in
-
Serial31015
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Ohaus I-10 Weight Scale offers robustness and precision, designed for rugged industrial environments while maintaining high accuracy. The scale features a single point, bending beam load cell made of aluminum, ensuring reliable performance. It integrates seamlessly with Ohaus electronic indicators and compatible systems. Constructed with a painted steel platform, the scale base dimensions measure 24 x 24 x 5.8 inches. This unit has undergone basic functionality tests and presents minor cosmetic blemishes due to normal use. It supports a maximum capacity of 500 LBS with a readability of 0.05 LBS and a safe overload capacity of 150%. Operating within a temperature range of 14 to 104°F (-10 to 40°C), this scale is suitable for diverse industrial measuring needs. With a repeatability of +0.01% and a linearity of +0.03%, it ensures reliable and precise measurements.
Key Features
- Single point, bending beam load cell
- Painted steel platform
- 500 LBS capacity
- Readability 0.05 LBS
- Safe overload capacity 150%
- Integration with Ohaus electronic indicators
- Operating range 14 to 104°F (-10 to 40°C)
Specifications
- Capacity: 500 LBS
- Readability: 0.05 LBS
- Readability (Type approved): 0.2 LBS
- Repeatability (Std. dev): +0.01%
- Linearity: +0.03%
- Scale base size: 24 x 24 x 5.8 inches
- Operating temperature range: 14 to 104°F (-10 to 40°C)
- Platform frame: Painted steel
Weight
Imperial: 78.0 Pounds
Metric: 35.38 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 43.2 lb x 14.4 lb
Metric: 109.73 cm x 109.73 cm x 36.58 cm
Harmonized Code
84238200
Harmonized Code Details
Harmonized Code 84238200: Weighing machinery (excluding balances of a sensitivity of 5cg or better), including weight operated counting or checking machines; weighing machine weights of all kinds. Chosen for this industrial weight scale due to its specific use and capacities.
