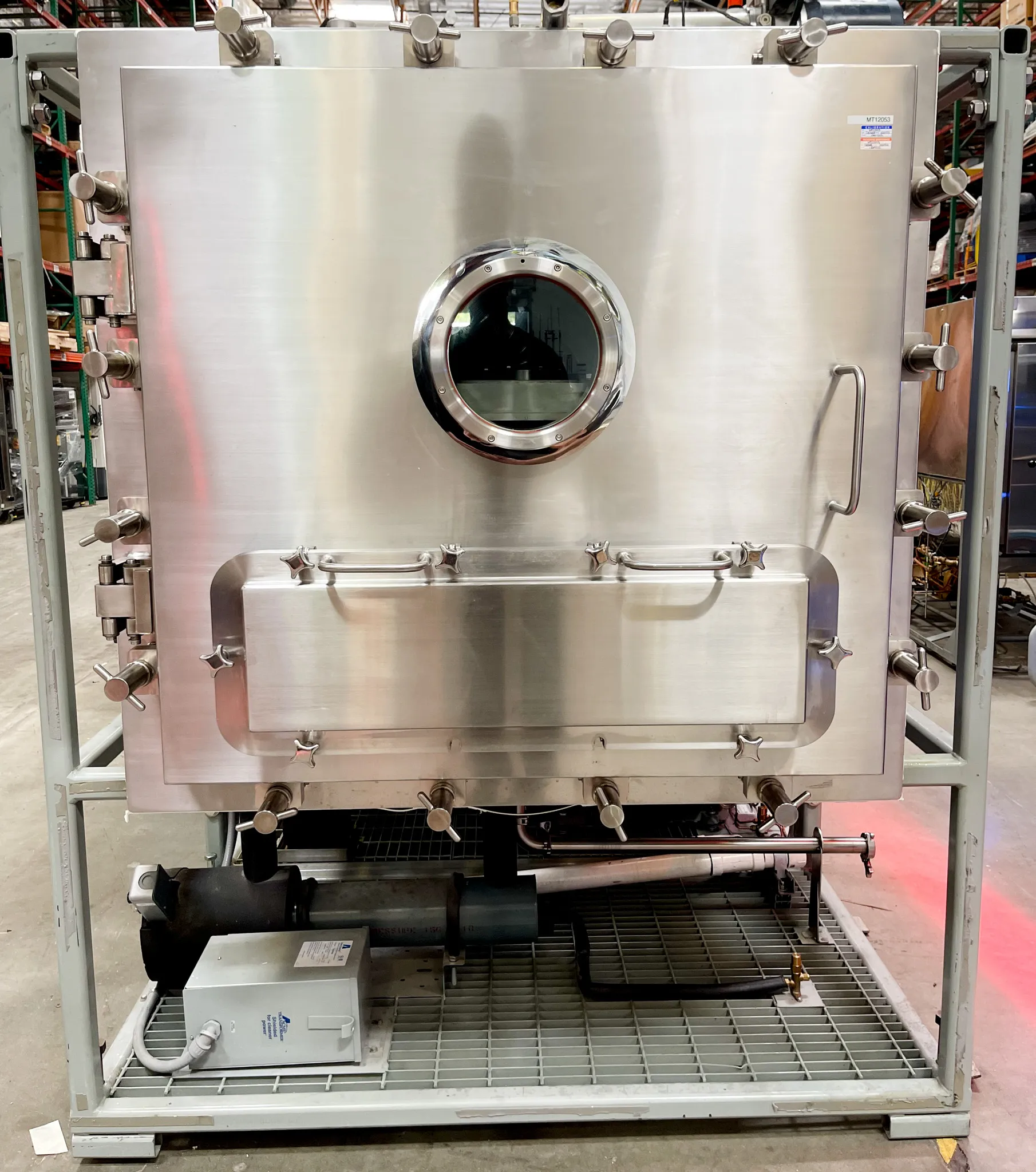

SP Scientific LyoConstellation S30 Lyophilizer -55 to 65C, 33 sq ft, Stainless
SP Scientific
Details
-
CategoryLyophilizer / Speed Vac
-
Dimension75.0in x 75.0in x 80.0in
-
Serial327431
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

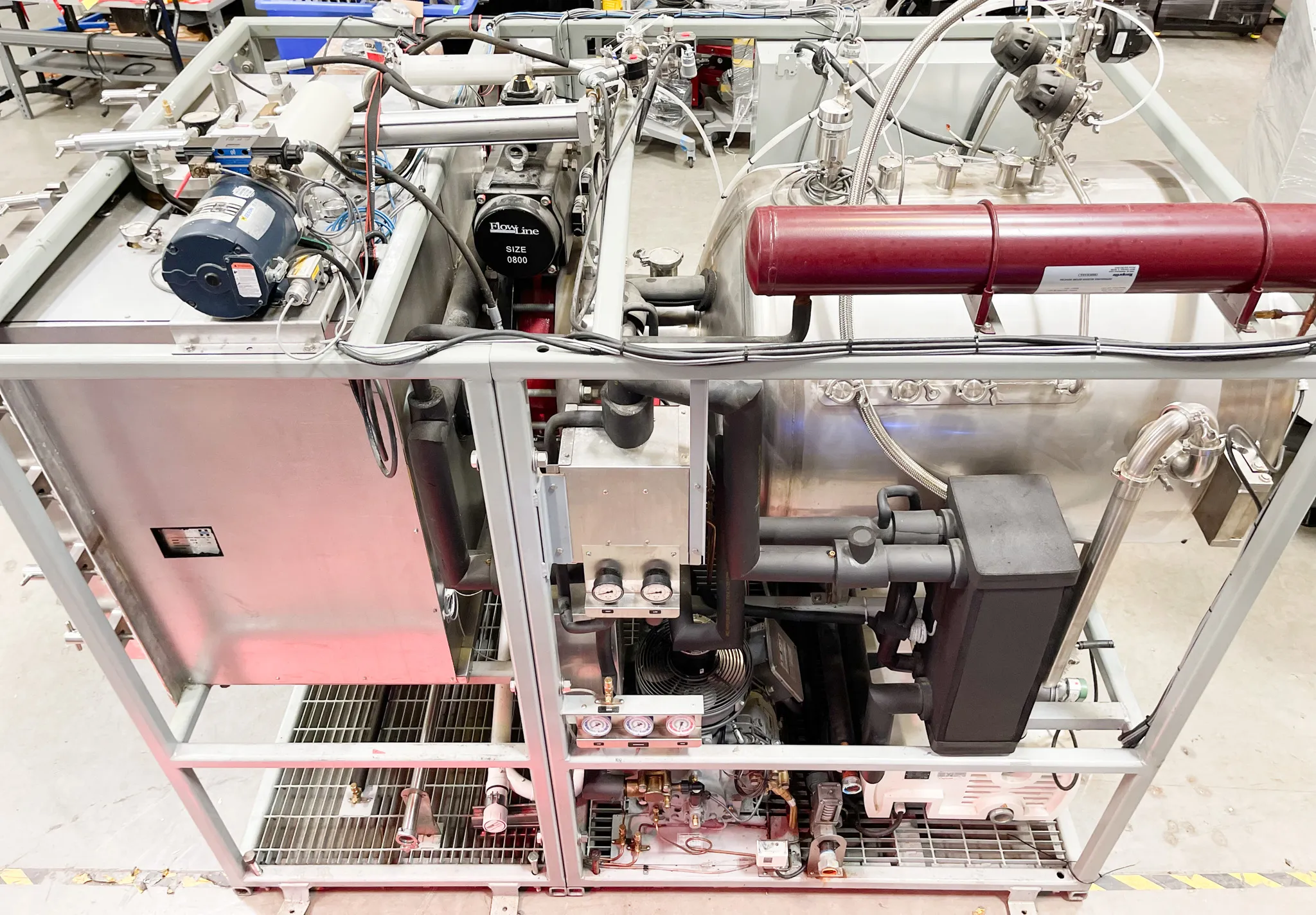

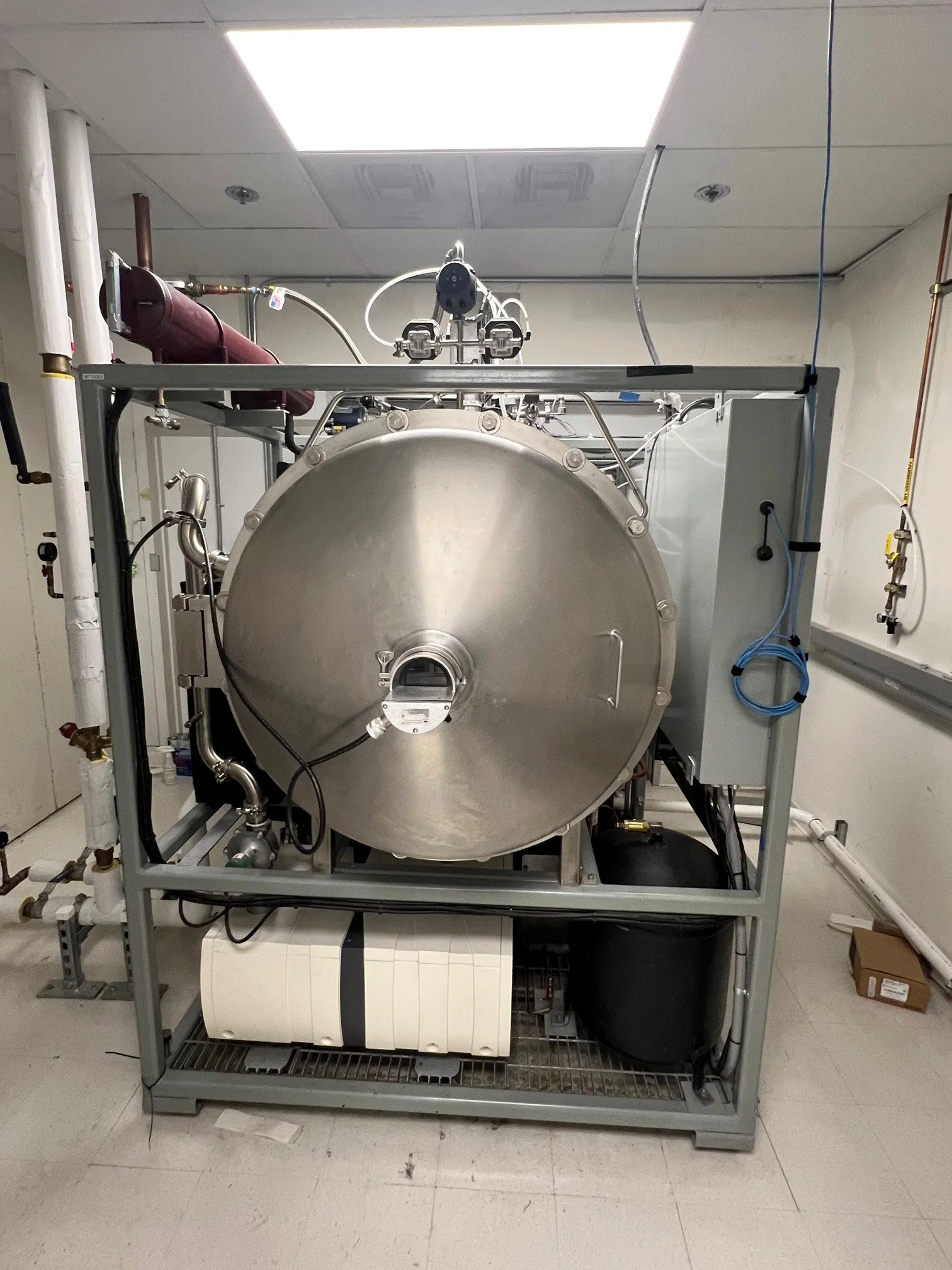

The SP Scientific LyoConstellation S30 offers a large-scale solution for sophisticated freeze-drying needs. This lyophilizer features high-grade 316L stainless steel product contact surfaces with 8 shelves measuring 20" x 30", perfectly suited for research labs or pharmaceutical production. Designed with a shelf temperature range from -55°C to +65°C, and equipped with a 3.48 sq meter condenser for optimal performance. This skid-mounted, unused unit has a 20 hp refrigeration compressor, relying on R410A refrigerant, and includes a Leybold vacuum pump. Noteworthy for its top-down stoppering functionality, this turnkey system ensures efficient loading of sample trays. Installed yet untouched, it's a prime choice for your laboratory freeze-drying applications.
Technician comment
SP Scientific Lyophilizer Freeze Dryer - LyoConstellation S30 - with Stoppering **This unit was installed but never used**.
Key Features
- SP Scientific LyoConstellation S30
- Lyophilizer with Stoppering
- -55 to +65°C shelf temperature range
- 3 sq meter / 33 sq ft stainless steel shelves

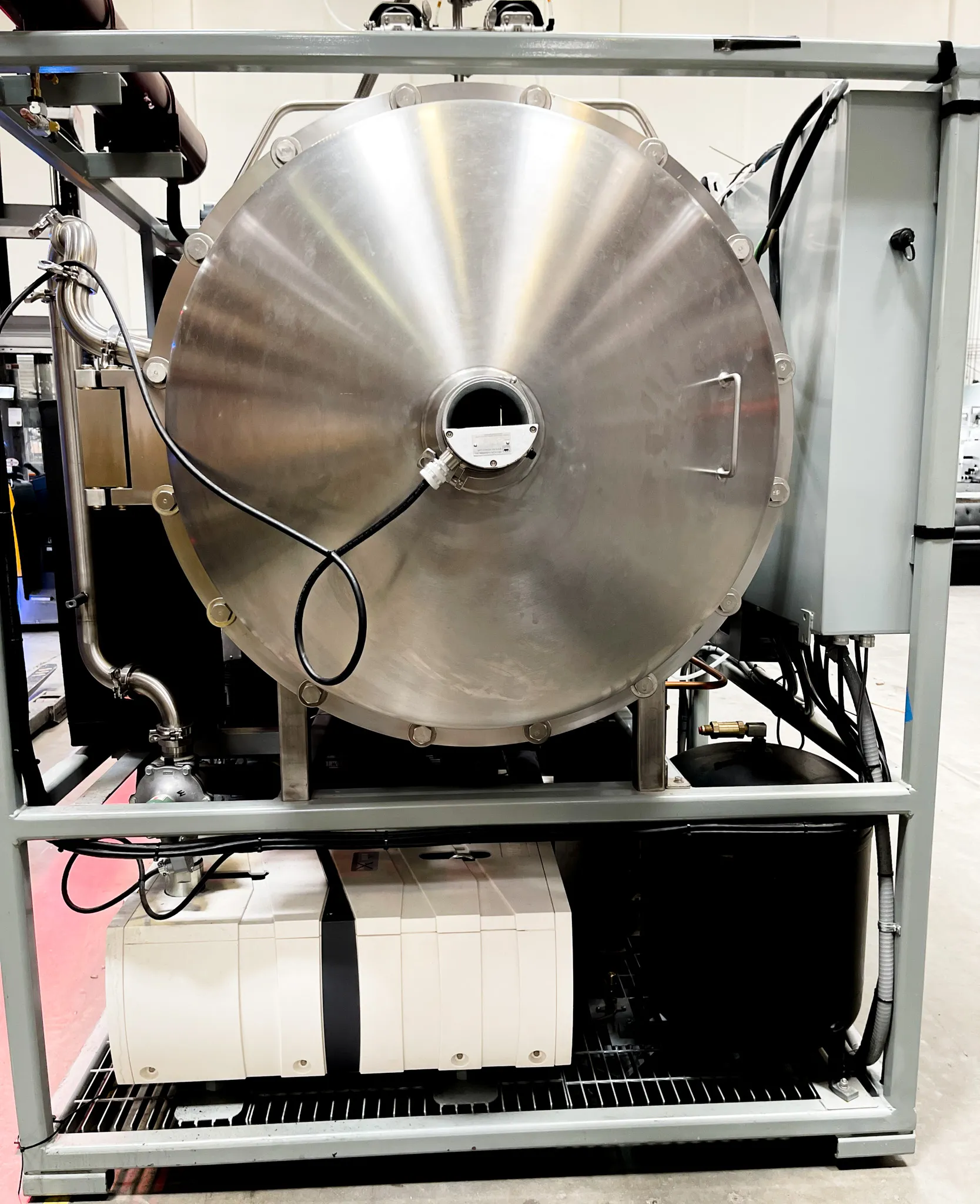

- 3.48 sq meter / 37.5 sq ft condenser

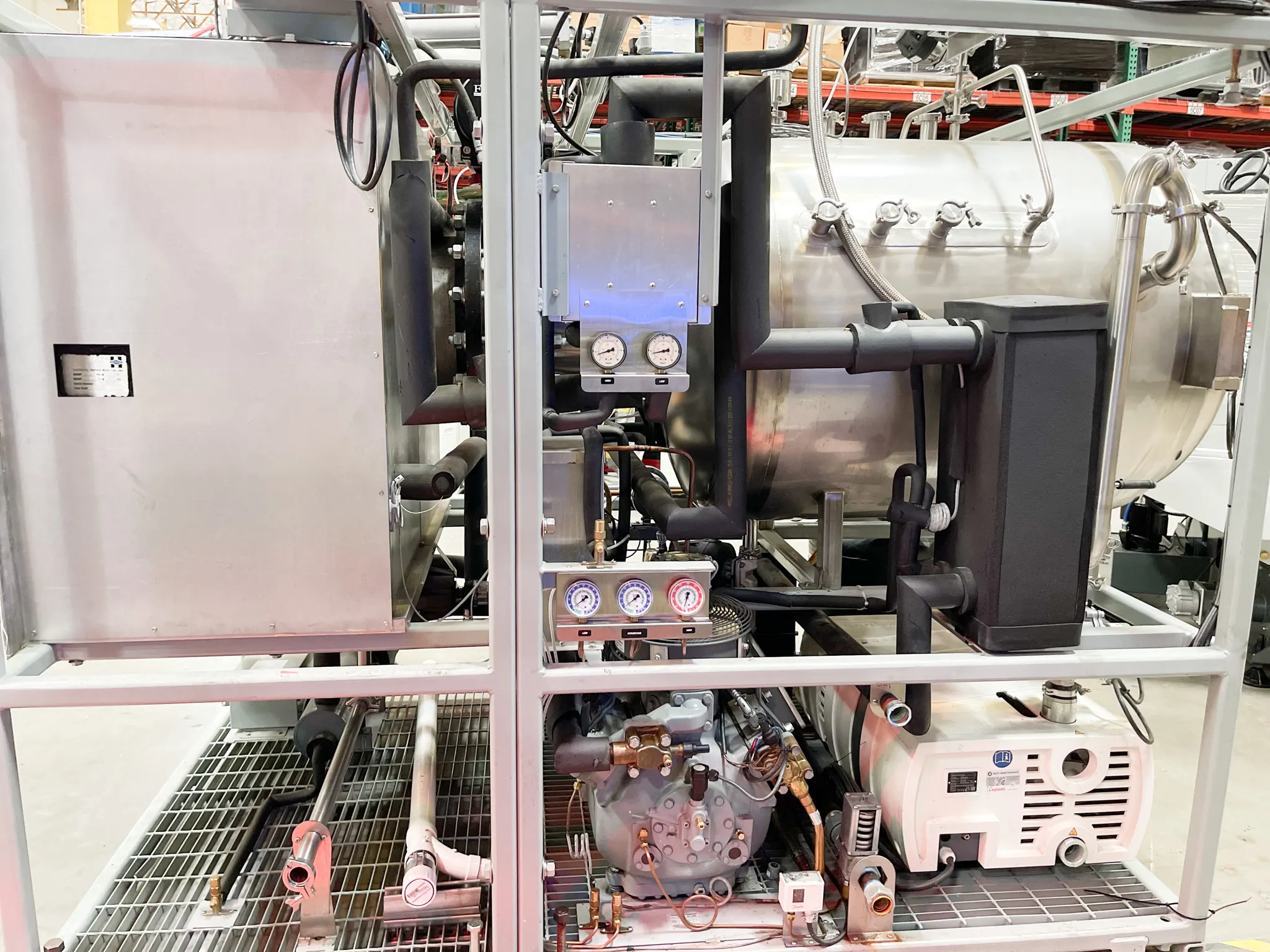

- 20 hp refrigeration compressor
- Leybold vacuum pump
- R410A refrigerant
- Unused, turnkey system
Specifications
- Brand/Manufacturer: SP Scientific
- Model: LyoConstellation S30
- Shelf Temperature Range: -55 to +65°C
- Total Shelf Area: 3 sq meter / 33 sq ft
- Number of Shelves: 8, 20" wide x 30" deep
- Shelf Spacing: 3"
- Condenser Area: 3.48 sq meter / 37.5 sq ft
- Stainless Steel Grade: 316L
- Refrigeration System: 20 hp, R410A
- Vacuum Pump: Leybold
- Power Requirement: 480 volt
- Condition: Installed but unused

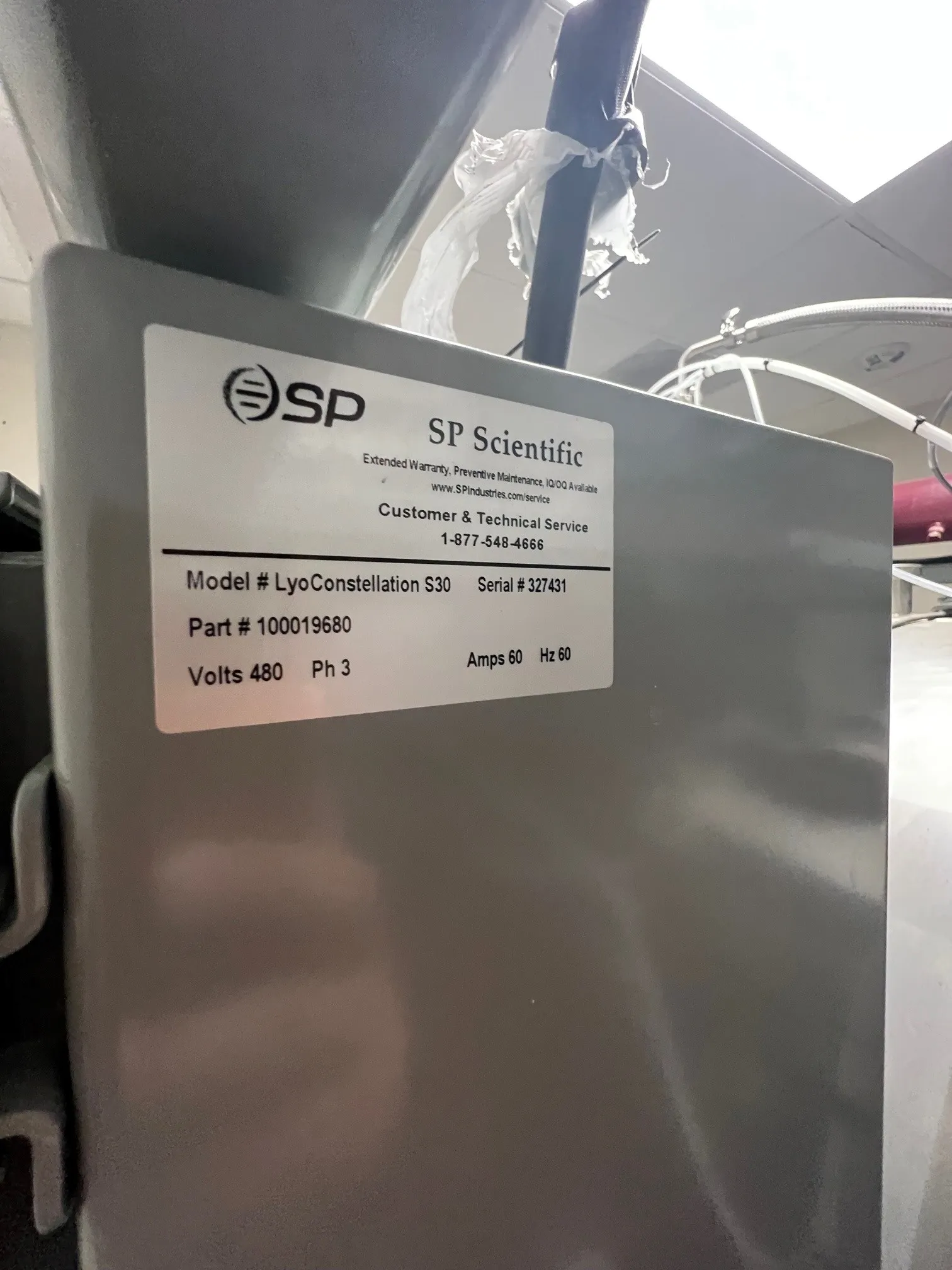

- Serial Number: 327431
Weight
Imperial: 6000.0 Pounds
Metric: 2721.55 Kilograms
Shipping Dimensions
Imperial: 90.0 lb x 90.0 lb x 96.0 lb
Metric: 228.6 cm x 228.6 cm x 243.84 cm
Harmonized Code
841939
Harmonized Code Details
Harmonized code 841939: Machinery, plant or laboratory equipment whether or not electrically heated, for the treatment of materials by a process involving a change of temperature such as heating, cooking, roasting, distilling, rectifying, sterilizing, pasteurizing, steaming, drying, evaporating, vaporizing, condensing or cooling, n.e.s. This code is appropriate given the lyophilizer's function in freeze-drying and temperature control applications.
