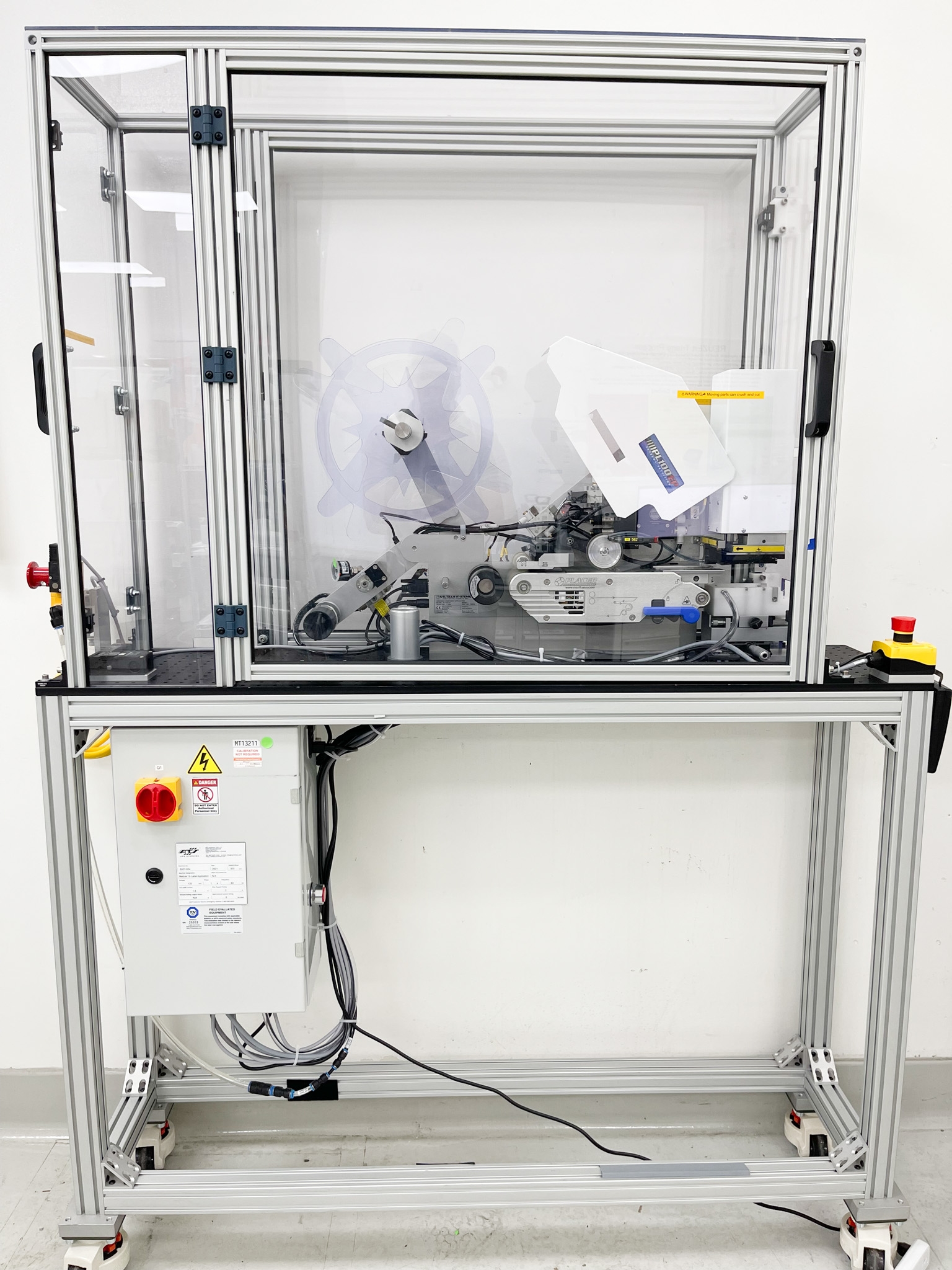

ATS 13-Label Application Robotic Automation Automated System No Computer
ATS Life Sciences
Details
-
CategoryRobotic / Automation
-
Dimension80.0in x 14.0in x 58.0in
-

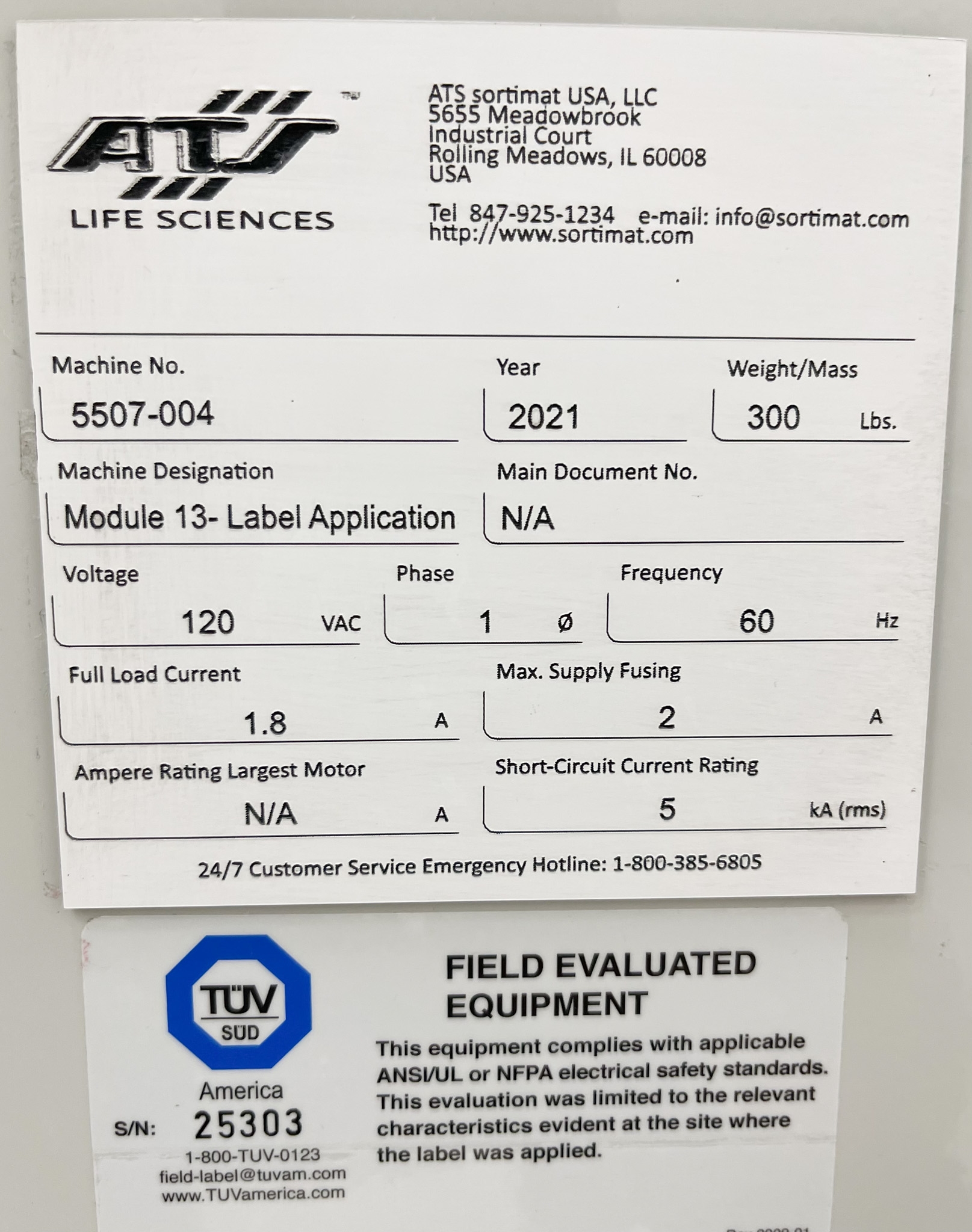

Serial5507-004
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

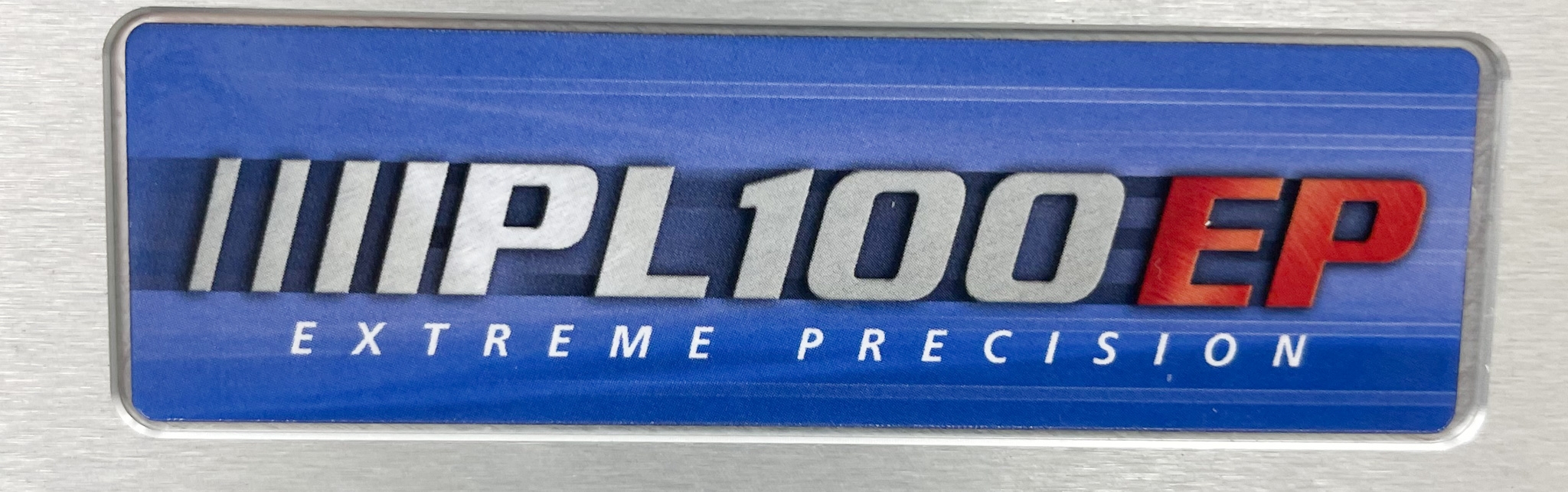

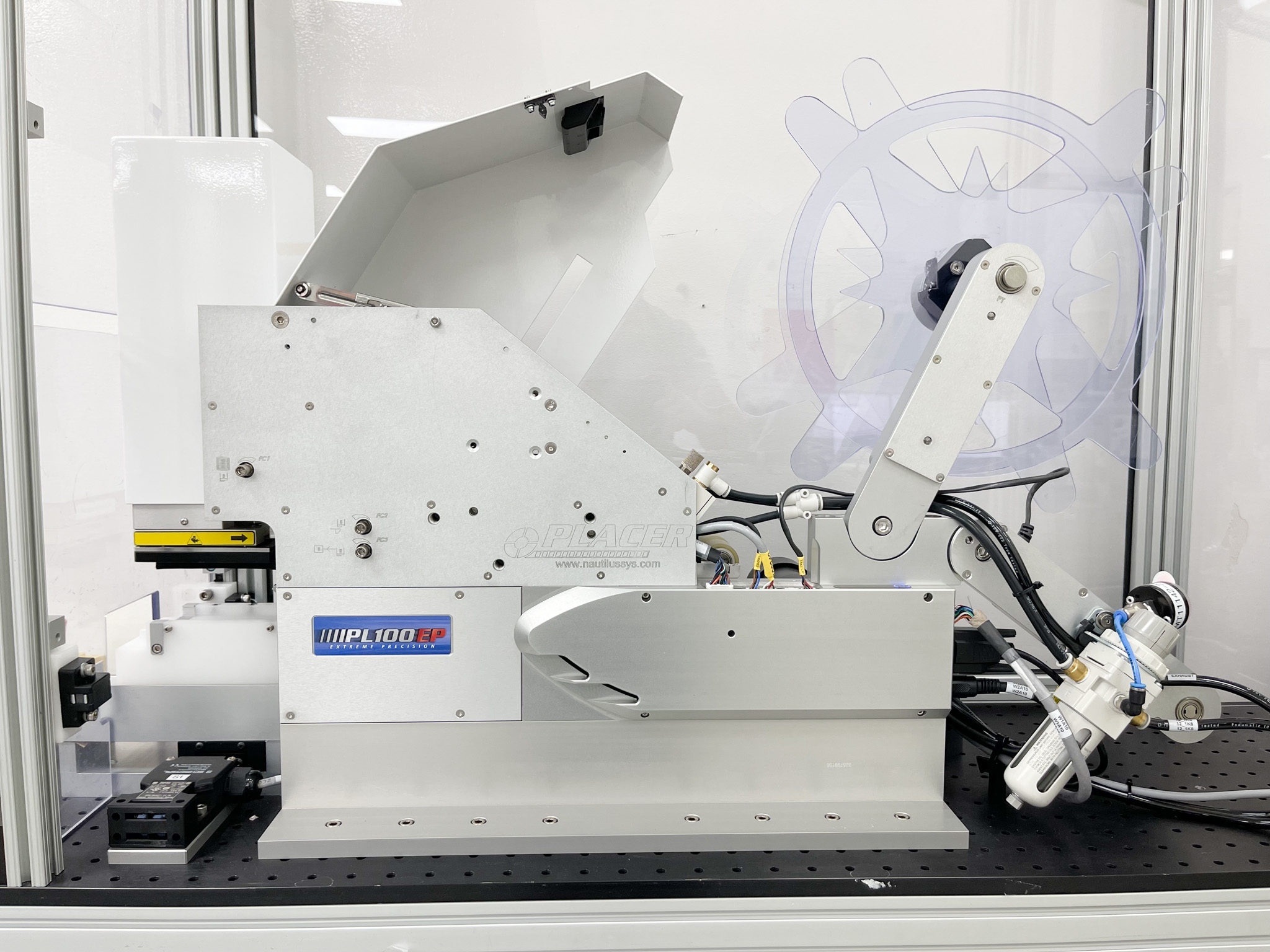

Manufactured by ATS Life Sciences, the Model 13-Label Application, Nautilus Systems PL100I ER, offers high accuracy and reliability for labeling tasks. This system can feed and peel various shapes of die-cut adhesive components with ease, without relying on pneumatics, thereby simplifying setup and maintenance. The system supports components up to 100 x 100 mm, featuring an EP Package that enhances accuracy with a closed-loop feedback system for precise feed location and material travel. It is integrated with automated assembly solutions, equipped with a pneumatic precision-guided tamp actuator, a payoff assembly, and a powered takeup assembly for operation needs. Custom Component Tooling (CCT) is uniquely configured per die-cut component specifications, allowing rapid changeover of tooling elements like vacuum chucks, blade guide pads, and liner guide rollers without requiring tools.
Key Features
- 100 x 100 mm component capacity
- EP Package closed-loop feedback system
- Pneumatic precision-guided tamp actuator
- Rapid changeover for Custom Component Tooling
- 16-Key Applicator Interface Module with LCD
- Optional Dual Force Tamp for enhanced tamp force
Specifications
- All-electric feed and peel system
- Supports various die-cut adhesive components
- Maximum EP accuracy: +/- 0.035mm
- Integrated into automated assembly solutions
- Includes pneumatic tamp, payoff, and takeup assemblies
- Component shape: Any shape, any material, multiple placements
- Operating voltage: 120V, 50/60Hz
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 96.0 lb x 16.8 lb x 69.6 lb
Metric: 243.84 cm x 42.67 cm x 176.78 cm
Harmonized Code
847990
Harmonized Code Details
847990 - This code corresponds to parts suitable for machines of heading 8479, which covers machines and mechanical appliances having individual functions not specified or included elsewhere in this chapter. The ATS Model 13-Label Application, with its unique labeling capability and integration into automated processes, fits under this classification.
