sku: 3371401
1 In Stock

Ridgeline Engineering

236-001 Rev 04
US • REUZEit West Coast US - R
30-Day Warranty On Part
$6,799.00
$7,500.00
-9% OFF
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Robotic / Automation
  • Dimension
    60.0in x 42.0in x 72.0in
  • Serial
    2430106
  • Shipping Type
    Freight
  • Manufacturing
    2021-01-01
  • Voltage / Hertz
    120V / 50Hz/60Hz

Description

Product Information

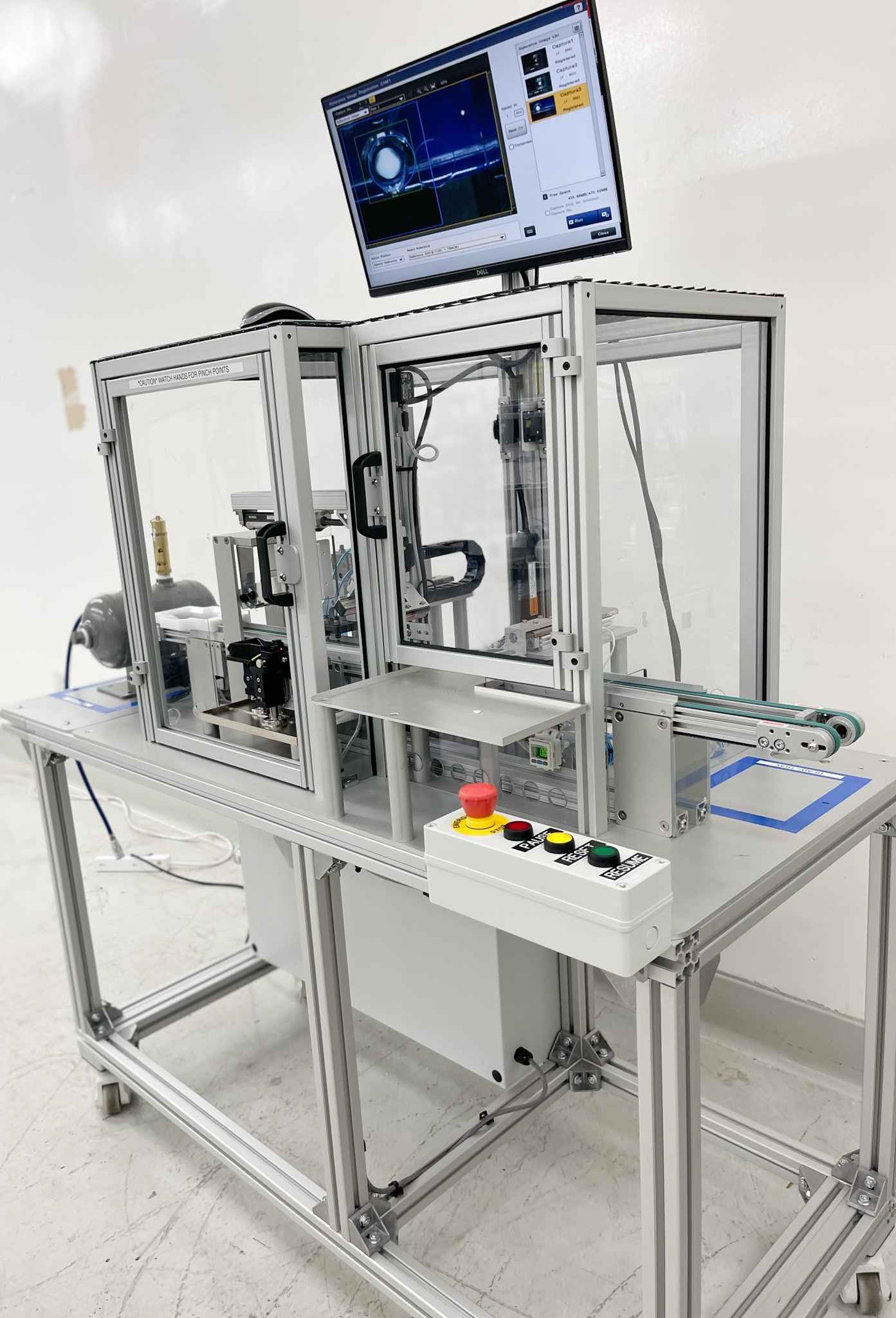

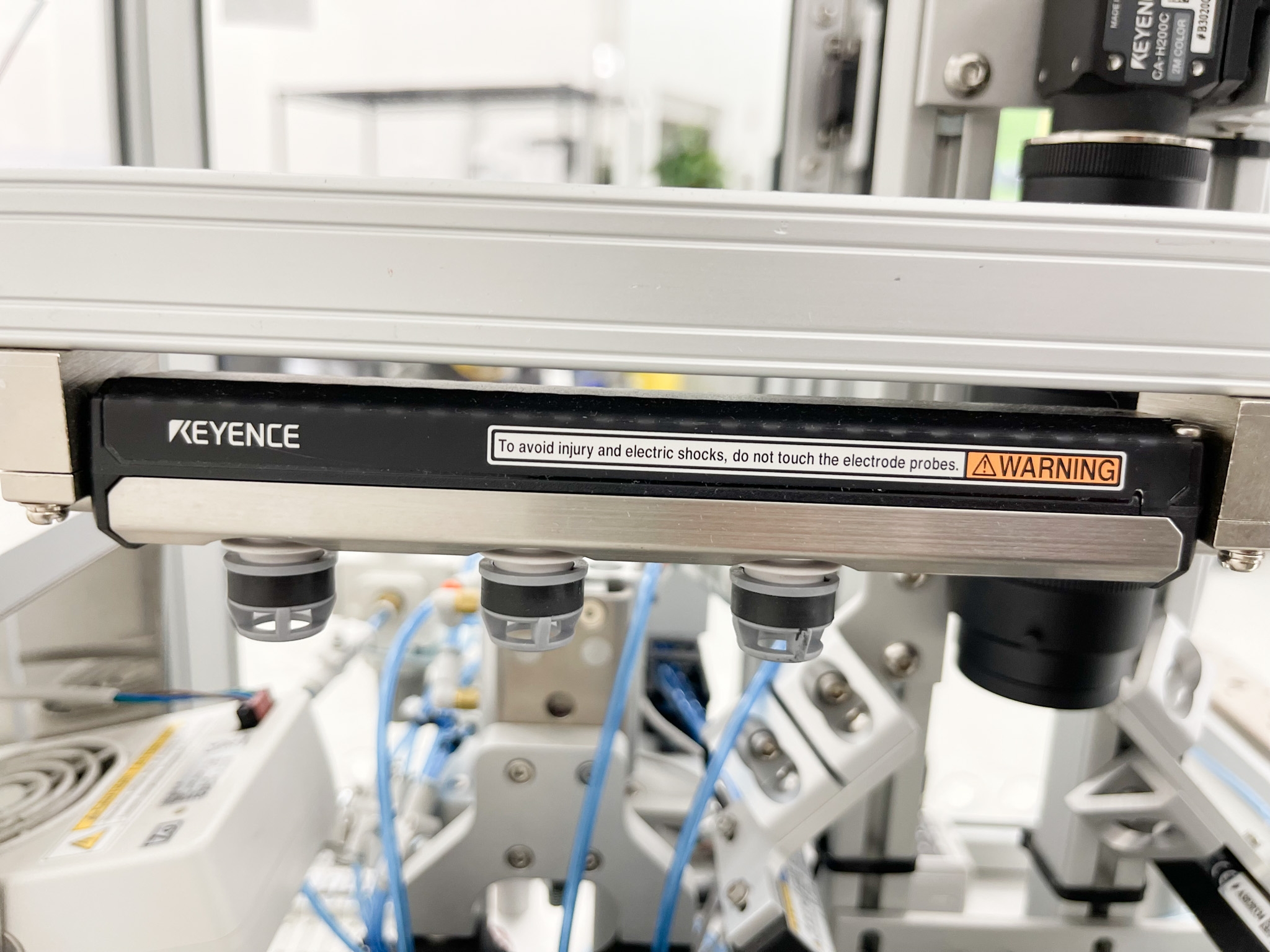

This Ridgeline Engineering Co. Custom Assembly, model 236-001 Rev 04, is a used Three Bead Pick and Place Line. Built in 2021, this unit is designed for manufacturing environments requiring precision placement of components. It includes a KEYENCE CA-H200C 2M color camera, a KEYENCE CV-X322F computer box, and a MISUMI category conveyor of type CVGTA-80-1300-6TA115-SCM-50-S-B. Also featuring a Manchester IL tank rated at MAWP200 PSI G650 F, and a Dell 24-inch computer screen providing clear visuals for operation control. This custom assembly line comes complete with a custom-built rack and power box with panel, ensuring the unit is standalone yet can be integrated with other systems if required. The equipment functions as intended, passing all functional checks with only minor cosmetic wear. This listing comprises essential features, excluding computer and software. Perfect for efficient component placement tasks.


Key Features
  • Custom assembly line for bead placement

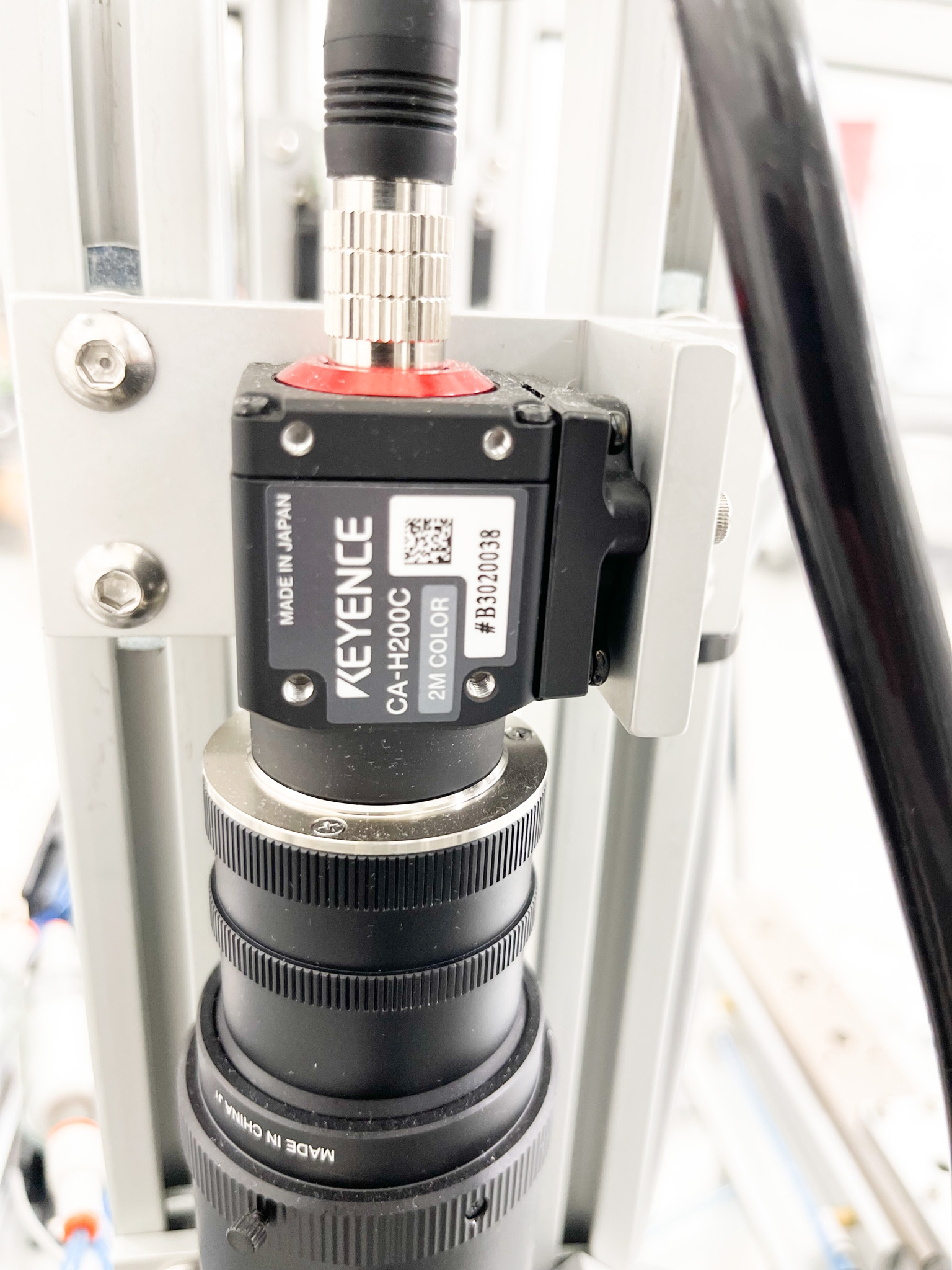

  • Incorporates KEYENCE CA-H200C 2M Camera

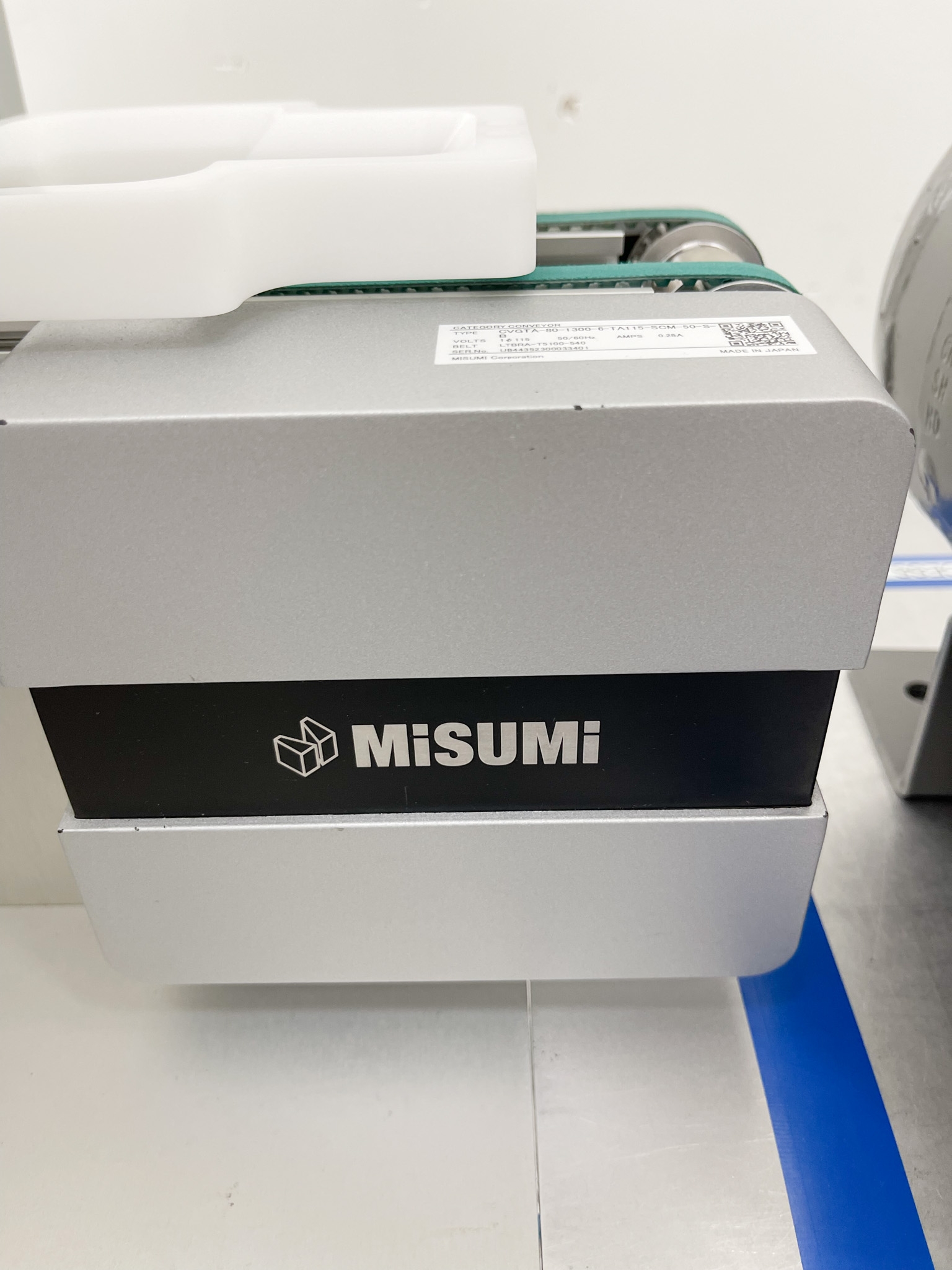

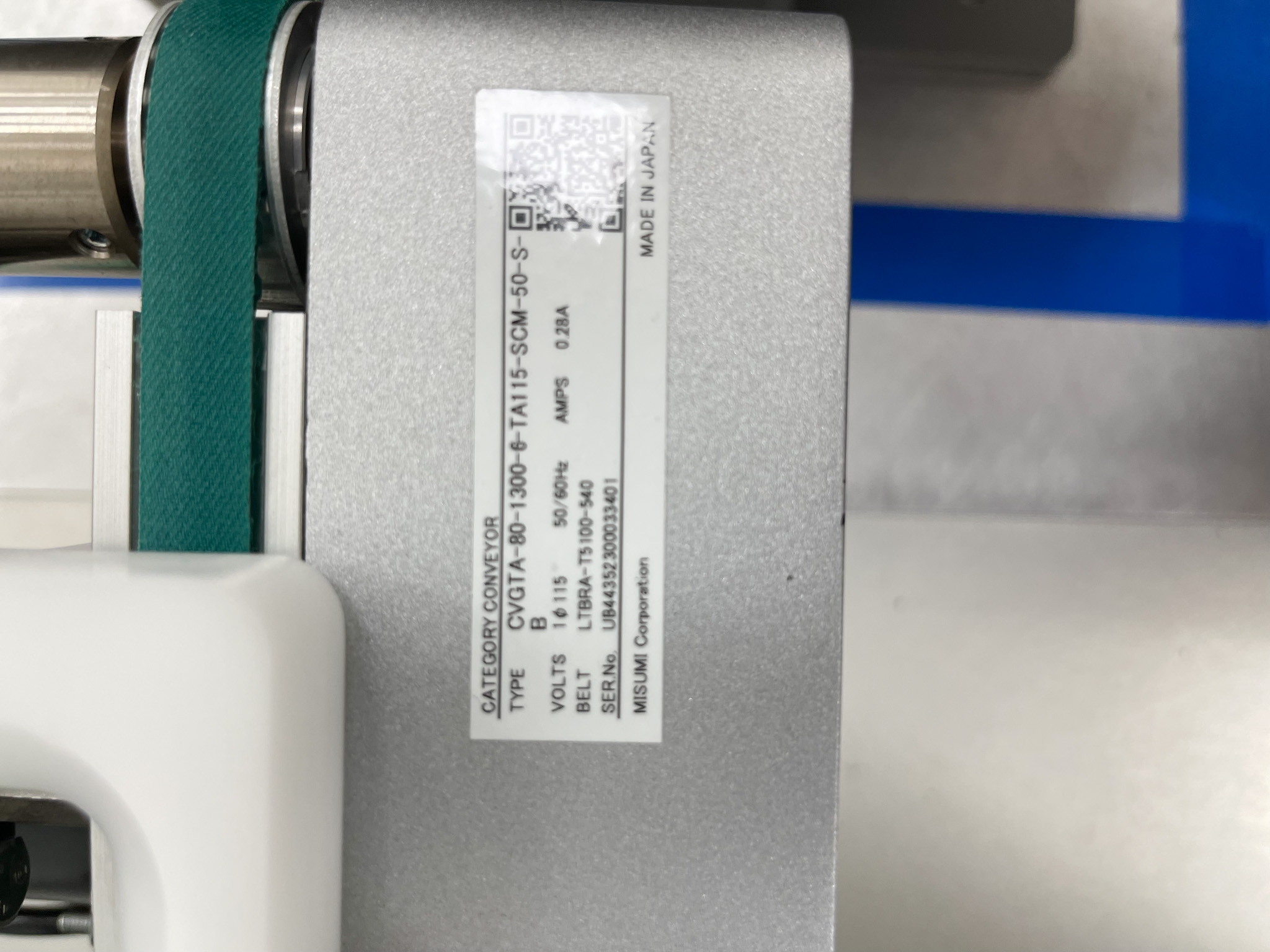

  • Includes MISUMI CVGTA-80-1300 Conveyor

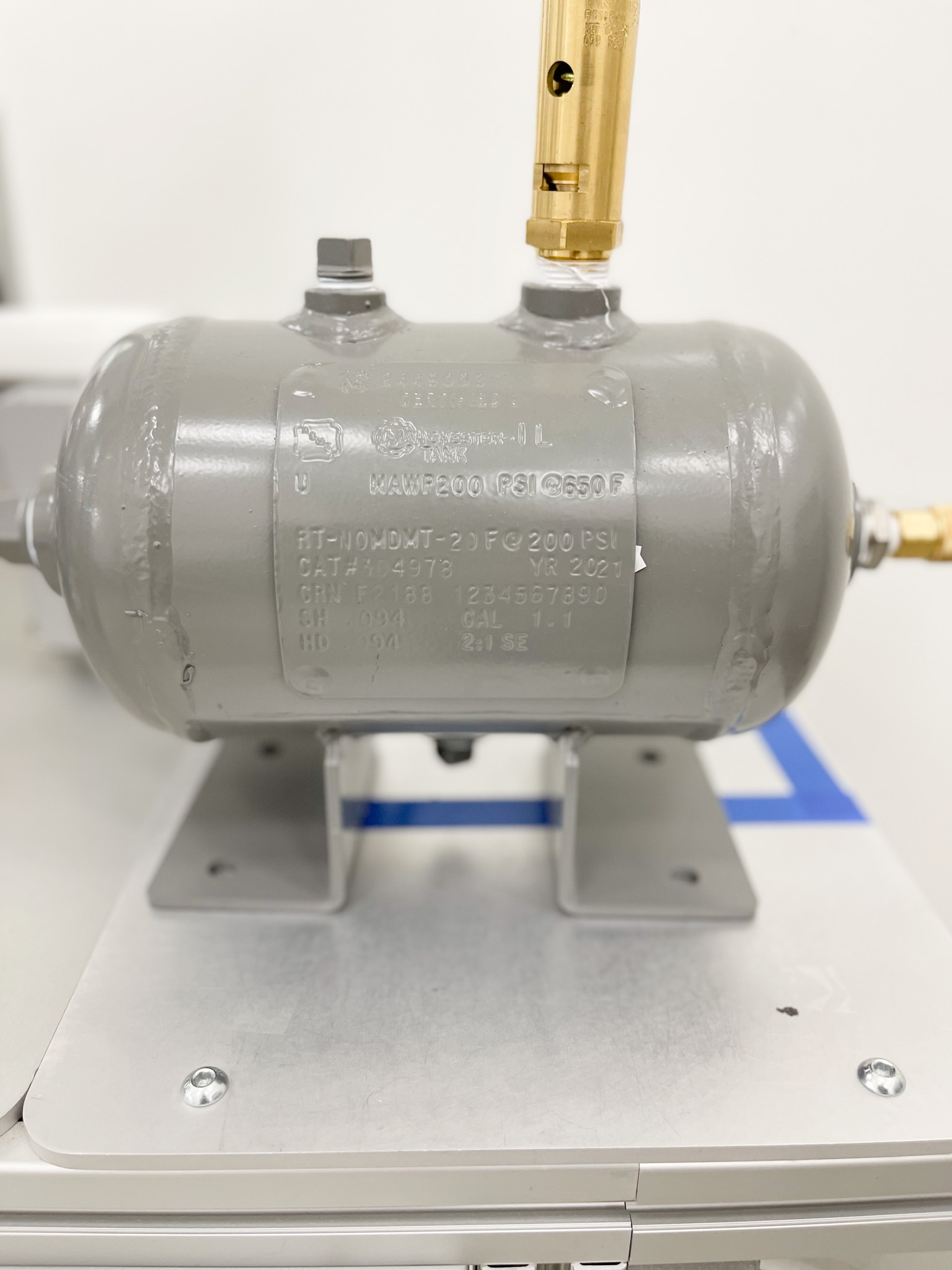

  • Fitted with Manchester IL 200 PSI Tank

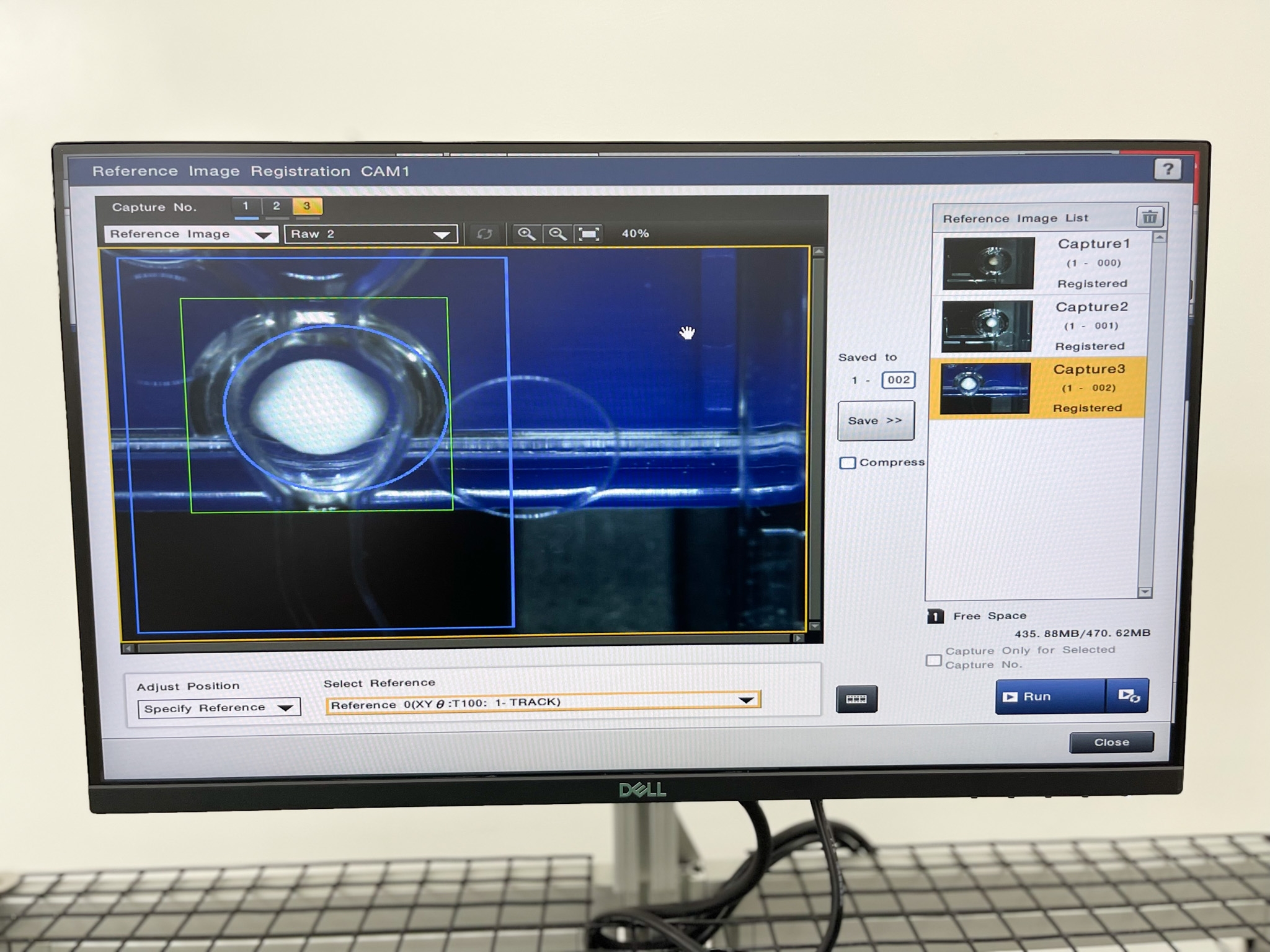

  • Supplied with a Dell 24-inch Monitor
  • Complete with Power Box and Panel

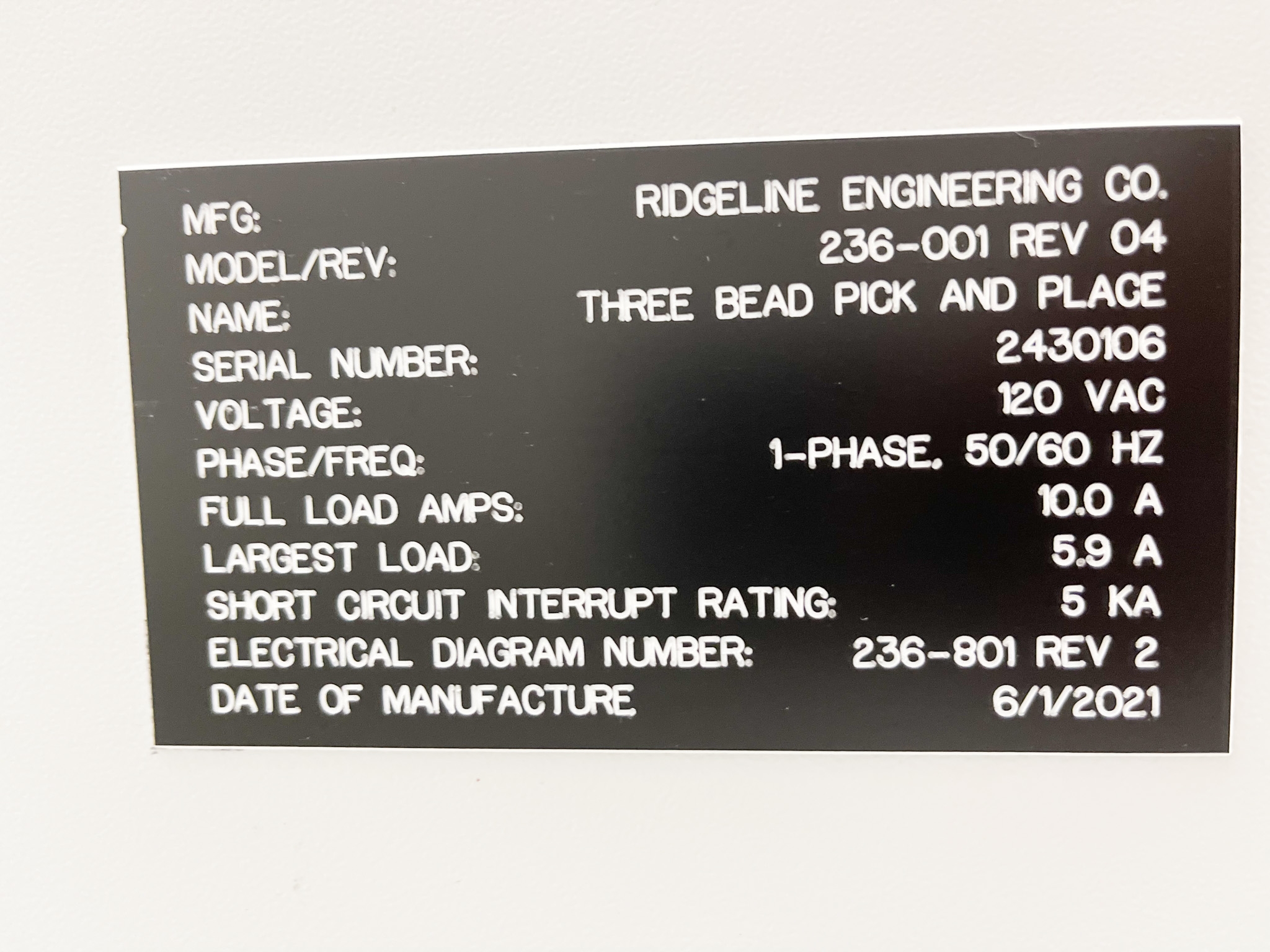

Specifications
  • Voltage: 120V
  • Frequency: 50Hz/60Hz
  • Manufacture Date: 2021
  • Model: 236-001 Rev 04
  • Includes 1 Power Cord
  • Brand/Manufacturer: Ridgeline Engineering
  • Actual Weight: 227 kg (500 lbs)
  • Actual Dimensions: 152.4 cm x 106.68 cm x 182.88 cm (60 in x 42 in x 72 in)

Weight

Imperial: 600.0 Pounds

Metric: 272.16 Kilograms


Shipping Dimensions

Imperial: 72.0 lb x 50.4 lb x 86.4 lb

Metric: 182.88 cm x 128.02 cm x 219.46 cm


Harmonized Code

842890


Harmonized Code Details

842890 - Lifting, handling, loading or unloading machinery (For assembly lines). This code is used because the product is a custom assembly line for manufacturing purposes, involving component placement and handling tasks.
