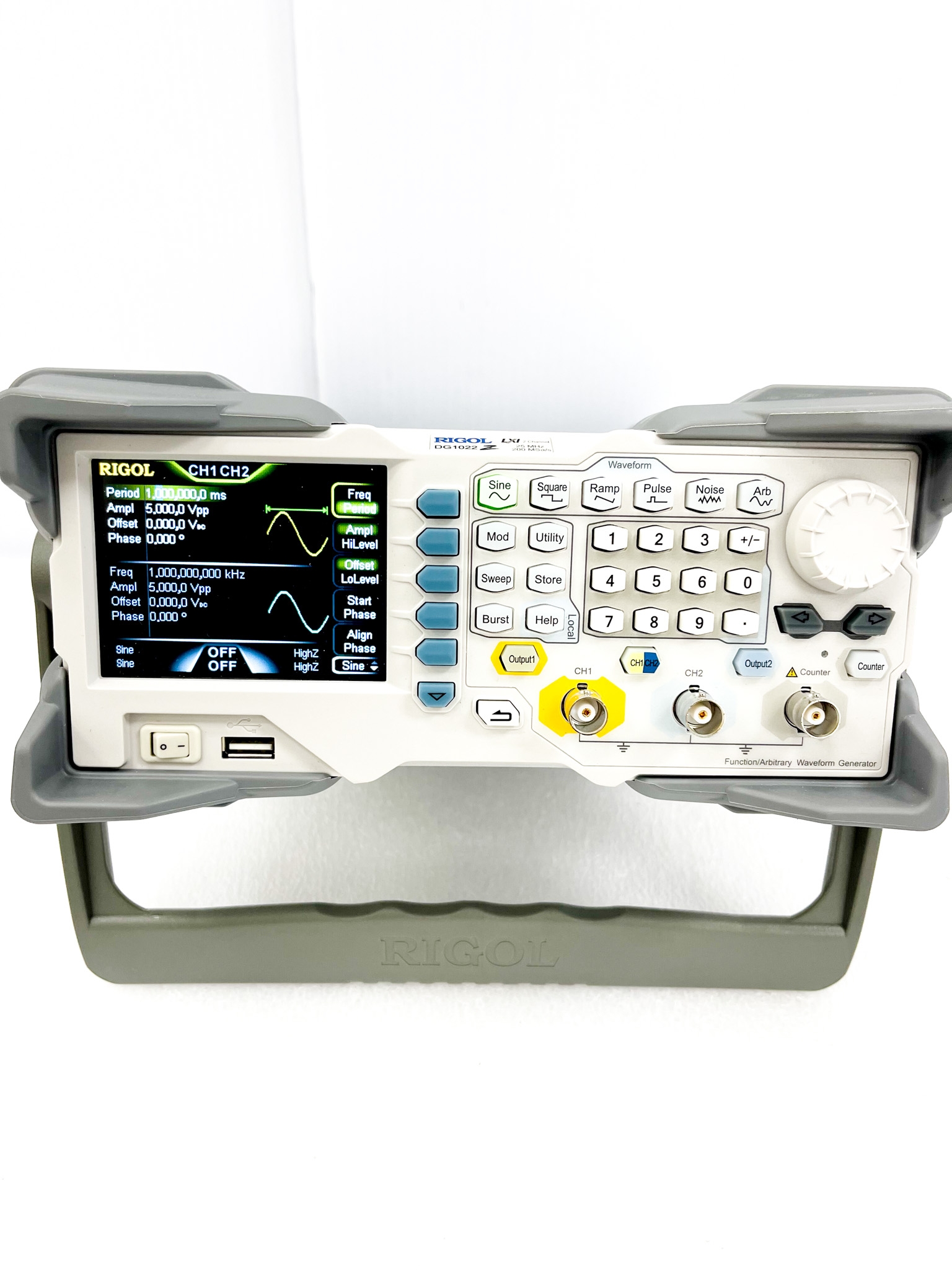

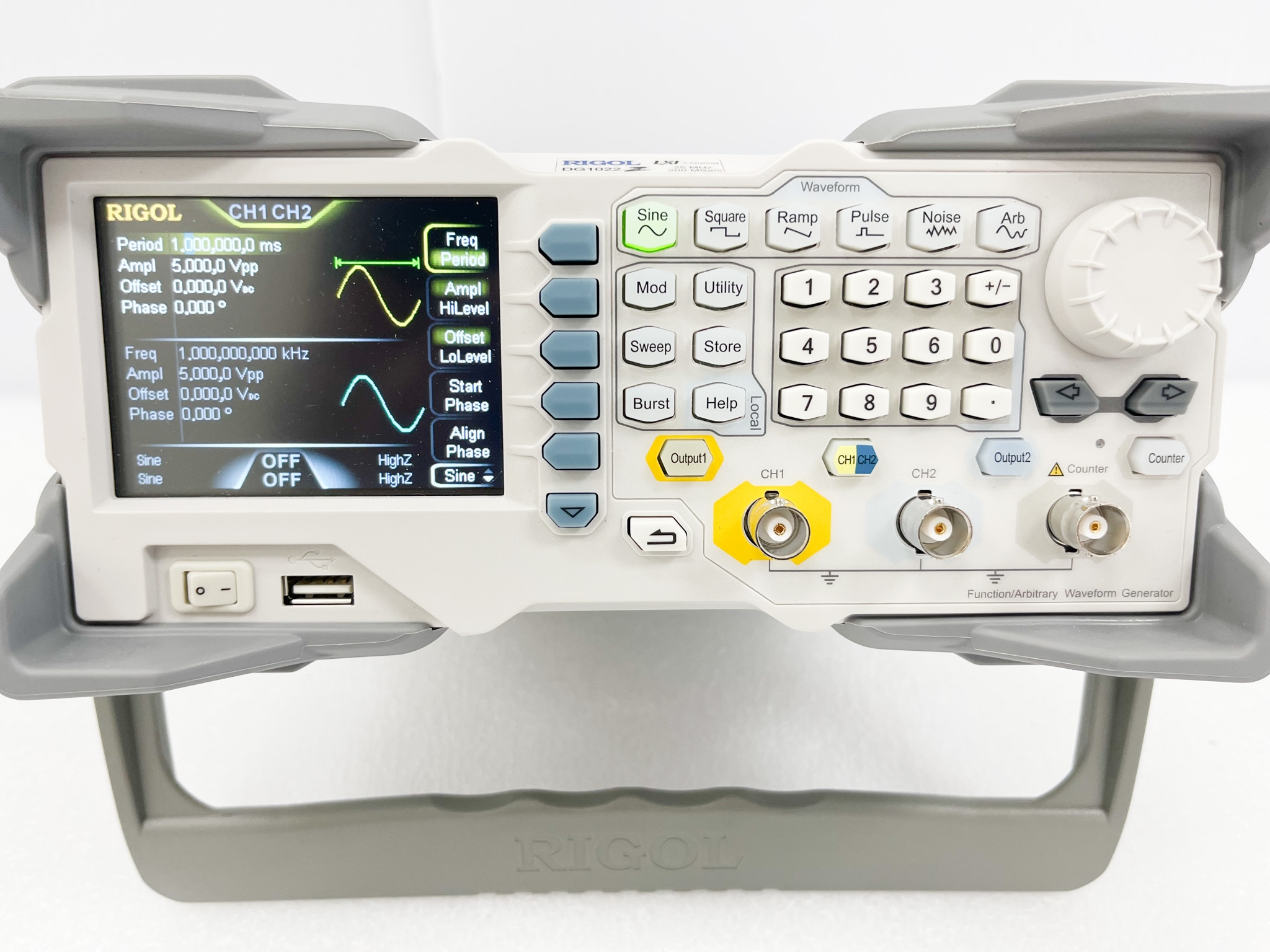

RIGOL DG1022Z 25MHz Function/Arbitrary Waveform Generator, SiFi, 2 Channels
RIGOL
Details
-
CategoryTesting Equipment
-
Dimension30.0in x 21.0in x 10.0in
-

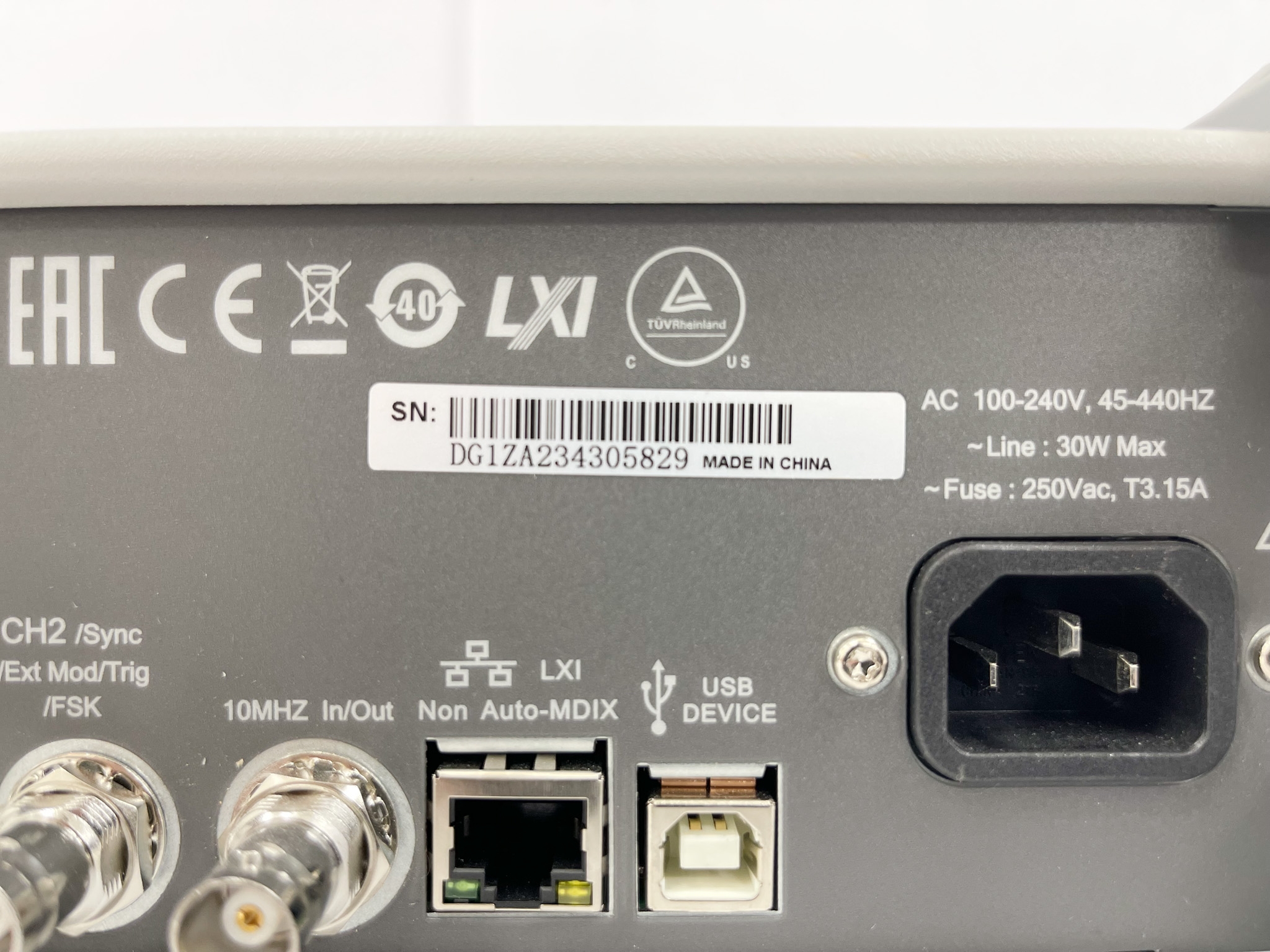

SerialDG1ZA234305829
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The RIGOL DG1022Z Function/Arbitrary Waveform Generator is a versatile, compact instrument perfect for education, R&D, production, and testing environments. Manufactured by RIGOL Technologies, this generator offers a multifunctional design, integrating capabilities such as Arbitrary Waveform, Noise, Pulse, and Harmonics Generation. Key features include Signal Fidelity (SiFi) for accurate waveform replication, and extensive arbitrary waveform memory length options. With dual, fully independent channels, 1ppm frequency stability, and low jitter performance, it's a reliable choice for precision signal analysis. Its built-in harmonics generator and counter reaching up to 200MHz enhance its functionality. Produced in China, this used generator remains fully operational despite minor cosmetic wear.
Key Features
- SiFi (Signal Fidelity) for accurate waveform replication
- 2Mpts (standard), 8Mpts (standard) or 16Mpts (optional) waveform memory
- Dual, independent channel functionality
- 1ppm frequency stability and -125dBc/Hz phase noise
- Built-in harmonics generator and counter up to 200MHz
- 160 pre-edited waveforms included
- Supports multiple modulation types: AM, FM, PM, ASK, FSK, PSK, PWM
Specifications
- Frequency Range: Up to 25MHz
- SiFi for 100% waveform replication
- Waveform Memory: Standard 2Mpts, optional 8Mpts/16Mpts per channel
- Phase Noise: -125dBc/Hz
- Frequency Stability: 1ppm
- Jitter: 200ps low jitter performance
- Harmonics Generator: 8 orders built-in
- Counter: 7 digits/s, up to 200MHz
- 160 Built-in waveforms
- Full modulation support: AM, FM, PM, ASK, FSK, PSK, PWM
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 25.2 lb x 12.0 lb
Metric: 91.44 cm x 64.01 cm x 30.48 cm
Harmonized Code
9030.39.00
Harmonized Code Details
Harmonized Code 9030.39.00 refers to 'Oscilloscopes and spectrum analyzers, other than optical instruments'. This code suits the DG1022Z due to its primary functionalities in waveform and signal analysis.
