Huber Unichiller 180Tw-H18 with Pilot ONE

Product Information

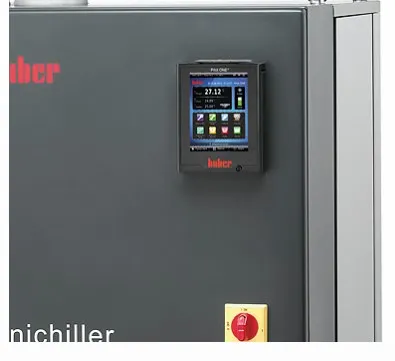

The Huber Unichiller 180TW-H18 is a water-cooled circulator with a Pilot ONE controller. This unit is pre-owned and in very good condition, offering a 30-day warranty. It requires a 3 Phase power supply of 460V 3~ 60Hz. The water-cooled refrigerating unit and circulation pump are made of stainless steel and designed for externally closed applications. The Pilot ONE controller features a brilliant 5.7" TFT touchscreen display, USB and network connections, and extensive language support. Expansion functions include TAC (True Adaptive Control) and a programmer with up to 10 programs, making it a versatile and efficient addition to any laboratory. The range of functions ensures precise temperature control, making it ideal for a wide range of applications in the life science industry. Contact us for more information about this top-quality, pre-owned equipment.

• Water-cooled refrigerating unit and circulation pump

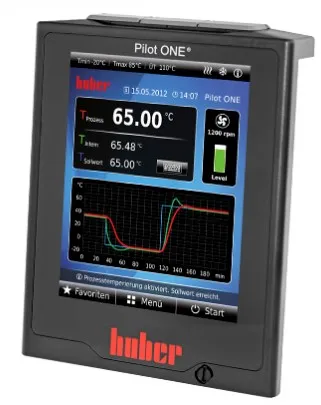

• Pilot ONE controller with 5.7" TFT touchscreen
• USB and network connections
• Language support in 13 languages
• Self-optimizing internal and cascade control
• Extensive programming capabilities

• Operating Temperature Range: -20 to 40°C
• Temperature Stability at -10°C: 0.5K
• Cooling Power: 6 to 18 kW
• Refrigerant: R449A (A1, H280) - 2.6kg
• Circulation Pump: D3, max delivery 210 l/min
• Cooling Water Connection: G3/4 male
• Overall Dimensions: 760x800x1615 mm
• Power Supply: 460V 3~ 60Hz, IP20

Metric: 1100 kg
Imperial: 2425 lb

Metric: 76 cm x 80 cm x 161.5 cm
Imperial: 29.92 in x 31.5 in x 63.58 in

8418690055

8418690055: Refrigerating or freezing equipment; heat pumps, other than air conditioning machines of heading 8415
