Huber Unichiller 180Tw-H18 Laboratory Chiller with Pilot ONE Controller
Huber
Details
-
CategoryChiller / Heater
-
Dimension18.11in x 15.75in x 29.13in
-
SerialS404292
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber Unichiller 180Tw-H18, pre-owned but in very good condition, offers efficient cooling solutions for laboratory applications. Originating from Germany, this system features a water-cooled refrigerating unit and a circulation pump made from stainless steel. It operates effectively with an atmospheric open expansion tank and a copper soldered evaporator, also crafted from stainless steel. The unit includes the advanced Pilot ONE controller, providing a user-friendly interface with a 5.7 TFT touchscreen display. It supports Ethernet and USB connections and is compatible with Spy software for remote control. The system is designed for externally closed applications and boasts a versatile operating temperature range from -20°C to 40°C. Cooling power varies from 18 kW at 15°C to 6 kW at -20°C. This reliable chiller is a turnkey solution for maintaining precise temperature stability in laboratory processes.
Key Features
- Water-cooled refrigerating unit
- Stainless steel circulation pump
- Digital level indicator

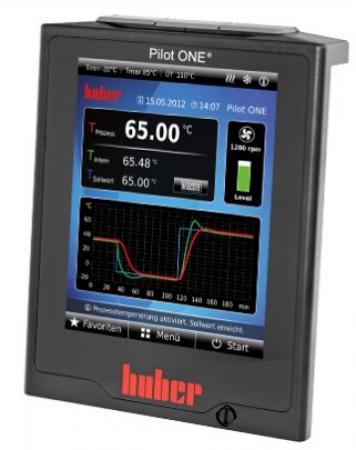

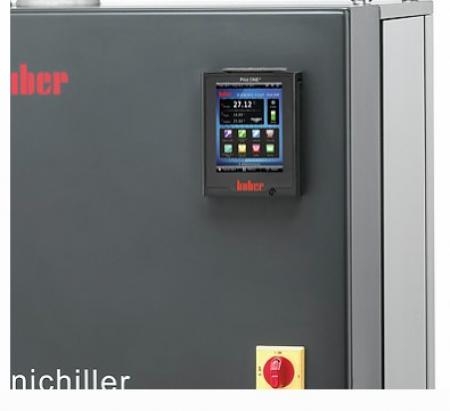

- Pilot ONE controller with 5.7 TFT touchscreen
- Temperature range: -20°C to 40°C
- Cooling power: 18 kW to 6 kW
- Ethernet and USB connectivity
- For externally closed applications
Specifications
- Operating temperature range: -20°C to 40°C
- Temperature stability: 0.5 K at -10°C
- Cooling power: 18 kW at 15°C, 18 kW at 0°C, 13 kW at -10°C, 6 kW at -20°C
- Water-cooled, CFC- and HCFC-free refrigerant
- Refrigerant type: R449A, 2.6 kg
- Max. delivery pressure: 4.7 bar
- Pump connection: G1 1/4 male
- Cooling water connection: G3/4 male
- Voltage: 415V, Frequency: 50Hz
- Power supply: 3 Phase 460V 3~ 60Hz
- Dimensions: 760x800x1615 mm
Weight
Imperial: 2645.54 Pounds
Metric: 1200.0 Kilograms
Shipping Dimensions
Imperial: 21.73 lb x 18.9 lb x 34.96 lb
Metric: 55.19 cm x 48.01 cm x 88.8 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigeration equipment: covers chillers, suitable for laboratory and industrial cooling applications. This code is appropriate due to the product's function as a laboratory chiller system.
