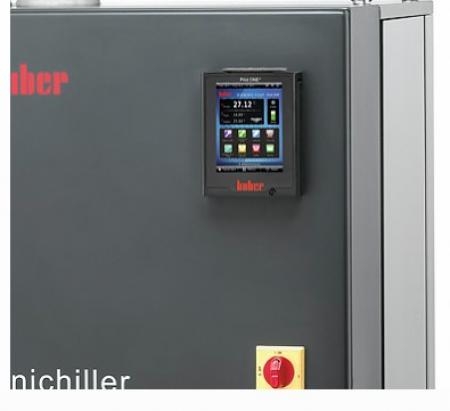

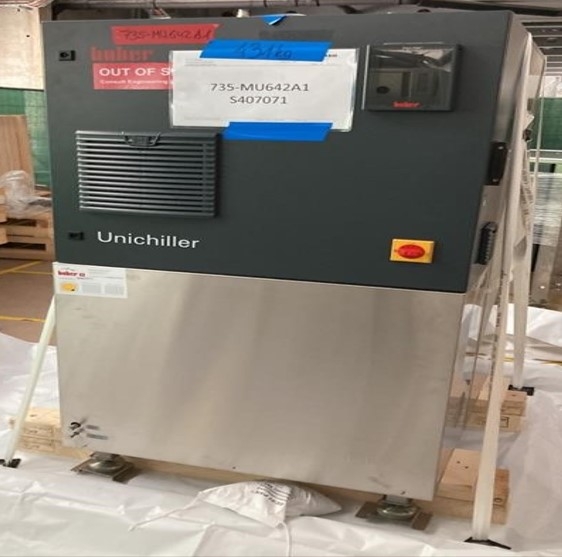

Huber Unichiller 180Tw-H18 Chiller with Pilot ONE, -20...40C, Used
Huber
Details
-
CategoryChiller / Heater
-
Dimension18.11in x 15.75in x 29.13in
-
SerialS407071
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber Unichiller 180Tw-H18, manufactured in Germany, is a robust and reliable chiller designed for laboratory and industrial applications. This used system is in very good condition, having passed all functional tests and featuring minor cosmetic imperfections. It is equipped with a water-cooled refrigerating unit and a stainless steel circulation pump, suitable for externally closed applications. The Unichiller includes the advanced Pilot ONE controller, which offers a 5.7-inch TFT touchscreen, USB and network connections, and multilingual support. It provides a cooling power of 18 kW at various temperature settings, with a range of -20 to 40°C. The unit operates on a 460V 3 Phase power supply and is built to ensure optimal performance with features like a digital level indicator, adaptive control, and data transmission capabilities. Power cord included. Ideal for precise temperature control in scientific and industrial settings.
Key Features
- Used chiller in very good condition
- Temperature range: -20 to 40°C
- 18 kW cooling power

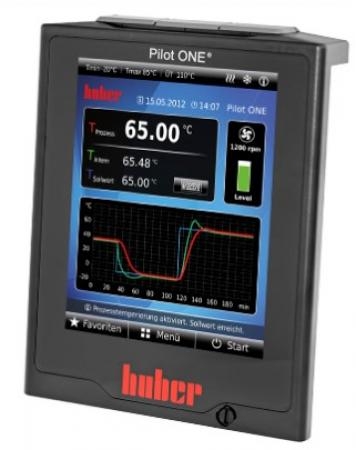

- Pilot ONE controller with 5.7-inch TFT touchscreen
- Water-cooled refrigerating unit with stainless steel pump
- USB and Ethernet connectivity
- Operates on 460V 3 Phase power supply
Specifications
- Operating temperature range: -20 to 40°C
- Cooling power: 18 kW at 15°C, 18 kW at 0°C, 13 kW at -10°C, 6 kW at -20°C
- Refrigerant: R449A, CFC and HCFC-free
- Temperature stability at -10°C: 0.5 K
- Circulation pump max delivery: 210 l/min, max pressure: 4.7 bar
- Dimensions (WxDxH): 760x800x1615 mm
- Sound pressure level: 59 dB(A)
- Power supply: 460V 3 Phase, 50Hz
- Degree of Protection IP20
Weight
Imperial: 2645.54 Pounds
Metric: 1200.0 Kilograms
Shipping Dimensions
Imperial: 21.73 lb x 18.9 lb x 34.96 lb
Metric: 55.19 cm x 48.01 cm x 88.8 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment; other, n.e.s. This code is used as the equipment is a specialized chiller, fitting the category of other refrigerating equipment.
